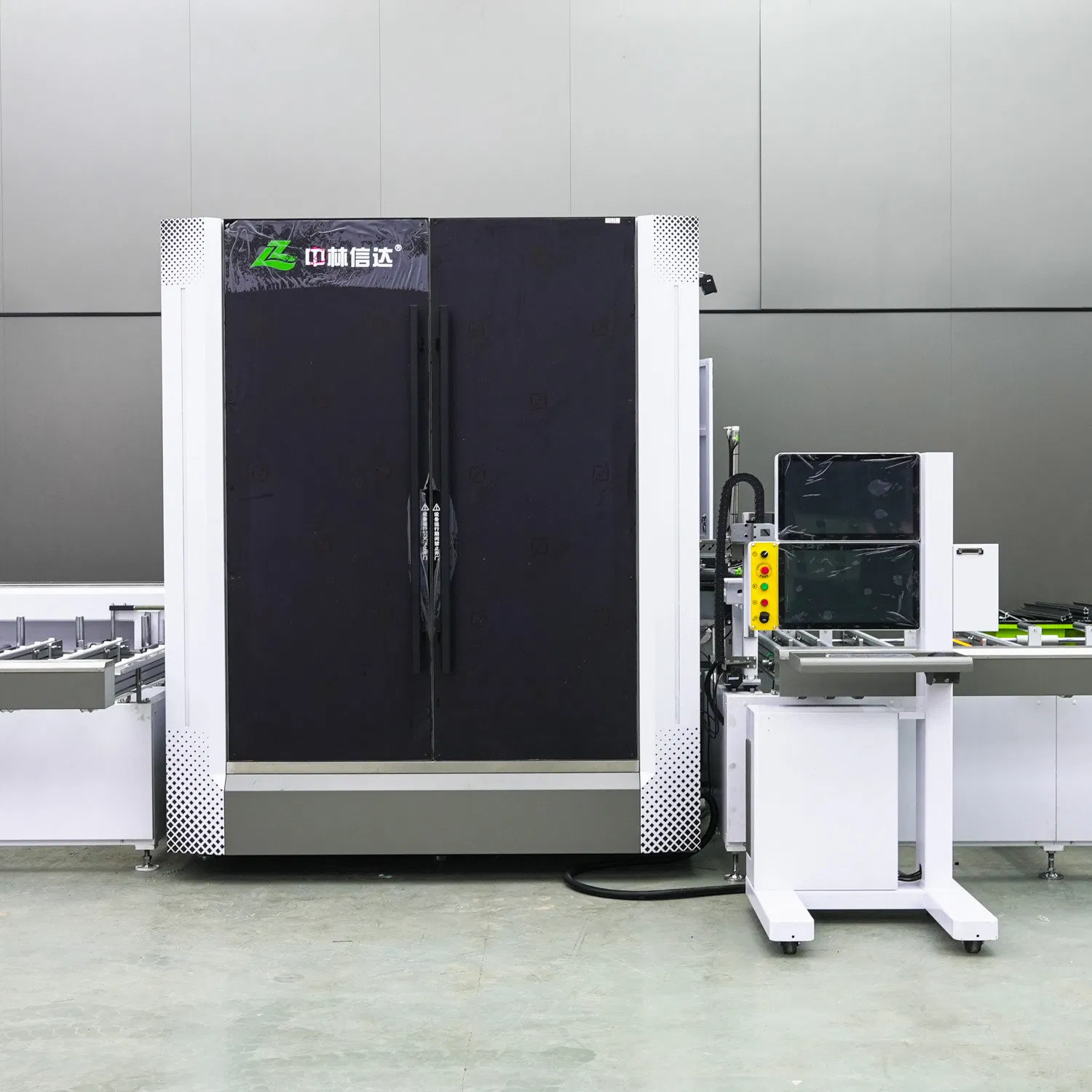

Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing
Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing
Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing
Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing
Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing
1 / 5
Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing
Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing
Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing
Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing
Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing

Innovative Cutting Drilling Milling Center for Aluminum and PVC Processing

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Specifications & Basic Information
ModelG20Automatic GradeAutomatic
CertificationISO, CECNC or NotCNC
Voltage380VEquipment TypeAluminum Profile Cutting Drilling Milling Centre
Industry ApplicationWindow, Door, and Curtain Wall Processing
Processable MaterialsAluminum Alloy, Thermal Break Aluminum, PVC, etc.
CapabilitiesCorner Code Holes, Glue Injection Holes, etc.
Cutting Accuracy± 0.1mmSurface Squareness≤0.05mm
Power Supply380V/50Hz 3-PhaseGas Consumption180L/Min
Saw Motor Power4kw*3Spindle Power6kw*6
Saw Blade Angle45° / 90° / 45°
Product Description
CNC Machining Center Overview

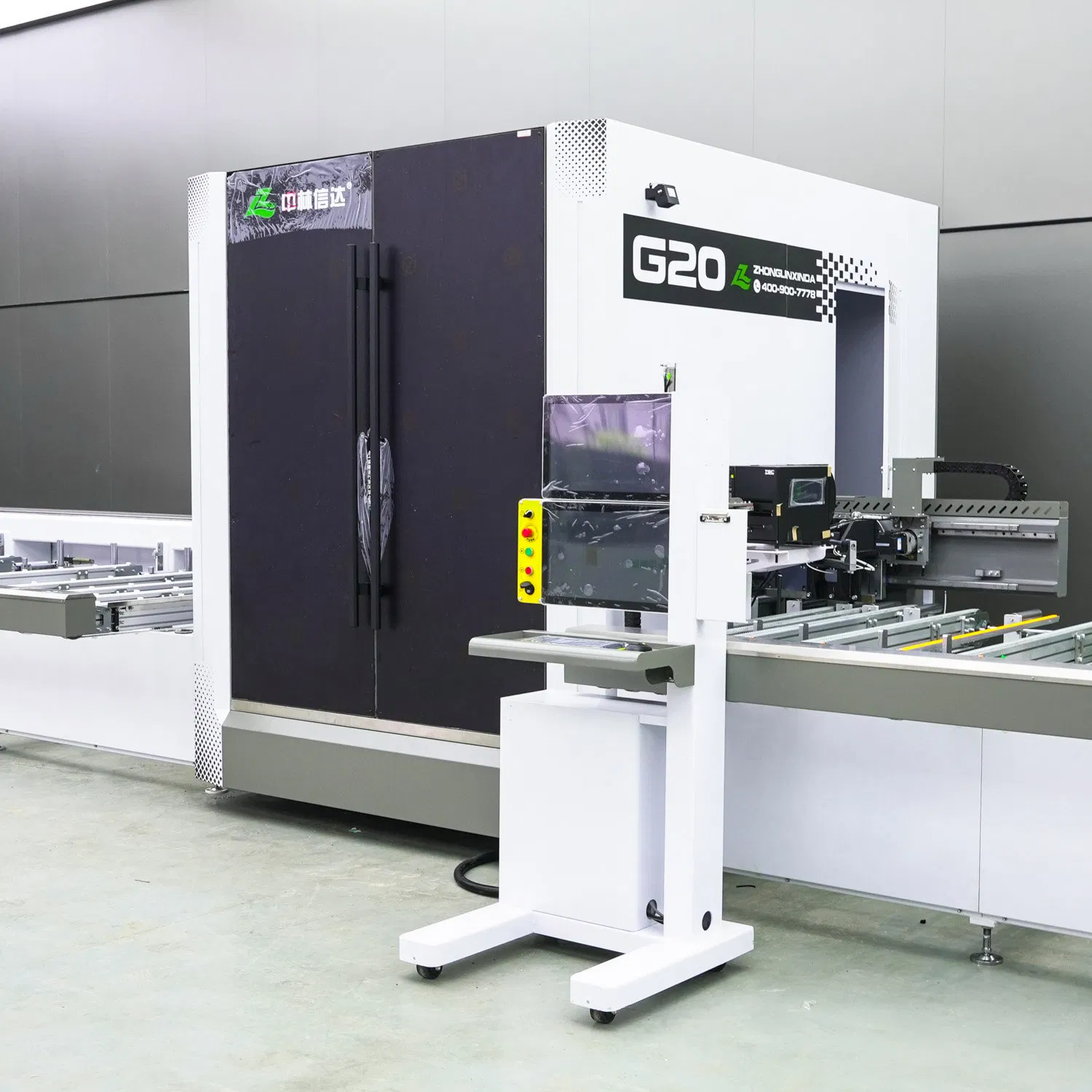

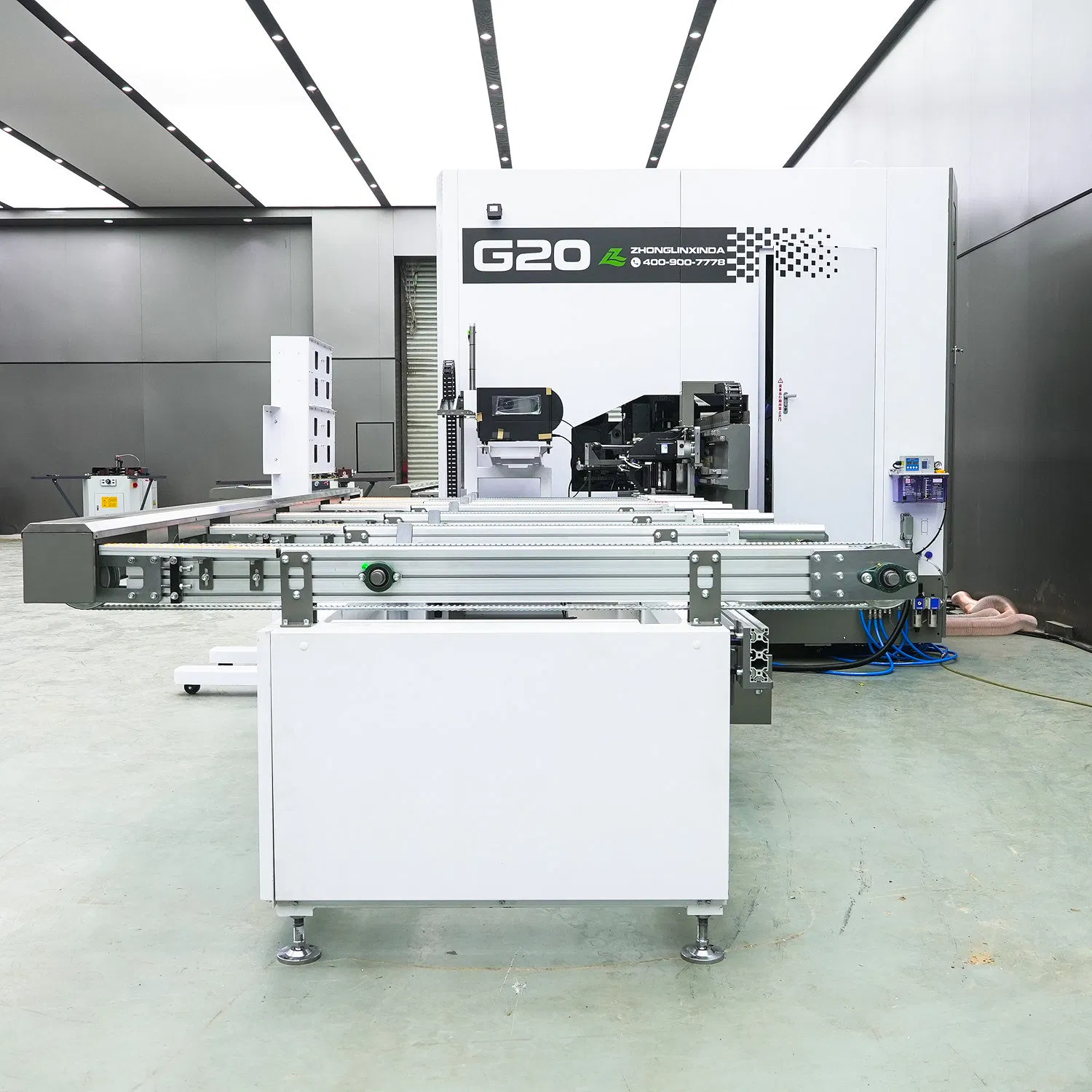

G20 CNC Machining Center

A 20-axis servo-controlled system designed for high-precision 90° and 45° cutting, drilling, and milling of aluminum and PVC profiles. This workstation handles lock boxes, drainage, and corner holes in a single clamping process with ±0.1mm accuracy.

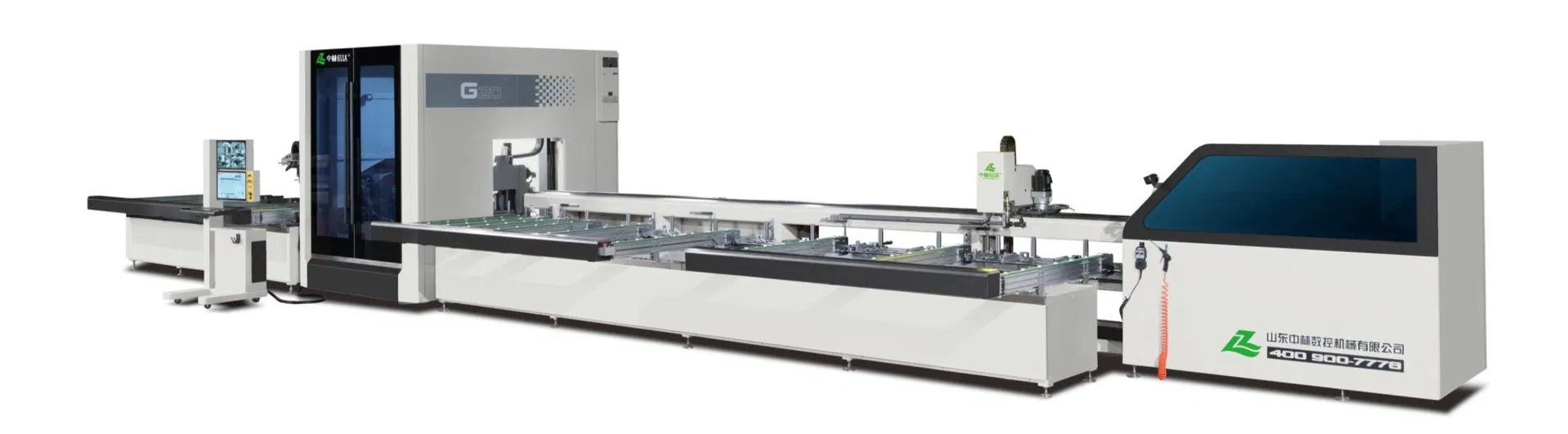

CNC Processing Unit
Core Technical Features
1
Integrated Workflow: Raw materials are transported by intelligent robots for one-time clamping, covering glue injection, corner code, drainage, and milling.
2
High Efficiency: 4KW direct-drive motor for saw blades boosts efficiency by 30%, making it easy to cut thick insulation profiles.
3
Foolproof Operation: No skilled labor required. The system features auto-data identity and smart parameter adjustments via ERP/USB connection.

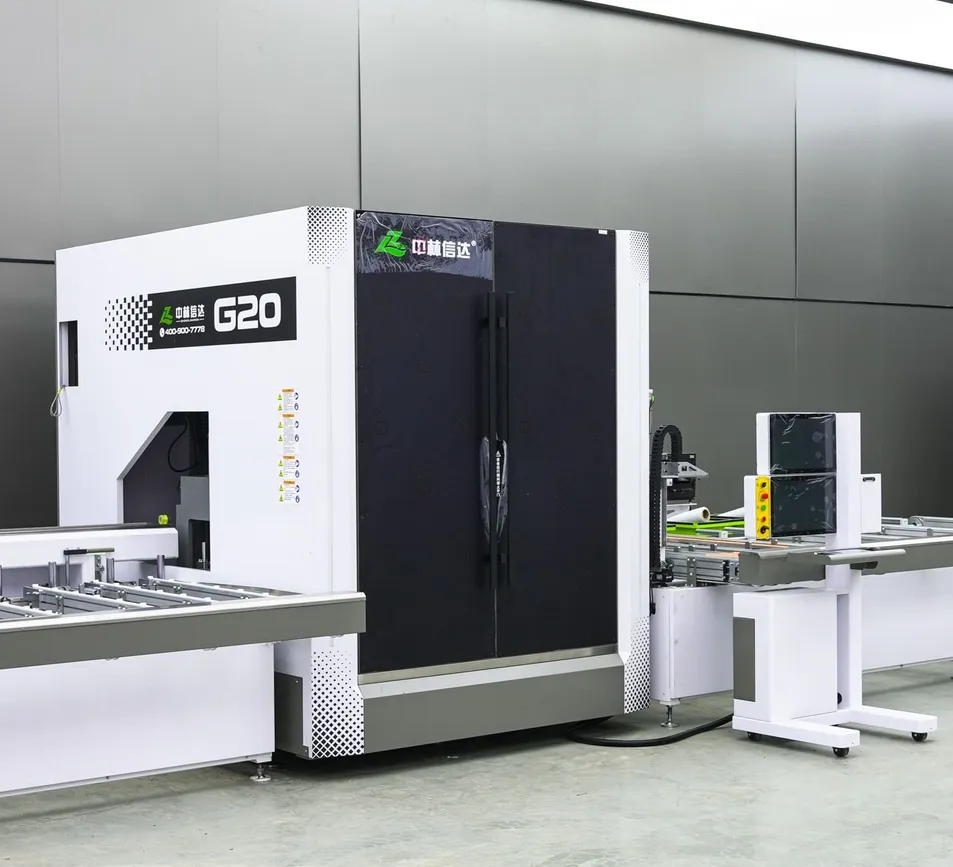

Servo System
Milling Spindle

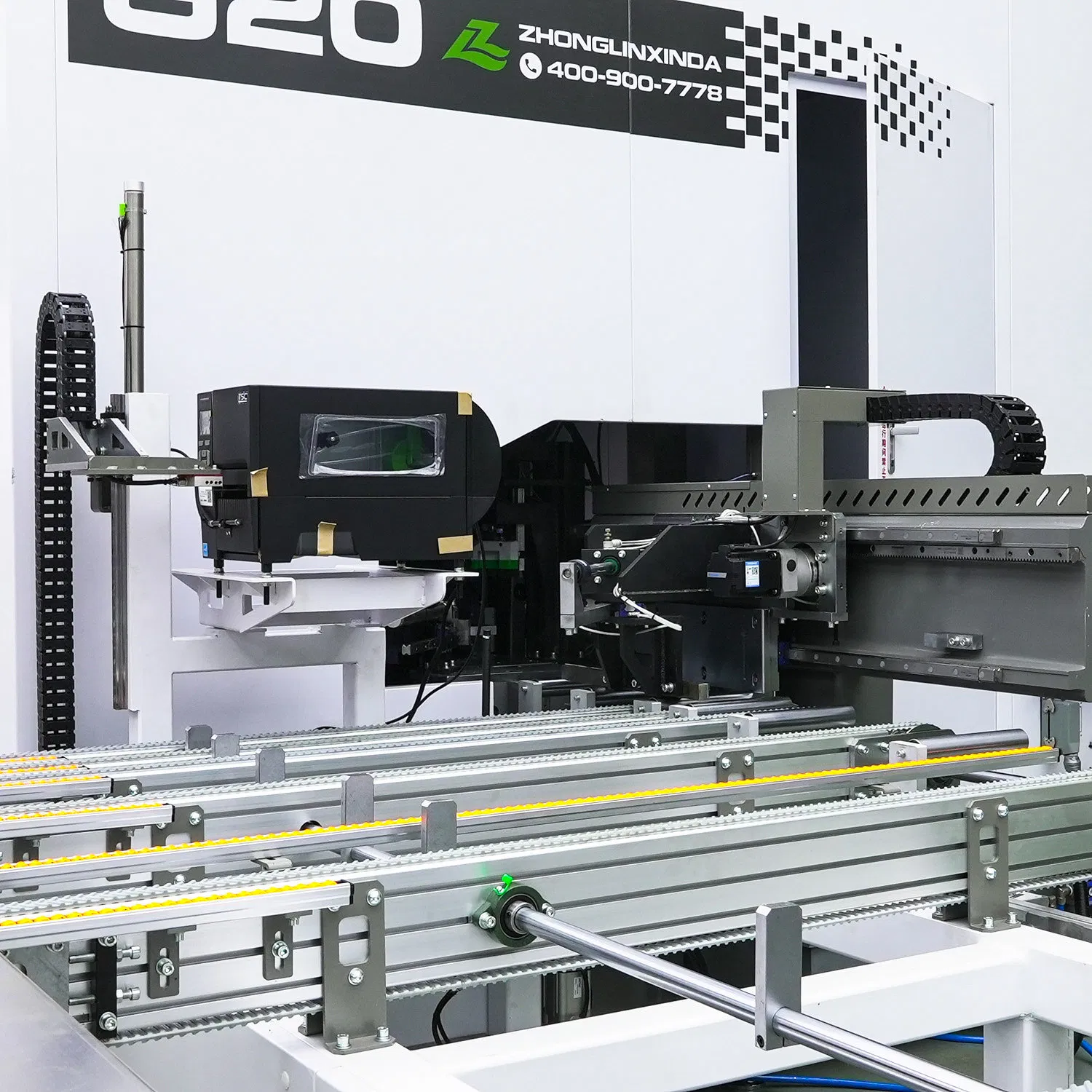

Feeding System

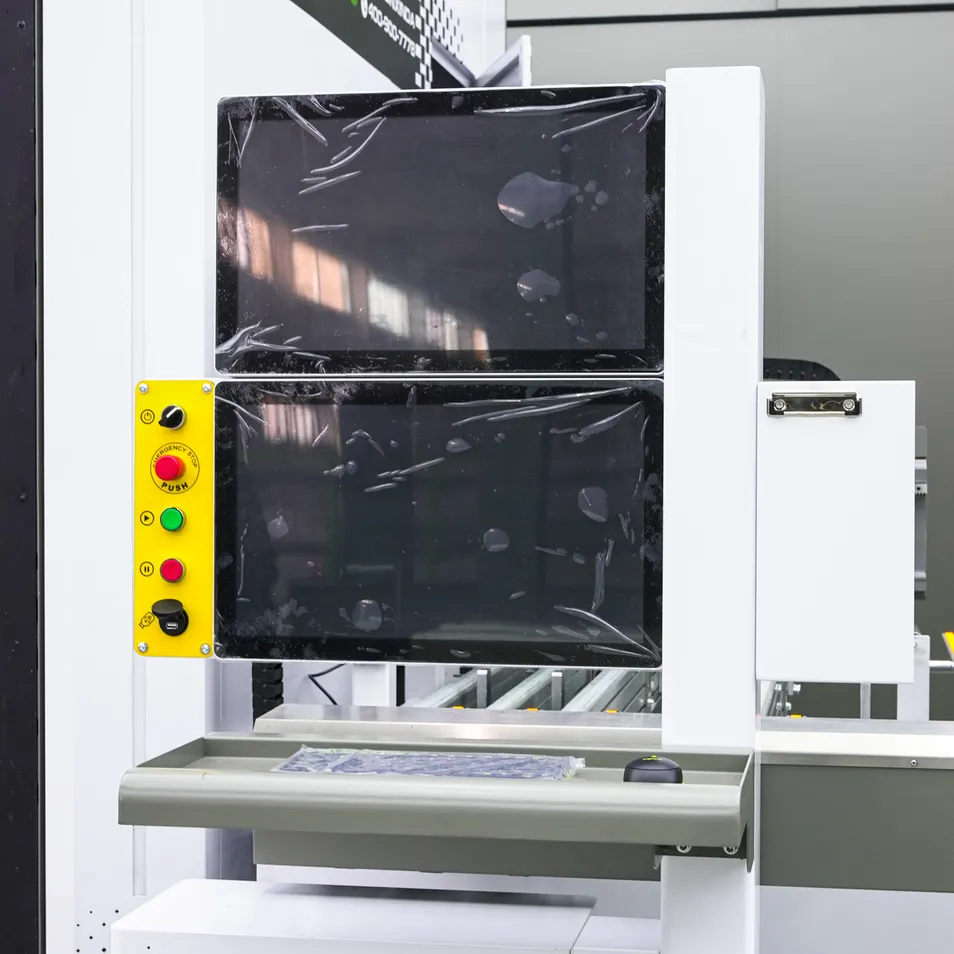

Control Interface
Factory & Application Scenarios
Factory Workshop
Processing Accuracy
Application Scenarios
Packaging & Shipping
Secure Packaging
Global Delivery
Frequently Asked Questions
Q: Can this equipment handle both aluminum window frames and curtain wall profiles? A: Yes. The intelligent workstations provide versatile solutions for door/window and industrial aluminum equipment. The G20 handles full processes, while specialized saws can cut curtain wall profiles from 45° to 135°.
Q: Is the machine complex to operate for new workers? A: No. We utilize a "fool-proof" control system with automatic data identification. This minimizes the need for complex programming and highly skilled labor.
Q: How is the processing accuracy and stability guaranteed? A: Accuracy is achieved through high-end components (HIWIN, Schneider) and casting structures. Specifications include ±0.02mm repeat positioning and ±0.1mm cutting accuracy.
Q: What kind of after-sales support is provided for international clients? A: We offer 24-hour online support, remote troubleshooting, and a comprehensive warranty. Regular maintenance guidance and quick parts deployment ensure minimal downtime.
Q: How does this equipment help in reducing production costs? A: Efficiency is improved through multi-spindle CNC systems (up to 3x faster), while automated features reduce material waste and labor reliance. ERP integration also optimizes inventory management.
Q: What are the requirements for the working environment? A: The equipment operates reliably in ambient temperatures ranging from -5°C to 60°C, requiring a standard 380V power supply and compressed air at 180L/min.
