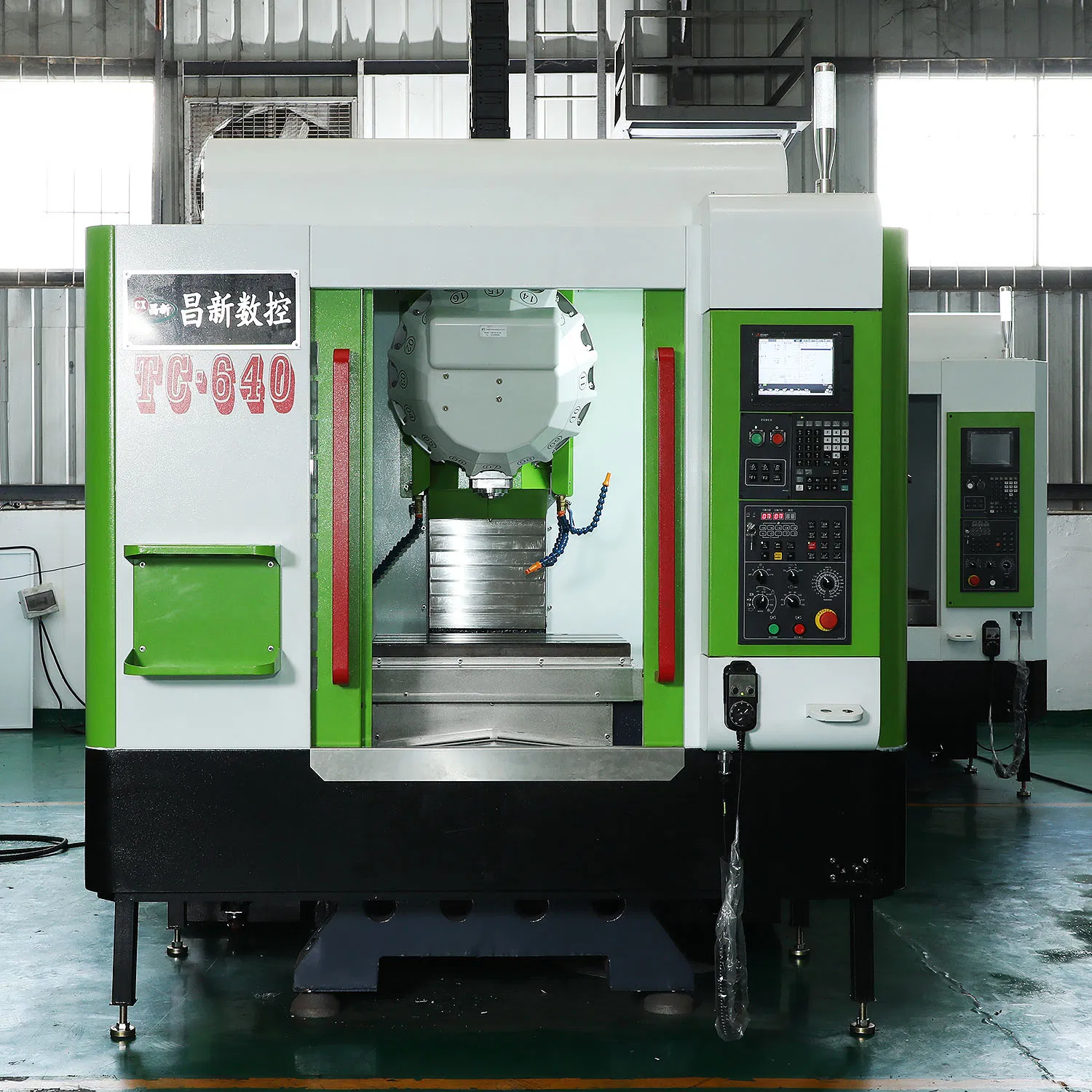

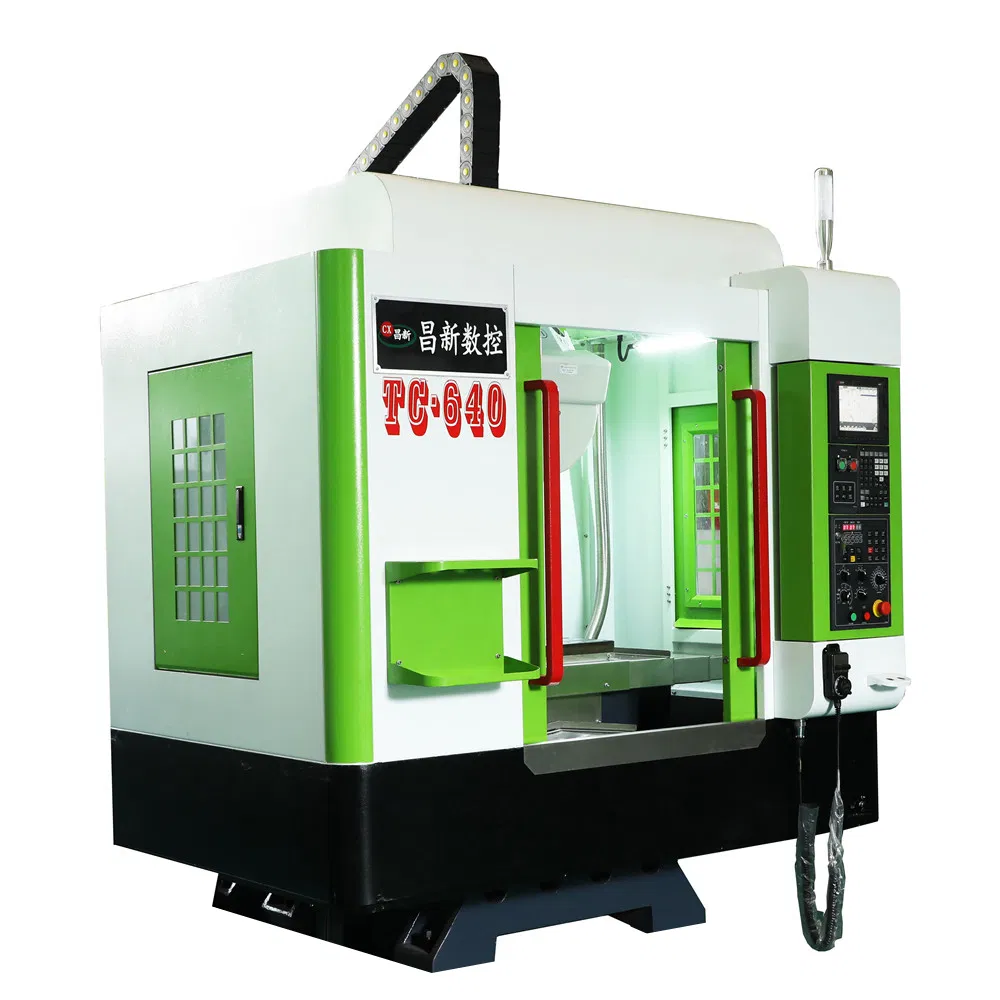

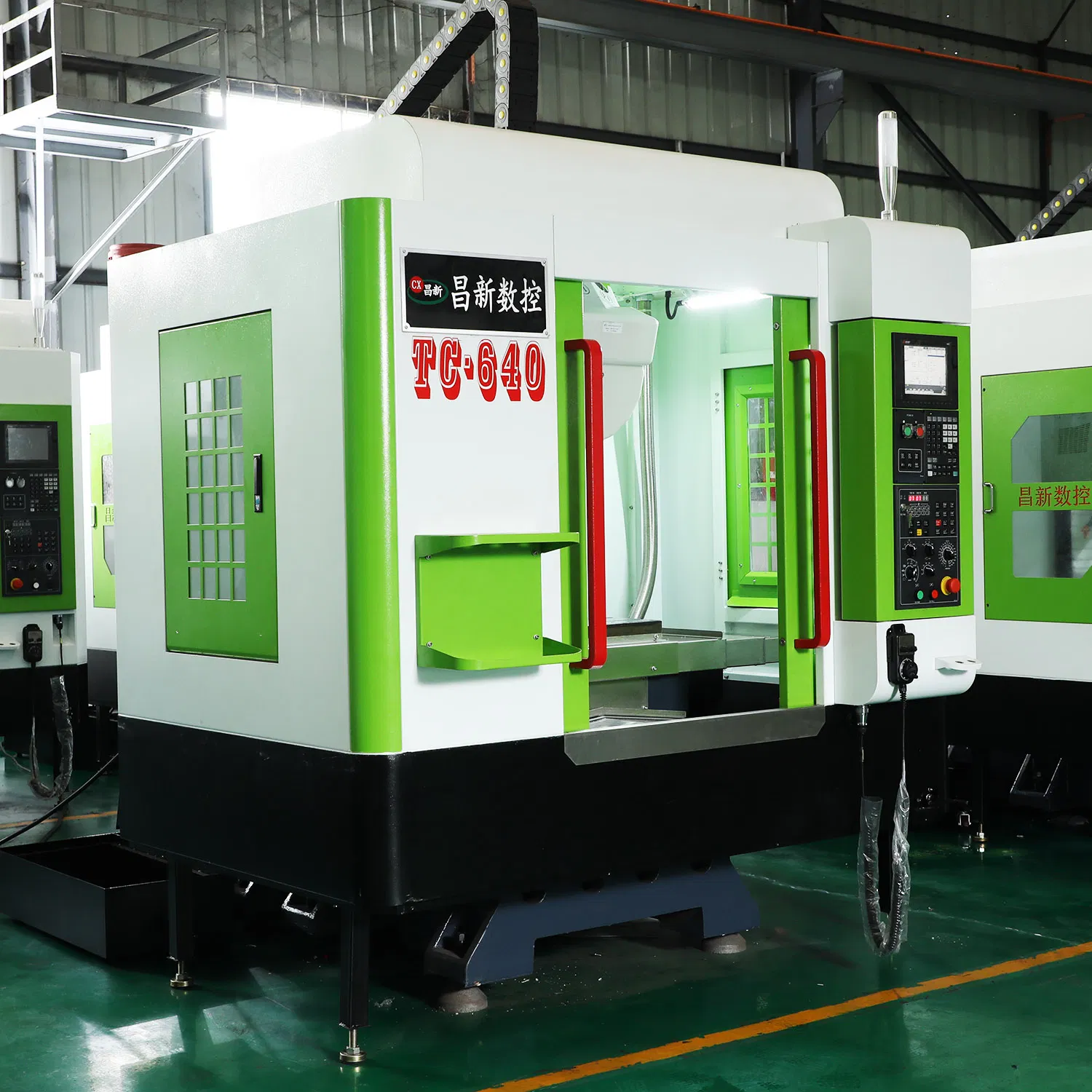

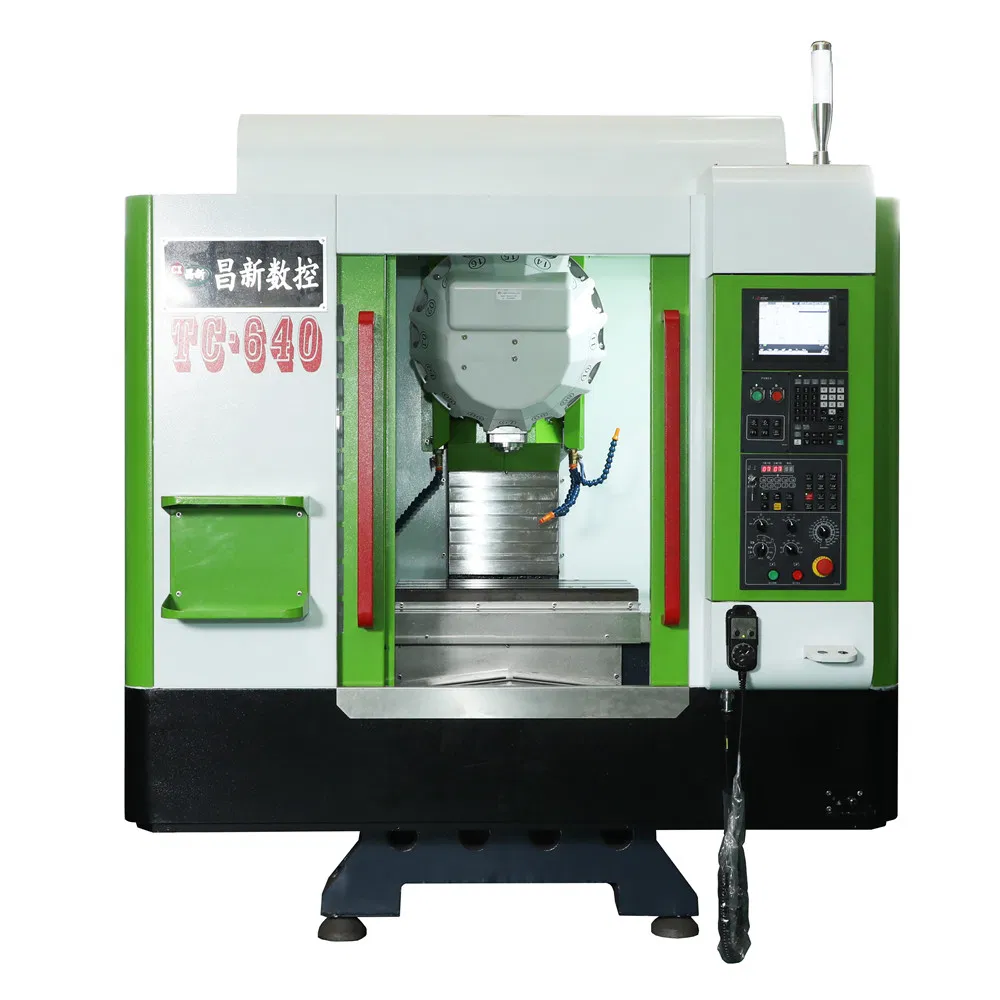

Small VMC CNC Drilling Tapping Milling Machine Automatic for Metal (TC-640)
The TC-640 vertical drilling and tapping center is a high-speed machine tool specially launched for the parts processing industry. It meets high-speed drilling, tapping, and milling requirements, particularly for IT and automotive parts. The machine features good rigidity, a symmetrical structure, fast dynamic response, and high stability. It is ideal for vertical milling, drilling, expanding, boring, and tapping procedures.

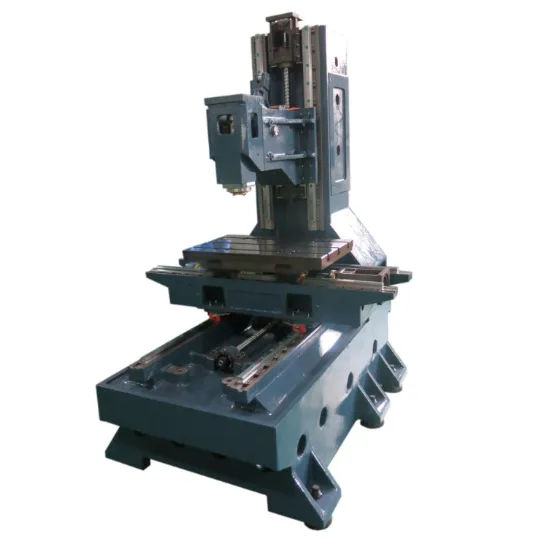

The base, column, headstock, and worktable are cast with high-strength resin sand process. The A-box cavity column and integrated saddle design ensure long-term stability and high rigidity of the entire bed.

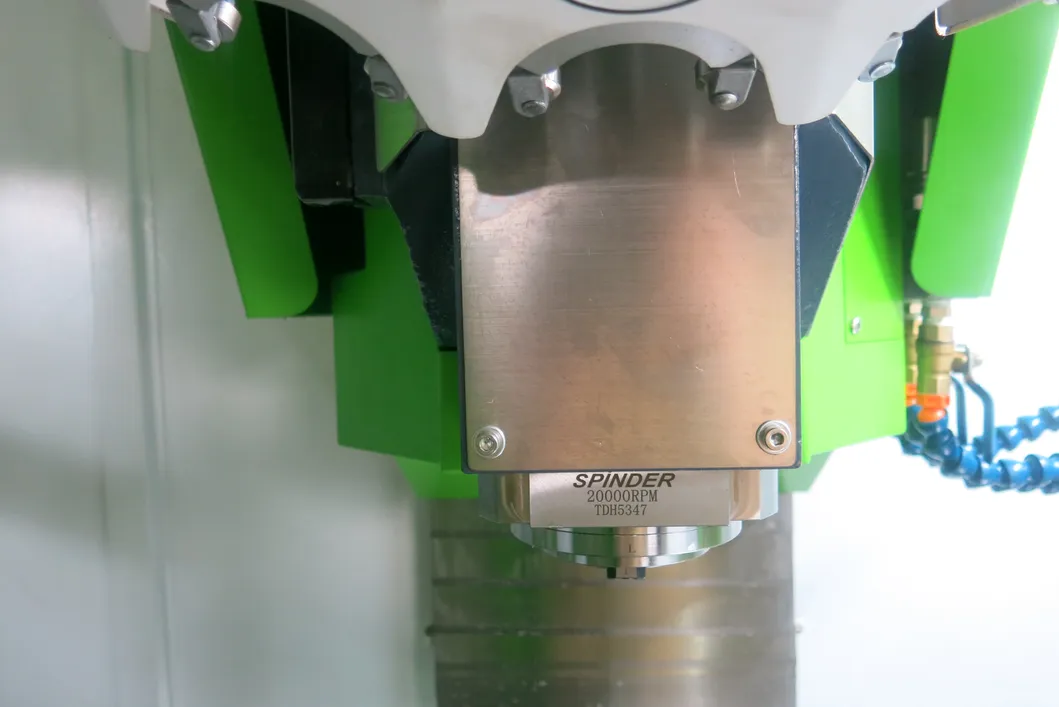

Equipped with Taiwan high-speed precision spindle (BT30, 15000-24000rpm). Direct connection improves transmission efficiency and reduces noise. IRD dynamic balance correction avoids resonance for superior finish.

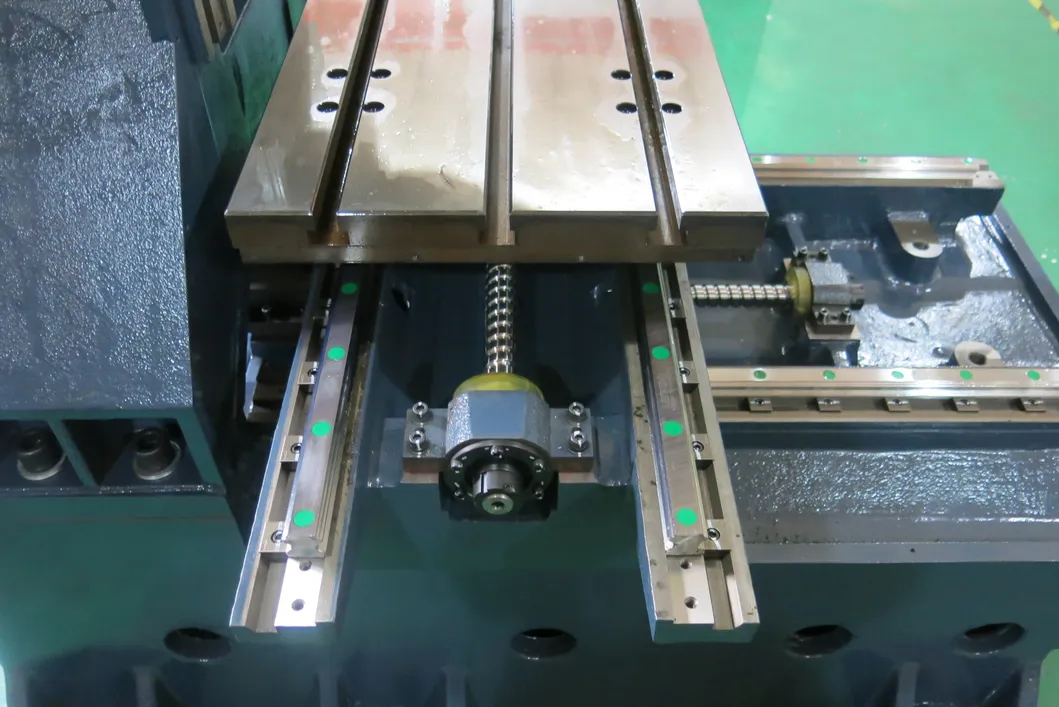

Uses Taiwan Hiwin/PMI high-precision ball screws and linear guides. Japan Yaskawa servo motors ensure high positioning accuracy, minimal vibration, and stable low-speed operation.

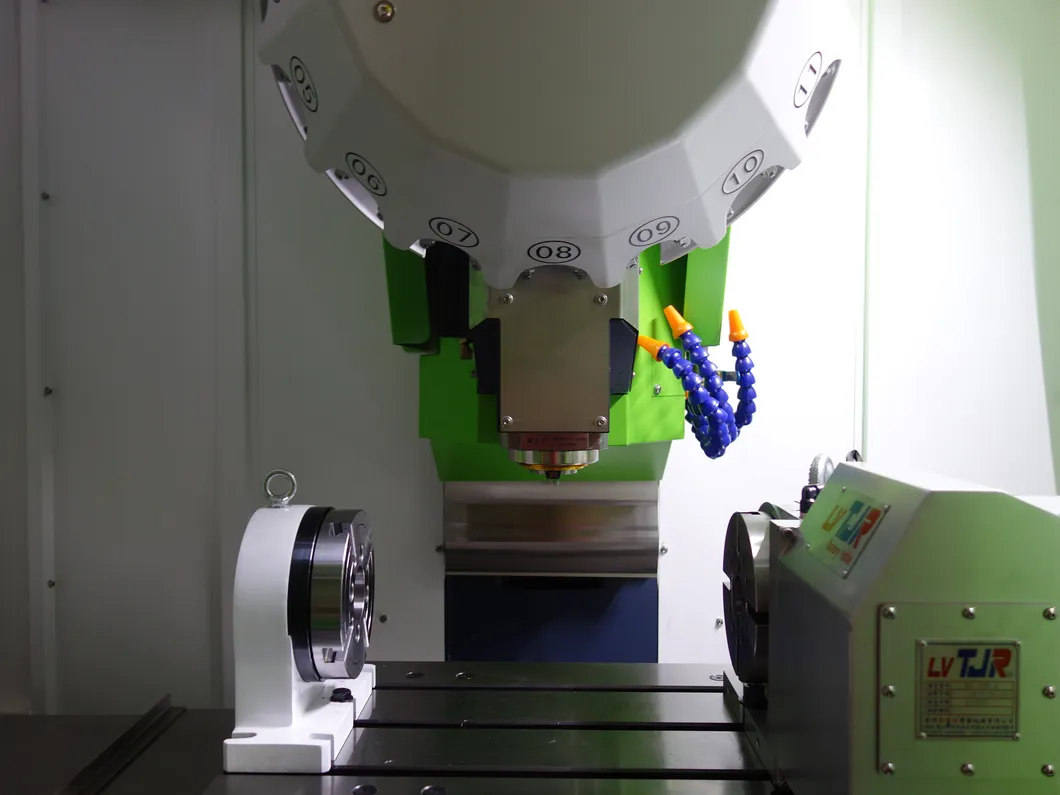

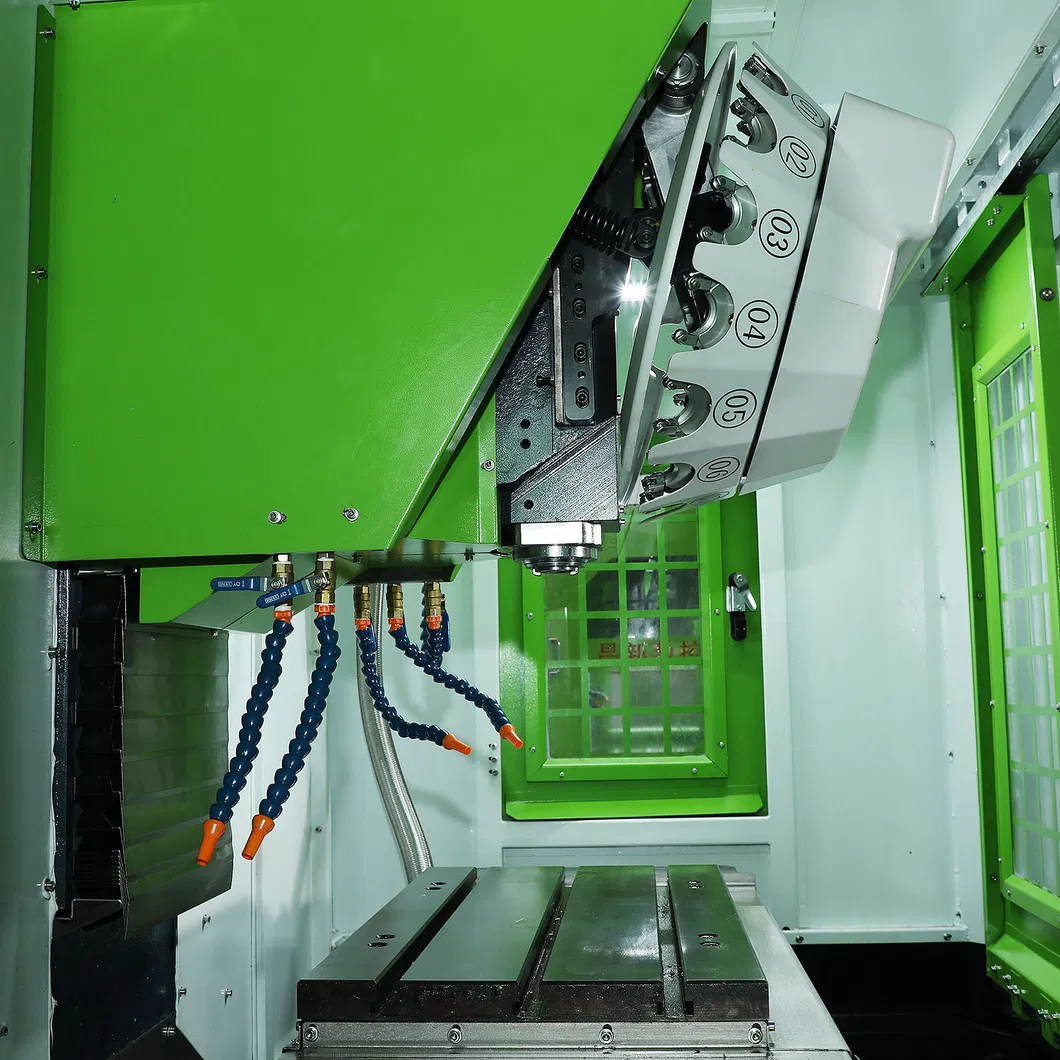

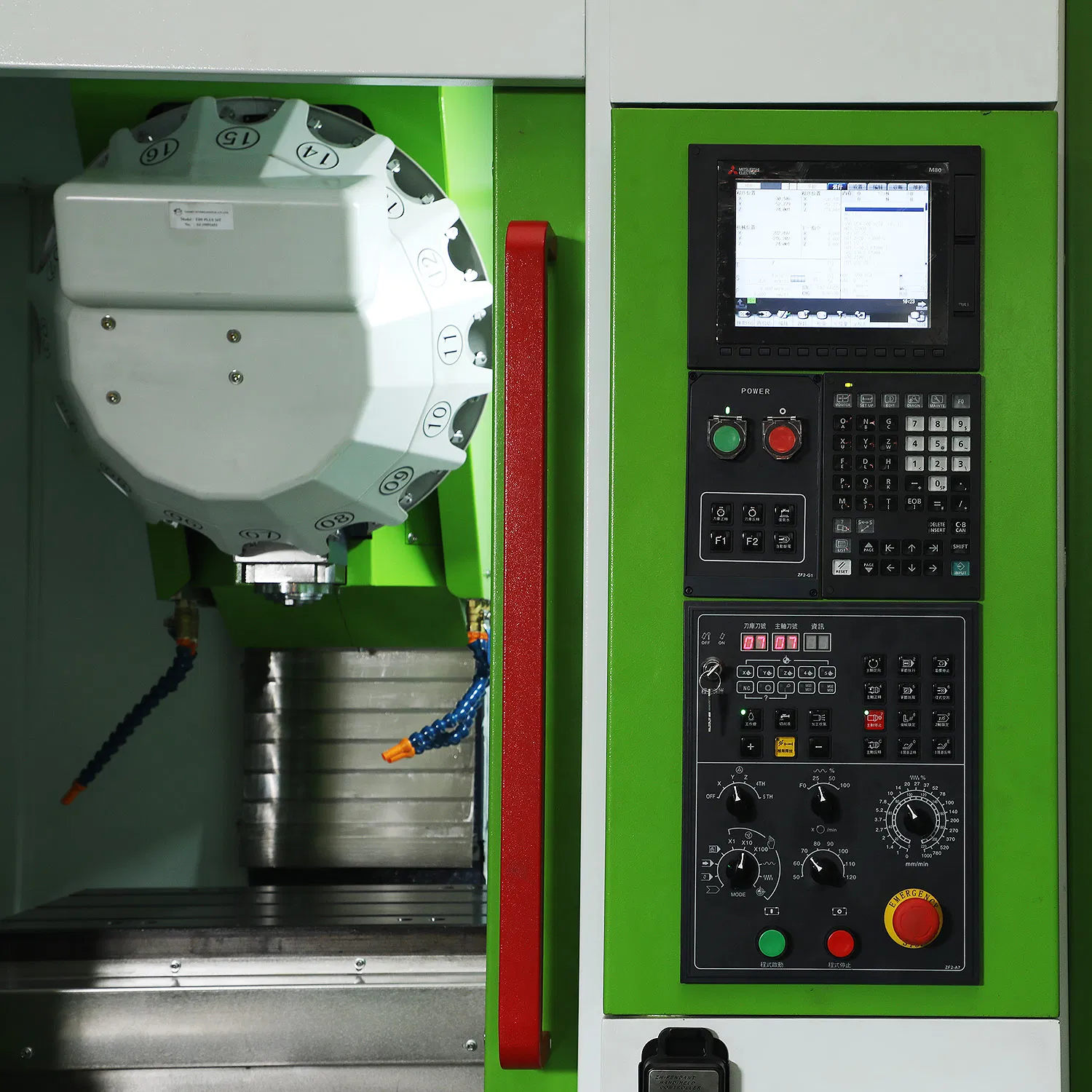

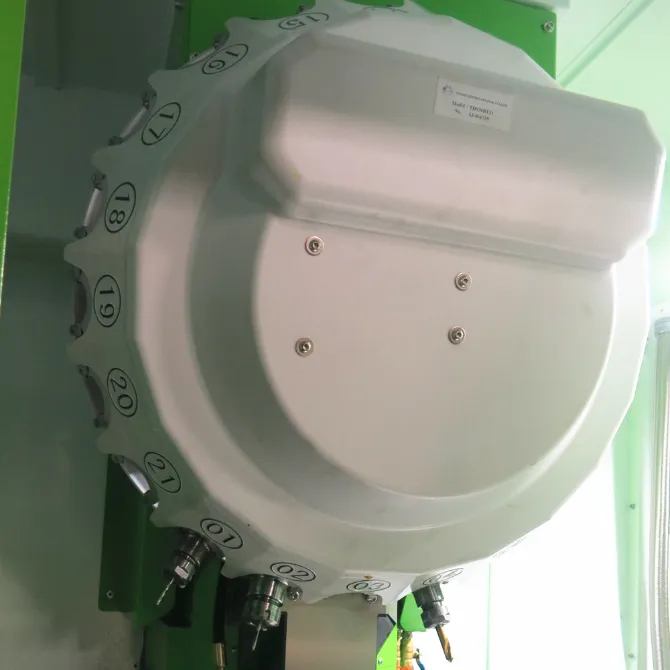

Taiwan-made flying saucer type 21T tool magazine. Tool-to-tool change time is only 0.8 seconds, providing high efficiency and accurate positioning.
| Description | Unit | Parameters | |
|---|---|---|---|
| Table | Size | mm | 700*420 |
| Travel (X/Y/Z) | mm | 600/400/300 | |
| Max Load | Kg | 350 | |
| Spindle | Taper | - | BT30 |
| Center to Column | mm | 450 | |
| Max Speed | Rpm | 20000 | |
| Motor Power | Kw | 5.5 | |
| Accuracy | Positioning | mm | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | |
| Feeding | Rapid Feed | mm/min | 48000 |
| Cutting Feed | mm/min | 20000 | |
| Physical | Weight | Kg | 4000 |

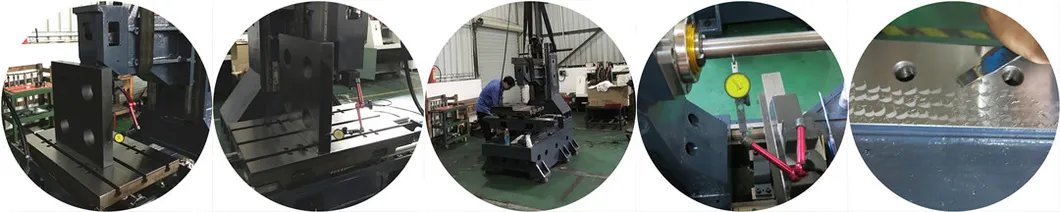

To ensure the accuracy of every machine, we perform rigorous horizontal and vertical testing. All joint surfaces are manually scraped for geometric precision.

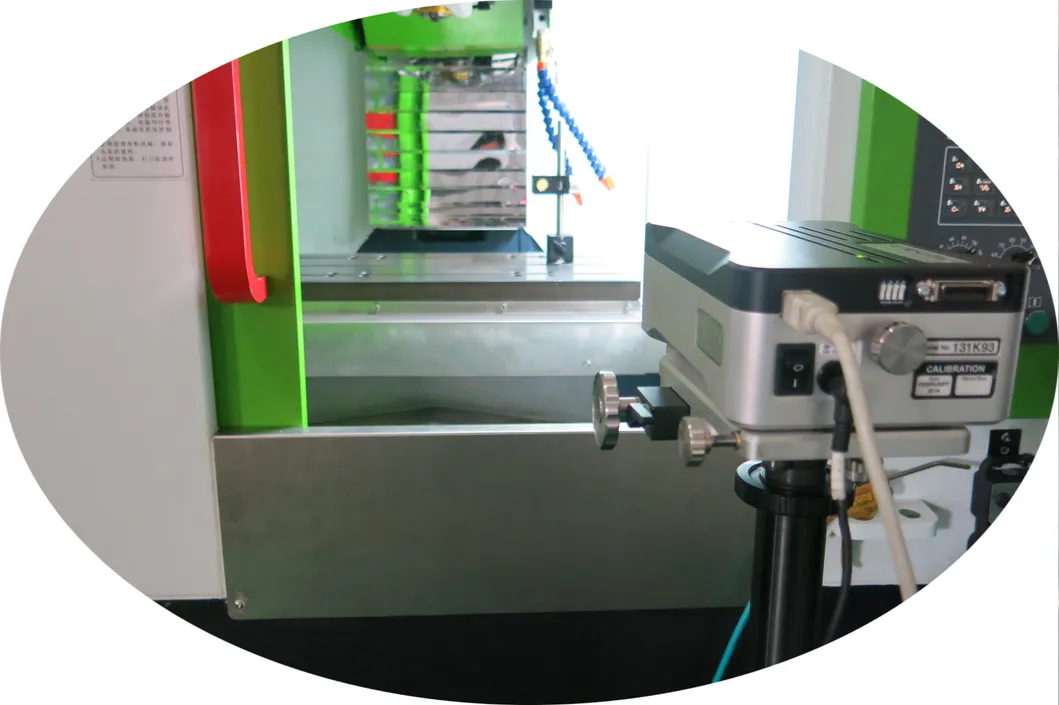

Reishaw laser interferometer inspection: Detects screw pitch errors and linear guide straightness to confirm positioning accuracy.
