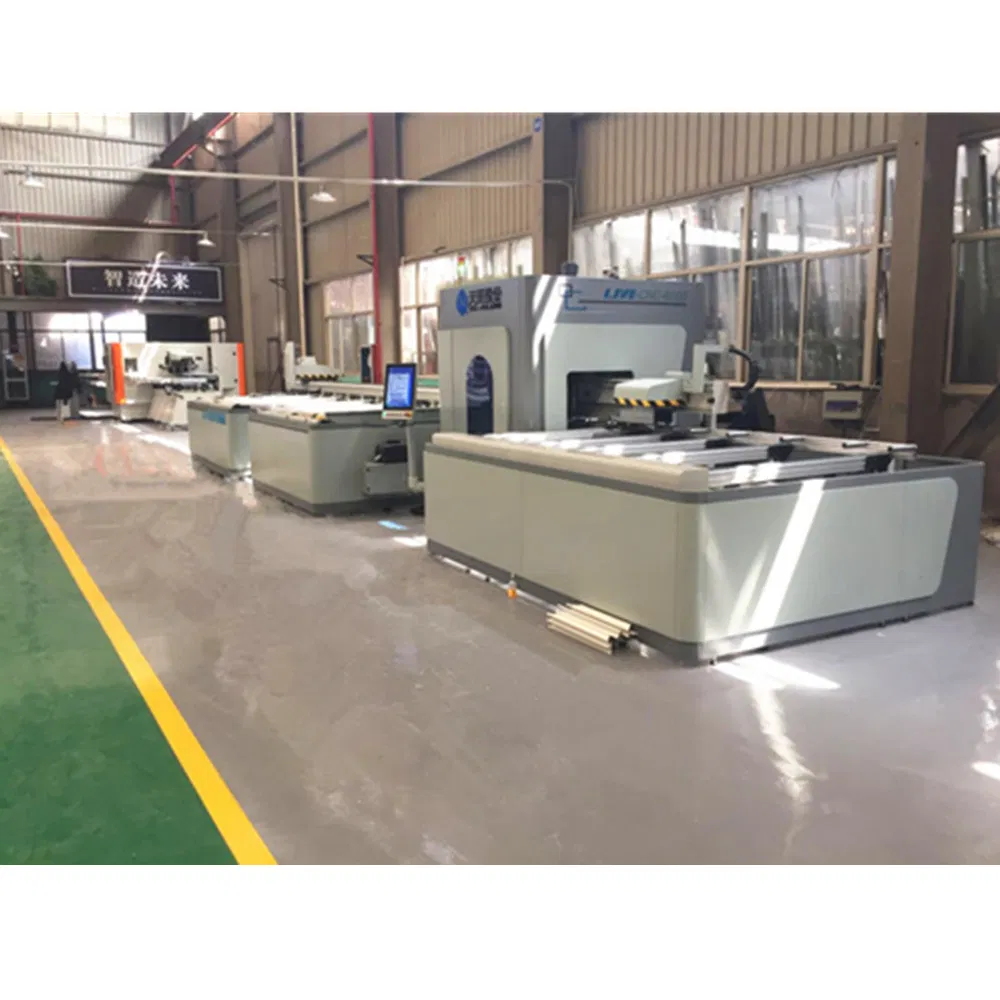

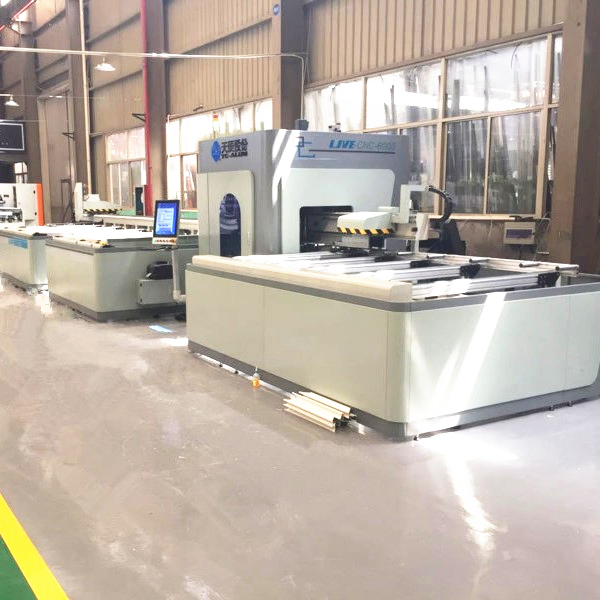

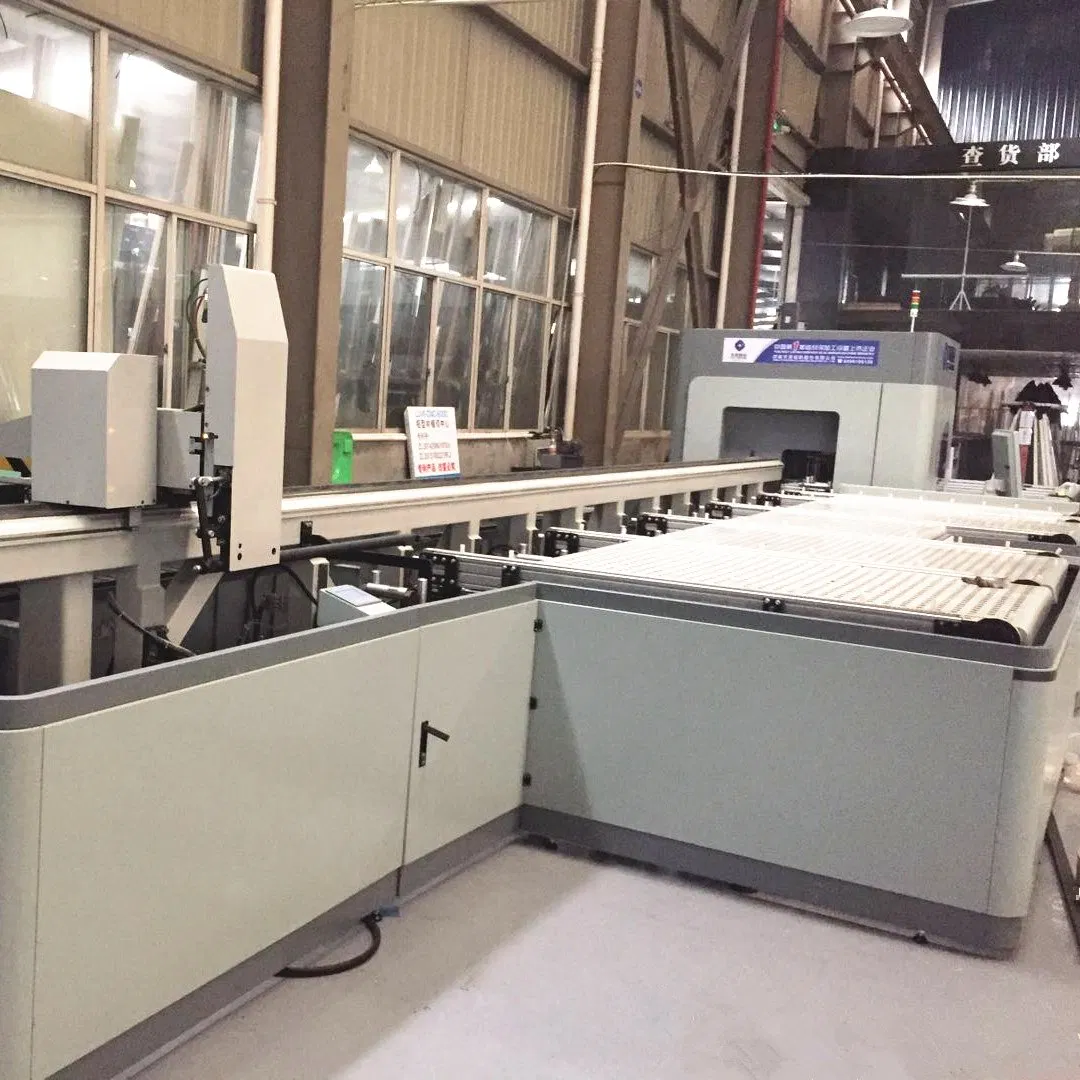

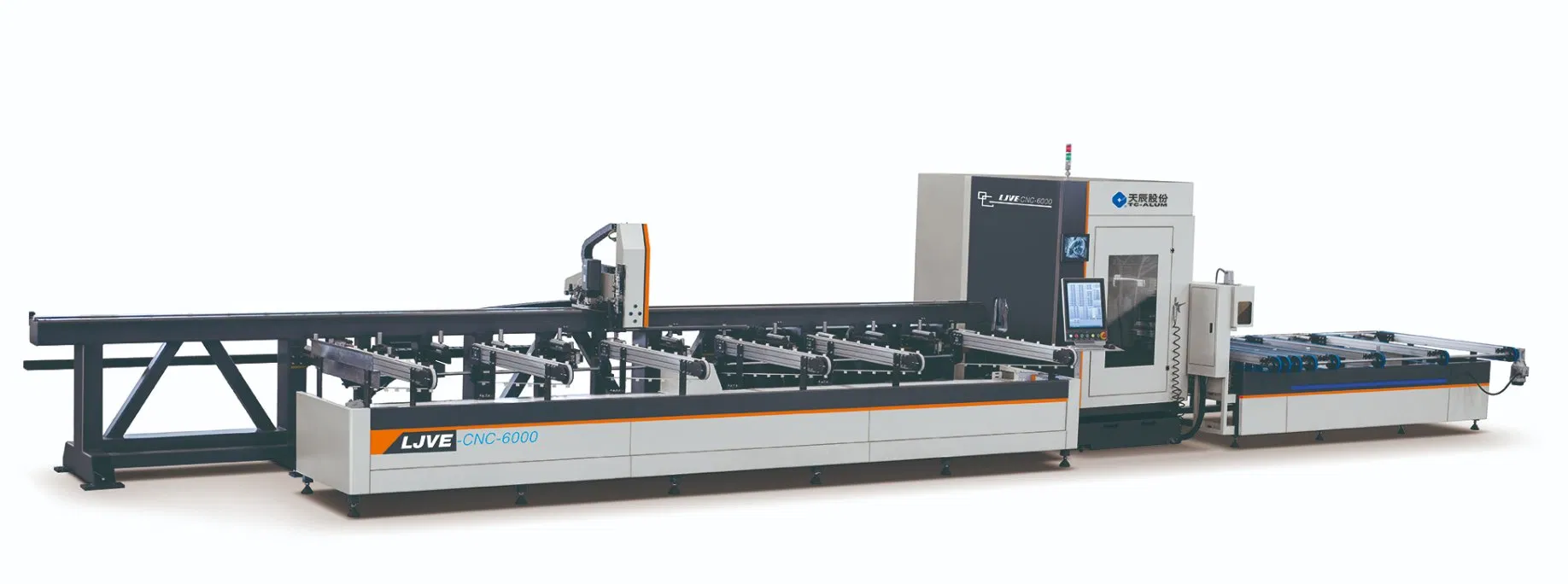

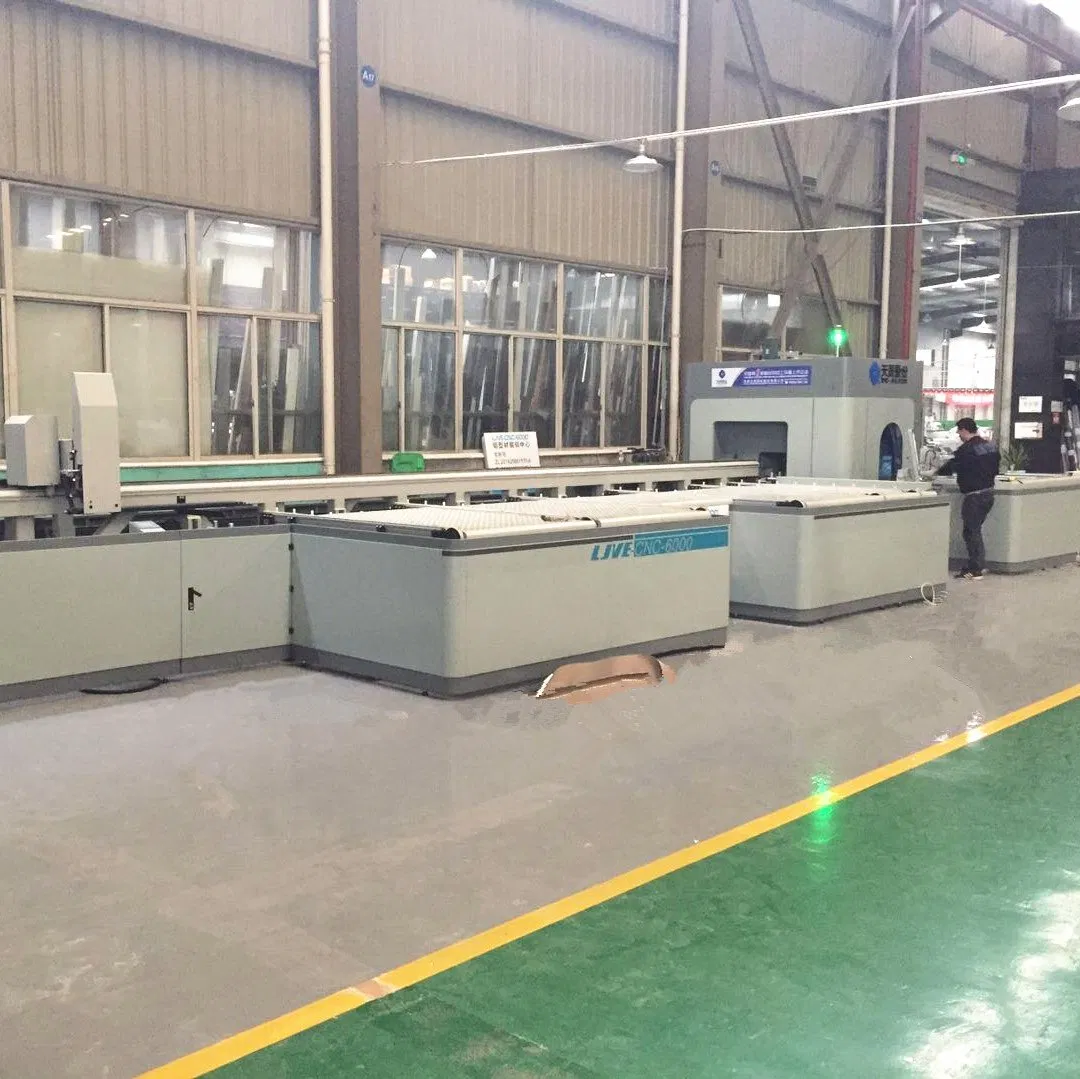

High-Precision Aluminum Cutting Saw Center with CE SGS Certification
High-Precision Aluminum Cutting Saw Center with CE SGS Certification
High-Precision Aluminum Cutting Saw Center with CE SGS Certification
High-Precision Aluminum Cutting Saw Center with CE SGS Certification
High-Precision Aluminum Cutting Saw Center with CE SGS Certification
1 / 5
High-Precision Aluminum Cutting Saw Center with CE SGS Certification
High-Precision Aluminum Cutting Saw Center with CE SGS Certification
High-Precision Aluminum Cutting Saw Center with CE SGS Certification
High-Precision Aluminum Cutting Saw Center with CE SGS Certification
High-Precision Aluminum Cutting Saw Center with CE SGS Certification

High-Precision Aluminum Cutting Saw Center with CE SGS Certification

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LJVE-CNC-6000
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Name
Automatic Cutting Saw Center
Function
Cutting Raw Aluminium Profile to Length
Average Productivity
2200 Pieces / 8 Hours
Control System
Siemens
Application
Window Door Fabrication
Cutting Angle
45° / 90°
Cutting Material
Aluminum Profile
Production Capacity
30 Sets Per Month
Product Description

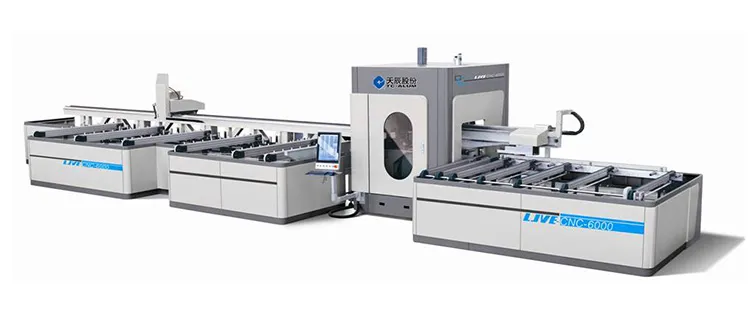

Aluminum Automatic Cutting Saw Center

Factory Hot-Sale Aluminium Machining Center Aluminum Automatic Cutting Saw Center with CE SGS Certification LJVE-CNC-6000

Machine Features

Machine Features

  • Used for high effective cutting aluminum profile at 45° or 90°.
  • Auto worktable continuous feeding and clamping profile.
  • Adopts high precision straight guide rail pair to ensure stability and reliable operation.
  • Load mechanical arm adopts Siemens servo drive for three axis (X, Y, Z) auto control.
  • Blade connected with imported motor for smooth, steady, and high precision cutting.

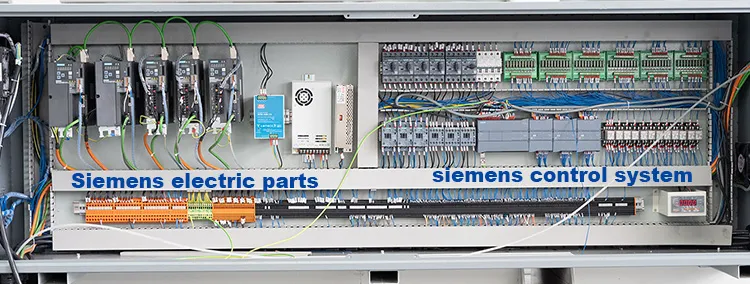

  • Siemens control system ensures steady and reliable machine performance.
  • Completes 45° cutting through up and down saw blades' separate cutting to avoid partial breakage.
  • Continuously completes profile ±45° or 90° cutting with high processing efficiency.
  • Unload mechanical arm realizes fast unloading and positioning for short profiles (min 260mm).
  • Roller linear guide pair and ball screw equipped with auto lubrication system.
  • Hinge type system constantly conveys aluminum scrap to the outside.
  • Totally enclosed safety cover ensures personal security.
  • Optional: Profile lifting platform for single person feeding operation.
  • Optional: Bar code printer for E-works integration.
Technical Parameters
Cutting Motor Power3*3.0KW
Total Power18KW
Operation Air Pressure0.6~0.8MPa
45 Degree Sawing Blade Sizeφ650*φ30*4.4*120T
Cutting Height30~150mm
Cutting Width30~150mm
Cutting Length290~6000mm
Cutting Angle Deviation±5′
Length Deviation±0.15mm
Repeat Locating Length Deviation±0.05mm
Overall Dimension14000*5000*2500mm
WeightAbout 7500KGS
Product Gallery
Detail 1

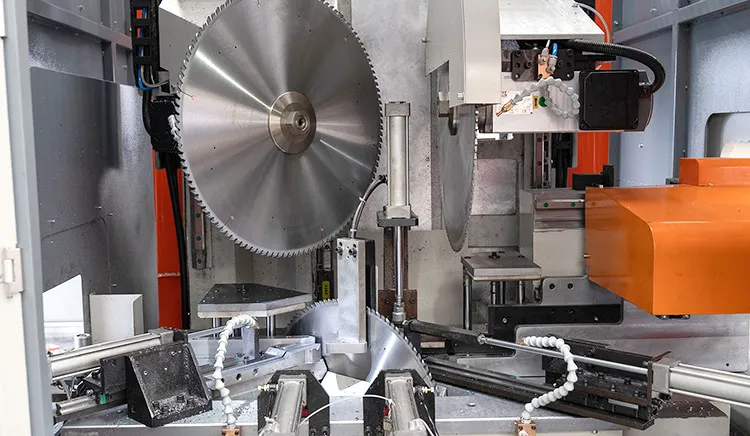

Detail 2

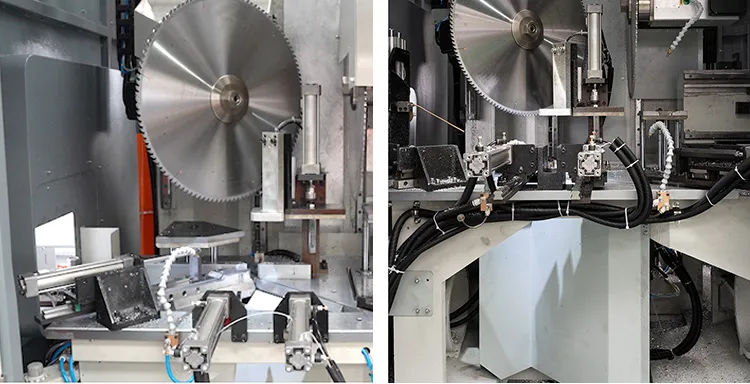

Detail 3
Detail 4
Detail 5
Detail 6
Detail 7
Detail 8
Detail 9
Detail 10
Frequently Asked Questions
What is the primary application of the LJVE-CNC-6000?
It is specifically designed for high-efficiency cutting of aluminum profiles used in window and door fabrication.
Which control system does this machine utilize?
The machine is equipped with a high-quality Siemens control system to ensure steady and reliable operation.
What cutting angles can this machine achieve?
The LJVE-CNC-6000 can continuously complete profile cutting at both 45° and 90° angles.
What is the average production capacity?
The machine can achieve an average productivity of approximately 2200 finished cutting pieces within an 8-hour shift.
Does the machine include safety features for operators?
Yes, it features a totally enclosed safety cover to ensure the personal security of the operator during the cutting process.
Can the machine handle short profiles?
Yes, the unload mechanical arm is designed to realize the automatic output of profiles as short as 260mm.
