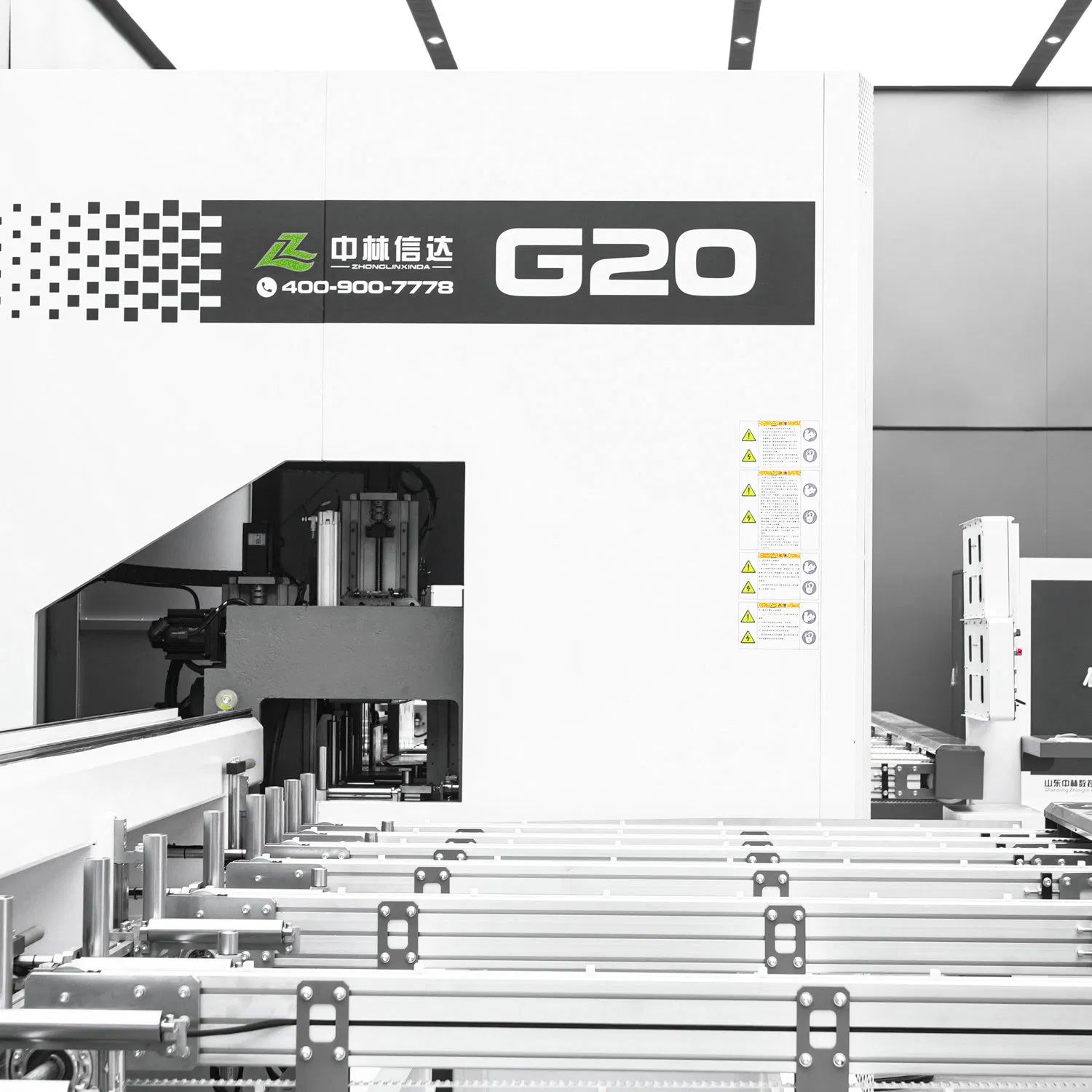

Professional Cutting Drilling Milling Center for Aluminum and PVC Applications
Professional Cutting Drilling Milling Center for Aluminum and PVC Applications
Professional Cutting Drilling Milling Center for Aluminum and PVC Applications
Professional Cutting Drilling Milling Center for Aluminum and PVC Applications
Professional Cutting Drilling Milling Center for Aluminum and PVC Applications
1 / 5
Professional Cutting Drilling Milling Center for Aluminum and PVC Applications
Professional Cutting Drilling Milling Center for Aluminum and PVC Applications
Professional Cutting Drilling Milling Center for Aluminum and PVC Applications
Professional Cutting Drilling Milling Center for Aluminum and PVC Applications
Professional Cutting Drilling Milling Center for Aluminum and PVC Applications

Professional Cutting Drilling Milling Center for Aluminum and PVC Applications

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO. G20 Condition New
Certification ISO, CE Automatic Grade Automatic
CNC or Not CNC Voltage 380V
Equipment Type Aluminum Profile Cutting Drilling Milling Centre
Industry Application Window, Door, and Curtain Wall Processing
Processable Materials Aluminum Alloy, Thermal Break Aluminum, PVC, etc.
Cutting Accuracy ± 0.1mm Gas Consumption 180L/Min
💻 Product Description

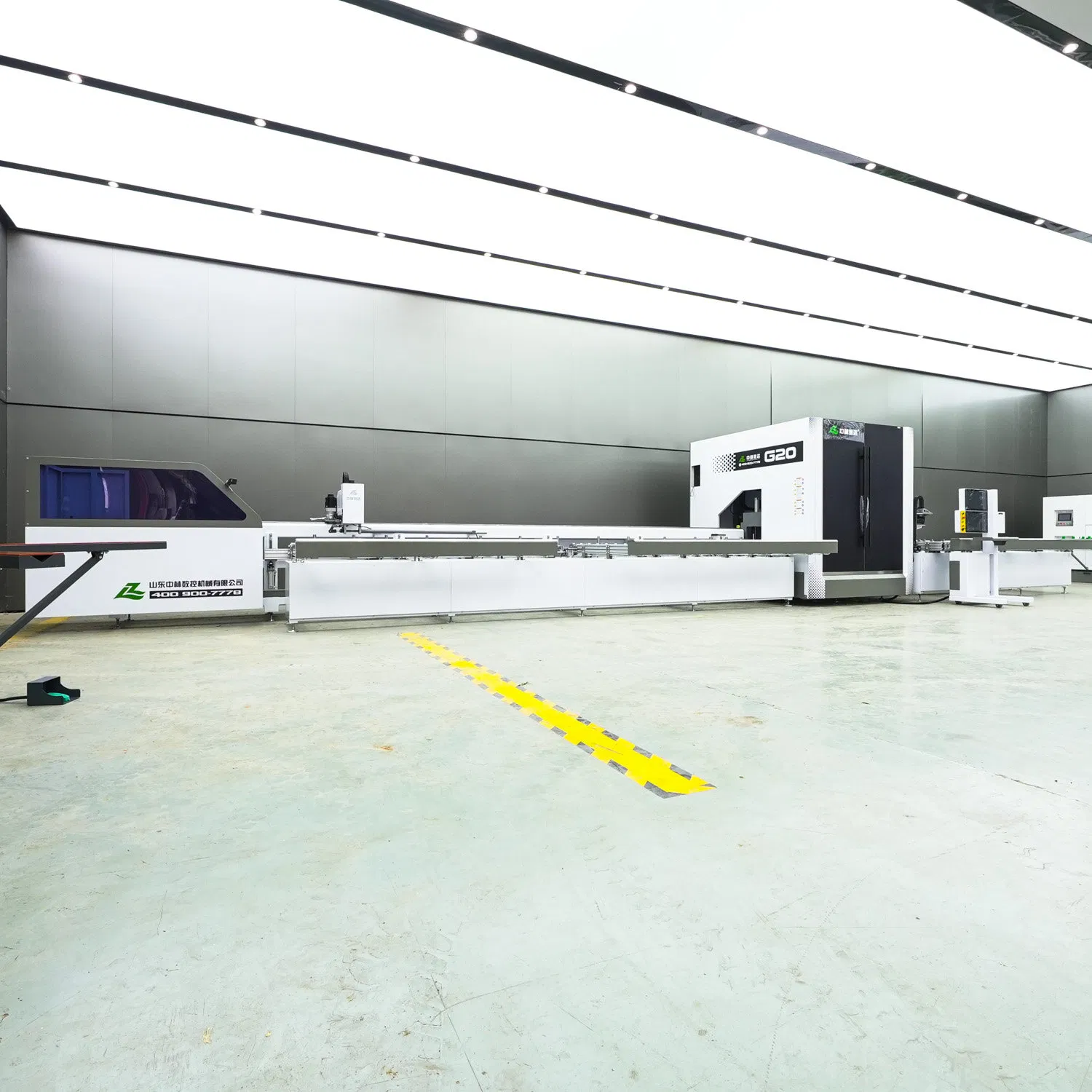

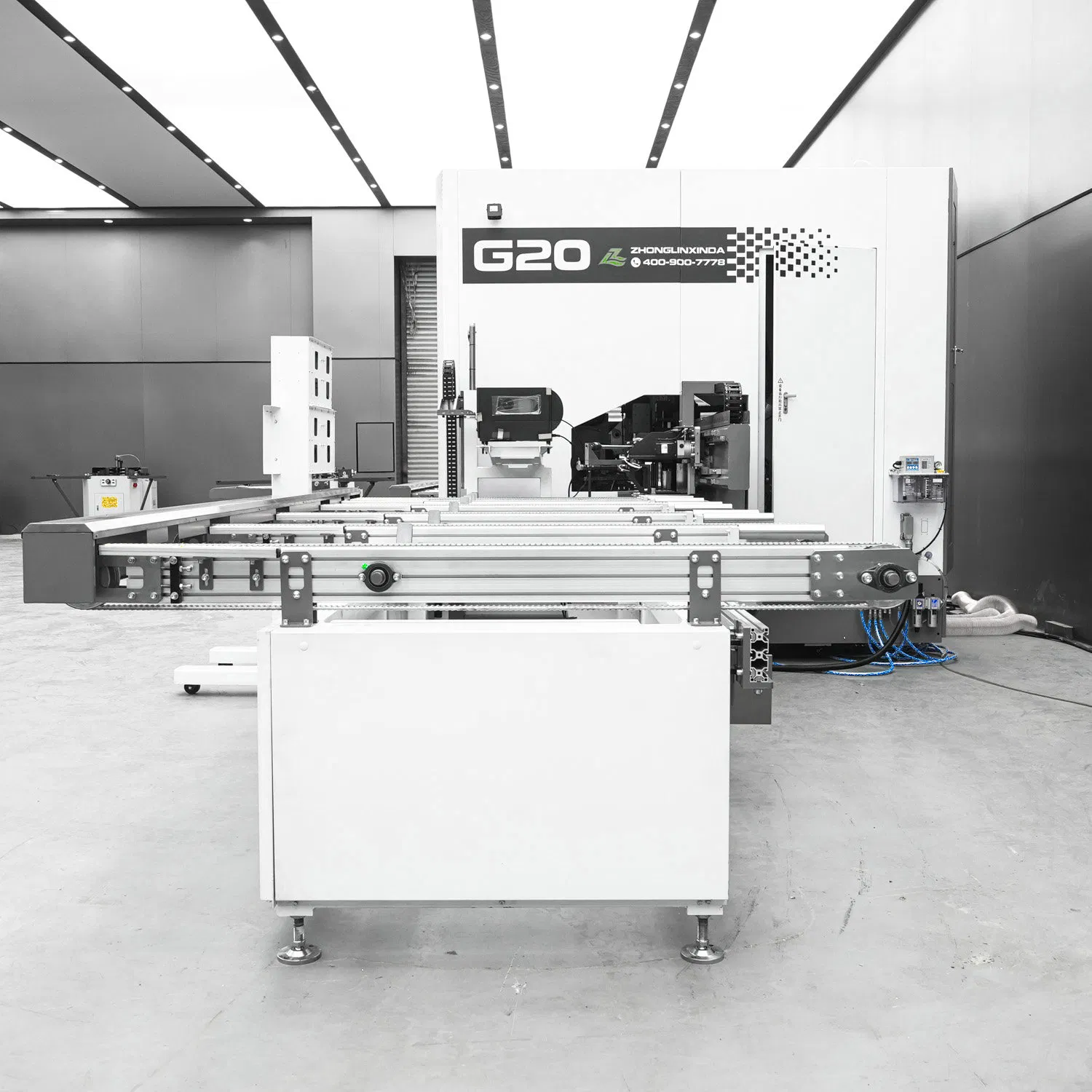

G20 CNC Machining Center: 20-axis servo for 90°/45° cutting, drilling & milling.
CNC Machining Center Overview

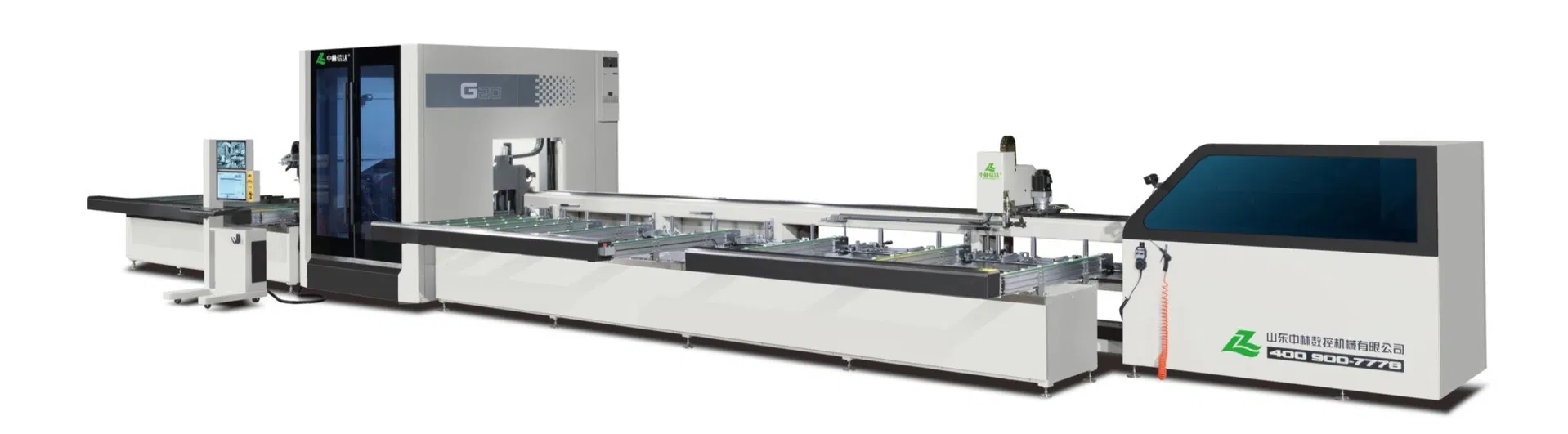

CNC Machining Center Detail

This high-precision workstation handles thermal break and PVC profiles with ±0.1mm accuracy. It processes lock holes, drainage, and corner holes in a single clamping session, eliminating the need for frequent turnover and sorting.

⚙ Technical Specifications
Power 55KW Saw Motor Power 4KW * 3
Spindle Power 6KW * 6 Saw Blade Angle 45°, 45°, 90°
Working Pressure 0.6–0.8MPa Profile Cross-section 150mm * 150mm
Robot Speed 0-120m/min Weight Approx. 11 Tons
Dimensions 15800 * 3500 * 2680mm
✔ Key Features & Advantages
🚀
High Efficiency: Equipped with 4KW direct-drive motors, efficiency is increased by 30%. Handles 7 profiles simultaneously with automated feeding, milling, and discharging.
🎯

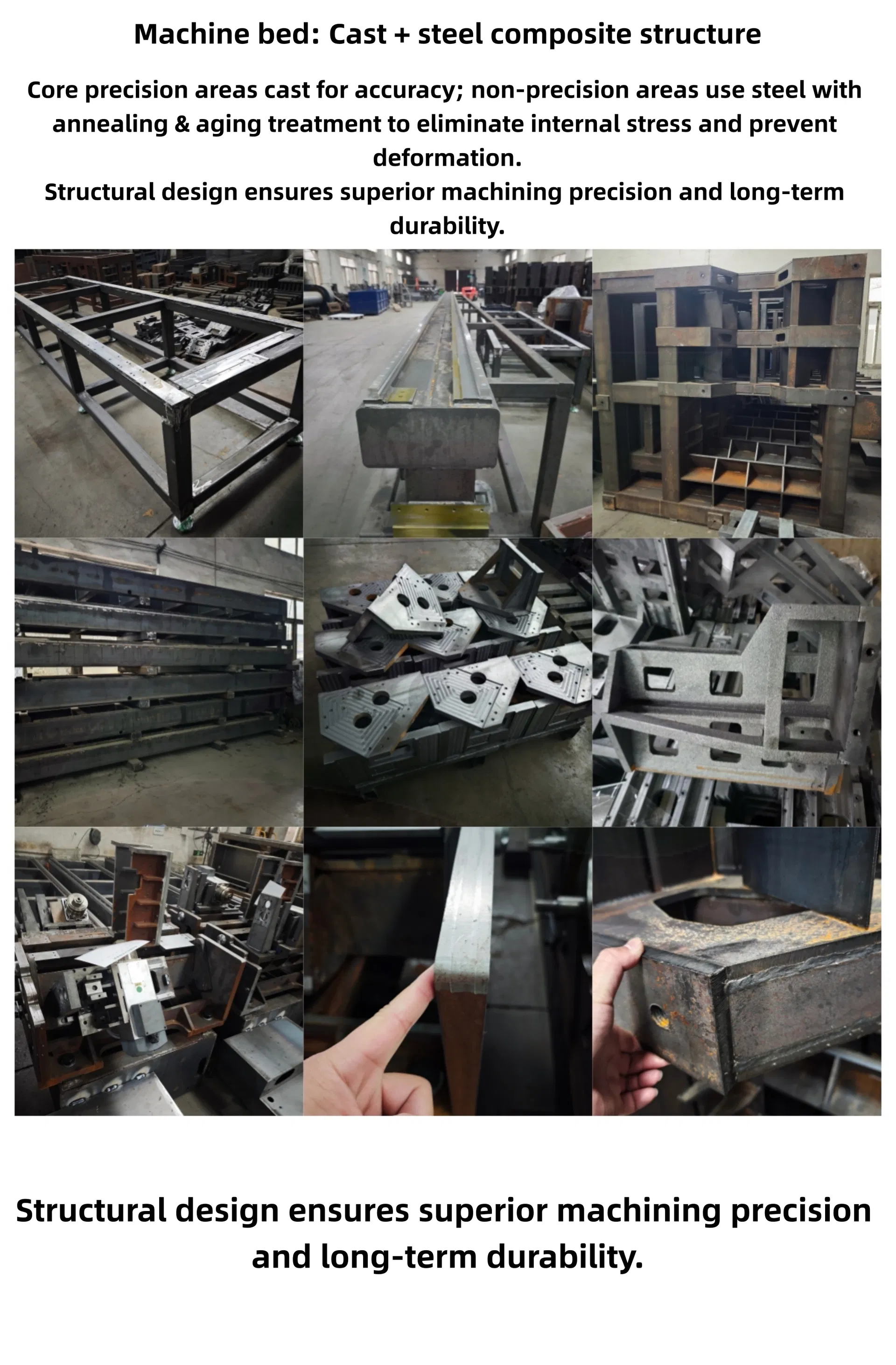

Precision Casting: The main cutting machine adopts a casting structure to ensure long-term stability and extreme cutting accuracy.
📖

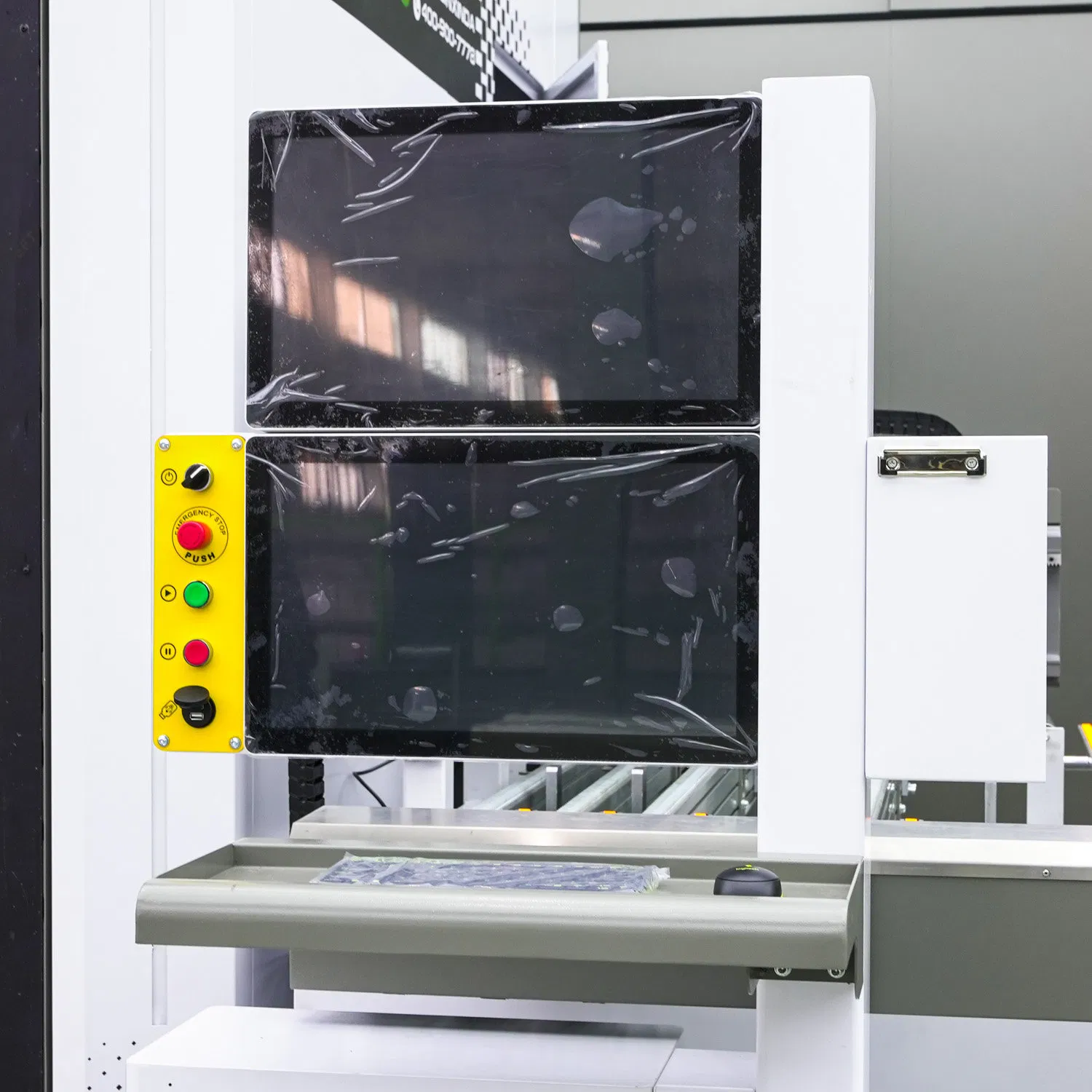

Smart Operation: "Fool-style" operation requires no skilled workers. Supports ERP software connection, code scanning, or USB data input.

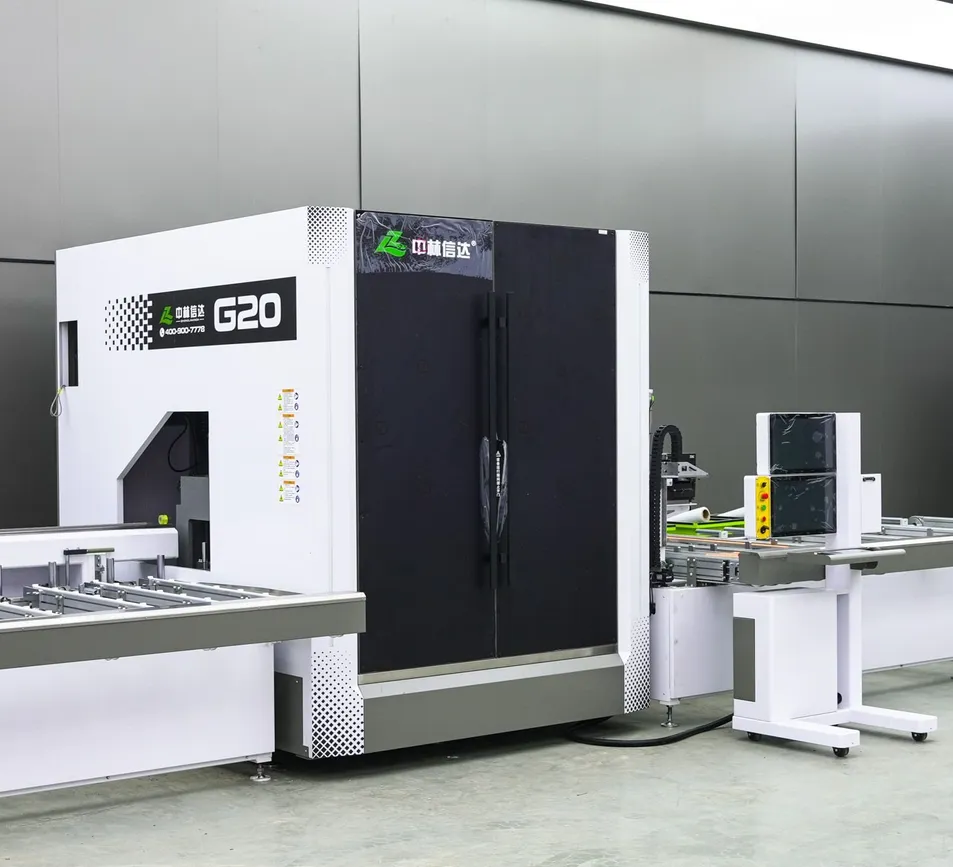

Feature Image 1

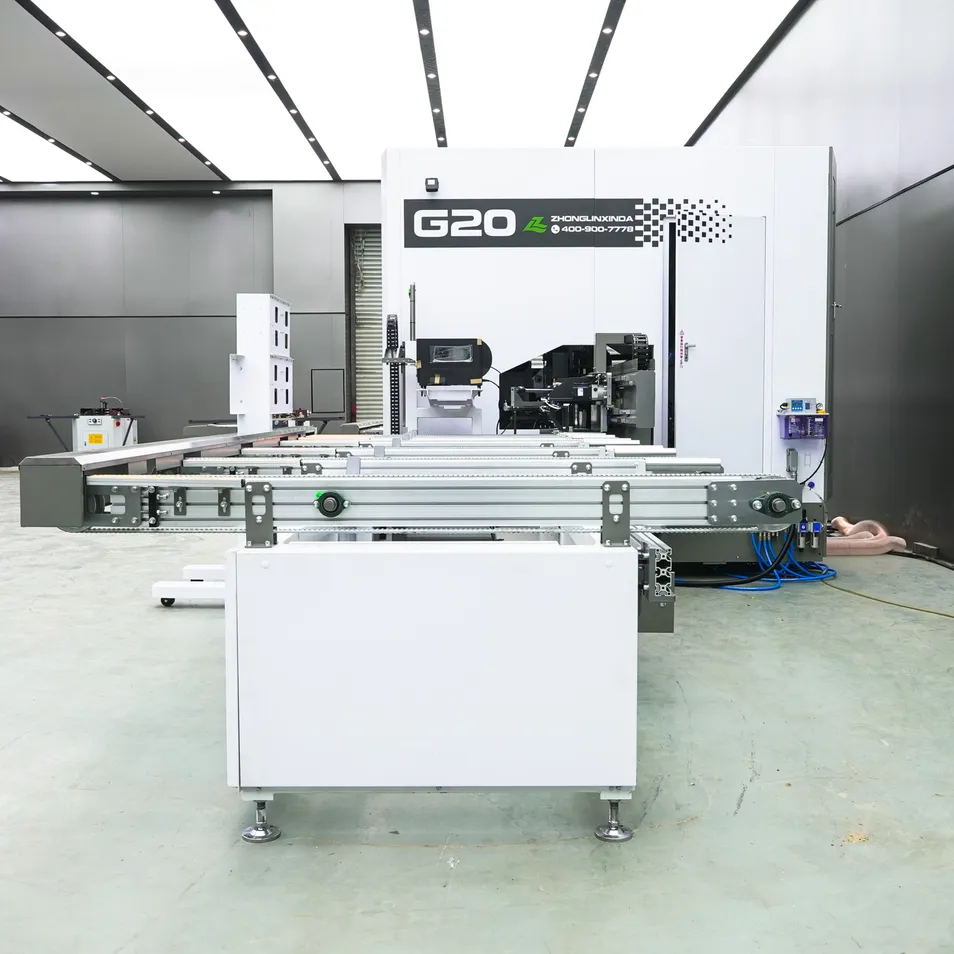

Feature Image 2
Feature Image 3

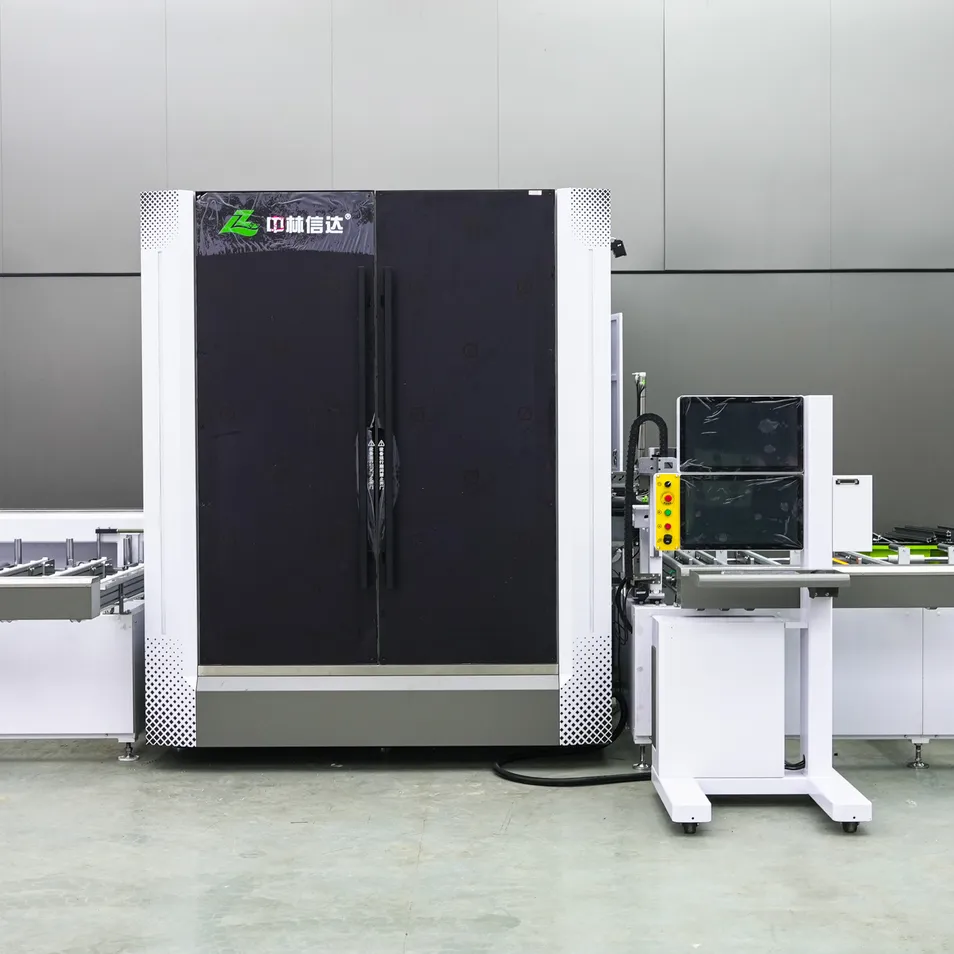

Feature Image 4

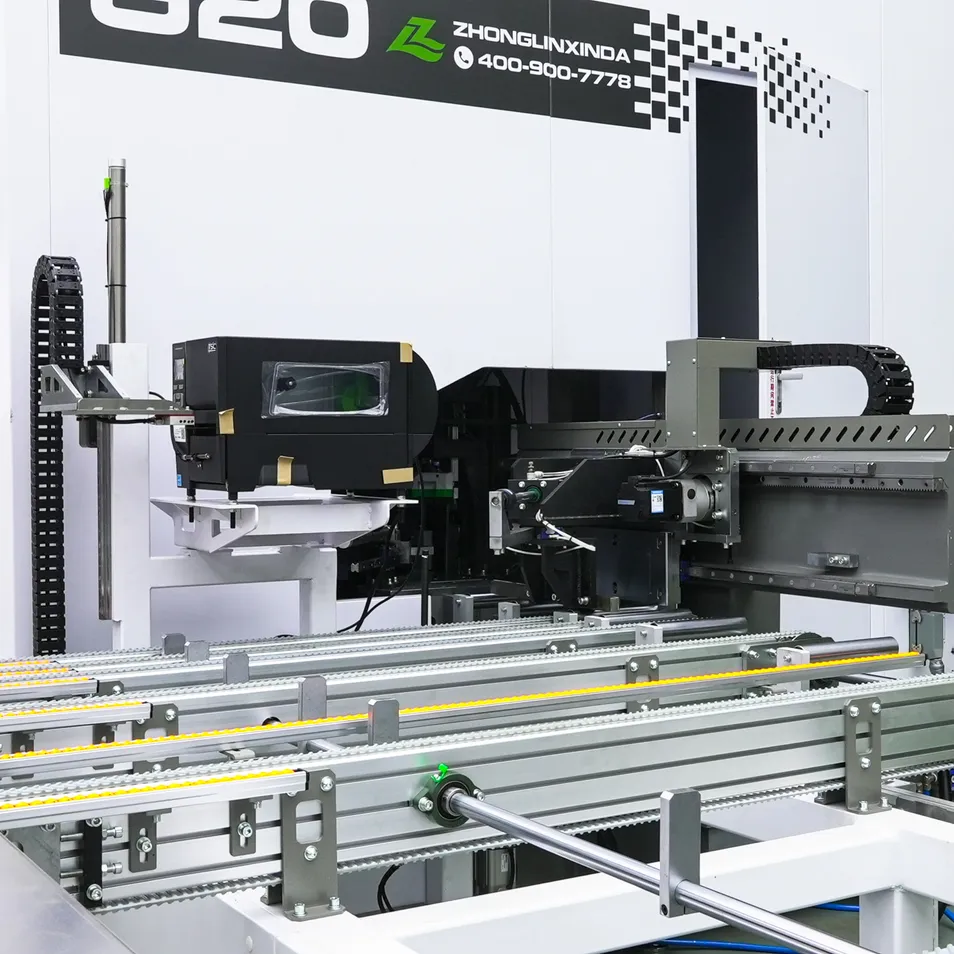

Feature Image 5
🏭 Application Scenarios & Factory

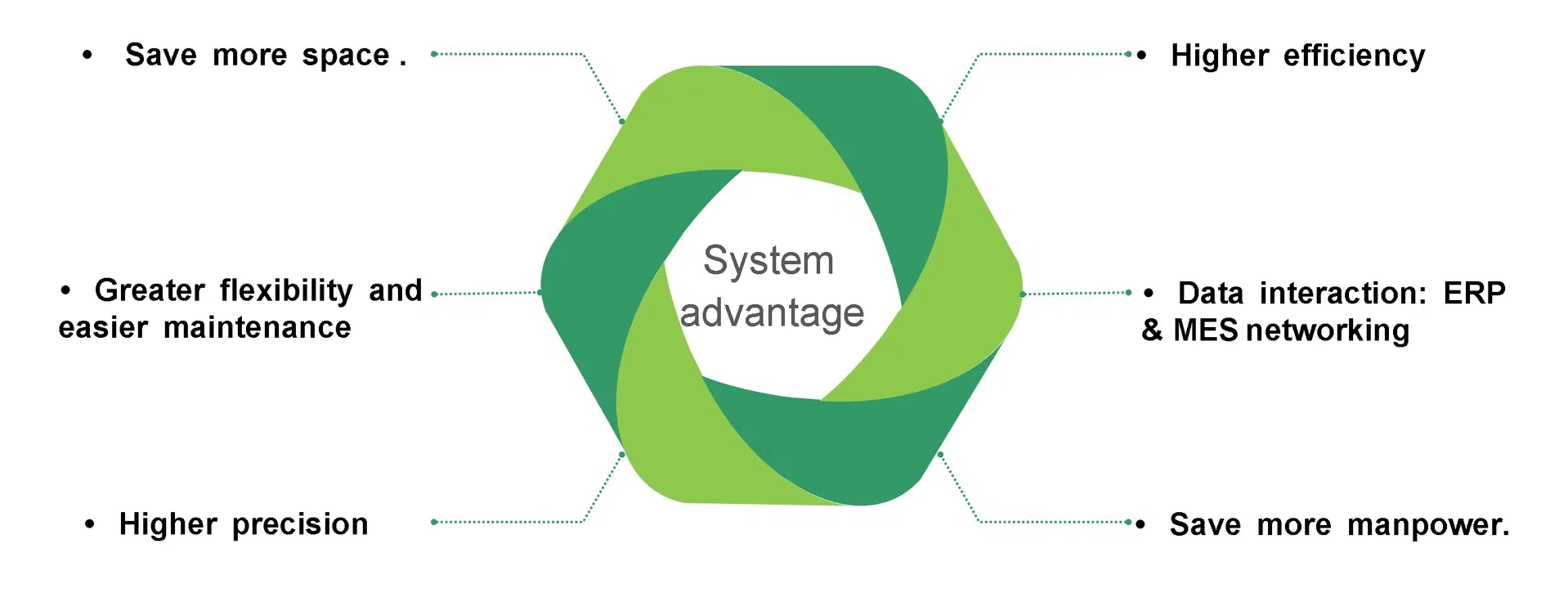

Application 1
Application 2
Application 3
Factory Detail 1

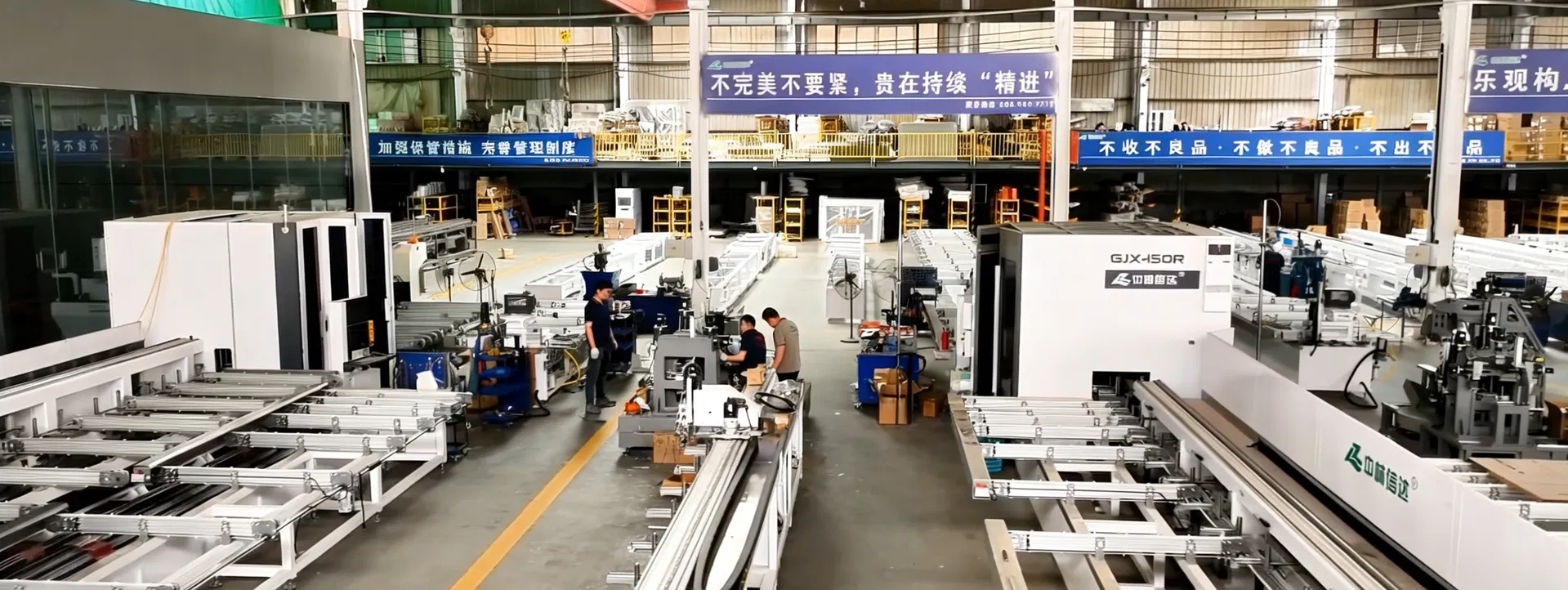

Factory Detail 2

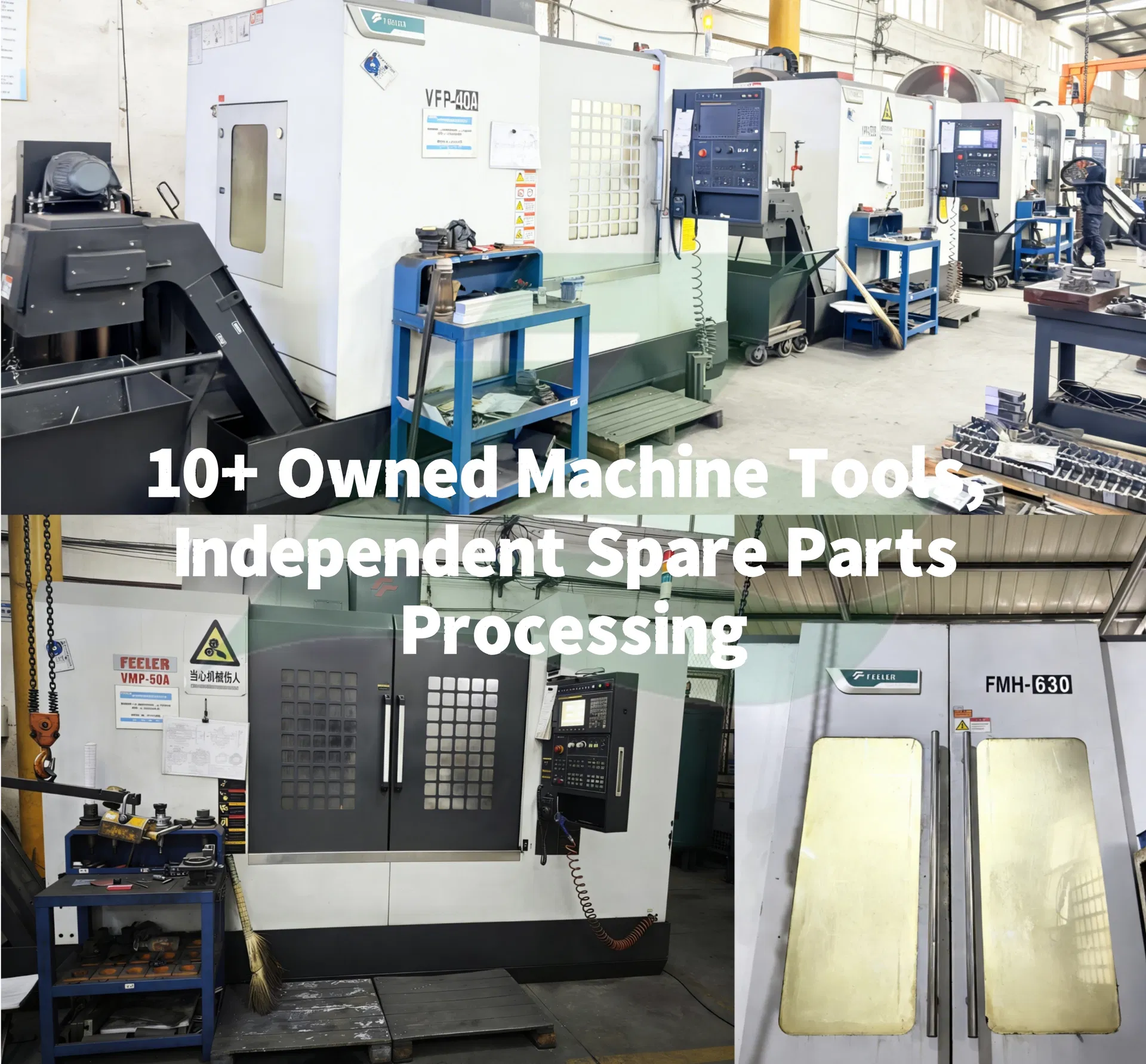

Factory Detail 3
📦 Packaging & Shipping
Packaging Process
Shipping Preparation
❓ Frequently Asked Questions
Can this equipment meet various profile needs like curtain walls?
Yes. This workstation manages full-process door/window fabrication and curtain wall cutting (45°-135°). We provide custom solutions tailored to your specific profile requirements.
Is the operation complex for new workers?
Not at all. The equipment features "fool-proof operation" with automatic data identification. We also offer guidance and remote service to ensure the machine can be operated by general staff.
What is the processing accuracy and stability?
The machine utilizes high-end parts (such as HIWIN and Schneider) ensuring ±0.1mm cutting accuracy and ±0.05mm milling accuracy. Casting structures and servo systems guarantee stable production quality.
What kind of after-sales support is provided?
We offer a 24h online response system, 1-year warranty, and lifelong maintenance. Remote troubleshooting and regular customer visits are standard to minimize downtime.
How does this equipment optimize production costs?
It optimizes in three ways: 3x faster efficiency via double-spindle CNC, lower labor costs due to automation, and ERP connection for real-time monitoring of inventory and production progress.
What materials can be processed?
It is designed for Aluminum Alloy, Thermal Break Aluminum, PVC, and other similar industrial profiles used in window and door fabrication.
