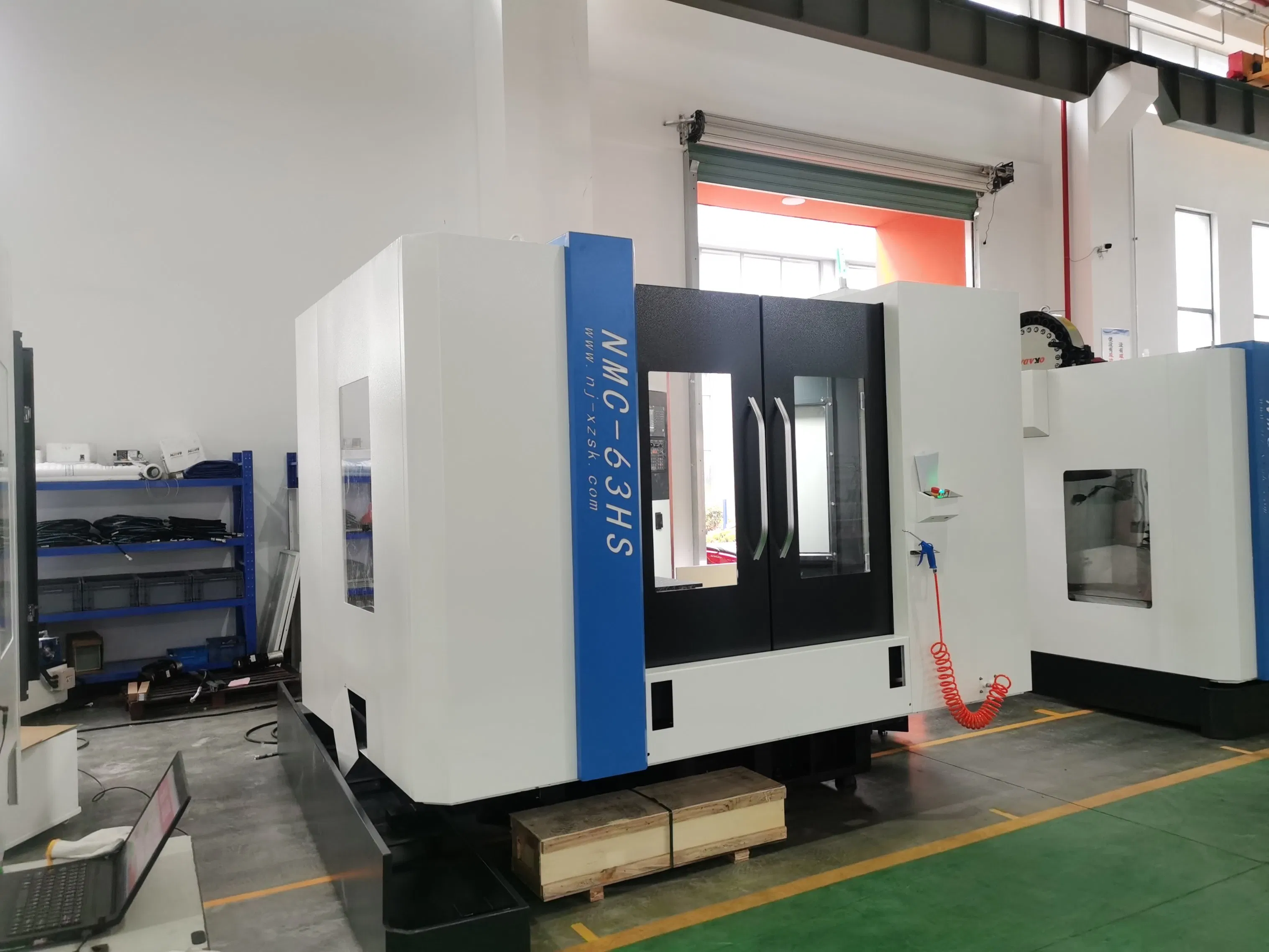

CNC Machining Cutting Machine Aluminum Milling Center
CNC Machining Cutting Machine Aluminum Milling Center
CNC Machining Cutting Machine Aluminum Milling Center
CNC Machining Cutting Machine Aluminum Milling Center
CNC Machining Cutting Machine Aluminum Milling Center
1 / 5
CNC Machining Cutting Machine Aluminum Milling Center
CNC Machining Cutting Machine Aluminum Milling Center
CNC Machining Cutting Machine Aluminum Milling Center
CNC Machining Cutting Machine Aluminum Milling Center
CNC Machining Cutting Machine Aluminum Milling Center

CNC Machining Cutting Machine Aluminum Milling Center

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.:NMC-70VS
Application:Metal
Process Usage:Metal-Cutting CNC Machine Tools
Numerical Control:CNC/MNC
Precision:0.01~0.02(mm)
Certification:GS, CE, RoHS, ISO 9001
Product Name:3 Axis CNC Milling Machine Center
Spindle Speed:8000/10000 rpm
Ballscrew:Taiwan Precision Ballscrew

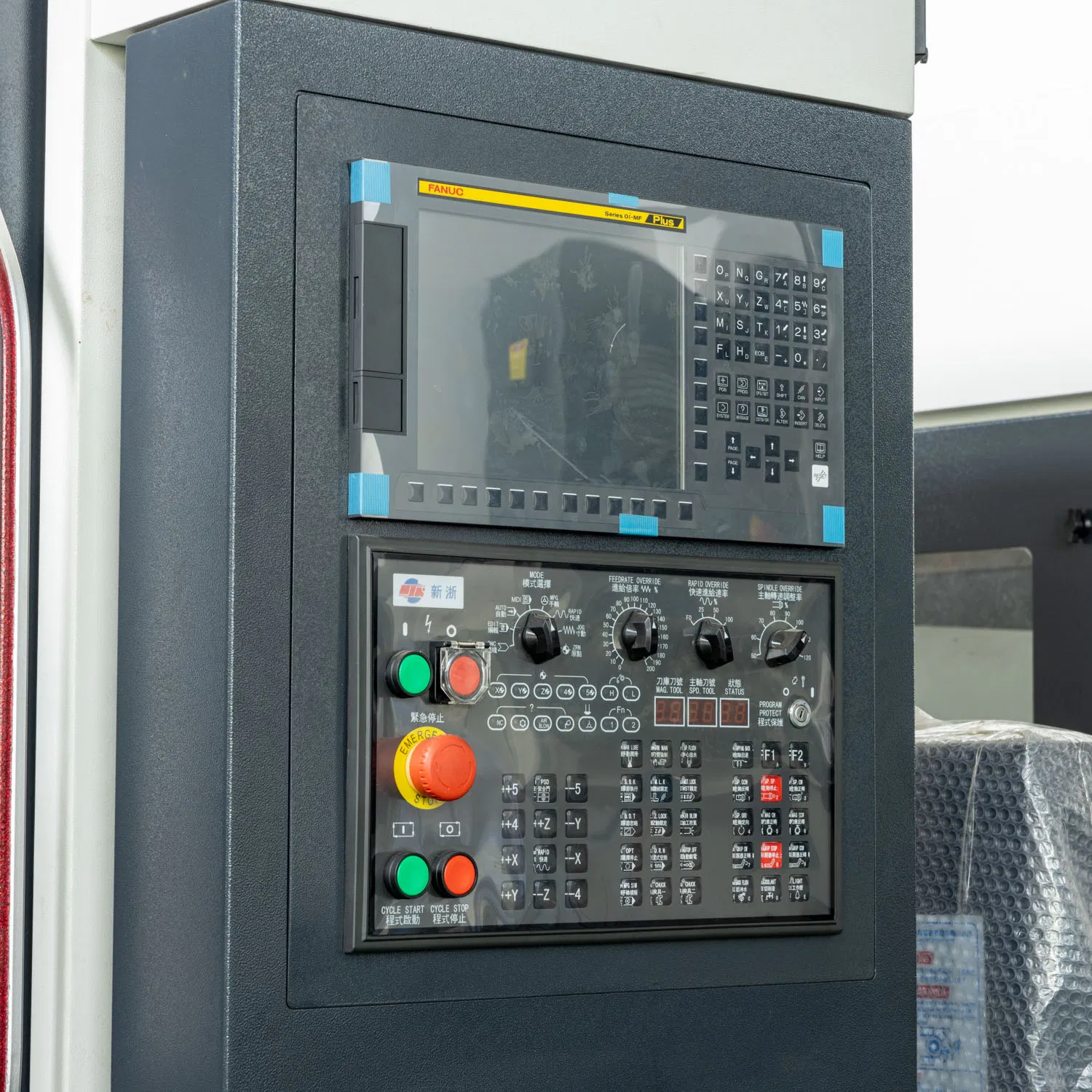

Control System:GSK, Fanuc, Mitsubishi, Siemens
📋

Product Description

The main shafts adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, and low noise. Maintenance-free operation and low failure rate ensure long-term stability. Integrated spindle units provide high-rigidity cutting capability, ideal for heavy-duty metal processing. The structure uses a modularized, closed box design for maximum rigidity and stability.

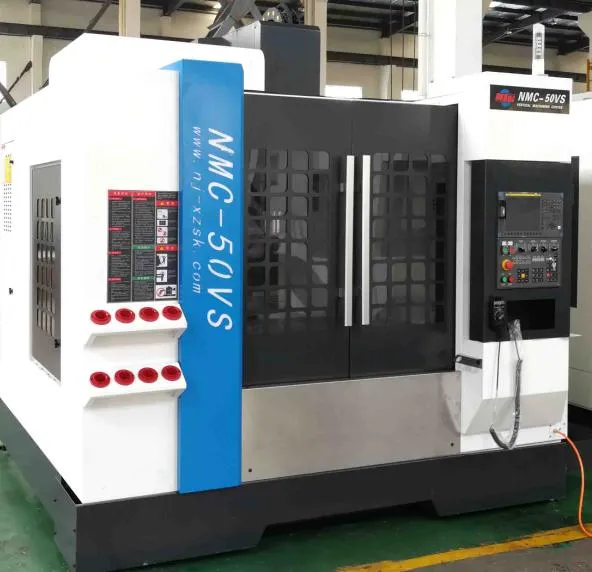

CNC Machining Center

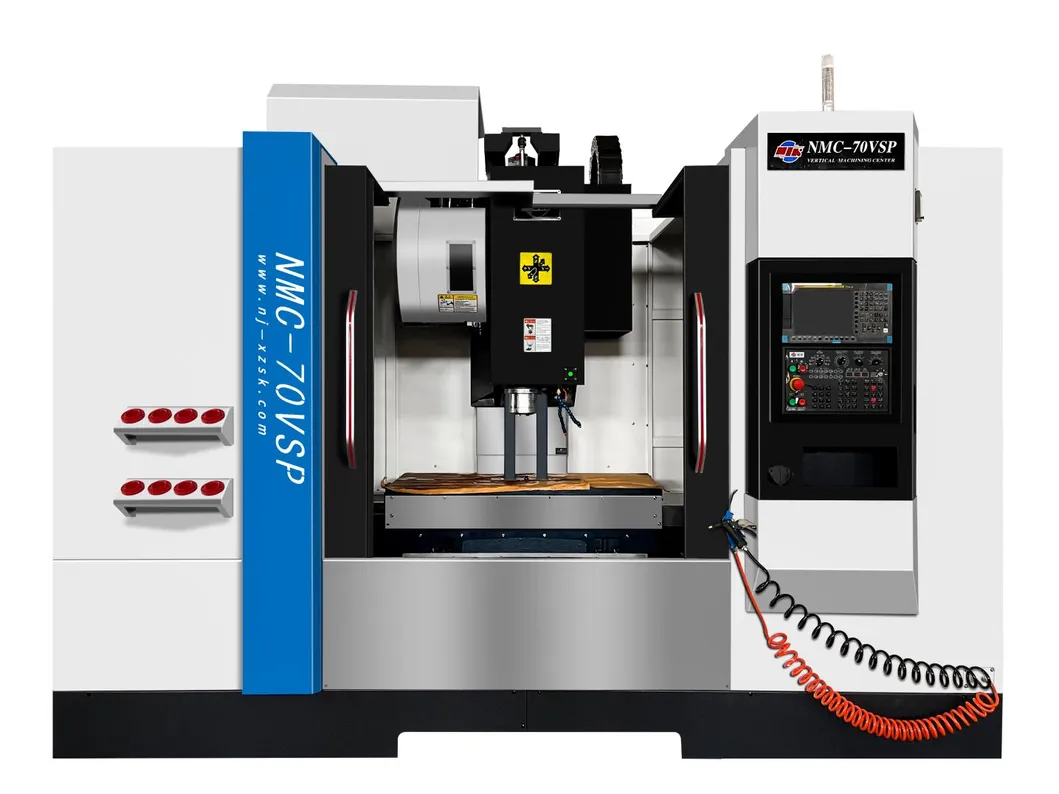

CNC Milling Features
⭐

Key Features

  • Adopt Taiwan HIWIN or PMI line rails; Y and Z axis rails width up to 45mm.
  • Ultra-wide base design for maximum structural stability.
  • Double-layer arm structure increases rigidity by 1.5 times.
  • "Herringbone" column design for heavy-duty cutting support.
  • Three-axis C3 grade screw rods with NSK original bearings.

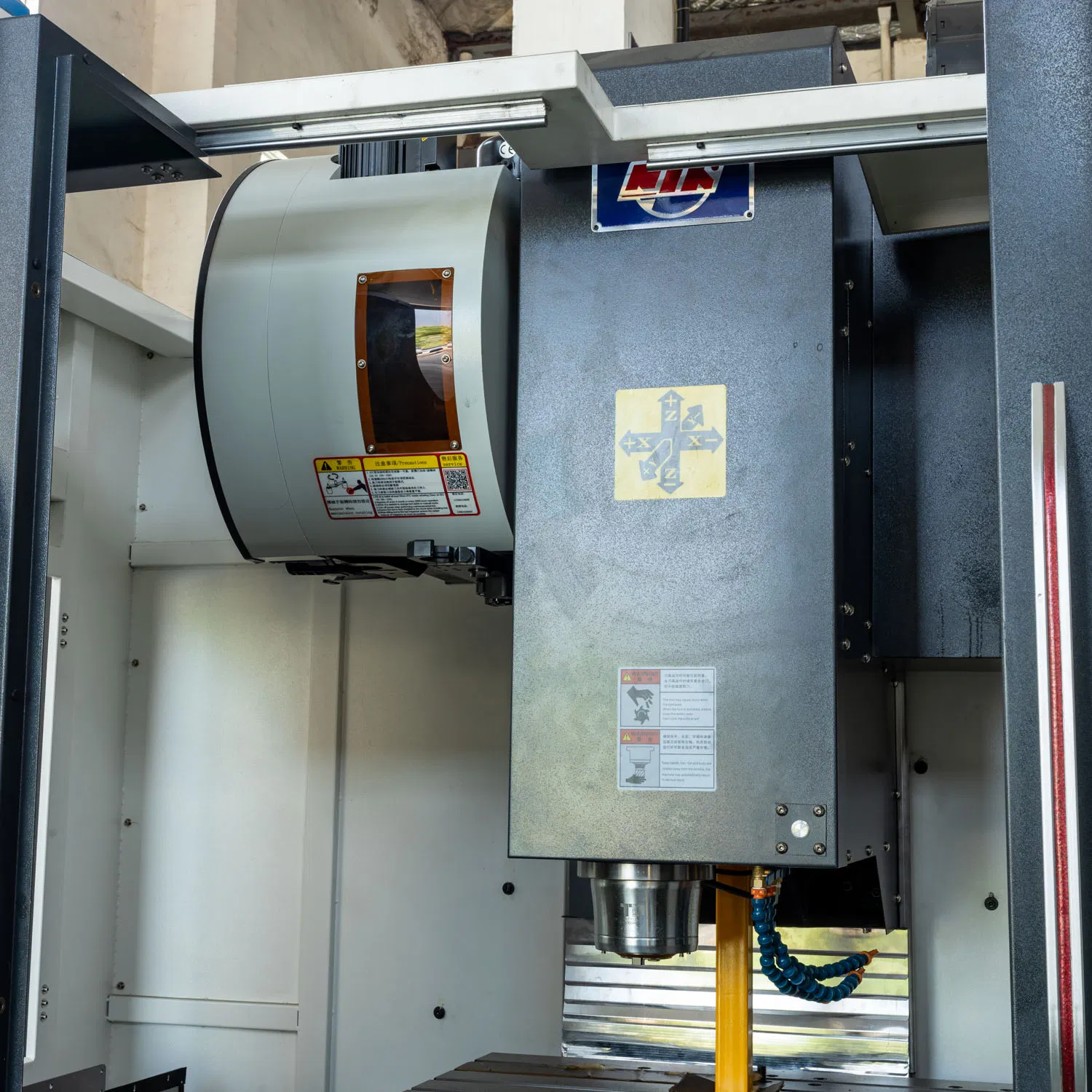

  • High rigidity BT spindle with ring spray cooling design.
⚙️

Technical Specifications

Item Specification Unit NMC-50VS NMC-70VS
Travelling X/Y/Z axis mm 800/550/550 1300/700/730
Worktable Size (L*W) mm 1000*550 1400*700
Spindle Speed rpm 10000 10000
Accuracy Positioning mm ±0.005 ±0.006
Weight Machine Weight t 5.5 9.0
📦

Standard Accessories

Standard Accessories

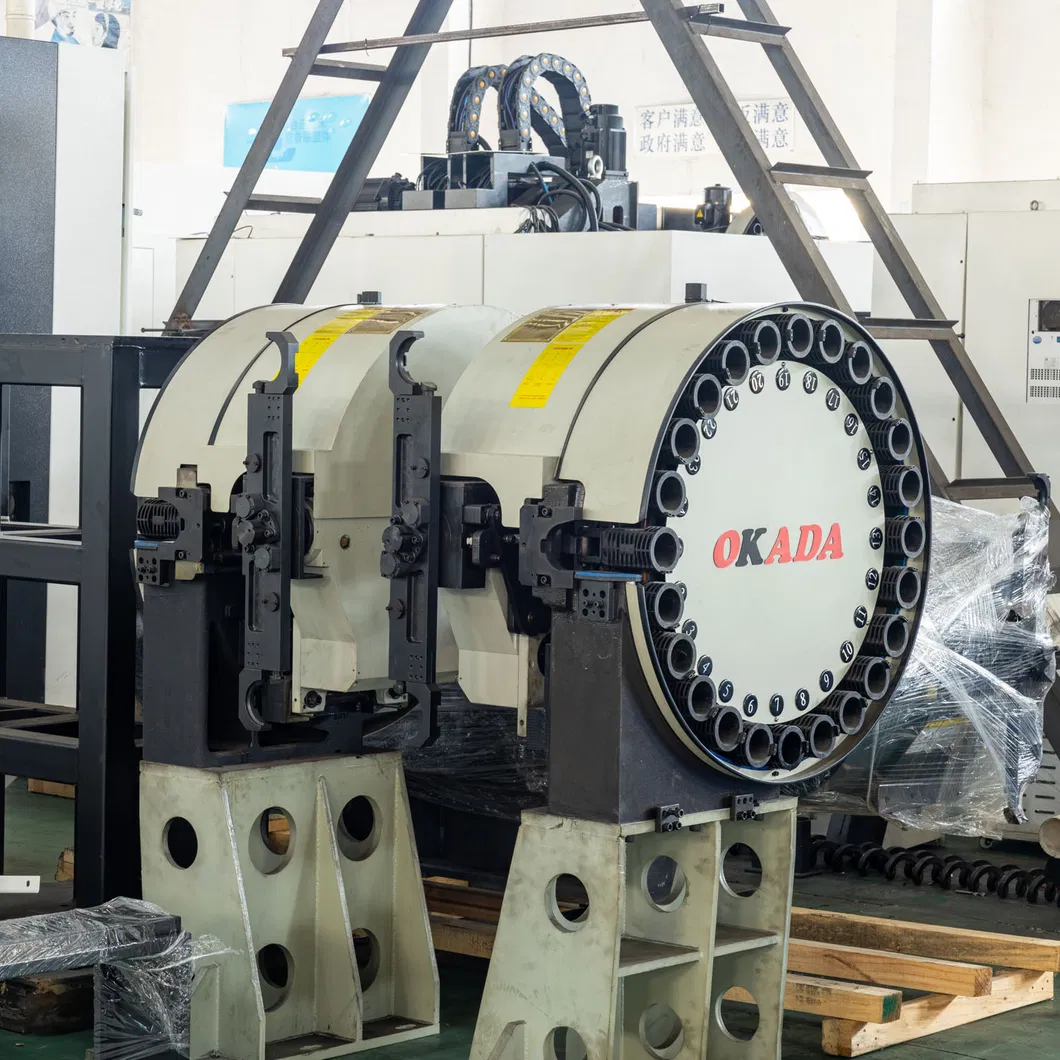

• 24 Disc Tool Magazine

• Automatic Lubrication System

• Workpiece Cooling System

• Heat Exchanger for Electric Cabinet

• Fully Enclosed Protective Cover

🌡️

Working Conditions

Power Supply: 3-AC 380V±10% 50Hz±1Hz

Environment Temp: 5~45°C | Humidity: ≤85%

Location: No harmful/corrosive gas or dust; no strong radiation or magnetic fields.

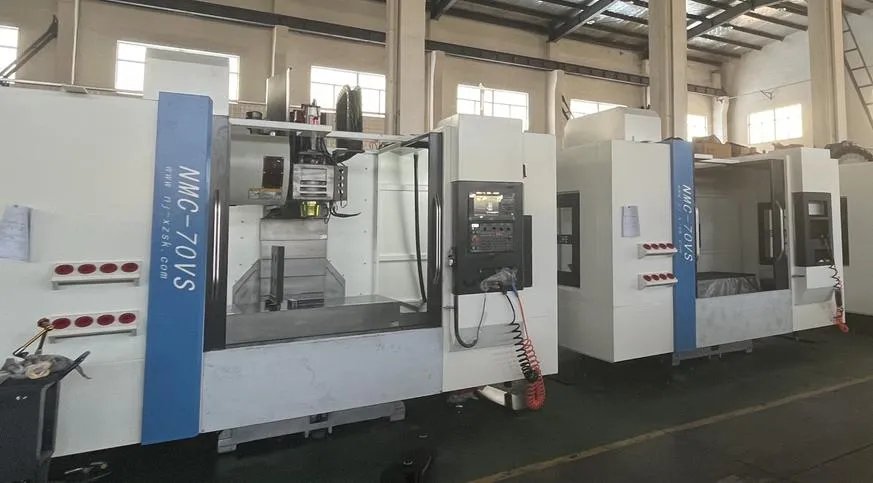

Environment Setup
🏭

Factory Workshop

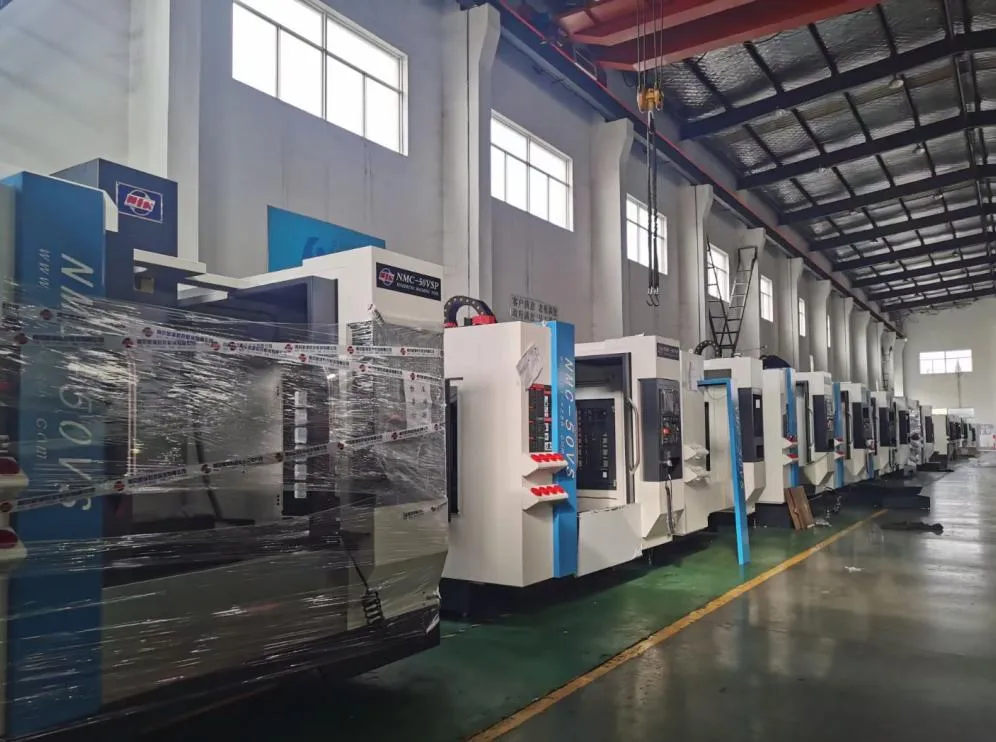

Workshop 1

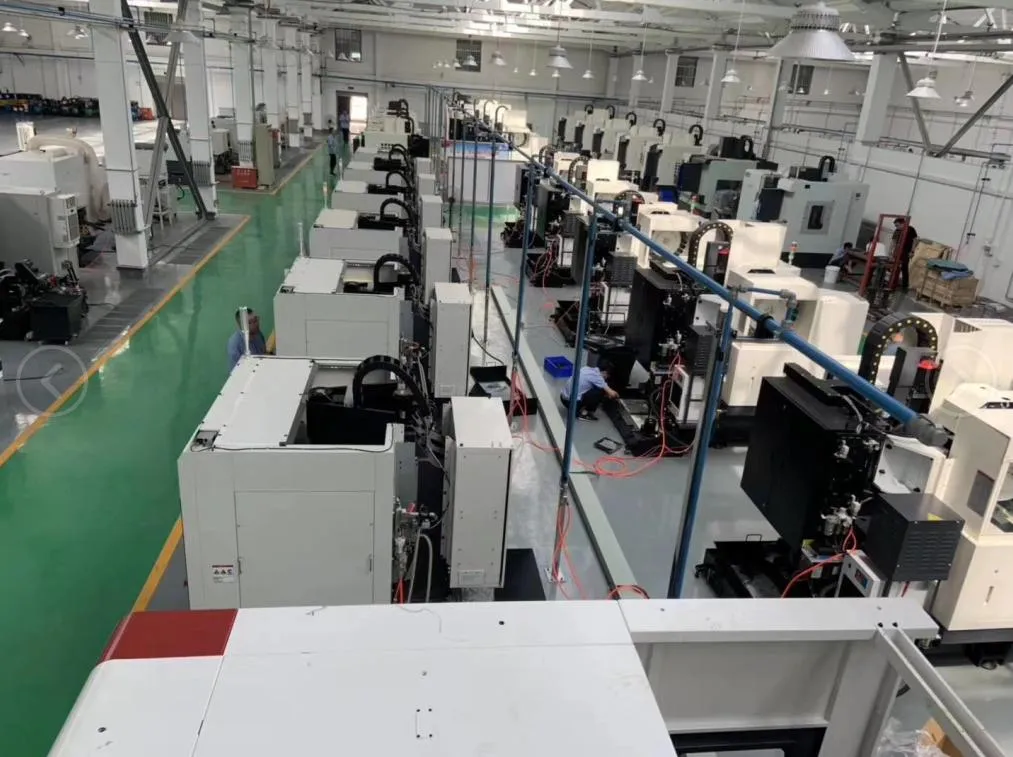

Workshop 2
Workshop 3

Specializing in the R&D and manufacturing of CNC machine tools, intelligent equipment, and automated production lines. Our products serve multiple industries globally including automotive parts machining and heavy machinery components.

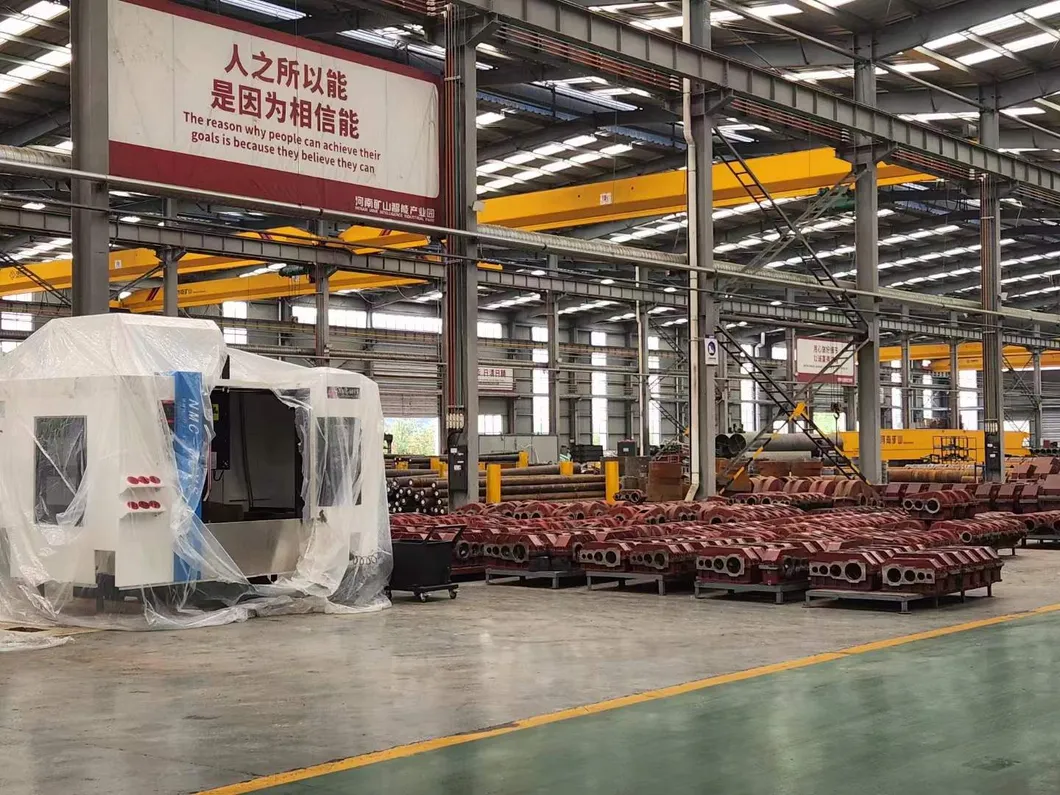

Customer Factory 1

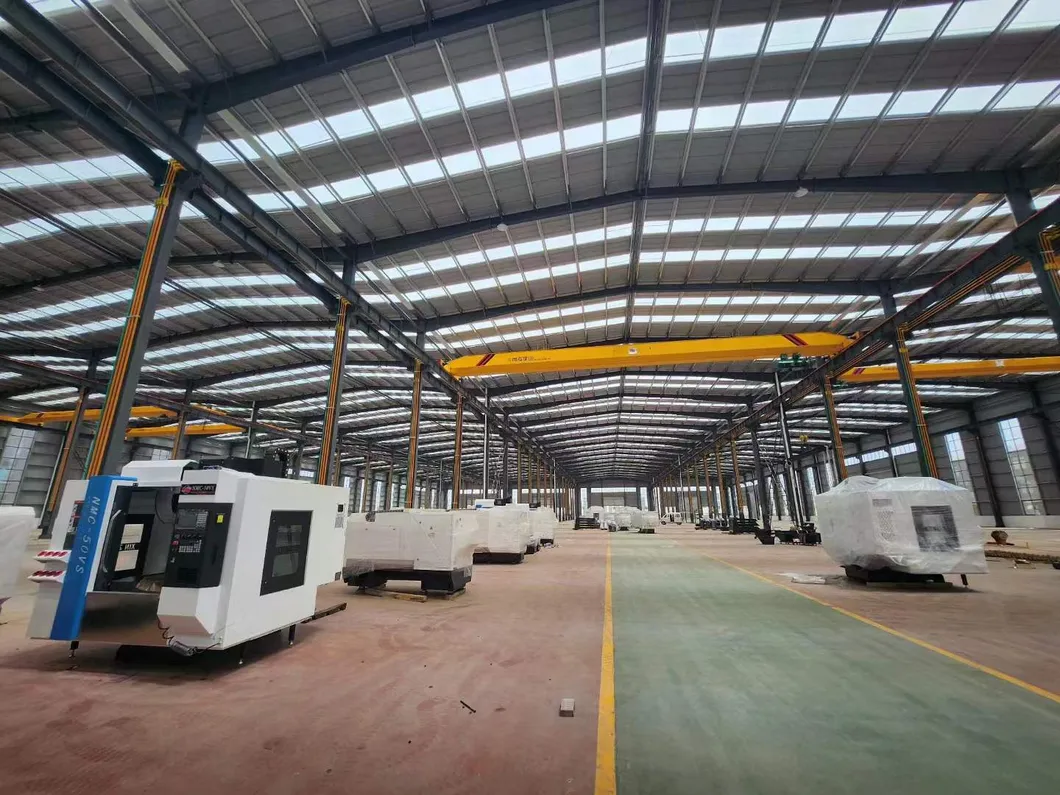

Customer Factory 2

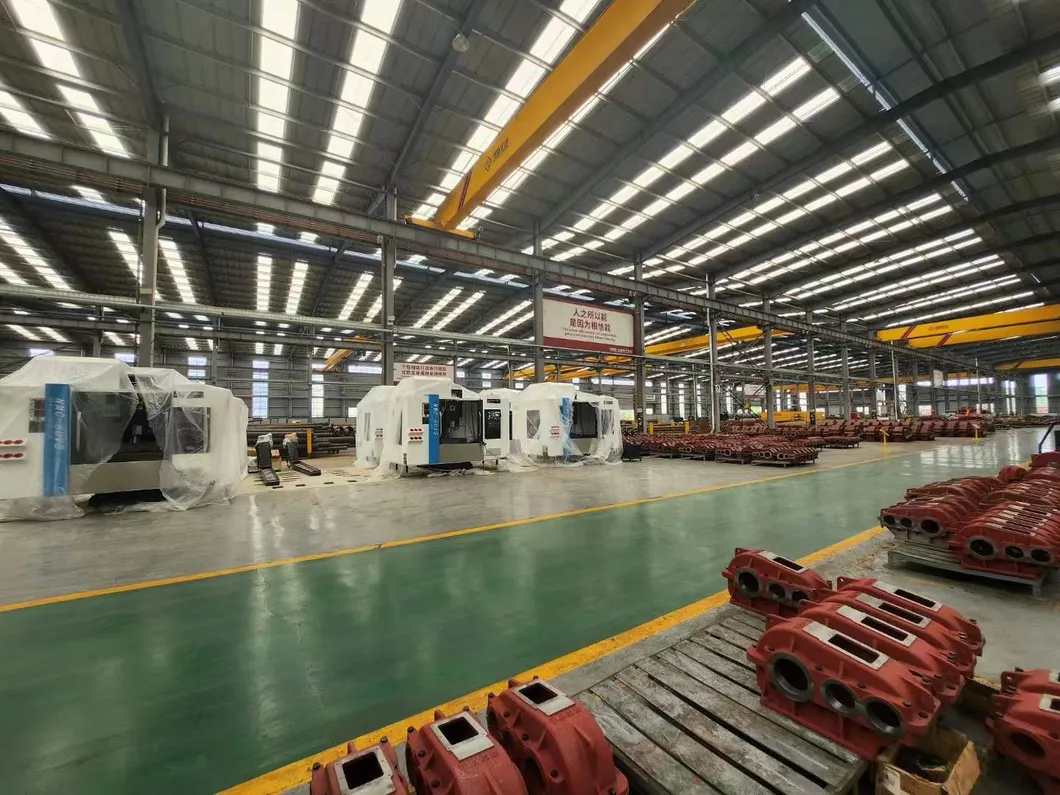

Customer Factory 3
❓

Frequently Asked Questions

Q1: What materials can this CNC milling machine process? A: It is primarily designed for high-precision metal cutting, including aluminum, steel, and other non-ferrous metals.
Q2: What is the positioning accuracy of the NMC series? A: The positioning accuracy is within ±0.005mm for standard models and ±0.006mm for larger models, ensuring high precision for complex parts.
Q3: Does the machine come with a tool magazine? A: Yes, it is equipped with a 24-disc side-mounted tool magazine for efficient automatic tool changes.
Q4: Can the voltage be customized for international use? A: Yes, the standard voltage is 380V/50Hz, but it can be changed based on the customer's specific local power requirements.
Q5: What are the requirements for the compressed air source? A: The machine requires a stable air source of 6 to 8 Kg/cm for proper pneumatic component operation.
Q6: What certifications do these CNC machines hold? A: Our machines are fully certified with GS, CE, RoHS, and ISO 9001 standards.
