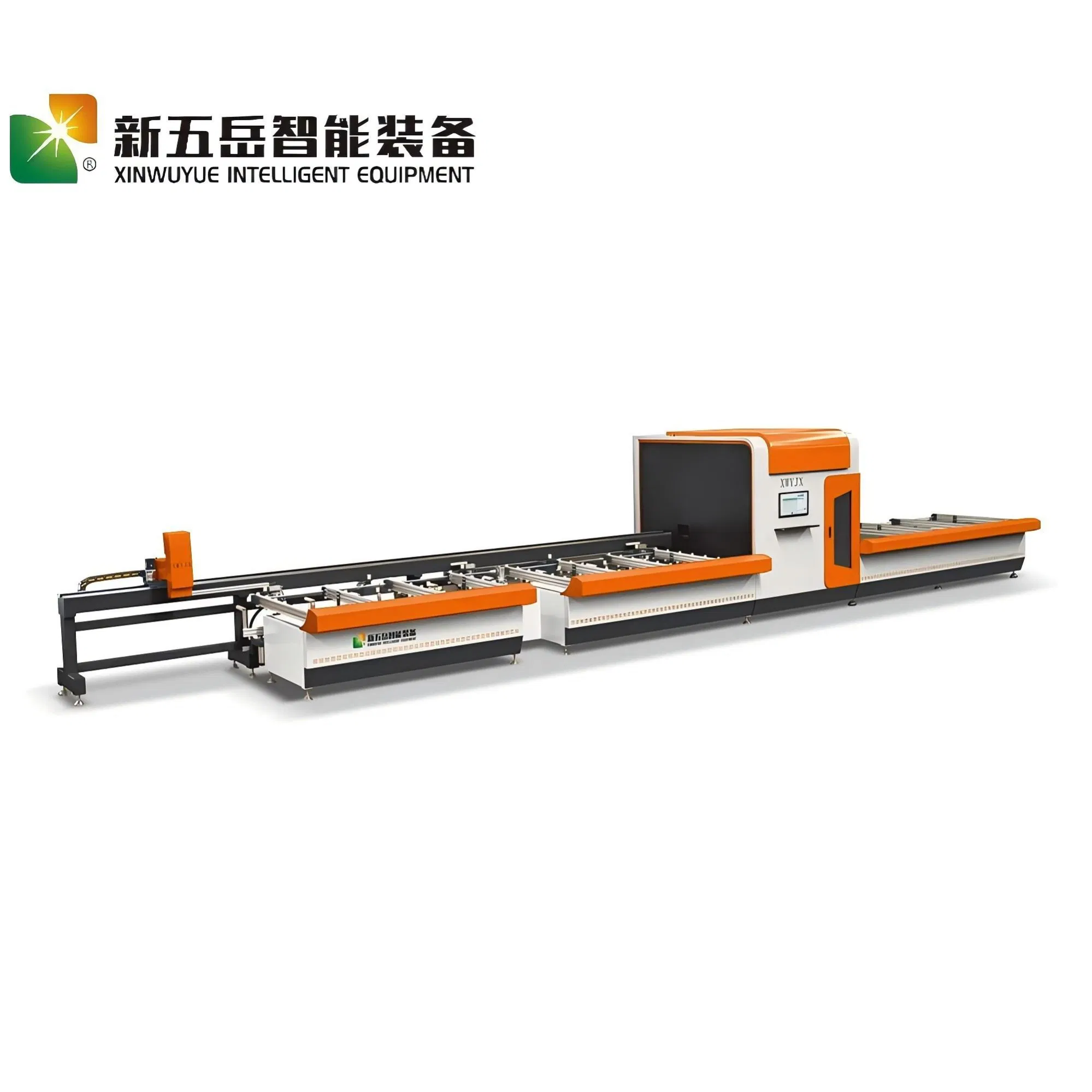

This machine is specially designed for 45° and 90° cutting and blanking of aluminum profiles, ideal for mass profile processing in window, door, curtain wall and industrial aluminum production.
It adopts an intelligent CNC system with servo motors using CAN communication, ensuring stable and reliable data transmission. The industrial PC supports wireless WIFI, enabling wireless data reception and remote data transmission.

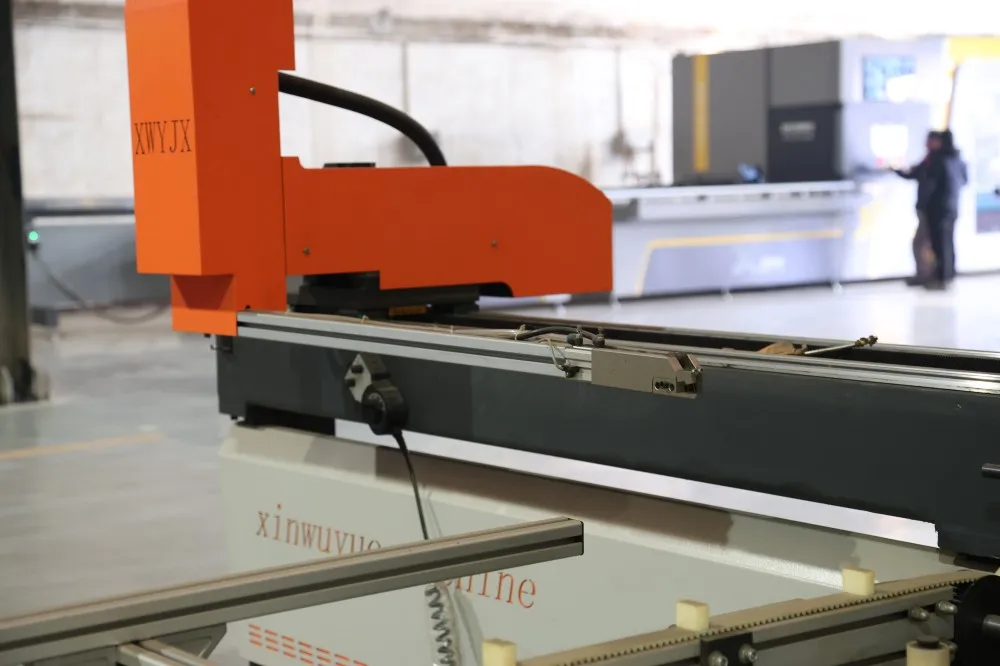

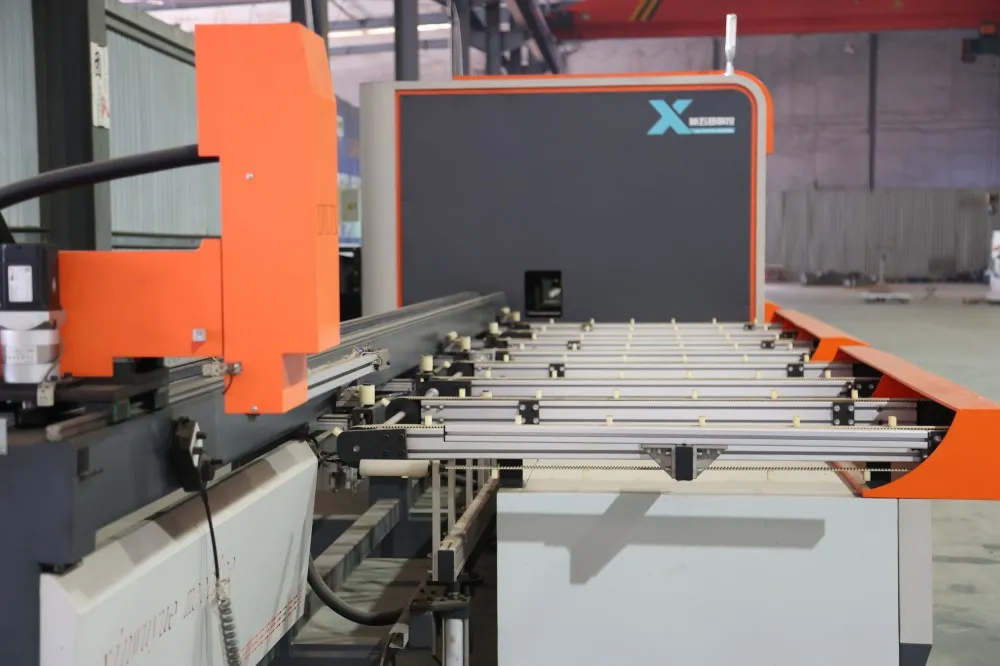

The machine features user-friendly operation, supporting connection with mainstream ERP door & window software. It realizes fully automatic functions including automatic feeding, automatic cutting, automatic output and automatic labeling.
| Item | Specification |
|---|---|
| Power Supply | 380V 50Hz (Three-phase four-wire) |
| Total Power | 15KW |
| Spindle Power | 3×3.00KW |
| Spindle Speed | 2850rpm |
| Working Air Pressure | 0.6Mpa-0.8Mpa |
| Sawing Length Range | Min 320mm - Max 6300mm |
| Blank Feeding Length | 2500mm - 6300mm |
| Cutting Angle | 45°, 90°, -45° |
| Cutting Section (90°) | 130×150mm |
| Cutting Section (45°) | 100×150mm |
| Repeat Positioning Accuracy | ±0.1mm |
| Cutting Angle Tolerance | ±0.1° |
| Feeding & Discharging Speed | 0-70m/min |
| Saw Blade Specification | Φ500×4.4×Φ30×Z120 |
| Overall Dimension (L×W×H) | 13500mm×3500mm×2300mm |
