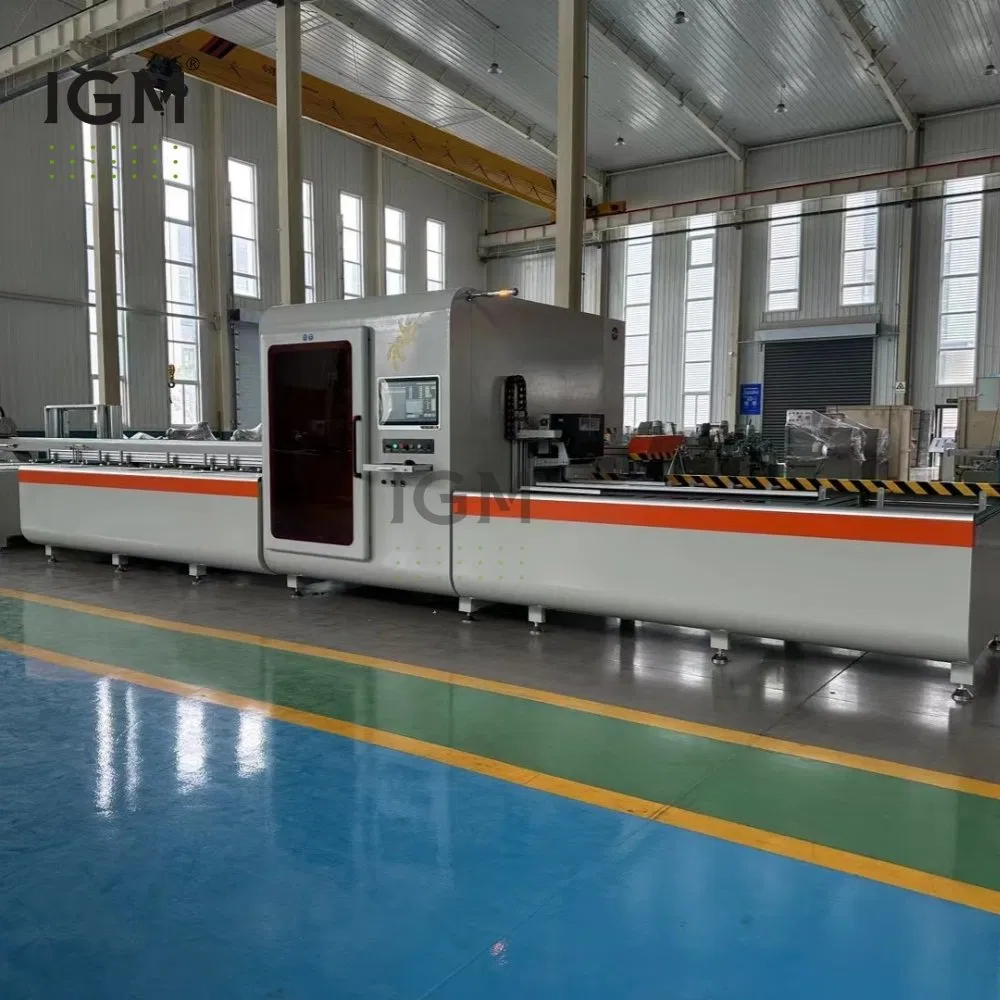

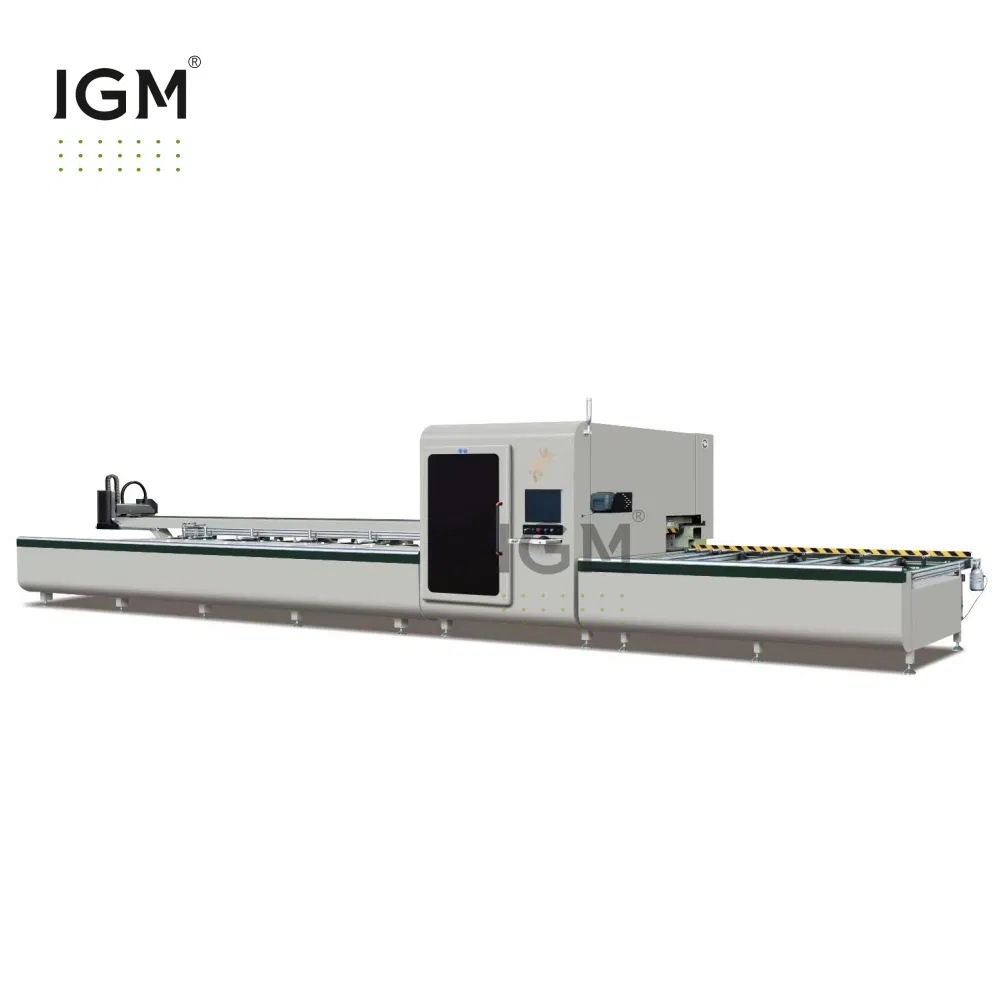

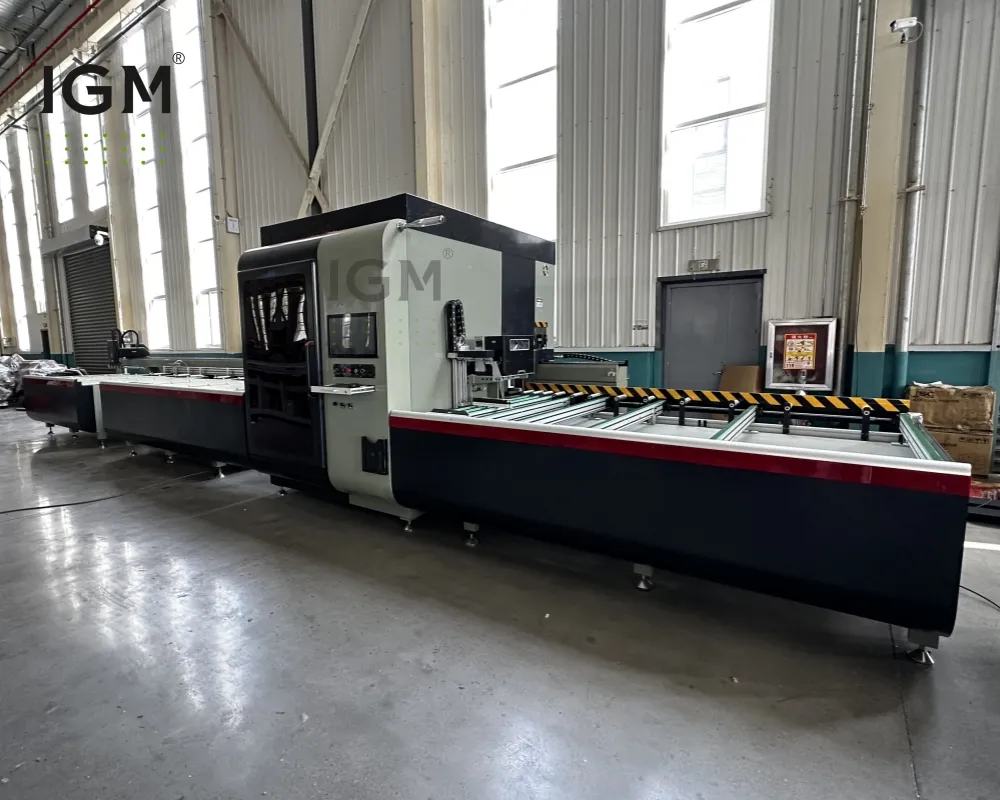

Product Name: 550mm Aluminum Window Machinery CNC Aluminum Profile Cutting Machining Center for Aluminum Curtain Wall
Model: LJQZ3-CNC-550
Application: Making Aluminum Window Door
Function: CNC 45/90 Degree Angle Cutting and Milling Any Holes

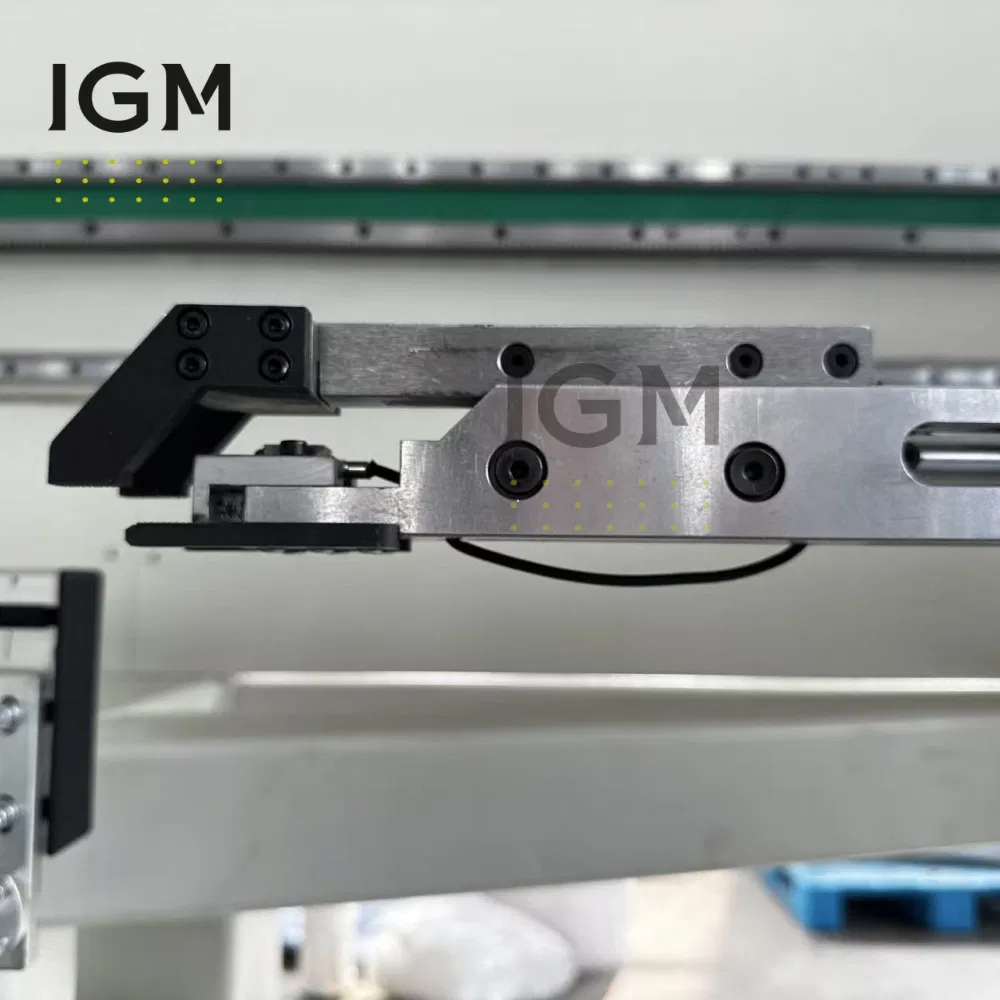

Feeding Robot: Special fixture for accurate positioning.

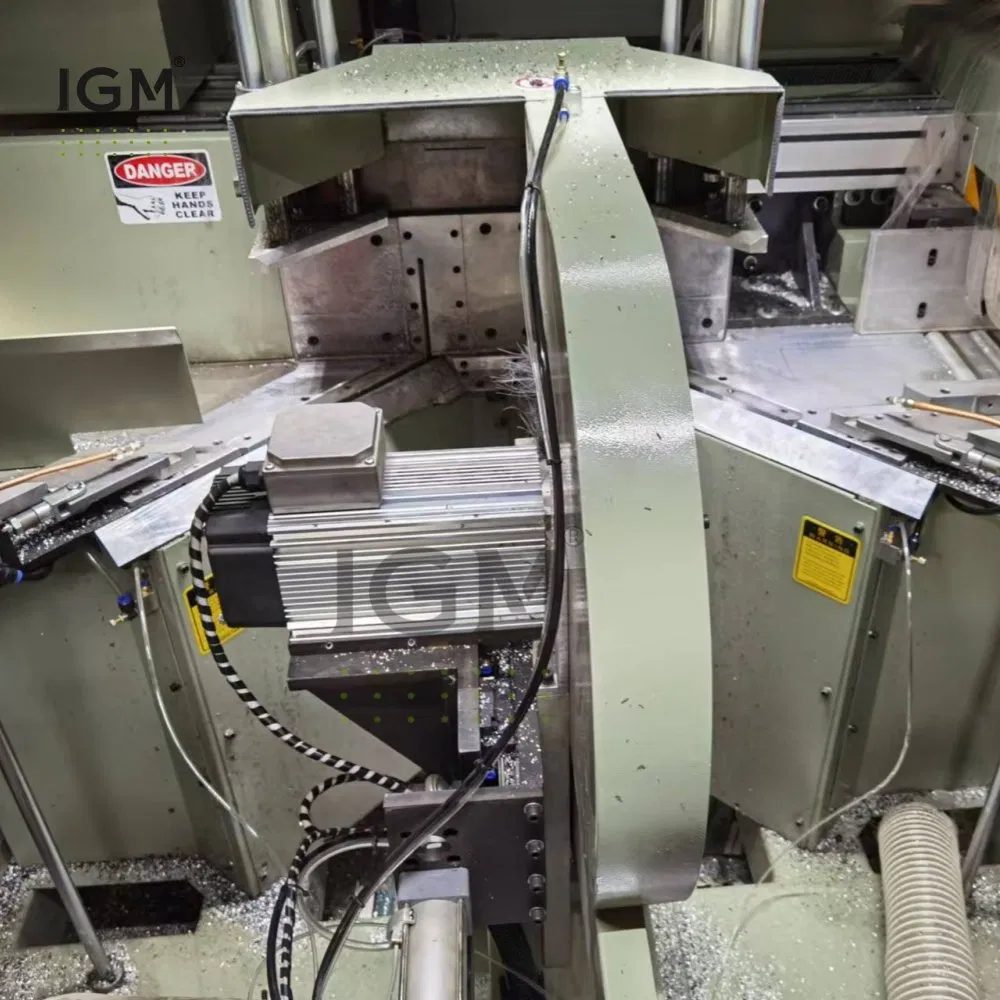

Single 90° and Double 45° cutting units.

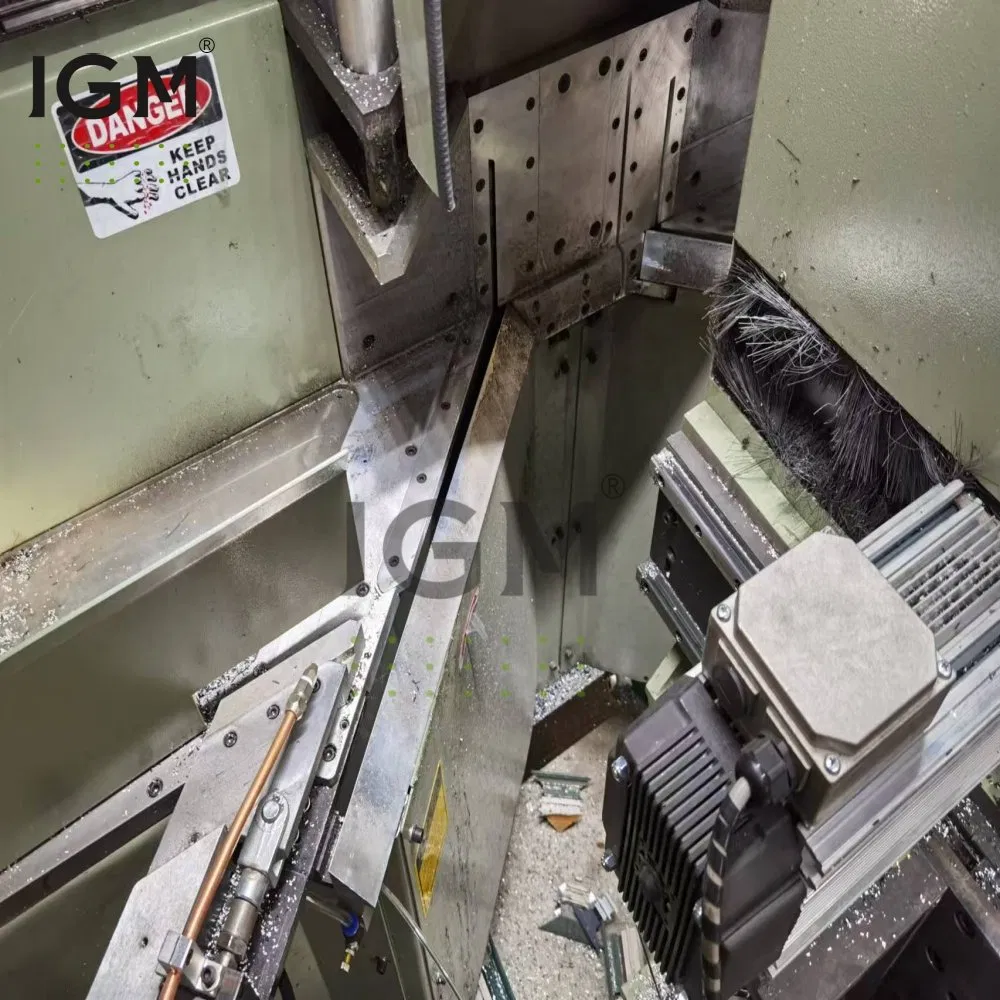

Up Cutting Type: Safer method avoids touching profiles on return.

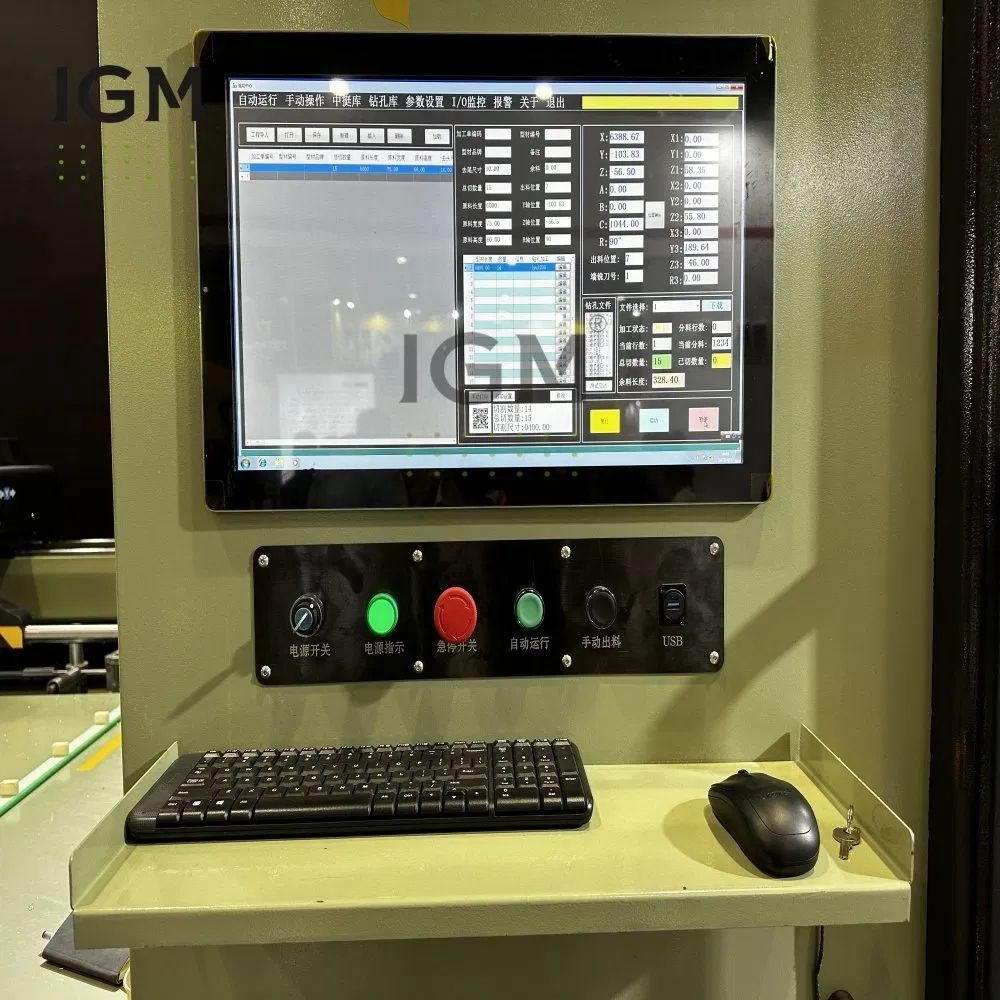

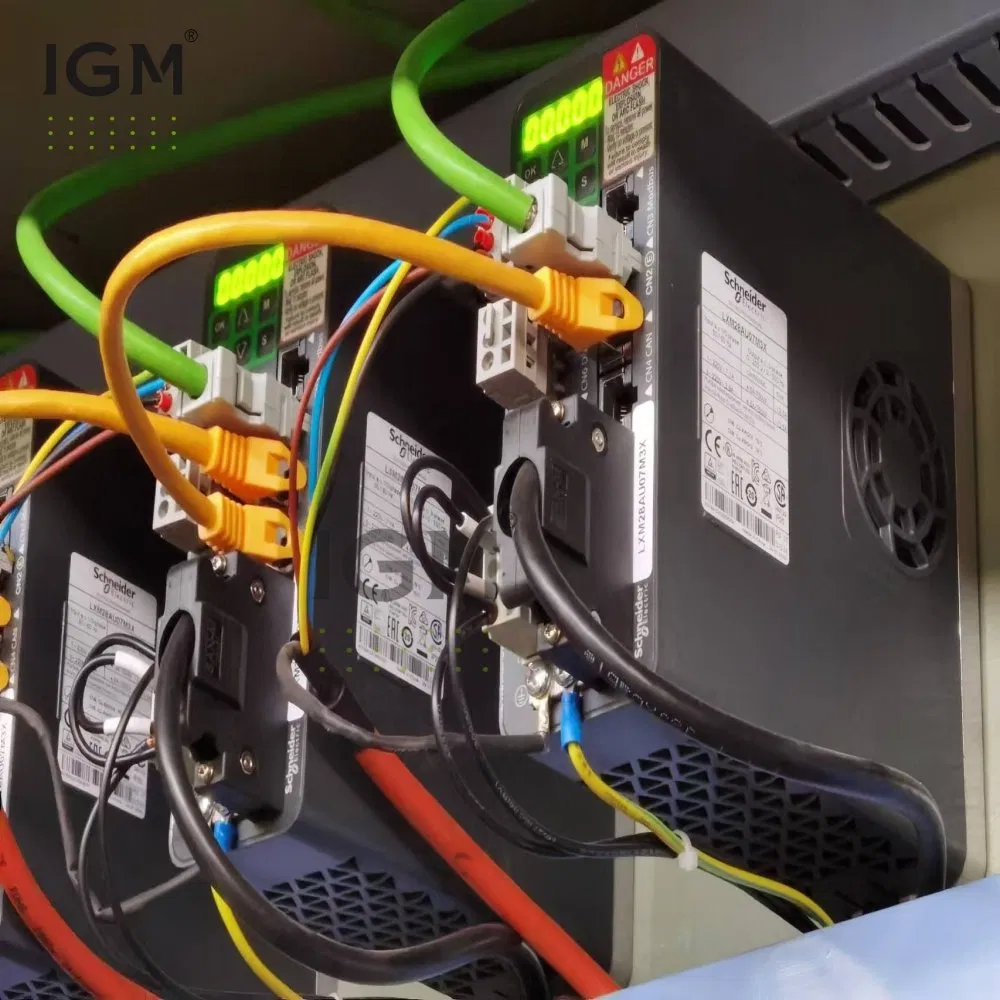

Schneider System: Stable performance and precise control.
| Total Power | 15KW |
|---|---|
| Working Air Pressure | 0.6 -0.8 Mpa |
| Spindle Motor Speed | 2850 r/min |
| Saw Blade Specs | Φ 550*30mm |
| Cutting Angles | 45°, 90°, 45° |
| Max Cutting Width/Height | 180mm / 150mm |
| Cutting Length Range | 300-6500 mm |
| Cutting Accuracy | ±0.1MM |
| Machine Dimensions | 14000*4000*2400 mm |
| Gross Weight | 5500 KGS |

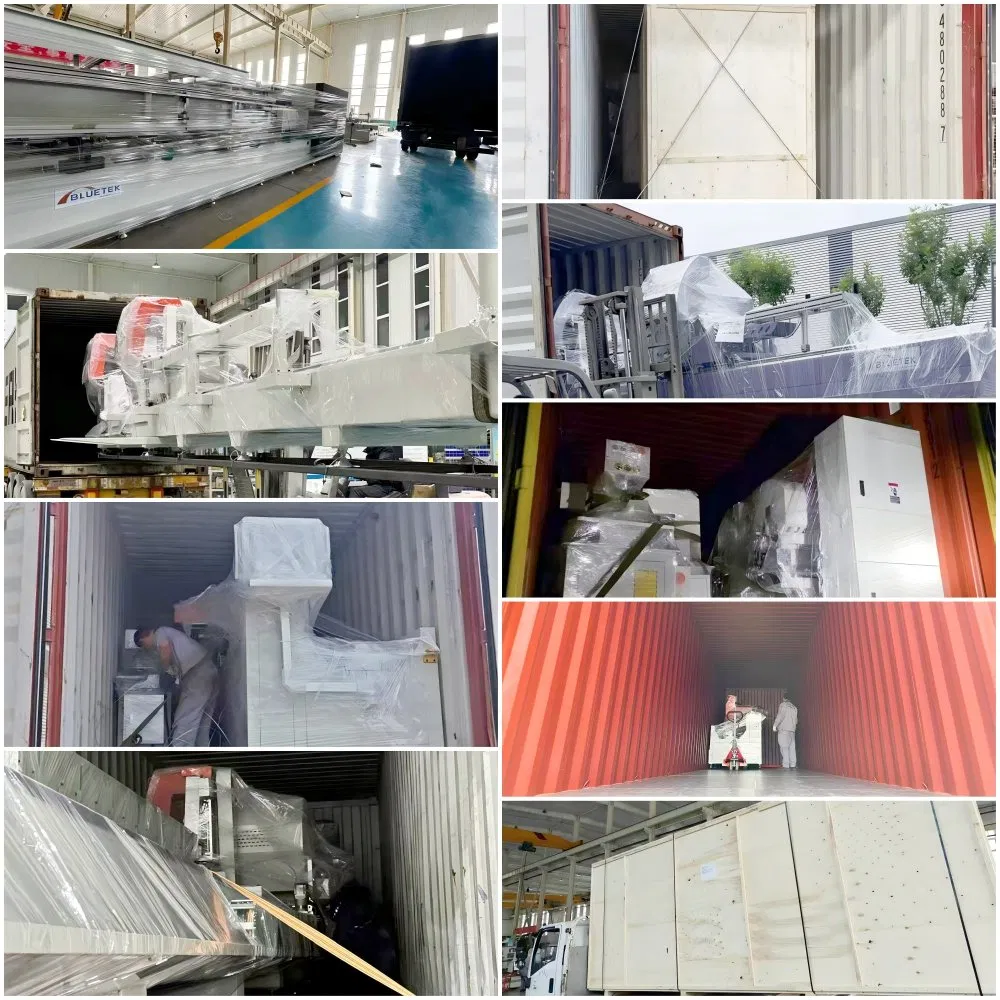

FCL (Full Container Load): Machines are wrapped in plastic film and secured in 40-foot containers using steel wire or special packaging tape. Fumigation-free wooden boxes are available upon request.
Professional R&D: Team with 15-20 years of industry experience and numerous patents.

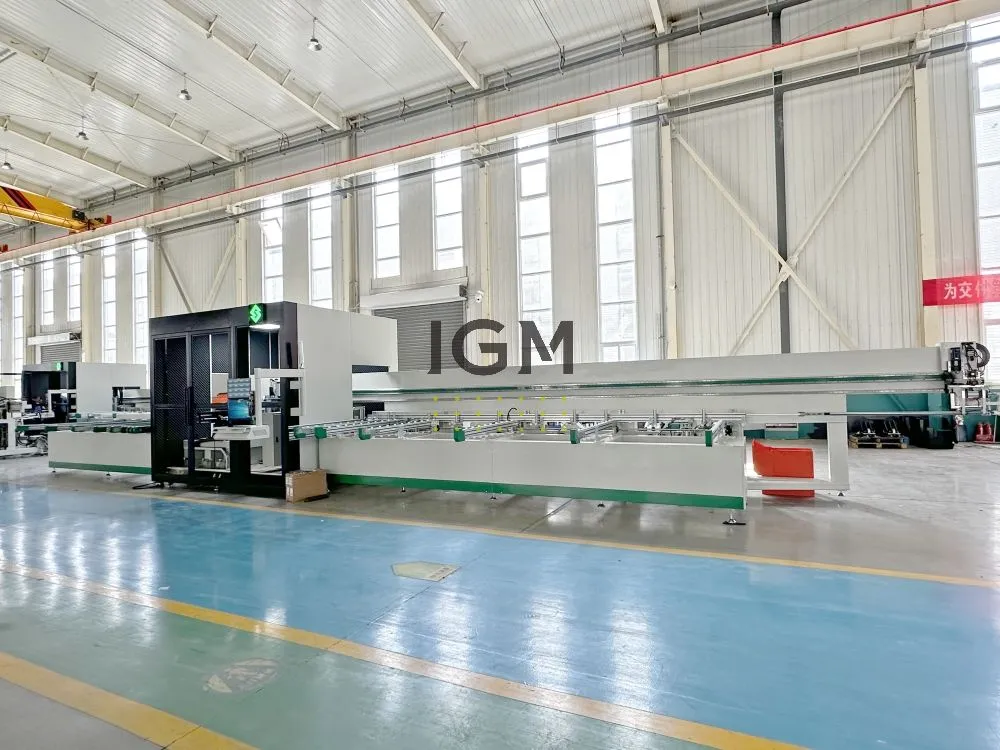

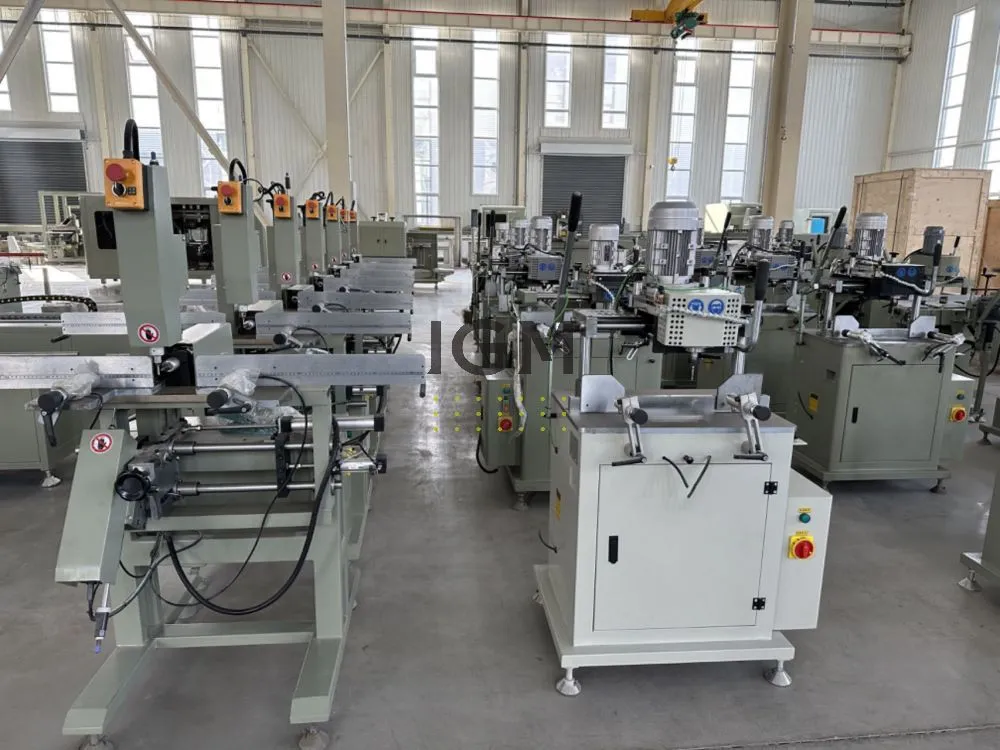

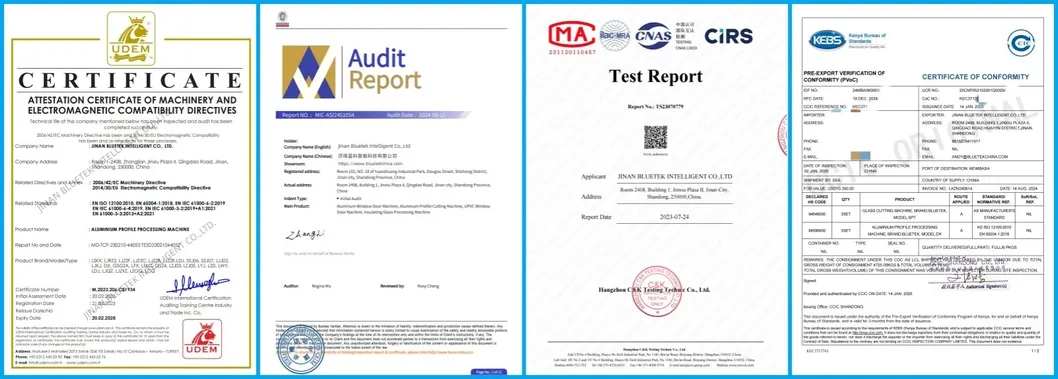

Quality Assurance: ISO and BV certified factory with 15,000 square meters of production space.
Comprehensive Support: On-site installation, technical training, and 24/7 remote technical consulting.
Warranty: 18-month warranty with lifelong after-sales service support.
