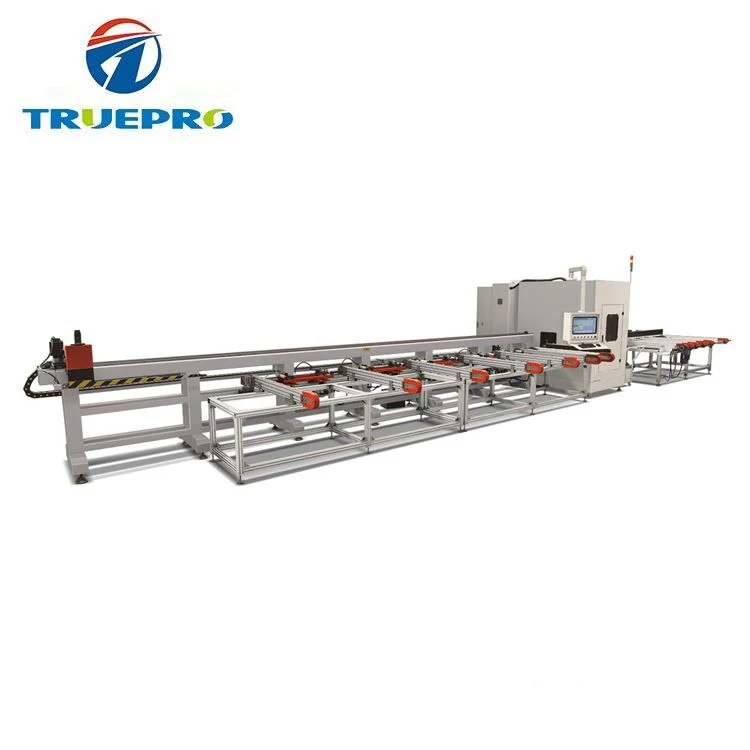

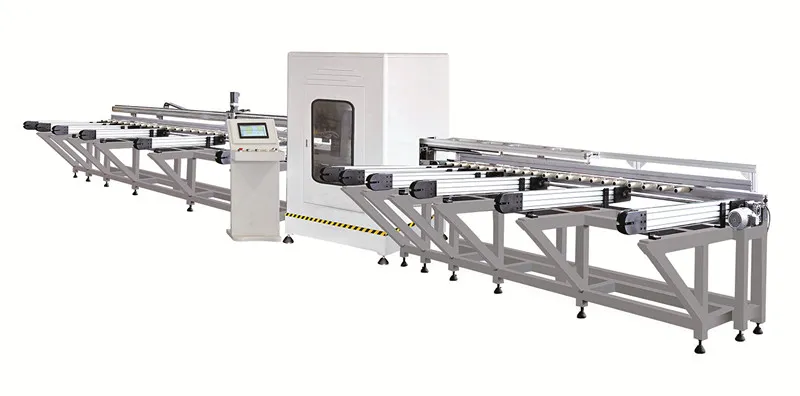

Aluminum Profile Intelligent CNC Cutting Miter Saw Machining Center (45 Degree)
📋 Basic Information
Model NO.:CLJZD-CNC-6000
Automatic Grade:Automatic
CNC or Not:CNC
Voltage:380V
Input Power:3*2.2kw
Rotary Speed:2800r/Min
Cutting Angle:45, 90 and 135 Degree
Weight:4000kg
Production Capacity:100 sets/Year
HS Code:846150
⚙️ Key Machine Features
✔Worktable auto feeding and clamping continuous.
✔High precision linear guide-way.
✔Mechanical arm with high precision gear and rack.
✔Blade connected directly with imported motor for smooth cutting.
✔Servo controlled cutting motion for better quality.

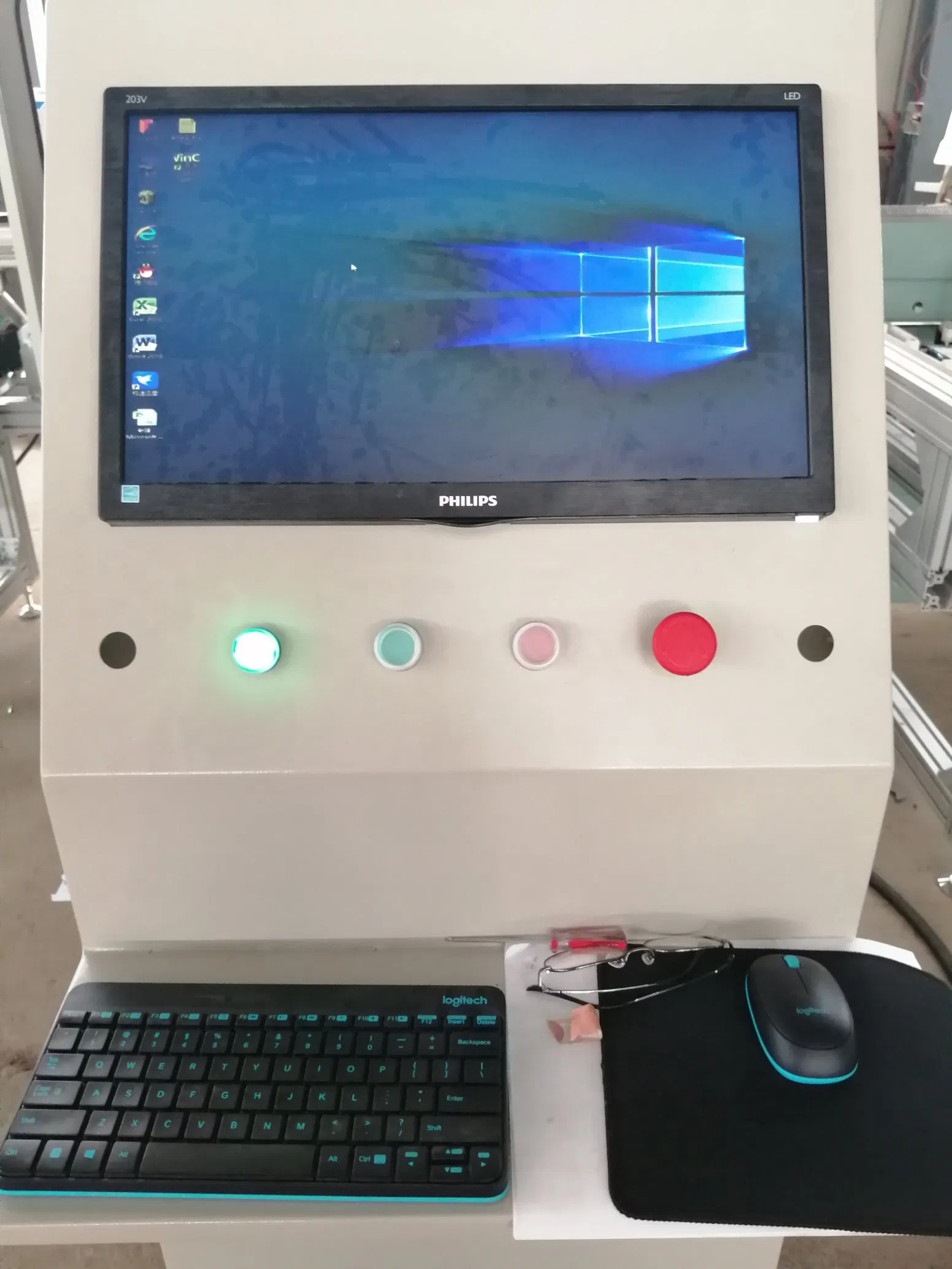

✔SIEMENS control system for steady and reliable operation.
✔Continuous efficiency for ±45° or 90° cutting.
✔Totally closed design for operator protection.
📊 Technical Parameters
| Power Supply | 220V/380V/415V 50HZ |
| Cutting Motor Power | 3*2.2KW |
| Feeding / Discharge Motor Power | 0.75Kw / 0.75Kw |
| Air Pressure | 0.5~0.8MPa |
| Saw Blade Specification | Φ500*Φ30*4.4*120T |
| Cutting Length / Width | 30~120mm / 30*120mm |
| Raw Materials Range | 400~5800mm |
| Cutting Angle Deviation | ±5' |
| Length Deviation | ±0.2mm |
| Repeat Locating Length Deviation | ±0.05mm |
| Overall Dimension | 16000*2600*2000mm |

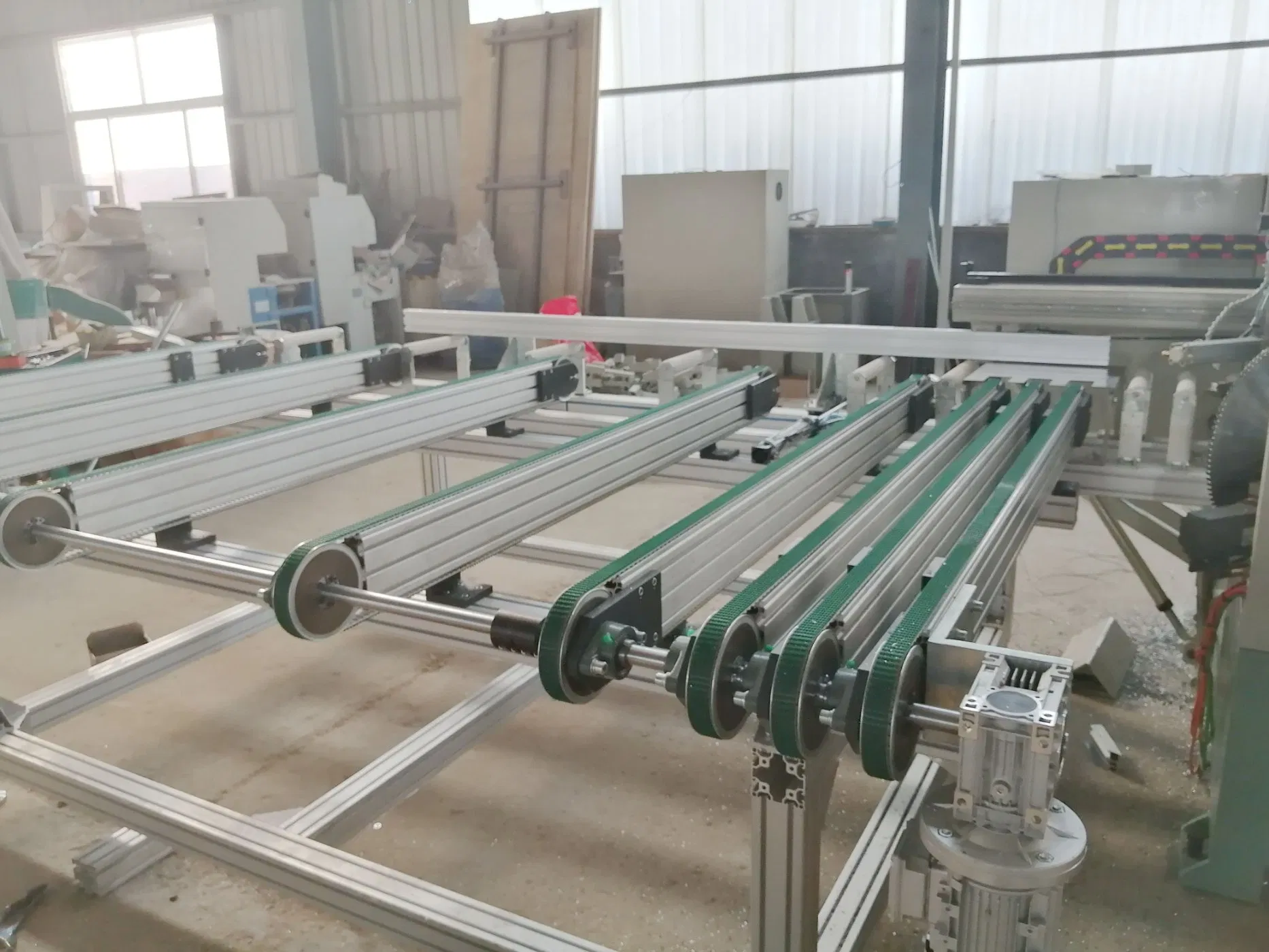

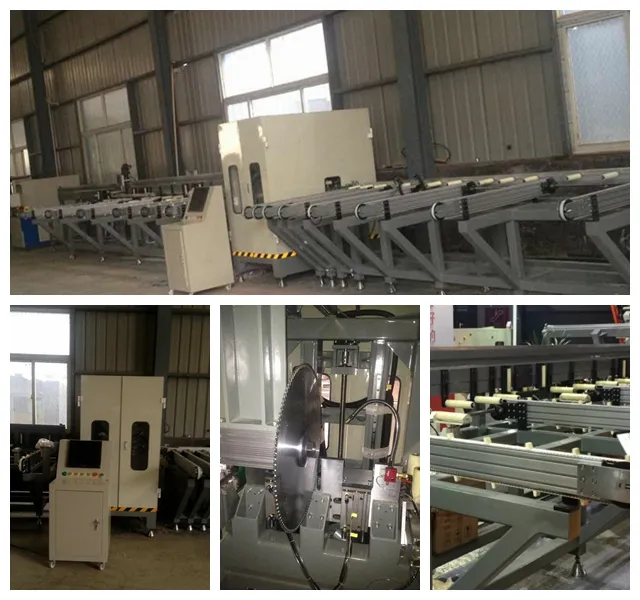

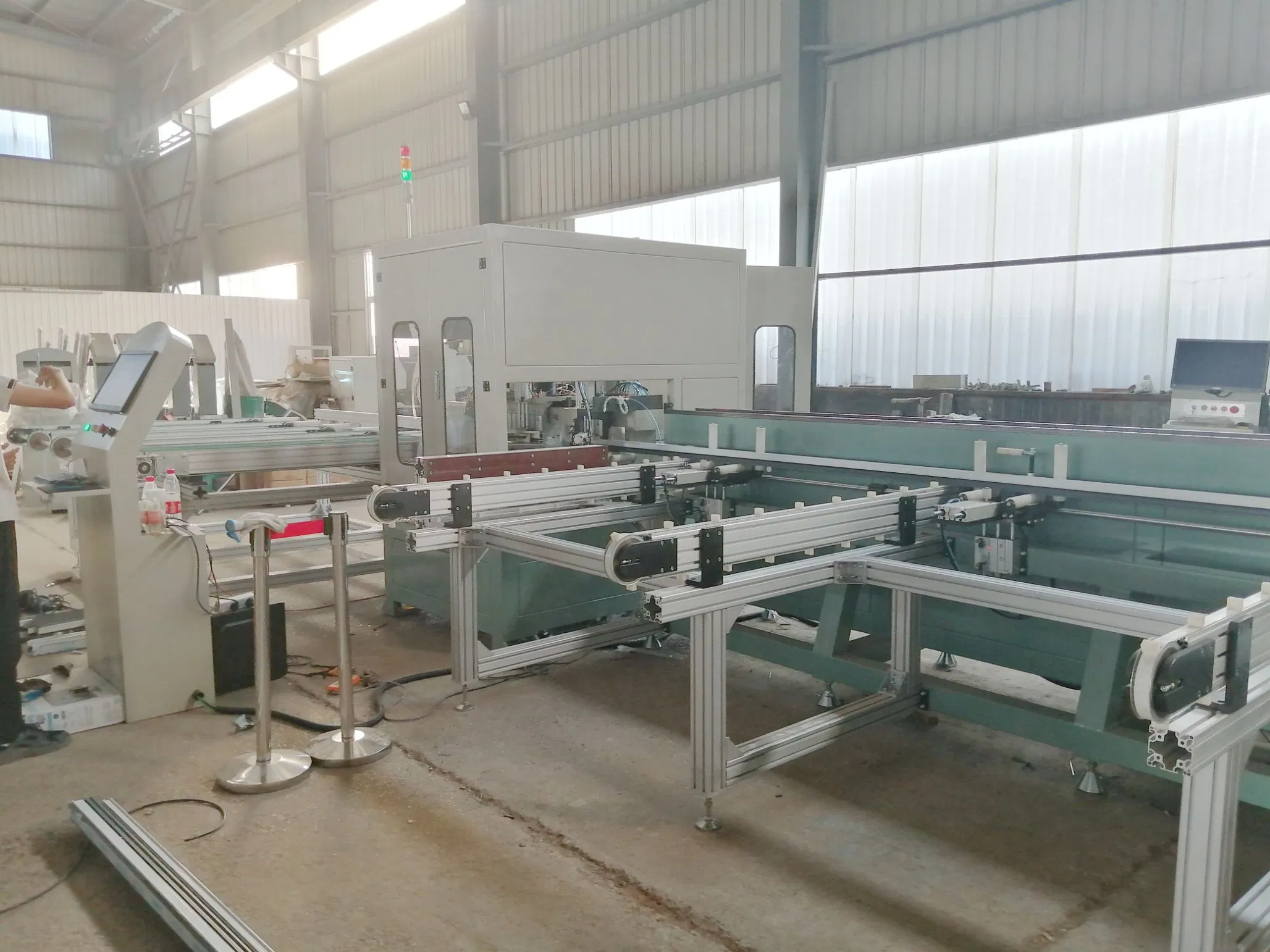

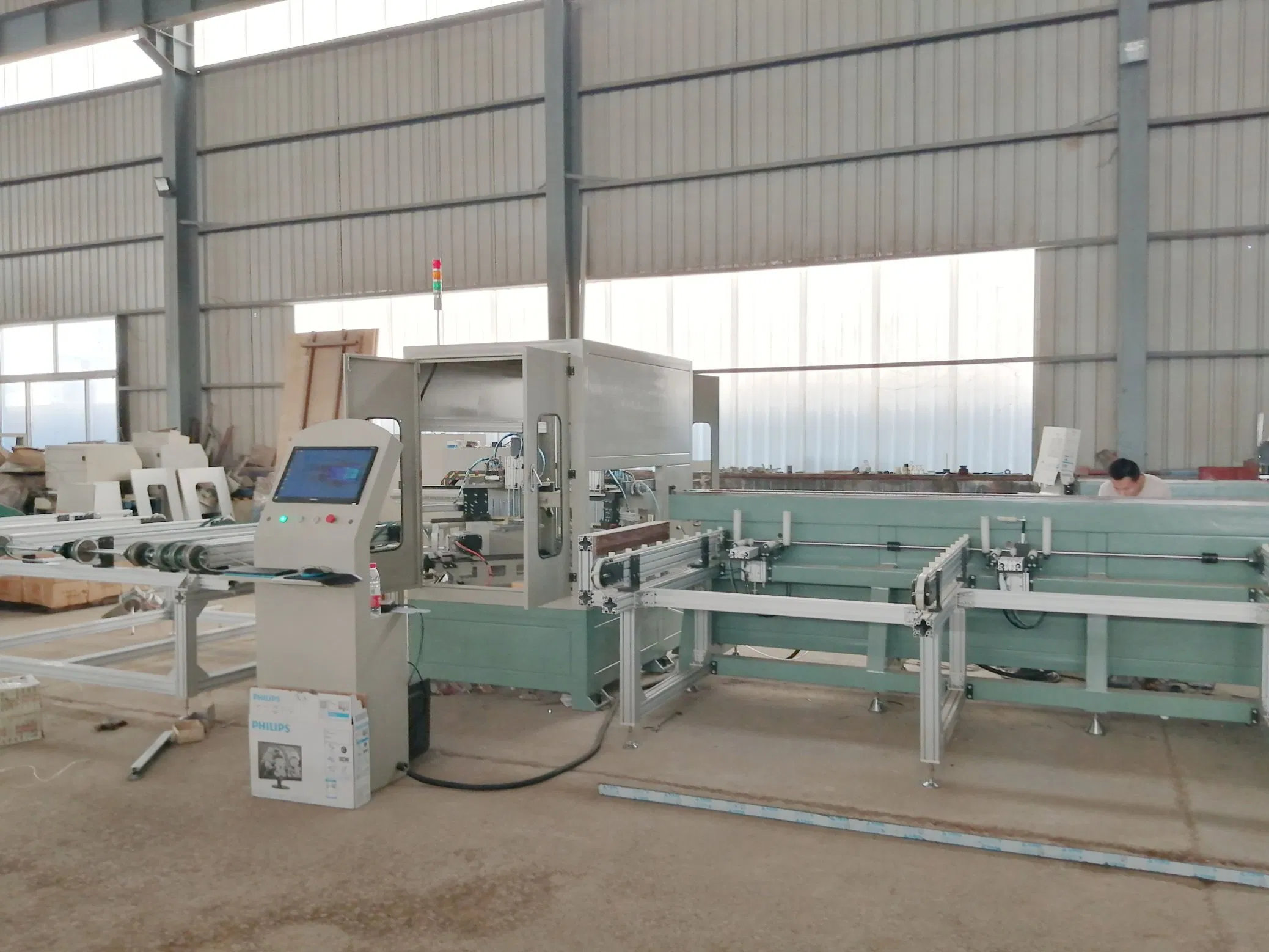

🖼️ Machine Details & Gallery
"IT'S THE BEST THAT FITS MOST."
Every machine can be customized to meet your special requirements.
Frequently Asked Questions
❓ 1. When can shippment be arranged?
We usually arrange shippment within 15 days after getting the deposit, but customized machines may require more than 25 days.
❓ 2. What can you do if my machines have problems?
1) We can send you free components if your machines are within the guarantee period.
2) We can dispatch our engineers to repair your machines.
❓ 3. Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers hold valid passports.

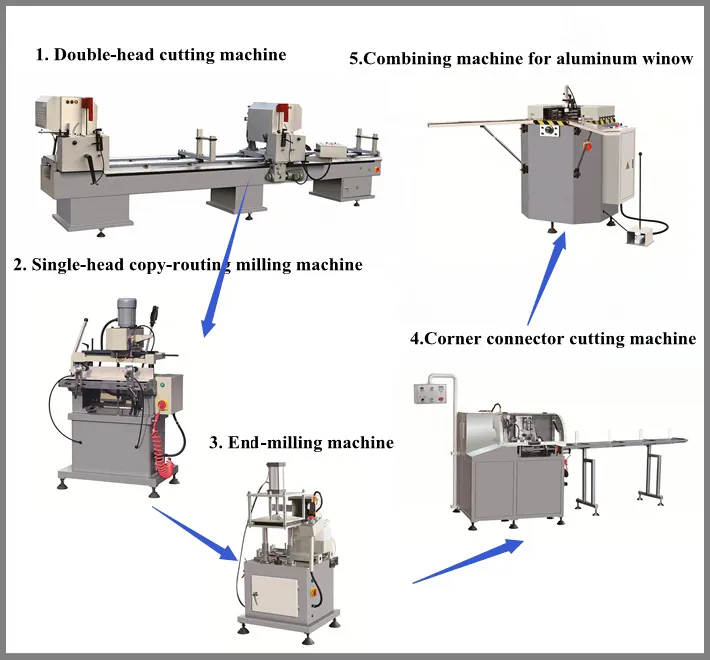

❓ 4. What basic machines are needed for Aluminum window and door production?
1) Double head cutting saw
2) Lock hole copy milling machine
3) End milling machine
4) Automatic corner connector cutting saw
5) Single head corner combining machine
❓ 5. Is customization available for specific requirements?
Yes, every machine can be customized to meet your unique production needs and special requirements.
❓ 6. What is the cutting precision of this CNC center?
The machine offers high precision with a cutting angle deviation of only ±5' and a length deviation of ±0.2mm.
