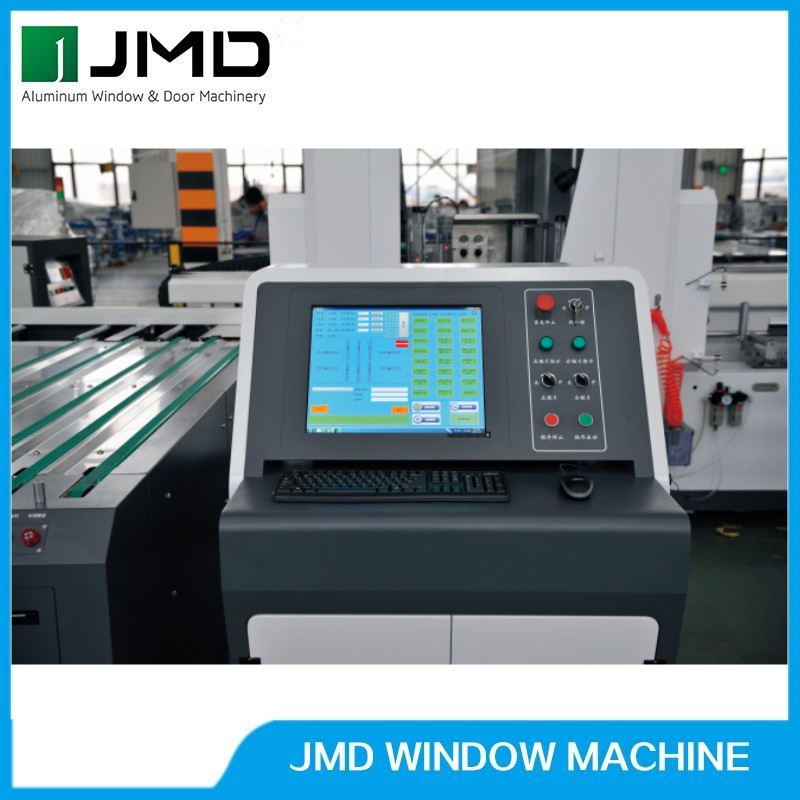

Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center
Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center
Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center
Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center
Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center
1 / 5
Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center
Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center
Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center
Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center
Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center

Aluminium Window Making Machine Center with Low Price/CNC Aluminum Window Profile Cutting Center

Customization: Available
After-sales Service: on Site Installation & Training If Needed
Warranty: 12months
Send Inquiry

Product Description

45° CNC Cutting Center LJG2S-500X6000

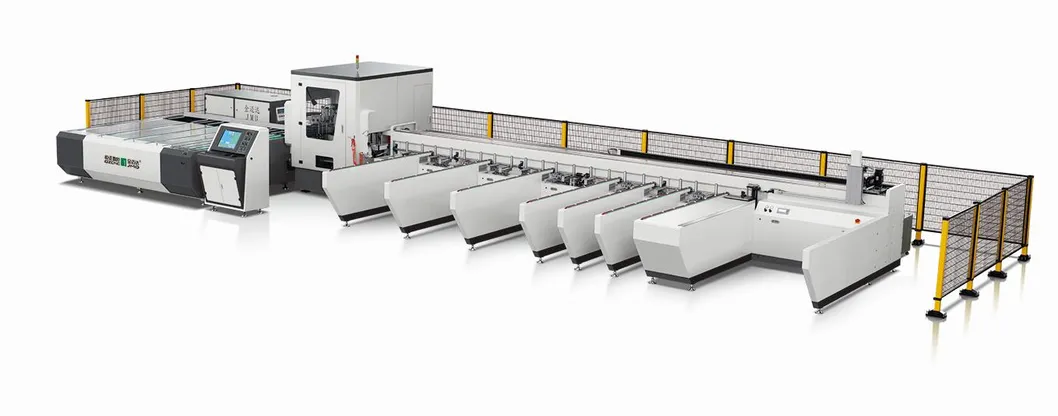

CNC Aluminum Window Profile Cutting Center

Basic Specification

Model NO.
LJG2S-500X6000
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Total Power
15.0kw
Working Air Pressure
0.5~0.8MPa
Blade Size
500X4.4X3.6X30X120
Cutting Angle
45°
Cutting Length
150mm~6200mm
Repeat Accuracy
±0.05mm
Feeding Speed
0~60m/Min
Production Capacity
150sets/Year

Key Features & Components

  • ✔ Automatically cut aluminum window profiles at 45 degree with high precision.
  • ✔ Cutting stroke adjustable according to profile's size.
  • ✔ CNC system controlled manipulator speed with profile data memory.
  • ✔ Equipped with specialized optimization software for windows to minimize waste.
  • ✔ Pulse blowback chip collector for low-noise waste recovery.
  • ✔ High-end components: HIWIN Linear rails, TBI Guide screws, and KANEFUSA blades.

Technical Parameters & Details

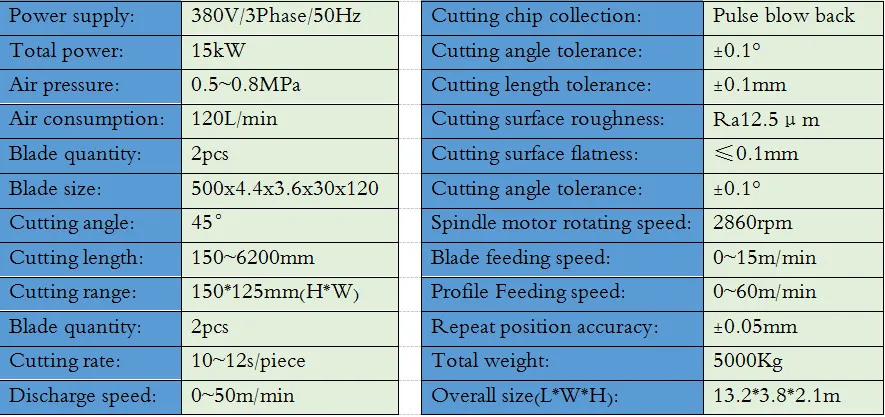

Technical Parameter Sheet

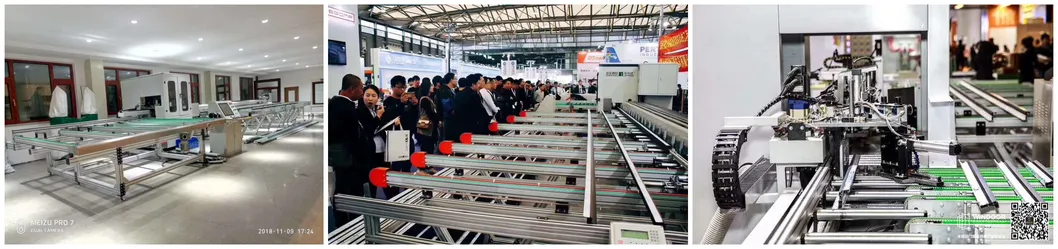

Machine Details View

Production & Workflow

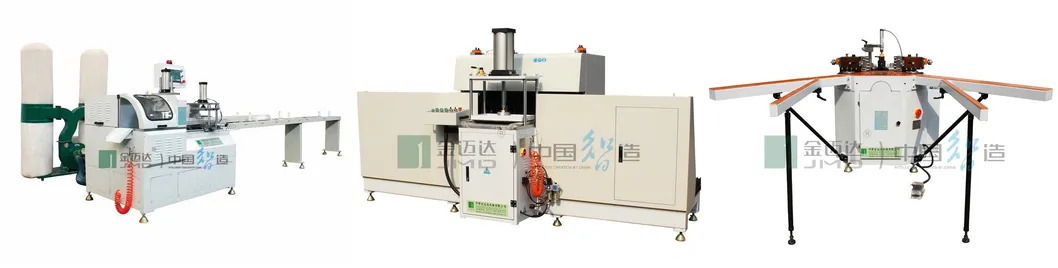

Aluminum Machine Range

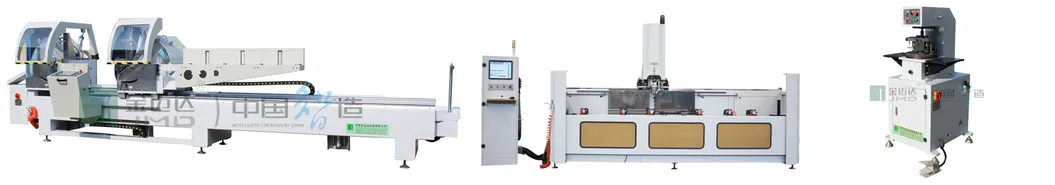

Aluminum Machine Range 2
Making Process

Factory Overview & Team

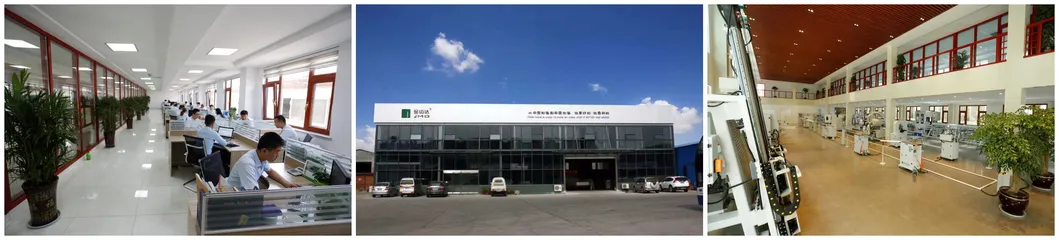

Factory View

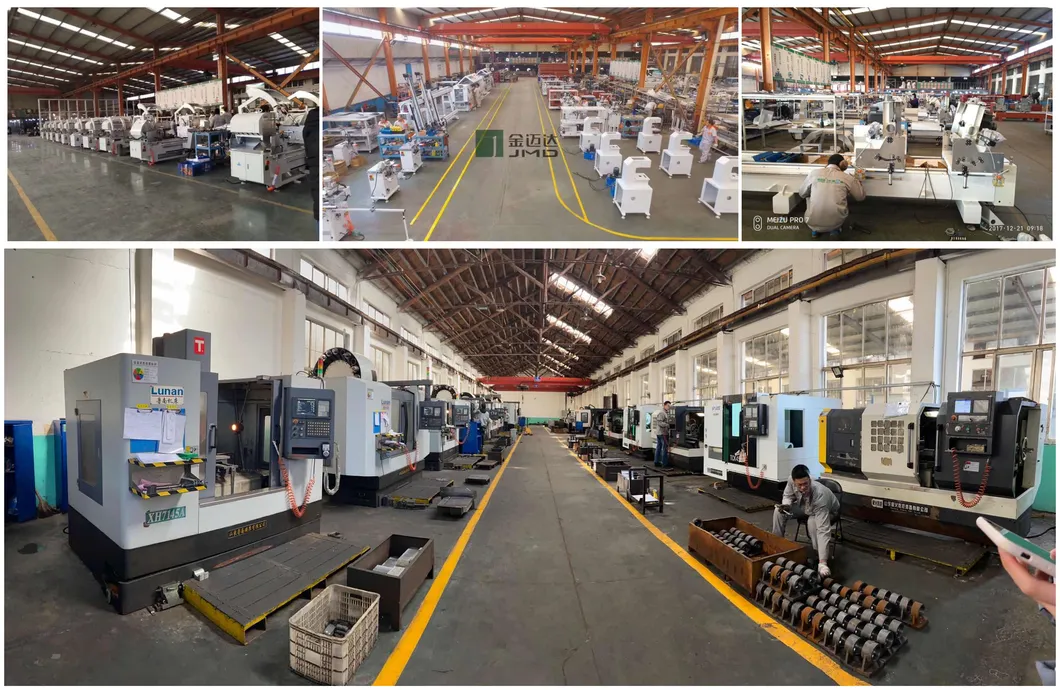

Production Floor
Professional Team
Team Work

Packaging & Logistics

CNC Aluminum Cutting Center Packing
Package Size
13.2m x 3.8m x 2.1m
Gross Weight
5000.00kg
Frequently Asked Questions
How many workers are needed to operate this CNC cutting center?
Only one operator is required to manage the entire cutting process.
What is the required space for installation?
You will need an area of approximately 15m * 5.5m, with a height of over 2.5m.
What container size is needed for international delivery?
One 40GP container is required to transport this machine safely.
What is the cutting efficiency of this machine?
The machine offers high efficiency with 10~12 seconds per cutting, totaling about 300~360 cuttings per hour.
What is the typical lead time for an order?
The standard lead time for this aluminum cutting center is between 7 to 10 days.
Is the machine compatible with different aluminum window profiles?
Yes, the integrated CNC system and optimization software allow it to handle various profile data efficiently.
