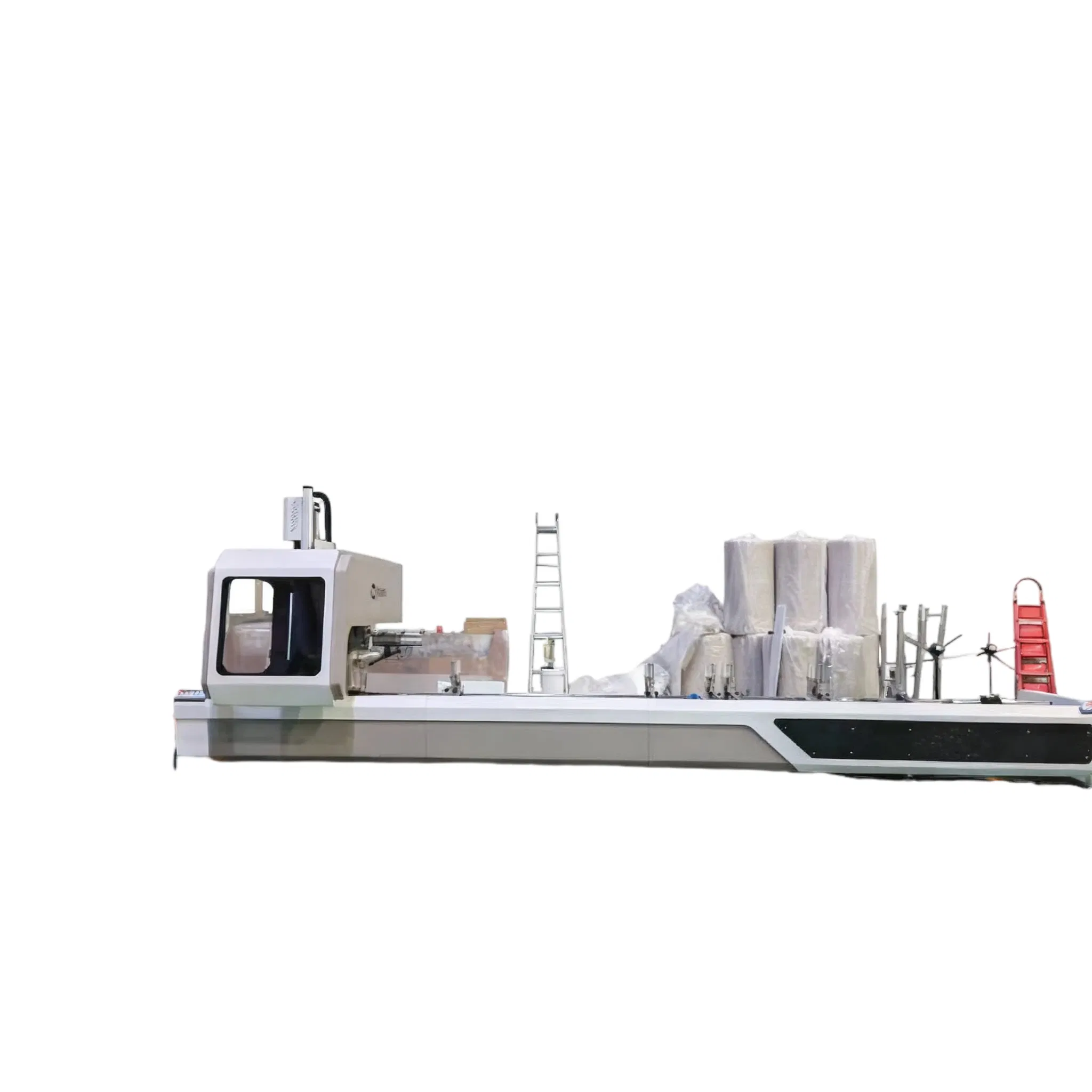

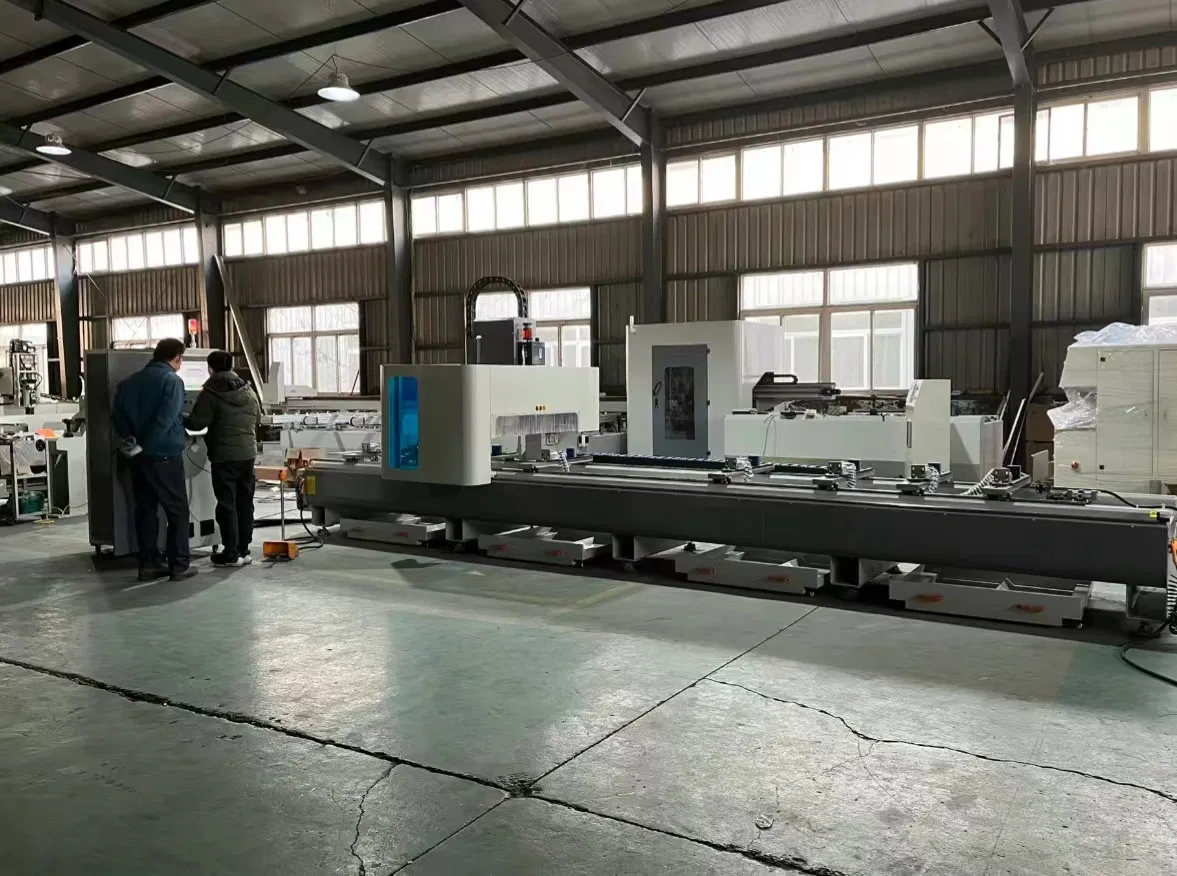

4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC
4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC
4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC
4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC
4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC
1 / 5
4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC
4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC
4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC
4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC
4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC

4 Axis CNC Machining Center with Moving Gantry Structure for Drilling Milling Cutting on Bars or Workpieces of Aluminium PVC

After-sales Service: 24-Hour Online
Warranty: 2years
Condition: New
Send Inquiry

Product Description

📌 Basic Information
Model NO.
LGS--CNC-7000
Certification
CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Overall Power
15kw
Spindle Power
9kw
Air Pressure
0.5-0.8MPa
Working Voltage
380V 50Hz
Specification
9800*2500*2800mm
Origin
China
Capacity
500 Pieces/Year
💎 Product Description

Aluminum profile four-axis CNC machining center LGS- CNC-7000

Performance Characteristics:

  • Suitable for processing holes and slots in aluminum alloy doors, window curtain walls, industrial aluminum, and rail transit materials.
  • Equipped with a high-performance Italian spindle, capable of ±90° milling for maximum working efficiency.
  • Utilizes Taiwan New Generation or Han's numerical control systems with high-precision private server motors.
  • Eight sets of fixtures with automatic adjustment functions to prevent tool collisions.
  • Equipped with tool length compensation for improved application convenience.
  • Professional CAD-CAM software ensures simple, intuitive, and easy operation.
  • High-quality steel pipe welded bed undergoing heat treatment for ultimate stability and rigidity.
  • Includes HIWIN guide rails and grinding racks to ensure equipment precision.
  • Portable rotating 8-position tool magazine significantly shortens tool change time.
  • Dual positioning design allows for continuous loading and unloading without machine stops.
  • Safety priority: Equipped with head position and operator position detection.
📊 Main Specifications & Technical Parameters
No. Parameter Item Specification Data
1Working voltage380V 50HZ
2Working air pressure0.5-0.8Mpa
3Overall machine power15KW
4Spindle power9KW
5Spindle speed0-24000rpm
6X-axis travel7000mm
7X-axis Max Speed60m/min
8Y-axis travel1400mm
9Y-axis Max Speed30m/min
10Z-axis travel500mm
11Z-axis Max Speed30m/min
🖼️ Product Display

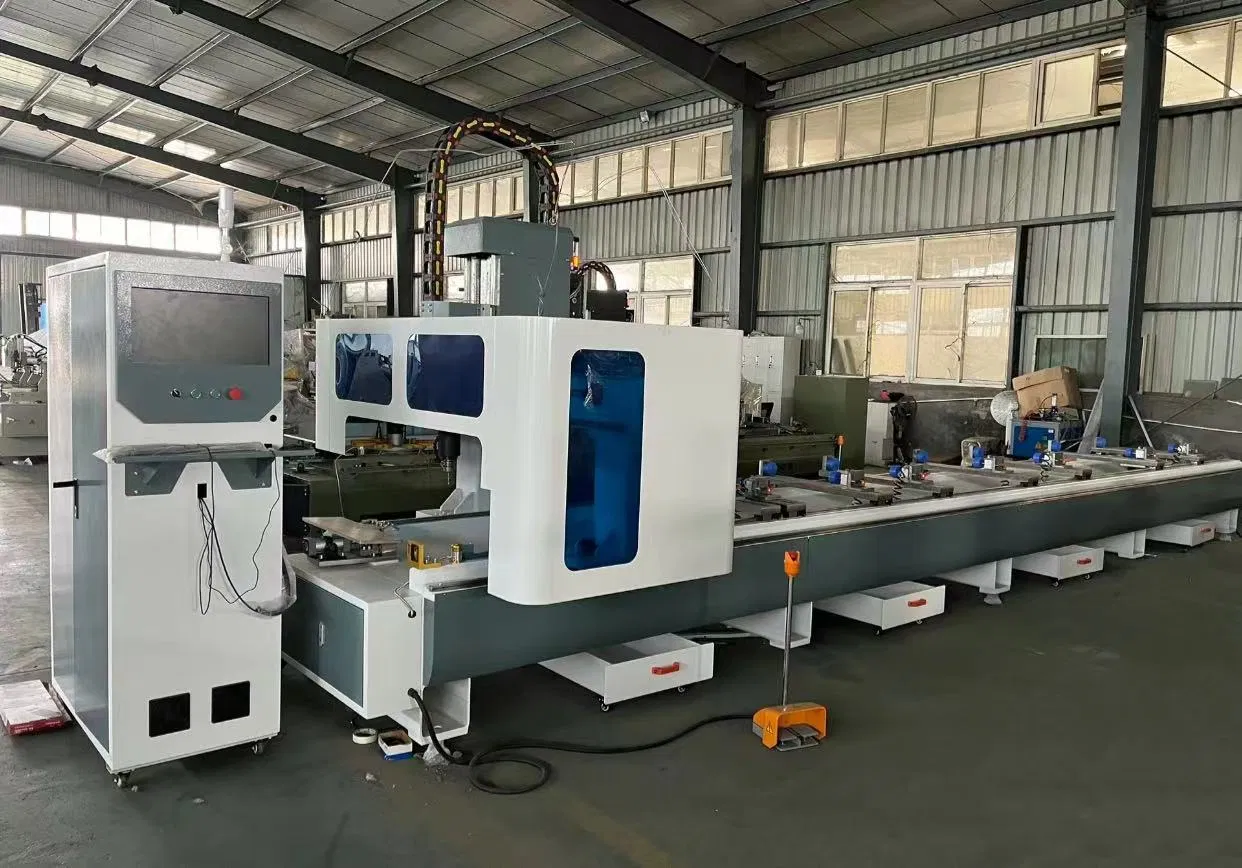

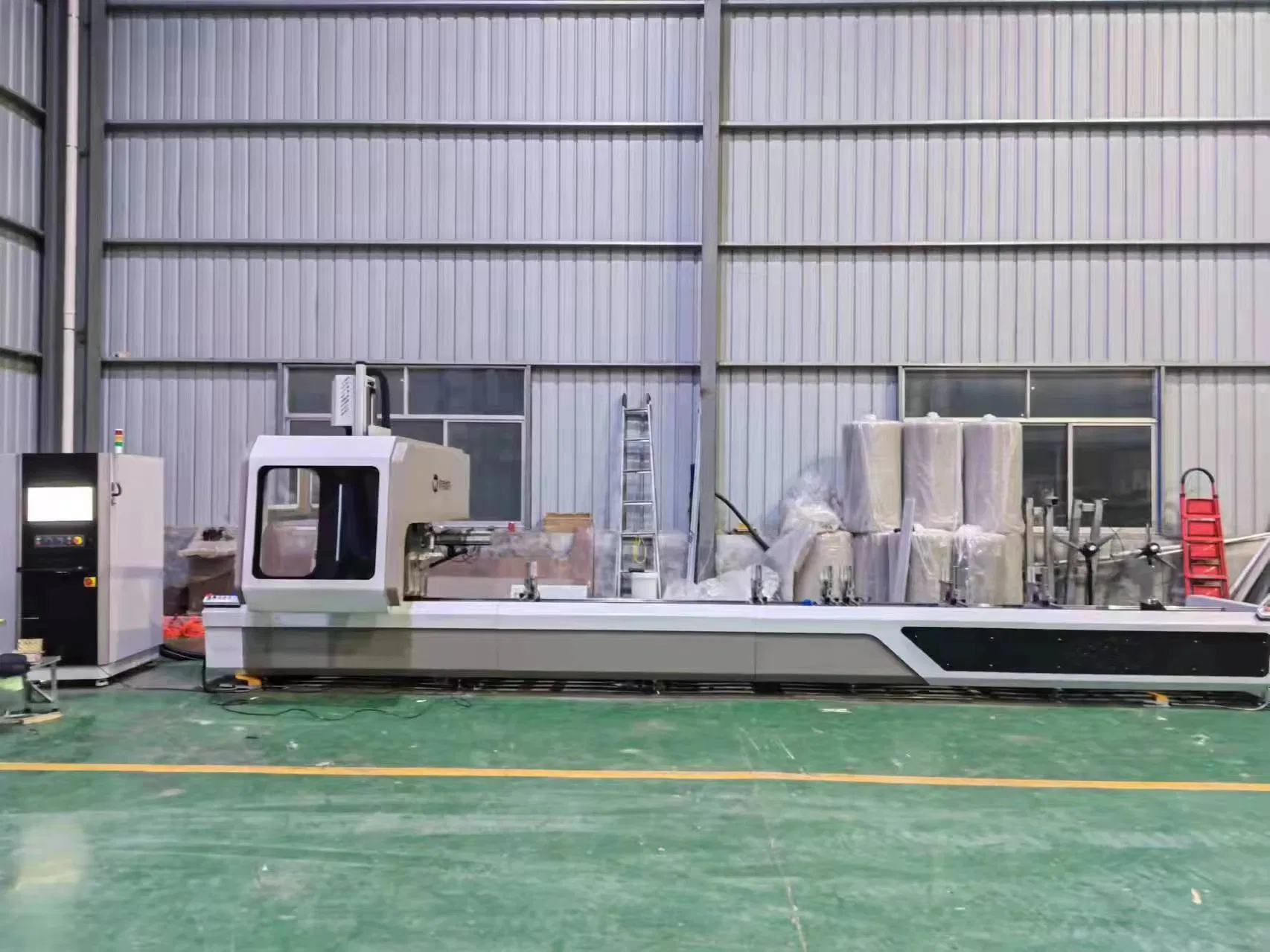

CNC Machining Center View 1

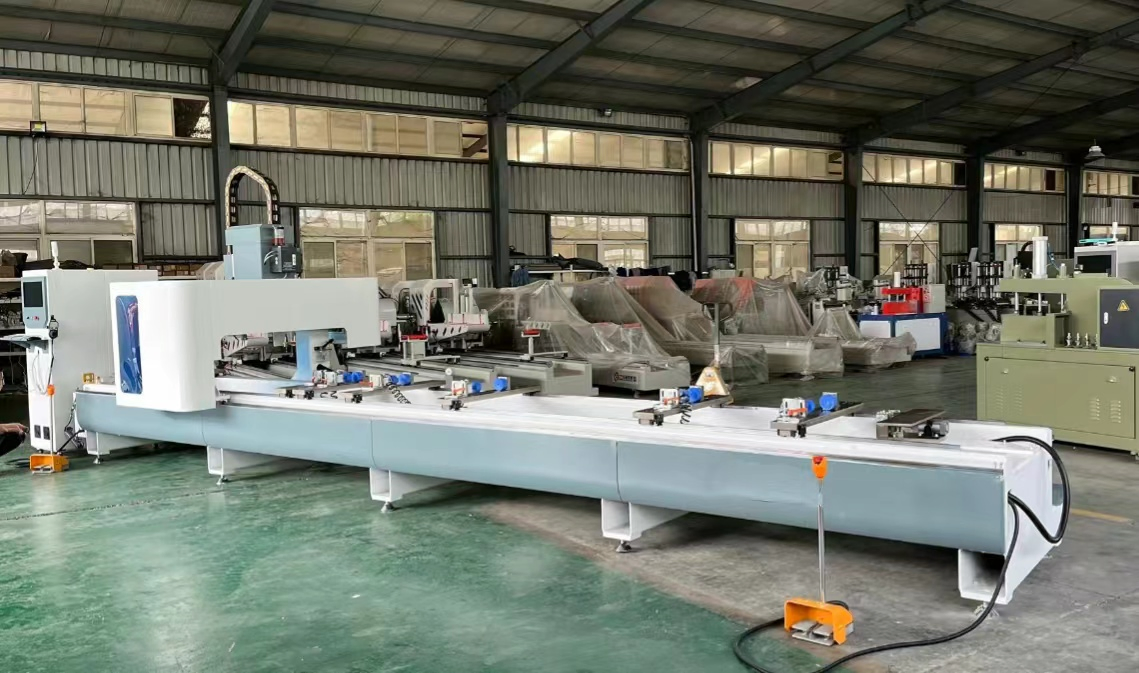

CNC Machining Center View 2
CNC Machining Center Detail

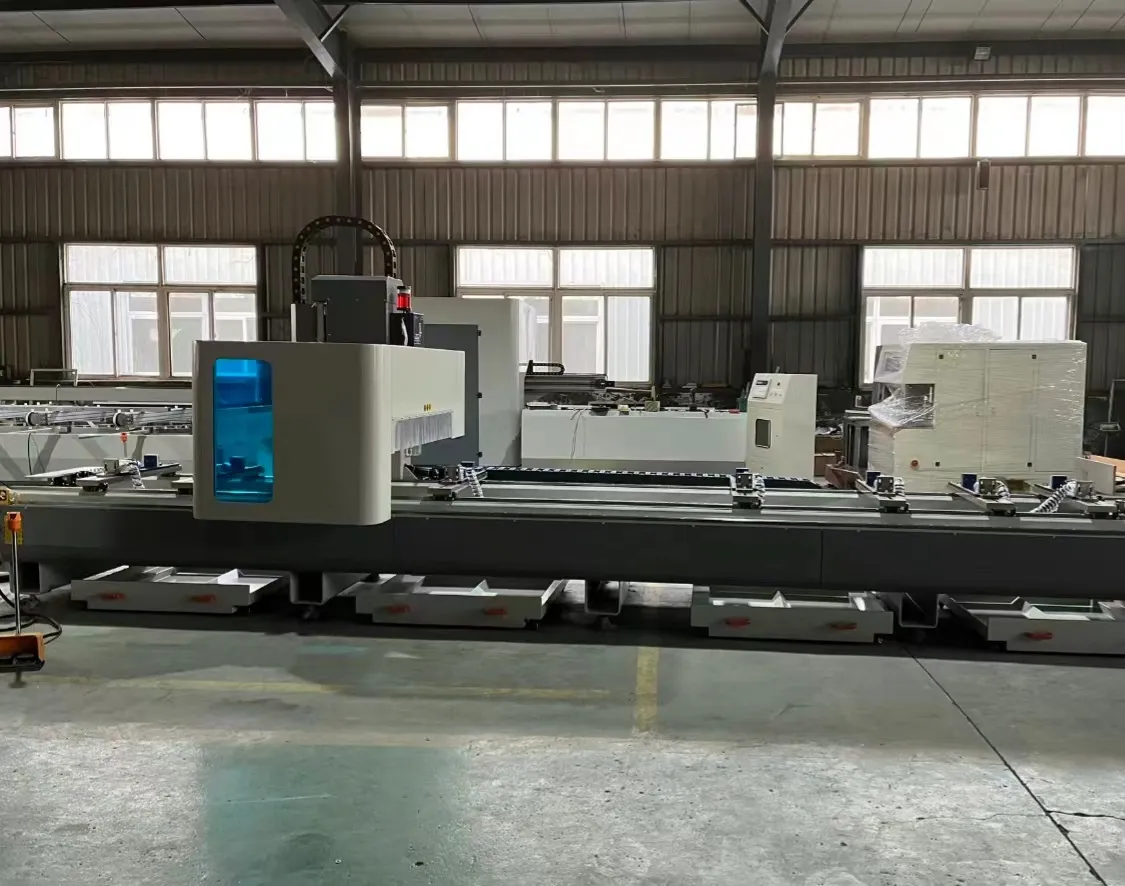

CNC Machining Center Detail 2

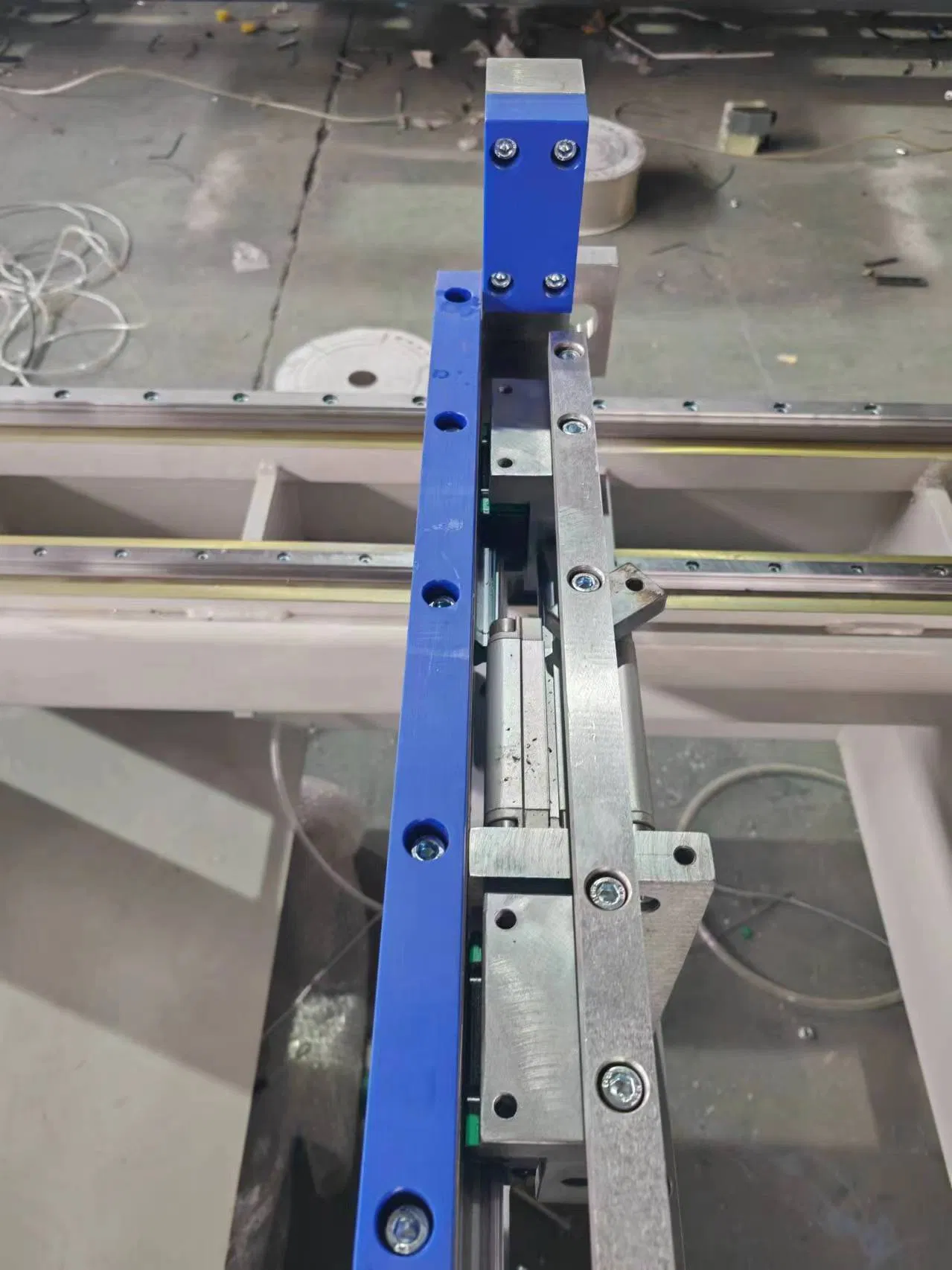

Machining Sample

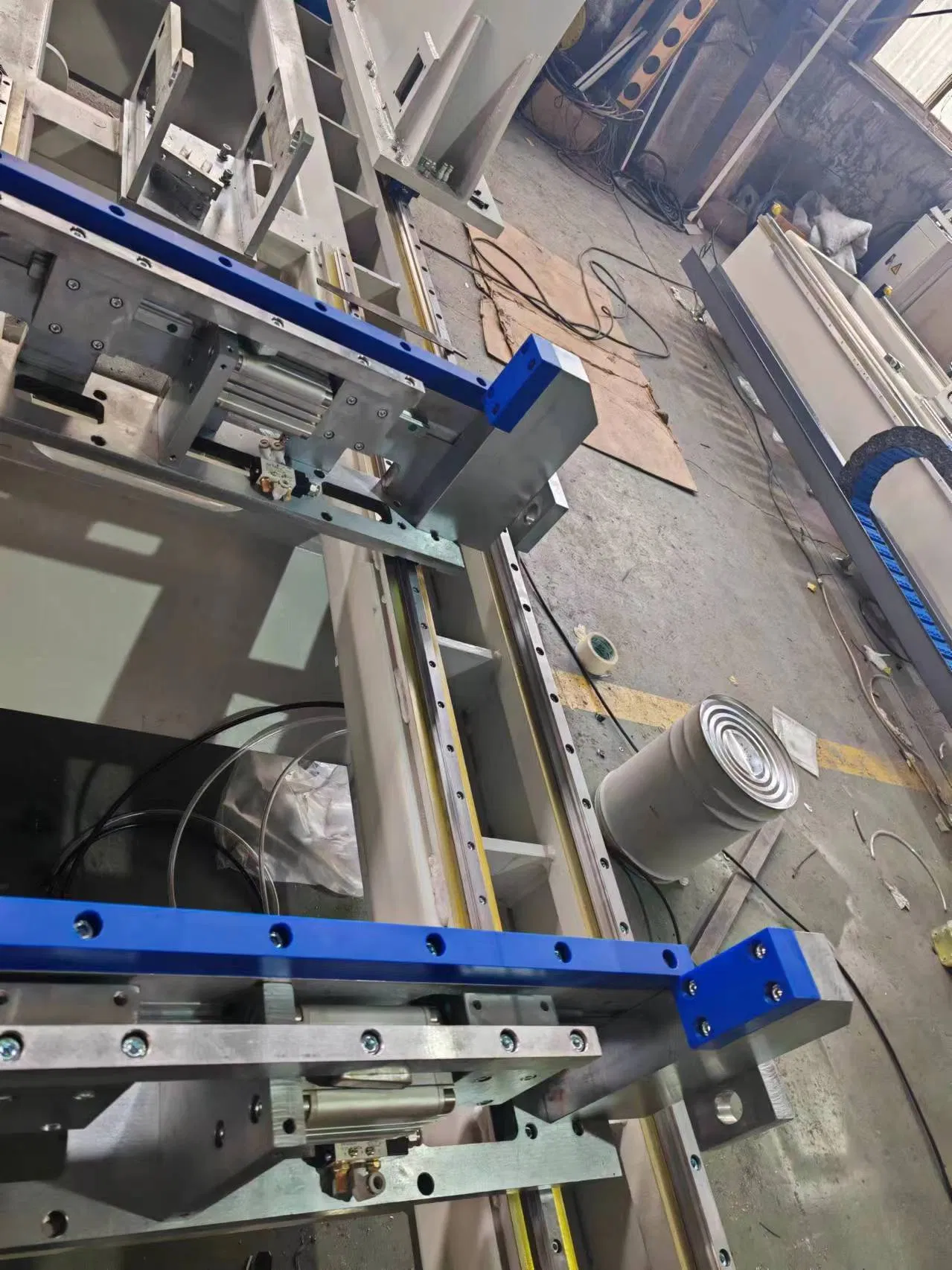

Machining Sample 2
🎬 Operation Video
🏭 Factory & Workshop
Product Range

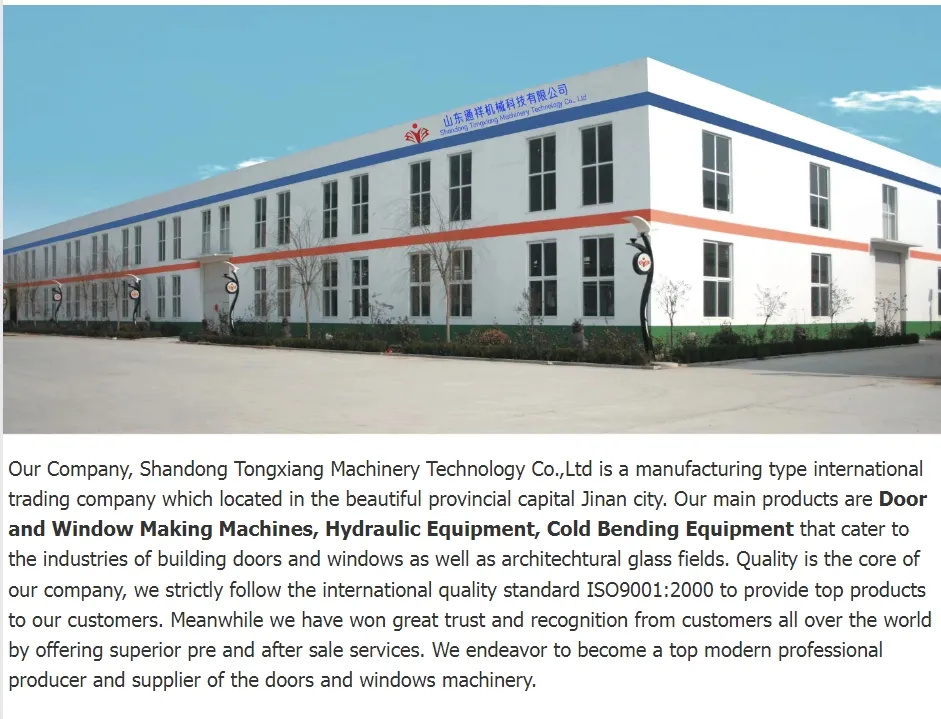

Factory Overview

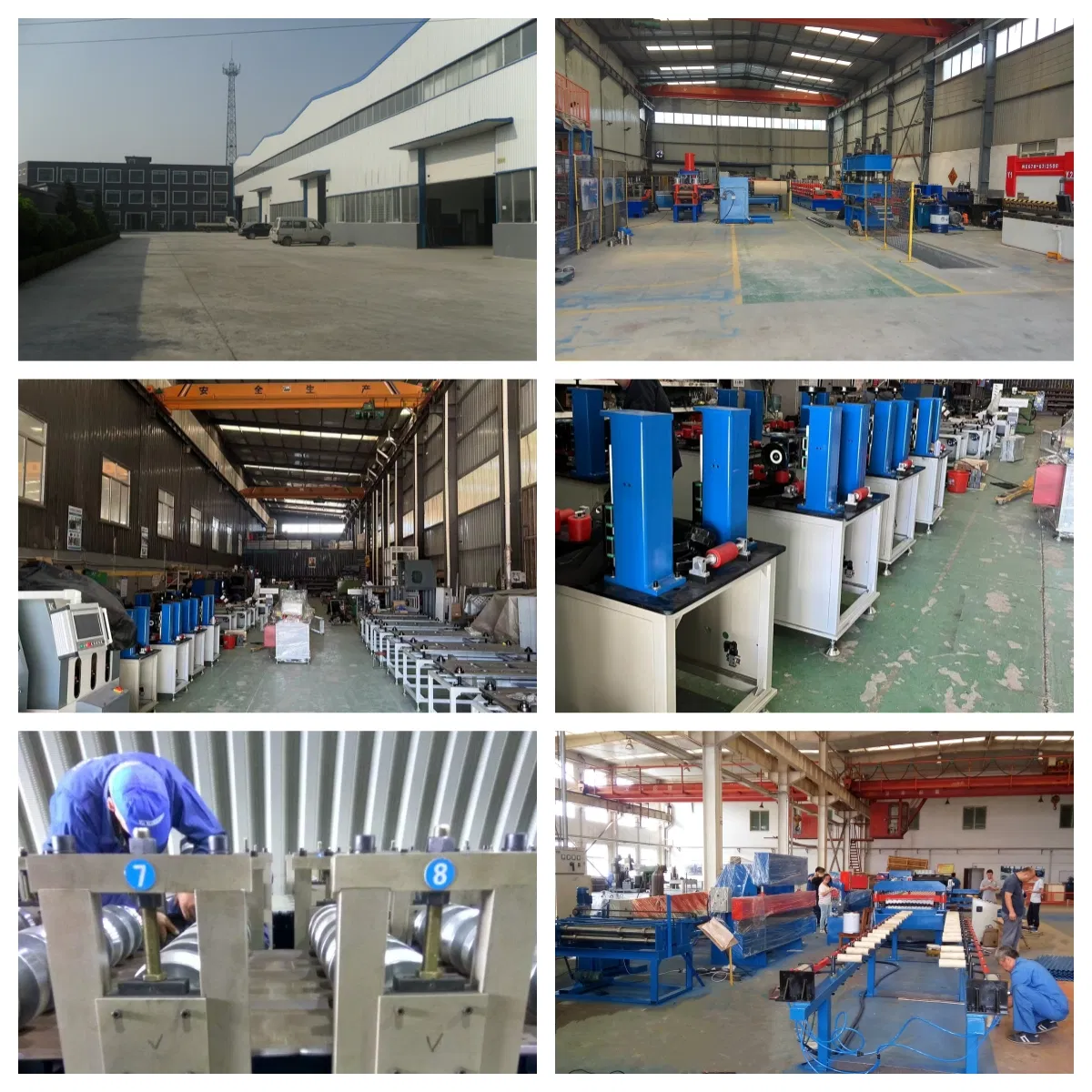

Workshop
🤝 Exhibitions & Customers
Customer Visit
Exhibition
Frequently Asked Questions
Q1: What types of materials can the LGS-CNC-7000 process?
A: It is designed for processing aluminum alloy profiles, industrial aluminum materials, non-ferrous metals, and rail transit components, including drilling, milling, and slotting.
Q2: How does the machine ensure precision during high-speed operation?
A: The machine features a heat-treated steel bed for rigidity, combined with HIWIN guide rails, grinding racks, and APEX/SEJINIGB reducers to maintain high precision.
Q3: Can the spindle rotate for multi-angle milling?
A: Yes, it is equipped with a high-performance spindle capable of ±90° milling, allowing for efficient processing of different profile faces in one clamping.
Q4: How long does the tool change process take?
A: The machine is equipped with a portable rotating 8-position tool magazine which is designed to minimize tool change time and maximize productivity.
Q5: Is the software difficult to learn for new operators?
A: No, it comes with professional CAD-CAM software that is simple, intuitive, and designed for easy operation, even for those new to CNC machining.
Q6: What safety measures are built into the equipment?
A: The system includes head position detection, operator position detection, and an automatic fixture adjustment function to prevent collisions and ensure personnel safety.
