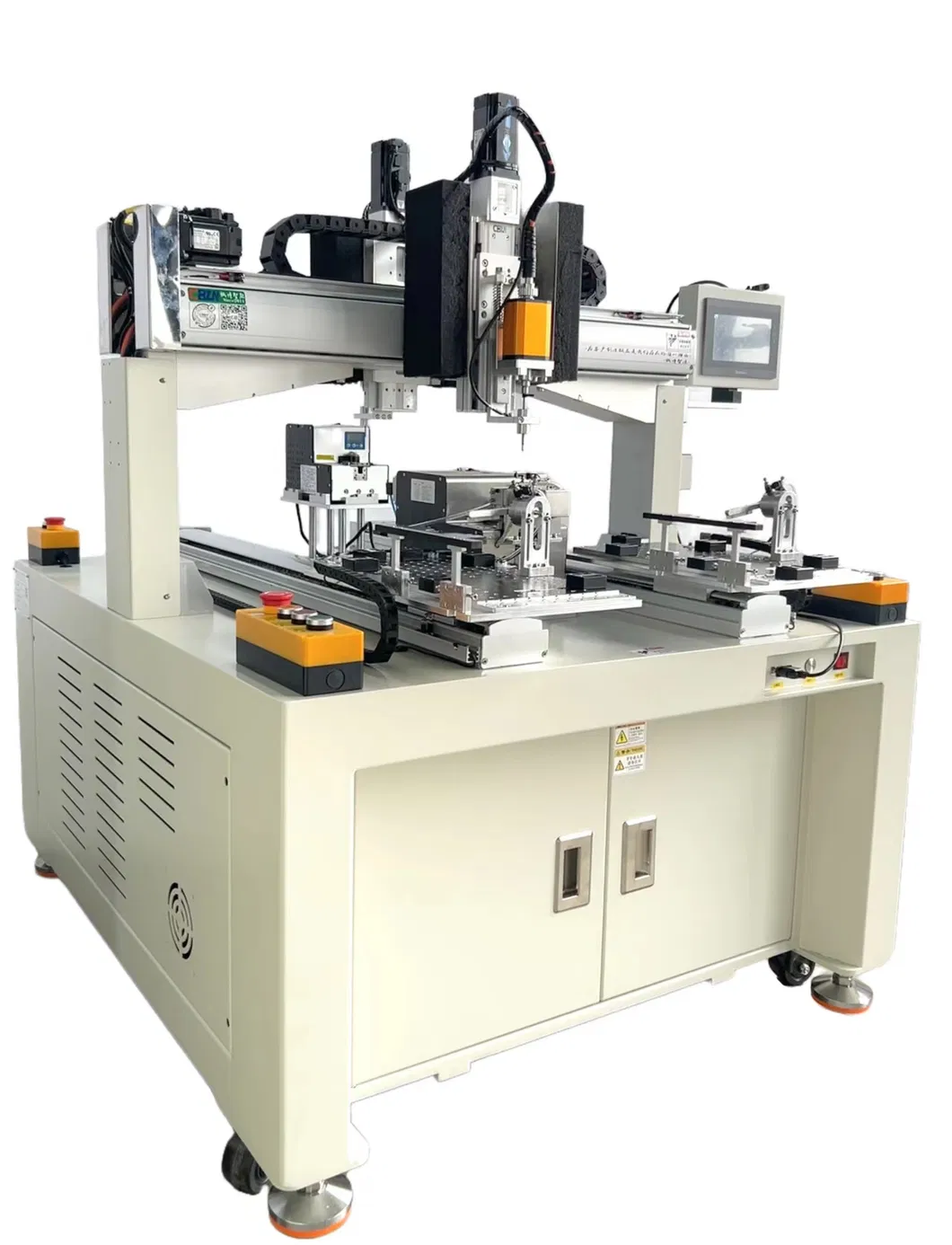

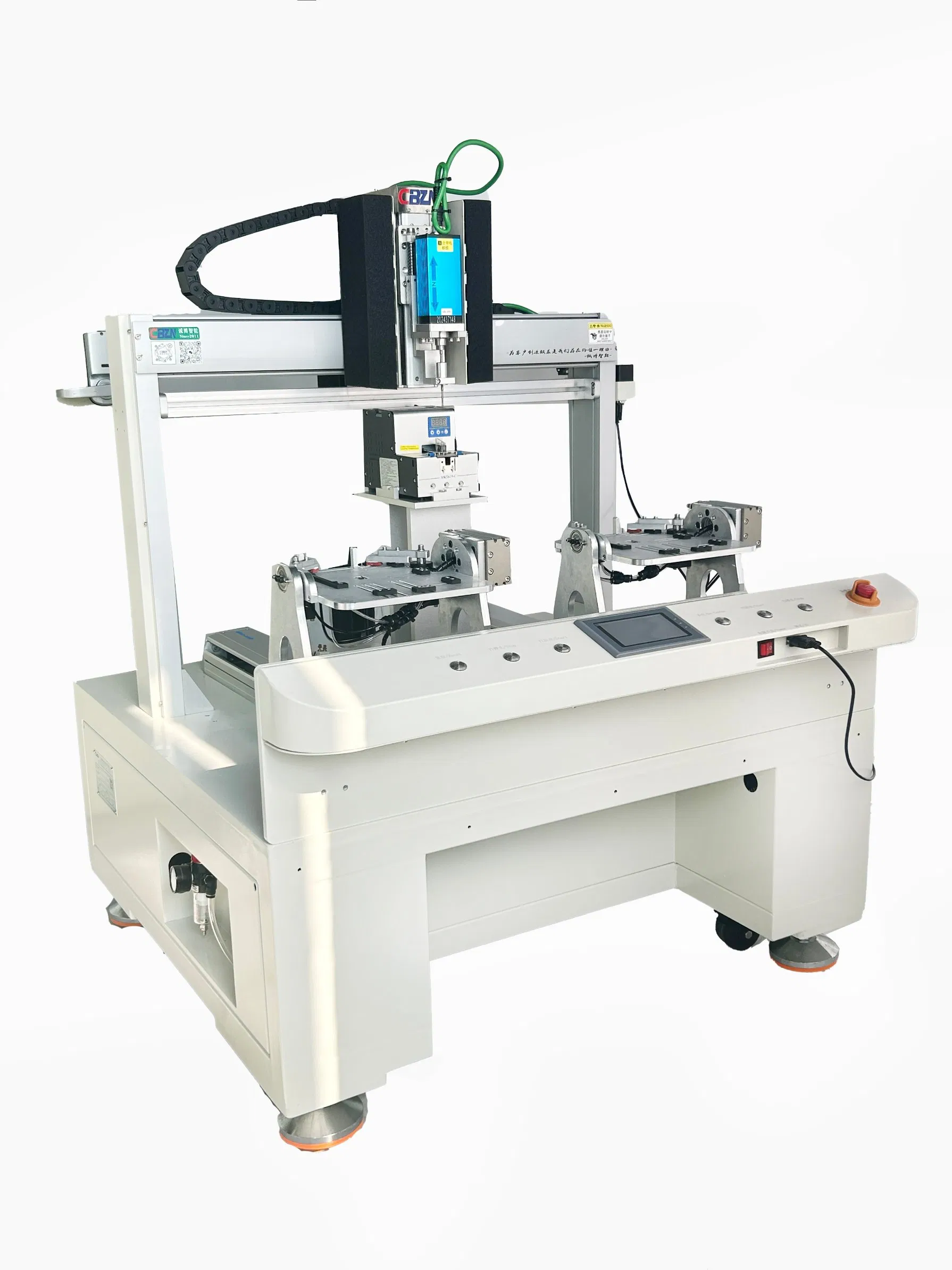

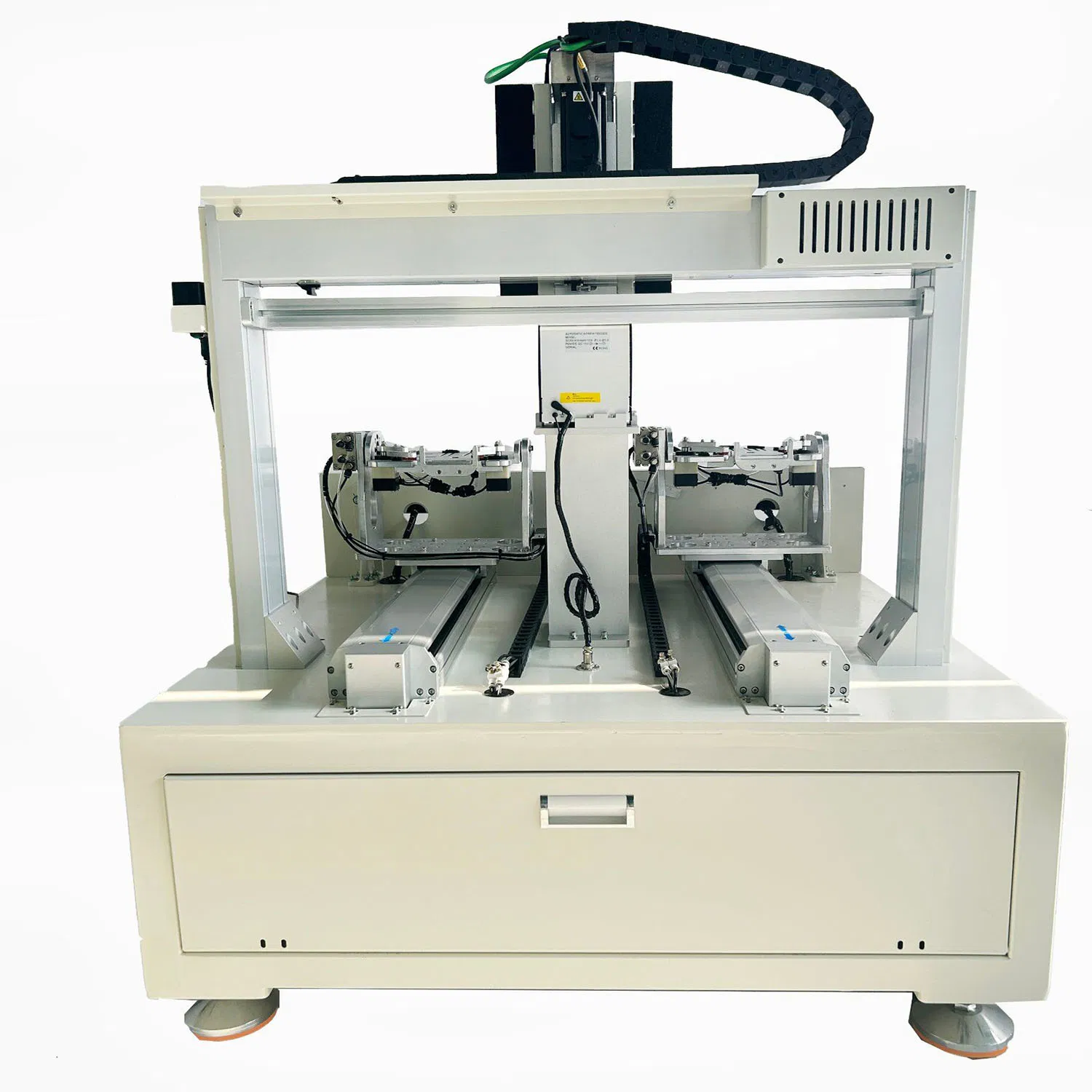

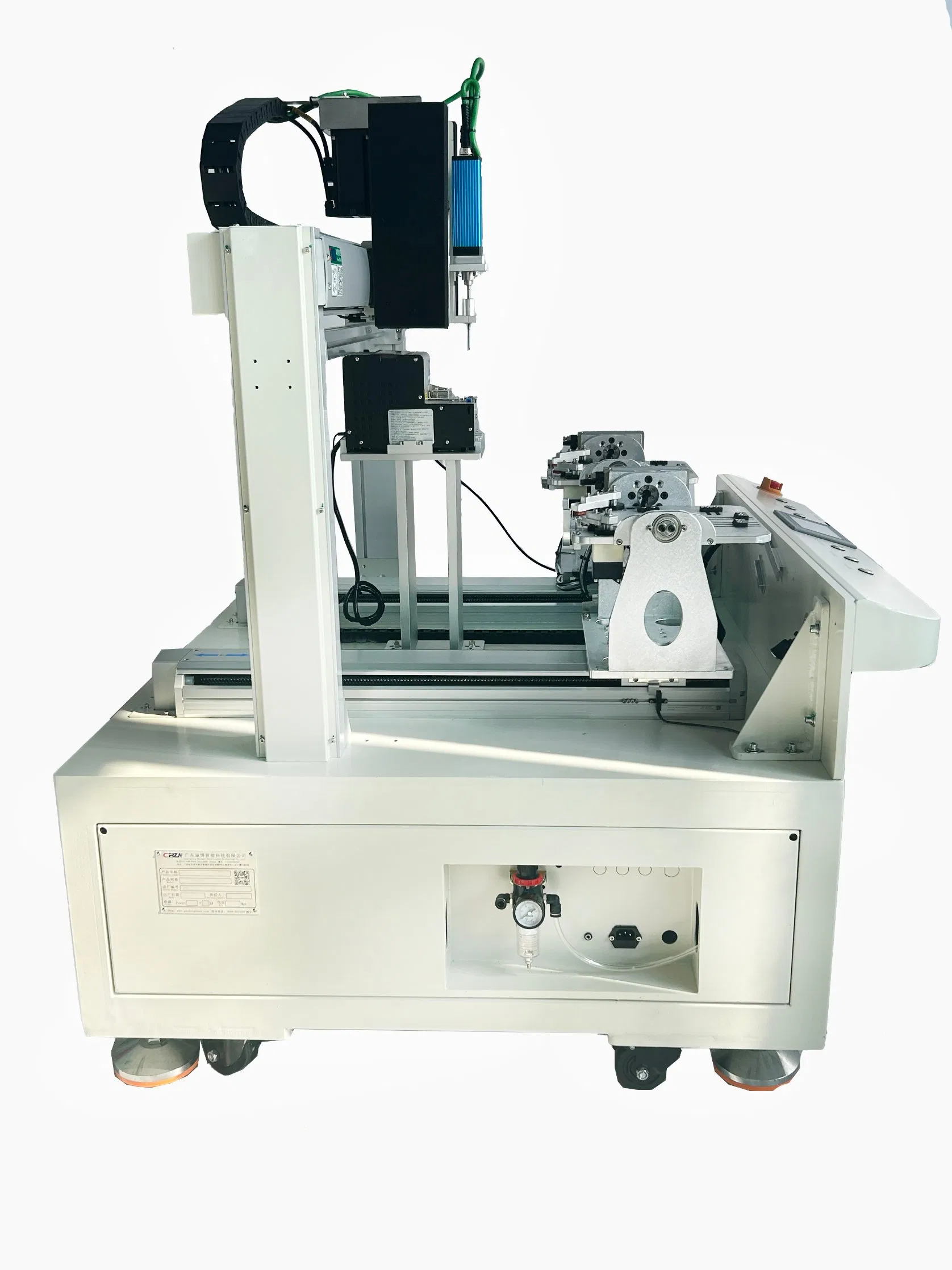

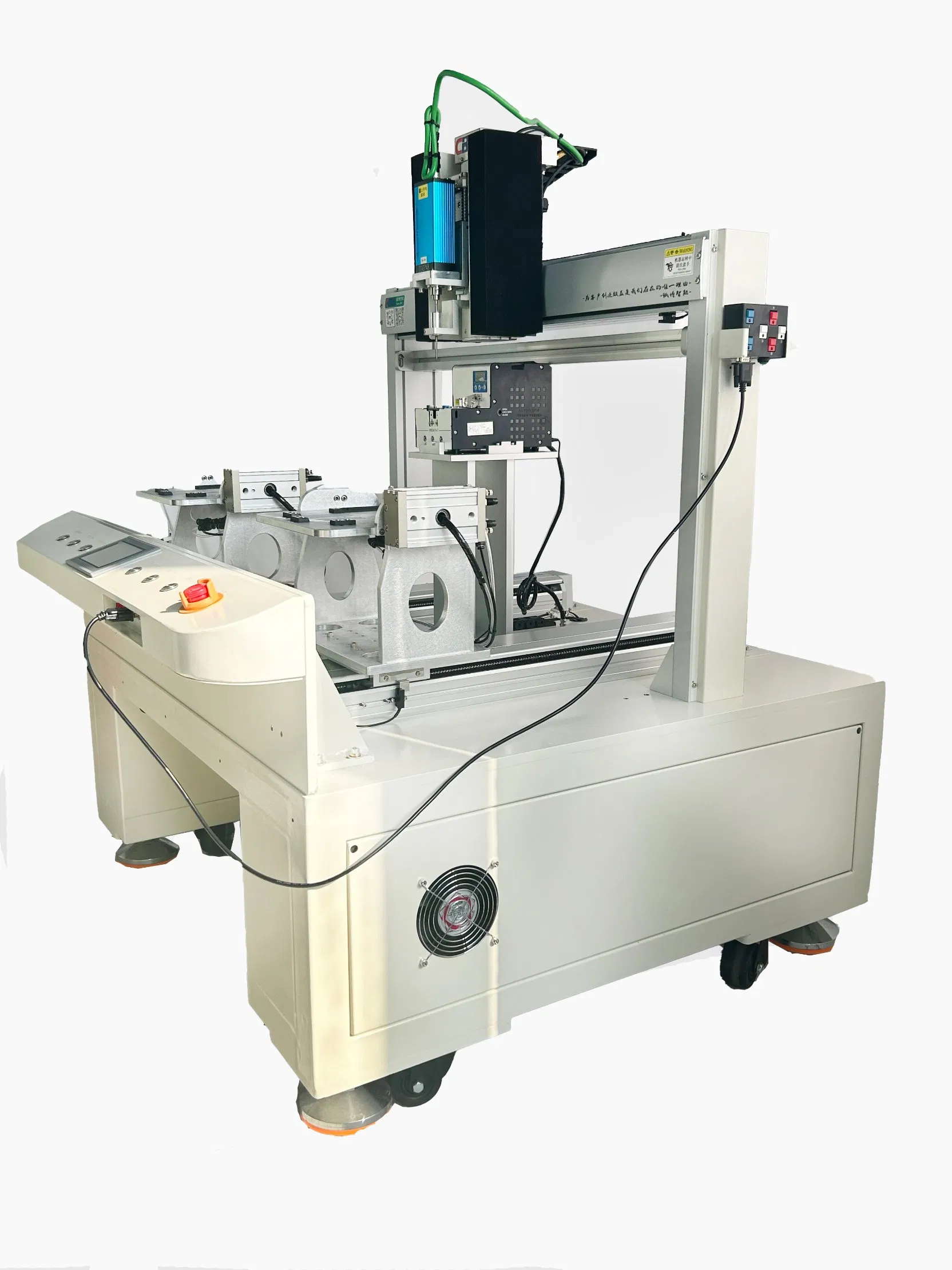

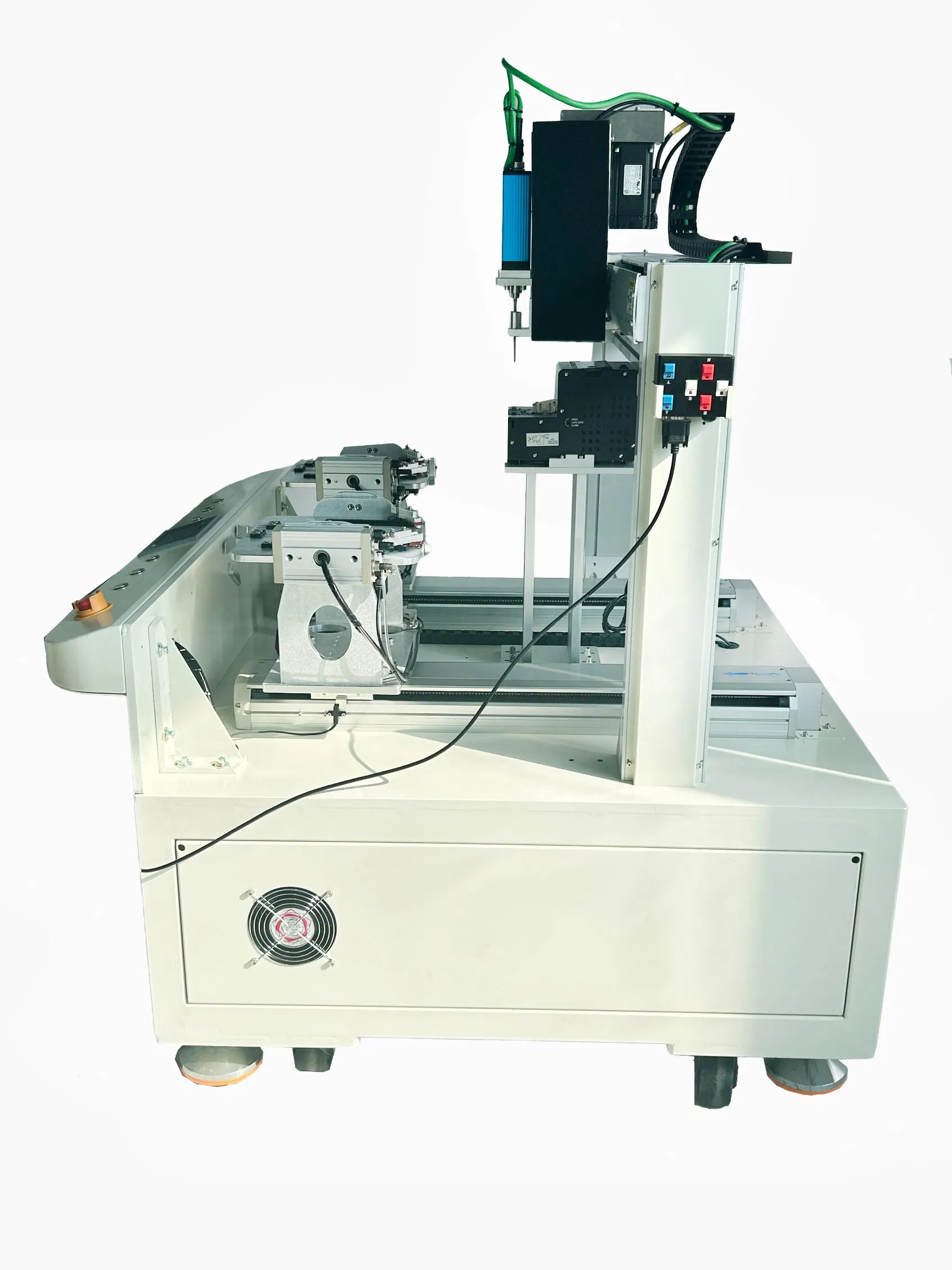

This automatic Fastening Screwdriver Machine adopts single head and double platform design. To change the product, you only need to adjust the XYZ coordinates. The operation is simple and easy to understand. The machine automatically locks the screws through induction control and can judge whether the screws are locked. If there is a poorly locked product, the machine will alarm to easily distinguish defective products.

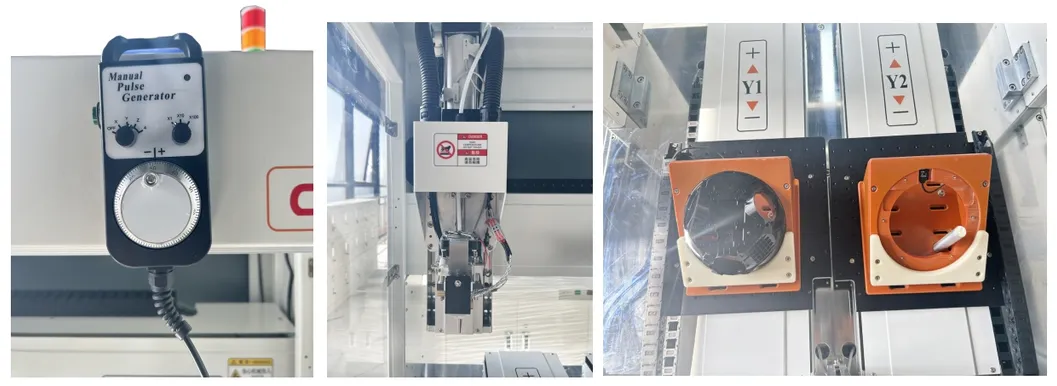

The two stations complement each other, operate independently, and operate in a cycle. Simply use the operating handle to align the XYZ coordinates with the screw hole, confirm and save.

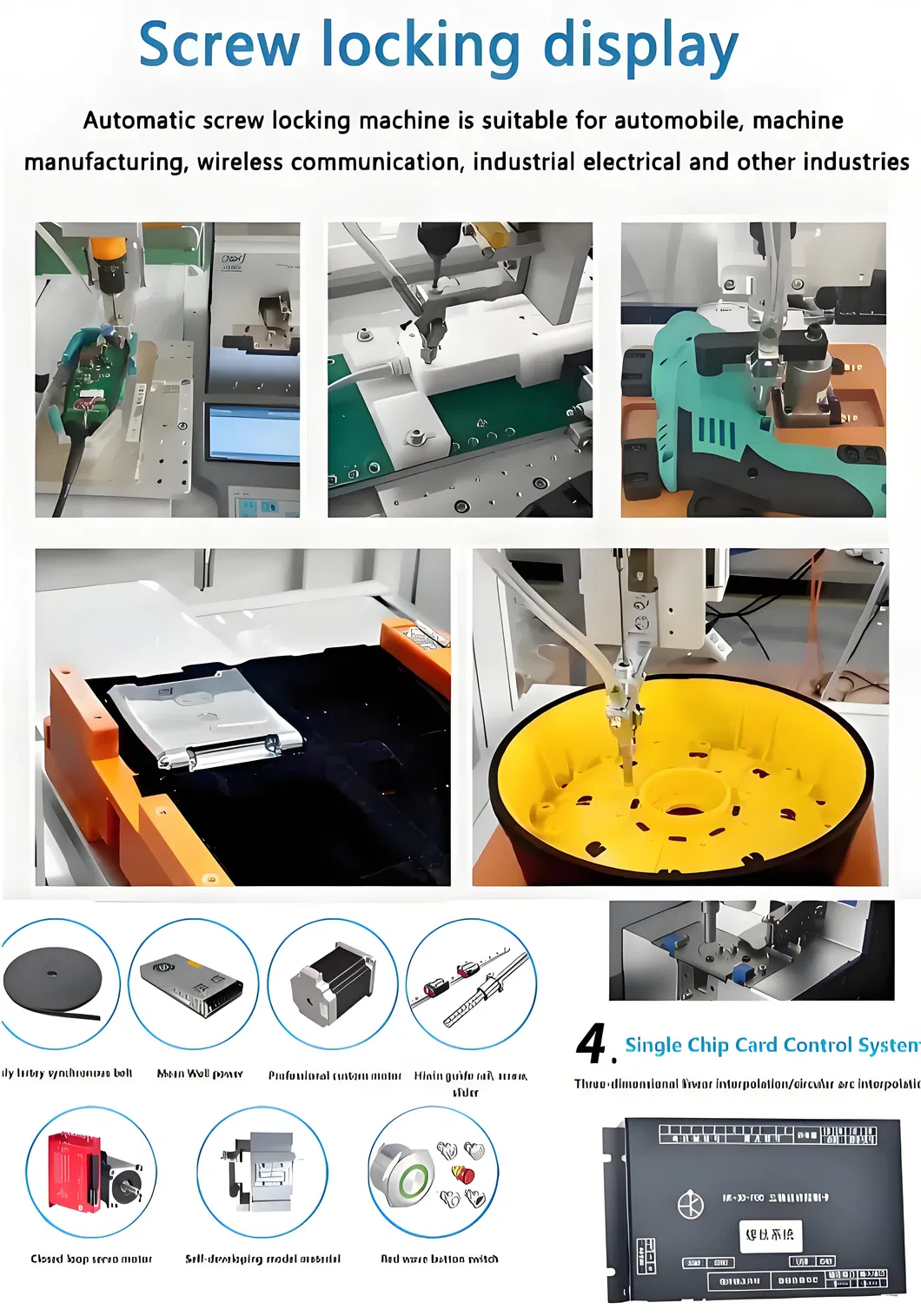

Scope of application: Mainly used in the production of automotive parts, computers, display screens, motors, lamps, mobile phones, printers, circuit boards, batteries, and instruments.
It is also ideal for keyboards, mice, switches, sockets, routers, massagers, plastic products, and toys.
| Model | CB-LS5441 | CB-LS331 | CB-LS5441-H | CB-LS6441 | CUSTOM |
|---|---|---|---|---|---|
| Operating Range (X/Y/Z) | 500/400/100mm | 300/300/100mm | 500/400/100mm | 600/400/100mm | Per Samples |
| Moving Speed | Screw: 0.1-800mm/s | Belt: 0.1-400mm/s | ||||
| Repeatability | Screw: ±0.02 | Belt: ±0.05 | ||||
| Control System | PLC + Touch Screen Control System | ||||
| Feeding Method | Blowing type / Suction type / Magnetic type | ||||
| Weight | 85kg | 60kg | 110kg | 160kg | To Order |
| Packing Method: | Export wooden box + vacuum packing |
| Gross Weight: | About 230 kg |
| Delivery Time: | Within 20 days after receiving PO and advance payment |

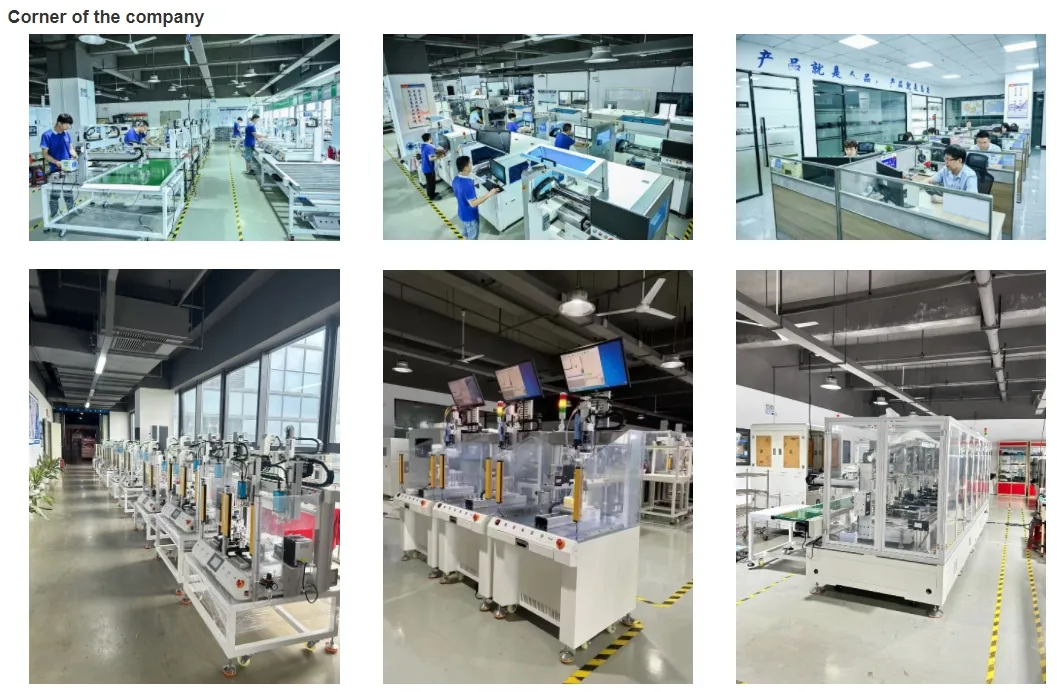

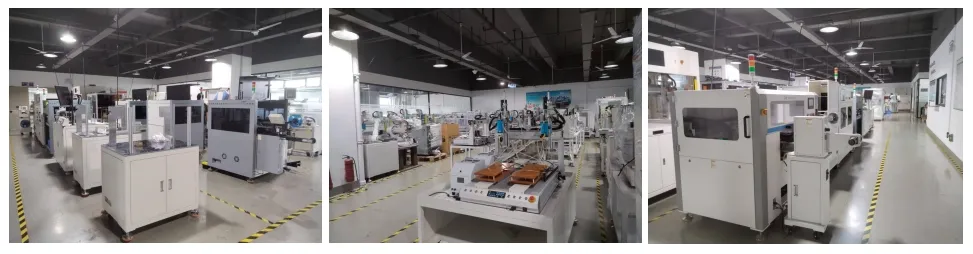

We are a high-tech enterprise specializing in manufacturing non-standard automation machines. Founded in 2016, our team includes 15 designers with bachelor's and doctoral degrees. We provide custom automatic machines based on your specific product requirements and have established service branches in various international regions to ensure localized support.
Engineers provide professional technical support and remote teaching guidance via video.
12-month machine warranty. Lifetime technical feedback within 10 hours.
