Zhixing Machine
Zhixing Machine
| Model NO. | CB-LS6441-ZS | Control Method | PLC Programmable Control |
|---|---|---|---|
| Functional Feature | Multi-head Simultaneous Locking, Torque Adjustable, Slippage Detection, Missing Lock Detection, Automatic Feeding | Locking Efficiency | 2000-3000 Pcs/Hour |
| Locking Precision | ±0.05mm | Applicable Screw | M1-M8, Customized |
| Motor System | Japanese Micro Stepping Precision Motor | Transfer Method | Synchronous Belt Screw Precision Linear Guide |
| Input Power | AC 220V 50Hz | Working Gas Source | 0.4-0.6MPa |
| Display Mode | Touch Screen | Edit Mode | Teach Pendant |
| Working Temp | 5-40℃ | Working Humidity | 20-90% |
| Model | CB-LS5441 | CB-LS331 | CB-LS5441-H | CB-LS6441 |
|---|---|---|---|---|
| X Range | 500mm | 300mm | 500mm | 600mm |
| Y Range | 400mm | 300mm | 400mm | 400mm |
| Z Range | 100mm | 100mm | 100mm | 100mm |
| Moving Speed | Screw: 0.1-800mm/s; Belt: 0.1-400mm/s | |||
| Repeatability | Screw: ±0.02; Belt: ±0.05 | |||
| Weight | 85kg | 60kg | 110kg | 160kg |

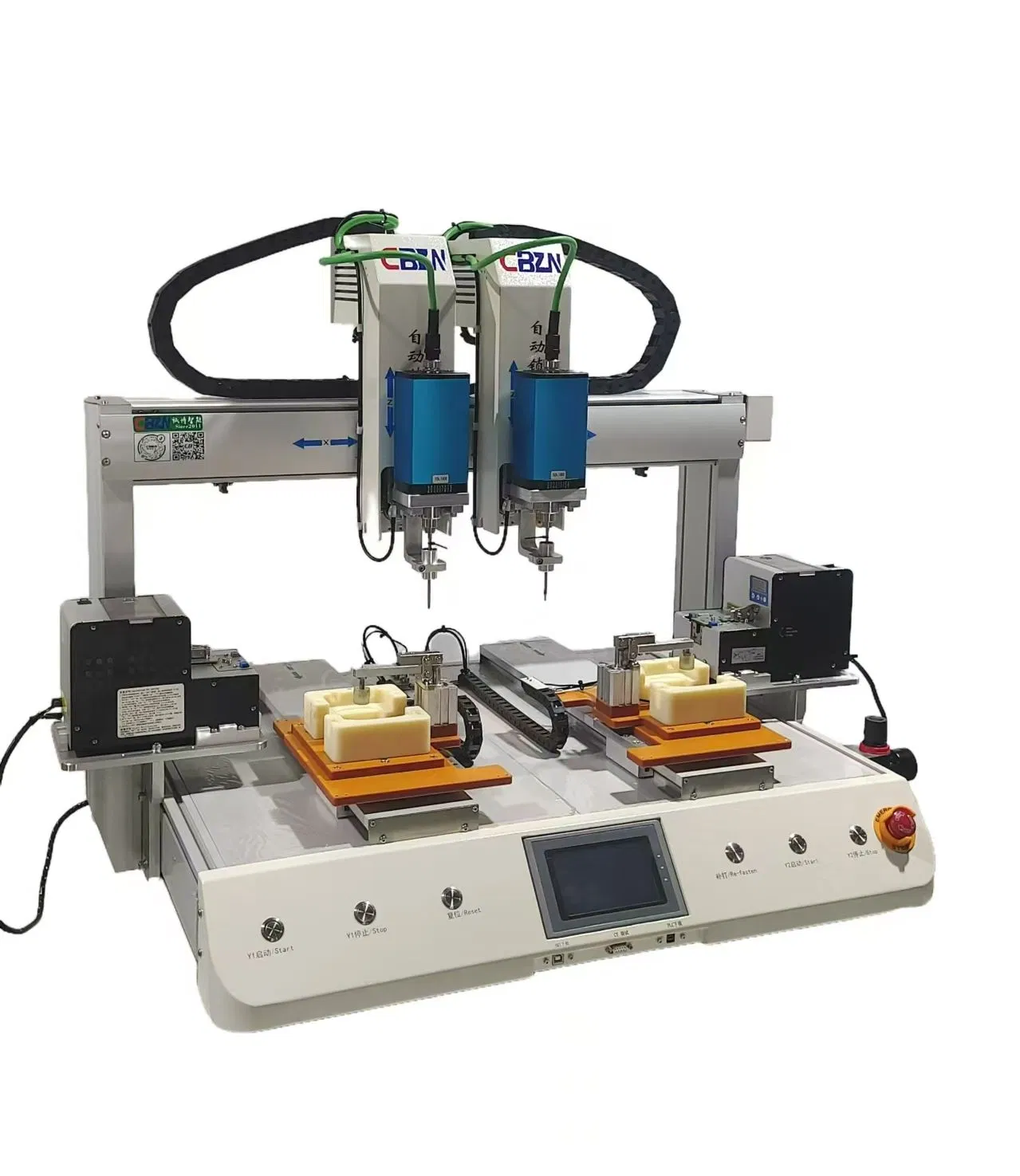

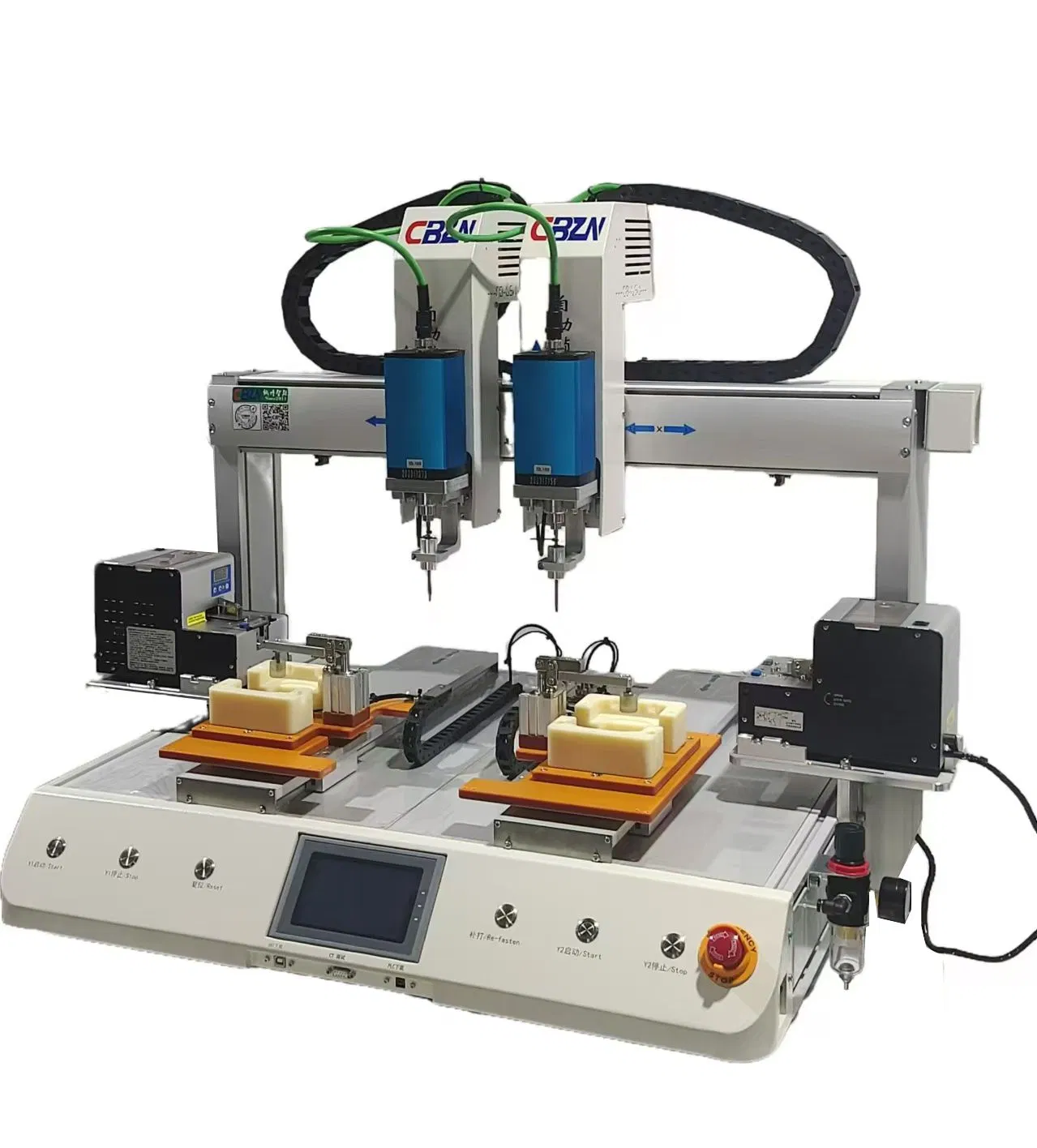

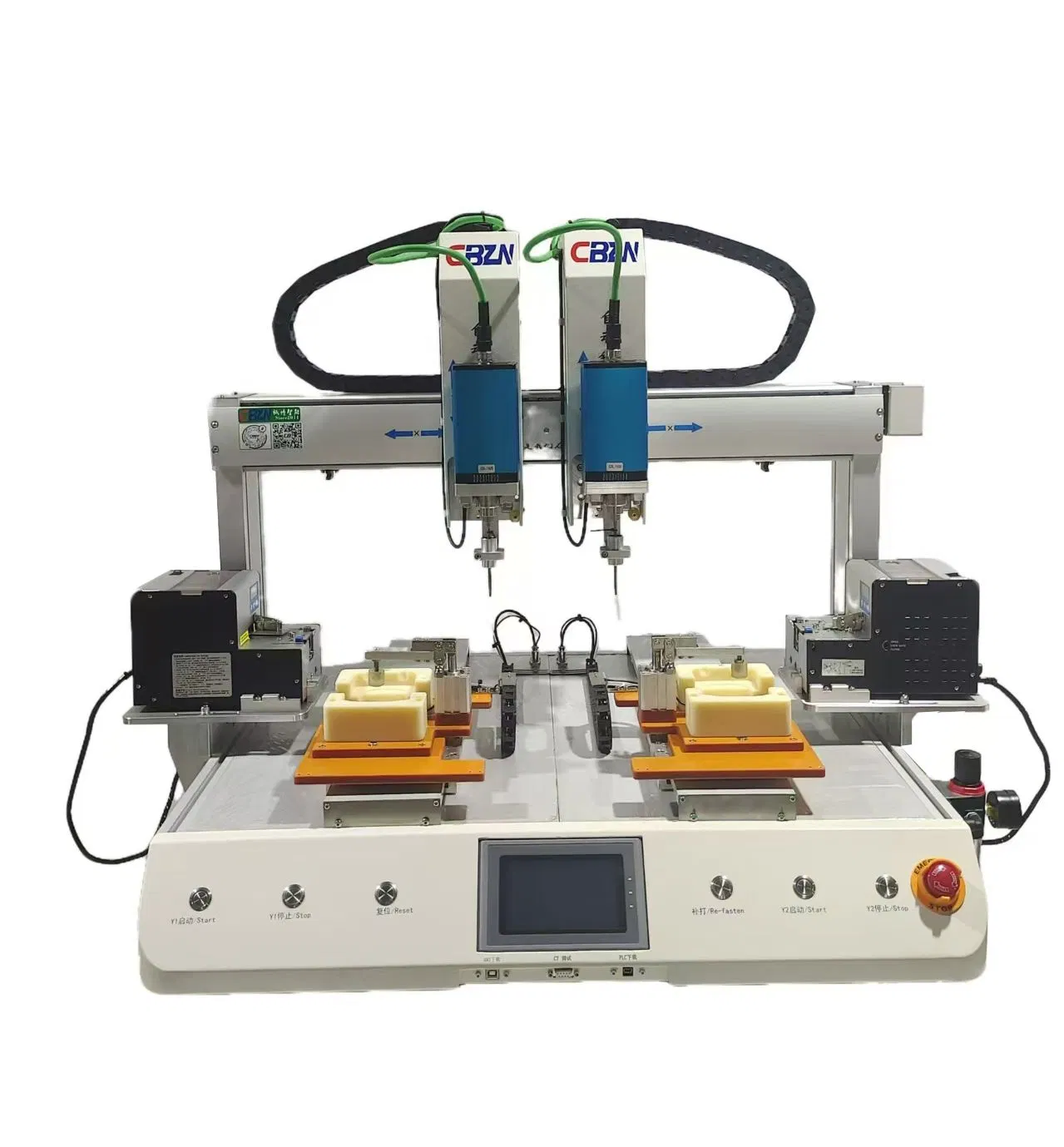

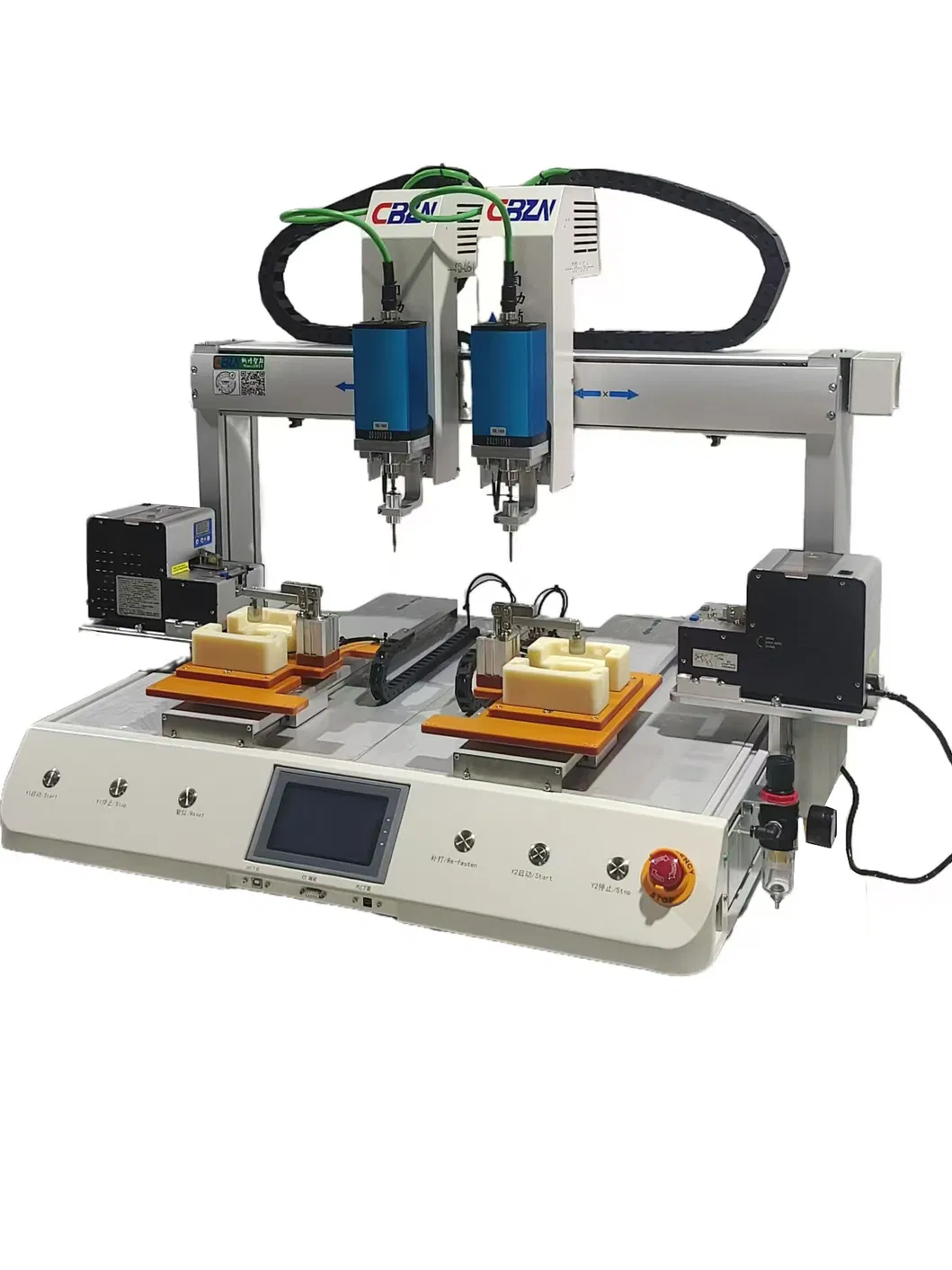

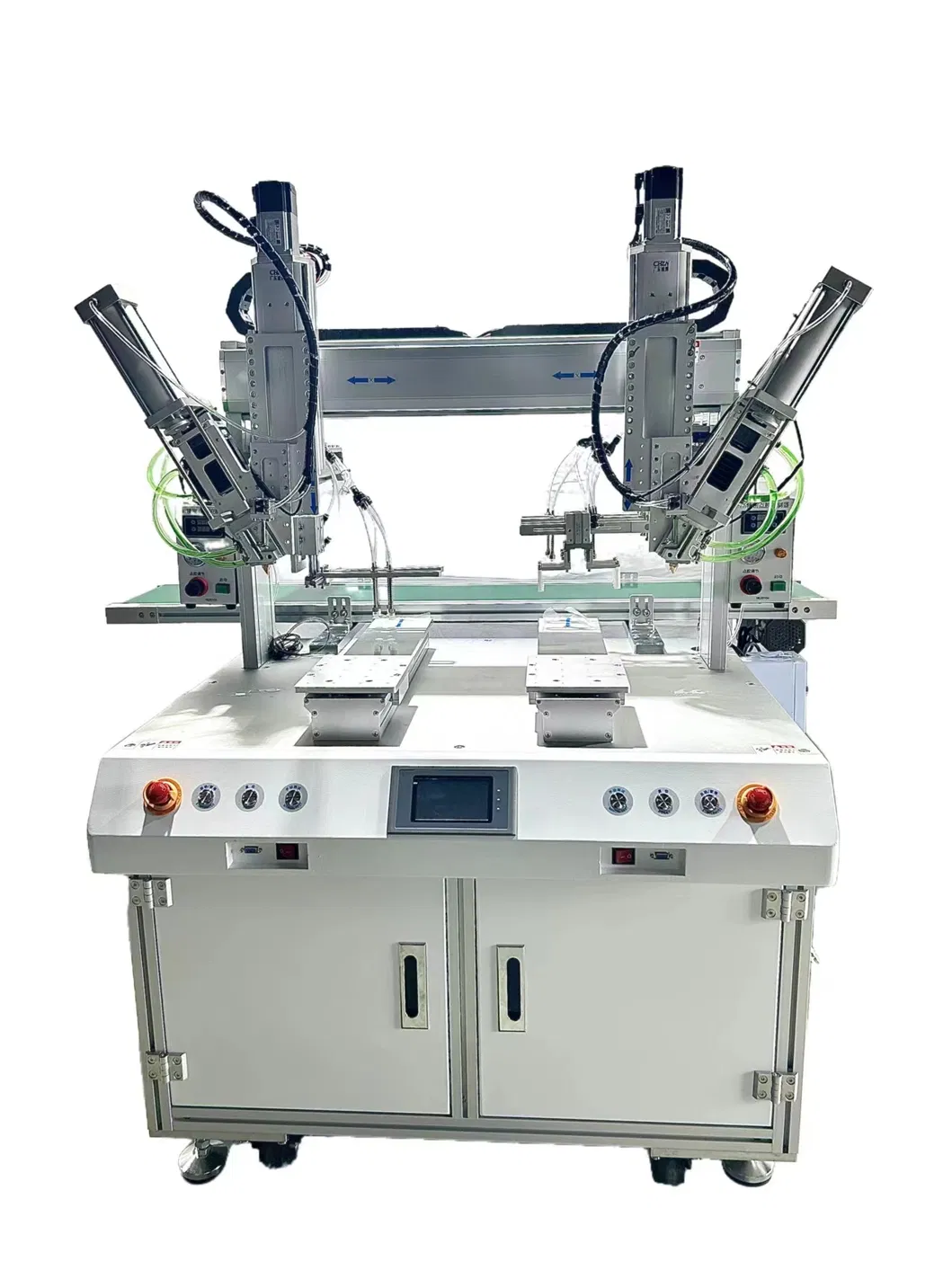

Customized Automatic/Electric Screwdriver Machine for Production Lines
1) This machine adopts single head and double platform design. Simple XYZ coordinate adjustment allows for easy product changeover. Induction control judges locking quality and alarms for defective products.
2) Use the operating handle to align XYZ coordinates with screw holes for quick setup.
3) Dual stations complement each other, operating independently in a continuous cycle for maximum efficiency.
Perfect for automotive parts, assembly of computers, motors, mobile phones, printers, circuit boards, batteries, instruments, keyboards, mice, switches, and toys.

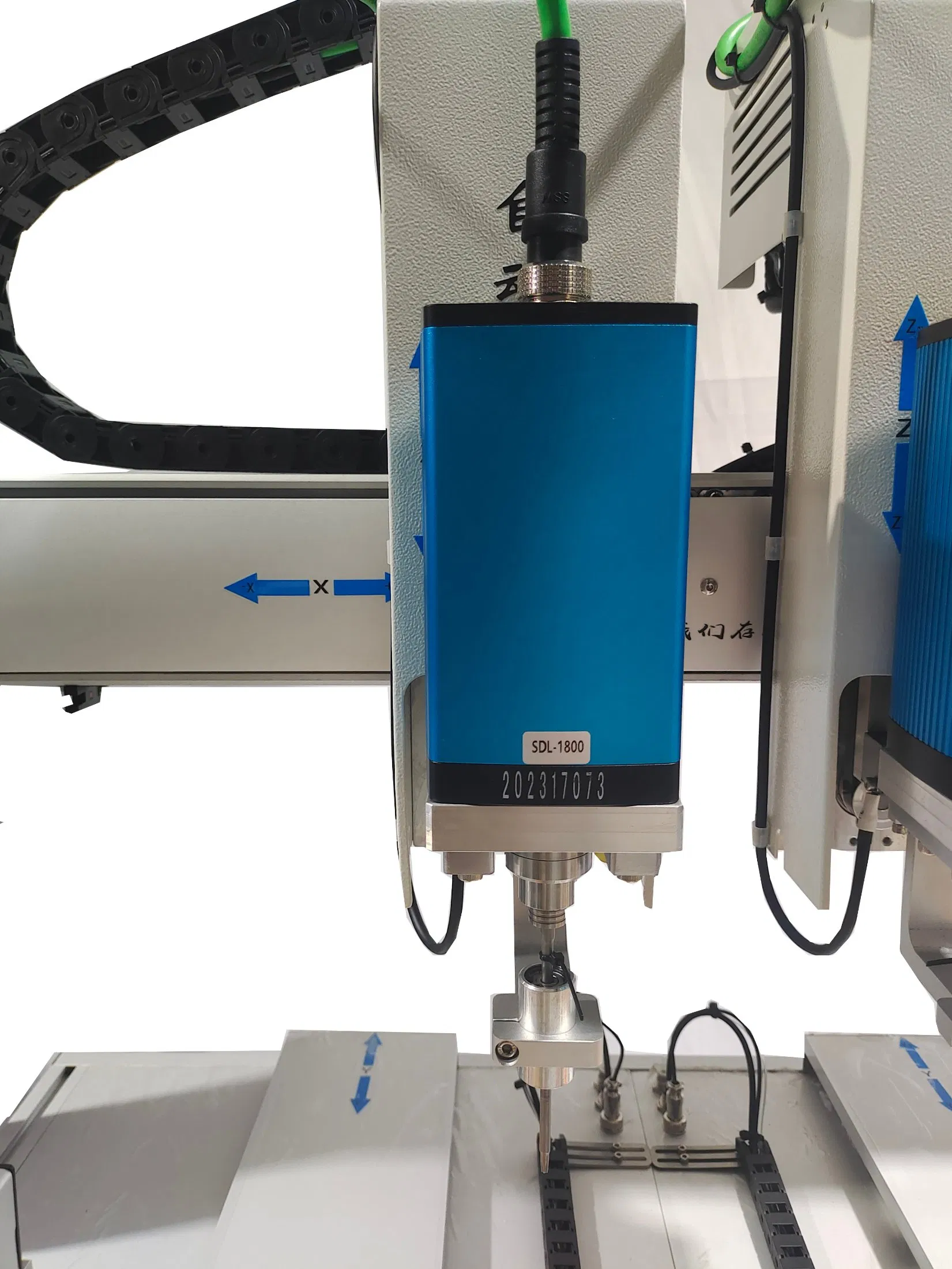

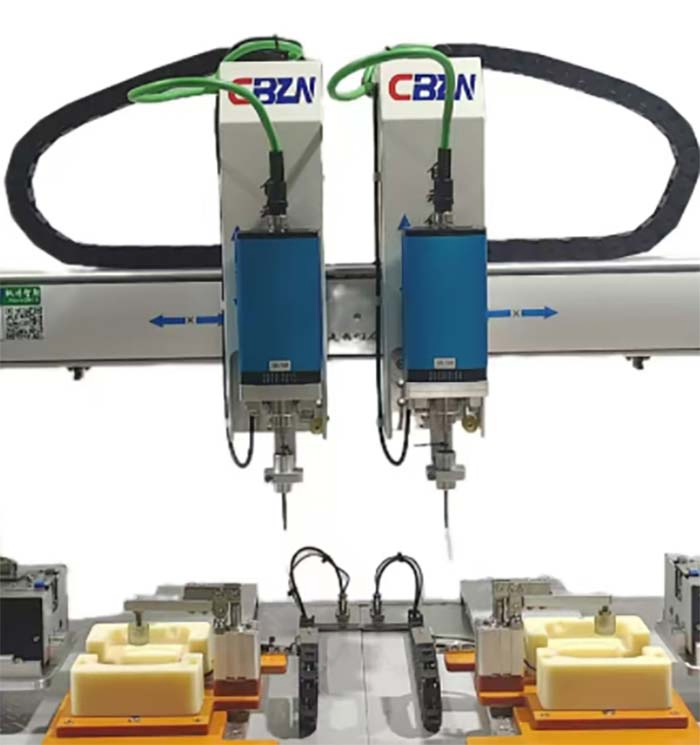

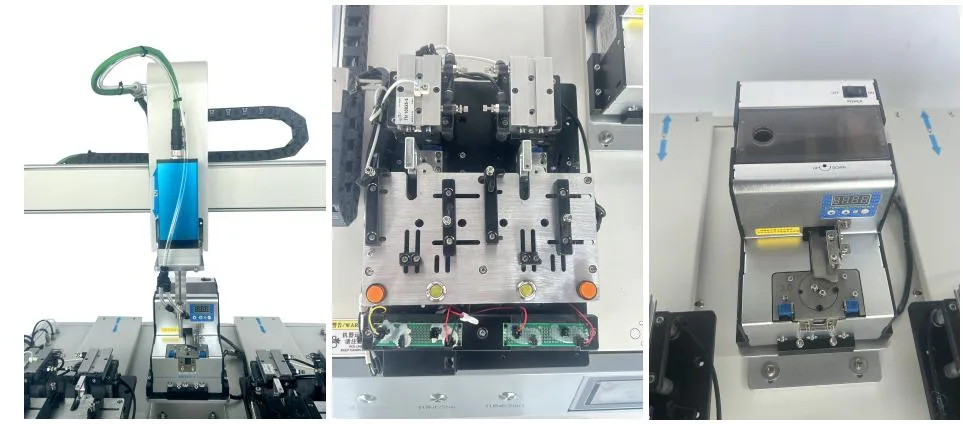

Electric Screwdriver: Drives rotational power to tighten or loosen screws/nuts.
Fixture: Secures products for precision during the screwing process.
Screw Feeder: Accurately transports screws to the designated locking position.
| Packing Method | Export wooden box + vacuum packing |
|---|---|
| Packing Dimension | 1150*850*800mm |
| Gross Weight | About 180 kg |
| Delivery Time | Within 20 days after payment and samples received |

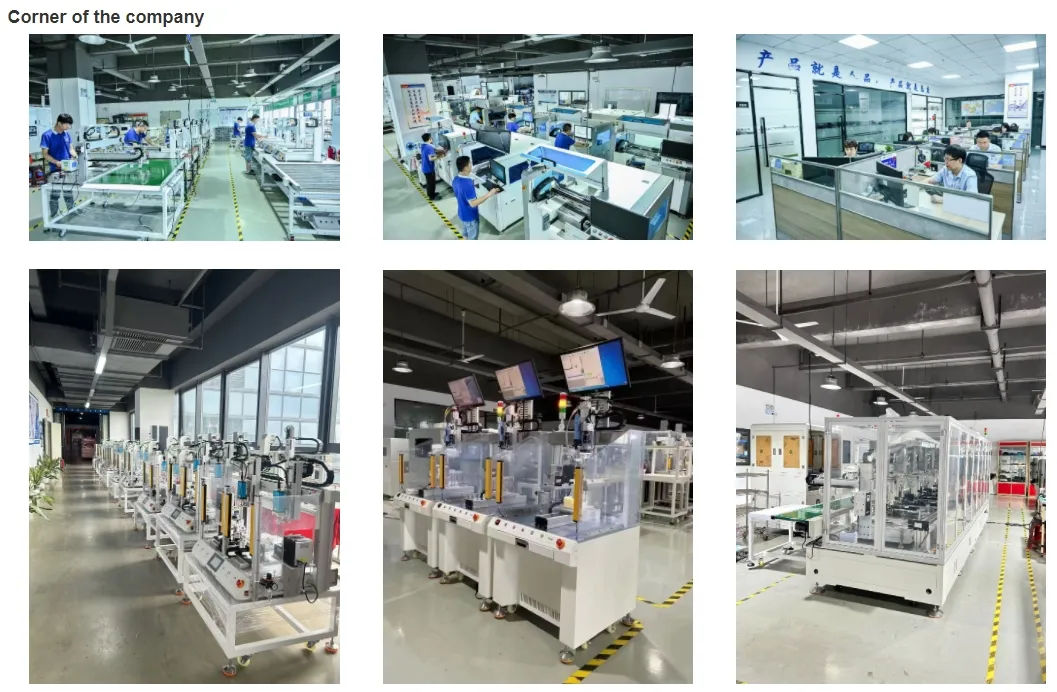

Specializing in non-standard automation machines including automatic lines, fastening screwdriver machines, glue dispensing, soldering, and labeling machines. Established in 2016, our team includes experts with bachelor's and doctoral degrees in design, quality control, and technical support.
Our Certifications: Including ISO, CE, Utility Model Patents, and Invention Patents.
