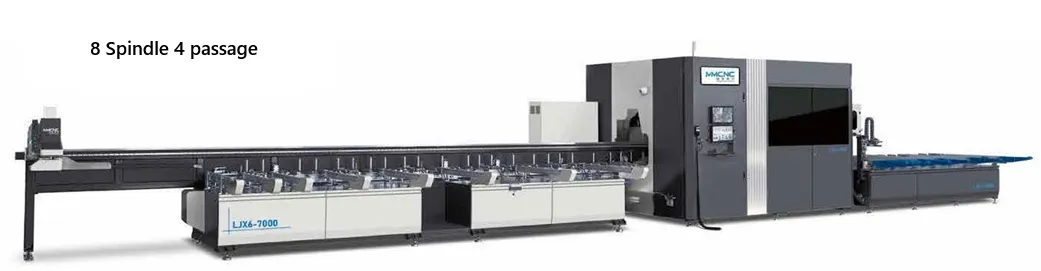

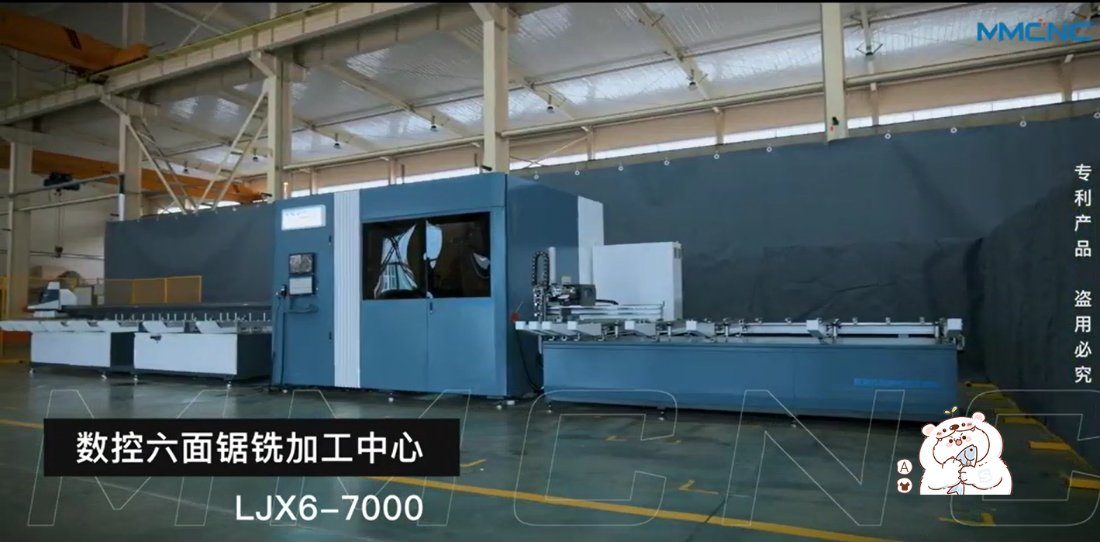

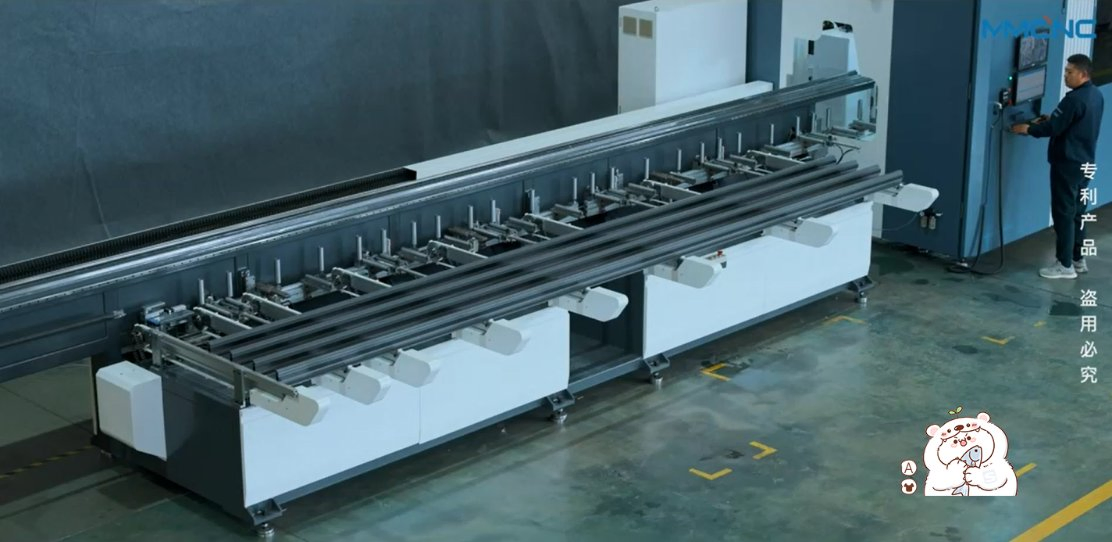

LJX6-7000 Six-side Cutting and Milling Machining Center

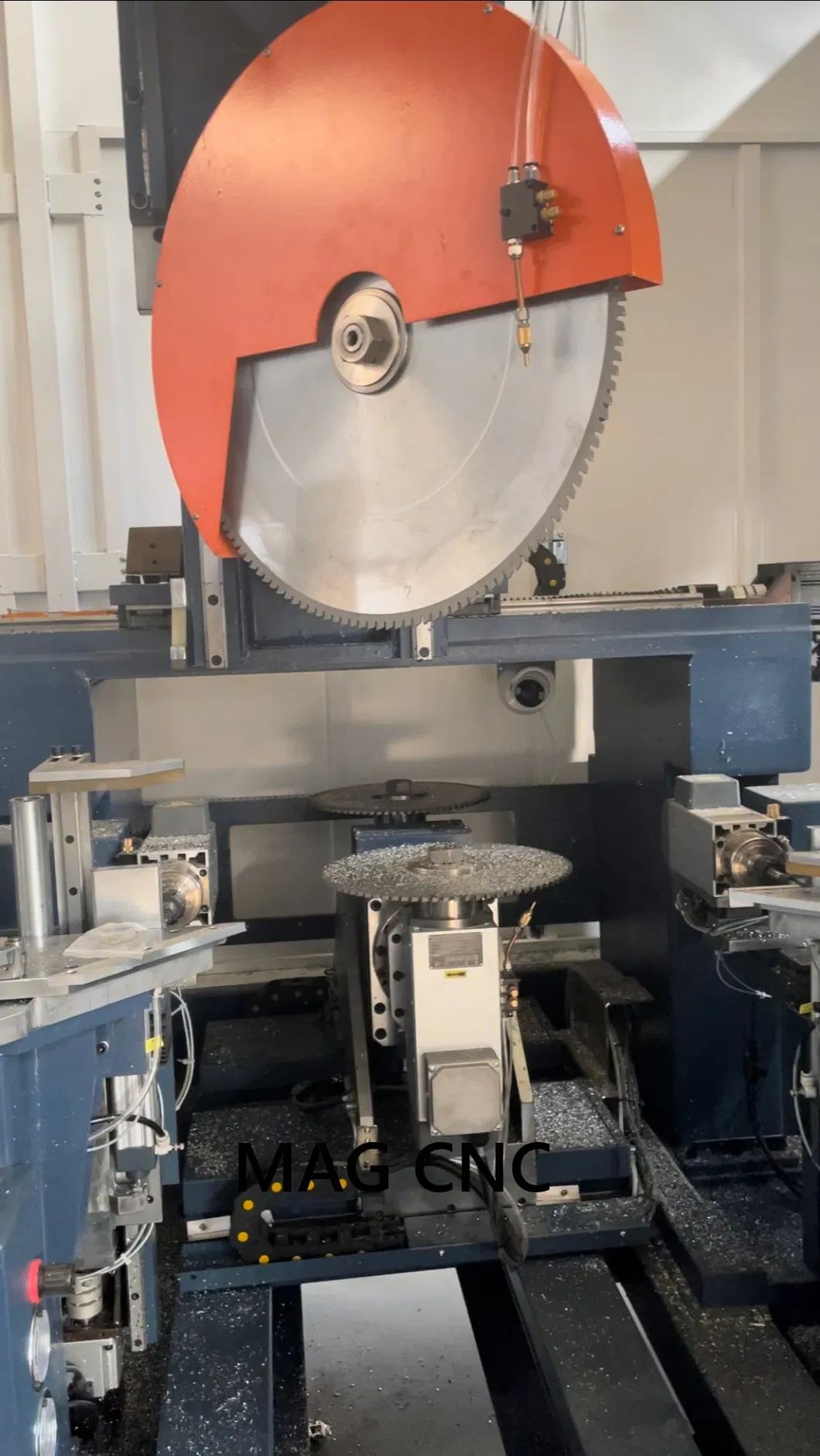

This equipment features highly integrated processing capabilities, suitable for frames, sash, and mullion. It completes the entire process from profile sawing to process hole machining and end milling of the middle mullion in a single cycle.
Processable Hole Types: Pin holes, glue injection holes, handle holes, transmission rod notch clear corners, ordinary drainage holes, invisible drainage holes, and installation holes.
1

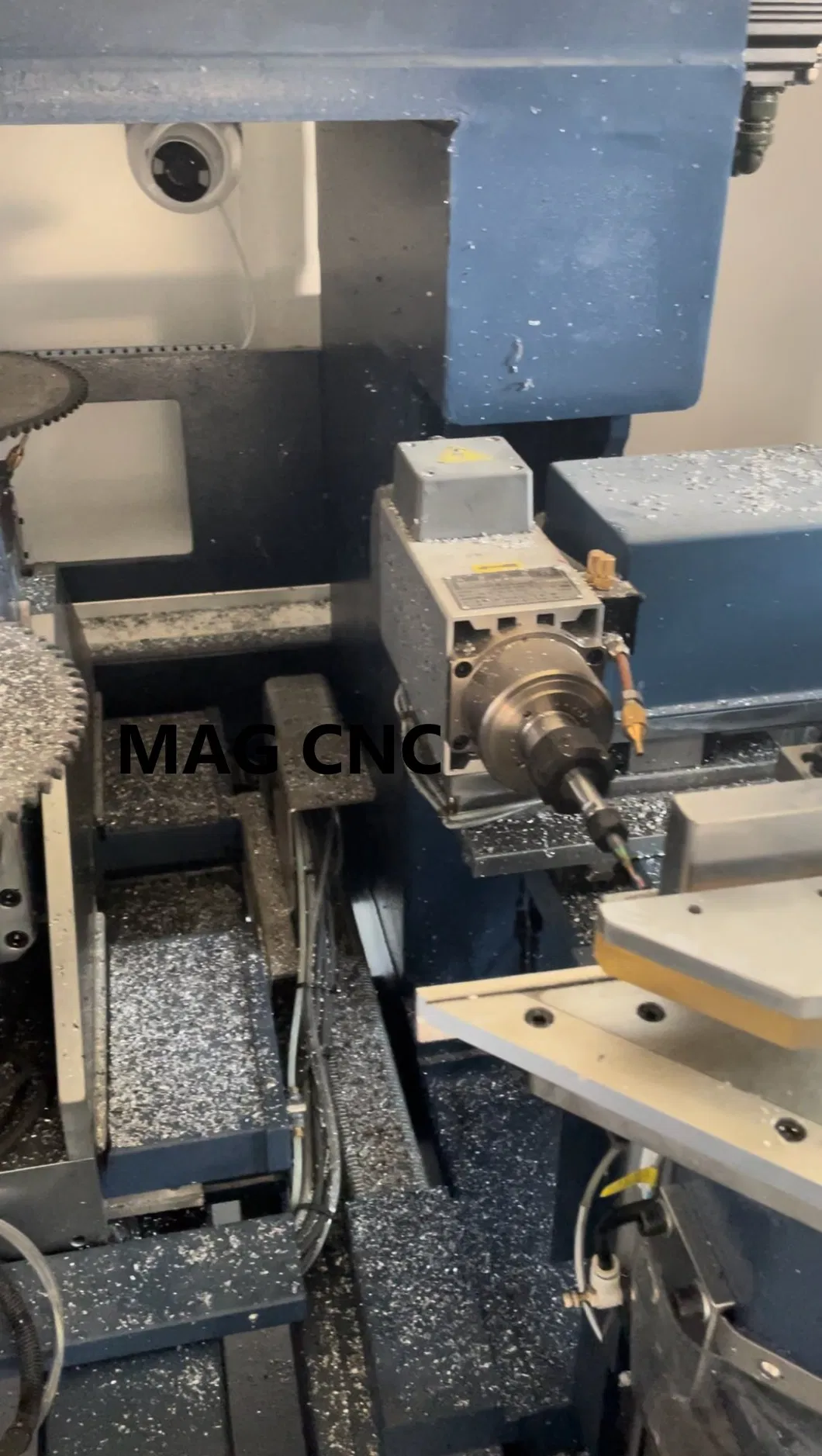

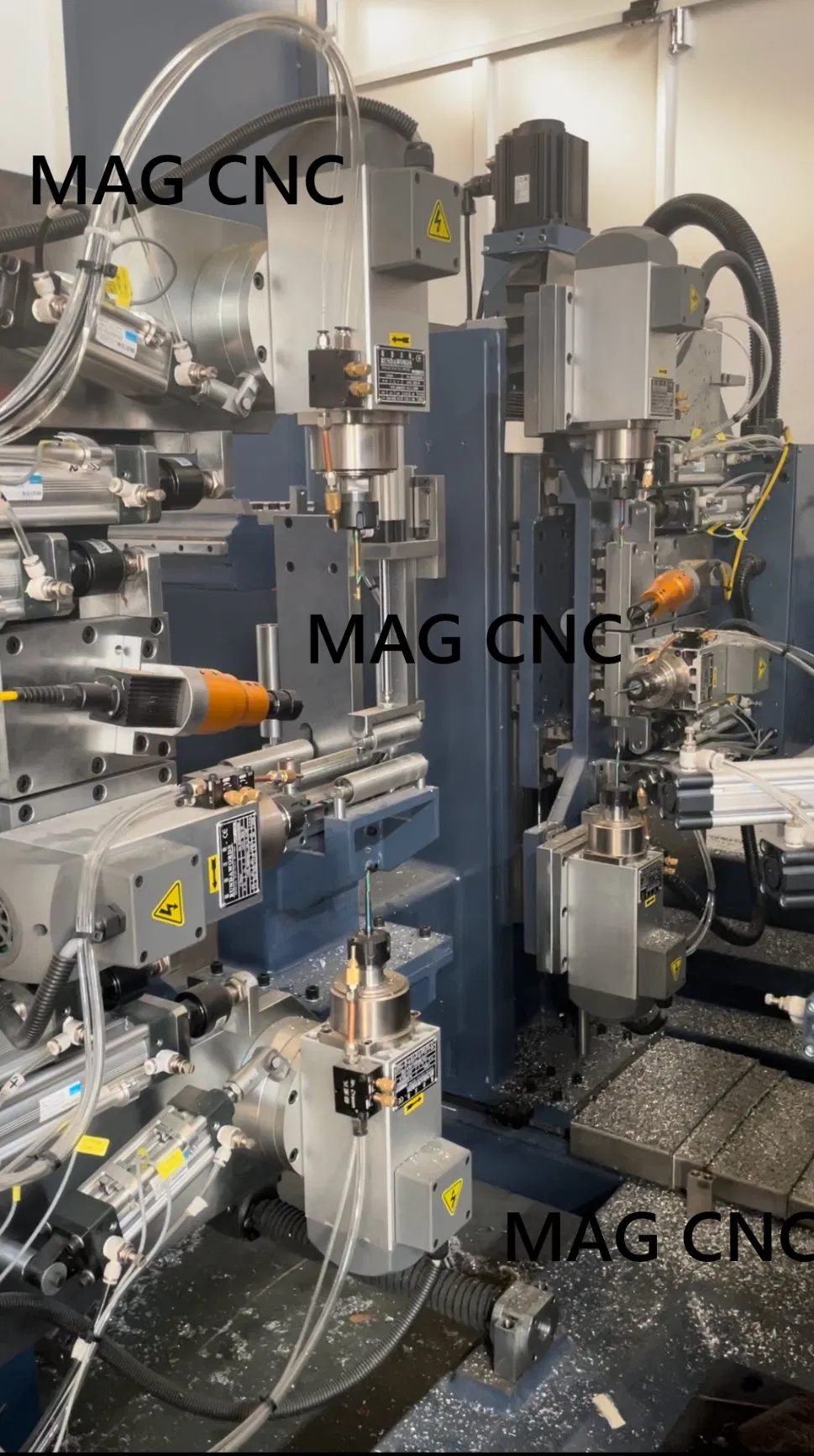

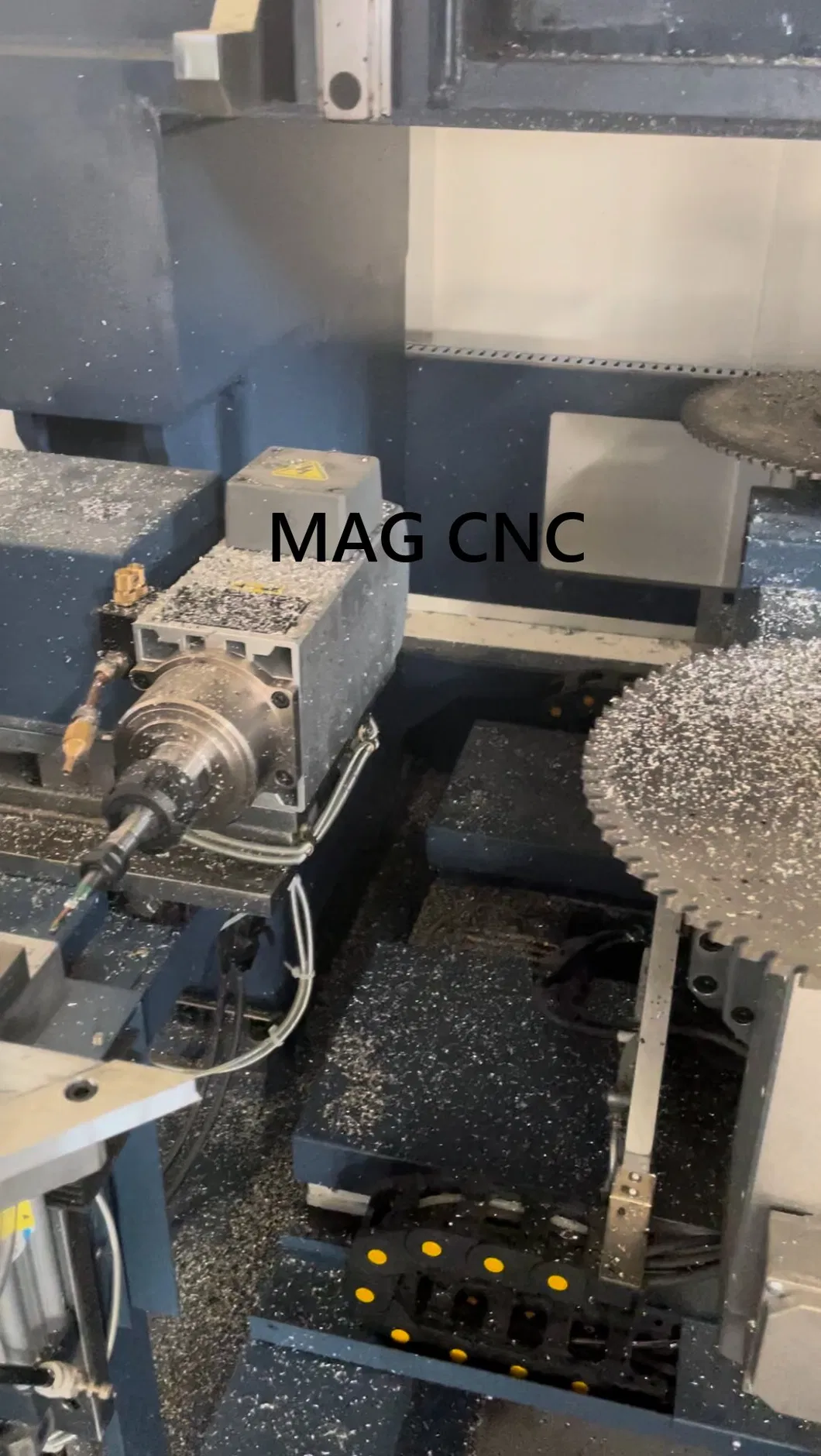

8-Spindle Design: The drilling and milling section uses 8 spindles (2 per side). Supports various tools for different requirements with automatic tool changing during operation.
2

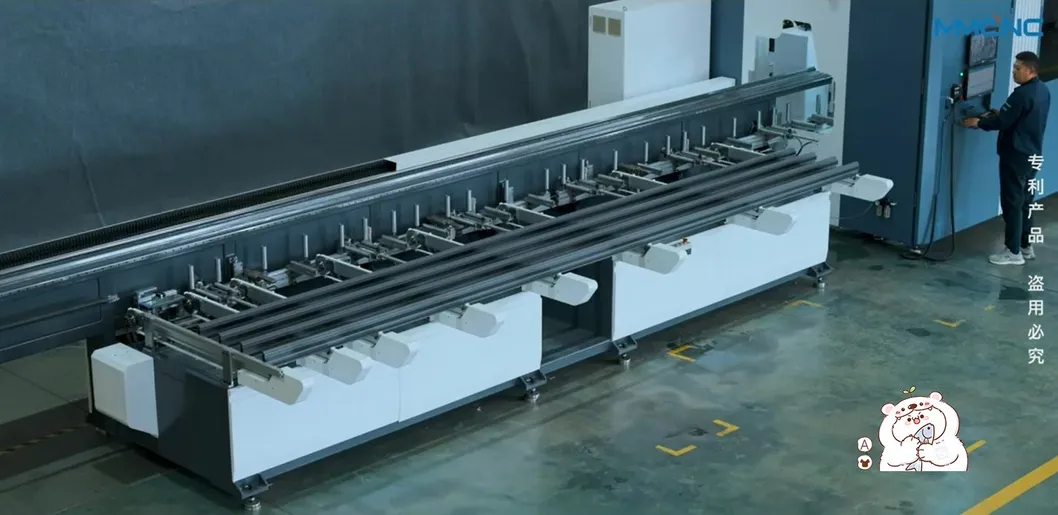

Integrated Bed Construction: Features an integrated welding bed for the loading table, feeding rack, milling, and cutting parts. Vibration aging treatment ensures high equipment stability.
3

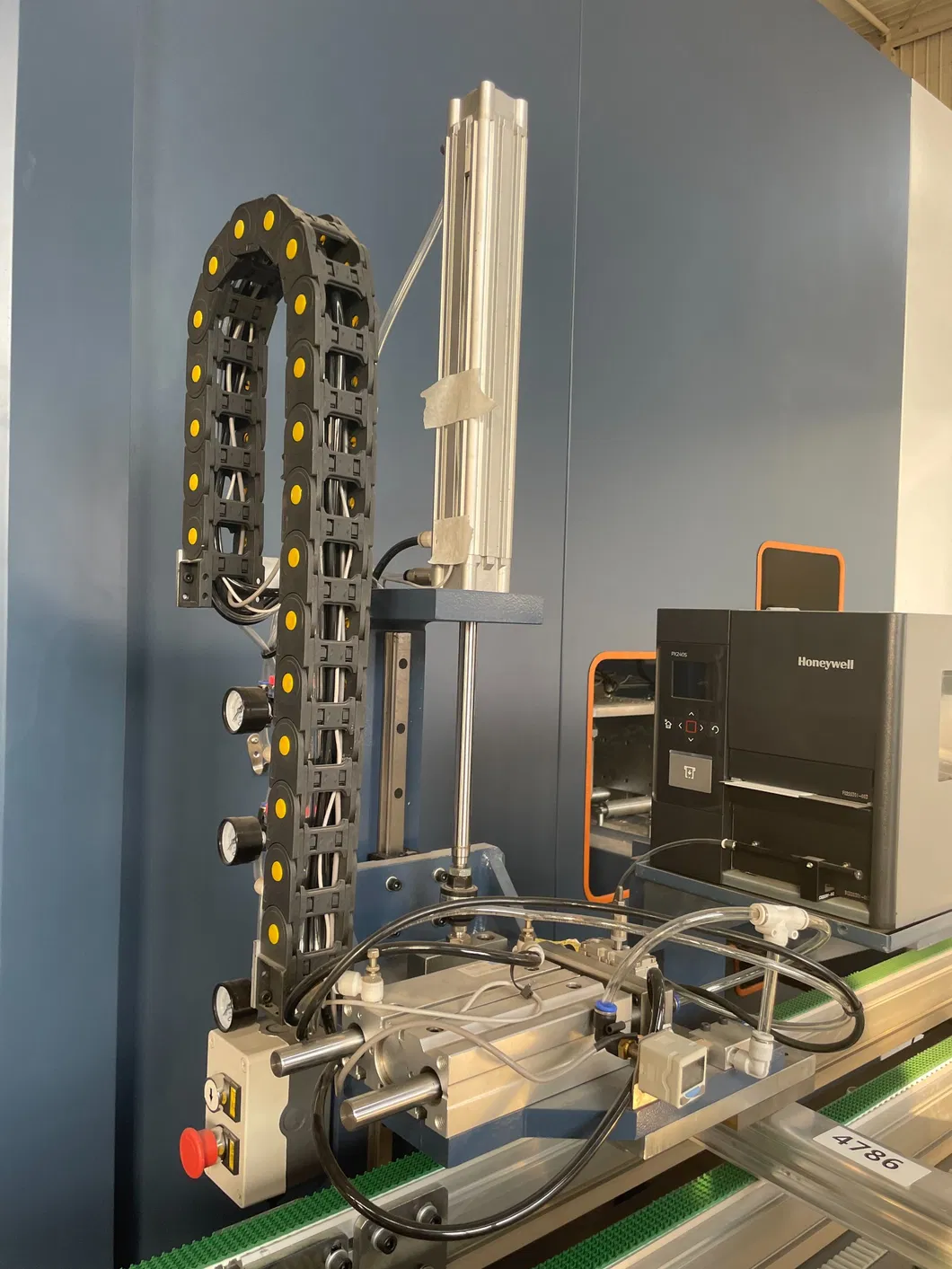

Automatic Labeling: Equipped with a TSC industrial printer and a self-designed labeling mechanism with suction cup vacuum pressure detection for durability.
4
Advanced End Milling: Includes two end milling spindles; one can rotate 90 degrees in both directions to strengthen mullion processing.
5
Laser Functionality: Equipped with double-side laser marking; optional double-sided laser hole-cutting is available as needed.
? Frequently Asked Questions
What types of profiles can the LJX6-7000 process?
The machine is highly versatile and can process frames, sash, and mullion profiles for windows and doors.
How many spindles are used for drilling and milling?
It features an 8-spindle design, with 2 spindles dedicated to each side, allowing for automatic tool changes.
Does the machine support automatic labeling?
Yes, it includes an integrated TSC industrial printer and an automatic labeling mechanism with vacuum detection.
What are the power and air pressure requirements?
The equipment operates on 380V voltage with a total power of 65kw and requires an air pressure of 0.6-0.8MPa.
Can it handle specialized milling for mullions?
Yes, the end milling section has two spindles, one of which can rotate 90 degrees to facilitate complex mullion processing.
What kind of holes can be drilled with this center?
It can process pin holes, glue injection holes, handle holes, drainage holes (including invisible ones), and installation holes.
