3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum
3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum
3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum
3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum
3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum
1 / 5
3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum
3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum
3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum
3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum
3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum

3 Axis CNC Aluminum Profile Machining Center for Window and Door Aluminum

After-sales Service: Provided
Warranty: 18 Months
Condition: New
Send Inquiry

Product Description

Basic Specifications

Model NO.: SMT-ZXC-3000
Certification: ISO, CE
Automatic Grade: Automatic
CNC or Not: CNC
Voltage: 380V
Dimension: 3500*1600*1800mm
Working Pressure: 0.6~0.8MPa
Power: 8.5kw
Key Selling Points: Easy to Operate
Applicable Material: PVC, UPVC, Aluminum
Production Capacity: 230

Product Description

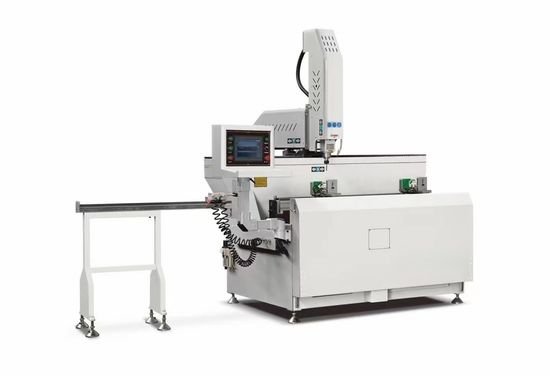

Video Cover
3-Axis 1200mm CNC Vertical Drilling and Milling Machine
✔ Suitable for aluminum profile processing, including drilling, slot milling, round holes, special-shaped holes, and flat engraving.
✔ Equipped with an advanced CNC control system for stable and accurate performance.

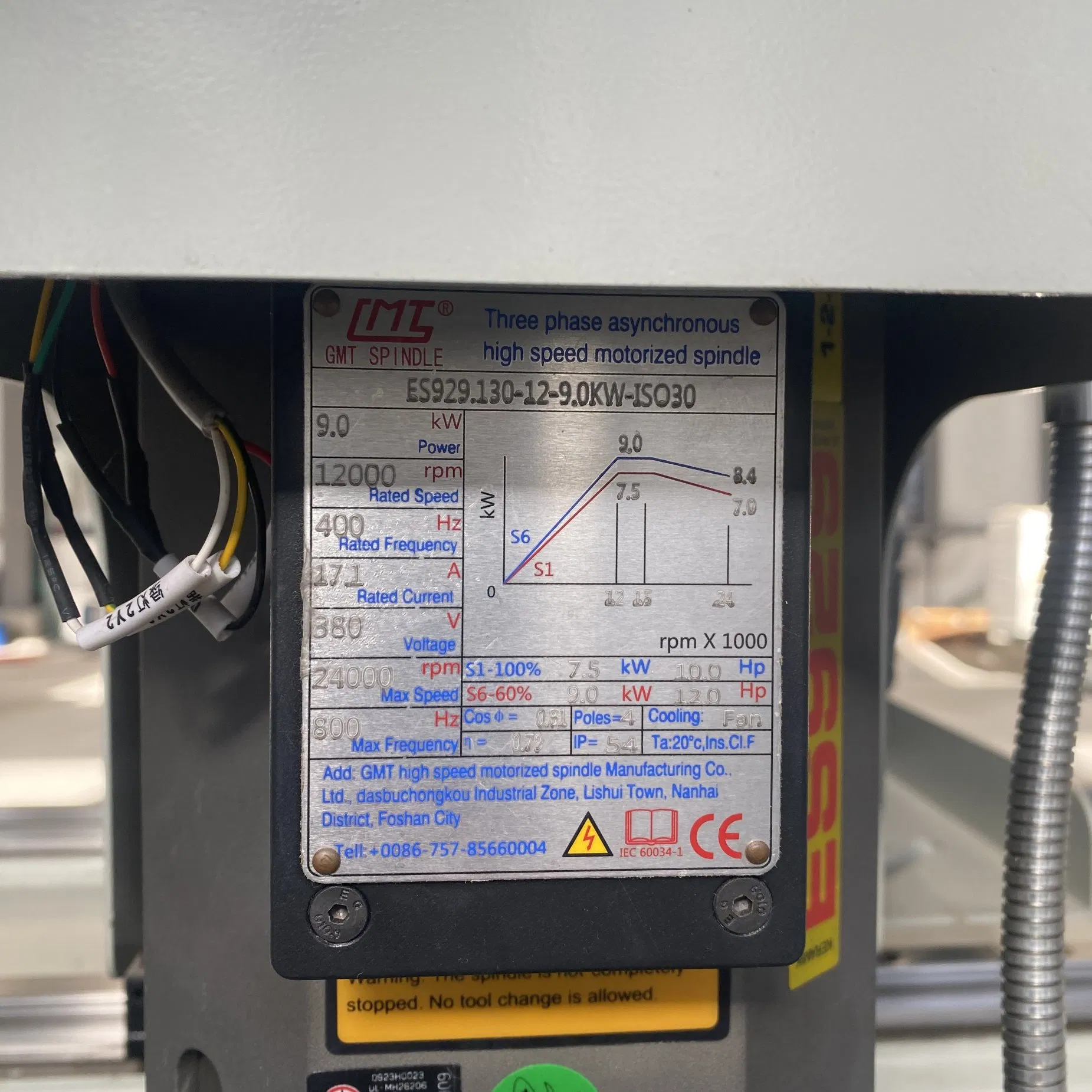

✔ Uses a high-precision electric spindle, ensuring excellent accuracy, safety, and long-term reliability.

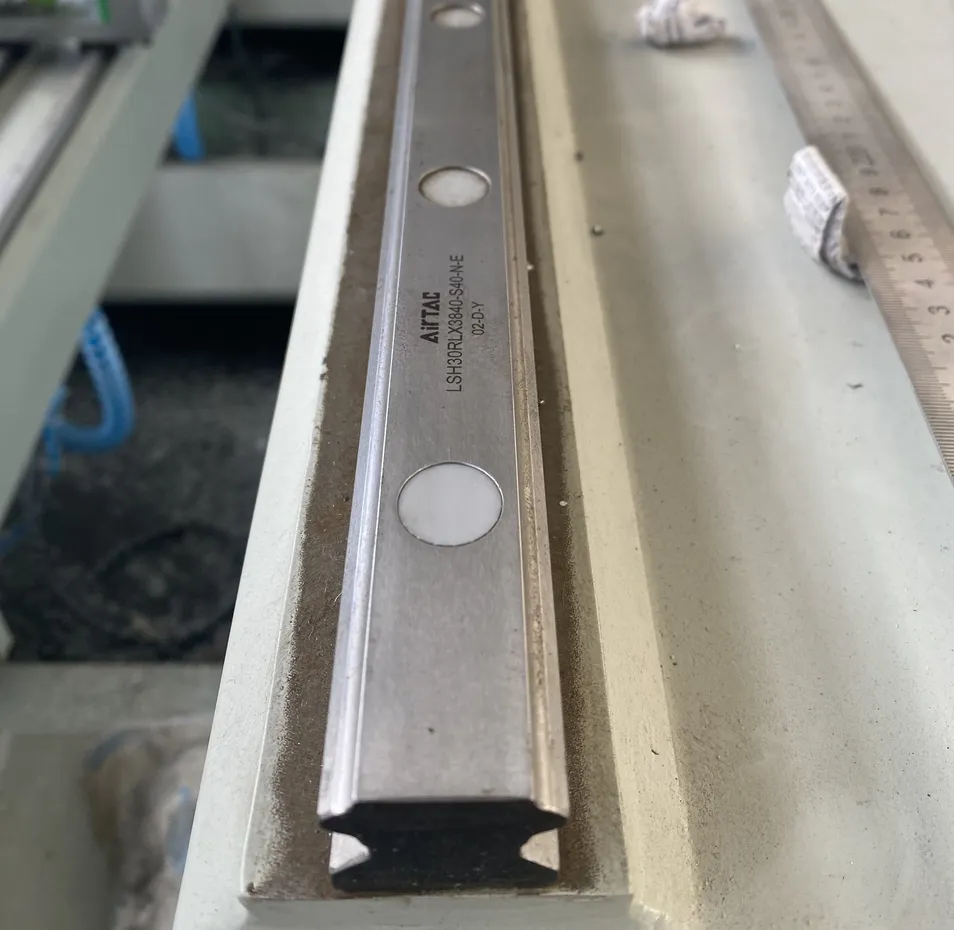

✔ X / Y / Z axes adopt high-precision ball screw transmission for smooth motion and high positioning accuracy.
✔ The worktable can rotate 180° (-90° to +90°). With one-time clamping, the machine can complete three-side machining.
✔ Equipped with three full-servo motors, achieving true three-axis linkage for high efficiency.
Item Specification
Voltage380V / 50Hz, Three-phase Four-wire
Working Pressure0.5–0.6 MPa
Total Power5.75 kW
X-axis travel1200 mm
Y-axis486 mm
Z-axis410 mm
Spindle Power3.5 kW
Spindle Speed18,000 r/min
Positioning Accuracy±0.05 mm
Surface RoughnessRa 3.2 μm

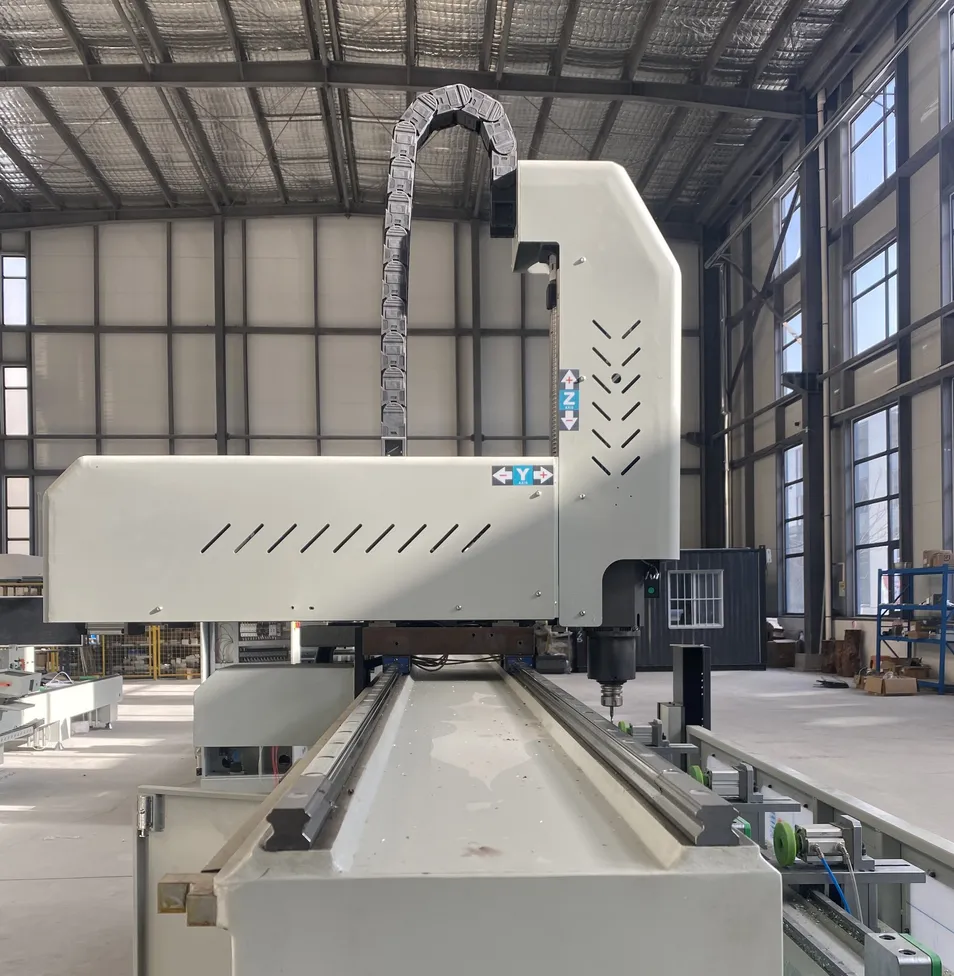

3 Axis CNC Aluminum Profile Machining Center
3 Axis CNC Aluminum Profile Machining Center
3 Axis CNC Aluminum Profile Machining Center
3 Axis CNC Aluminum Profile Machining Center

Packing & Delivery

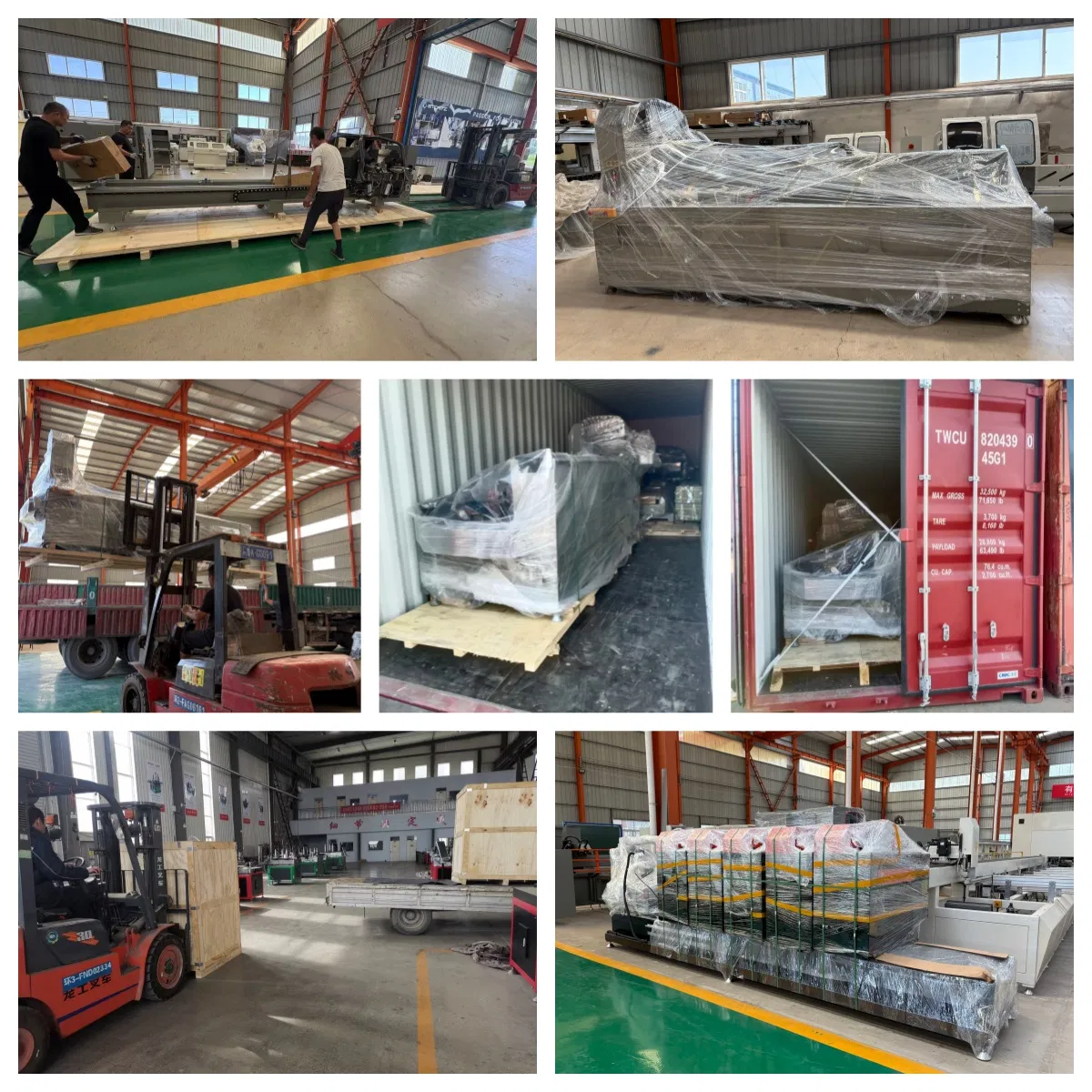

Packing Process
Package Size: 3400.00cm * 1600.00cm * 3000.00cm | Weight: 1800.00kg

About the Manufacturer

We are a globally recognized manufacturer specializing in the design, production, and distribution of intelligent door & window processing machinery. With a strong commitment to innovation, precision engineering, and advanced automation, we help manufacturers worldwide improve efficiency, reduce production costs, and achieve superior product quality.

Our smart manufacturing solutions integrate AI-driven automation, IoT connectivity, and high-precision control systems, enabling seamless processing for architectural and industrial applications. We serve customers across North America, Europe, the Middle East, and Southeast Asia, delivering state-of-the-art machinery along with complete technical support.
Exhibition Display

Frequently Asked Questions

Q1: What is the minimum order quantity?
One set is sufficient for an order.
Q2: Are you a manufacturer or a trading company?
We are a dedicated manufacturer of glass and window machinery with our own factory and professional production team.
Q3: Can you customize the machines according to specific requirements?
Yes, we provide customized production services to meet your specific technical requirements.
Q4: How do you ensure the quality of your machines?
We use high-quality, reliable internal electronic components from famous brands. We conduct pre-production sample checks and a final inspection before every shipment.
Q5: How is the machine installed and debugged?
We provide comprehensive installation and debugging videos, circuit diagrams, and 1-year online support to ensure smooth operation after the machine arrives.
Q6: What is the standard packaging method?
Products are typically packed with plastic film for full containers and secured in wooden boxes for LCL shipments. Customized packaging is also available.
