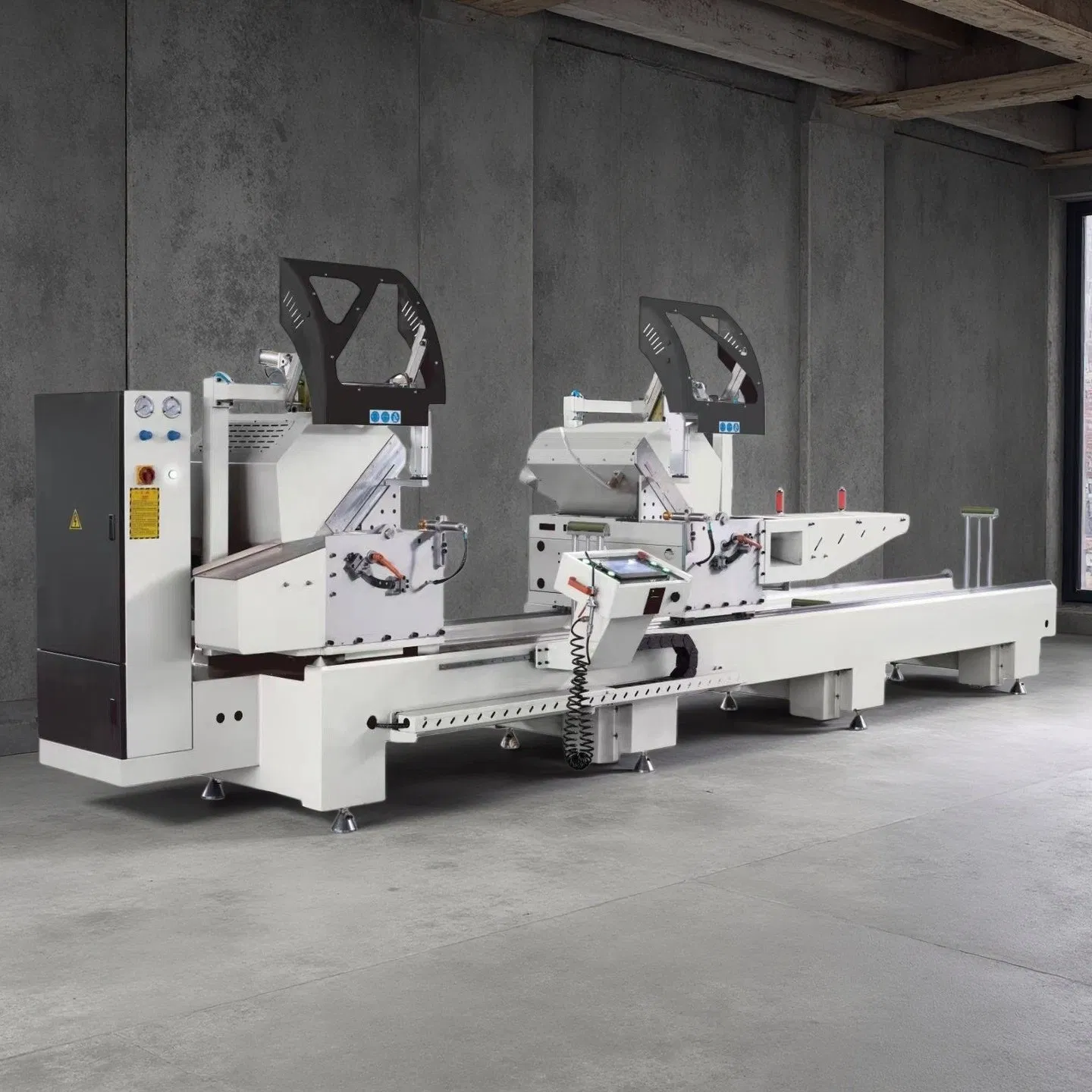

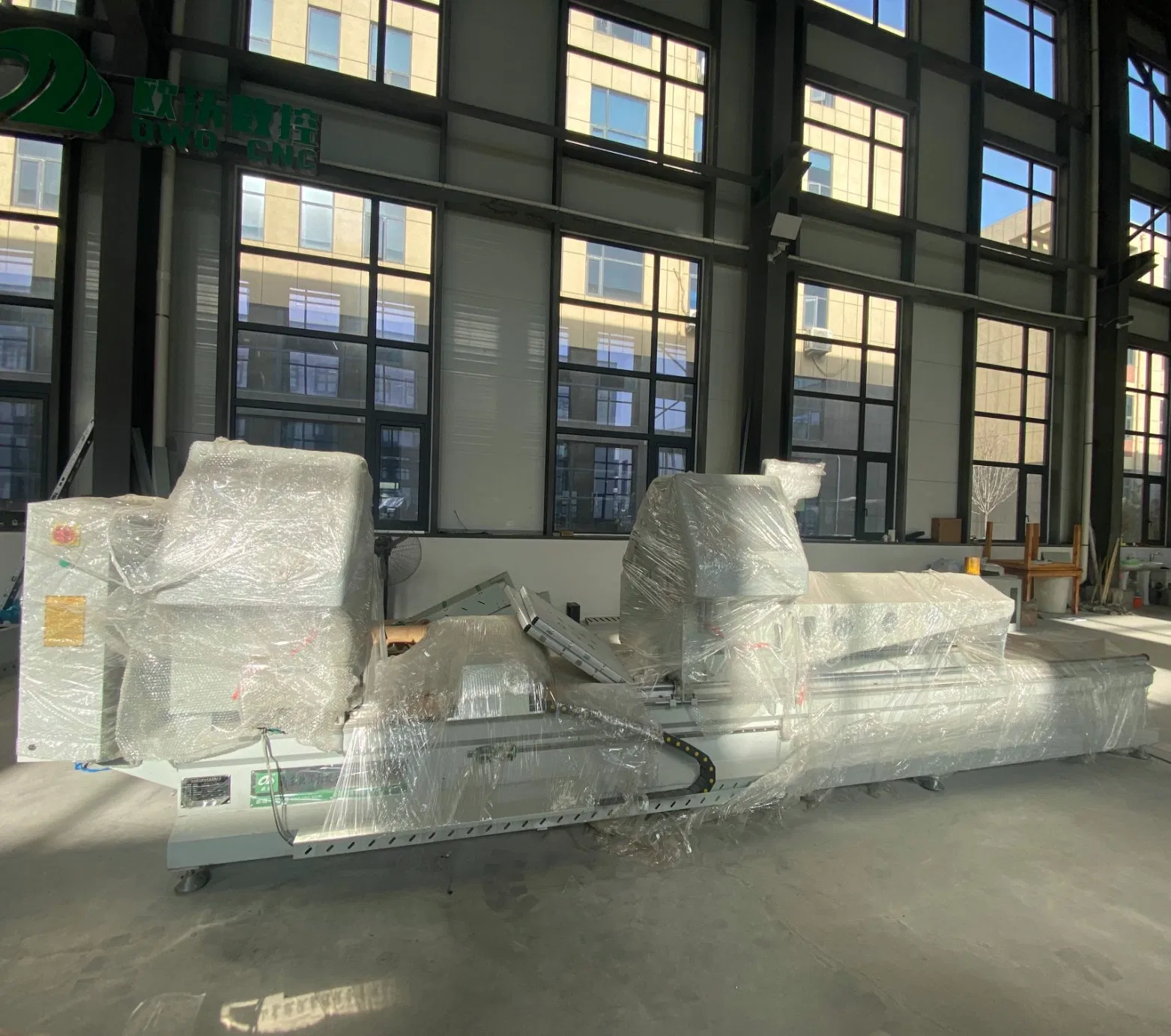

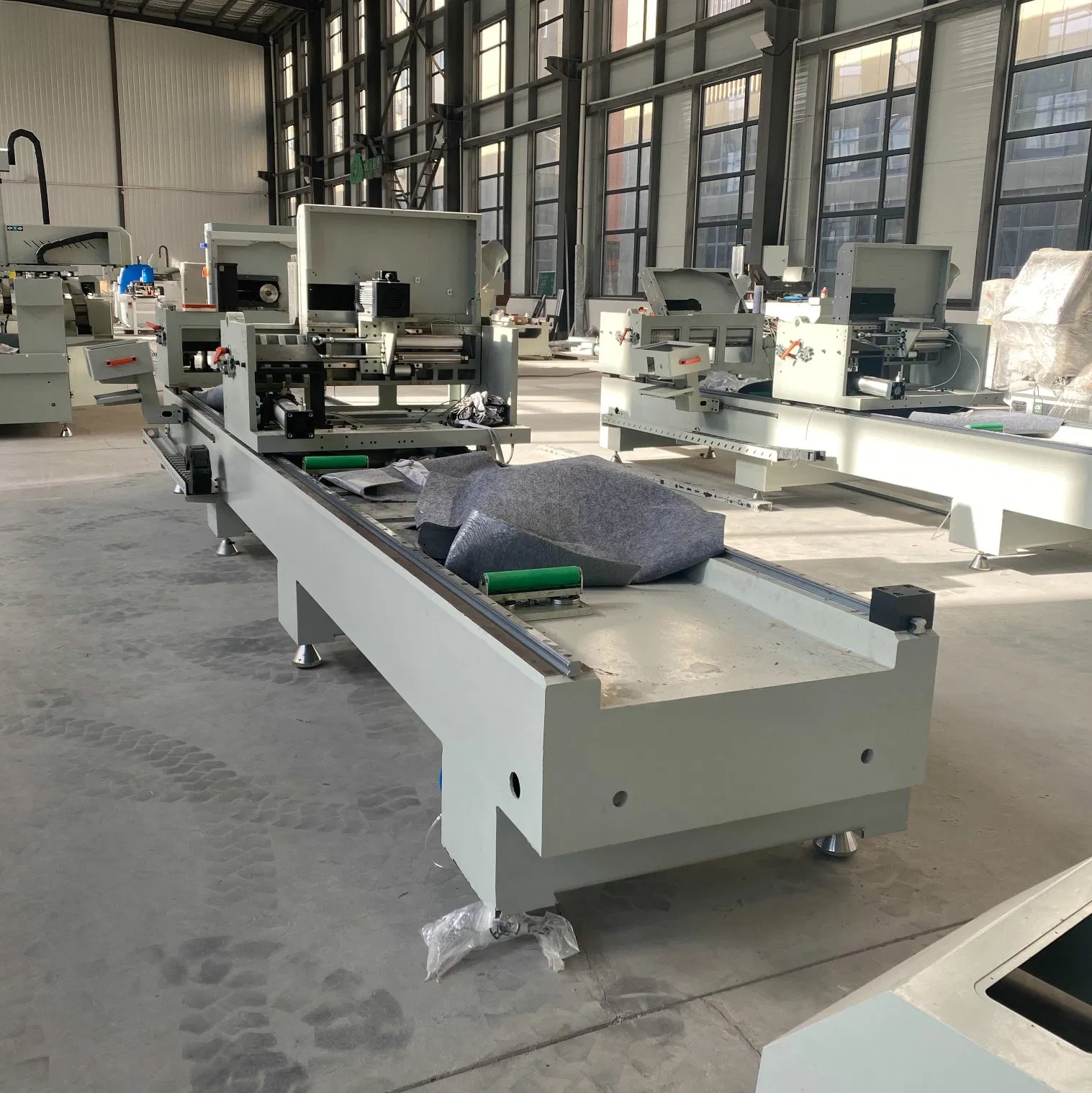

High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine
High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine
High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine
High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine
High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine
1 / 5
High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine
High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine
High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine
High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine
High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine

High Precision Aluminum CNC Double-Head Cutting Saw Aluminum Window Machine

After-sales Service: Online Services
Warranty: One Years
Condition: New
Send Inquiry

Product Description

Basic Information
Model NO.
SMT-CNC-550
Certification
ISO, CE
Automatic Grade
Semi-Automatic
CNC or Not
CNC
Voltage
220V
Cutting Angle
45°~90°
Air Consumption
50L/Min
Cutting Length
370-4200mm
Air Pressure
0.5-0.8MPa
Package Size
7100cm * 1250cm * 1750cm
Gross Weight
1500.000kg
Capacity
500
Product Description

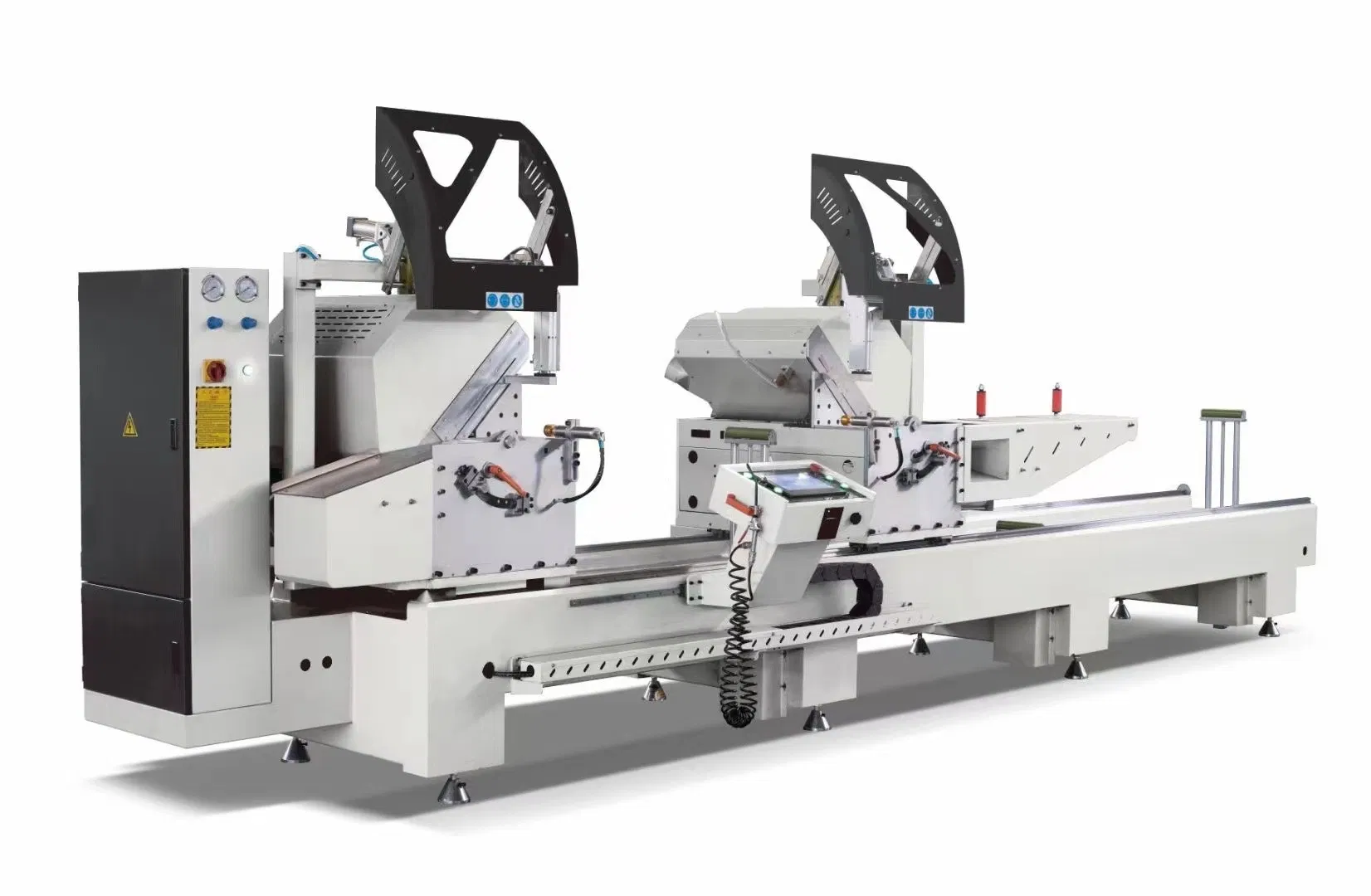

Aluminum CNC Double-Head Cutting Saw
Technical Advantages
✓Specially designed for cutting aluminum profiles; suitable for 45° and 90° cutting of window, door, and curtain wall profiles.
✓The spindle motor is directly connected to the saw blade, and the cylinder + damping cylinder provide coaxial curved-feed cutting for stable operation.
✓The movable cutting head is driven by an absolute-value servo motor with rack-and-pinion transmission, ensuring high positioning accuracy.
✓The movable head runs on a high-precision linear guide pair, offering smooth, stable, and reliable movement.
✓The movable head supports short-piece cutting, allowing a minimum cutting length of 260 mm.
✓Equipped with a middle support rack to prevent profile sagging and cutting deviation; includes an automatic follow-up support rack with automatic lifting function.
✓High precision: integrated cast-iron working table, high-precision spindle motor, cutting length accuracy ±0.1 mm, surface flatness ≤0.10 mm, cutting angle error ≤5′.
✓The system supports ultra-short cutting and extra-long cutting modes.
✓The two saw heads can work independently or simultaneously. When working together, they complete both required length and angles in a single cutting cycle.
✓Equipped with imported diamond saw blades, offering fast cutting speed and high productivity.
✓Simple to operate, reliable performance, advanced technology, and easy maintenance.
Technical Specifications
Power supply380V/50Hz
Sawing motor2×3.0kW + 0.75kW, 2800 rpm
Operating air pressure0.5–0.8 MPa
Air consumption50 L/min
Saw blade specifications550 × 30 × 4.4 mm, Z = 144
Feed speed0–3 m/min
Head movement speed range0–20 m/min
Cutting Length370–4200 mm
45° Cutting Range170×145 mm
90° Cutting Range170×200 mm
Overall Dimensions5800×1750×1250 mm
Product Gallery

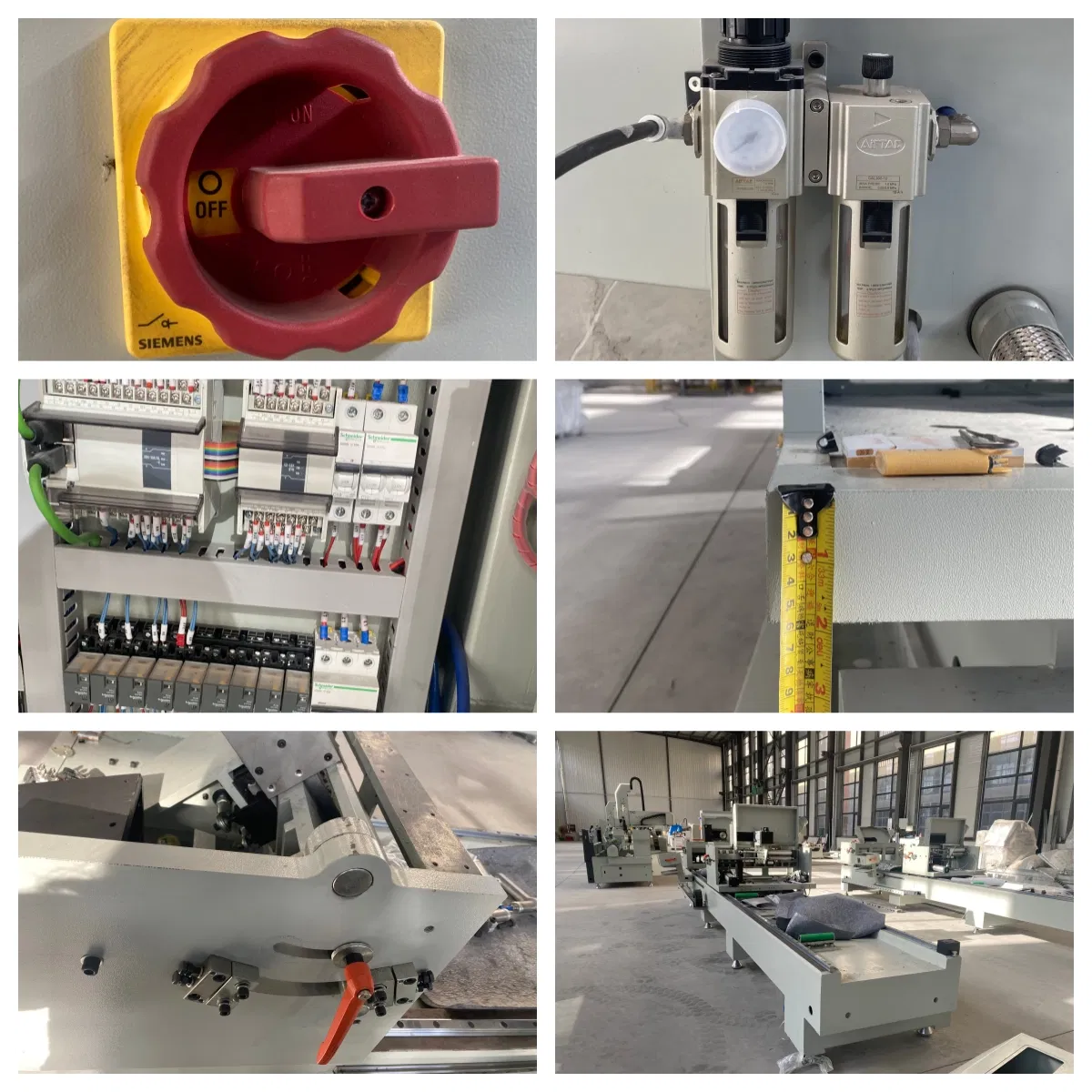

CNC Double-Head Cutting Saw Detail 1

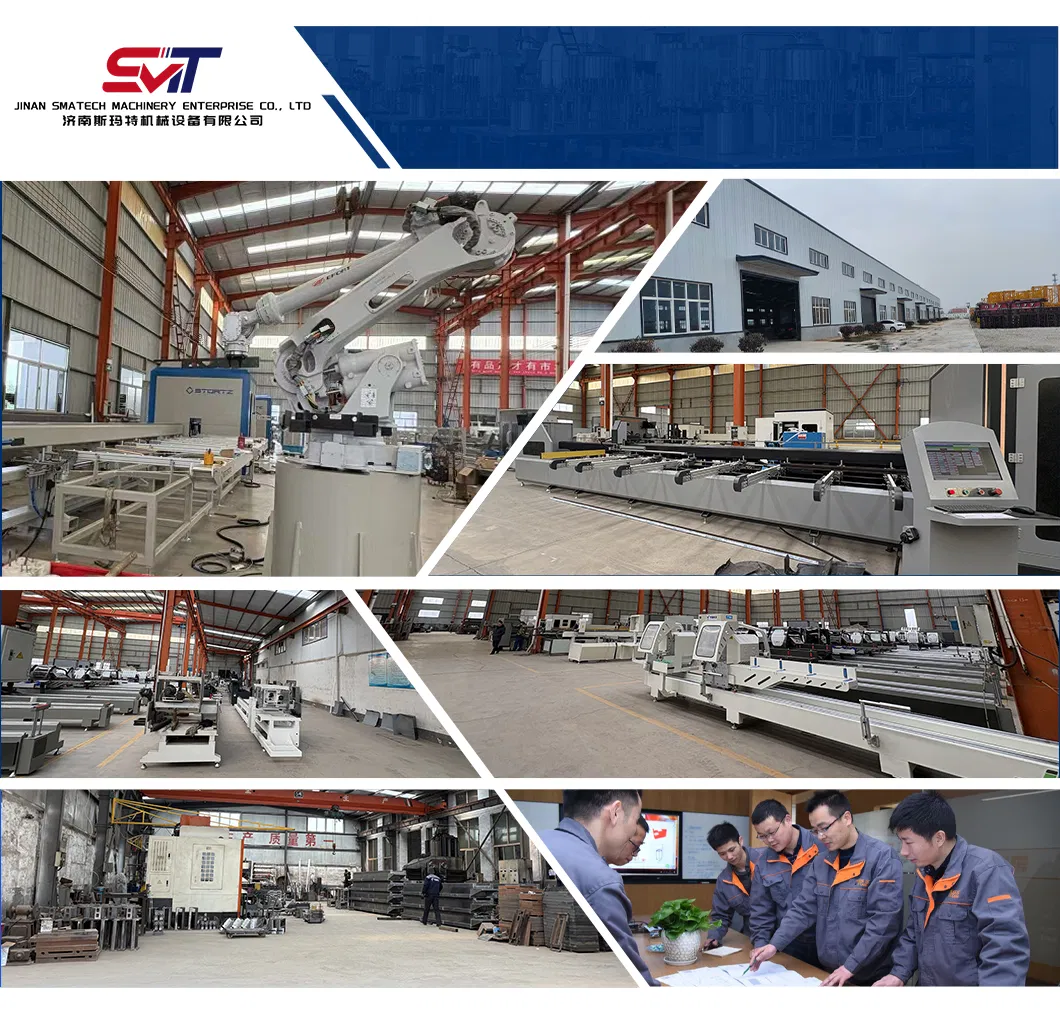

CNC Double-Head Cutting Saw Detail 2

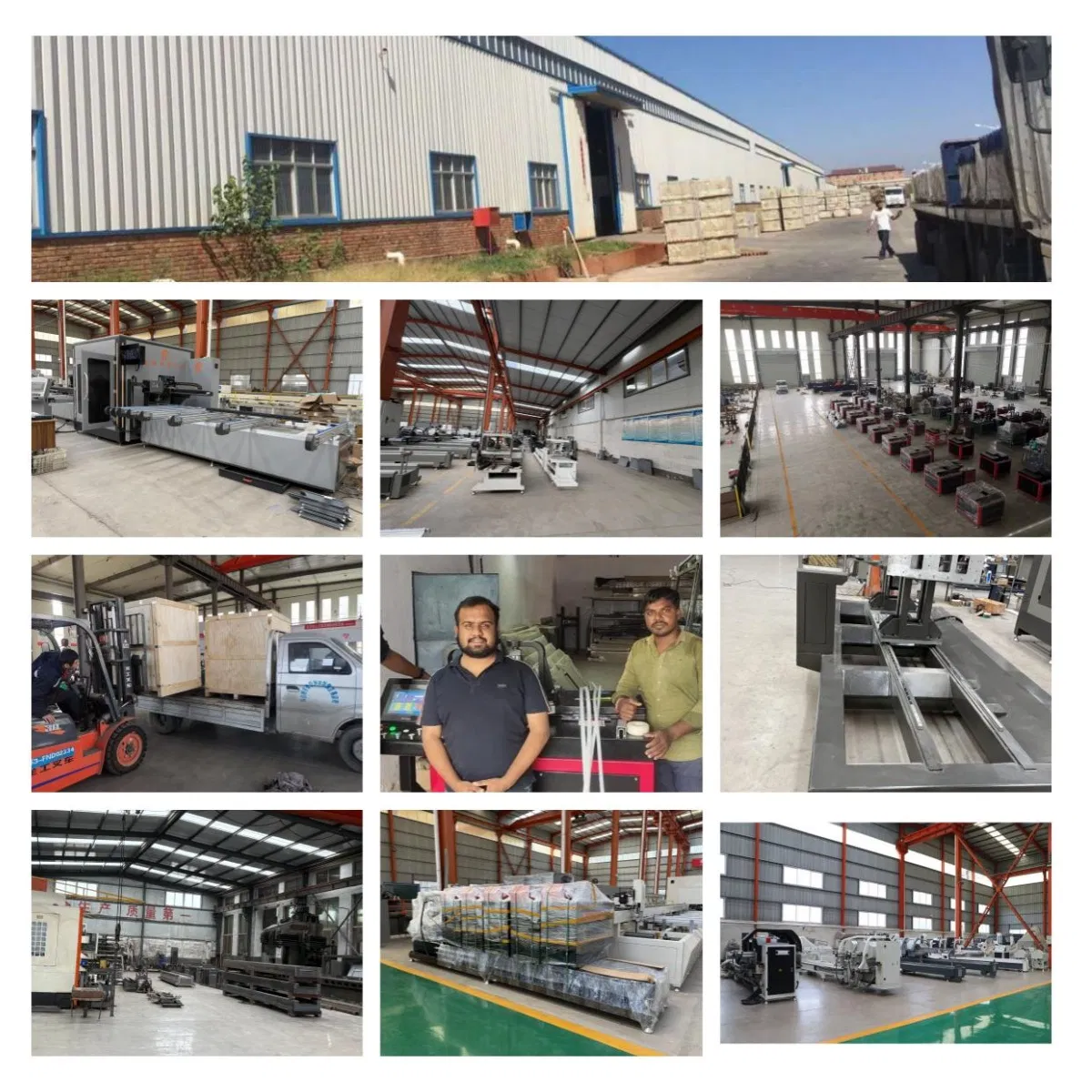

CNC Double-Head Cutting Saw Detail 3
CNC Double-Head Cutting Saw Detail 4
CNC Double-Head Cutting Saw Detail 5
CNC Double-Head Cutting Saw Detail 6
Frequently Asked Questions
What is your minimum order quantity?
One set is acceptable for the order.
Is your company a manufacturer or trading company?
We are a manufacturer of door and window machines, with our own factory and professional production team.
Can you provide customized production?
Yes, we can produce machines according to your specific requirements and technical needs.
How do you ensure the quality of your machines?
We use famous and reliable internal electric parts. We always provide a pre-production sample before mass production and conduct a final inspection before shipment.
How do we install the machines upon delivery?
We provide installation and debugging videos, circuit diagrams, and online support groups to ensure smooth setup and operation.
What are your packing methods?
Usually, we pack products with plastic film for full containers and wooden boxes for LCL shipments. Customized packaging is also available.
