Product Description

CNC Machining Center Overview
Product Brief

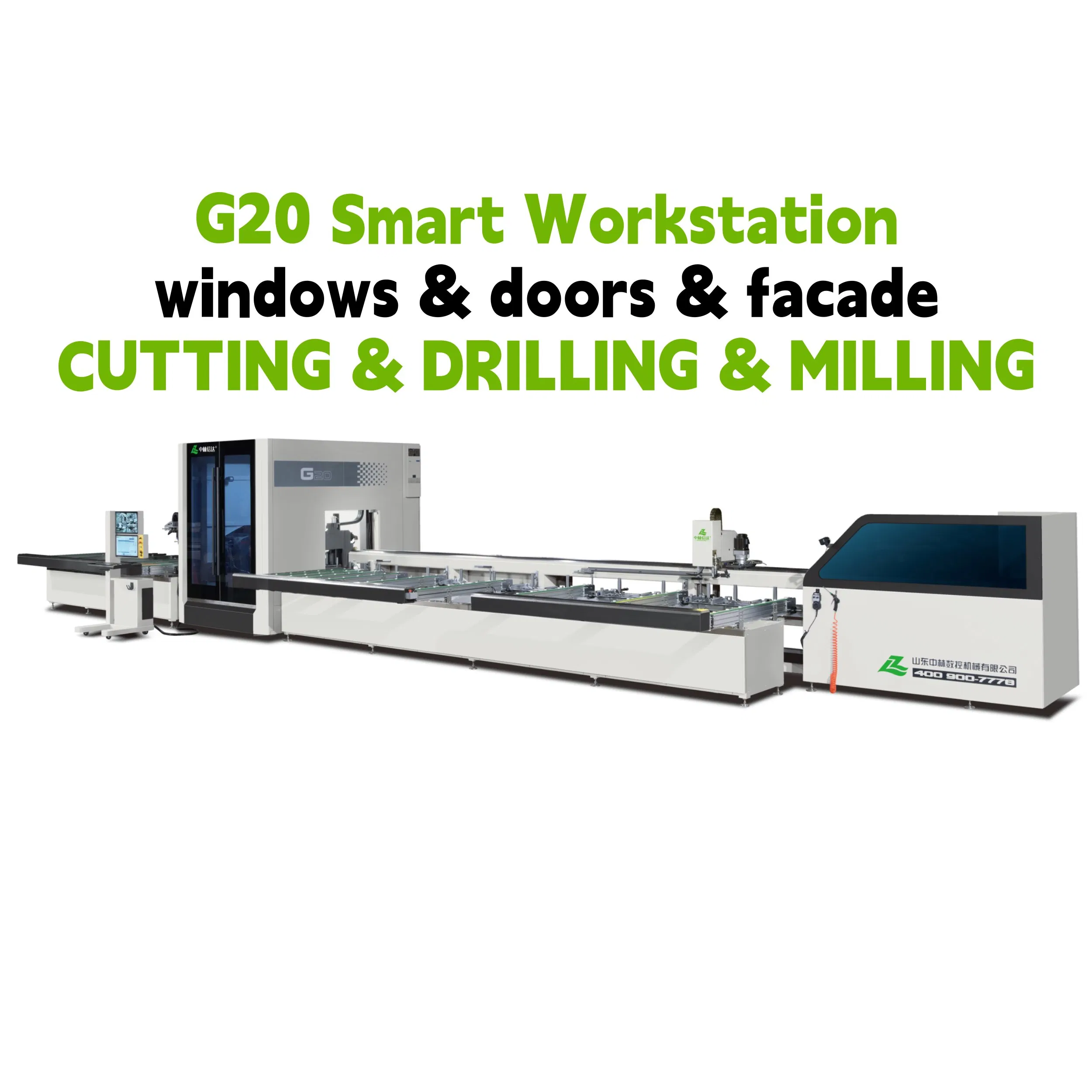

The G20 CNC Machining Center is designed for high-efficiency aluminum window, door, and curtain wall fabrication. Equipped with a 20-axis servo system for precision 90°/45° cutting, drilling, and milling.

This advanced workstation handles thermal break and PVC profiles with an impressive accuracy of ±0.1mm. It streamlines production by processing lock holes, drainage, and corner holes in a single clamping cycle.

Technical Specifications
ModelG20 ConditionNew
CertificationISO, CE Automatic GradeAutomatic / CNC
Voltage380V / 50Hz Gas Consumption180L/Min
Processing Accuracy± 0.1mm Surface Squareness≤0.05mm
Saw Motor Power4kw * 3 Milling Spindle Power6kw * 6
Saw Blade Angle45° / 90° / 45° Profile Section Size150mm * 150mm
WeightApprox. 11 Tons Overall Dimensions15800 * 3500 * 2680mm
Key Advantages
Intelligent Automation Built to solve high labor costs and low production capacity. Uses an intelligent robot for profile conveying and processing.
One-Time Clamping Completes glue injection, corner code, drainage, and lock box holes in a single cycle without manual turnover.
High Efficiency Equipped with a 4KW direct-drive motor. Efficiency is increased by 30% compared to traditional cutting methods.
User-Friendly Operation "Fool-style" operation requires no skilled programming. Intelligently identifies profile data and adjusts parameters automatically.
Operational Details

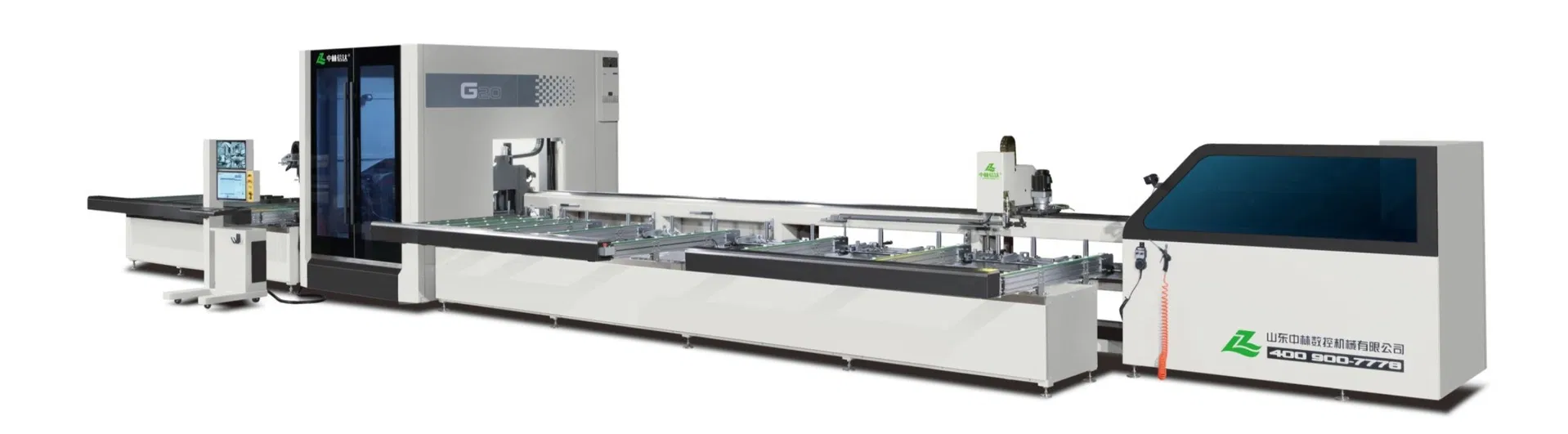

Machine Detail 1

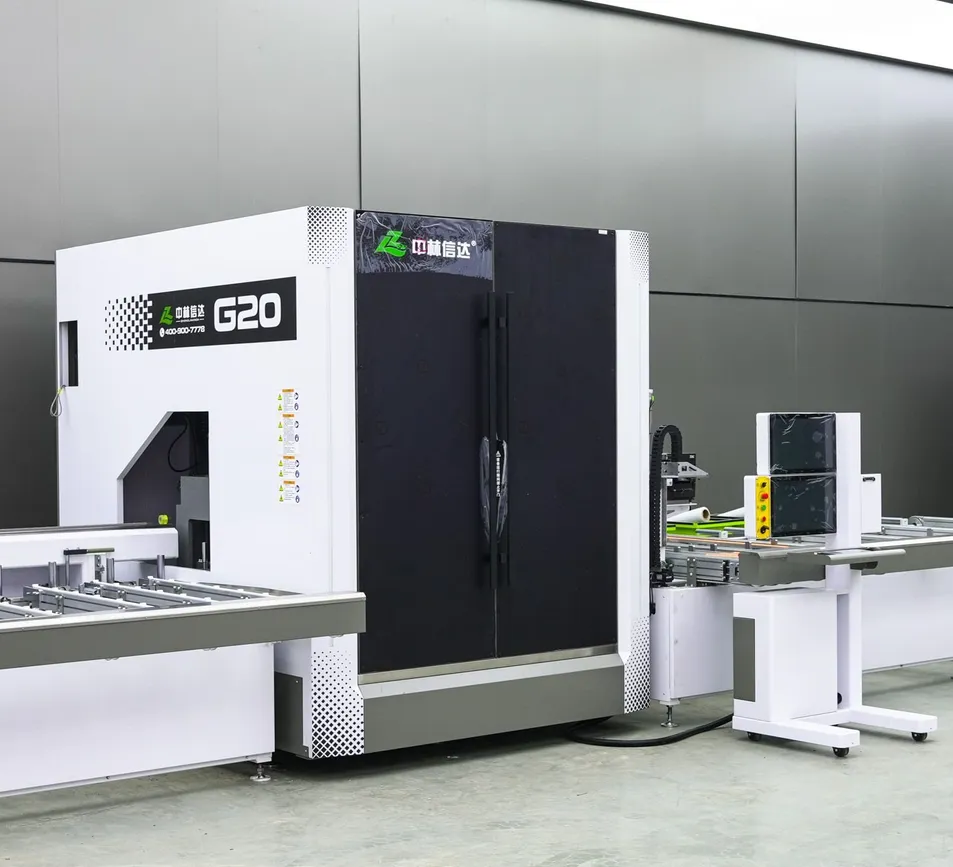

Machine Detail 2

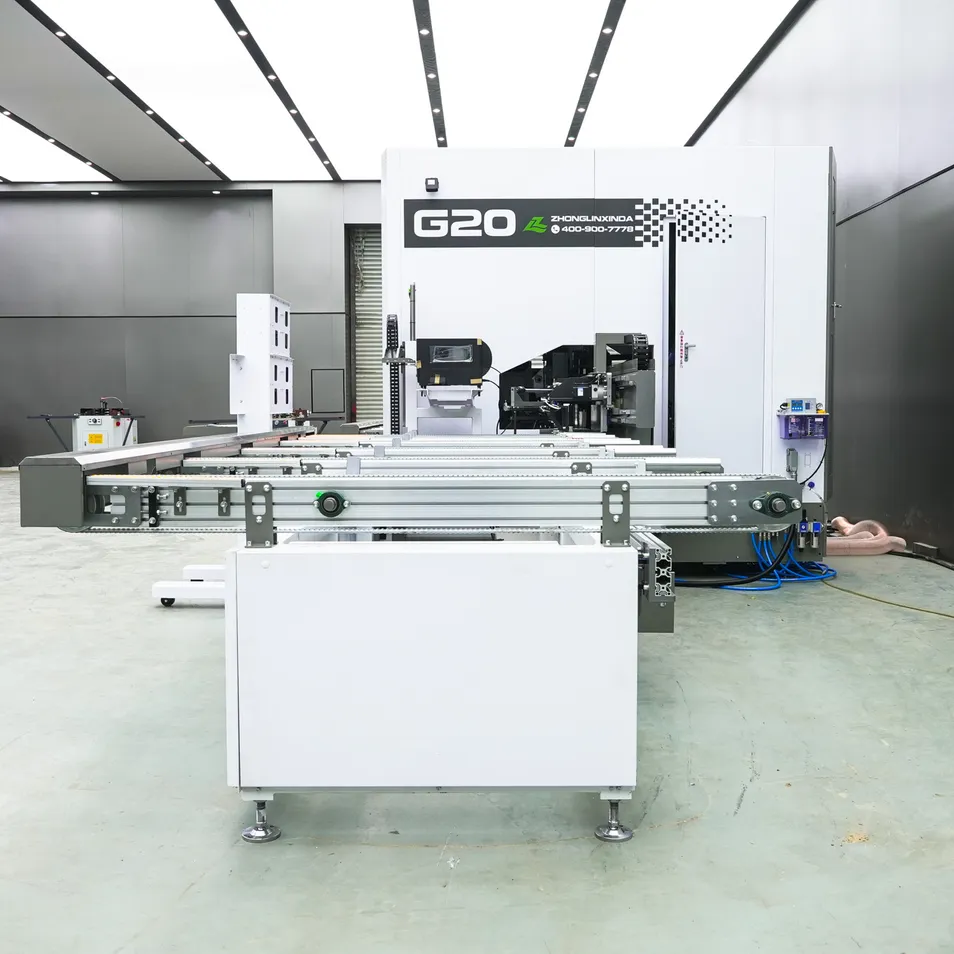

Machine Detail 3
Machine Detail 4

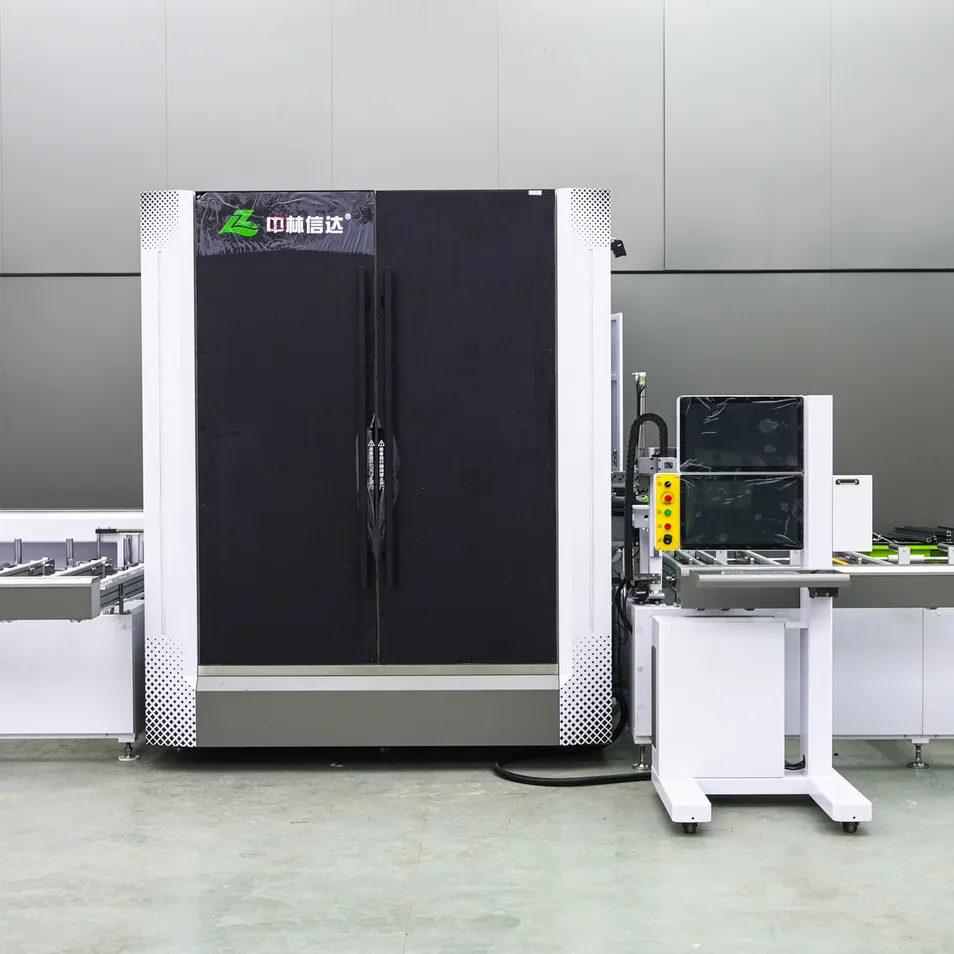

Machine Detail 5
System Integration

The system connects seamlessly to ERP software via network, QR code scanning, or USB drive. It features automatic chip conveyors and dust collection to maintain a clean working environment and improve efficiency.

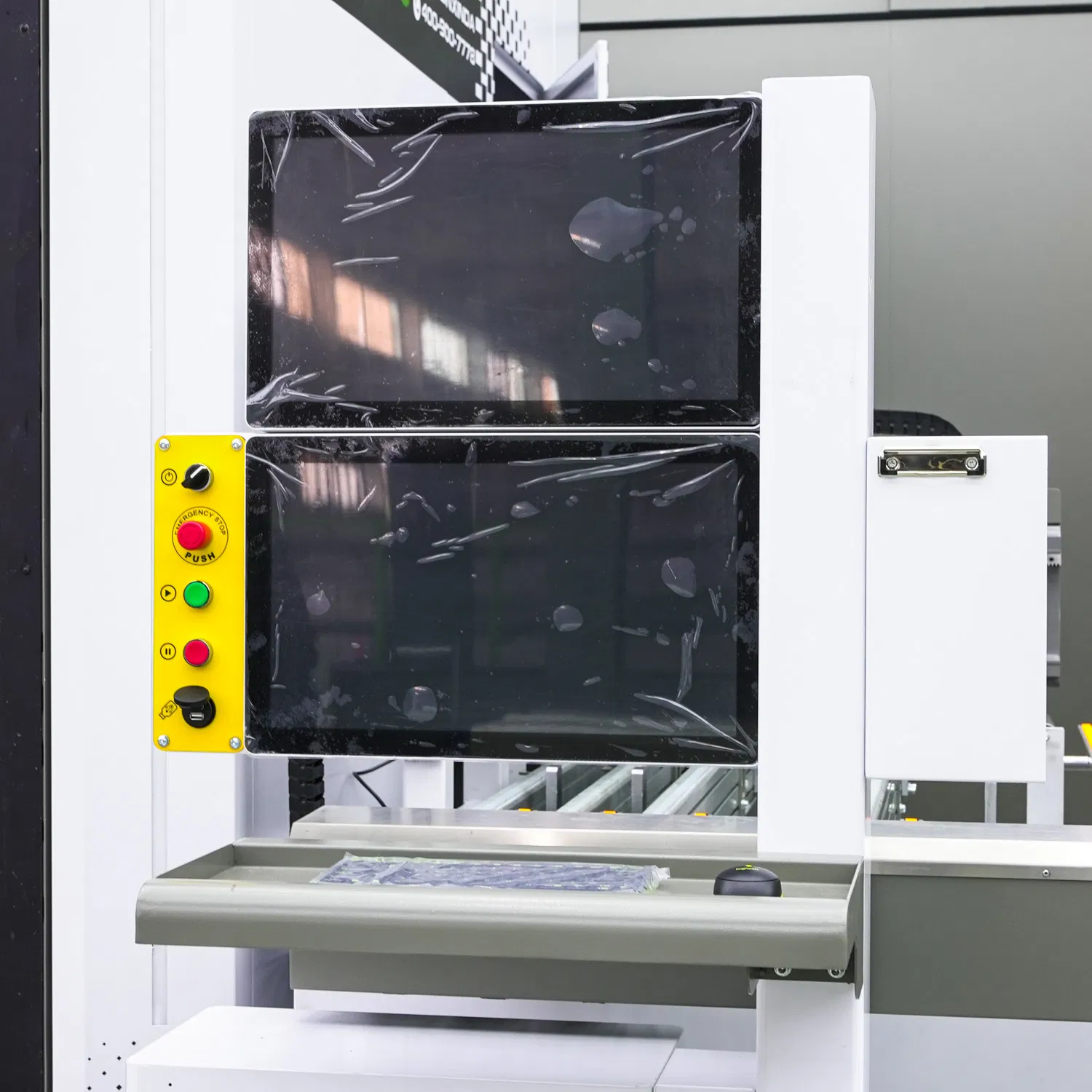

System Interface
Application Scenarios
Finished Products
Packaging & Shipping
Wooden Box Packaging
Frequently Asked Questions
Can this equipment handle both door/window frames and curtain wall profiles?
Yes. Our CNC workstations are designed for versatile applications, including intelligent door/window lines and aluminum curtain wall processing. The G20 model specifically handles full-process door/window fabrication.
Is the machine operation complex? Do I need many skilled workers?
No. The equipment features "fool-proof operation" with automatic data identification. General workers can operate the machine after basic training, as it automates feeding, milling, cutting, and discharging.
How is the processing accuracy and stability guaranteed?
We utilize high-end hardware, including core components from top brands and casting structures to ensure stability. The system achieves ±0.1mm cutting accuracy and ±0.05mm milling accuracy through absolute servo control.
What materials can be processed by the G20 workstation?
The machine is capable of processing aluminum alloy, thermal break aluminum, and PVC profiles, handling various types such as frames, sashes, mullions, and auxiliary frames.
How does the machine optimize production costs?
It reduces costs in three ways: high efficiency (double-spindle milling is 3x faster), lower labor requirements through automation, and reduced material loss through high-precision cutting and ERP-integrated management.
What kind of after-sales support is provided?
We offer a comprehensive support system including remote troubleshooting, regular maintenance guidance, and quick parts deployment to minimize downtime and ensure continuous production.
