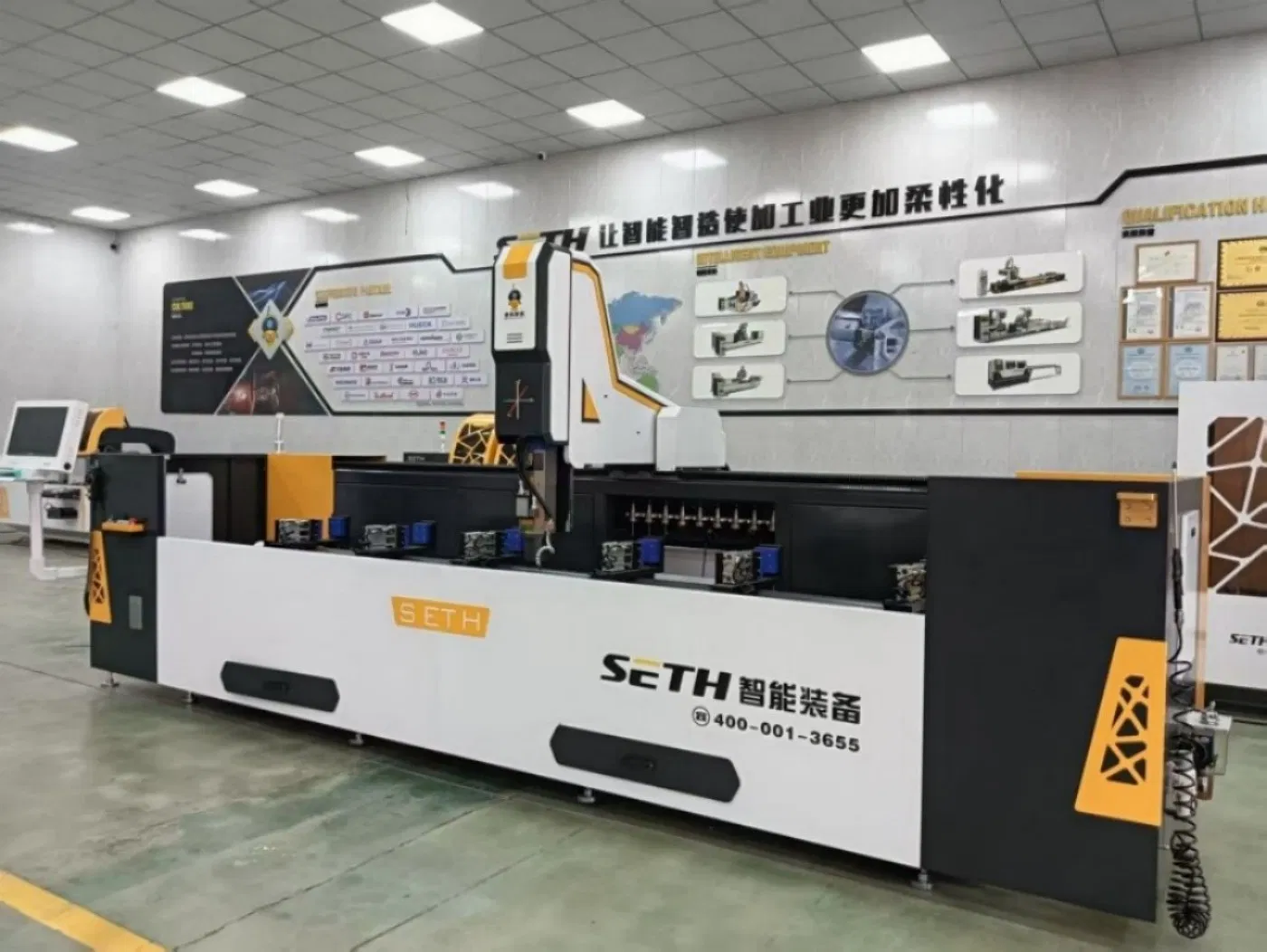

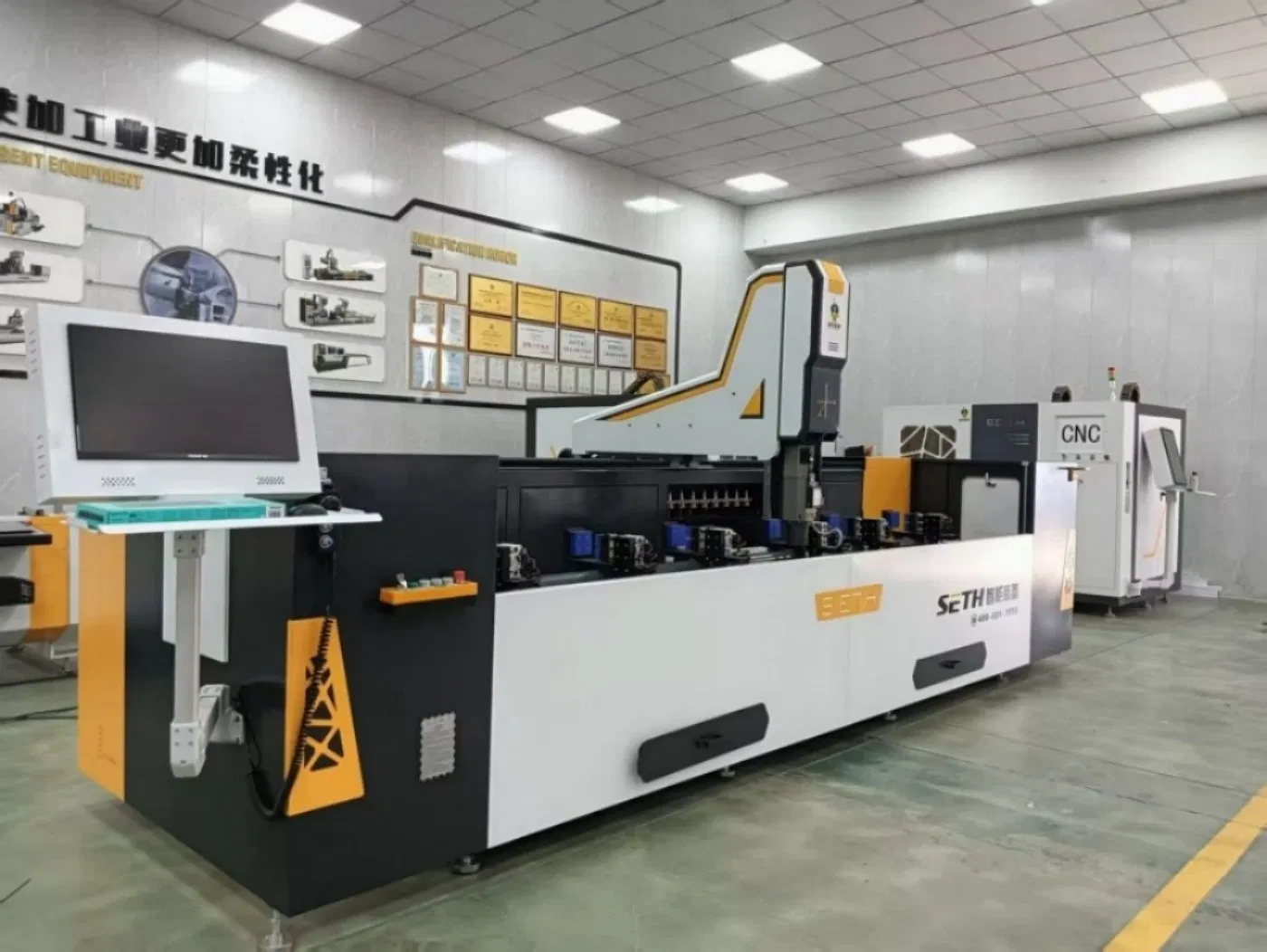

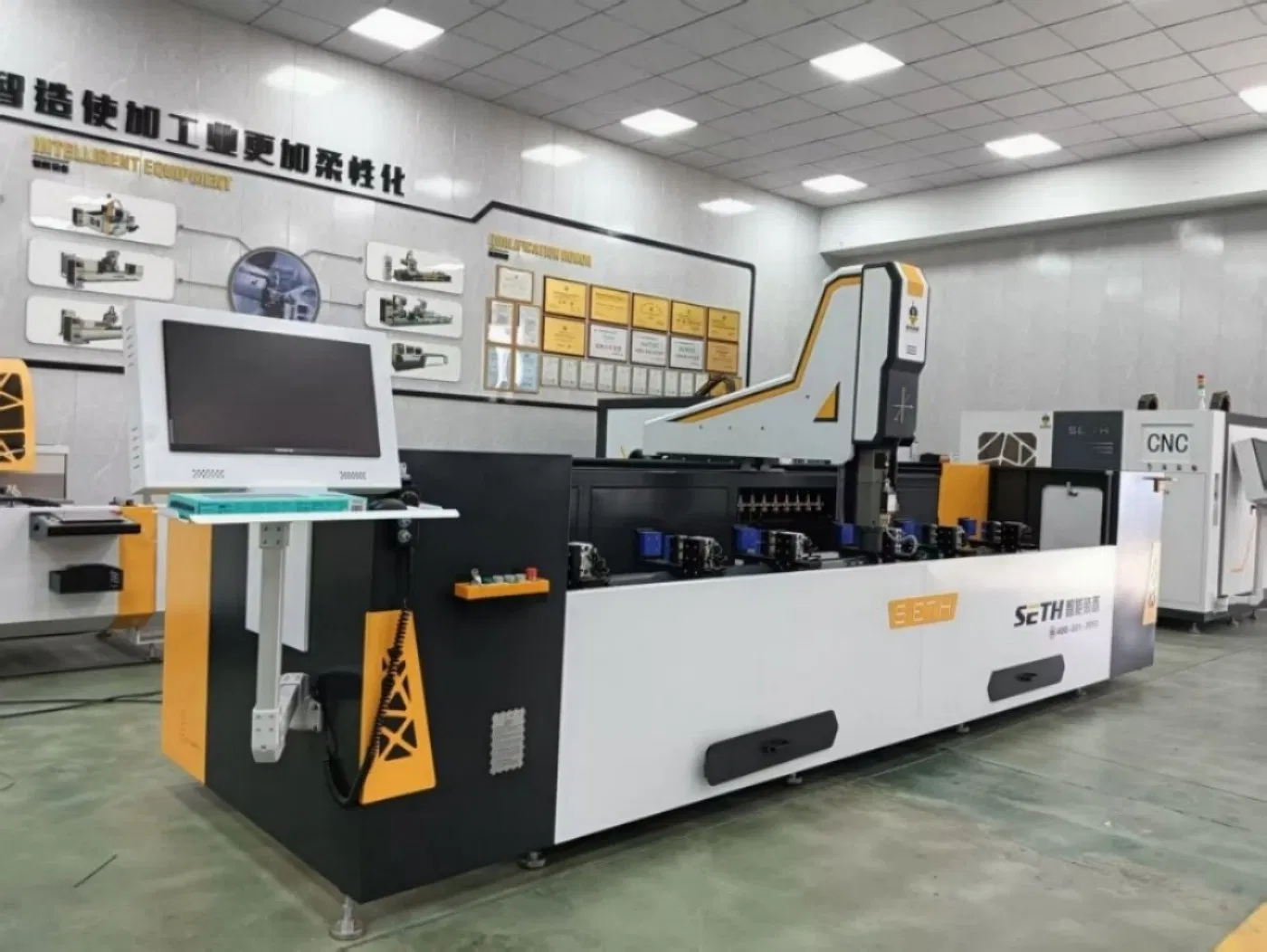

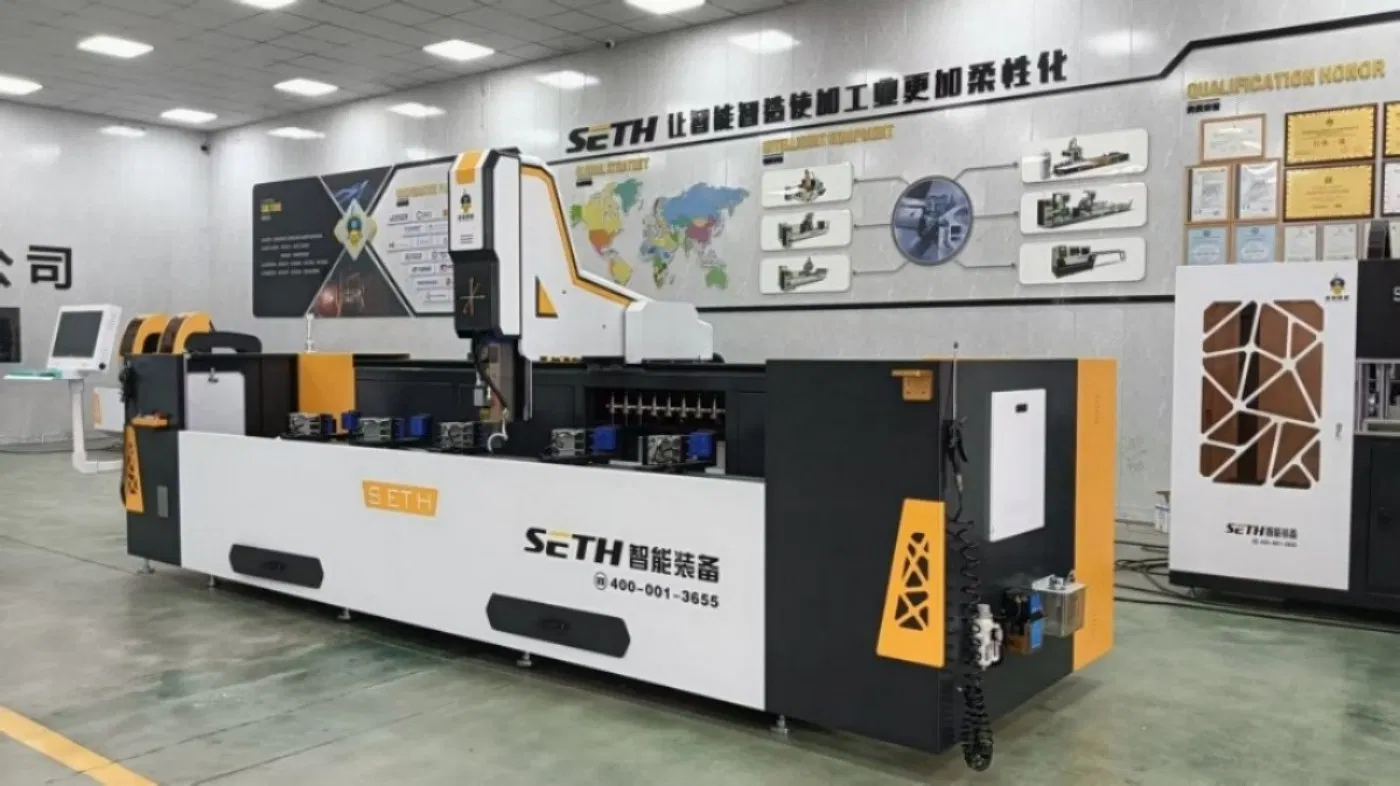

Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine
Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine
Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine
Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine
Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine
1 / 5
Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine
Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine
Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine
Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine
Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine

Four-Axis CNC Intelligent Machining Center for Aluminum Profile Doors & Windows Machine

Customization: Available
After-sales Service: Video Instruction, Online
Warranty: 15 Month
Send Inquiry

Product Description

Basic Information

Model NO.:CNC Machining Center
Condition:New
Certification:ISO, CE, TUV
Automatic Grade:Automatic
CNC or Not:CNC
Voltage:380V
X-Axis Travel:7000mm
Y-Axis Travel:500mm
Z-Axis Travel:350mm
a-Axis:0-180°
Power:12.0kw
Capacity:500 Units/Month

Aluminium 4-Axis CNC Profile Machining Center

Designed for economical and efficient machining of aluminium and thin-walled steel profiles. All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces.

  • Machining with all tools at angles continuously adjustable from -90° to +90°

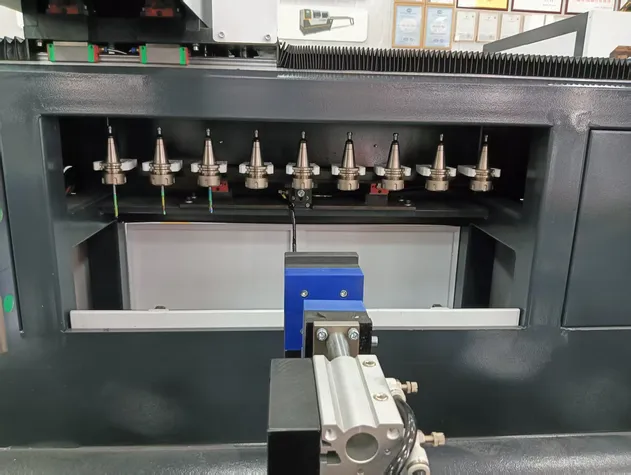

  • Equipped with 8 positions umbrella tool magazine for fast tool changing
  • Auto clamp avoidance system improves efficiency and safety
  • Creative dual industrial operation system and windows operation system
  • Electronic light curtain protection for operator's safety
  • 18.5" panel PC, USB ports and network connection
  • Automatic Central Oil Lubrication System
CNC Machining Center
Profile Machining
Tool Magazine

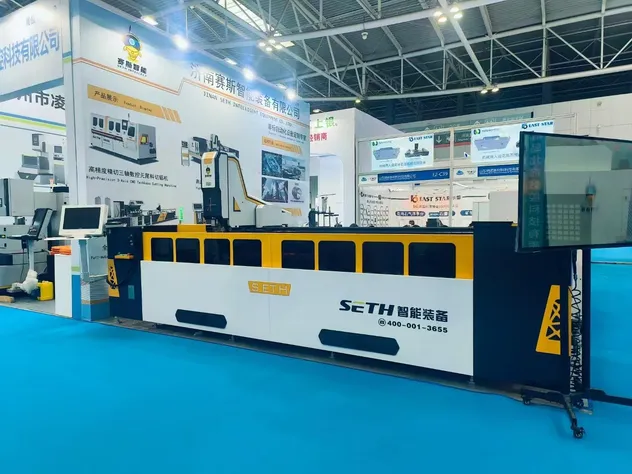

Operation System

Technical Specifications

Travel Stroke & Parameters
X-Axis7000mm
Y-Axis500mm
Z-Axis350mm
A-Axis0-180°
Spindle Power12.0KW
Max. Spindle Speed24000rpm
Tool MagazineUmbrella Type (8 Positions)
Tool Chang Time3-5s
Voltage415V/380V/220V As per requirements
Air Source0.6Mpa~0.8Mpa
Machine Dimensions9000x2300x2500mm
Machine Weight6000kg

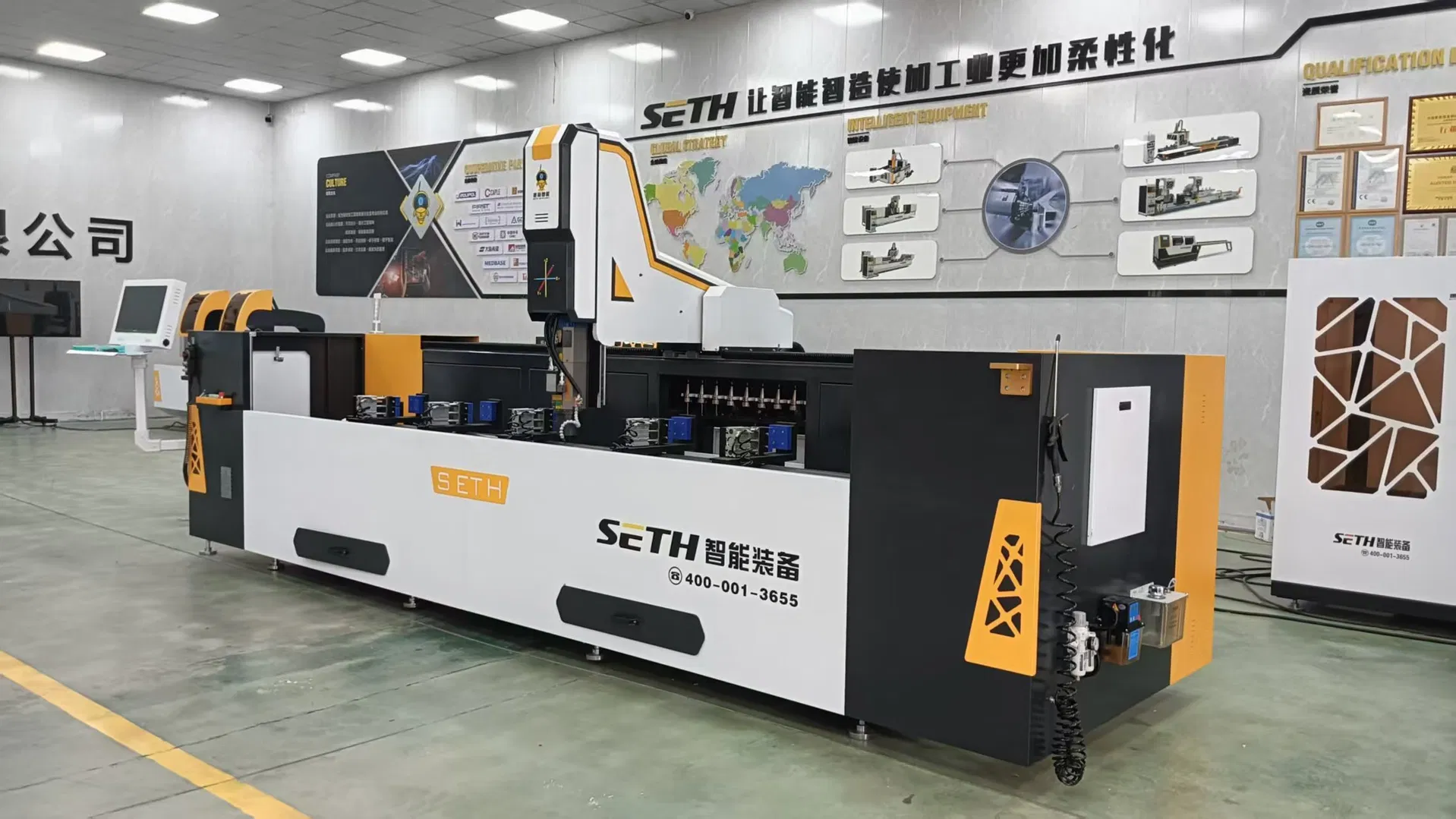

Technical Details

Service & Support

Standard Warranty: 15 months quality guarantee for main parts.

After-sales Support: Free online technical support and consultation. If parts need replacement during the warranty period (non-human factor), they are provided free of charge.

Installation & Training: Video instructions and online support provided. On-site training available upon request (subject to technical service fees and travel expenses).

Why Choose Our Solutions?

  • 15 years of industry experience in window, door, and curtain wall equipment.
  • State-of-the-art and well-equipped production workshop.
  • Products certified by ISO9001, CE, and TUV.
  • Rich R&D experience with more than 10 national patents.
  • Comprehensive OEM & ODM service availability.
  • Independent design, processing, assembly, and testing for quality assurance.

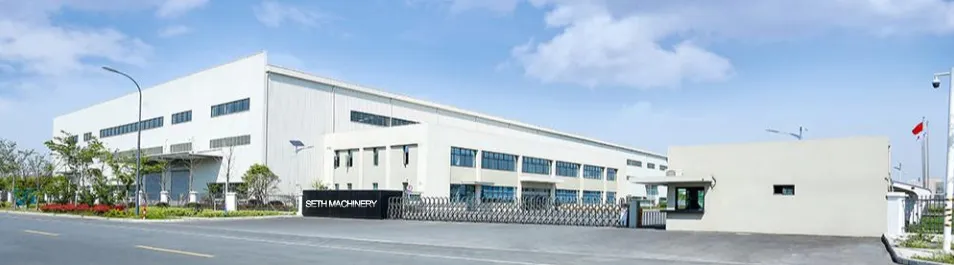

Production Workshop Certifications

Packing & Delivery

Packing Process
Shipping Delivery

Frequently Asked Questions

How do I operate the machine?
We complete all adjustments and testing before delivery. We provide detailed video and manual instructions. Our team is also available for online support to help you solve any operational queries.
What is the standard delivery time?
Production usually takes 15-25 days after the deposit payment is received and confirmed.
What are your payment terms?
Our standard terms are a 30% T/T deposit to confirm the order, with the remaining 70% balance due before delivery.
Are you a manufacturer?
Yes, we are a direct factory. We also provide a one-stop service by helping clients source related equipment to complete their production lines.
What is your annual production capacity?
Our workshop has the capacity to produce more than 20,000 units per year across various machine types.
What materials can this CNC center process?
It is primarily designed for high-efficiency machining of aluminium profiles and thin-walled steel profiles, ideal for window and door manufacturing.
