Precision CNC Machining Center for Aluminum Windows and Doors
Precision CNC Machining Center for Aluminum Windows and Doors
Precision CNC Machining Center for Aluminum Windows and Doors
Precision CNC Machining Center for Aluminum Windows and Doors
Precision CNC Machining Center for Aluminum Windows and Doors
1 / 5
Precision CNC Machining Center for Aluminum Windows and Doors
Precision CNC Machining Center for Aluminum Windows and Doors
Precision CNC Machining Center for Aluminum Windows and Doors
Precision CNC Machining Center for Aluminum Windows and Doors
Precision CNC Machining Center for Aluminum Windows and Doors

Precision CNC Machining Center for Aluminum Windows and Doors

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
GSXZ3+1-CNC-3200
Name
Aluminium CNC Drilling and Milling Machine
Automatic Grade
Automatic
Function
Aluminium Profile Drilling and Milling
X Axis Range
3500mm
Y Axis Range
450mm
Z Axis Range
350mm
Spindle Power
7.5/9kw
Spindle Max Rev
24000r/Min
Material
Aluminum Profile, Copper, PVC
Weight
2500kgs
Warranty
12 Months

Aluminum Window Milling Drilling Machine Center

Precision CNC Machining Center

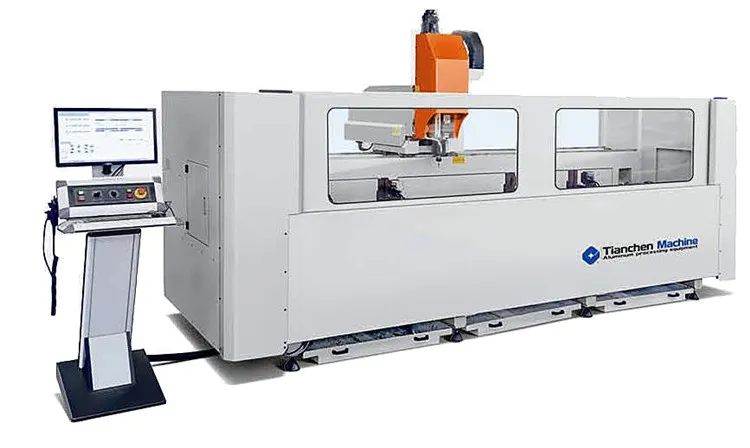

CNC Window Door Machine

Key Features

⚙️
Multi-Material Processing: Applicable for CNC milling and drilling processing for aluminum window and door curtain walls, industrial aluminum profiles, copper, and PVC profiles.
🎯
High Precision Components: Features high precision guide rail pairs, ball screws, gear racks, and an imported high-quality servo system for stable positioning.
⚡
Auto Tool Spindle: Equipped with a high-speed electrical auto-switching tool spindle for reliable, heavy-duty performance.
🔄
Dual Work Zones: Positioning devices at both ends allow for dual processing in two separate areas for short profiles, maximizing efficiency.
🛡️
Safety & Environment: Adopts a semi-closed protective shield and bottom receiver to ensure operator safety and prevent environmental pollution from chippings.
🖥️
Intelligent CNC: User-friendly interface with an intuitive CNC system makes operation simple and efficient.
📐
Rotary Work Table: Able to rotate between -90°, 0°, and 90°, enabling processing on three surfaces with a single clamping.

Technical Parameters

Item Specification
X-axis range3500mm
Y-axis range450mm
Z-axis range350mm
X-axis moving speed0~60m/min
Y-axis moving speed0~30m/min
Z-axis moving speed0~30m/min
Spindle power7.5kw/9kw
Spindle max rev24000r/min
Spindle taperISO30
Max processing range160*160*3200mm
Tool magazine capacity3 pcs
Quantity of clamp4
Floor Area4500*2300mm
Total Weight2500kg

Detailed Component Display

Component 1

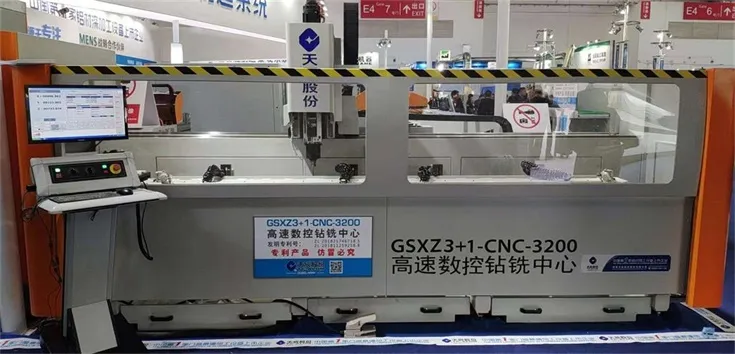

Component 2
Machining Process
Drilling Details
Internal Structure

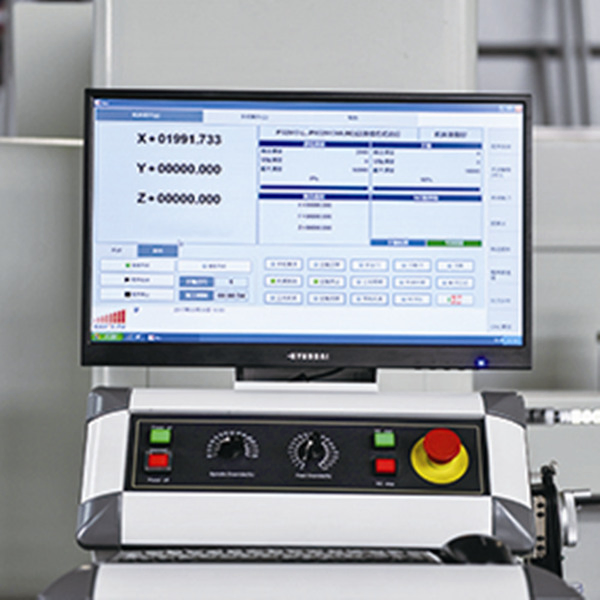

Control System
Finished Profile

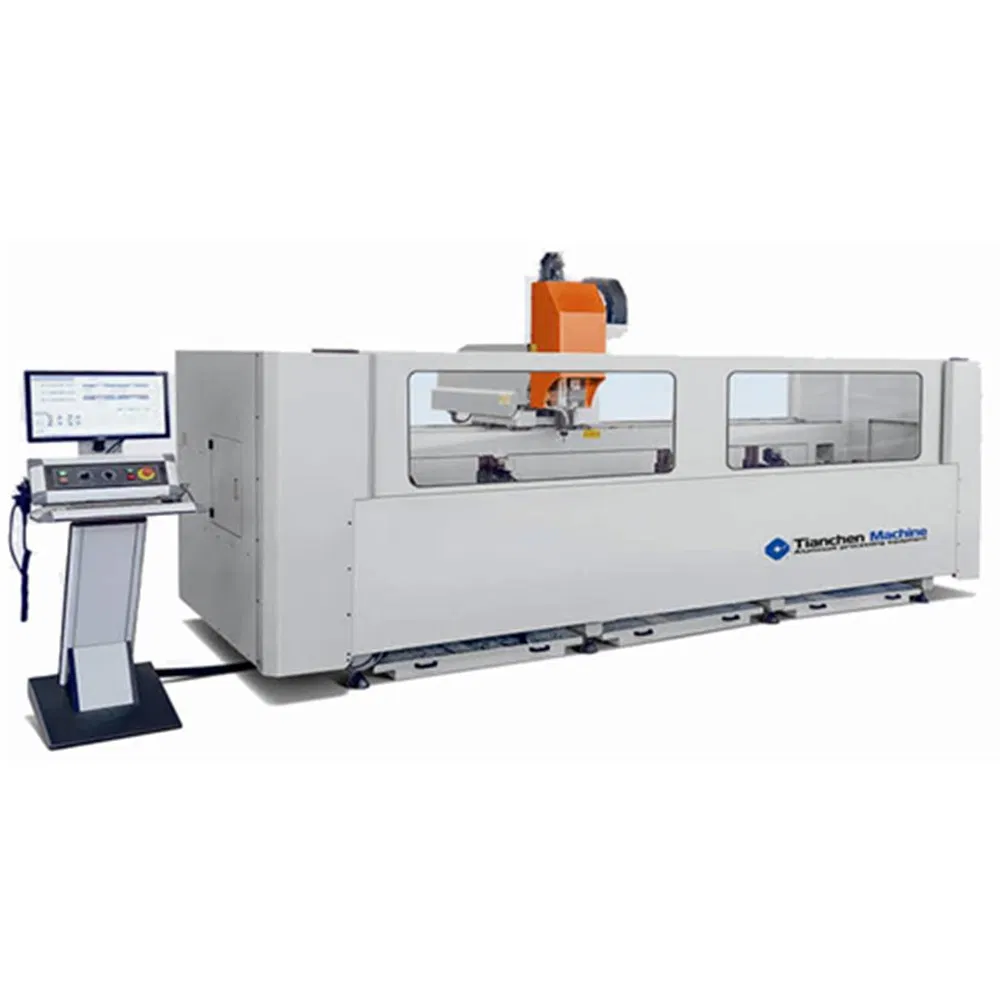

Machine Overview

Frequently Asked Questions

Q: What materials can this CNC machine process? A: It is specifically designed for milling and drilling aluminum window and door profiles, curtain walls, industrial aluminum profiles, copper, and PVC profiles.
Q: How many surfaces can be processed in one clamping? A: Thanks to the rotary work table, the machine can process three surfaces at -90°, 0°, and +90° angles with just one clamping cycle.
Q: Does the machine support processing for different profile lengths? A: Yes, it features positioning devices at both ends, allowing for dual-zone processing of shorter profiles, which significantly increases output.
Q: What is the maximum spindle speed of this equipment? A: The spindle reaches a maximum revolution of 24,000 r/min, ensuring high-speed and precision cutting performance.
Q: What is the warranty period for the GSXZ3+1-CNC-3200? A: This machine comes with a standard 12-month warranty covering major components and technical support.
Q: What type of control system does it use? A: It utilizes an intelligent CNC system with a brief, intuitive interface for ease of operation and precise command execution.
