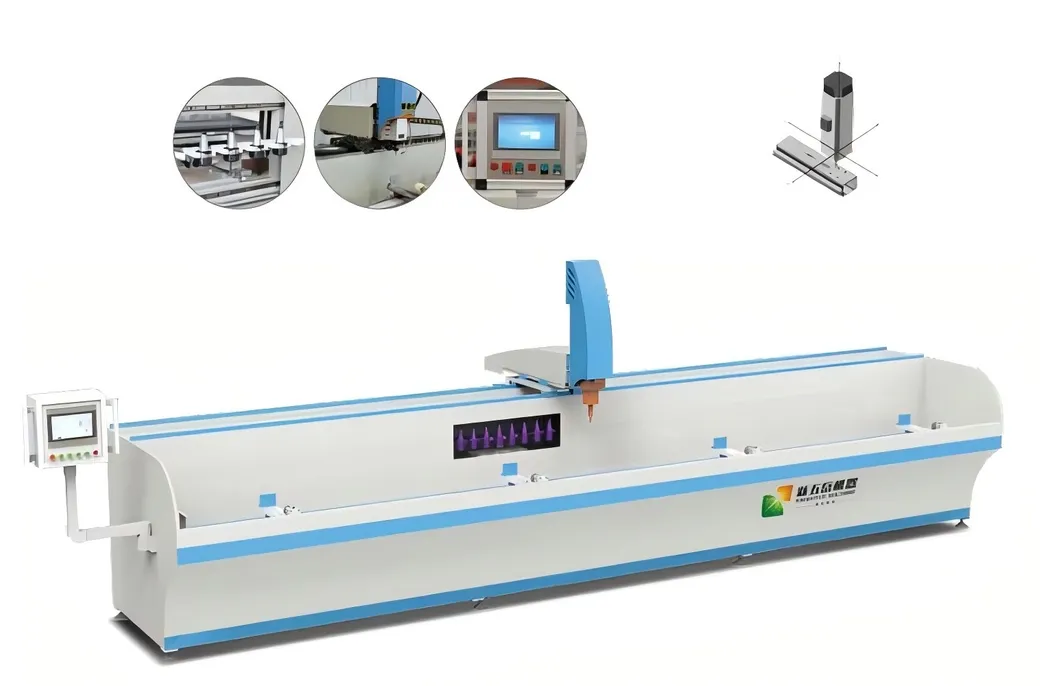

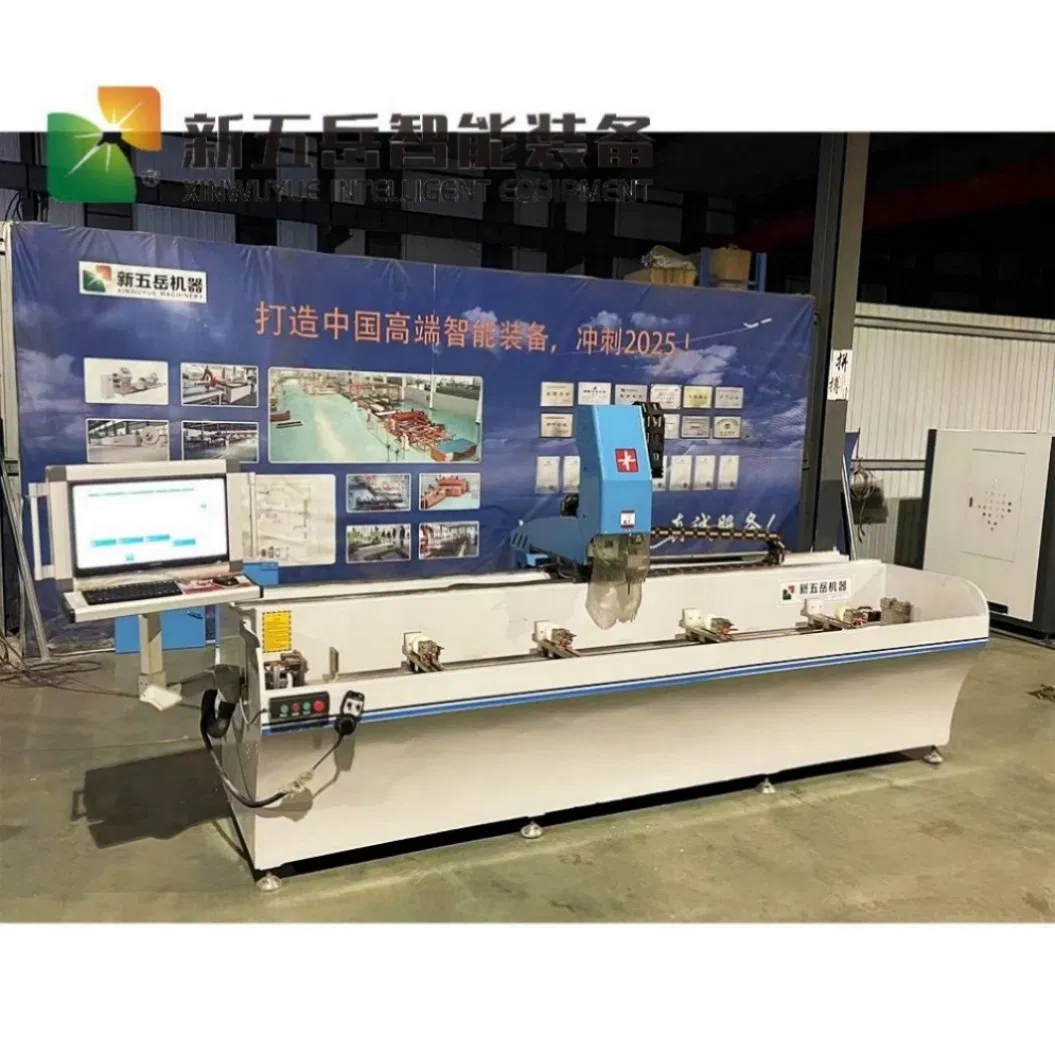

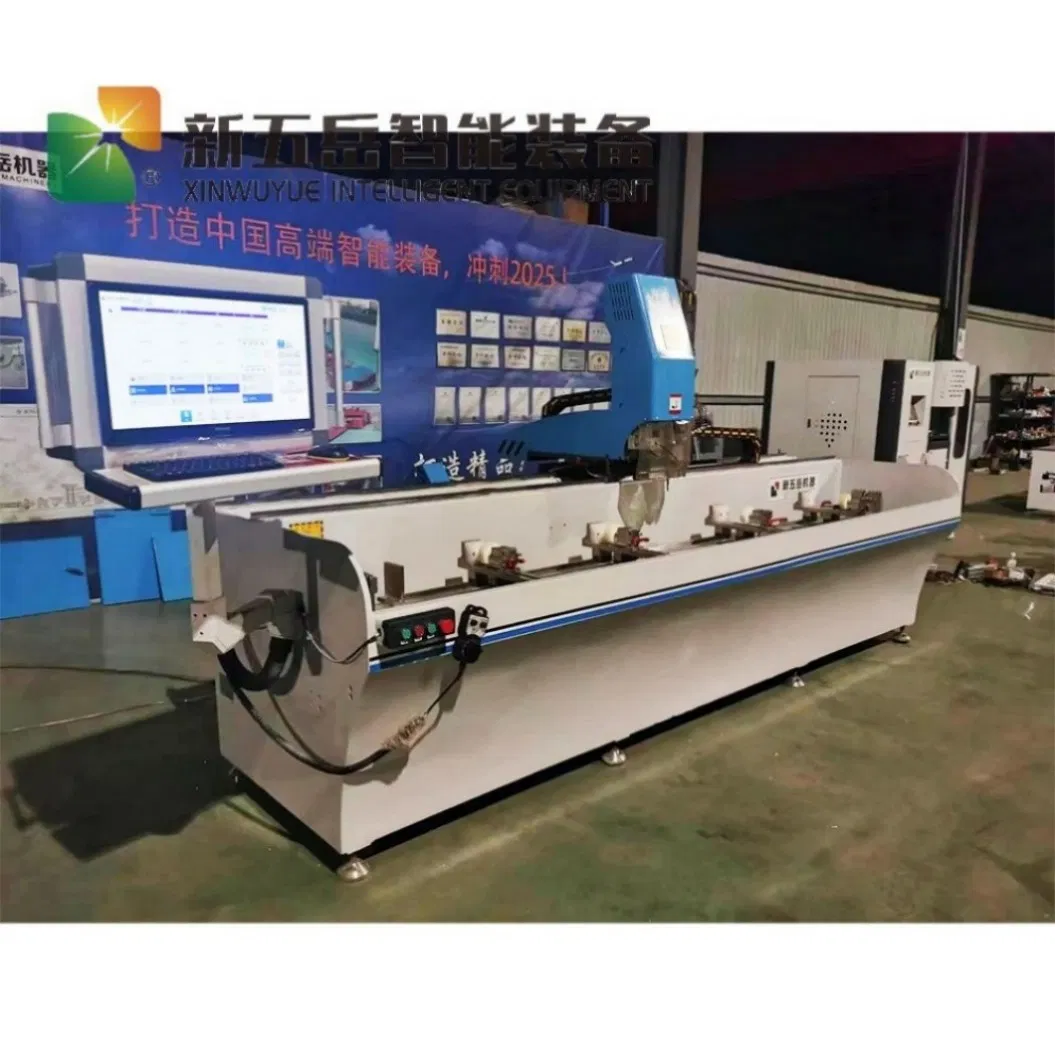

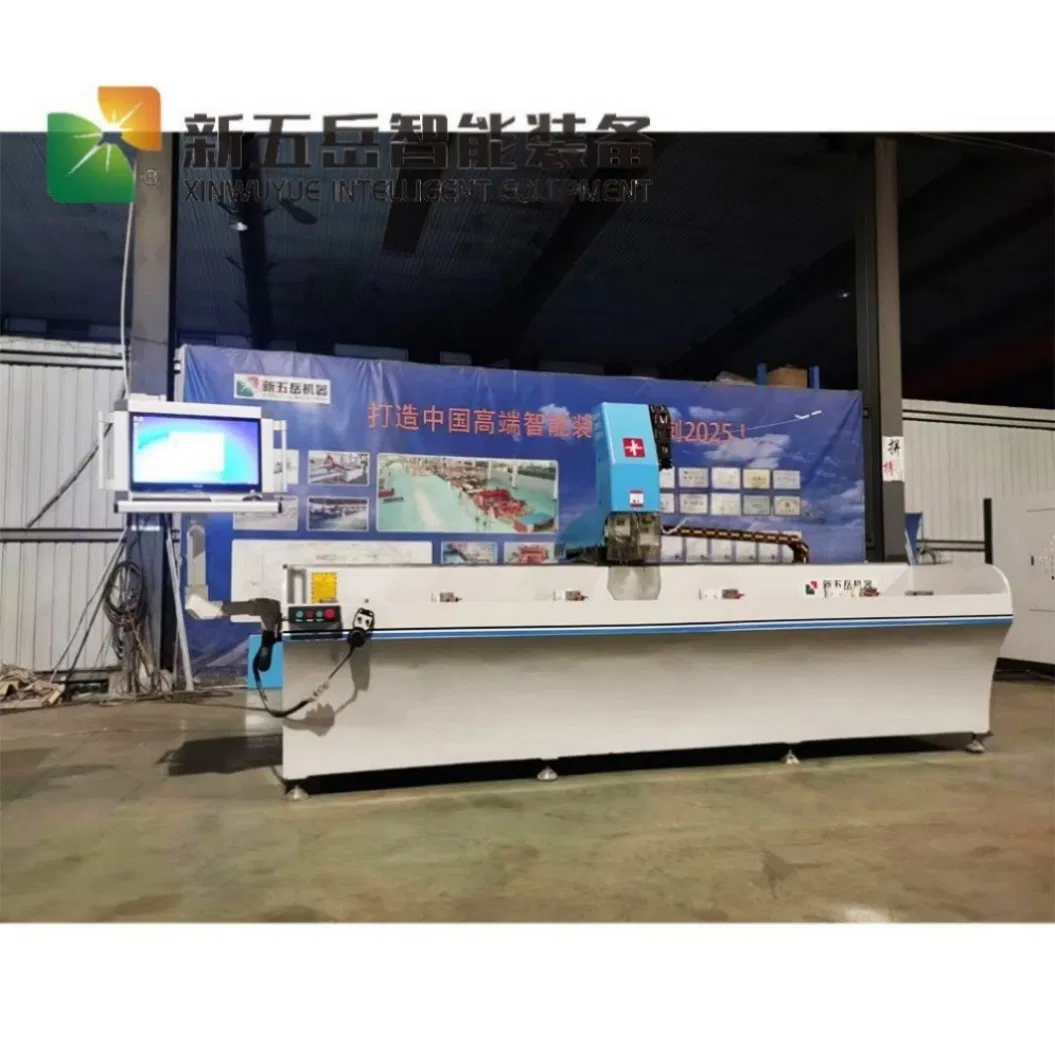

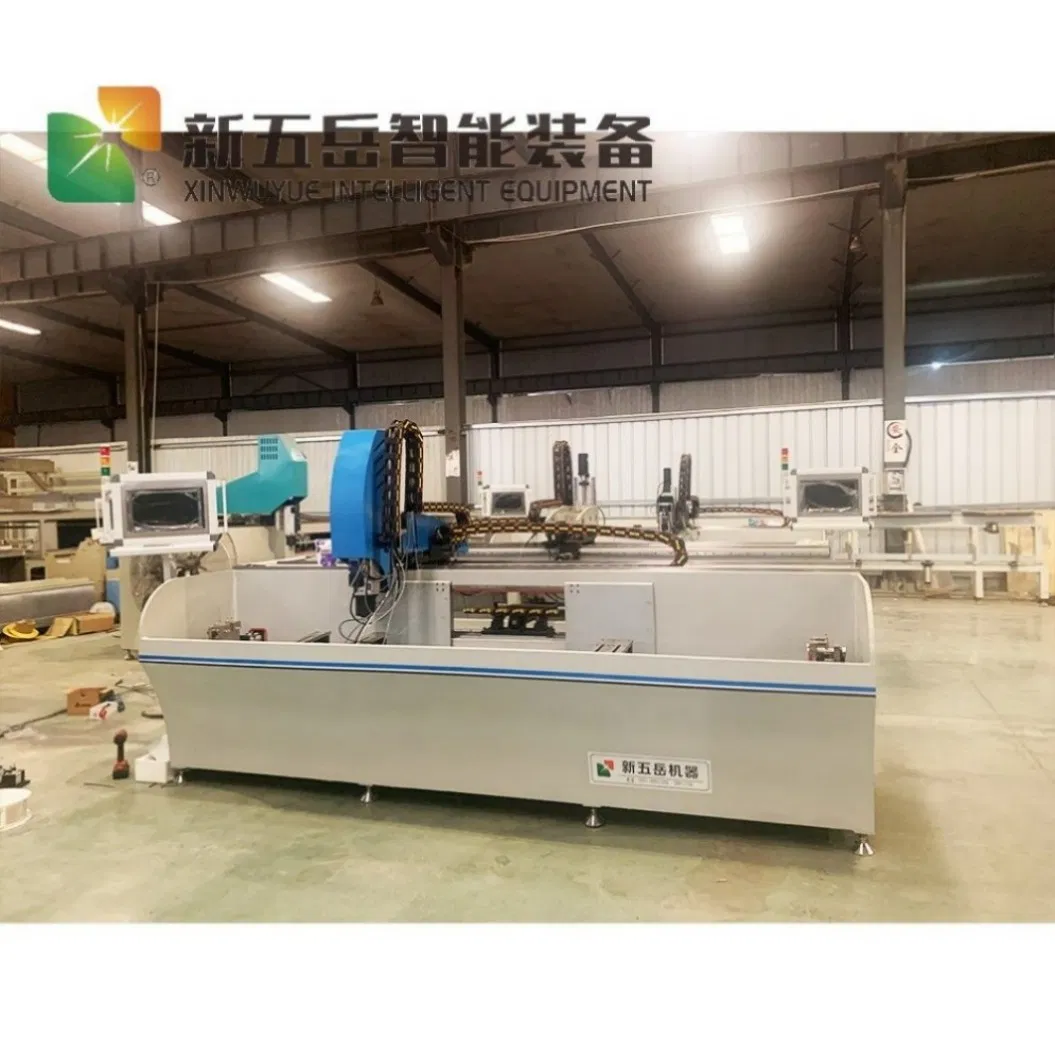

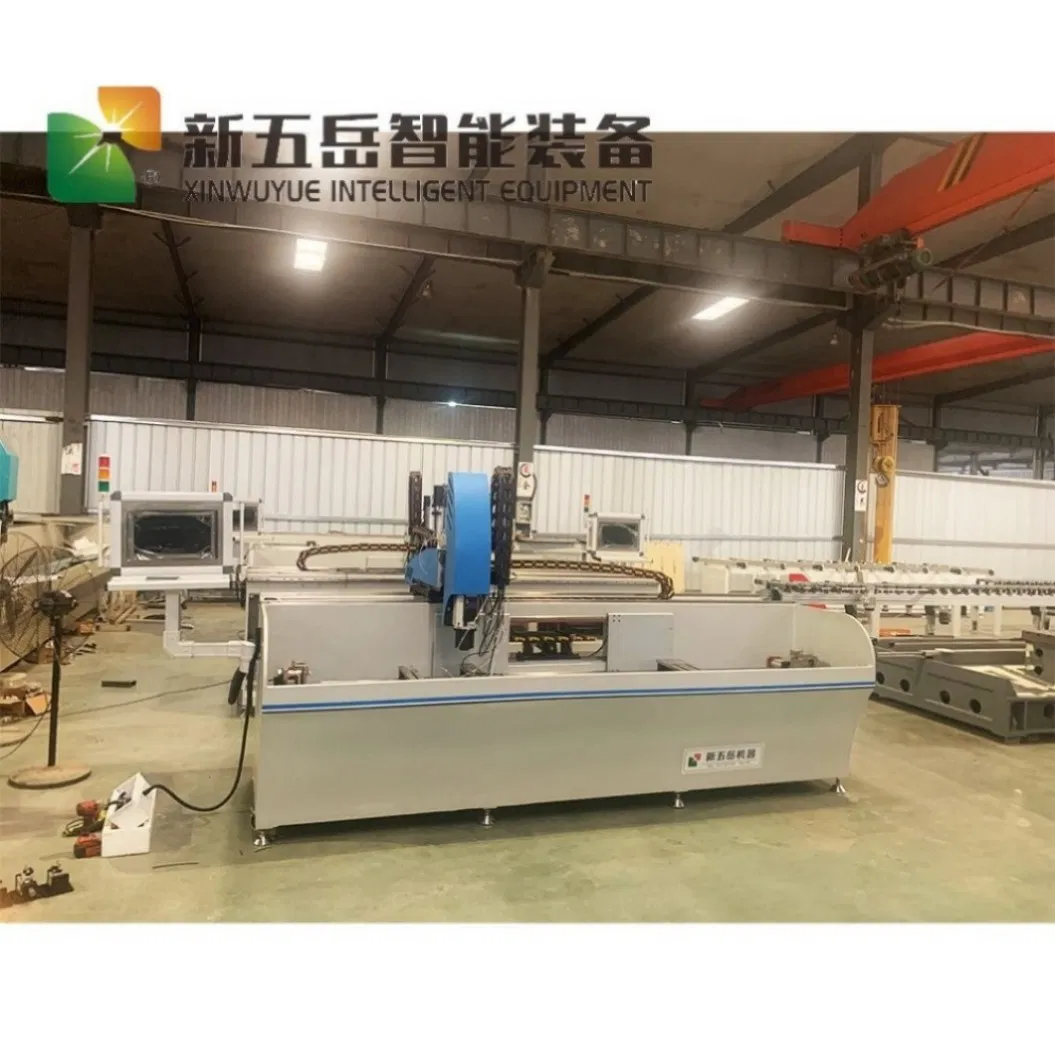

Zhixing Machine
Zhixing Machine
Main spindle adopt air-cooling electric main axis from Italy, have the function of high precision, high safety and high reliable. Adopt CNC control system. Have professional CAD-CAM programming software.
It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity. Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive.
The drive is stable, so can improve the precision of whole machine. Inside blades storage can hold 6 sets blades, the handle is approved ISO30 standards, it is very safety and reliable. Adopt manual pump oil supply system, blades adopt system control spray cooling device.
The main electrical parts: circuit breakers, AC contactor are all top-tier brands. The main components adopt steel structure and they are all through aging treatment.
| Power supply | 380V/50Hz |
| Working pressure | 0.5~0.8MPa |
| Total power | 12kW |
| Main axis power | S6:9kW S1:7.5kW |
| Max rotary speed | 24000r/min |
| X-axis travel | 6000mm |
| Y-axis travel | 500mm |
| Z-axis travel | 350mm |
| X axis speed | 50000mm/min |
| Y-axis speed | 15000mm/min |
| Z-axis speed | 15000mm/min |
| Repeat location accuracy | ±0.02mm |
| Roughness Ra | 6.3um |
| Overall dimension | 7100×1600×2200mm |
| Weight | About 2360kg |
