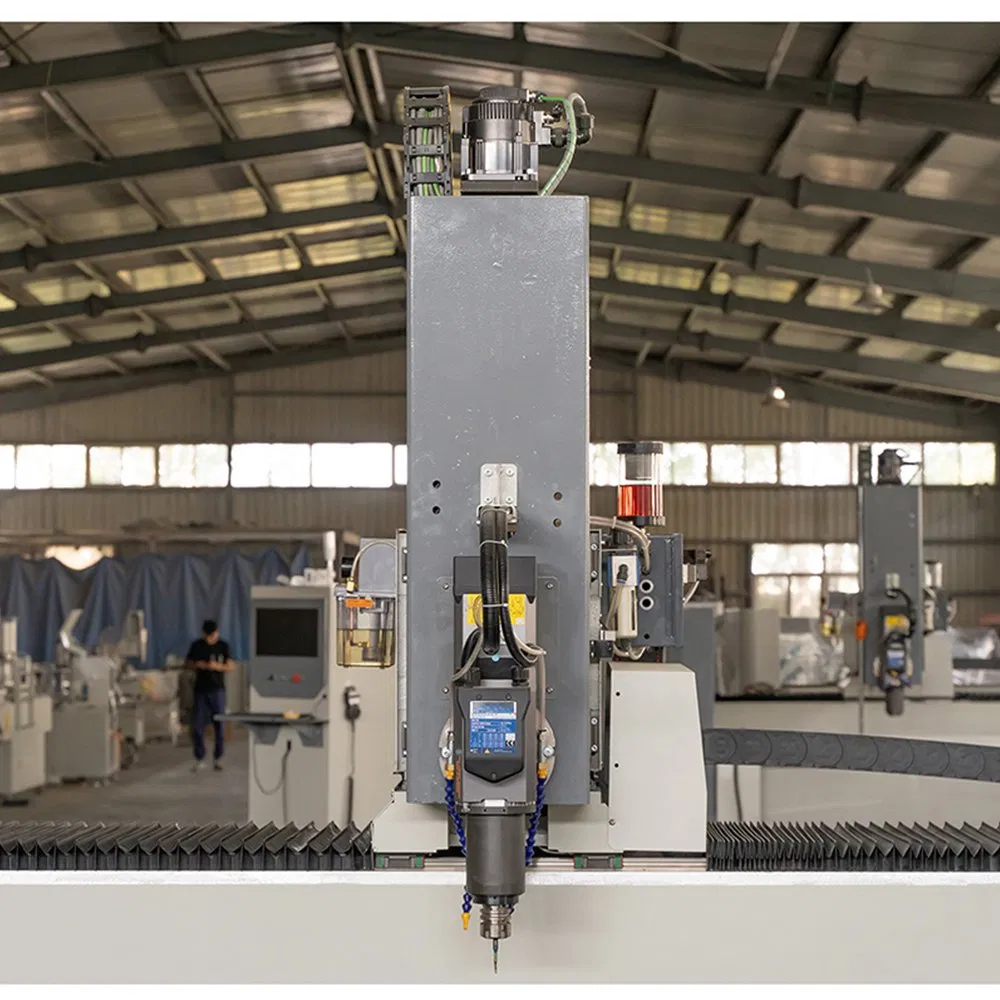

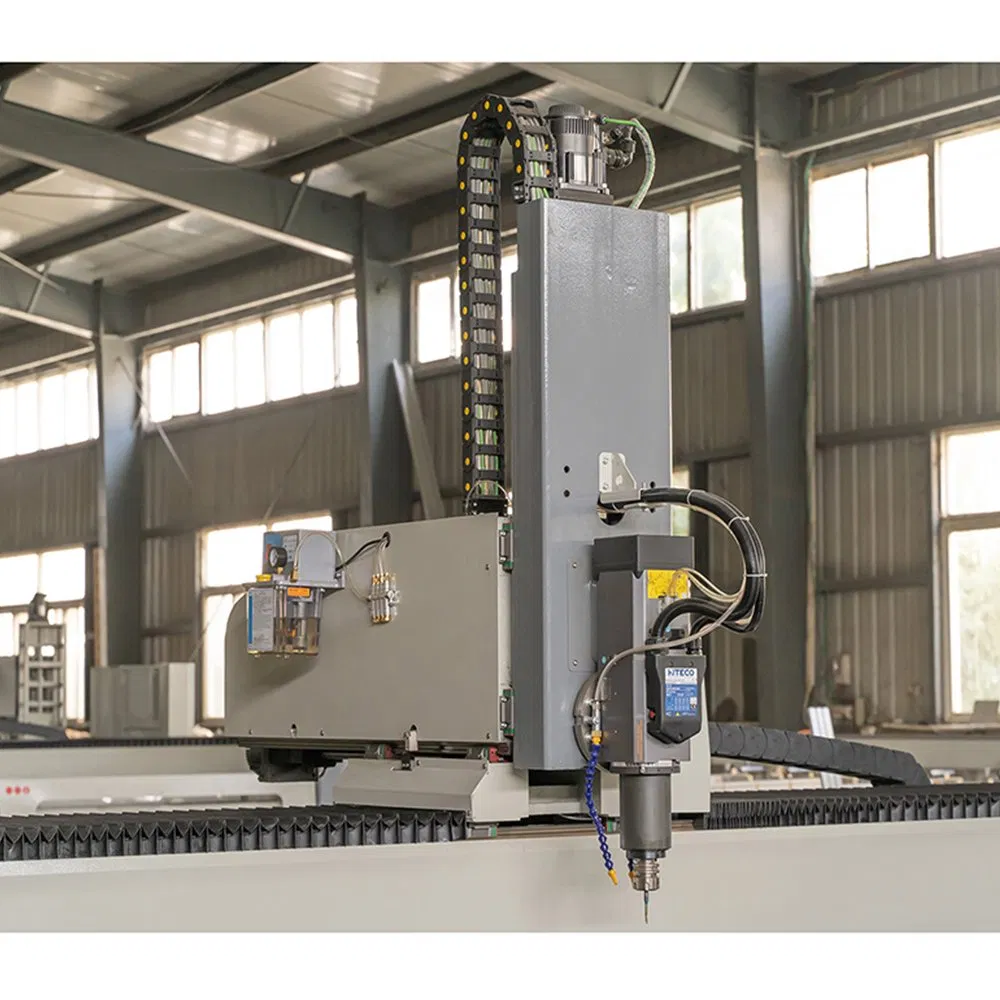

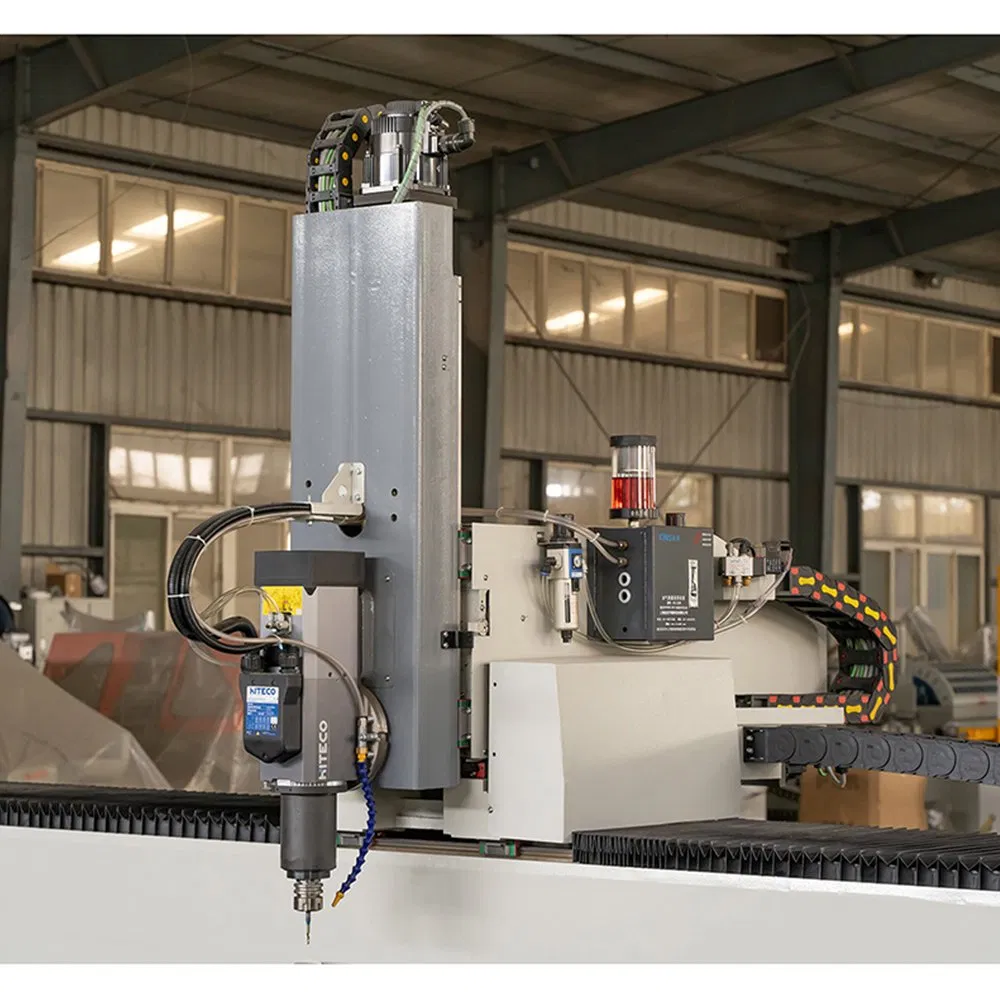

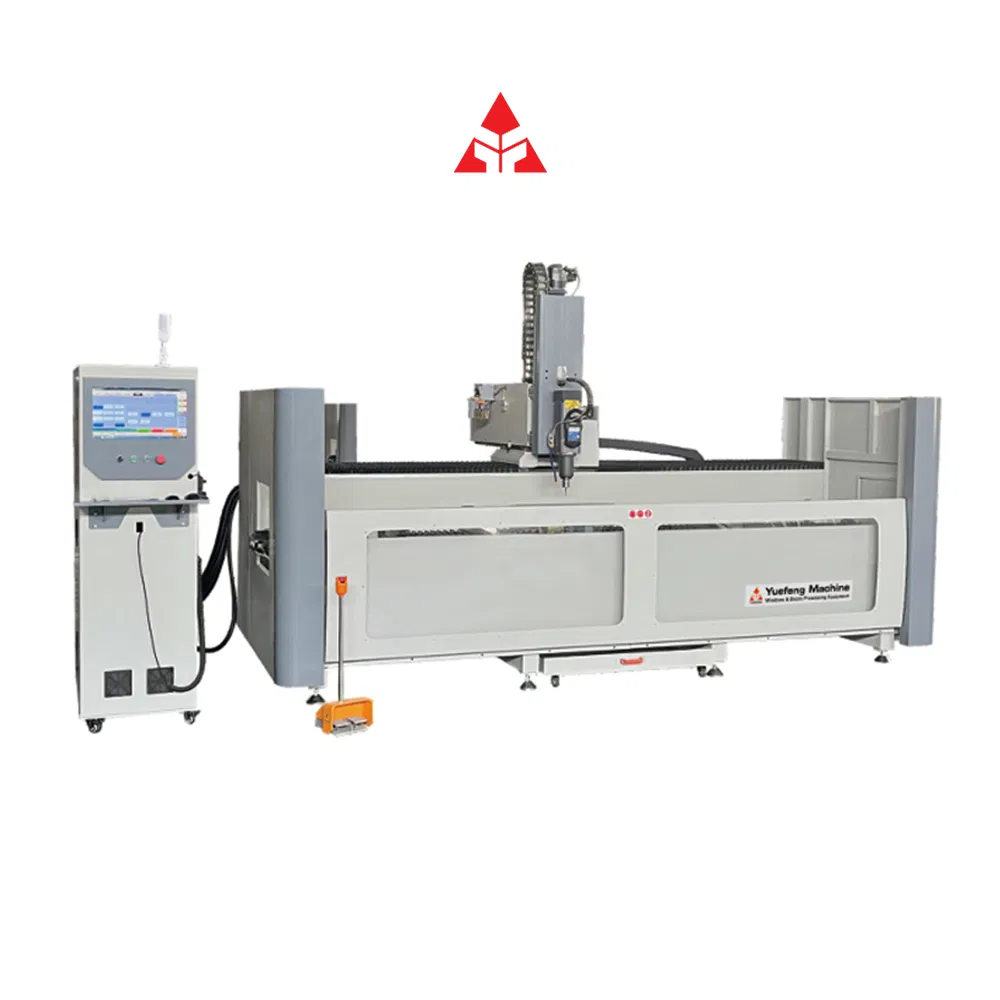

Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center
Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center
Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center
Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center
Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center
1 / 5
Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center
Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center
Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center
Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center
Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center

Aluminum Alloy Door and Window Equipment CNC Four Axis Machining Center

Customization: Available
After-sales Service: 24-Hour Online Support
Warranty: 12months
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
LZX4-CNC-3200
Condition
New
Certification
ISO, CE
Automatic Grade
Semi-Automatic
CNC or Not
CNC
Voltage
380V
Input Power
13kw
Spindle Power
9.5kw
Spindle Speed
18000r/Min
X-Axes Travel
3200mm
Process Range
3000*200*200mm
Total Weight
3500kg
🛠️

Product Description

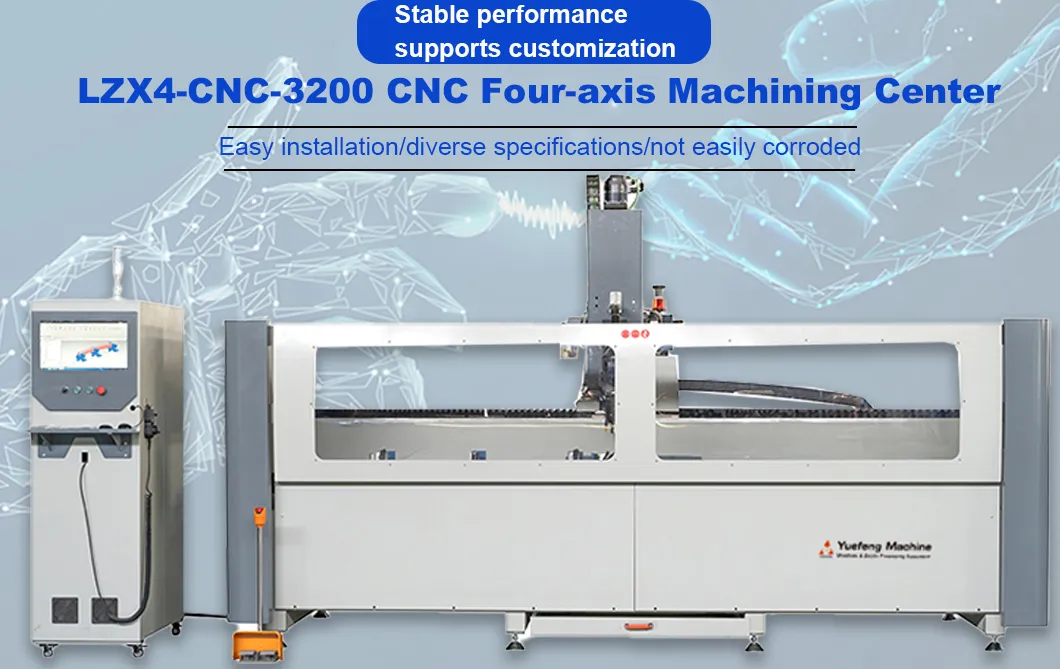

Machining Center
🔹
Used for processing mounting holes, lock holes, and slots on various profiles including aluminum alloy, non-ferrous metal, and PVC profiles. High efficiency drilling and milling in one clamping.
🔹
Equipped with linear guide kinematic pair, ball screw, gear rack, and imported servo motors for high stability and locating accuracy.
🔹
Adopts full Syntech system with intuitive interface for convenient operation.
🔹

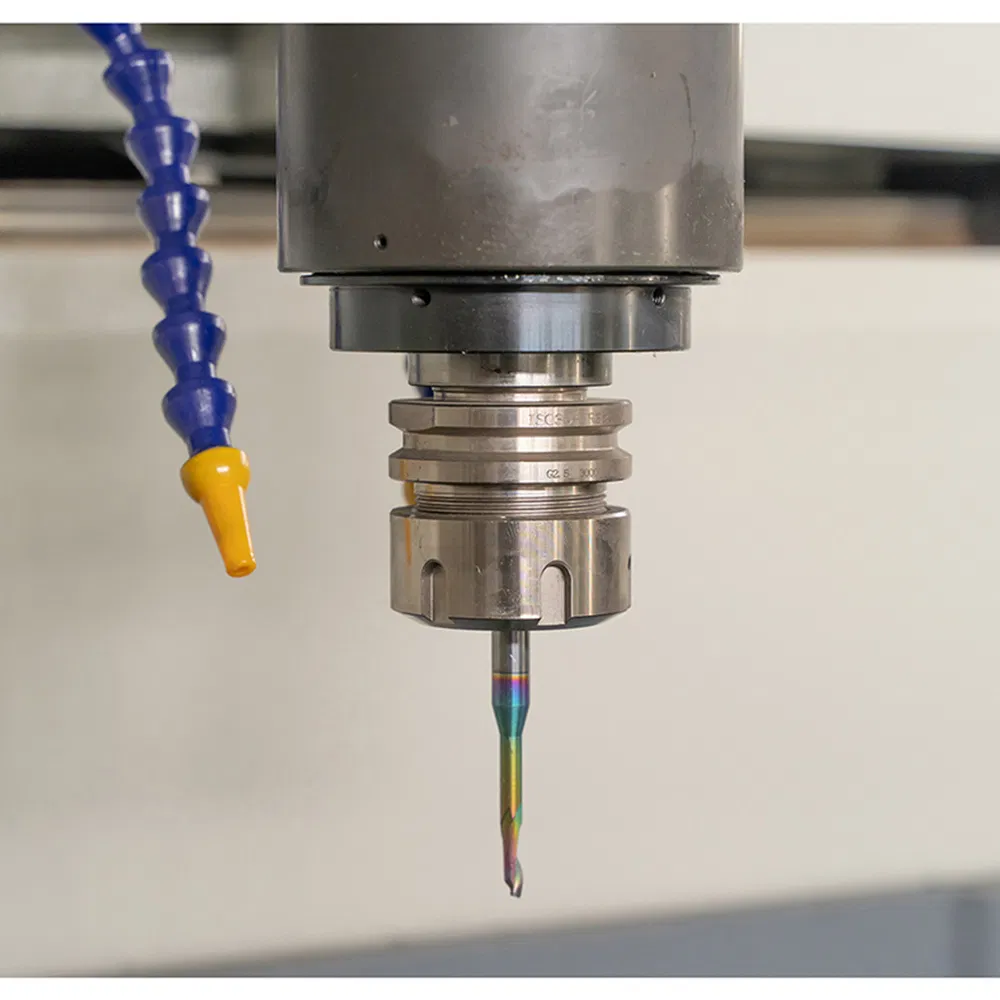

Utilizes Italian high-speed spindle (9kw) for steady performance and smooth hole finish.
🔹
Features ABSOLUTE COORDINATE VALUE to save running data during power interruptions.
🔹
Specialized software enables quick conversion from graphics to executable machining programs, simplifying manual programming.
🔹
Configured with a 6-position direct row tool magazine for automatic tool changes.
🔹
Includes tool setting instrument to automatically measure tool length.
🔹
Equipped with closed protection and safety devices to ensure operator safety.
🔹
Automatic scanning and optimization of clamping system to avoid processing barriers.
📊

Product Parameters

Input Voltage380V/50HZ
Total Power13kw
Spindle Power9.5Kw
Spindle Speed18000r/min
X-axes Travel3200mm
X-speed0~60m/min
Y-axes Travel500mm
Y-speed0~30m/min
Z-axes Travel300mm
Z-speed0~30m/min
Process Range3000x200x200mm
Overall Dimension3500x1800x2600mm
Total Weight3500kg

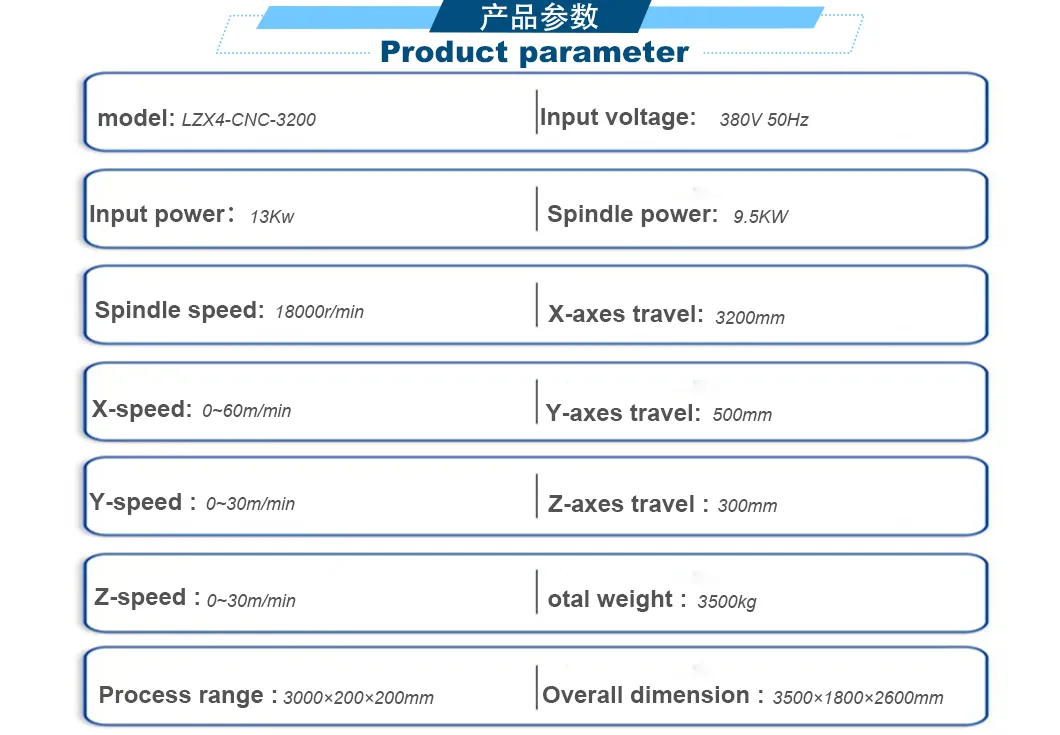

Technical Drawing
🖼️

Product Display

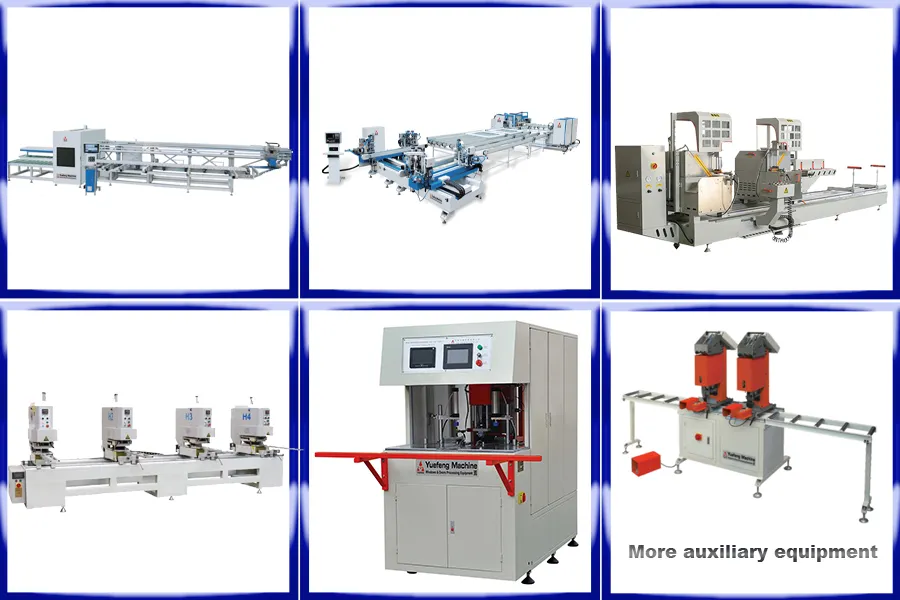

Display 1

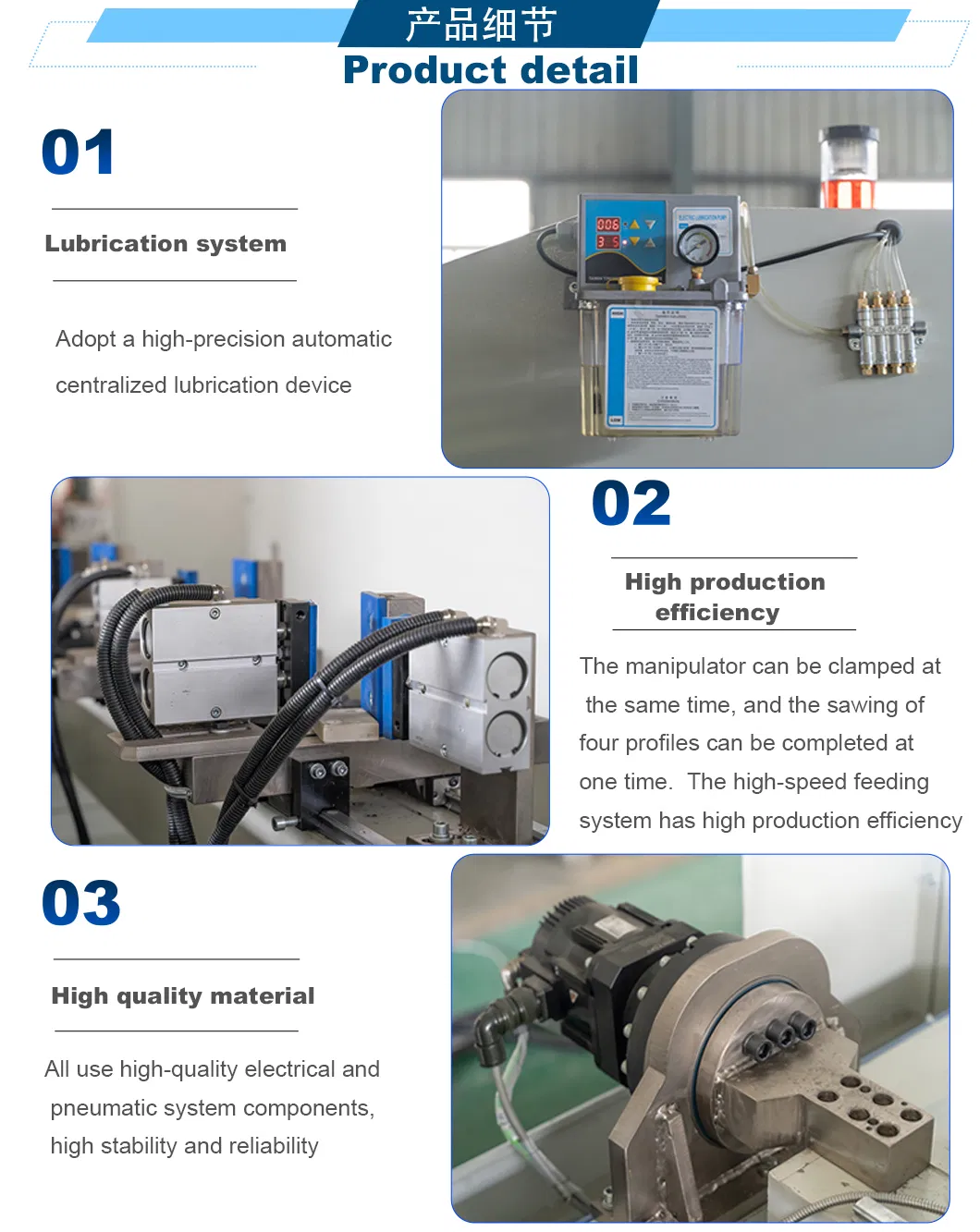

Display 2

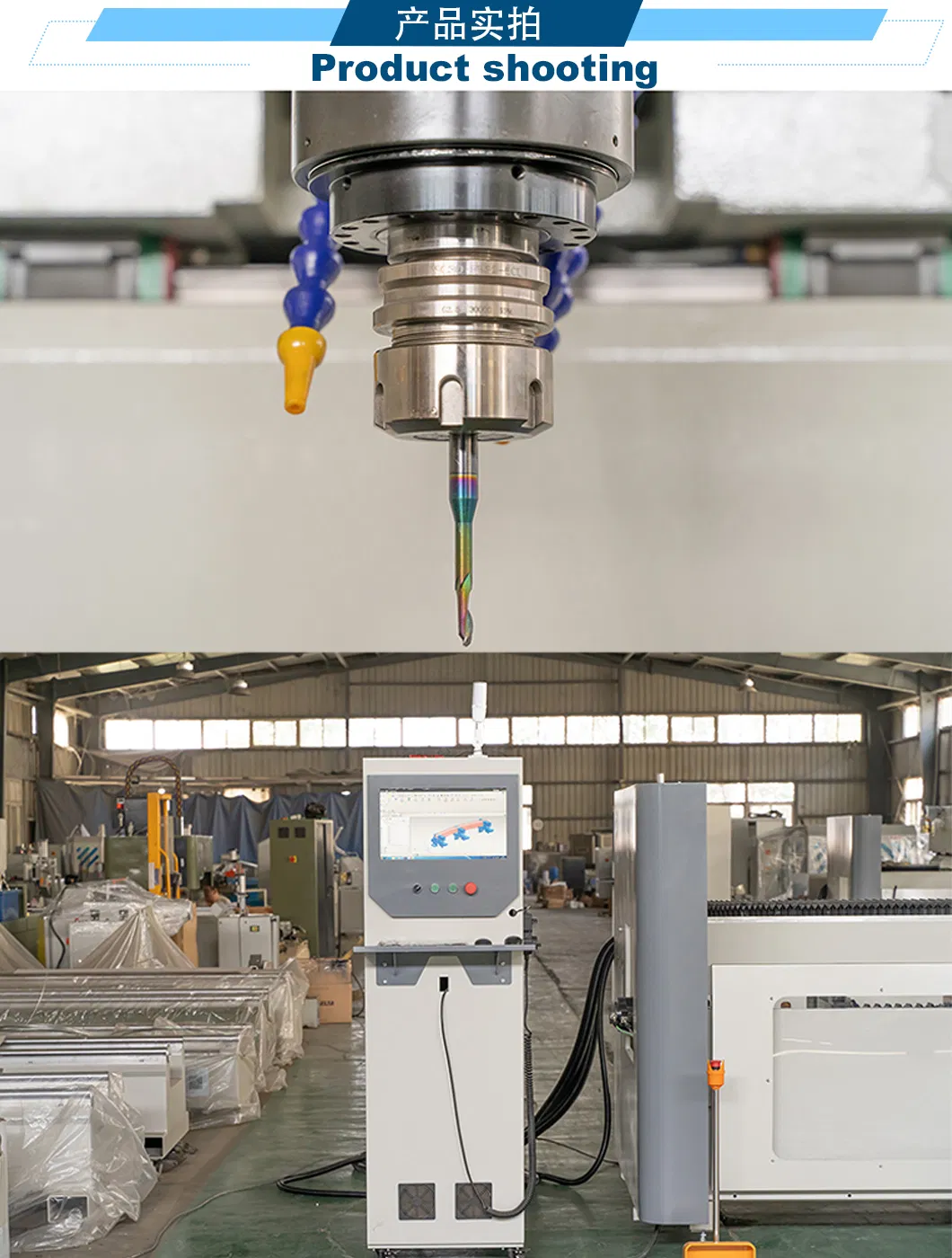

Display 3
📦

Packaging & Shipping

Packaging
📜

Certifications

Cert 1
Cert 2
👥

Customer Feedback

Customer 1
Customer 2
Customer 3
❓

Frequently Asked Questions

Are you a trading company or a factory?
We are a factory and trade integration. We have 35 years of focus on Upvc, Aluminum Window and Doors Equipment, insulating glass equipment, and curtain wall equipment.
What is the delivery time after an order is placed?
Generally about 15 days. If we have inventory, we can arrange shipment within 5 days. Production lead times depend on specific items and quantities.
What is included in the warranty and after-sales service?
We provide a 12-month warranty. Our professional after-sale team provides technical support and helps solve problems encountered during use even after the warranty period.
How do you ensure product quality?
Each machine undergoes a 100% quality examination and test before shipment. All machines meet ISO and CE certification standards.
What should we do if we don't know how to operate the machine?
We can send an engineer to your location, provide video training for installation and operation, and offer online engineering assistance.
Can the machine process non-ferrous metals?
Yes, the equipment is designed to work on aluminum alloy, non-ferrous metals, orbit constructs, and PVC profiles efficiently.
