Zhixing Machine
Zhixing Machine
| Model NO. | SKZX-A3-CNC-1200 | Condition | New |
|---|---|---|---|
| Certification | ISO, CE | Automatic Grade | Automatic |
| CNC or Not | CNC | Voltage | 380V |
| Function | Milling and Drilling Various Holes | Application | Making Aluminum Window Door |
| Weight | 600kgs | Maintenance | Lifetime Maintenance Service |
| X Axis Range | 1200mm | Spindle Power | 3.5 Kw |
| Process Angles | -90, 0, +90 Degrees | Total Power | 7kw |

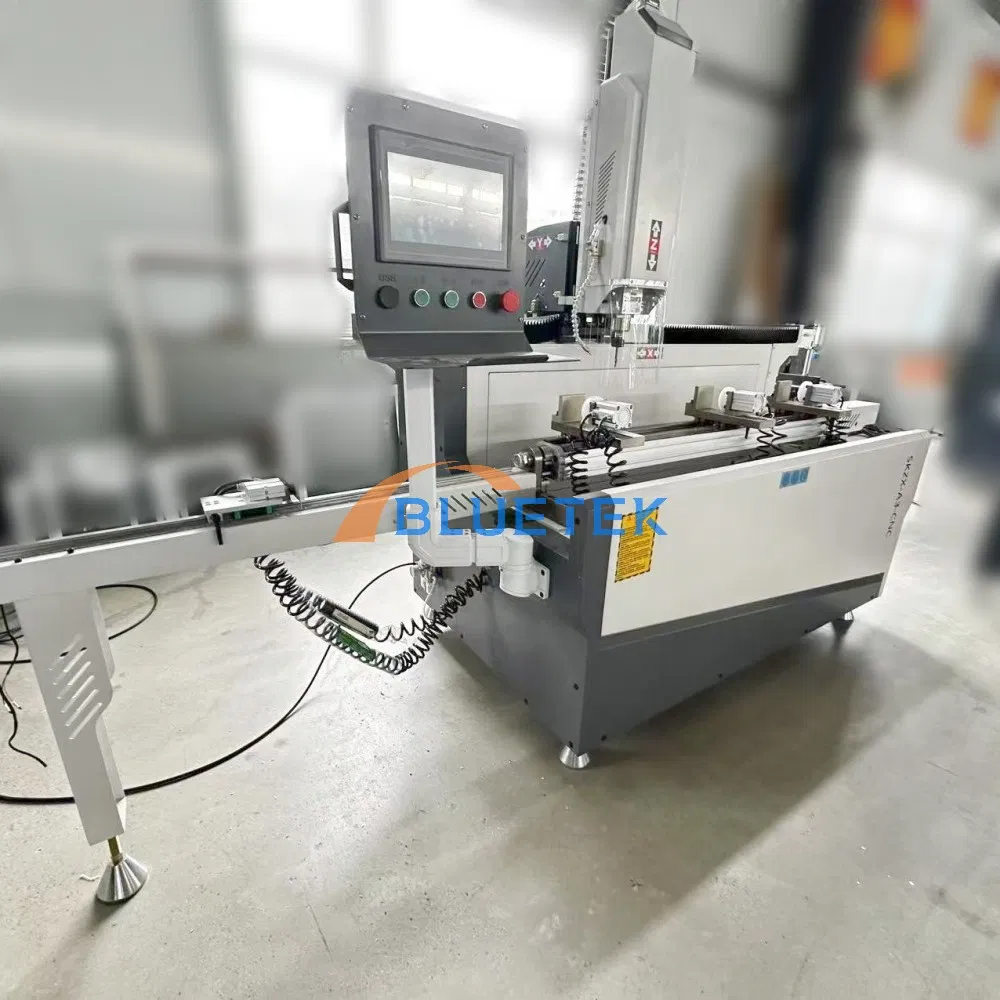

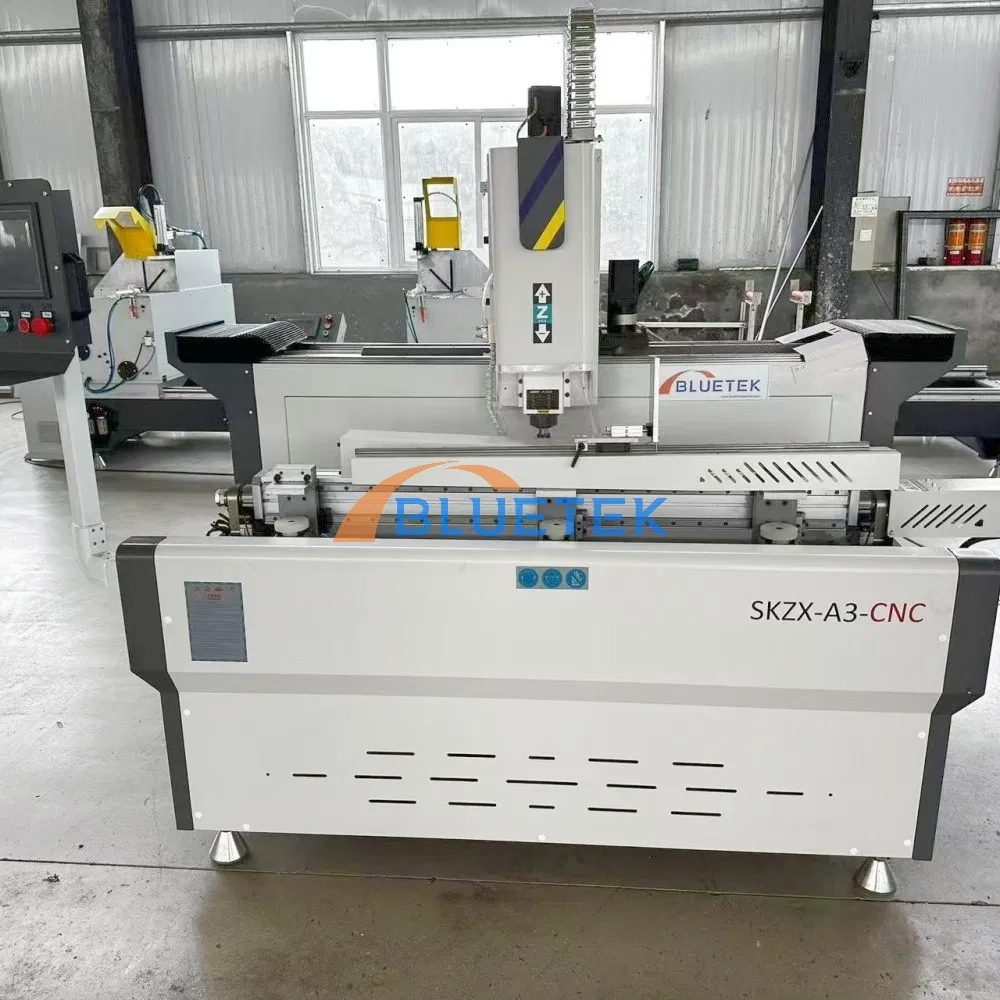

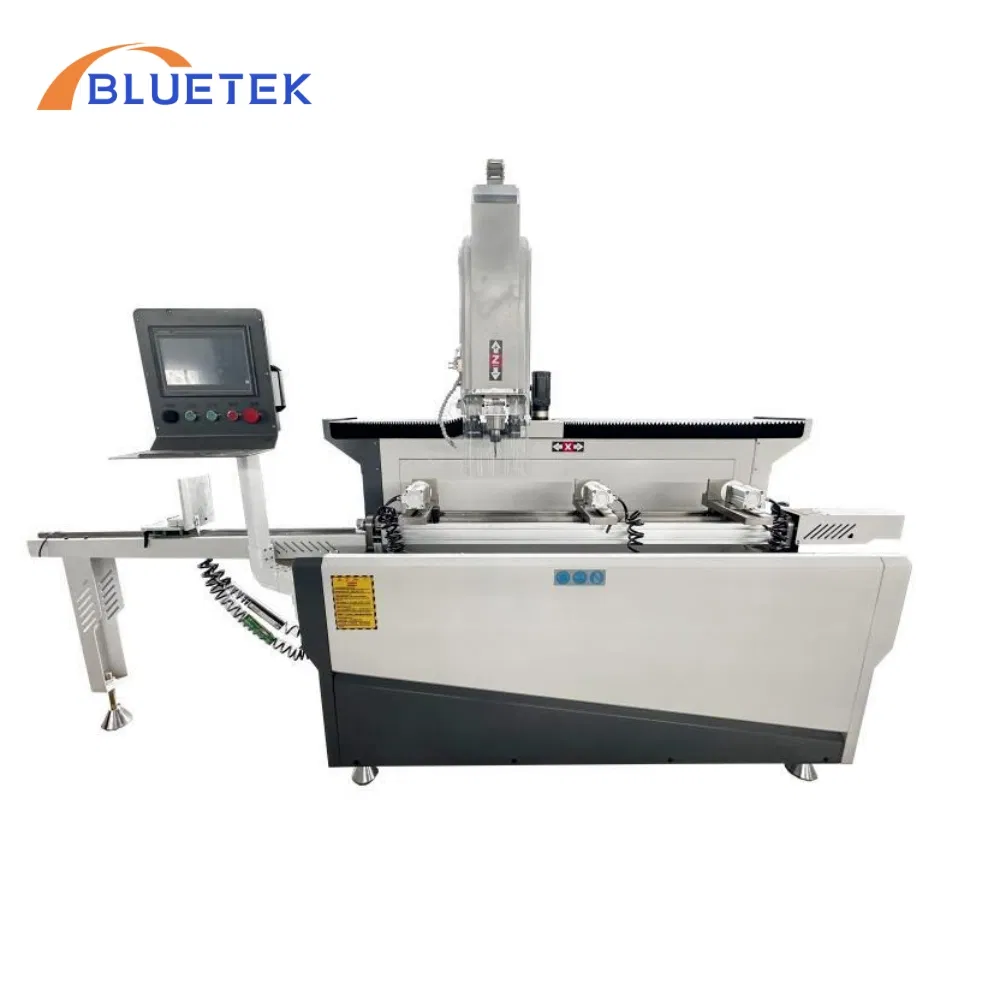

Model: SKZX-A3-CNC-1200
Function: Milling various holes and slots of UPVC and Aluminum Window Doors
| Parameter Item | Technical Detail |
|---|---|
| Working Air Pressure | 0.5 - 0.8 Mpa |
| Total Power | 7kw |
| Spindle Power | 3.5kw |
| Electric Power | 220V / 380V / 415V (50/60Hz) |
| Process Range (L*W*H) | 1200mm * 150mm * 150mm |
| Process Angles | 90° , 0° , -90° |
| Diameter of Mill Cutter | ∅ 8mm / 10mm |
| Machine Dimensions | 2200 * 1500 * 1800mm |
| Gross Weight | 600kgs |

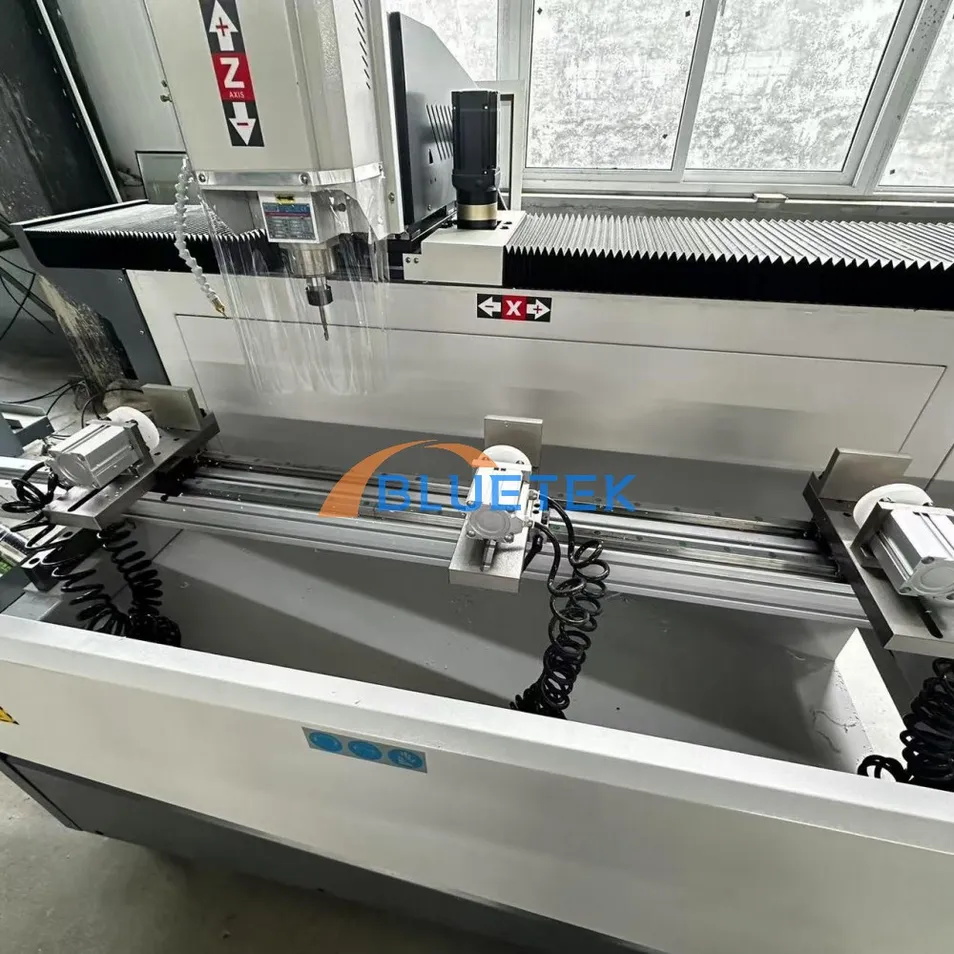

Rotating Workbench (-90, 0, +90°)

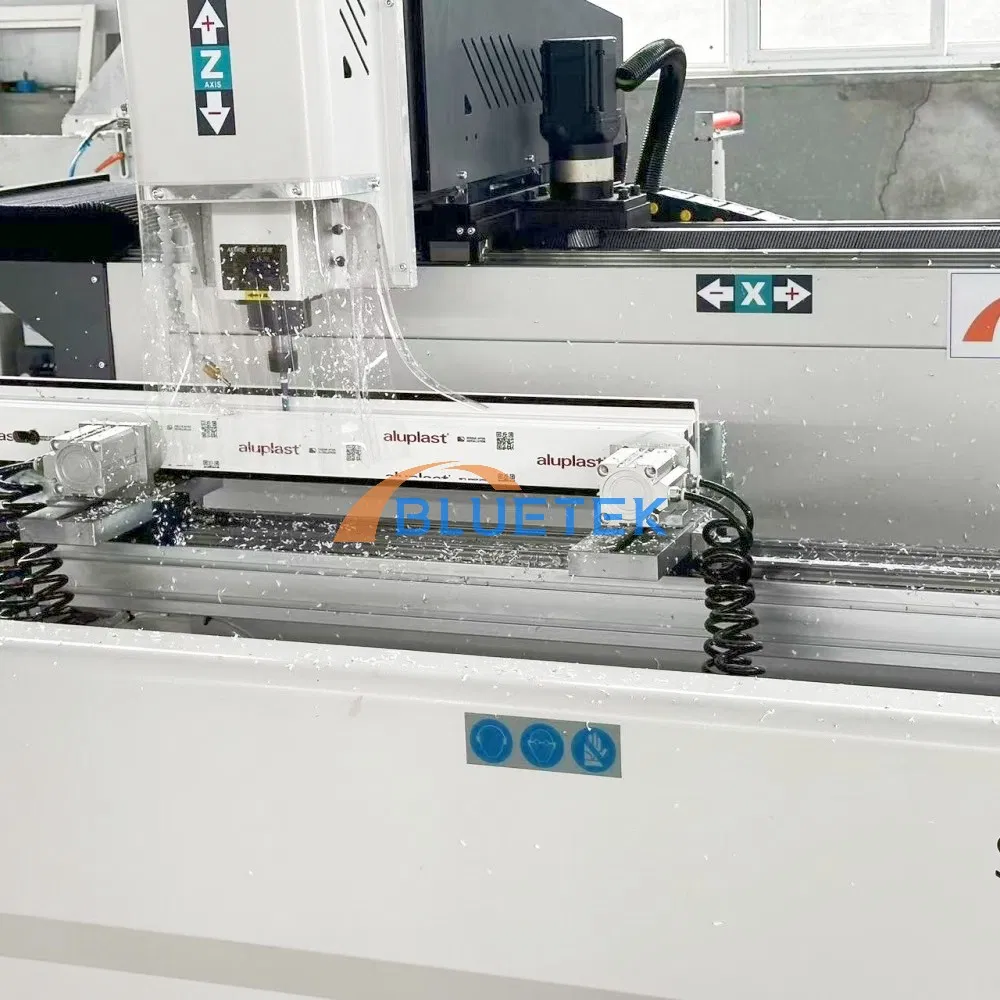

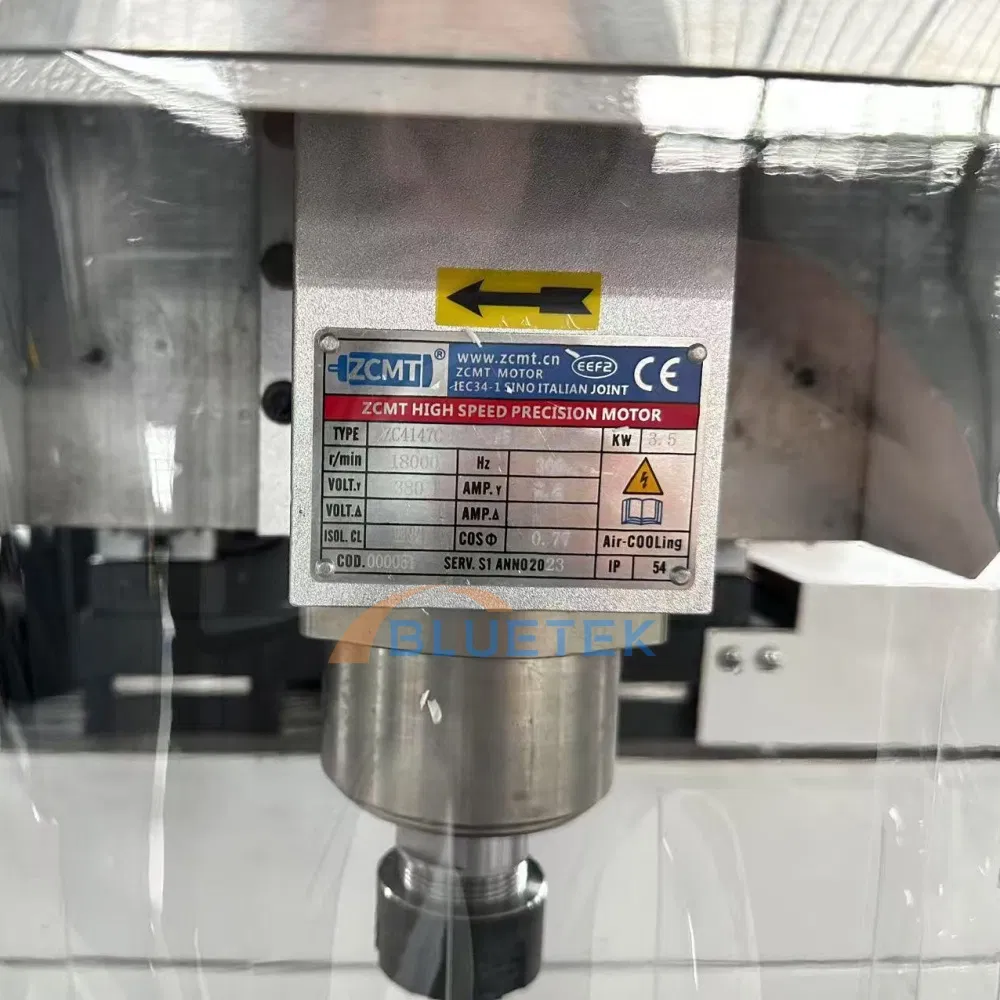

High-power spindle (20,000 rpm)

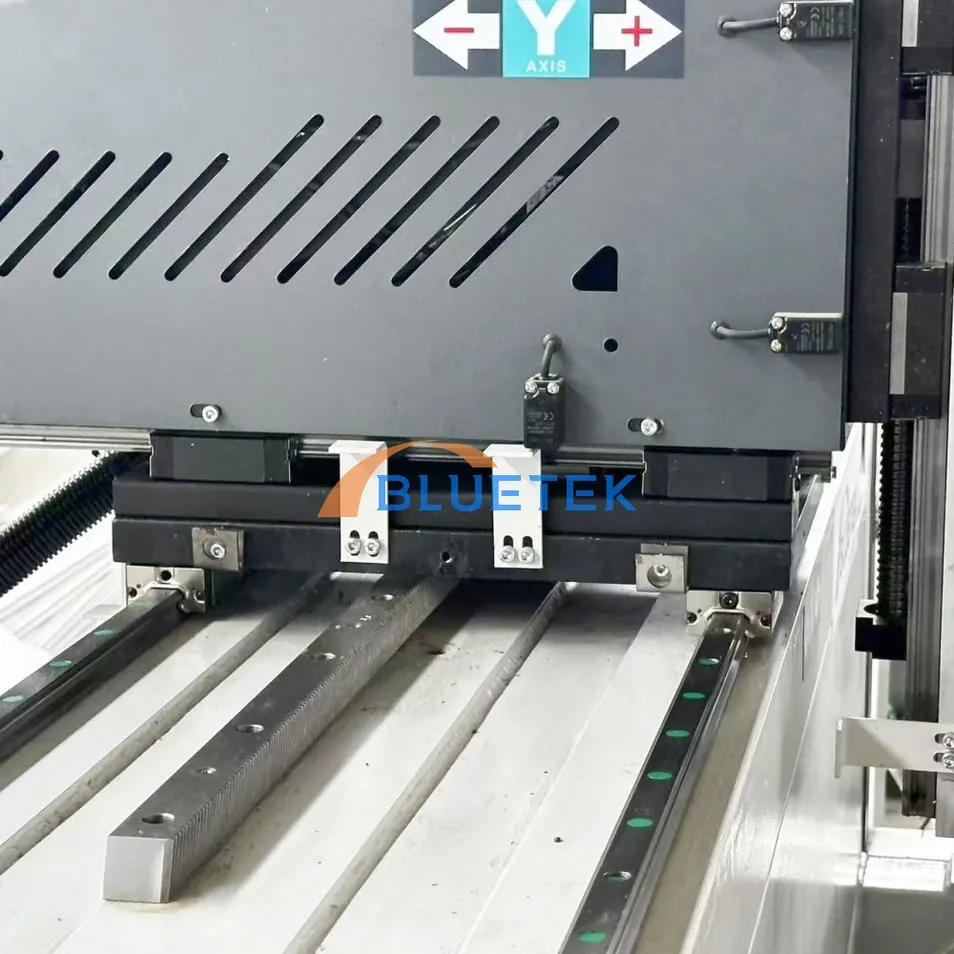

Imported square guide rails
Fast speed and smooth edges

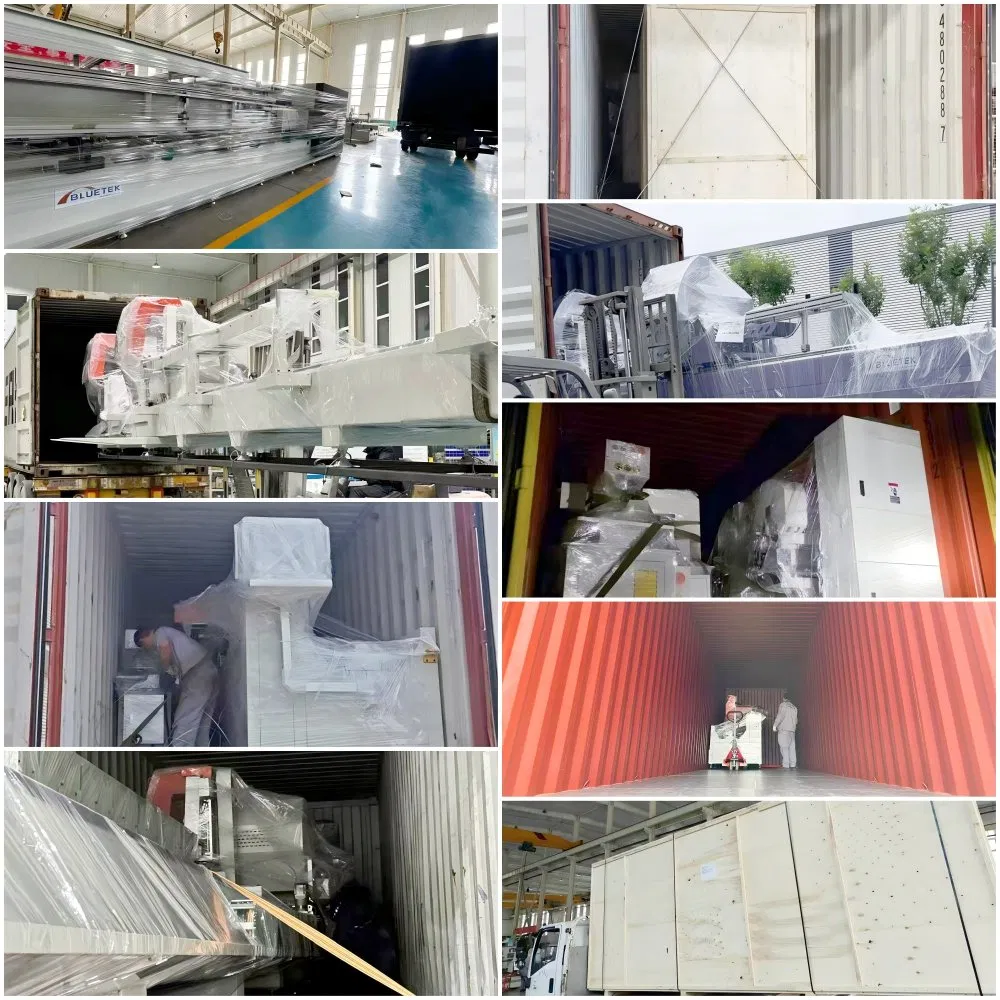

LCL (Less than Container Load): Packed in fumigation-free plywood with thickened pallets and fixed with steel wire.
FCL (Full Container Load): Wrapped in plastic film and secured in 20/40-foot containers with specialized packaging tape.

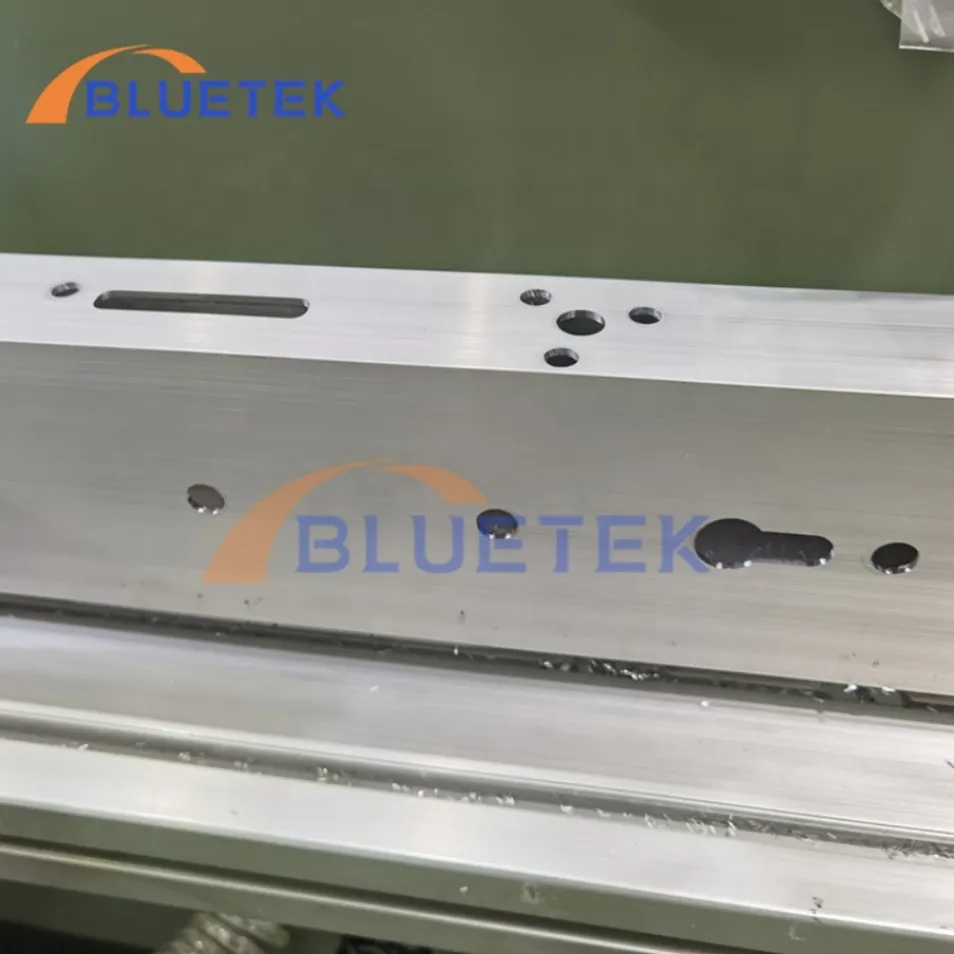

A1: This machine is specifically designed for milling and drilling aluminum profiles and UPVC window and door profiles.
A2: The machine features a rotating workbench that can turn to -90°, 0°, and +90°, allowing it to process three sides of the profile with a single installation.
A3: The effective processing range for the X-axis is 1200 mm.
A4: No, the CNC system comes pre-loaded with common door and window hole graphics. Operators only need to select the shape and input the dimensions.
A5: We provide an 18-month warranty period along with lifelong after-sales technical support.
A6: Our products have passed the EU CE certification and the US UL certification, ensuring compliance with international safety standards.
