Product Description

i

Basic Information

Model NO.G50 ConditionNew
CertificationISO, CE Automatic GradeAutomatic
CNC or NotCNC Voltage380V
Equipment TypeAluminum Profile Cutting Drilling Milling Centre
Industry ApplicationWindow, Door, and Curtain Wall Processing
Processable MaterialsAluminum Alloy, Thermal Break Aluminum, PVC, etc.
Cutting Length Accuracy± 0.1mm HS Code8461500090
★

Product Description

CNC Machining Center

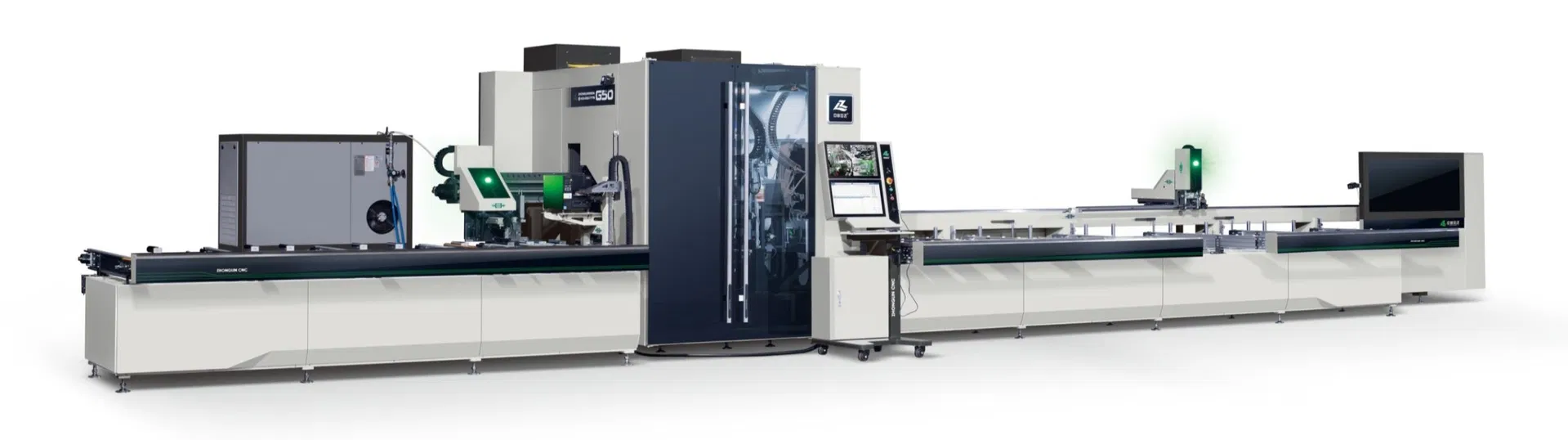

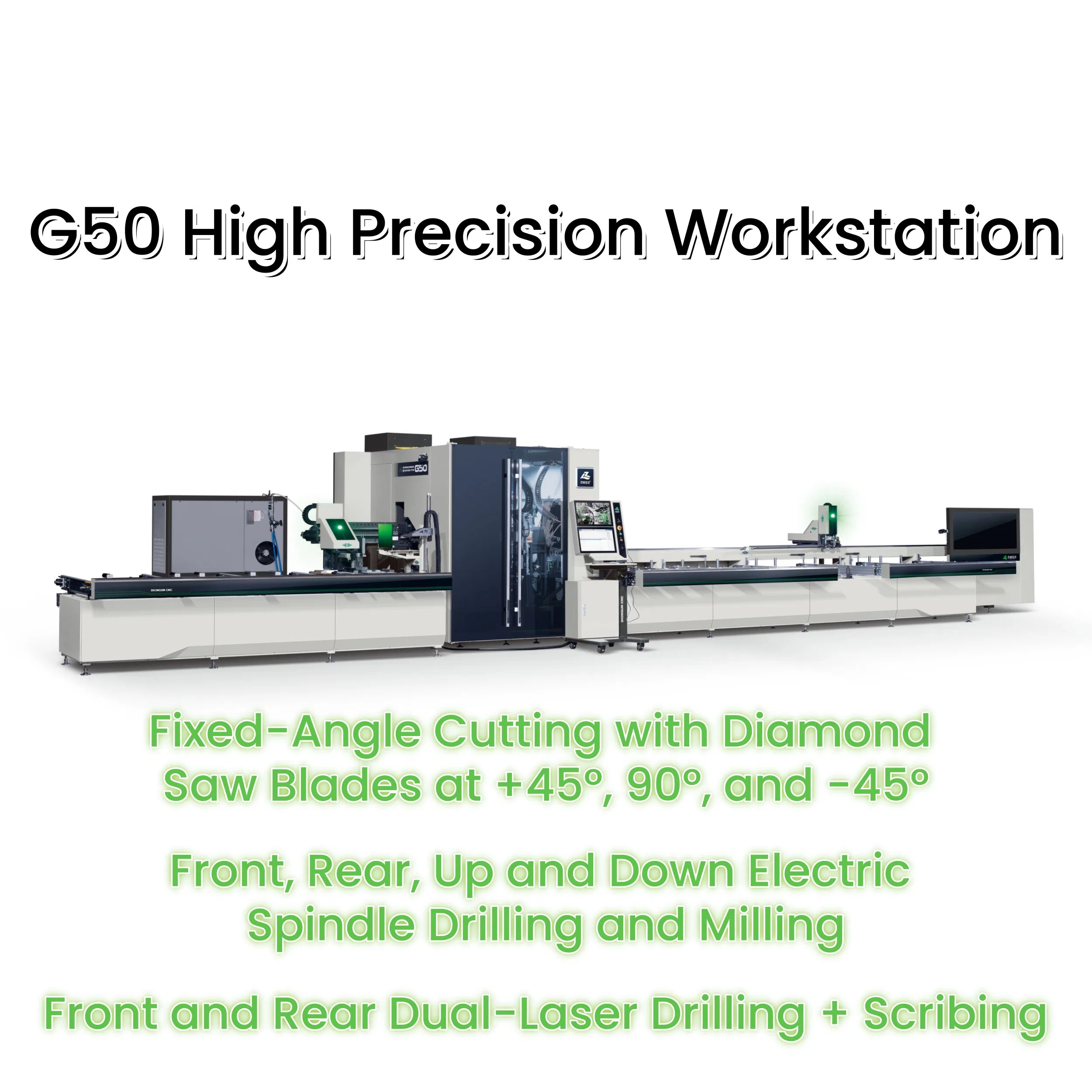

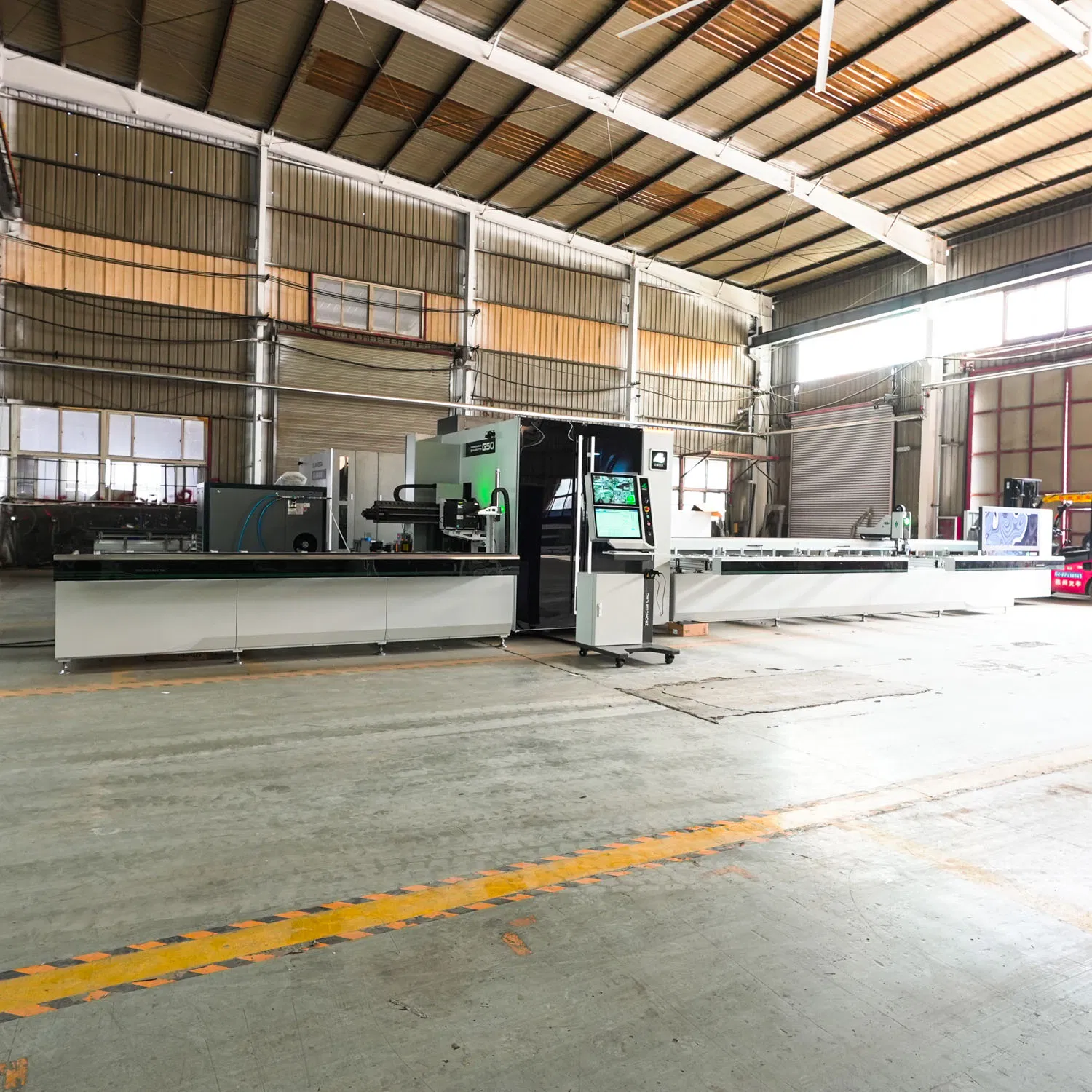

Advanced G50 CNC Machining Center for 6.8m Aluminum Fabrication

The G50 features 18-axis servo control, 3-head 90° and 45° cutting, and 4-side milling. Integrated with dual 2KW lasers for precise marking and drilling, this system handles thermal break profiles with ±0.1mm accuracy and boosts labor efficiency by 60%.

Fixed-Angle Cutting
Diamond saw blades at +45°, 90°, and -45° for versatile fabrication.

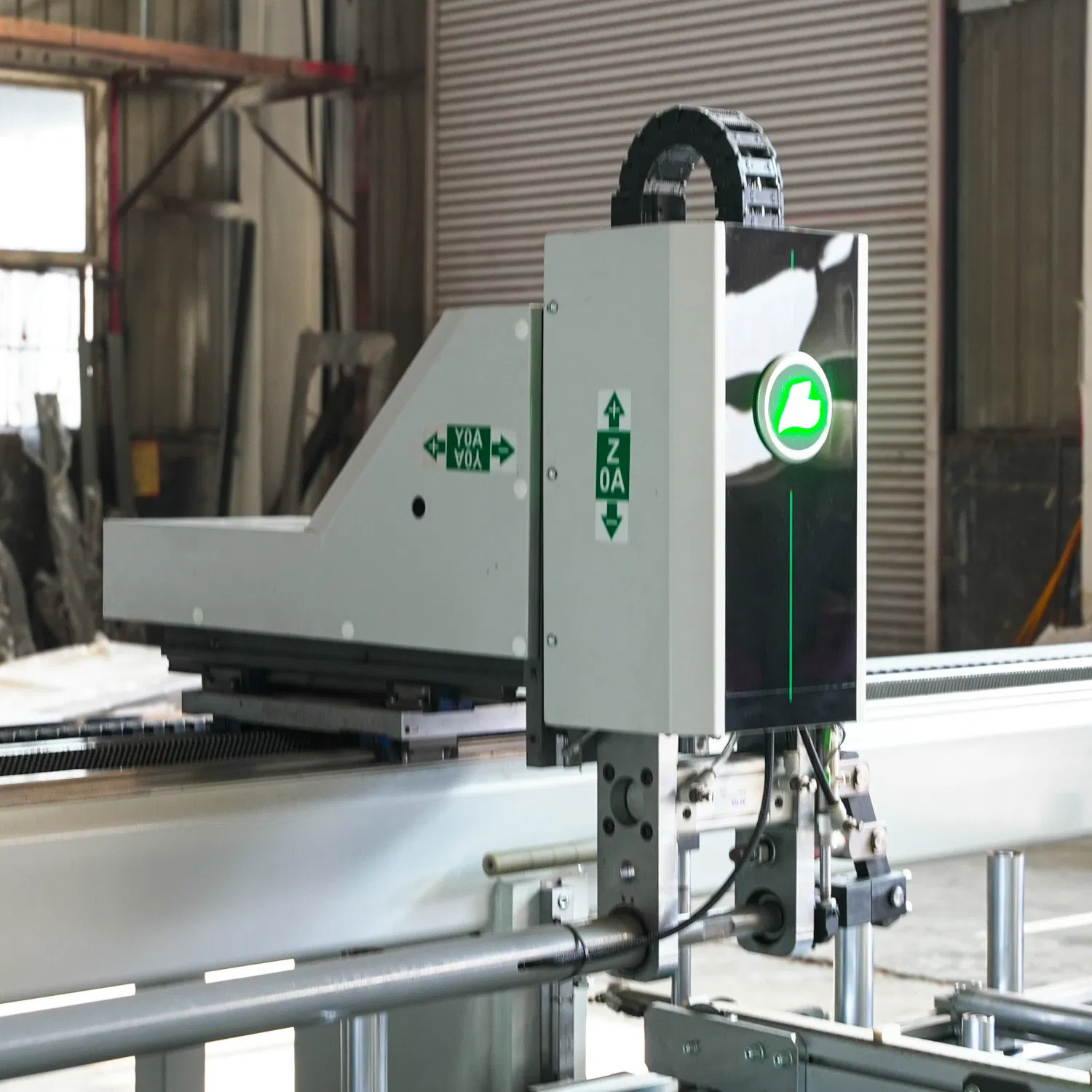

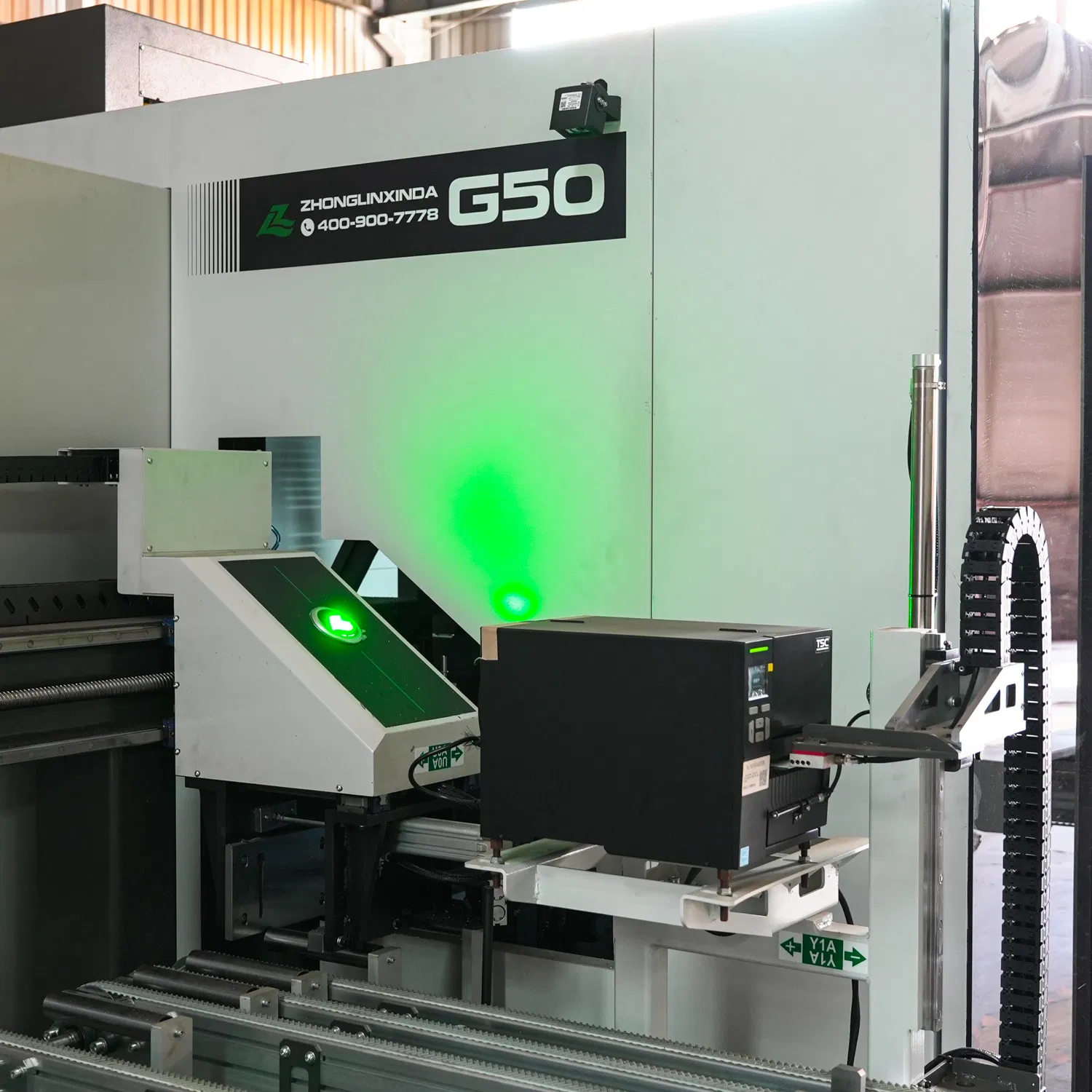

Dual-Laser Processing
Front and rear dual-laser drilling + scribing for high-speed marking.

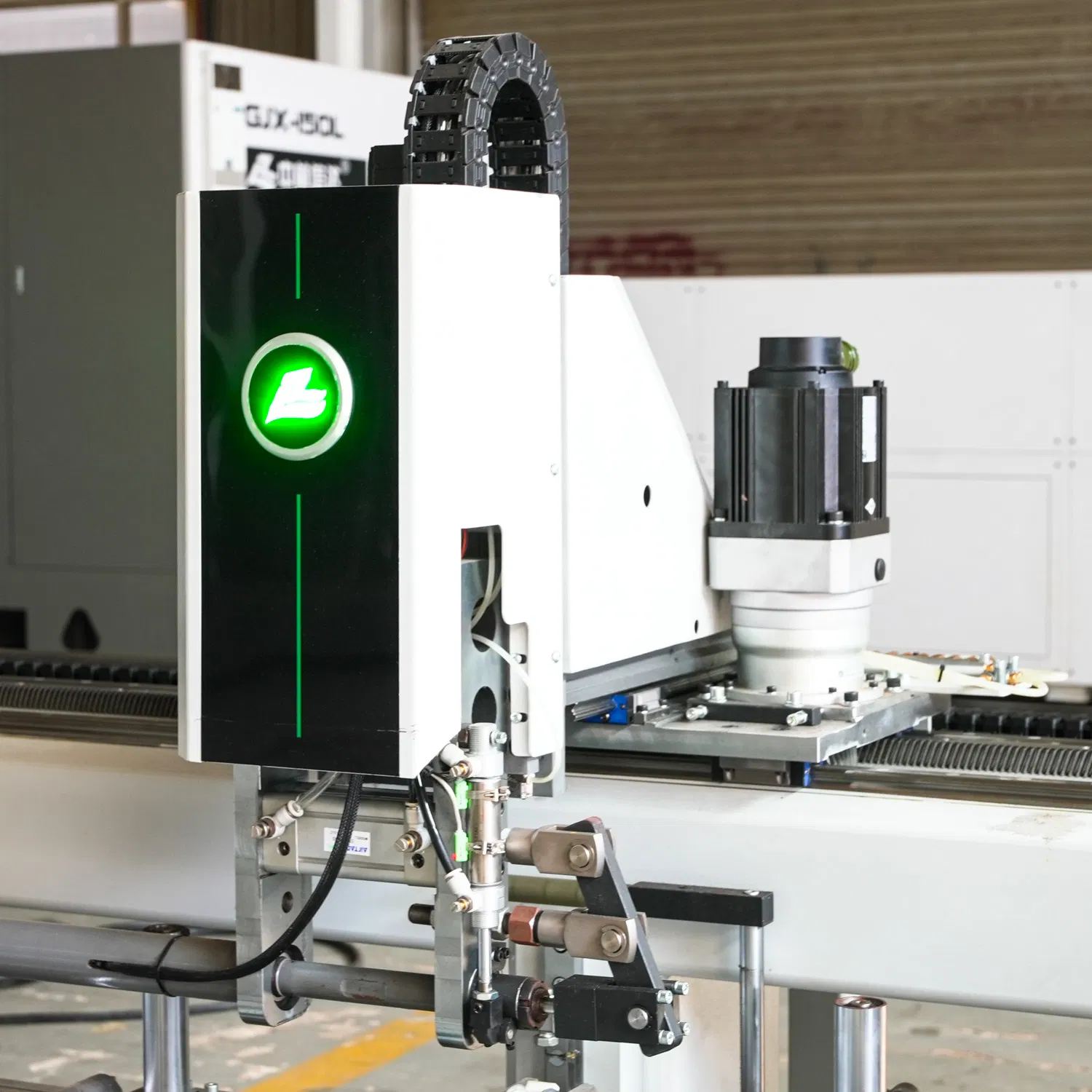

Electric Spindle Milling
Front, rear, up, and down milling capabilities for complex slots.
Processing Detail

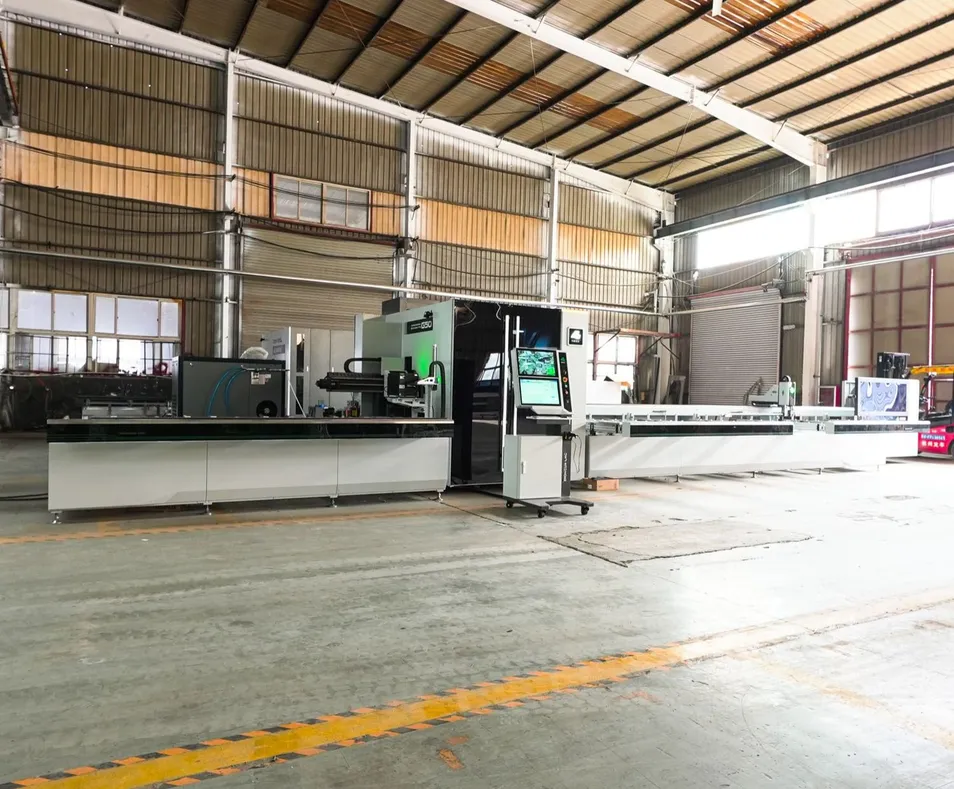

Blade System

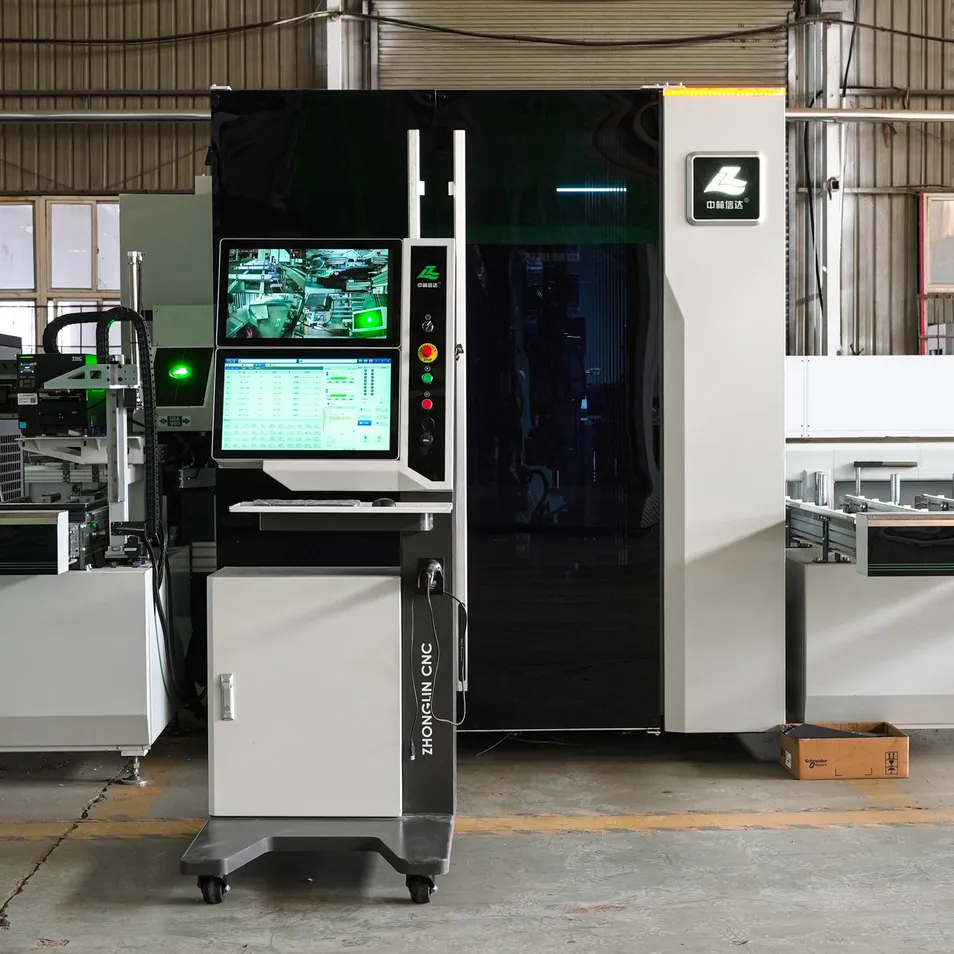

Servo Feed
  • Equipped with a 4KW direct-drive motor for thick-walled profiles.

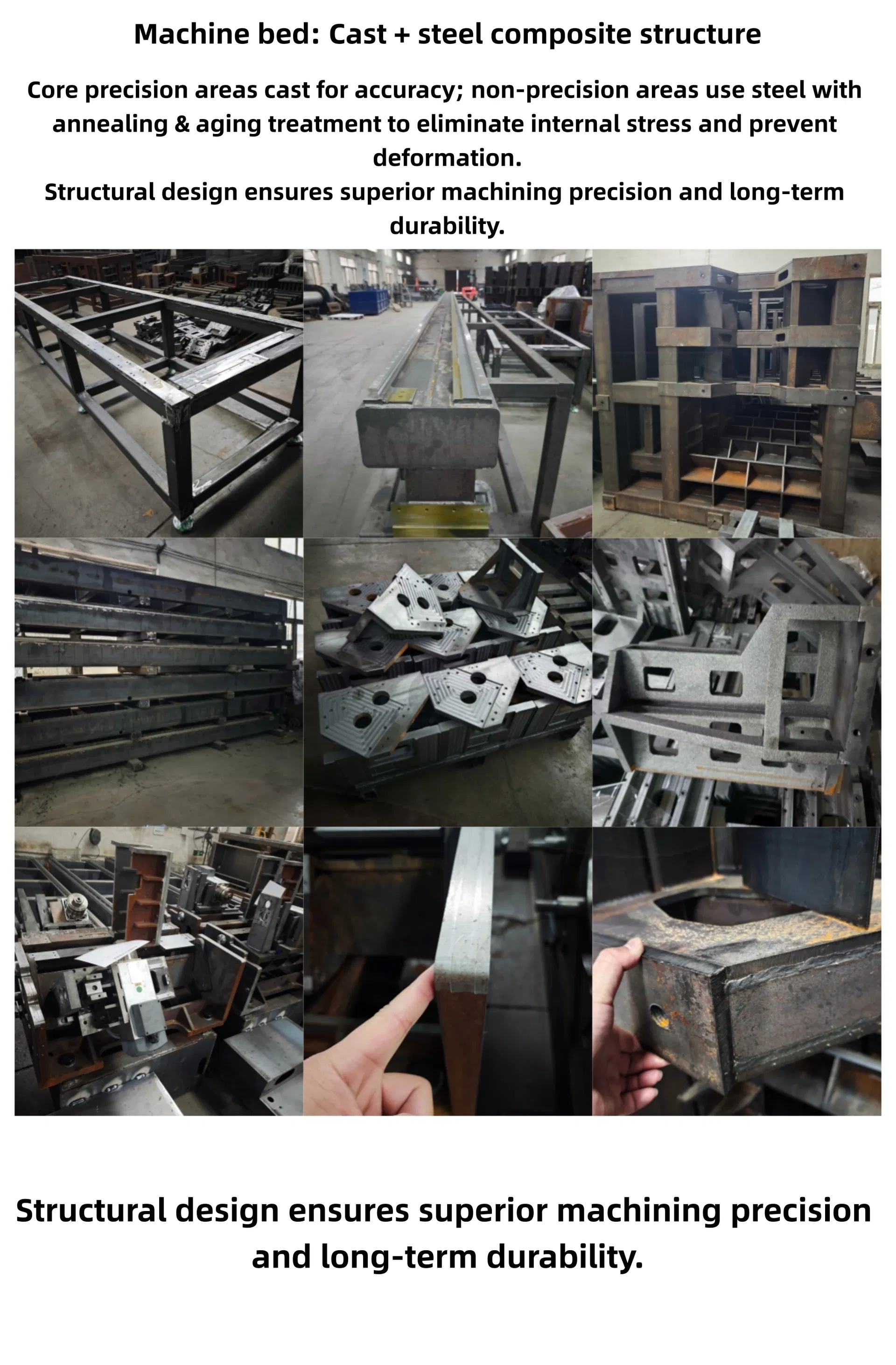

  • Main cutting machine utilizes a casting structure to ensure long-term accuracy.
  • Laser power automatically adjusts according to profile wall thickness.
  • Single worker operation: auto-loading of up to seven profiles.
Automation Features
⚙

Technical Specifications

Total Power57KW Air Pressure0.6–0.8MPa
Gas Consumption180L/min Saw Blade Power4KW * 3
Milling Spindle6KW * 4 Blade Spec550*4.4*30*120T
Cutting Accuracy±0.1mm Squareness≤0.05mm
Material Length650mm – 6800mm Robot Speed0-120m/min
Weight~11 Tons Dimensions15800 * 3500 * 2680 mm
✔

Professional Capability

Founded by experts with over 10 years of experience in the door, window, and aluminum curtain wall equipment industry. We integrate R&D, production, and sales to provide intelligent production lines. Our focus remains on Accuracy, Reliability, and Professionalism.

Certification

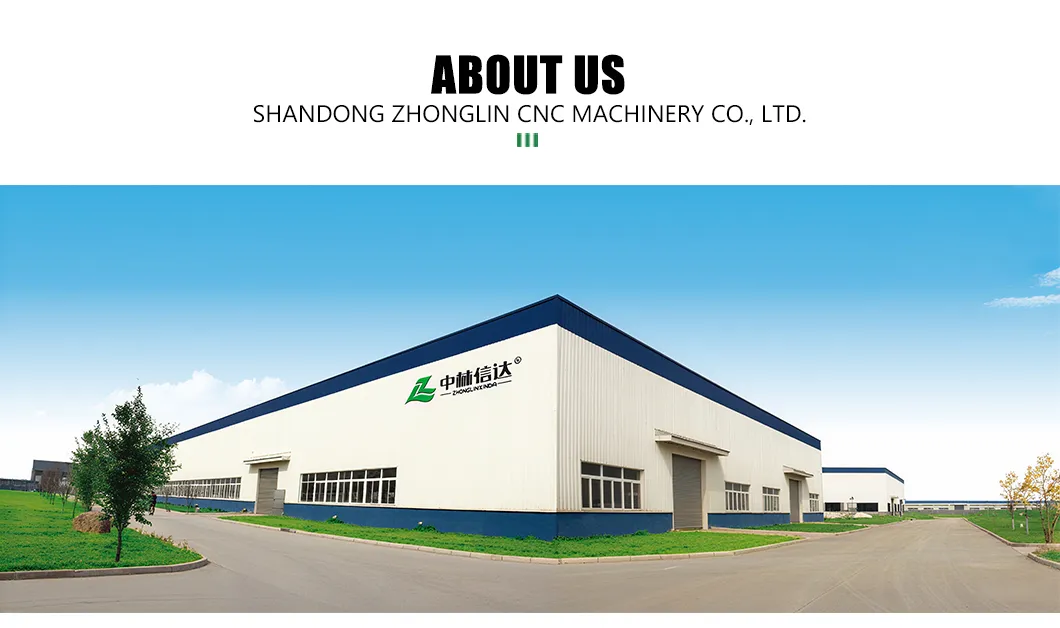

Workshop 1

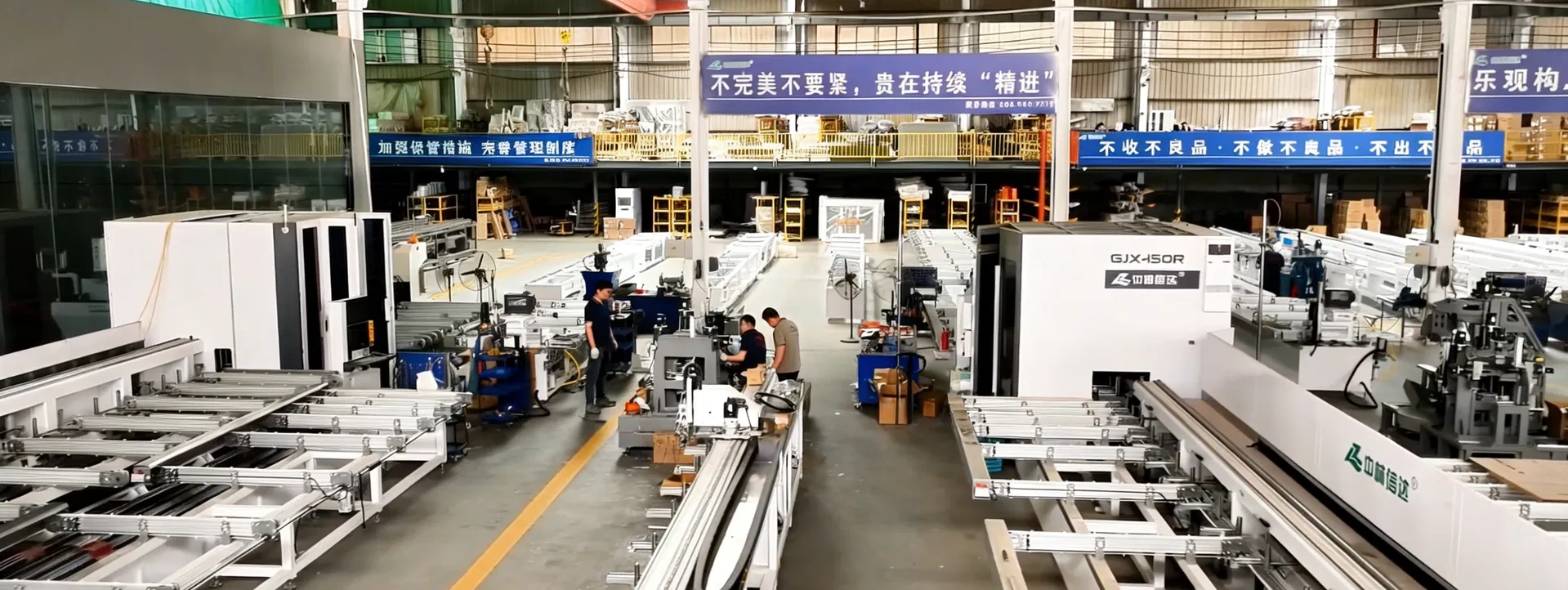

Workshop 2

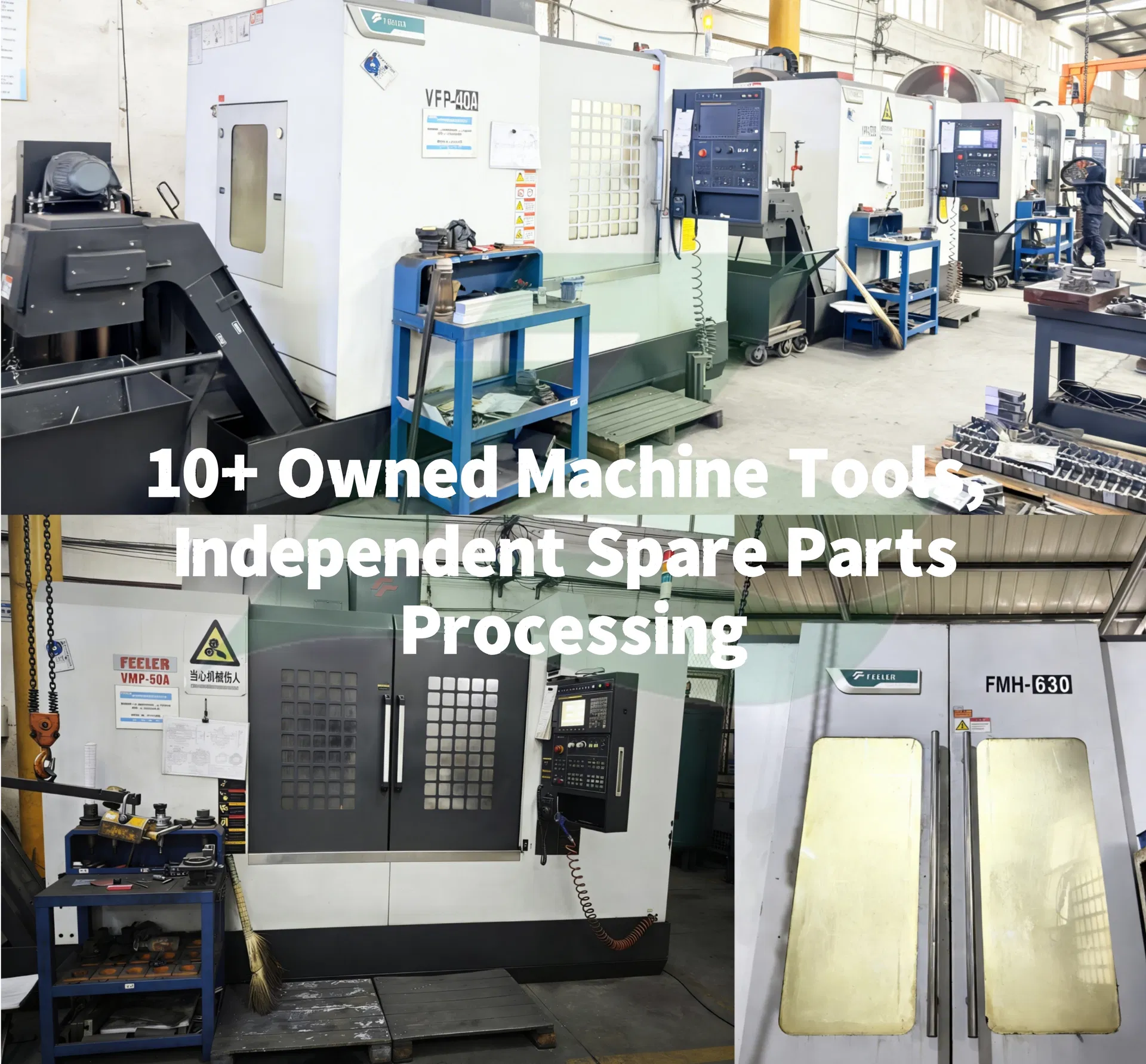

Workshop 3
⚒

Our Factory & Applications

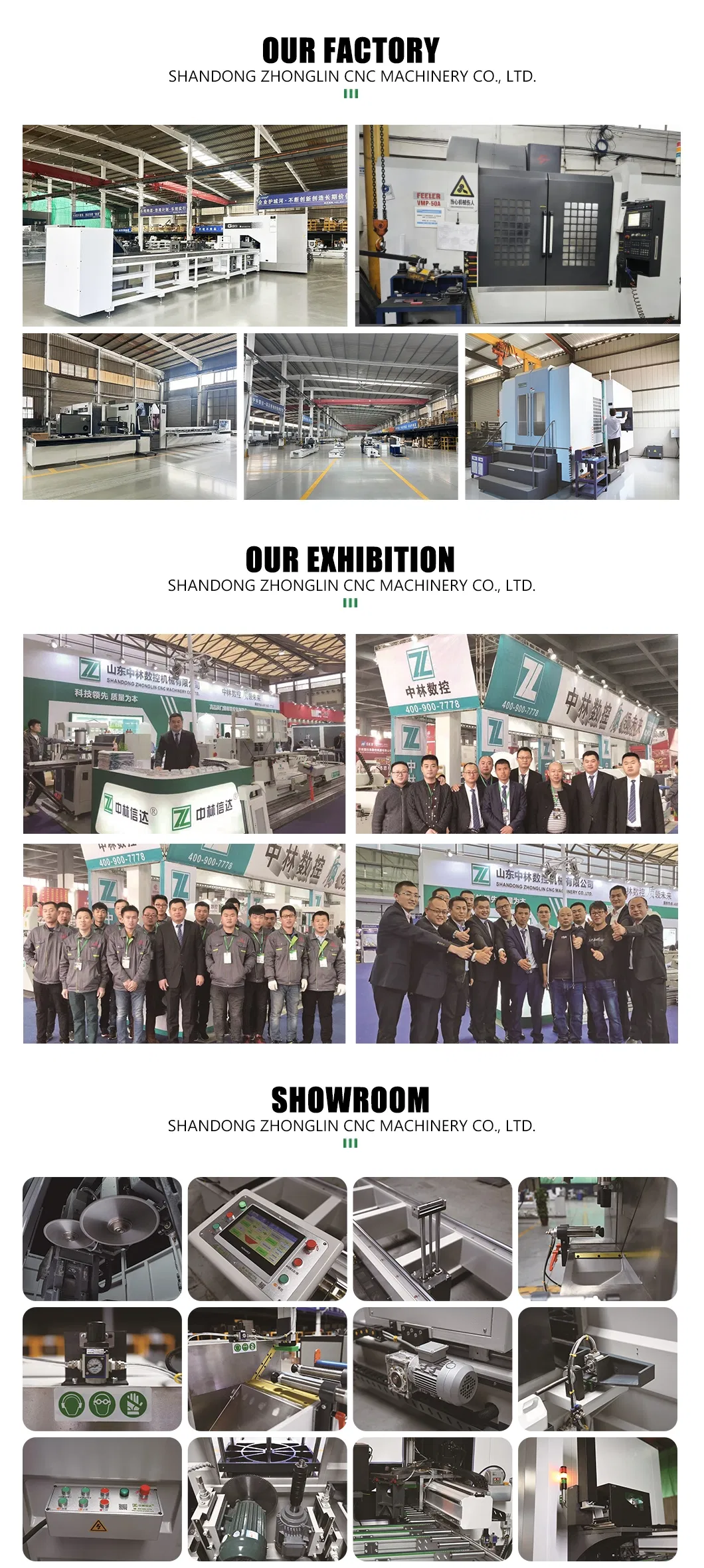

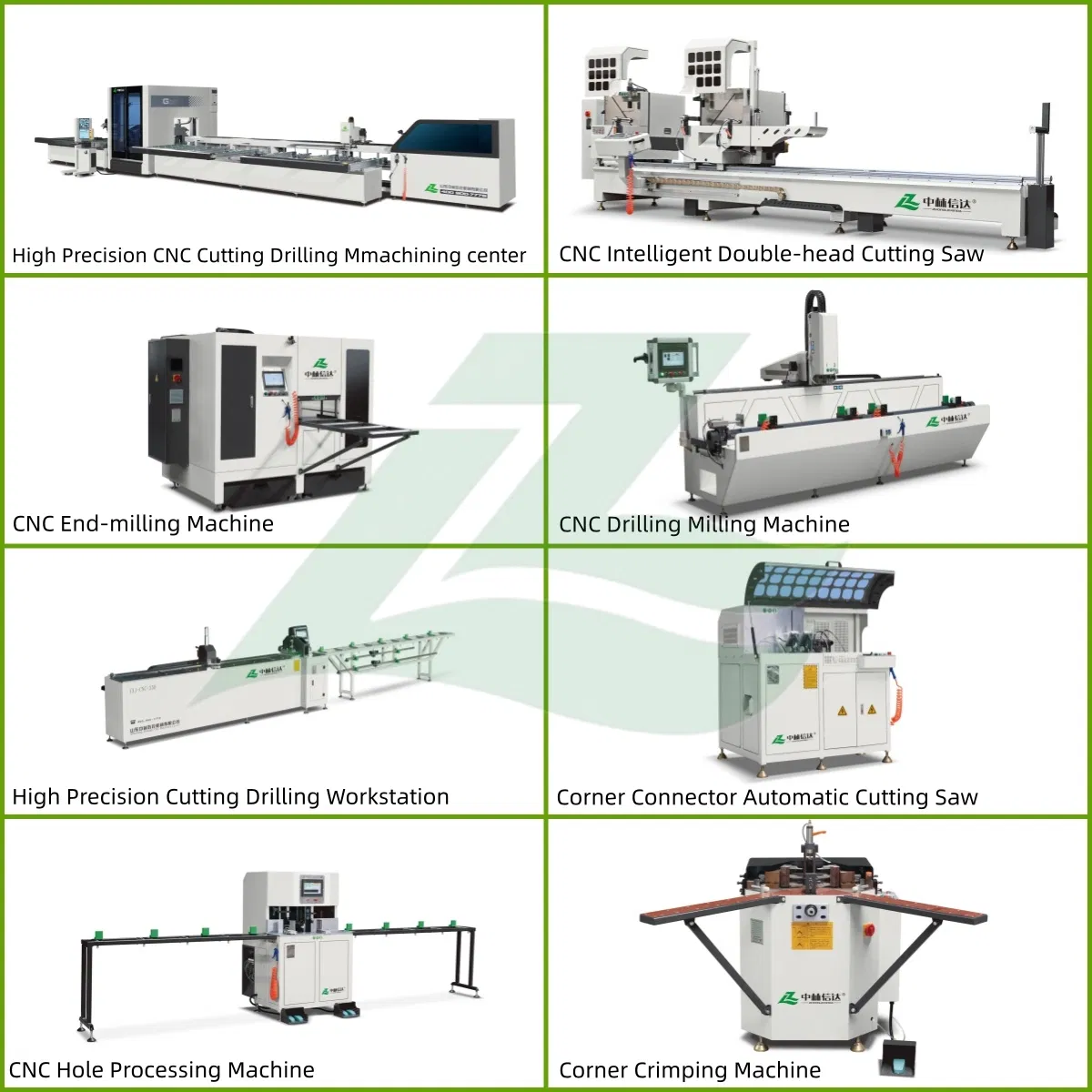

Factory Overview Production Line Application Scenarios
✈

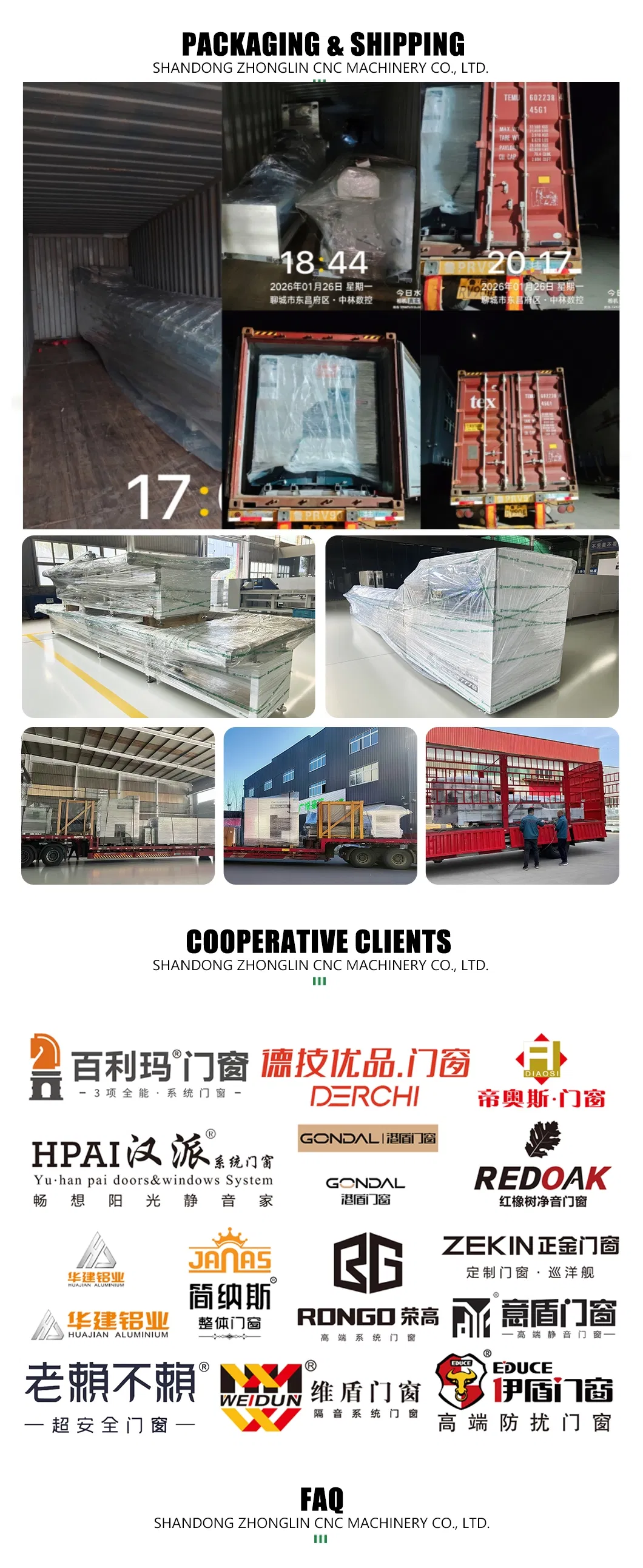

Packaging & Shipping

Shipping Package Loading
?

Frequently Asked Questions

Can this equipment handle both window frames and curtain wall profiles?
Yes. Our intelligent workstations handle full-process door and window fabrication, while specialized saws can cut curtain wall profiles at angles from 45° to 135°.
Is the operation complex? Do I need many skilled workers?
No. The equipment features "fool-proof operation" with automatic data identification. We provide training and remote service to ensure the machine is easy to use without a large skilled workforce.
What is the processing accuracy of the G50?
The machine uses high-end components like HIWIN and Schneider. It achieves ±0.1mm cutting accuracy and ±0.05mm milling accuracy, ensuring stable quality and reducing rework.
What kind of after-sales support is provided?
We offer a 1-year warranty plus lifelong maintenance. Our system includes 24h online response, remote troubleshooting, and on-site support if necessary.
How does this machine optimize production costs?
It improves efficiency (3x faster than manual), reduces material loss through stability, and connects to ERP software for real-time monitoring of capacity and inventory.
Does the machine include waste management?
Yes, it is equipped with an automatic chip conveyor and dust collection device to maintain a clean workspace and improve efficiency.
