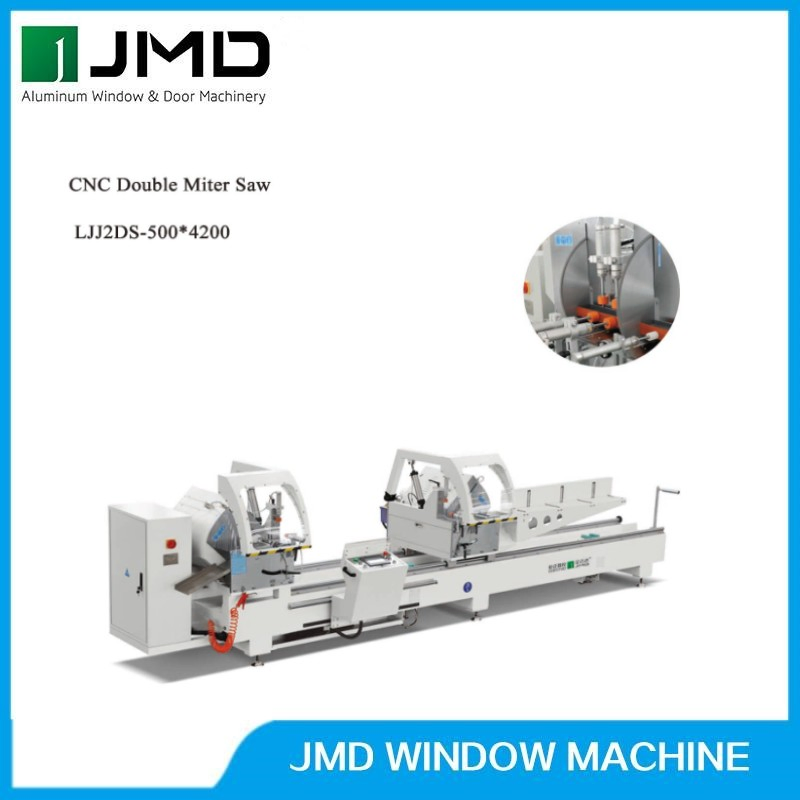

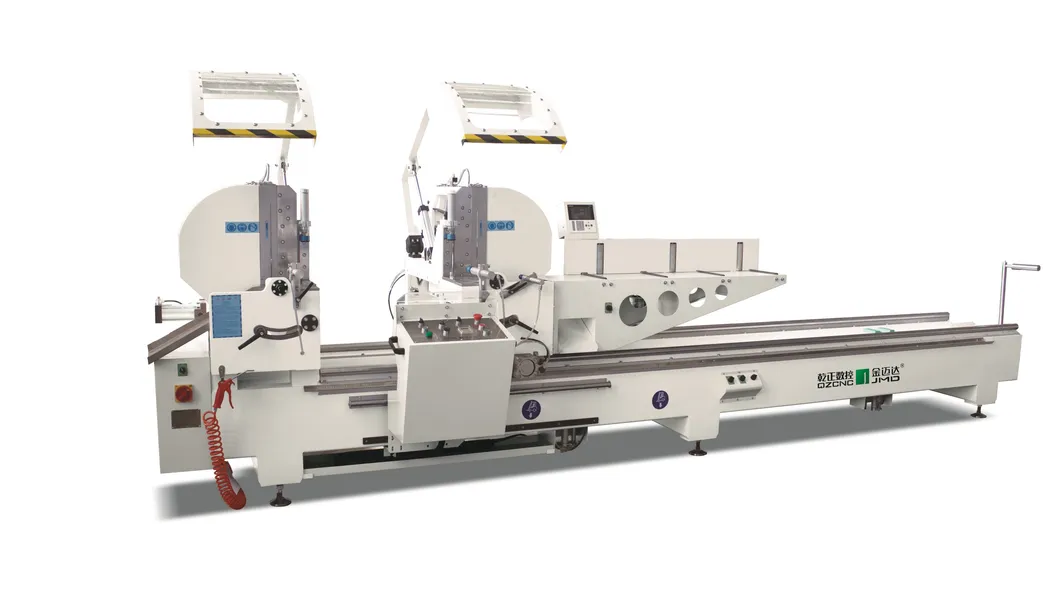

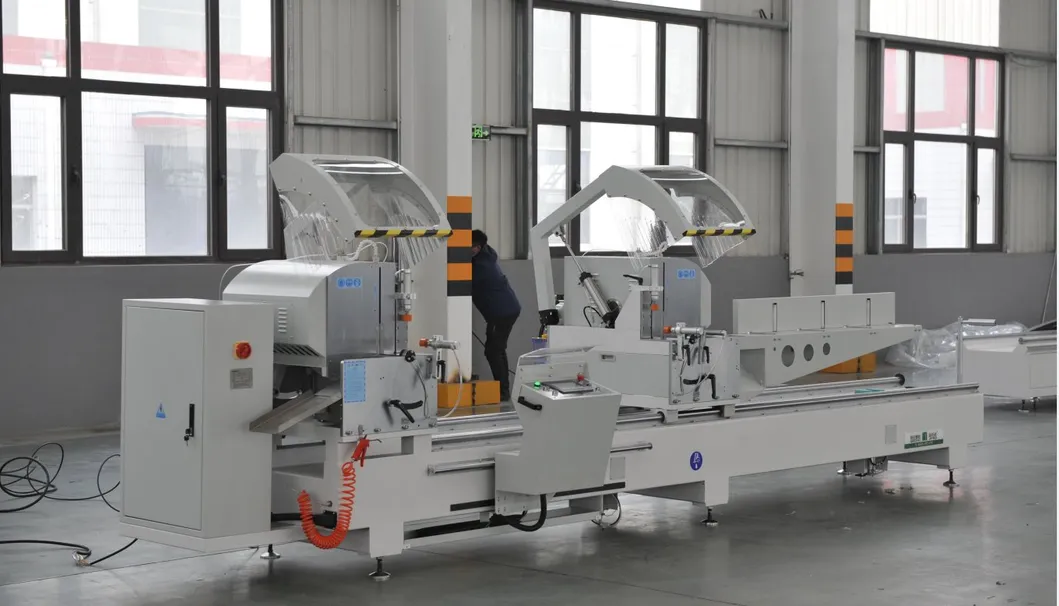

CNC Aluminum Cutting Machine
Basic Specifications
Automatic Grade
Semi-Automatic
Machine Introduction

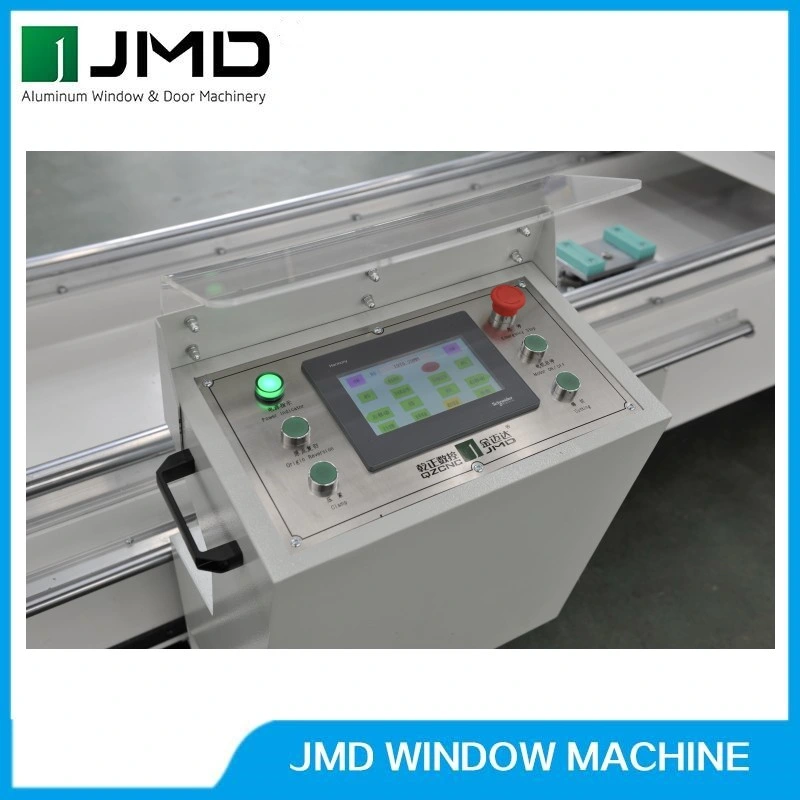

- The imported digital control system ensures precise cutting size.
- Imported ball screw rod drives the machine to move horizontally with precise repeat orientation.
- Presets allow for continuous cutting according to the preset program.
- Equipped with imported carbide saw blades and linear guide rail pairs for feed motion.
- The blade feed is powered by a hydraulic damping cylinder.
- Wide cutting range with a maximum length of up to 4200mm and cutting angles of 90°/45°.
Technical Parameters
| Power supply | 380V/3Phase/50Hz |
| Input power | 6kW |
| Air pressure | 0.5~0.8Mpa |
| Saw blade rotating speed | 2875r/min |
| Saw blade specification | 500*4.4*3.3*30*120p |
| Cutting length | 320~4200mm |
| Max cutting width/height | 135mm/ 300mm |
| Cutting angles | 90°, 45° |
| Overall dimension | 5560*1750*1900mm |
| Weight | 1900Kg |

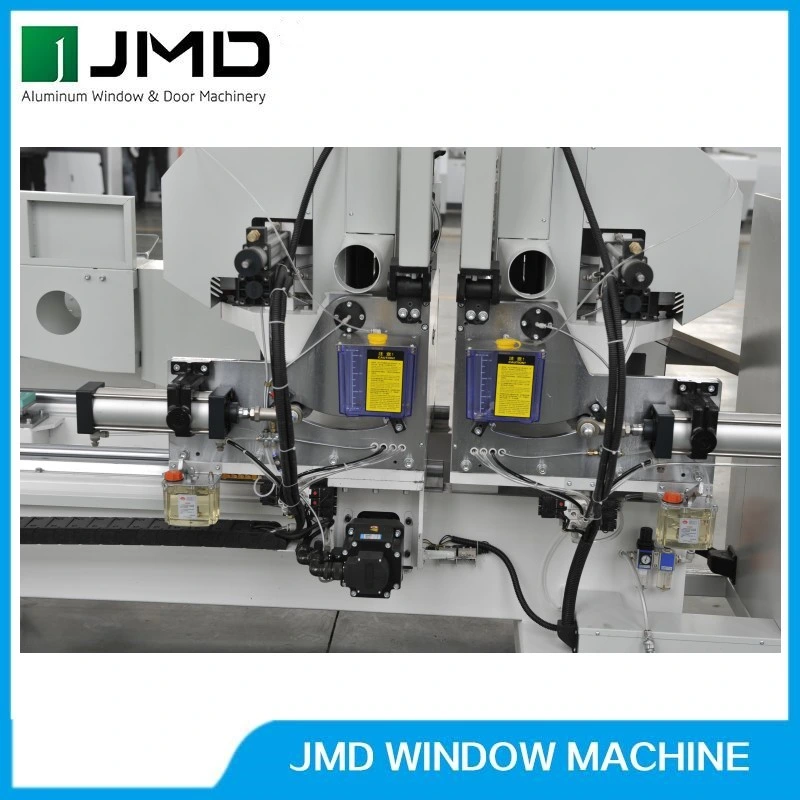

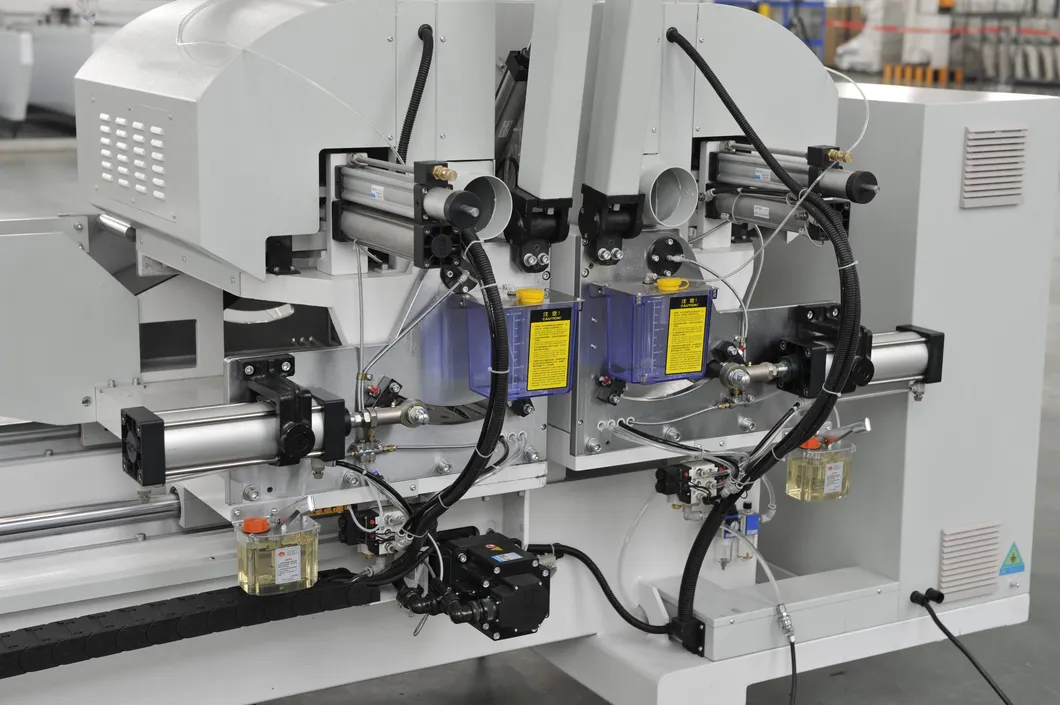

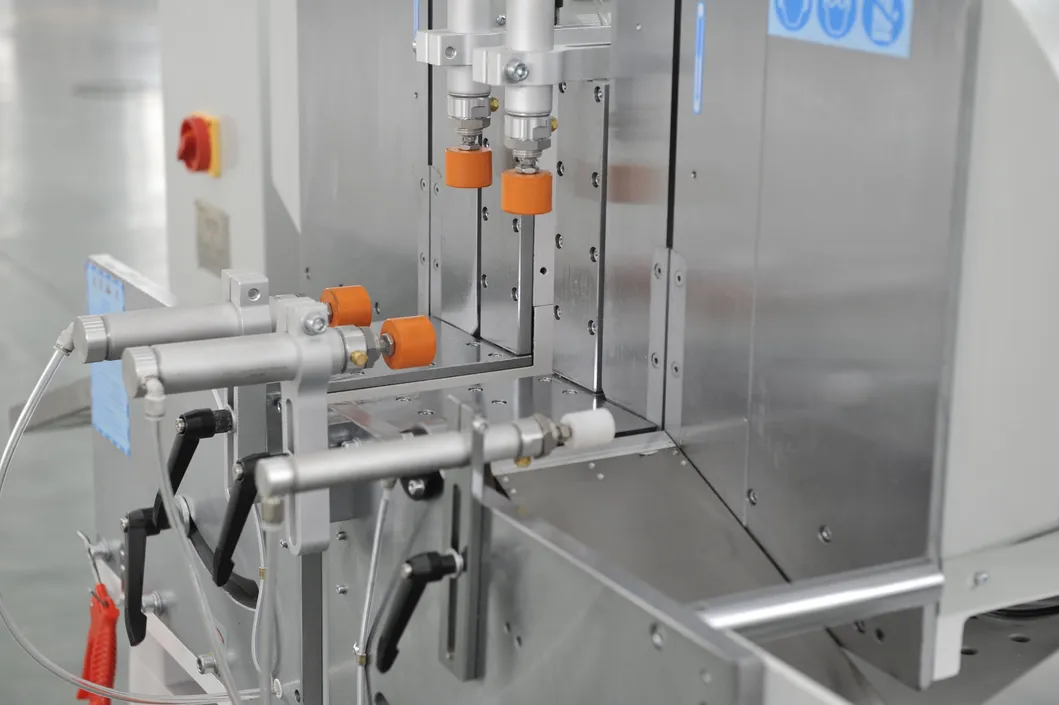

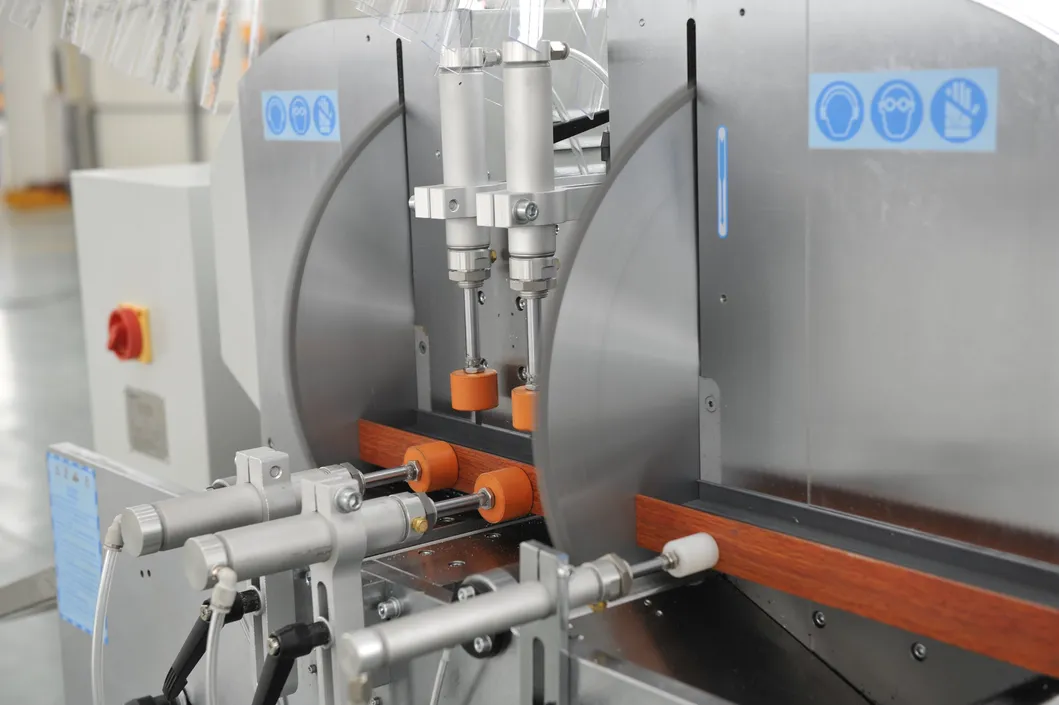

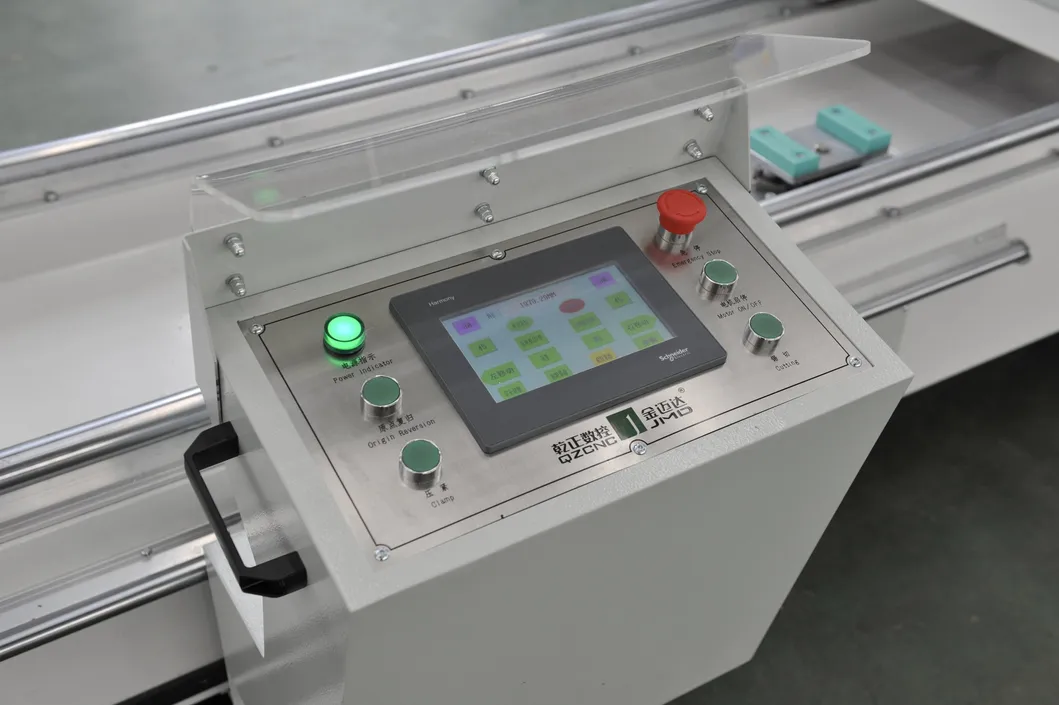

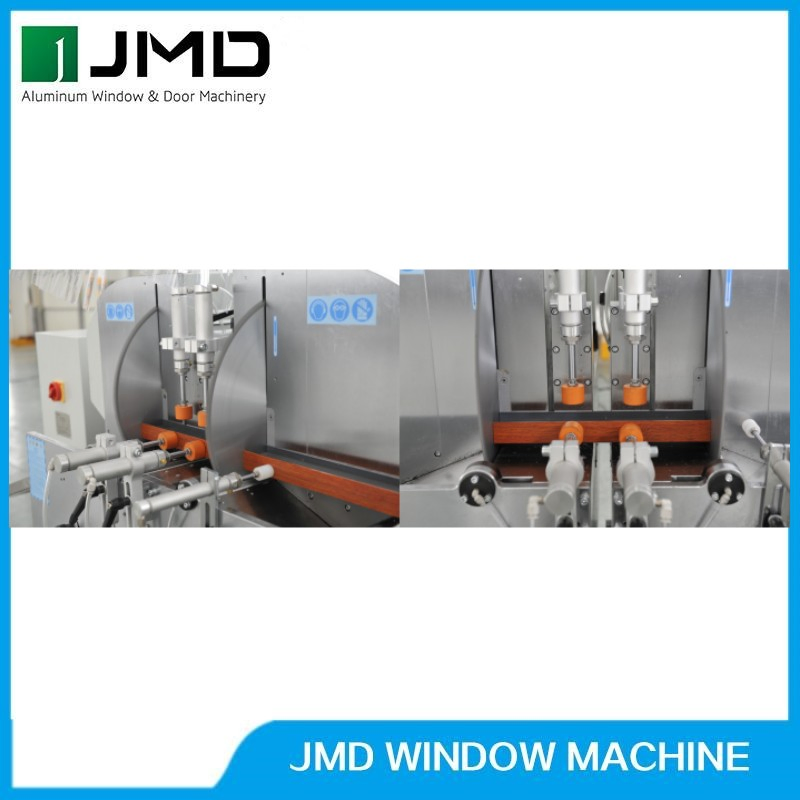

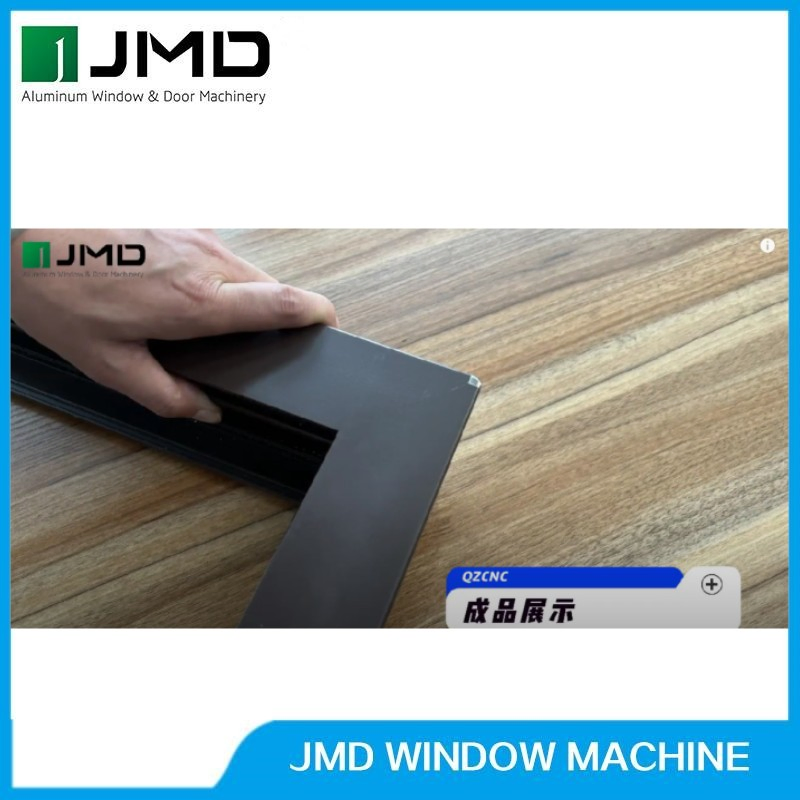

Detailed Equipment Photos

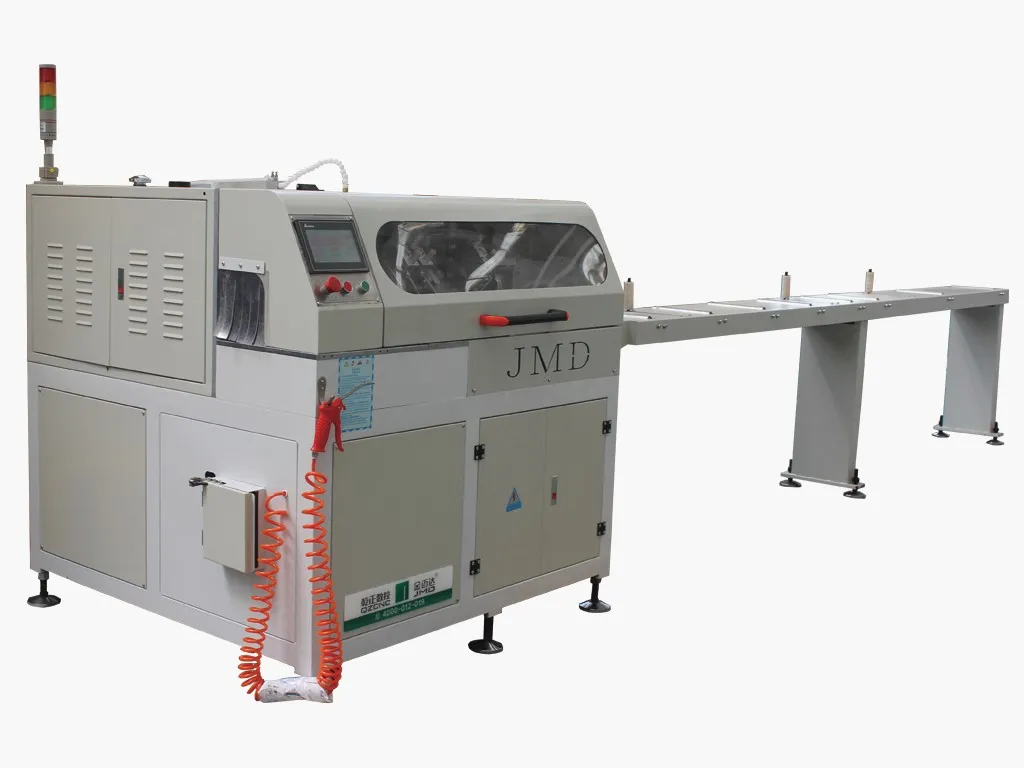

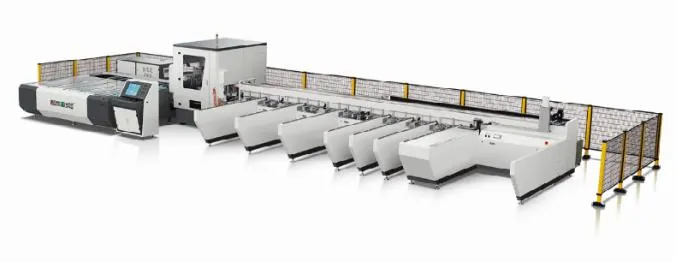

Associated Cutting Solutions

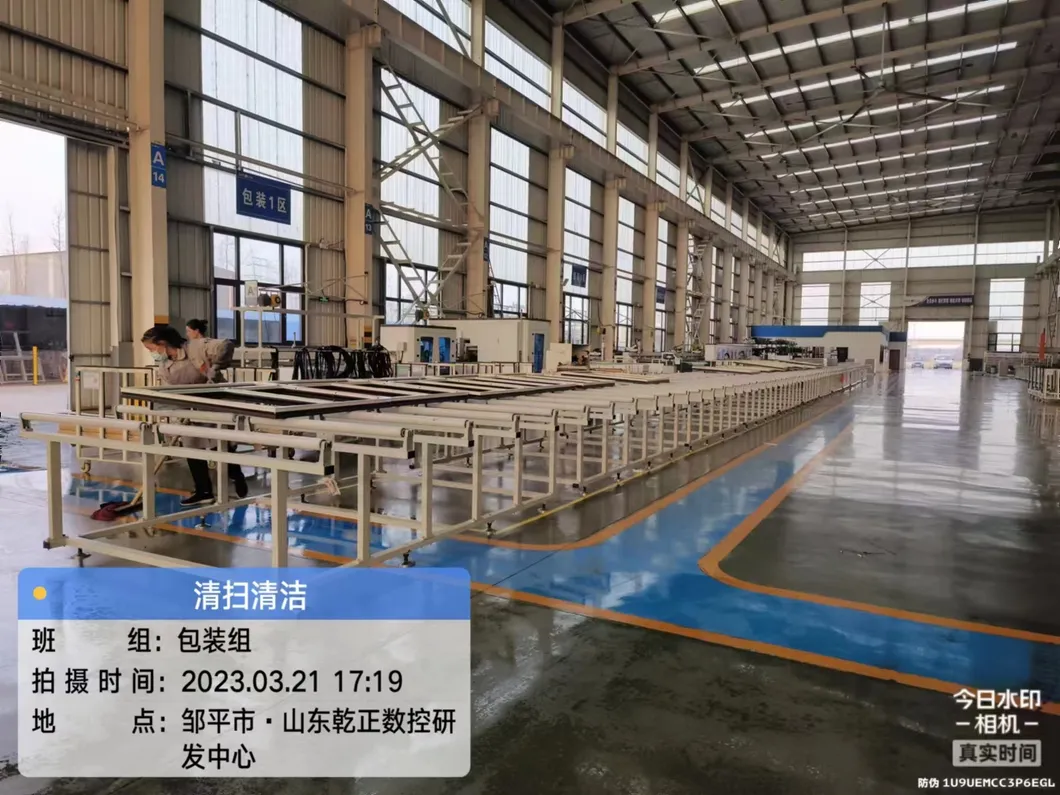

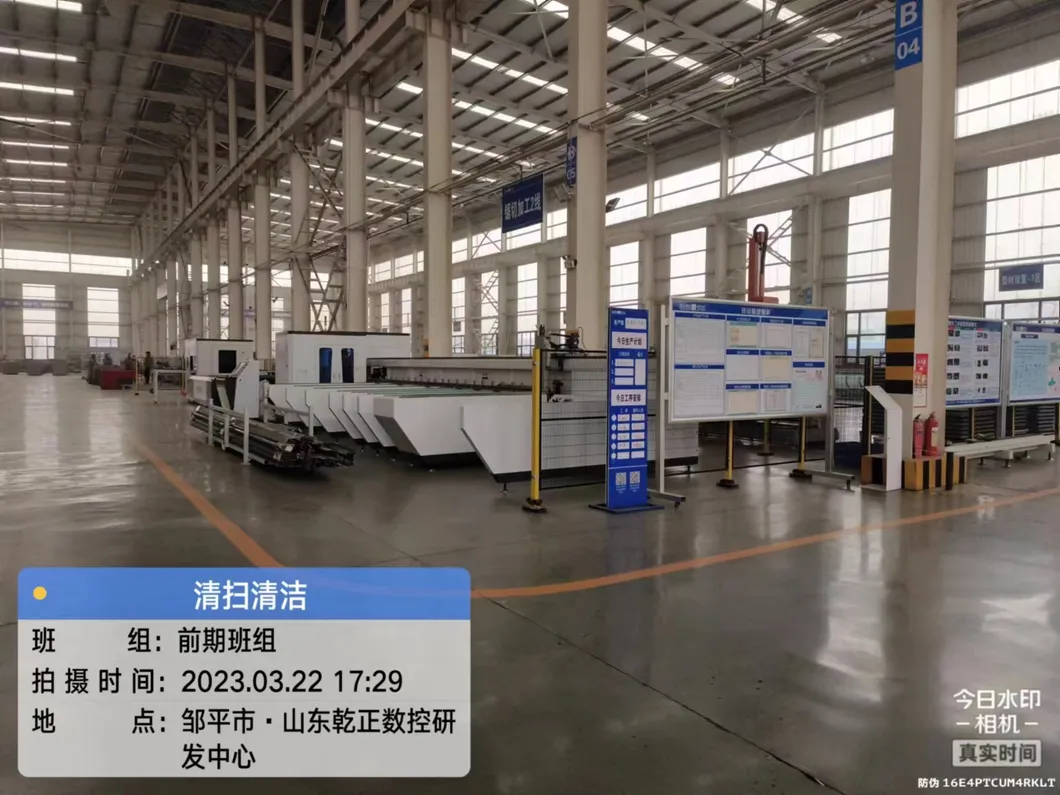

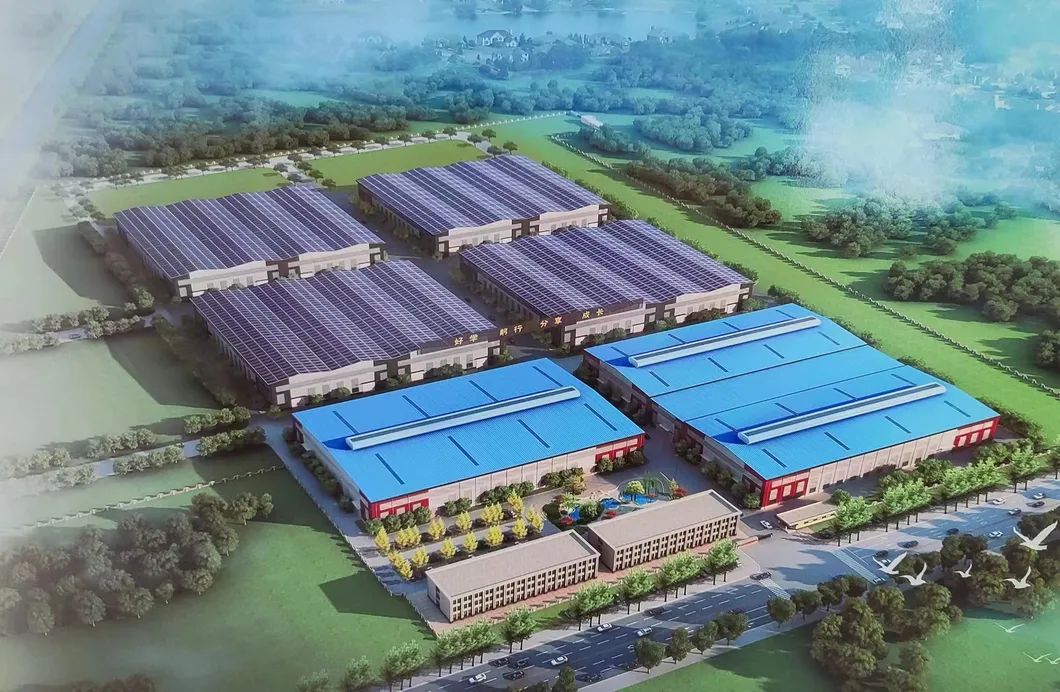

Manufacturing Excellence & Factory
A leading manufacturer specializing in the design and manufacturing of aluminum and wood window & door machines. Established in 1999, we have grown to be a top supplier of complete equipment including double mitre saws, corner crimping machines, and CNC automatic cutting machines.
With over 240 employees and 130 sets of sophisticated processing equipment such as CNC centers and wire cutting machines, we ensure precision and reliability in every unit produced.
Why Choose Us
- More than 20 years of manufacturing experience in window and door machinery.
- Top 3 manufacturer in China with professional engineering teams.
- Exported to more than 40 countries worldwide.
- Annual production capacity exceeding 3000 sets.
- Certifications include BV, CAS, SGS, and CE.

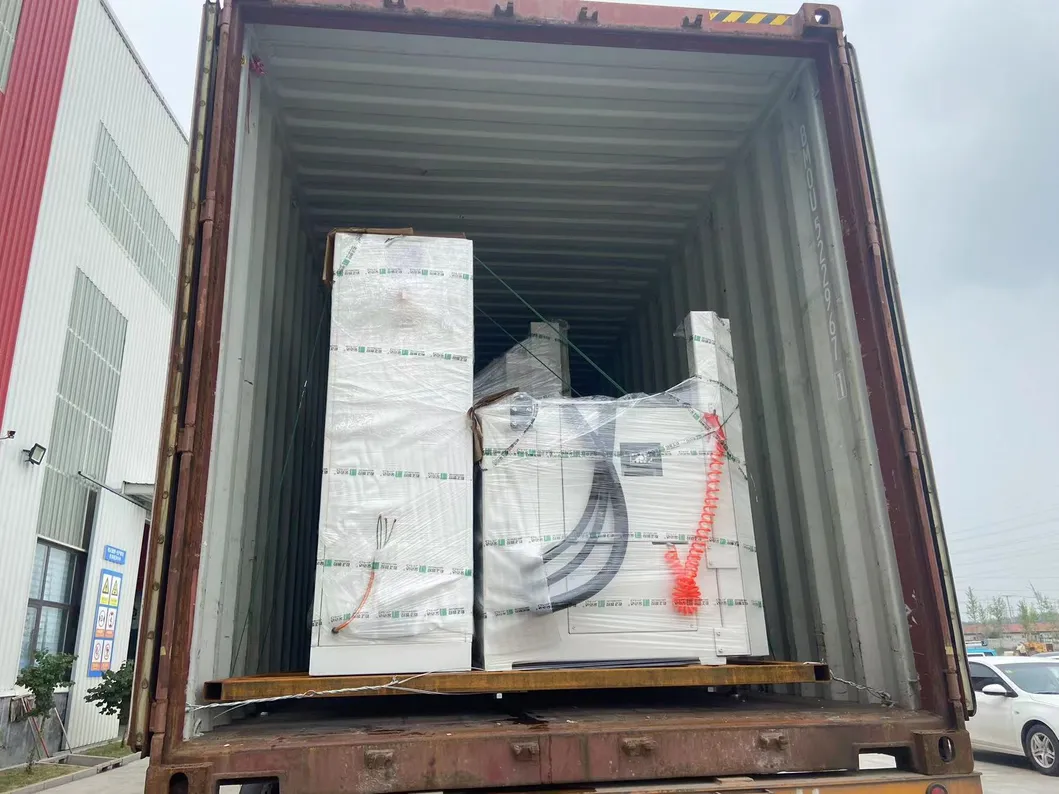

Packaging & Delivery
Package Size
600.00cm * 185.00cm * 200.00cm
Packing Method
Wooden Case or Steel Pallet
Frequently Asked Questions
What is the maximum cutting length of this machine?
The CNC Aluminum Cutting Machine supports a wide cutting range with a maximum length of up to 4200mm.
What angles can the machine cut?
The machine is designed to perform precise cuts at both 90° and 45° angles.
Is the machine fully automatic?
This model is a CNC Semi-Automatic machine, featuring an imported digital control system for high-precision operations.
What type of power supply is required?
The standard power supply requirement for this equipment is 380V, 3-Phase, at 50Hz.
What materials can be processed with this equipment?
It is specifically optimized for aluminum cutting, ideal for manufacturing aluminum window and door profiles.
Does the machine come with certifications?
Yes, the machine meets international standards and carries ISO and CE certifications.
