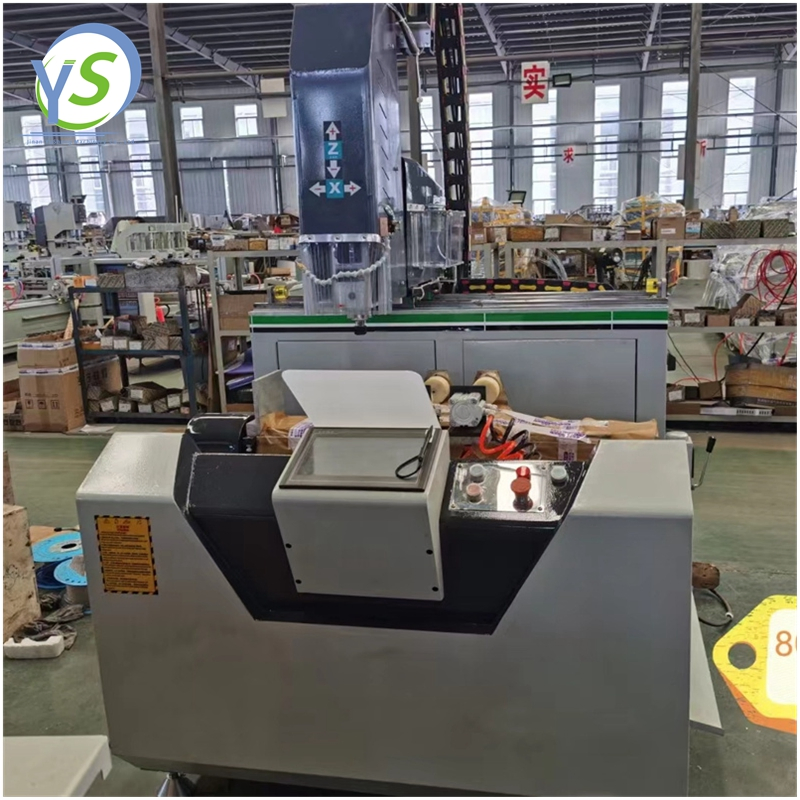

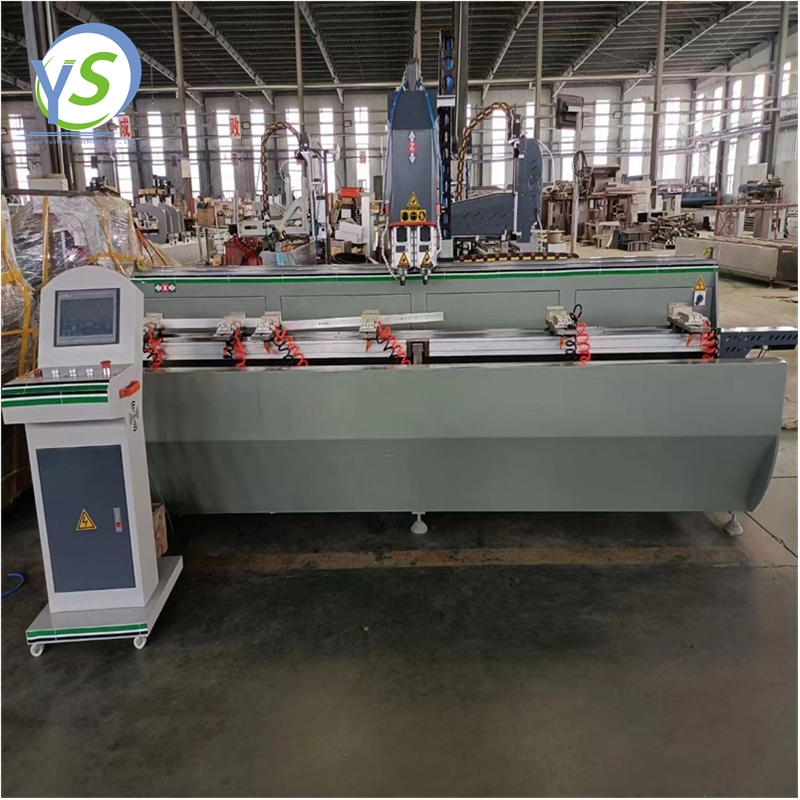

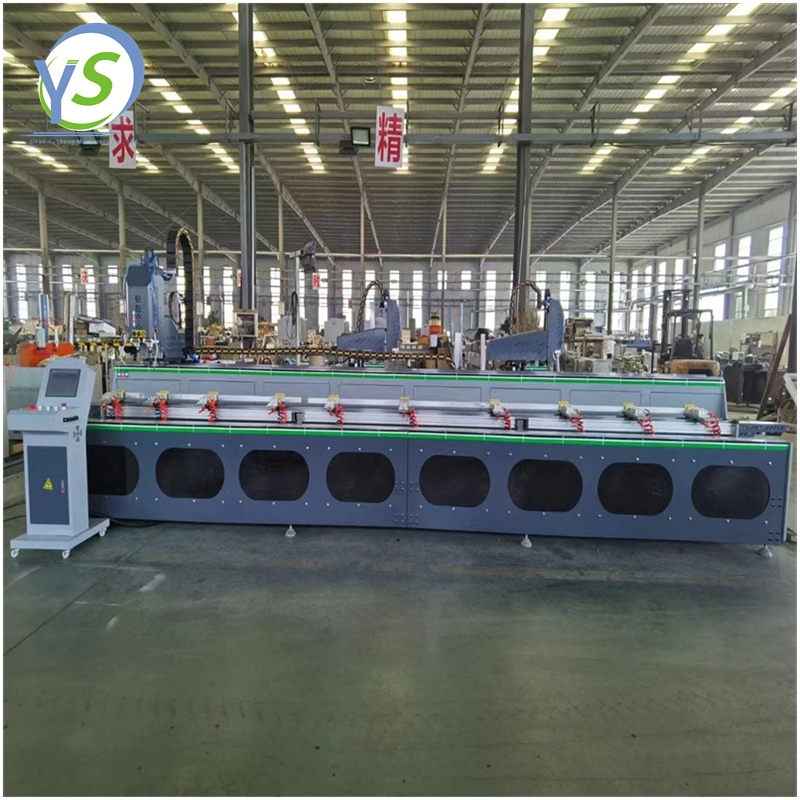

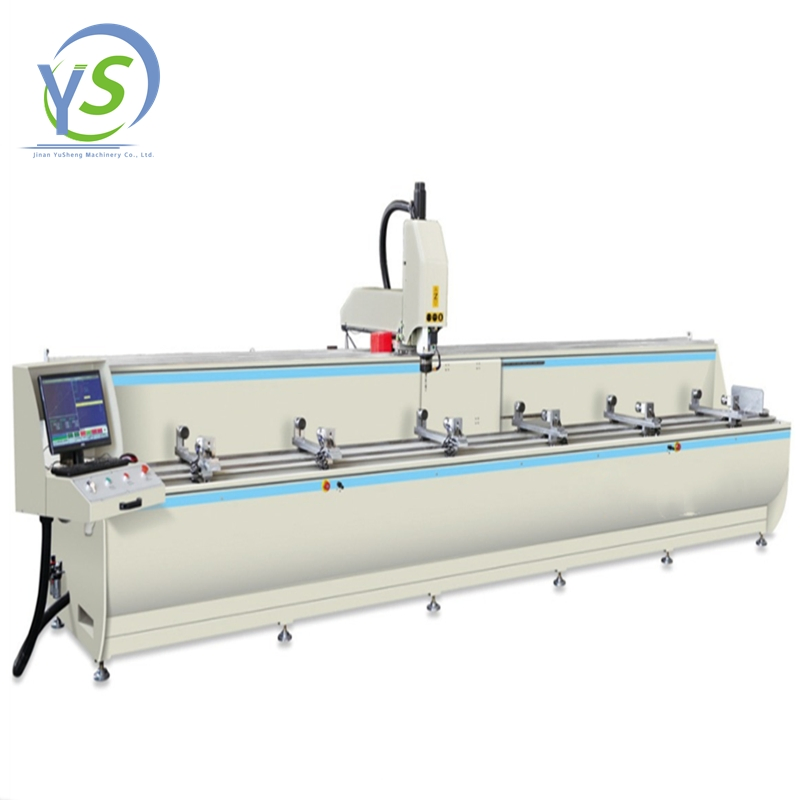

Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
1 / 5
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center
Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center

Window Door Lock Hole Making Equipment Aluminium Alloy CNC 3-Axis Drilling and Milling Machining Center

Customization: Available
After-sales Service: Free Online Technical Support
Warranty: 12 Months
Send Inquiry

Product Description

📊 Basic Info.
Model NO.CNC-600/800/1200/1500/3000
ConditionNew
CertificationISO, CE
Automatic GradeAutomatic
CNC or NotCNC
Voltage380V
Weight1000kg
X Y Z Working Speed0-10m/Min
X Axis Travel3000mm
Y Axis Travel500mm
Z Axis Travel380mm
Power3 Kw
Package Size120.00cm * 120.00cm * 220.00cm
Gross Weight800.000kg
🛠️ Product Description
CNC High-Precision Aluminum UPVC/PVC Drilling Milling Machine
Aluminium CNC Machining Center
  • Designed for processing round holes, slots, keyholes on aluminum profiles, window-doors, and curtain wall industries.
  • Equipped with air-cooling electric main axis, 3kW power, 0~18000r/min for high precision and safety.
  • Automatic G code transformation for easy operation and lower labor intensity.
  • Imported guide rails and high precision oblique gear/rack driving for X-axis; high precision ball screw for Y/Z axes.
  • Worktable overturns (180°-90°~0°~+90°), allowing three-face processing with a single clamping.
  • Electric pump oil supply system and spray cooling device for cutting tools.
📸 Detailed Photos

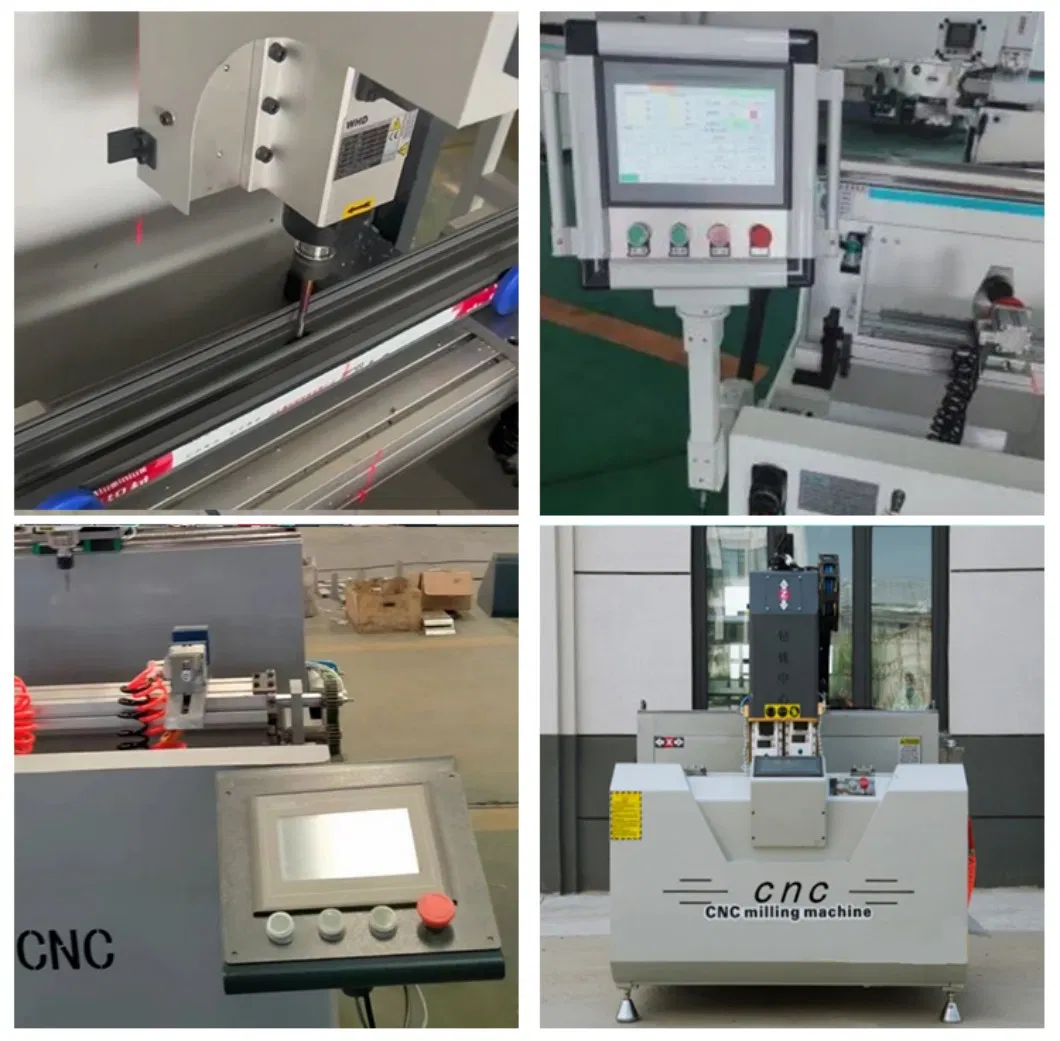

Machine Detail View
📋 Product Parameters
Parameter Specification
ModelCNC-1200
Voltage380V 50HZ (Customizable)
Power3 KW
Working Pressure0.6 ~ 0.8mpa
X Y Z Working Speed0-10m/min
X Axis Travel3000mm
Y Axis Travel500mm
Z Axis Travel380mm
Worktable Angle180°-90°~0°~+90°
Dimensions2300x1500x1950mm
Weight1000 kg
⚙️ Processing Flow Chart

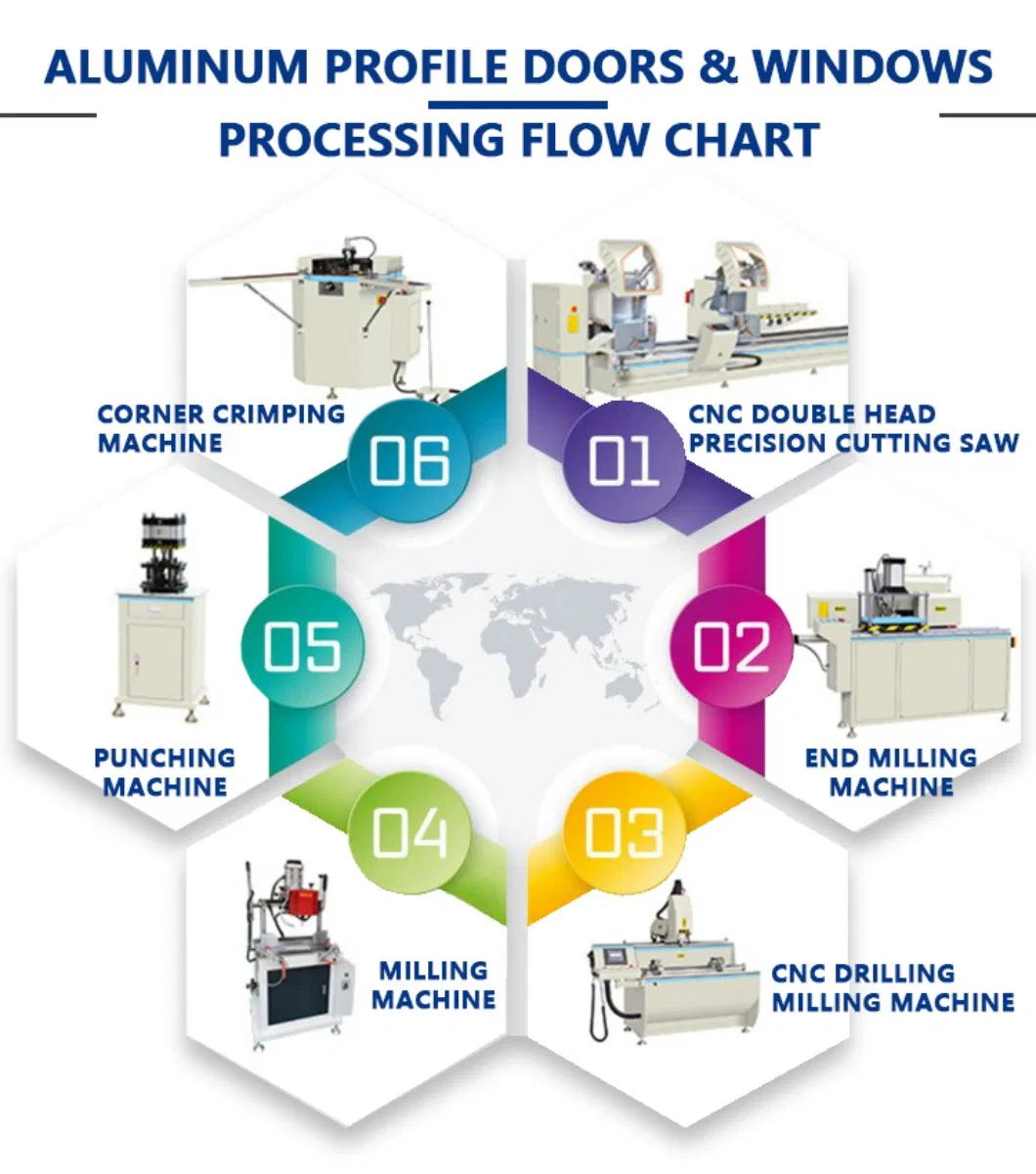

Processing Flow Chart 1
Processing Flow Chart 2
🏢 Technical Capability

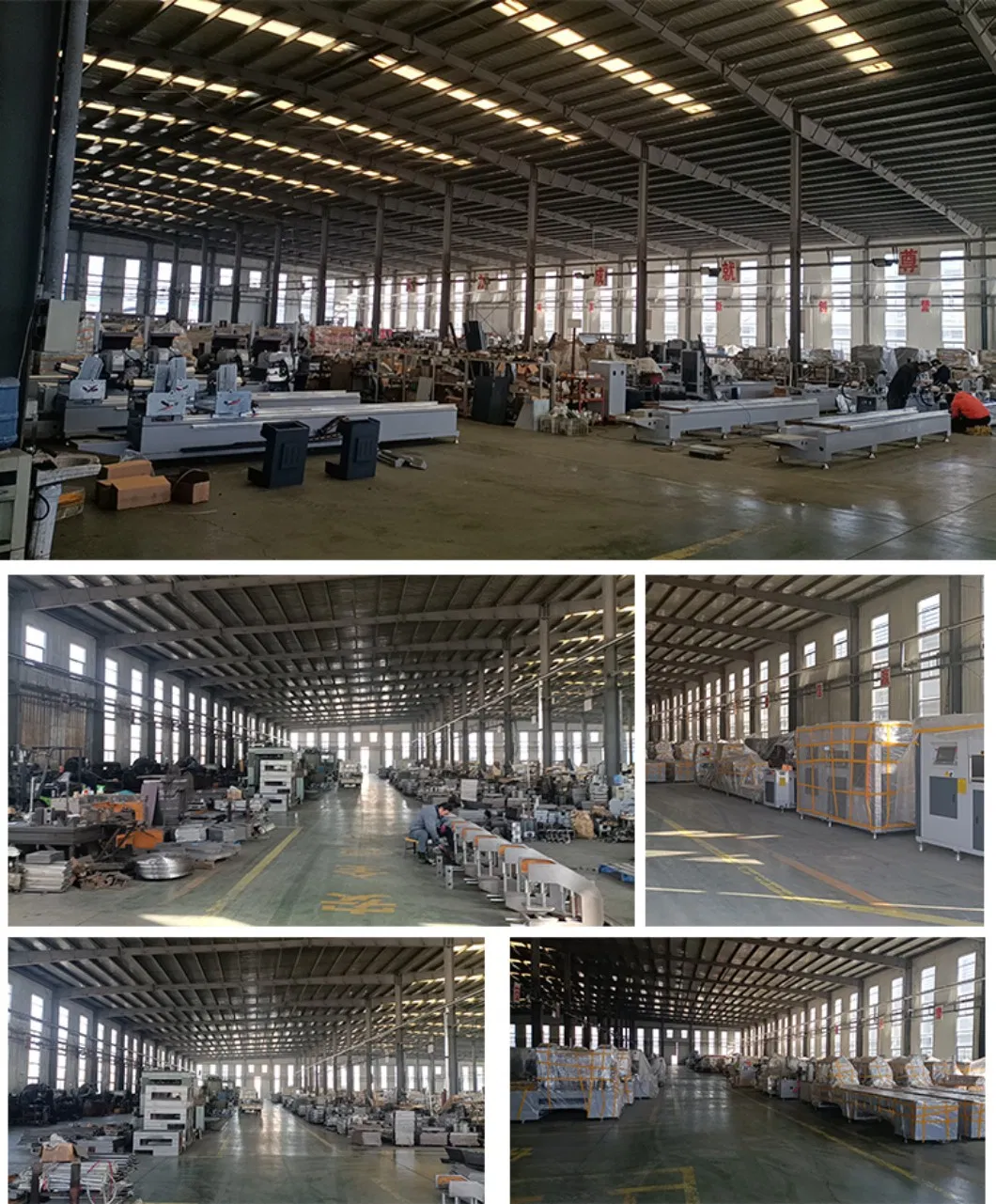

Factory Workshop

Our team consists of experienced experts dedicated to cutting-edge technology for aluminum profiles, windows, and curtain wall equipment. We operate a large mechanical processing workshop with complete functions, integrating research, development, production, and service to provide energy-saving assembly solutions. Products cover industrial profiles, rail transit, aerospace, and household appliances.

📜 Certifications
Certifications Display
🤝 Global Cooperation
Clients Support
Machine Applications
❓ FAQ
Are you a manufacturer or trading company?
We are the manufacturer with more than 10 years of factory experience. By producing machines ourselves, we ensure trusted quality and provide superior after-sales service.
Can the machine voltage be customized?
Yes, the voltage can be customized according to the client's local requirements if it differs from 380V/50HZ.
How long is the typical delivery time?
For standard machines, it takes 7-10 days. For non-standard or customized machines, the delivery time ranges from 15 to 30 days.
What is the payment process for an order?
We require a 30% prepayment to start production. Once the machine is ready, we provide photos/videos for you to confirm and pay the balance before shipment.
What kind of after-sales service do you provide?
We offer installation guidance, a 1-year warranty, and life-time maintenance. Our engineers speak English and can solve technical issues via email or WhatsApp quickly.
Which documents are provided after shipment?
We send all original documents via DHL, including the Packing List, Commercial Invoice, Bill of Lading (B/L), and other required certificates.
