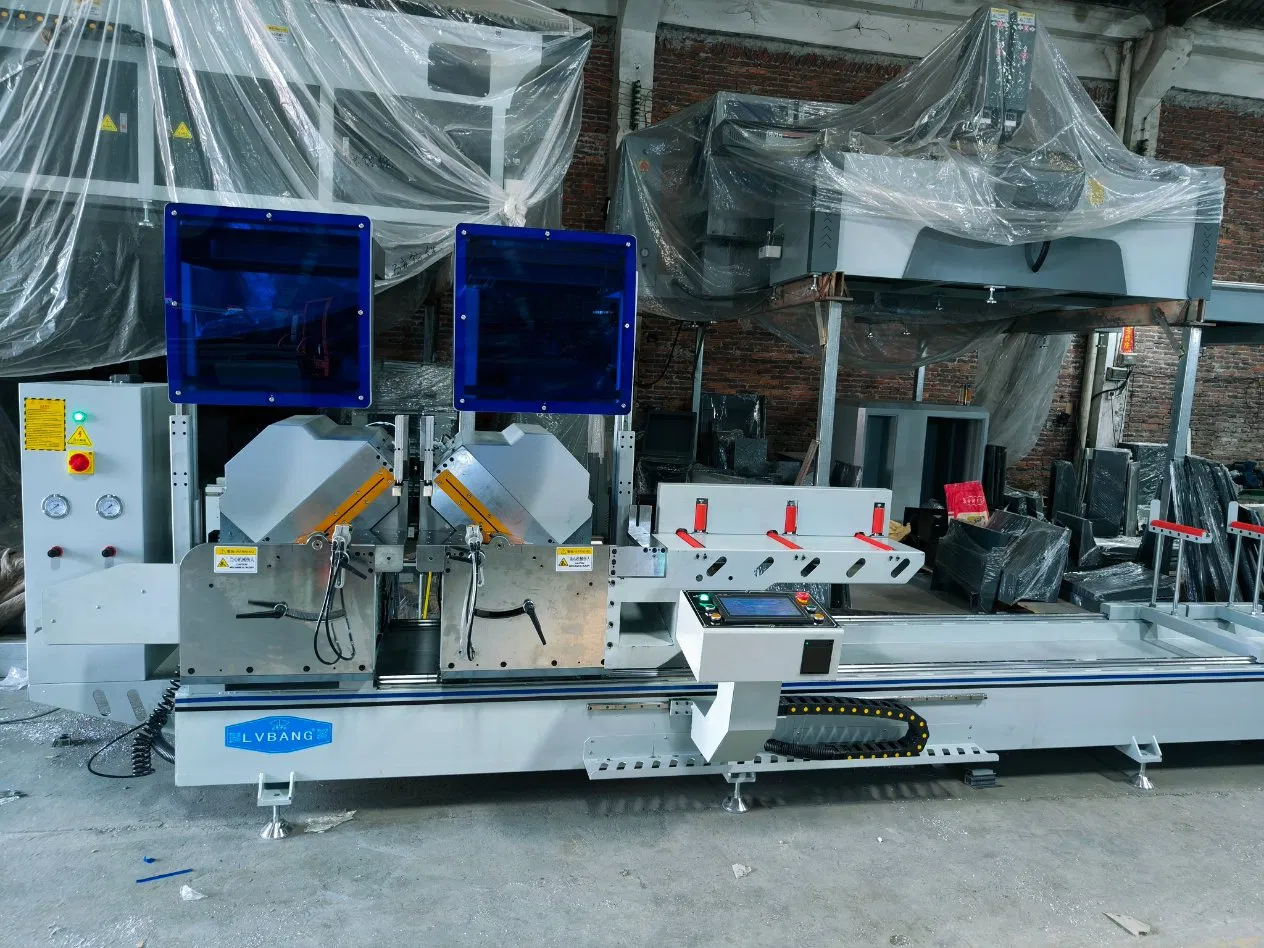

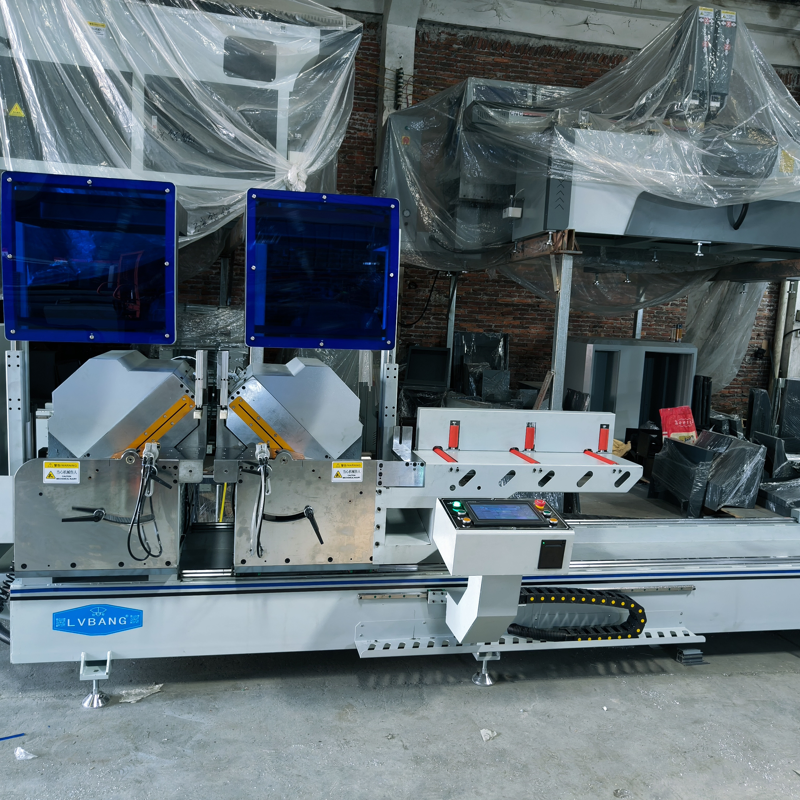

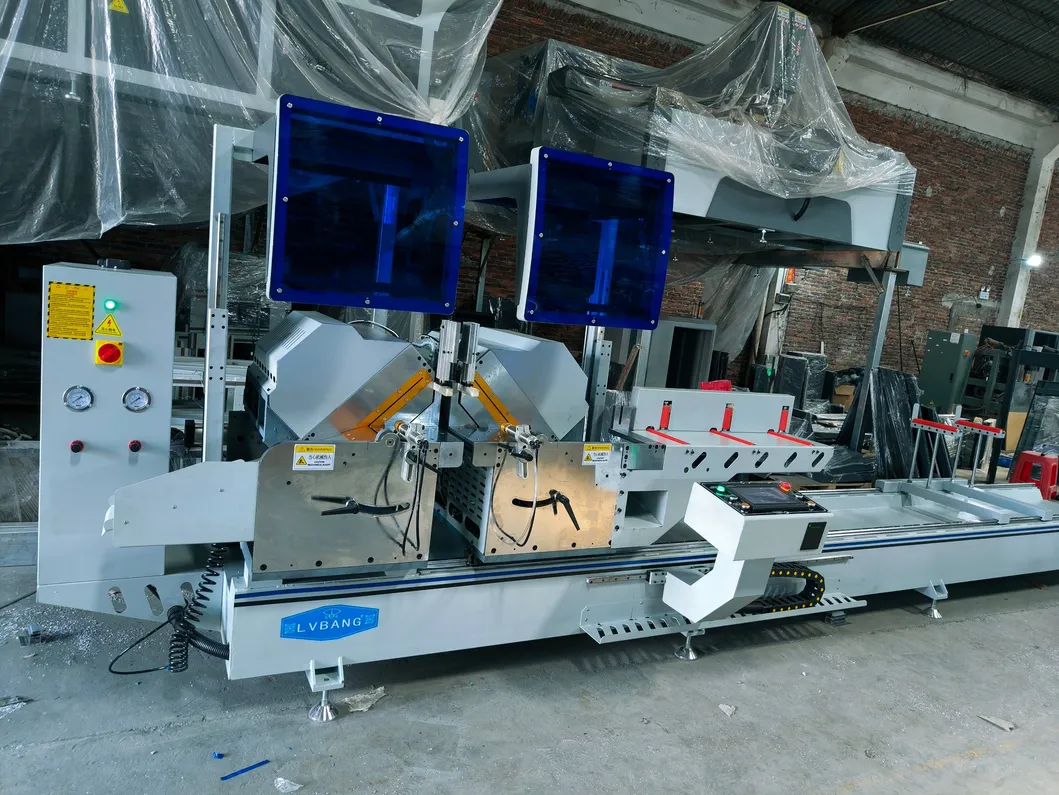

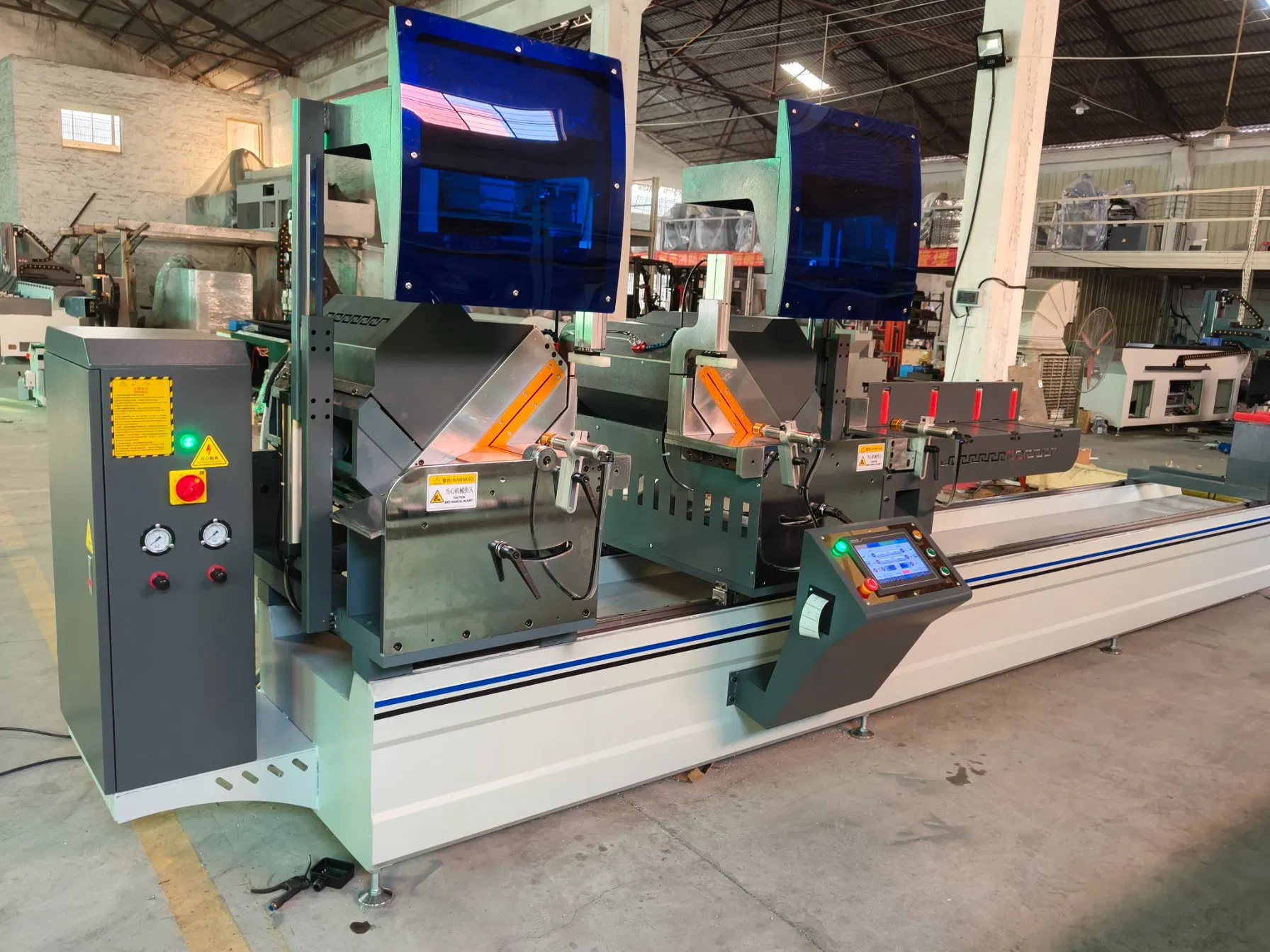

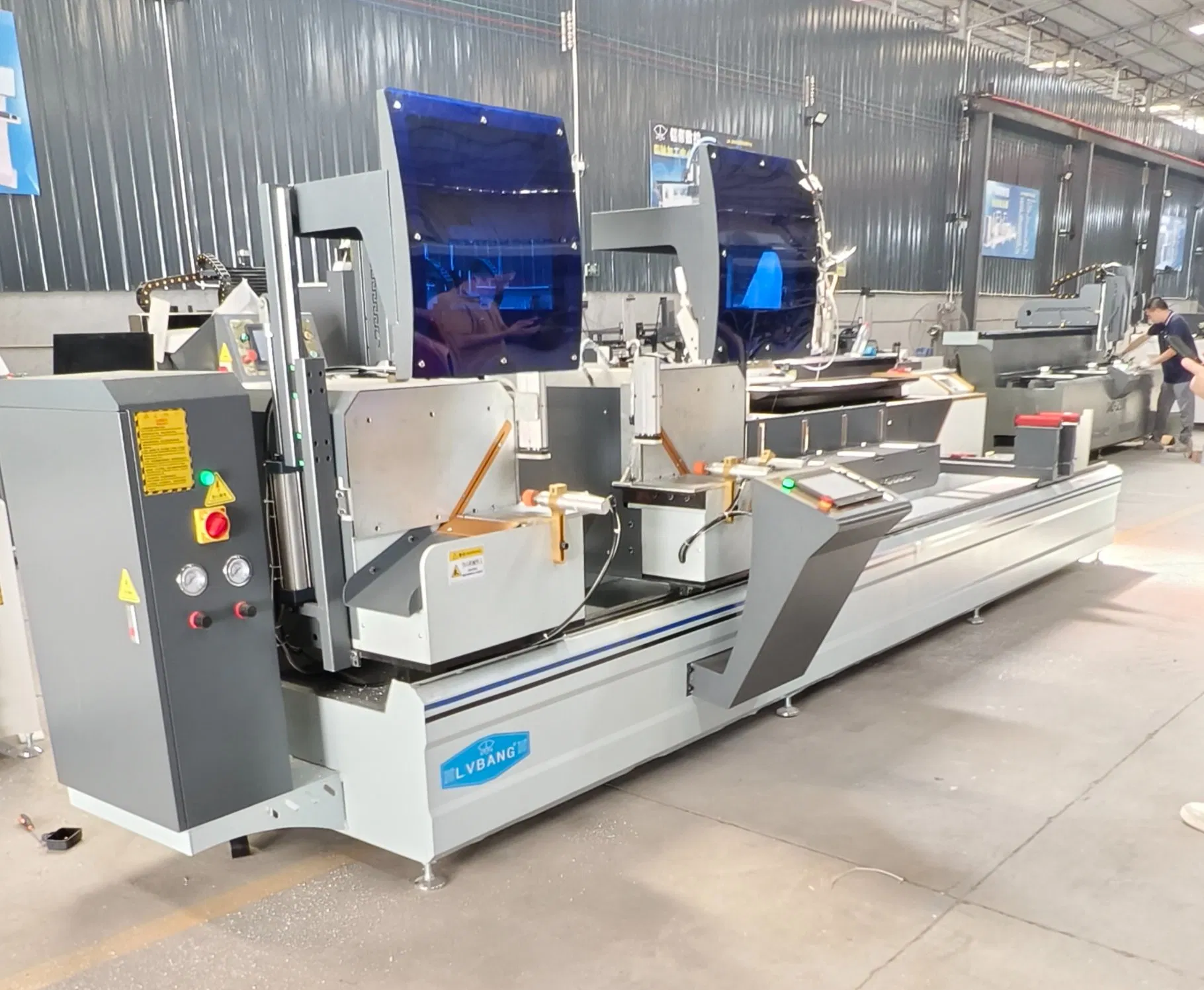

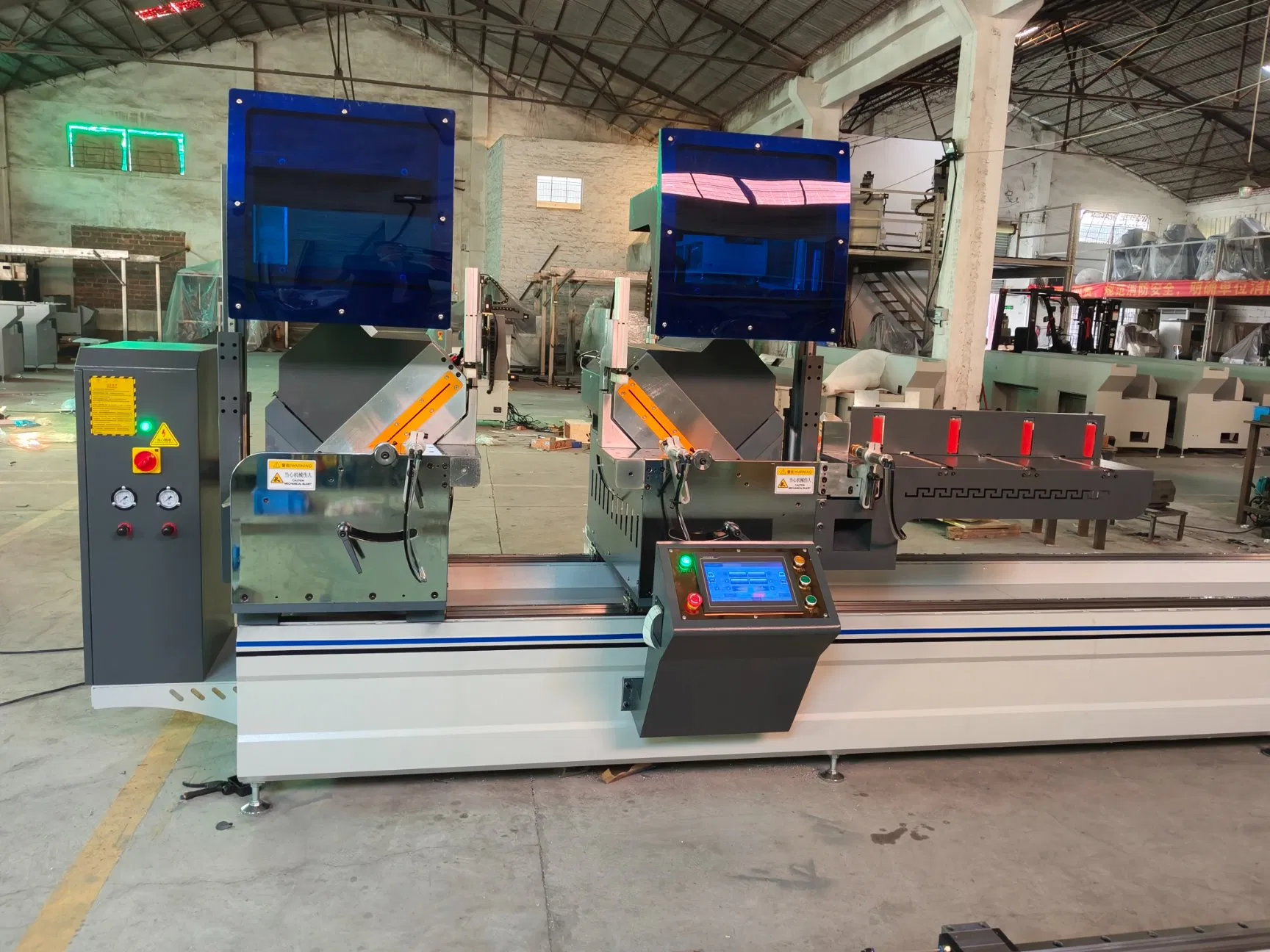

The LB-STJ550 dual-head CNC cutting machine is a high-performance equipment specifically engineered for aluminum profiles, doors, windows, and curtain walls. It delivers precision 45-degree angle cutting with exceptional speed and accuracy.
Key Features: Equipped with an intuitive CNC system, this machine allows for simultaneous dual-head cutting or independent single-head operation. It is designed to maximize production efficiency while maintaining reliable quality standards for high-end industrial applications.
| Model | LB-STJ450 / LB-STJ550 |
| Power Supply | 380V 50Hz |
| Input Power | 6Kw |
| Air Pressure | 0.5~0.8MPa |
| Spindle Speed | 2800r/min |
| X-axis Cutting Range | 4500mm |
| Shortest Cutting Range | 400mm |
| Saw Blade Specification | 550 mm |
| Cutting Angle | 45 Degrees |
| Weight (approx.) | 1200Kg - 1500Kg |

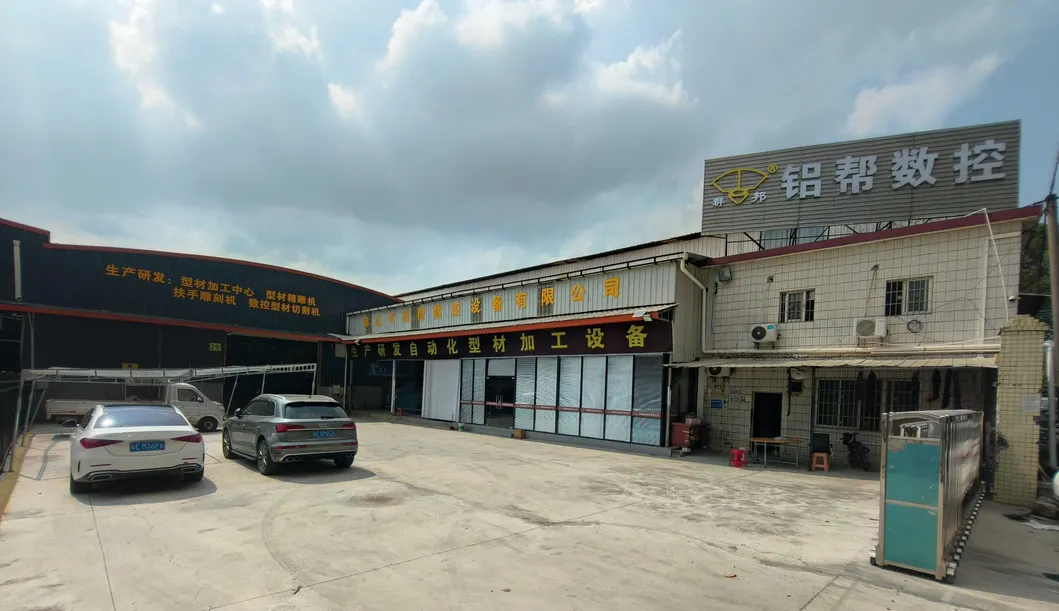

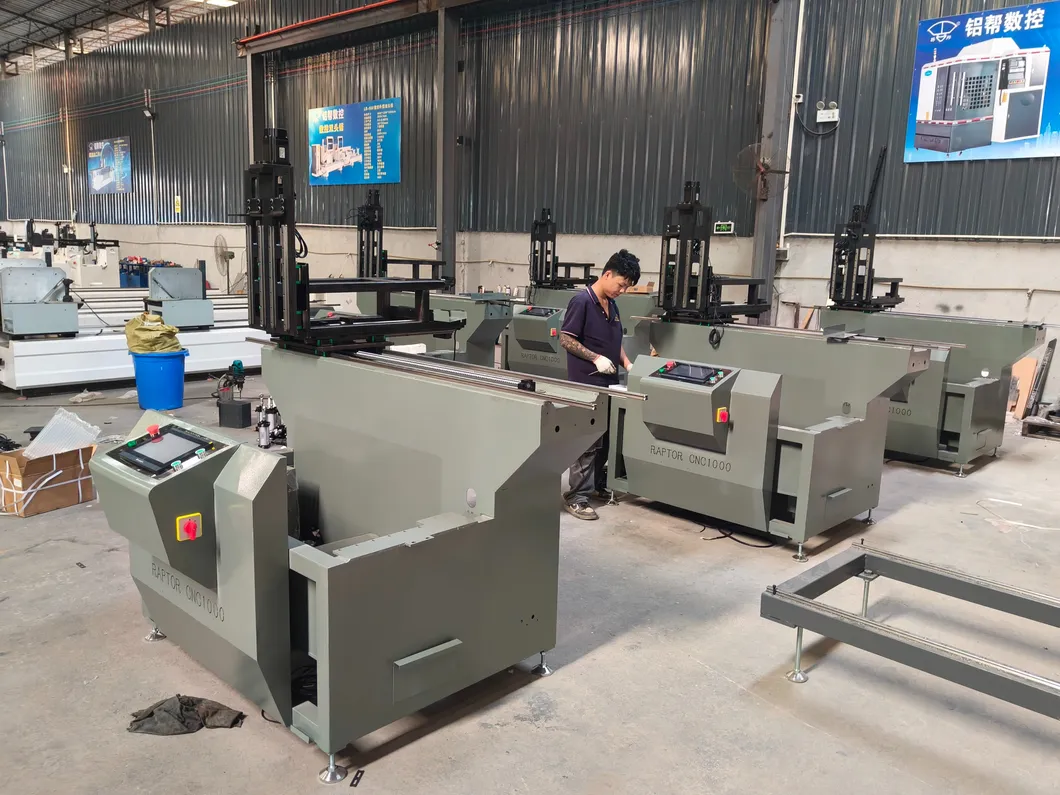

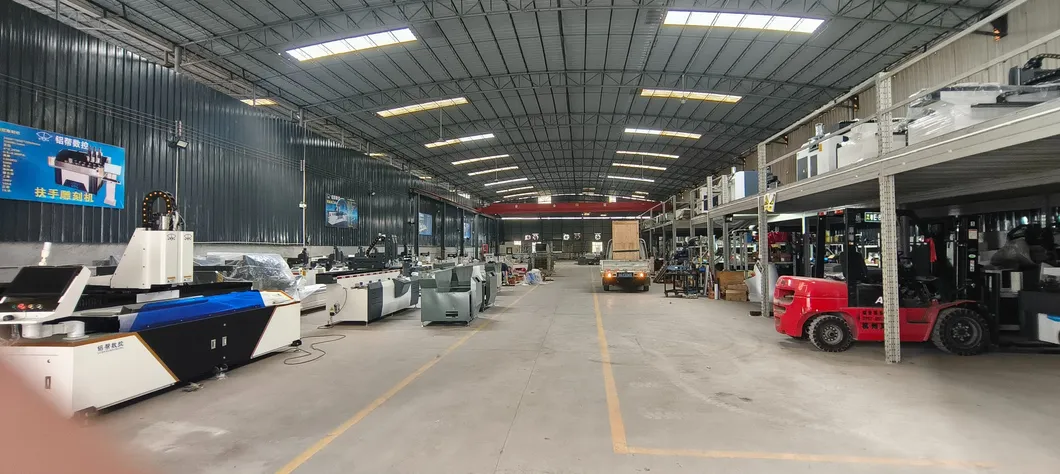

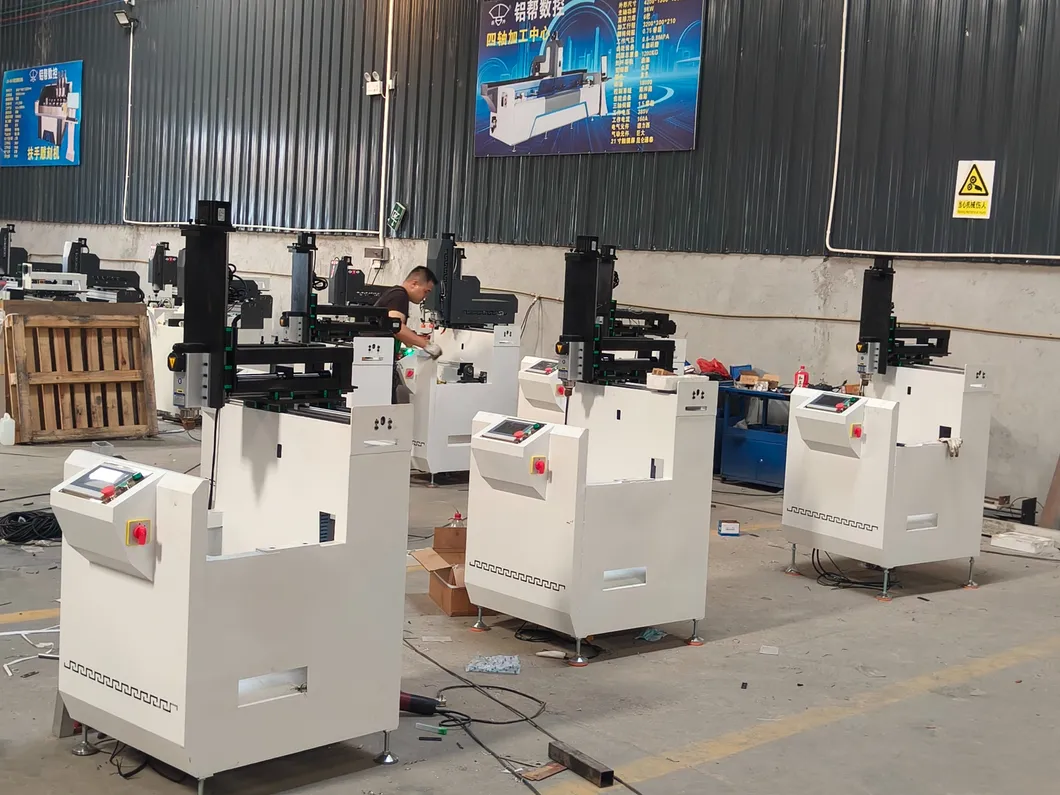

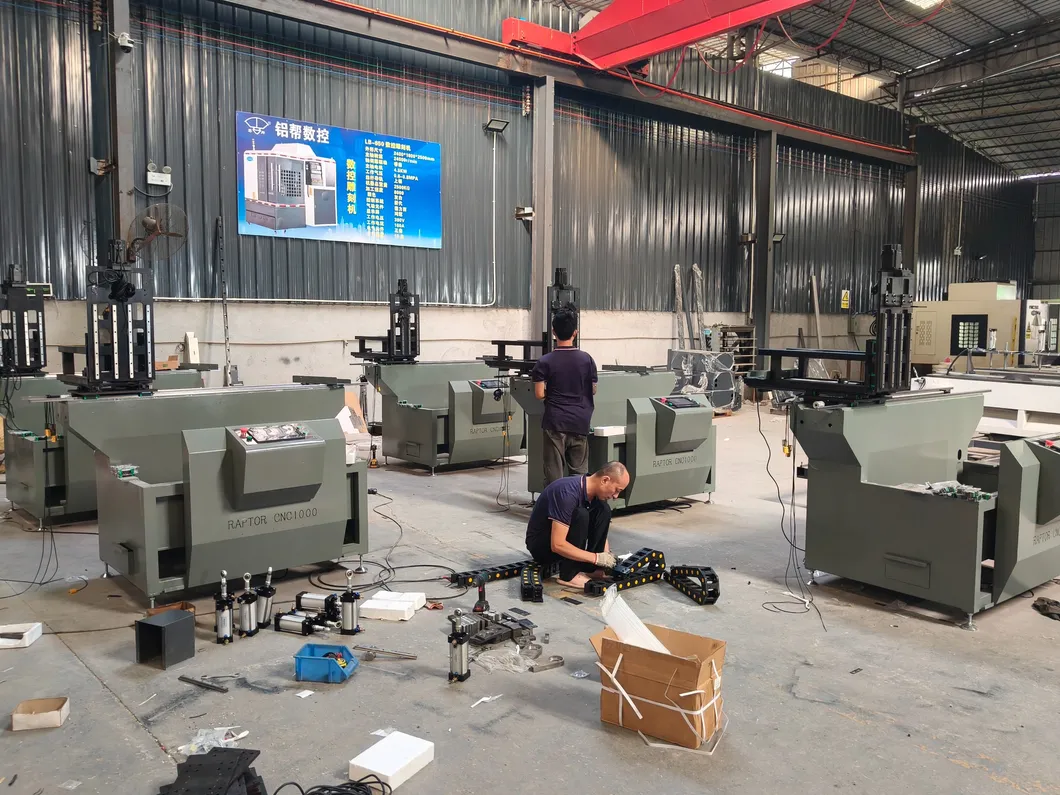

Our specialized facility focuses on cutting-edge technologies for energy-saving doors, windows, and curtain wall systems. We provide complete assembly solutions for aluminum profiles, plastic steel profiles, and high-end aluminum panels. With strong technical capabilities and strict production processes, we meet diverse processing needs, including customized mechanical equipment tailored to specific requirements.
