Product Description

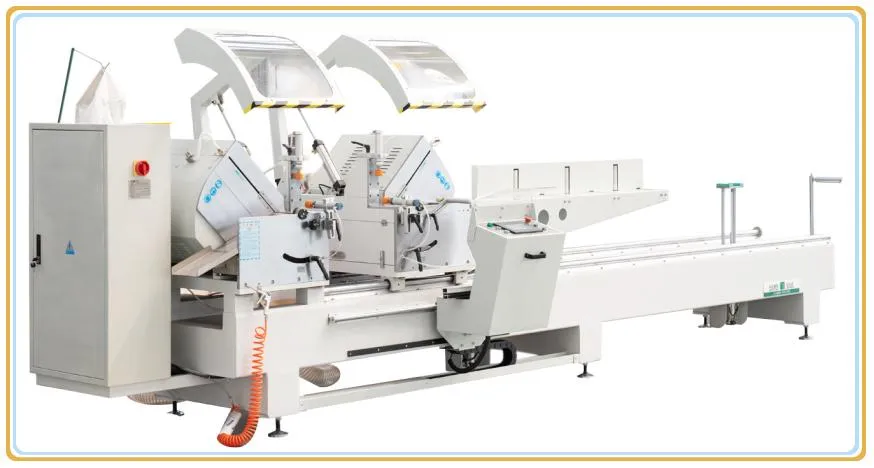

CNC Aluminium Cutting Machine
Model: LJJ2DS-500*4200
1. Machine Introduction

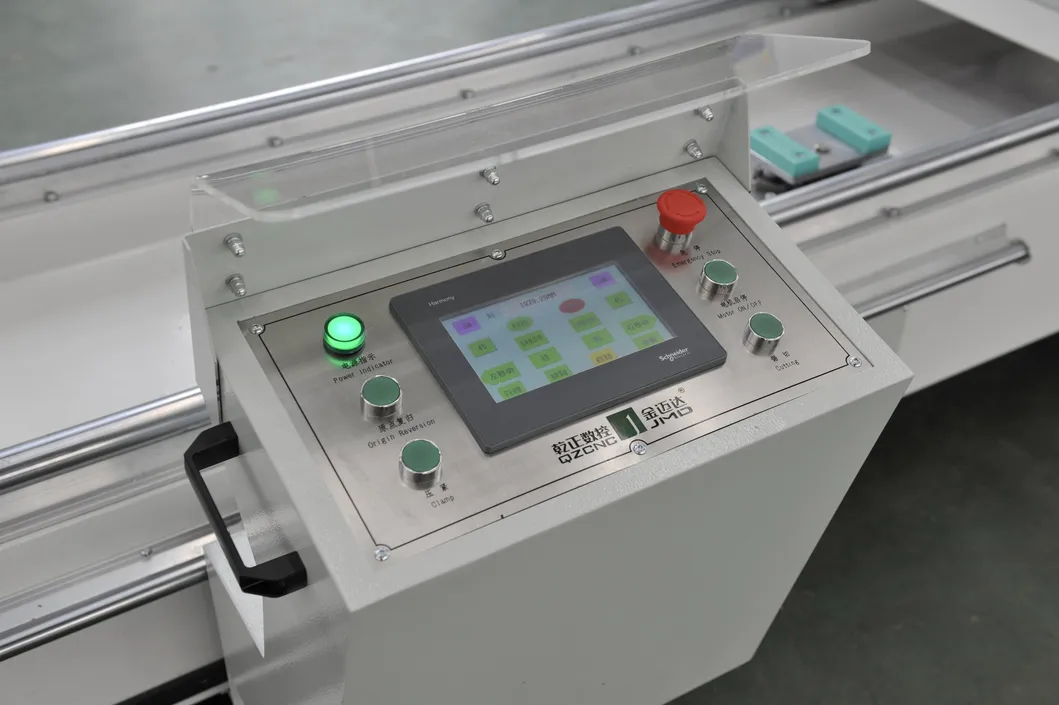

- The imported digital control system ensures the precise cutting size.
- The imported ball screw rod drives the machine to move horizontally with precise repeat orientation.
- Continuous cutting realization via preset programming with multiple data sets.
- Equipped with imported carbide saw blade and linear guide rail pair for cutting feed motion.
- Power feed driven by a hydraulic damping cylinder.
- Wide cutting range with a maximum length of 4200mm and angles of 90°/45°.
2. Technical Parameters
| Power Supply | 380V / 3 Phase / 50Hz |
| Input Power | 6kW |
| Air Pressure | 0.5~0.8Mpa |
| Saw Blade Rotating Speed | 2875r/min |
| Saw Blade Specification | 500*4.4*3.3*30*120p |
| Cutting Length | 320~4200mm |
| Max Cutting Width/Height | 135mm / 300mm |
| Overall Dimension | 5560*1750*1900mm |
| Weight | 1900Kg |

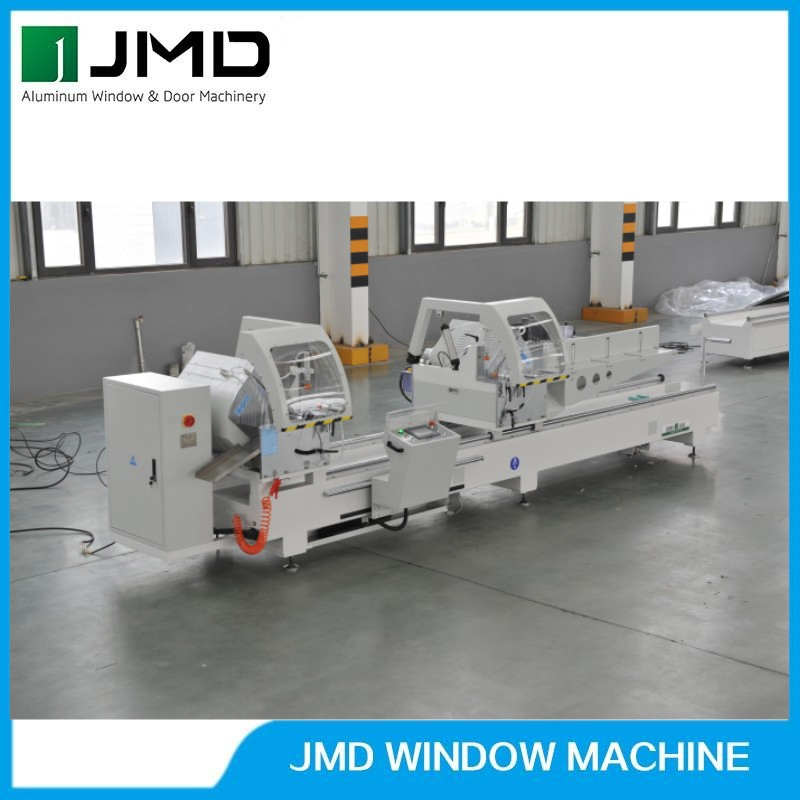

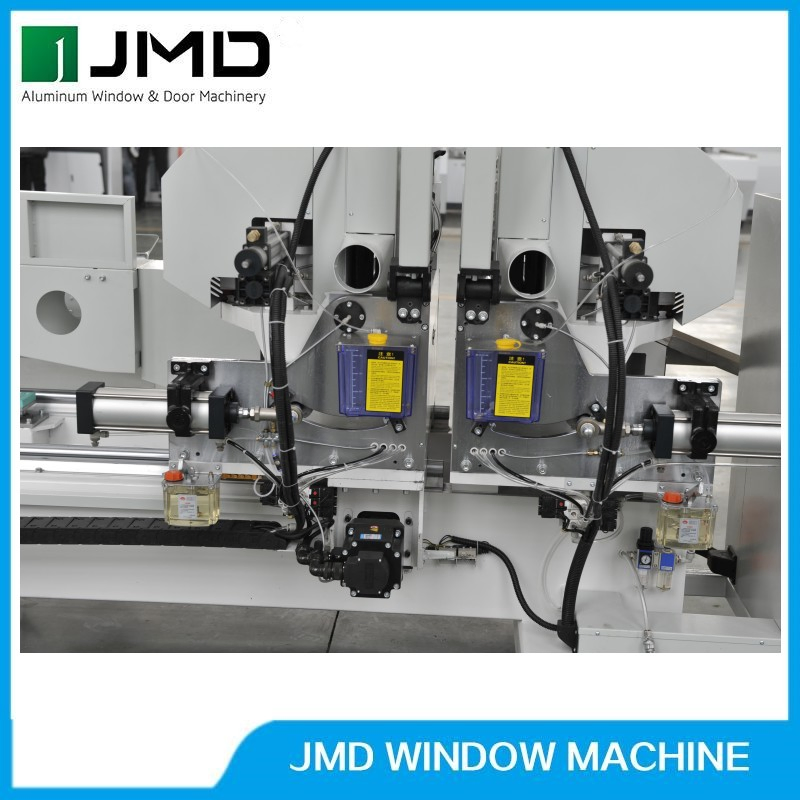

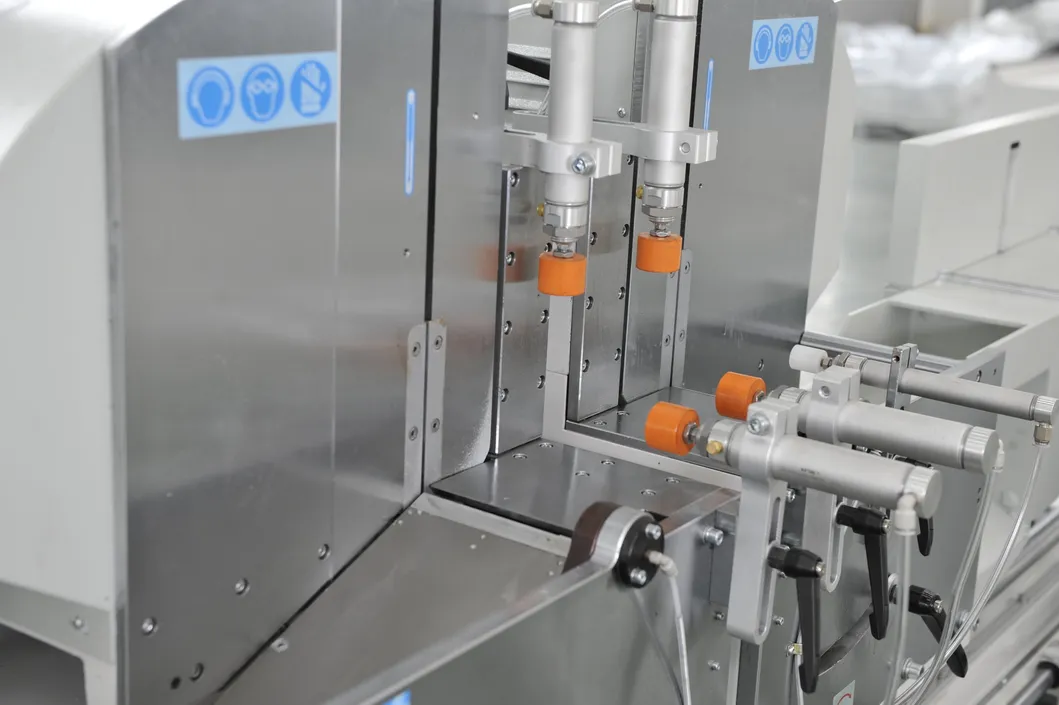

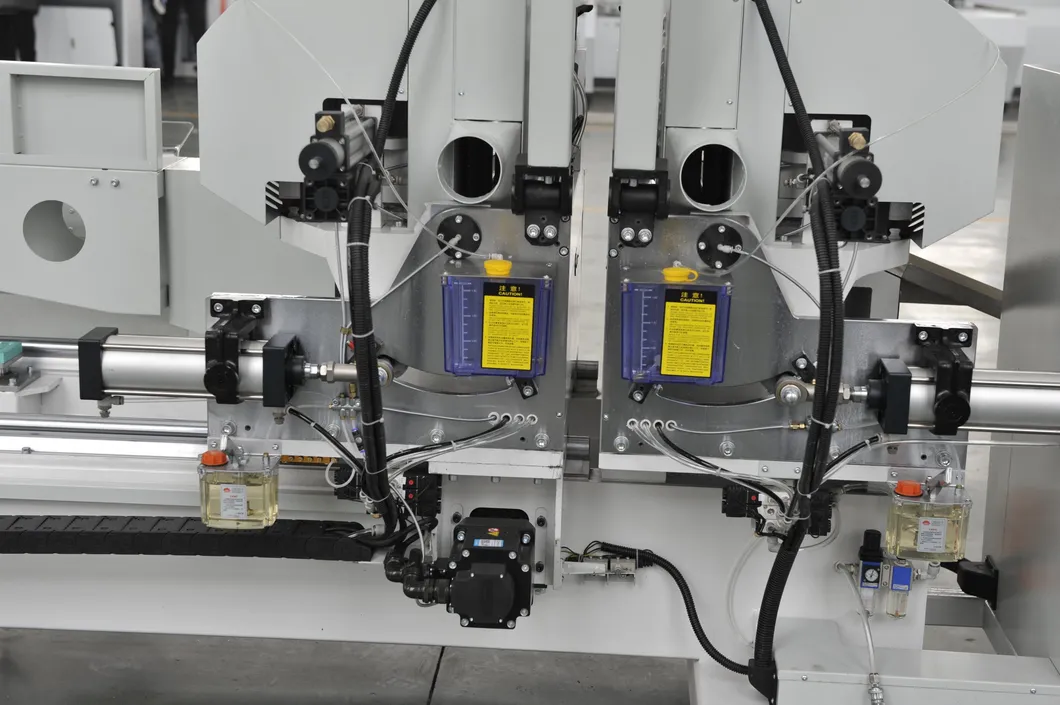

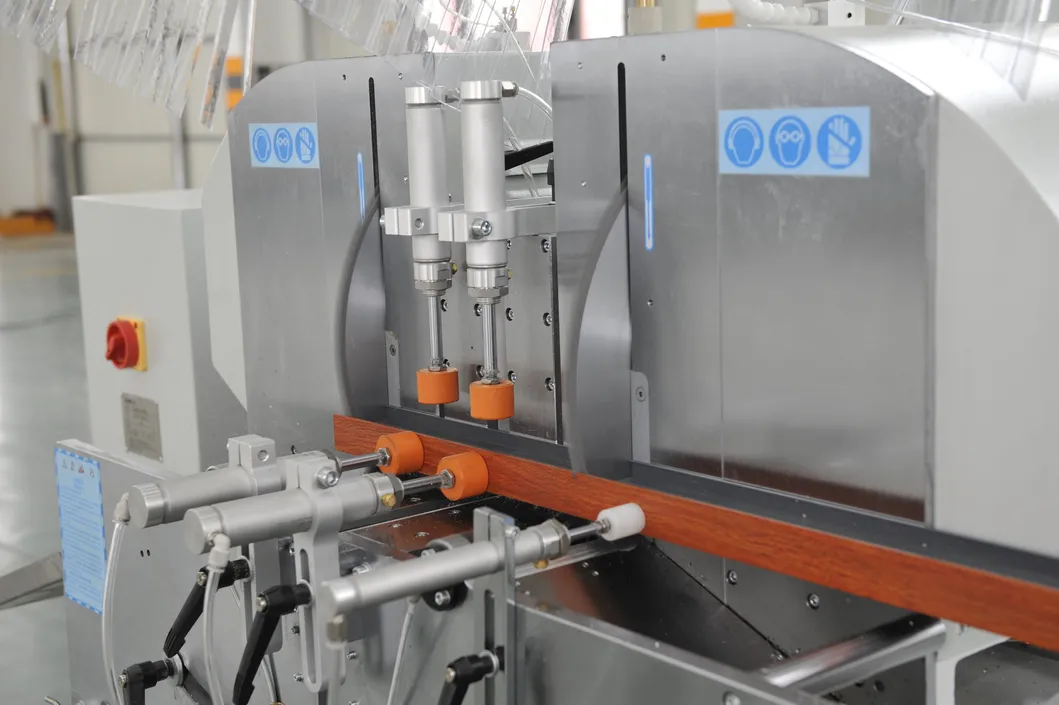

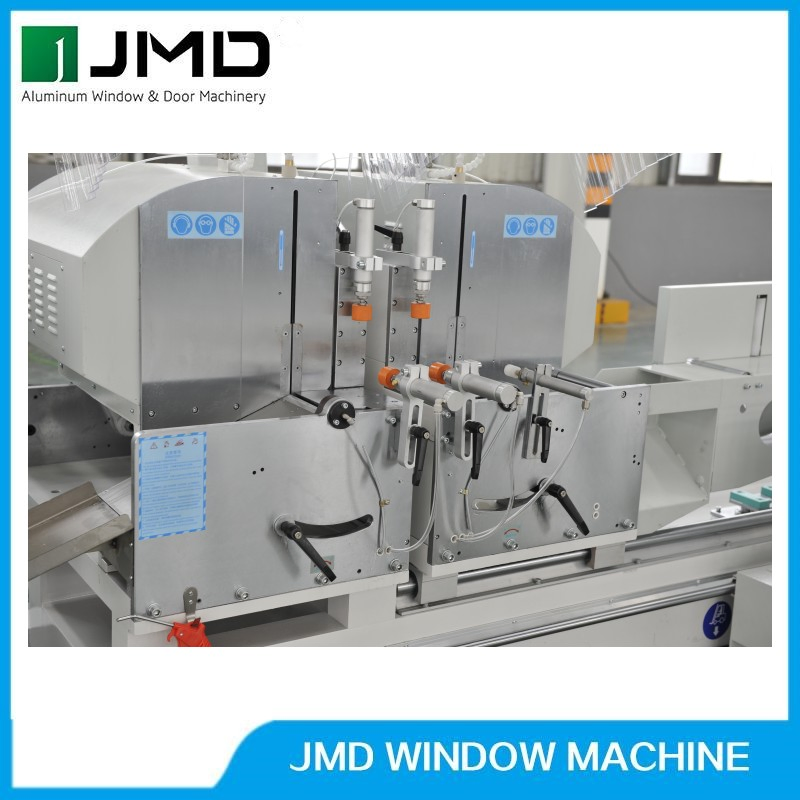

3. Detail Cutting Machine Photos

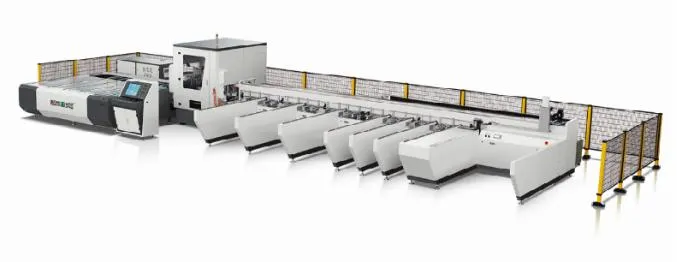

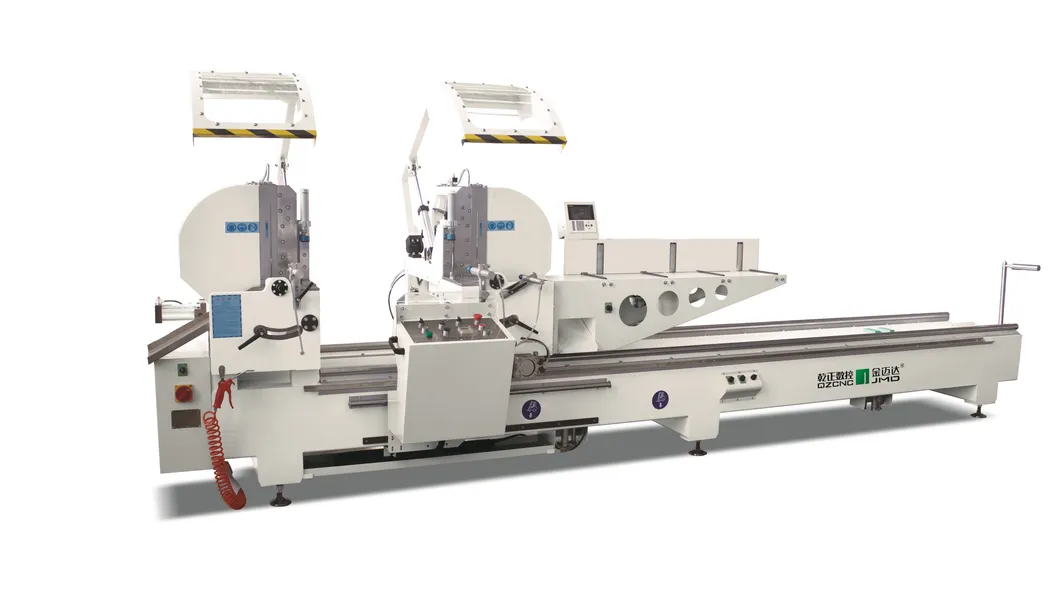

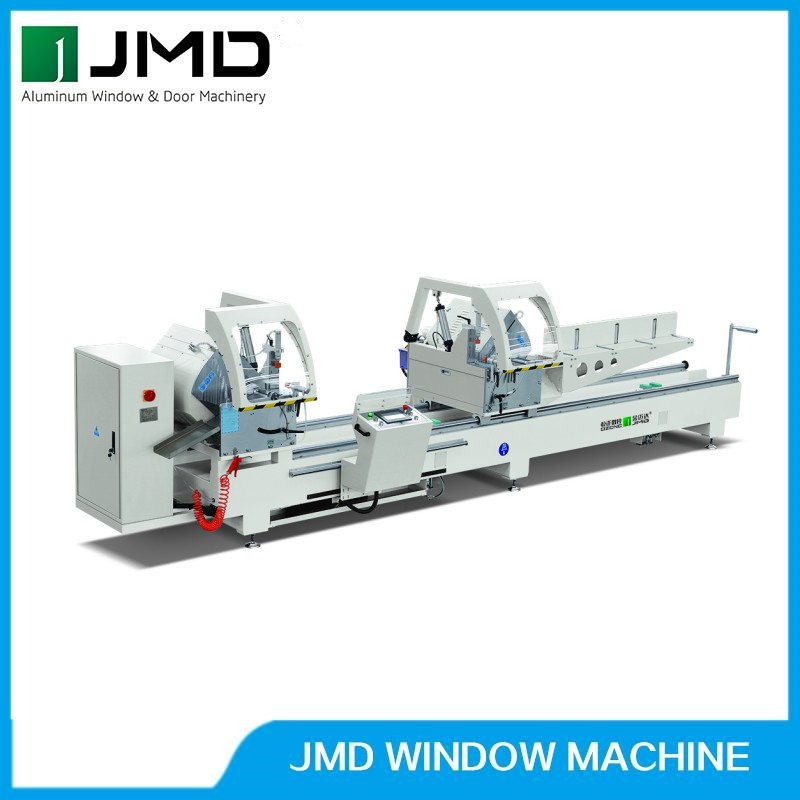

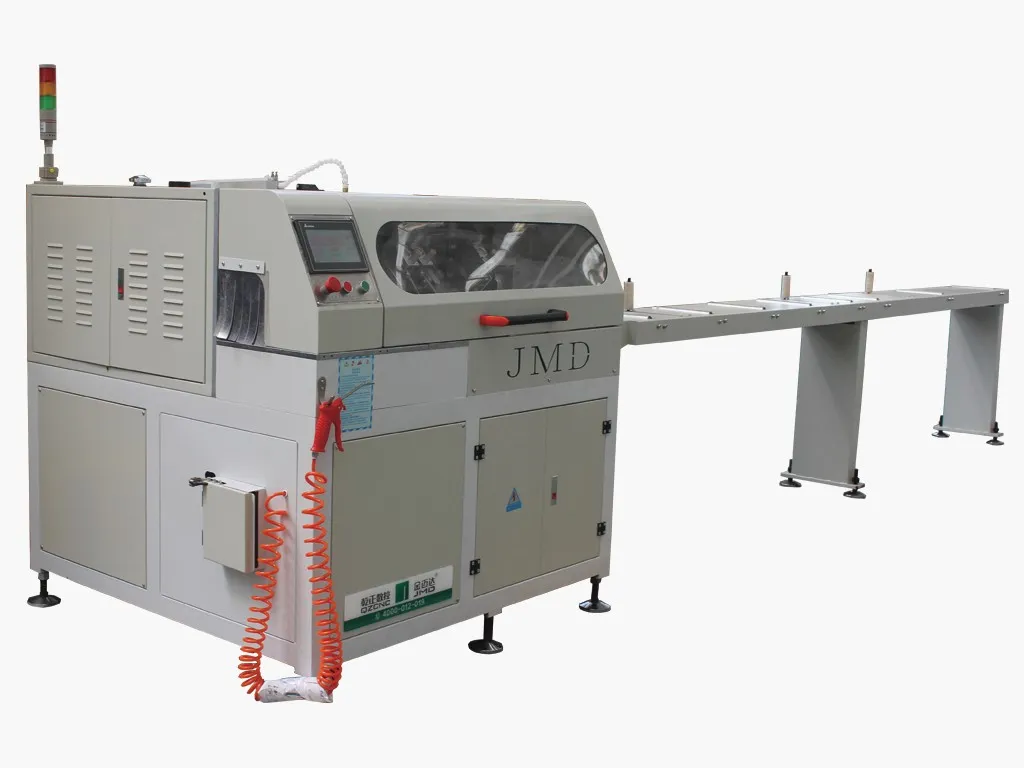

4. Associated Equipment

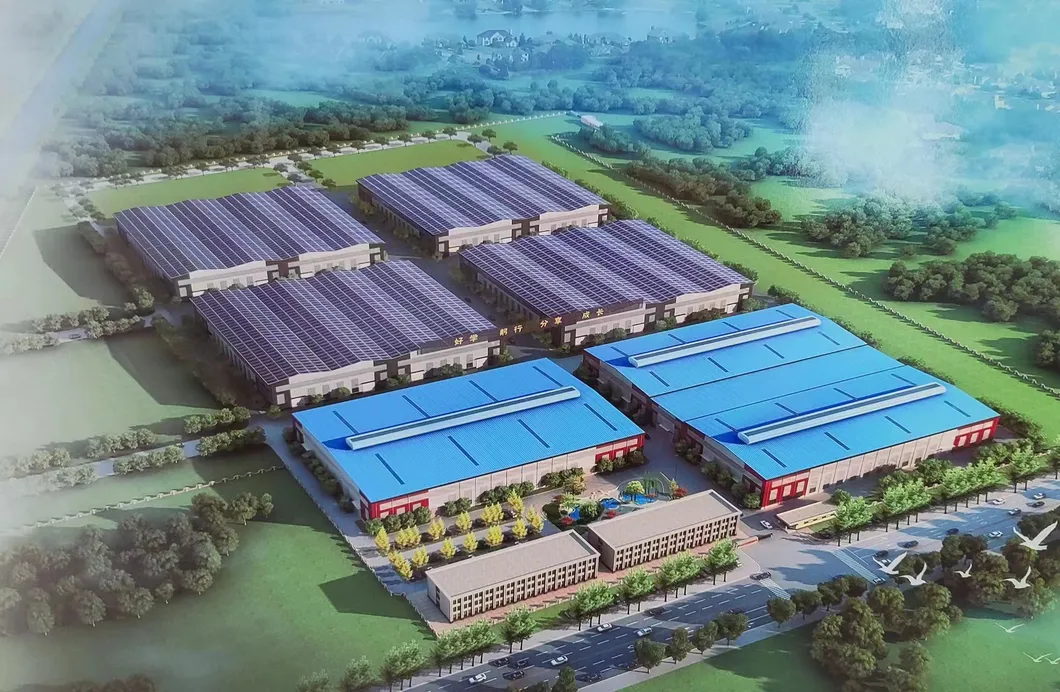

5. Manufacturing Facility & Team
Specializing in the design and manufacturing of aluminum and wood window & door machines. Since 1999, the focus has been on high-quality machining parts and complete equipment production including double mitre saws, corner crimping machines, and CNC profile cutting centers. With over 240 employees and 130 sets of sophisticated processing equipment (CNC centers, milling, grinding), we ensure first-class production standards.
6. Key Advantages
- Over 20 years of manufacturing experience in window and door machinery.
- Top-tier manufacturer in the industry.
- Professional team of over 230 specialists.
- Global export reach to more than 40 countries.
- Large scale production capacity exceeding 3000 sets per year.
- Certification compliance: BV, CAS, SGS, CE, etc.

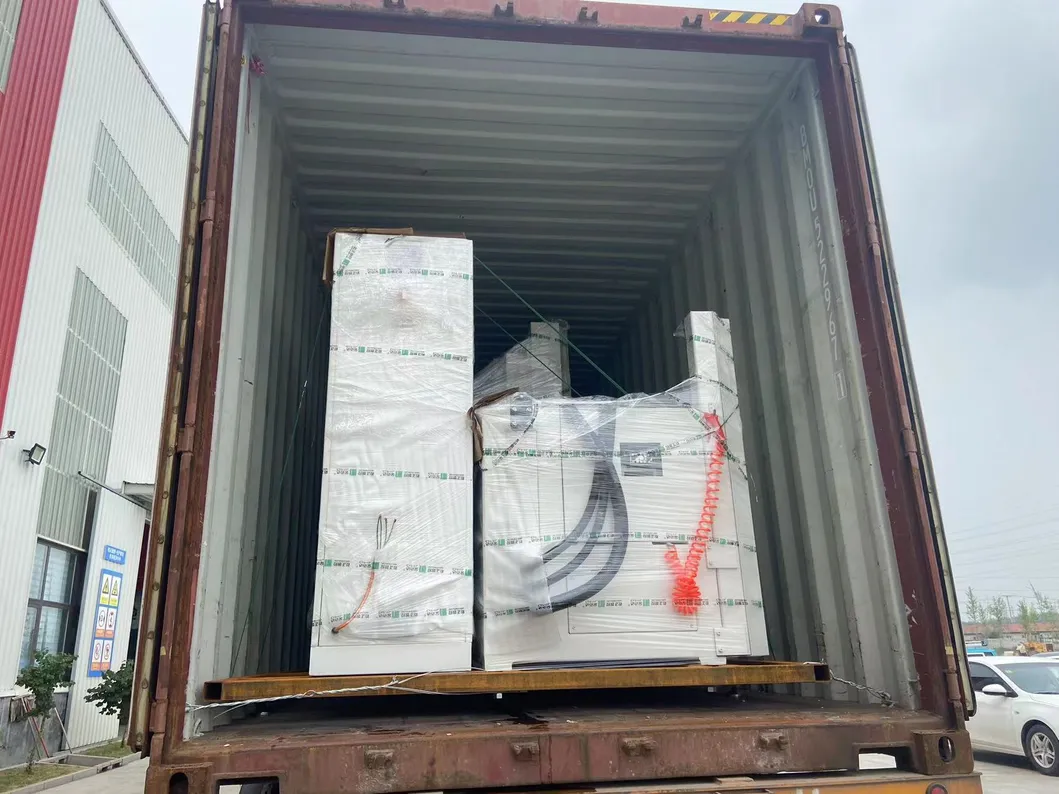

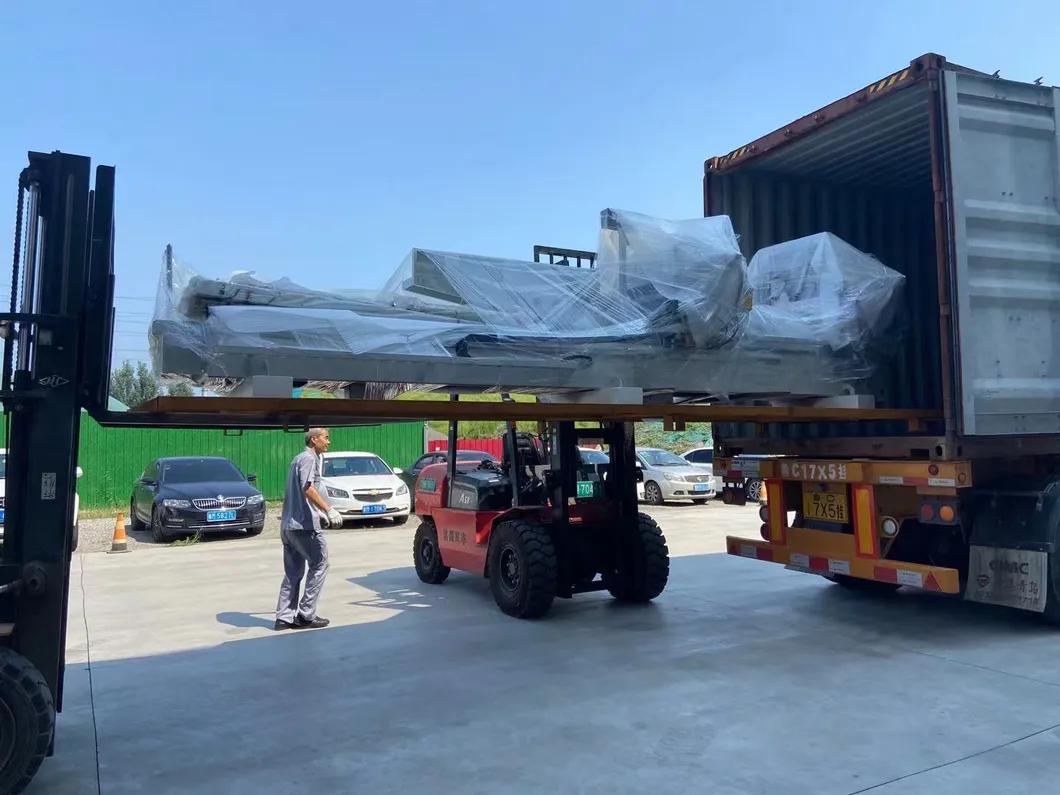

7. Packaging & Delivery
Package Size600cm * 185cm * 200cm
Gross Weight2000kg
Transport PackageWooden Case or Steel Pallet
Frequently Asked Questions (FAQ)
Q: What is the maximum cutting length and width for this machine?
A: The machine can cut lengths up to 4200mm, with a maximum cutting width of 135mm and height of 300mm.
Q: What cutting angles are supported by the LJJ2DS model?
A: This model supports high-precision cutting at both 45° and 90° angles.
Q: How does the digital control system benefit production?
A: The imported digital control system ensures extreme precision in sizing and allows for continuous cutting via preset programming, increasing efficiency and reducing waste.
Q: What kind of blades does the machine use?
A: It uses high-quality imported carbide saw blades with a 500mm diameter for clean and smooth aluminum profile cuts.
Q: Is the machine suitable for heavy-duty industrial use?
A: Yes, with a weight of 1.9 tons and a 6kW power system, it is designed for high-capacity production environments.
Q: What are the packaging options for international shipping?
A: The machine is typically packed in a professional wooden case or on a steel pallet to ensure safety during sea or land transport.
