Zhixing Machine
Zhixing Machine

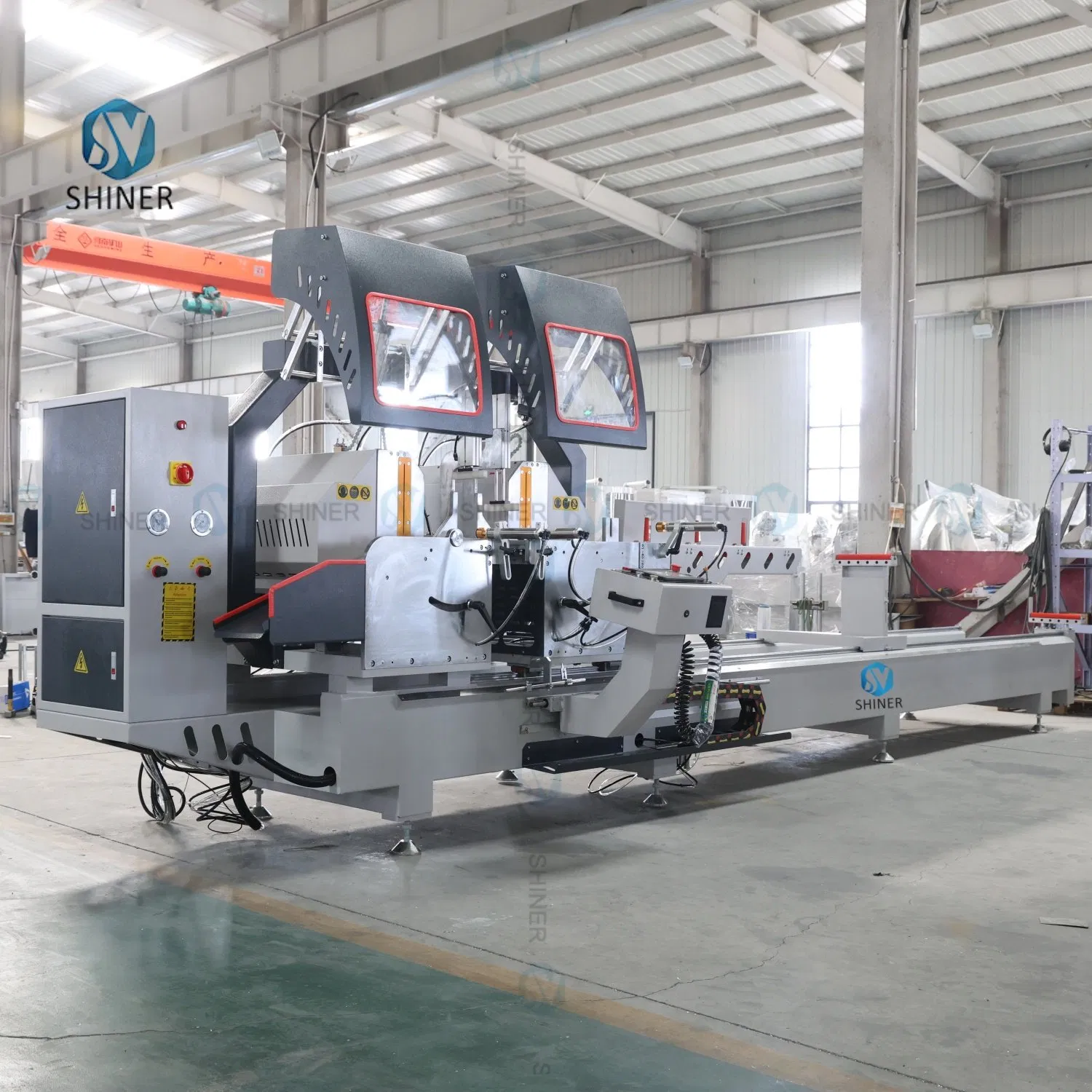

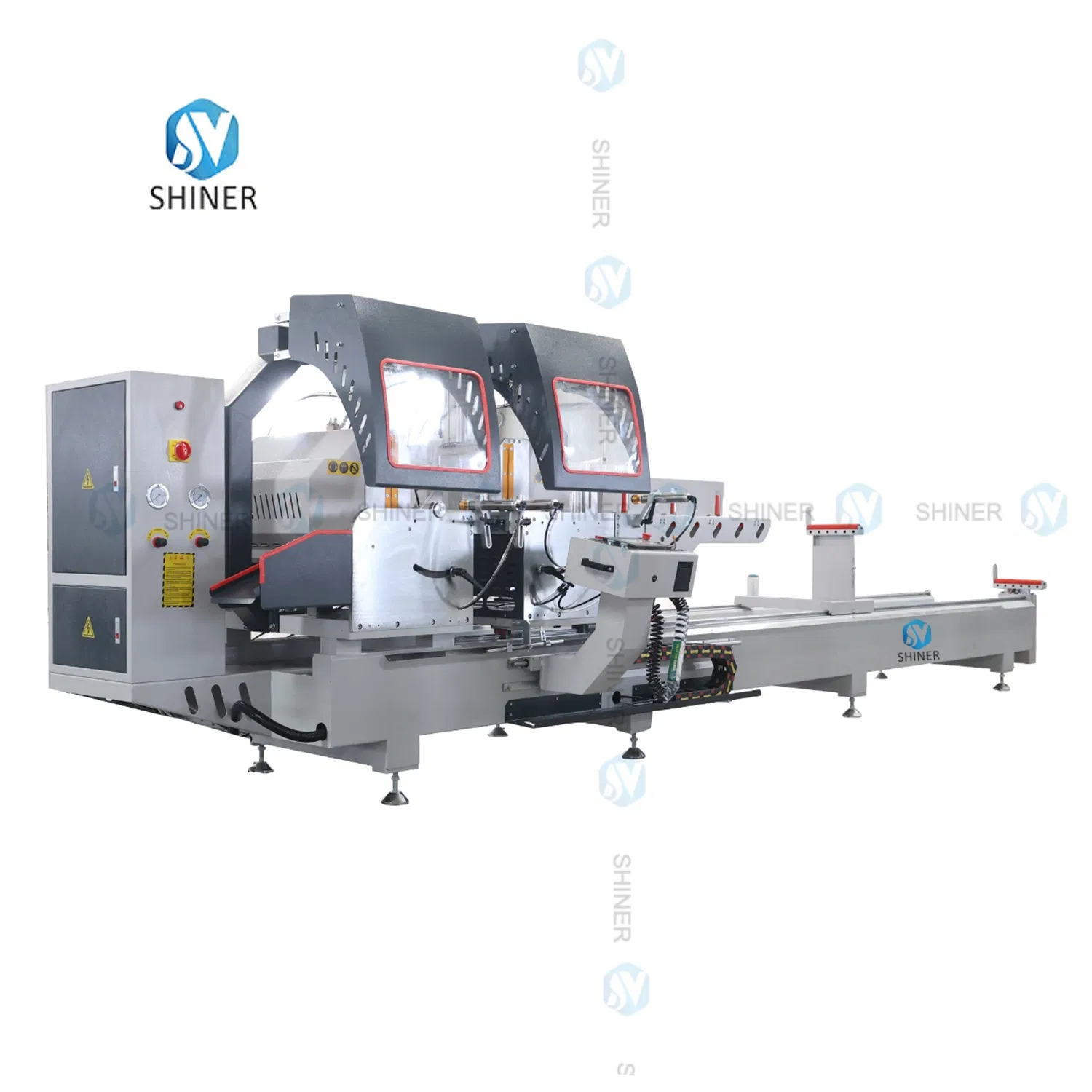

| Model NO. | LJZ2S-550x4600-CNC-45 |
| Condition | New |
| Certification | ISO, CE |
| Automatic Grade | Automatic |
| CNC or Not | CNC |
| Input Voltage | 380V 50Hz |
| Input Power | 6.75kw |
| Cutting Width | 190mm |
| Cutting Length | 380~4600mm |
| Suitable Material | Aluminum/UPVC/PVC |
| Package Size | 600.00cm * 160.00cm * 180.00cm |
| Package Gross Weight | 1700.000kg |
| Technical Parameter | Specification |
|---|---|
| Input voltage | 380V/50Hz (As Required) |
| Input power | 6.75Kw |
| Spindle rotary speed | 2800rpm |
| Air pressure | 0.5~0.8Mpa |
| Air consumption | 100L/min |
| Max cutting width | 190mm |
| Max cutting height | 90°: 210mm / -45°: 140mm |
| Saw blade diameter | Ø550mm*Ø30mm |
| Cutting angle | -45°, 90° |
| Overall dimension | 6200*1800*1600mm |

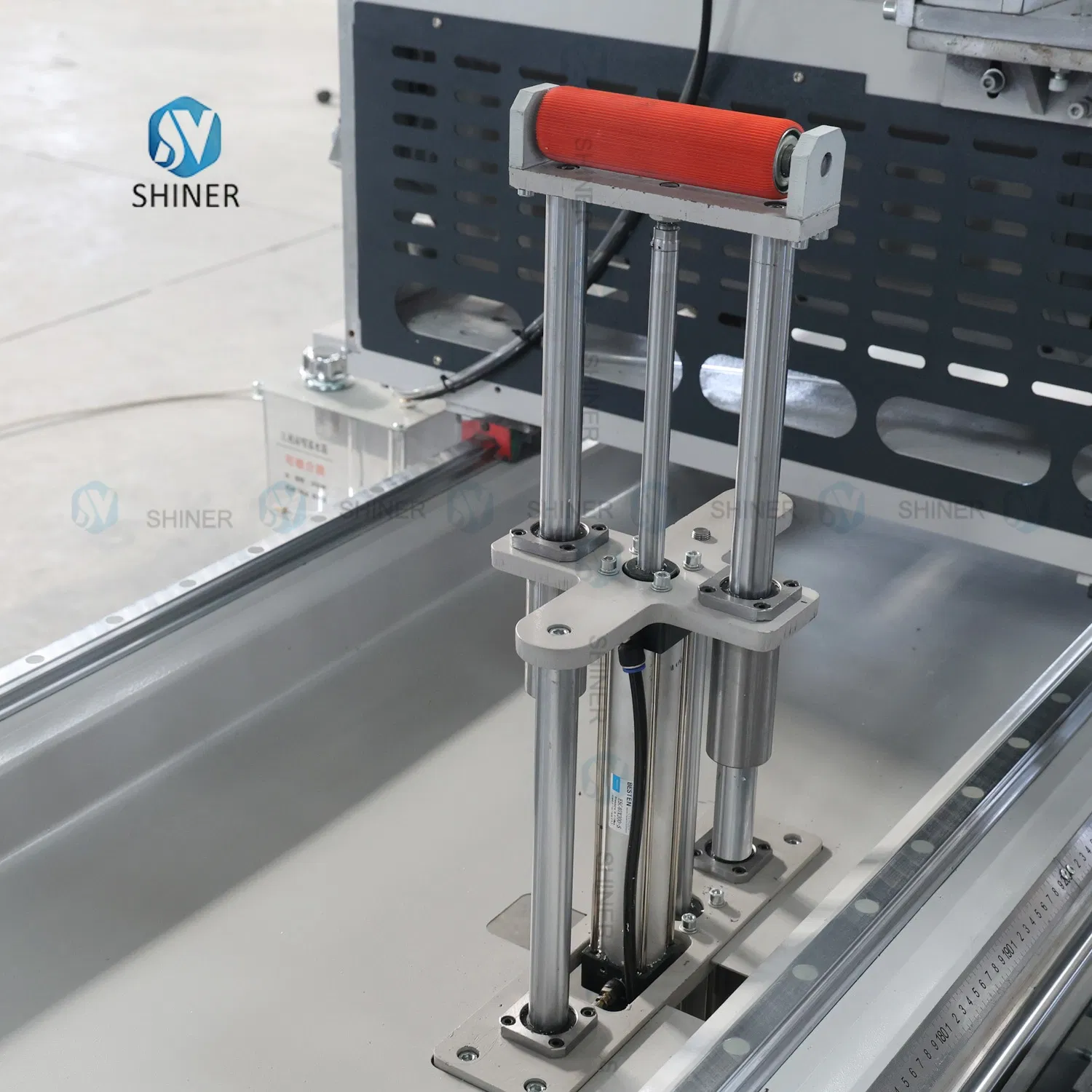

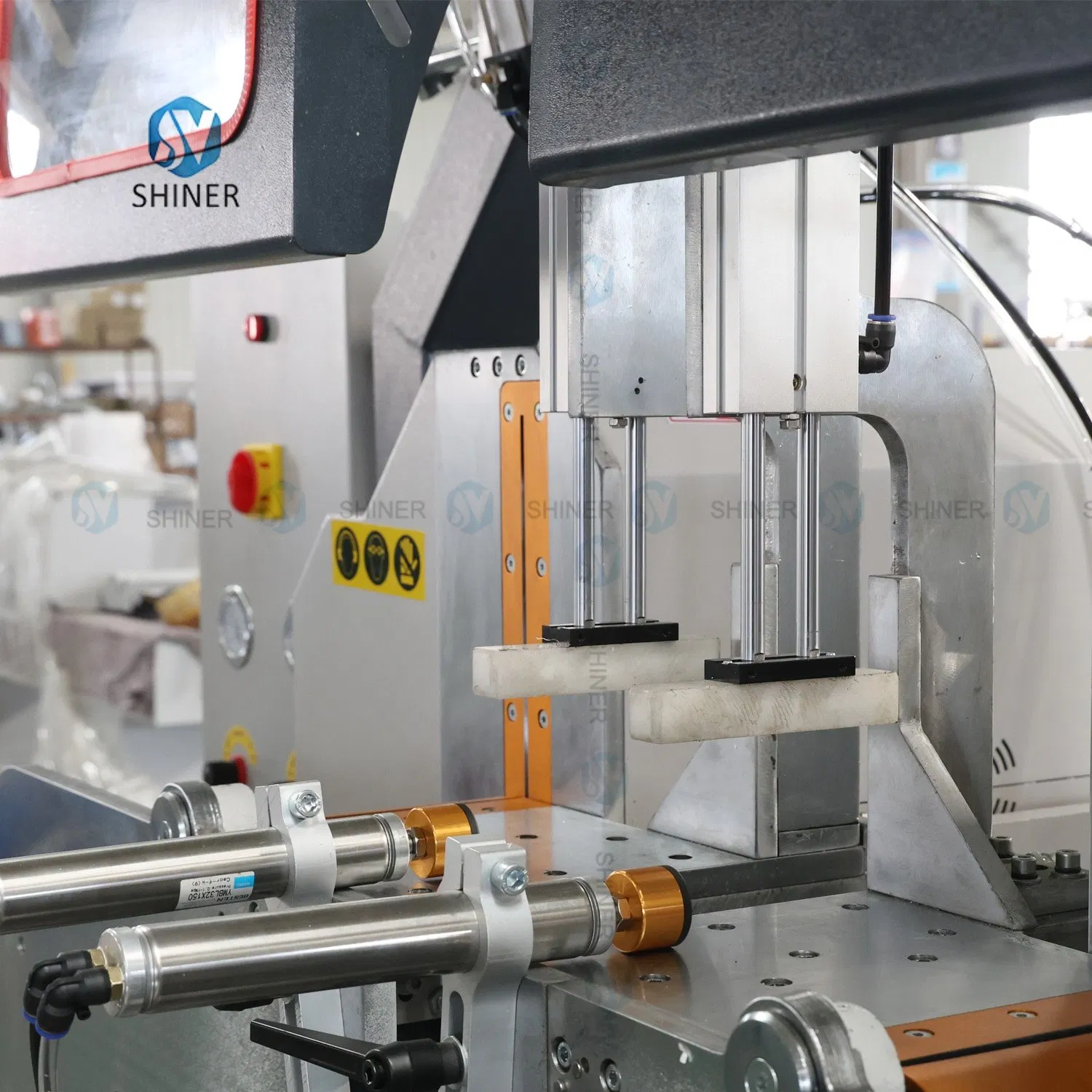

Horizontal and vertical clamping fixtures for stability.

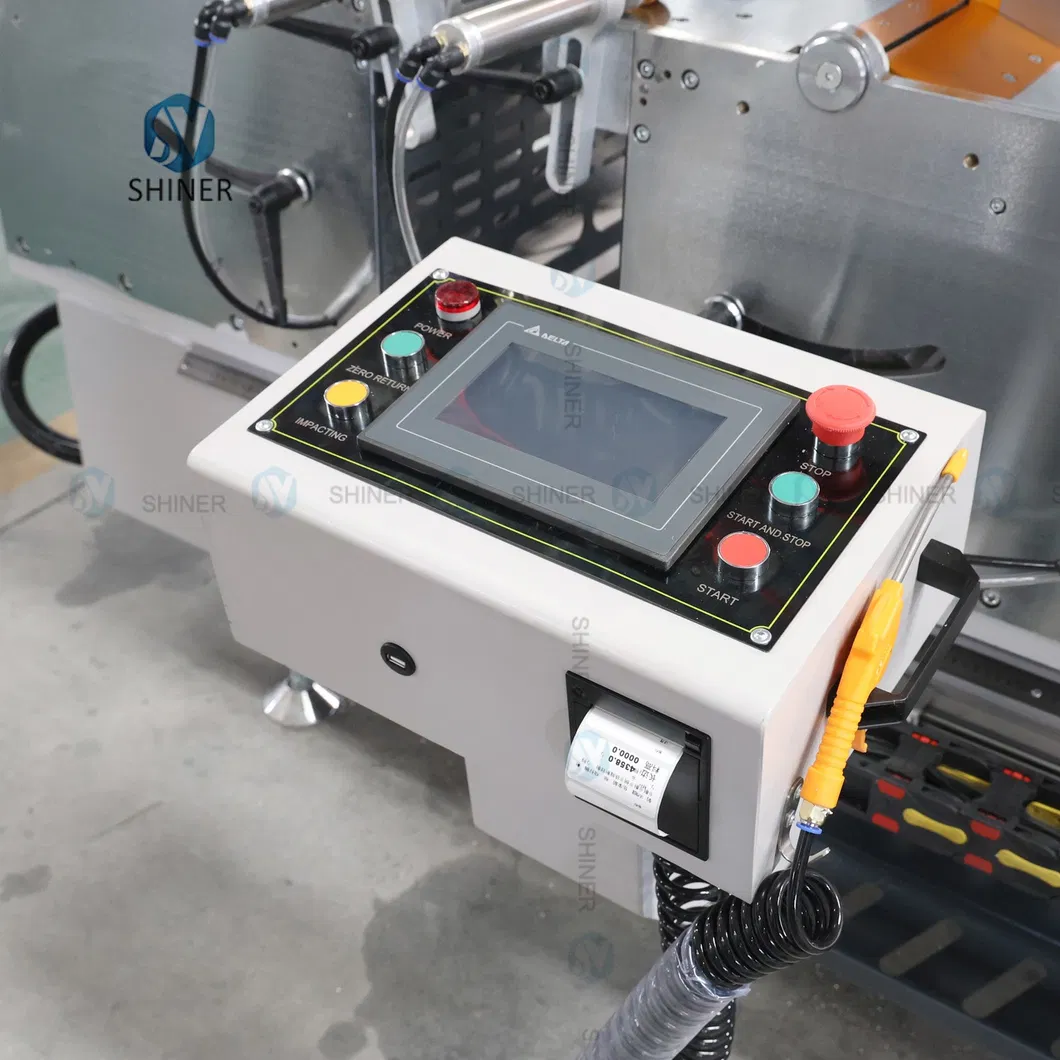

Advanced CNC Control System for automatic processing.

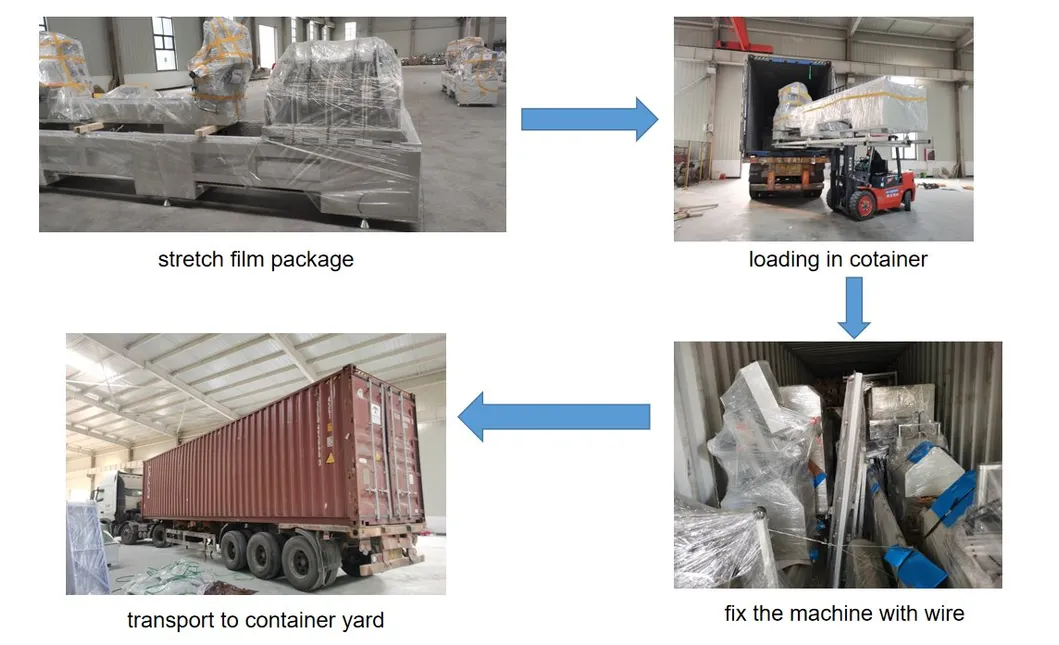

Packing Detail:
For LCL (less container load) shipping, we adopt: Inner package: stretch film; Outside package: standard export plywooden cases.
For FCL (full container load) shipping, all machines are wrapped with film and secured in the container with steel iron.
Delivery Detail: Usually dispatched within 3-5 working days after receiving payment. Custom orders take 10-15 working days.
We are a modern enterprise specializing in technology development, machinery manufacturing, and product sales. As a leading manufacturer of window & door machinery with over 17 years of experience, we have exported to more than 20 countries worldwide.

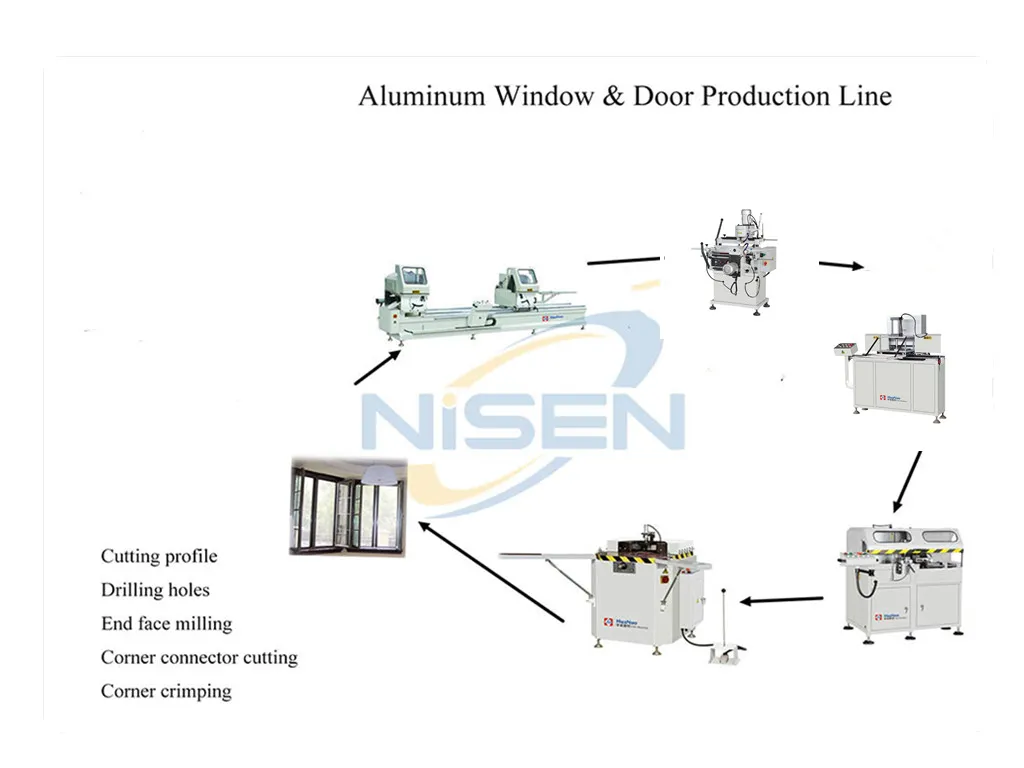

Our main products include full sets of machines for aluminum & PVC window door making and insulating glass making. Our engineers bring over 15 years of experience to ensure machine precision and stability.
