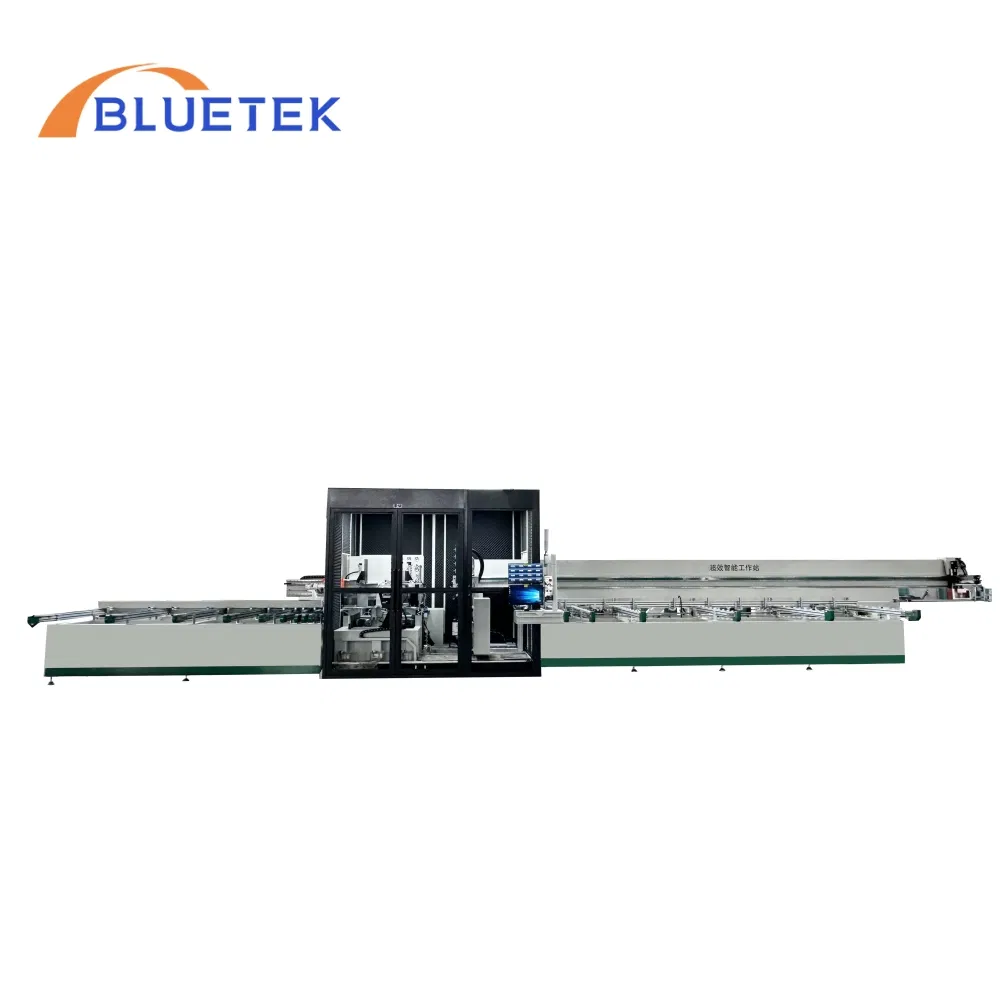

Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center
Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center
Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center
Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center
Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center
1 / 5
Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center
Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center
Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center
Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center
Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center

Aluminum Profile Cutting and Milling Aluminum Window Door CNC Machining Center

Customization: Available
After-sales Service: Remote Guidance, Door-to-Door Service, Operation V
Warranty: 18 Months
Send Inquiry

Product Description

Basic Information
Model NO.
SZA620
Condition
New
Certification
ISO, CE, BV
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Total Power
46kw
Cutting Angle
45/90/45 Degree
Product Description

Aluminum Profile Cutting and Milling Machining Center

The SZA620 model is a high-efficiency CNC solution specifically designed for making aluminum windows and doors. It integrates precision cutting at 45/90 degree angles with versatile milling for any hole or groove requirements.

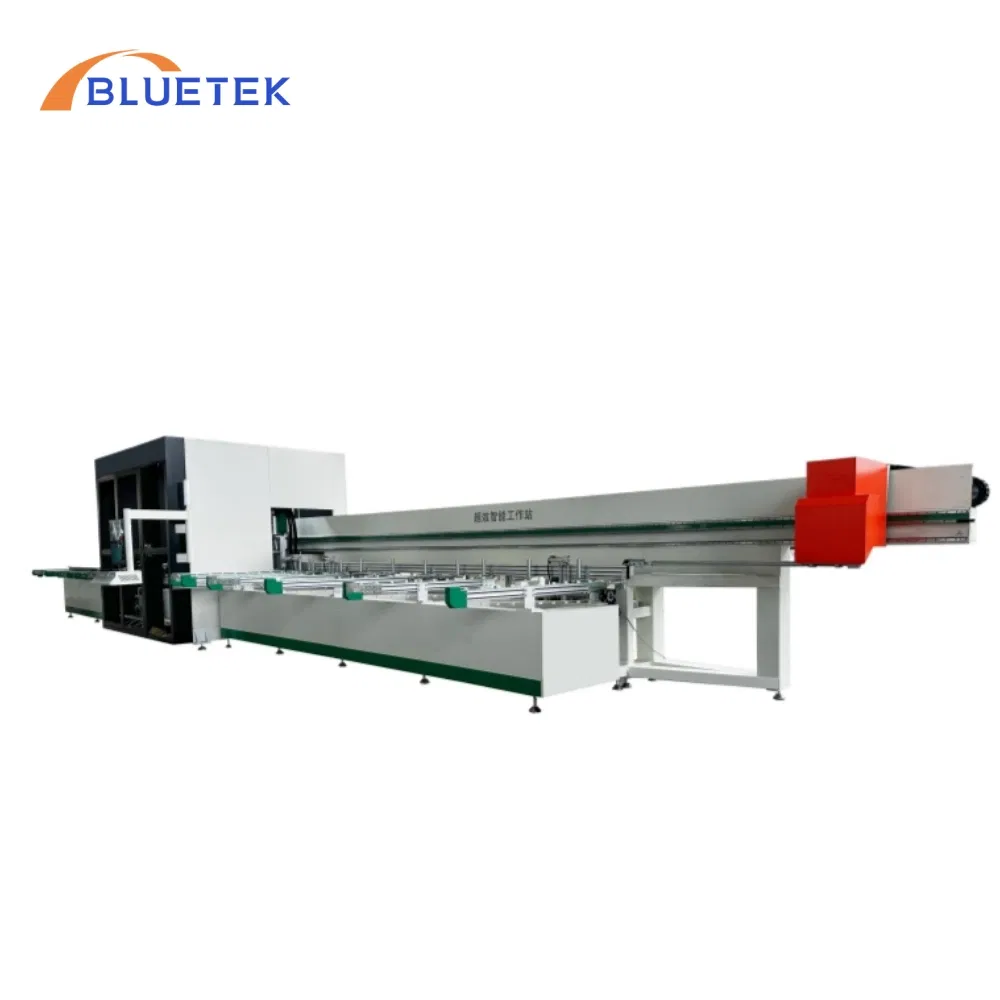

CNC Machining Center Overview

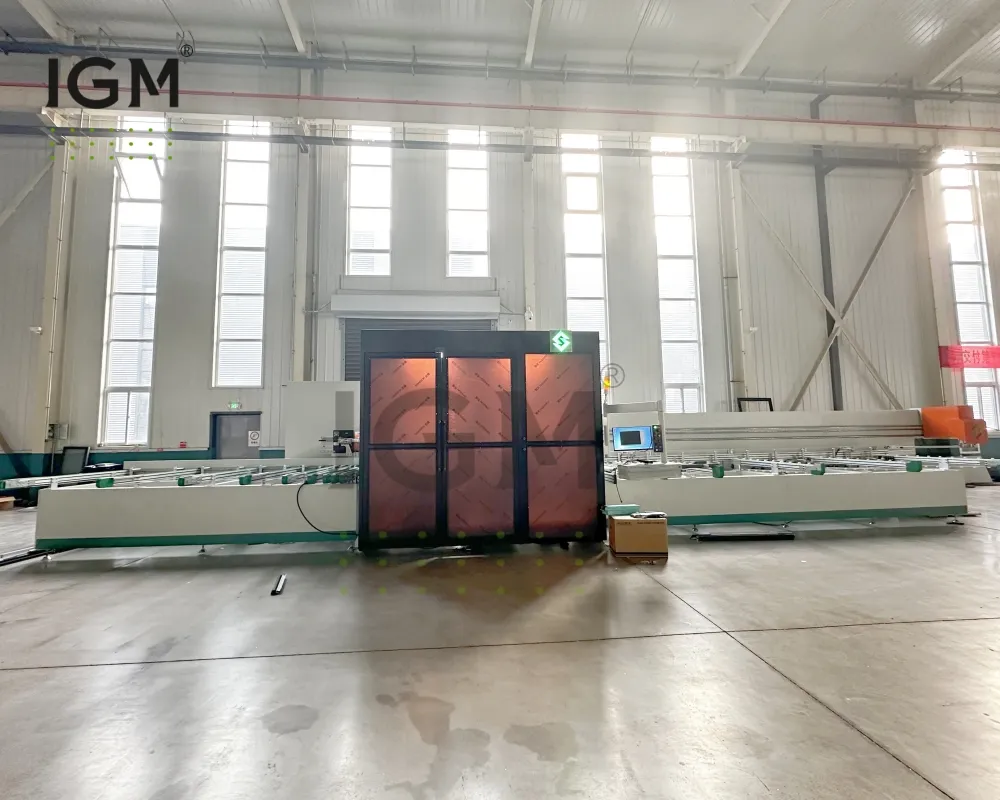

Aluminum Window CNC Center
🔵
Three-Part Integration: Includes an automatic loading mechanism, composite processing cabin, and automatic unloading mechanism.
🔵
Simultaneous Processing: Milling, sawing, and drilling units operate concurrently without mutual interference.
🔵
Advanced Control: Utilizes HAN'S control system with 16 bus servo axes, 8 milling spindles, and 3 saw blades.
🔵
High Productivity: A single 8-hour shift can produce approximately 200 square meters of doors and windows.
Technical Specifications
ParameterDetails
Working Air Pressure0.6 ~0.8 Mpa
Air Consumption200 L / Min
Spindle Motor Speed2850 r/min
Diameter of Saw BladesΦ 550x4.4xΦ30mm 120T
Processing Range (H*W)150*180 mm
Max. Profile Length6500mm
Cutting Accuracy±0.1MM
Overall Dimensions17000*4000*3000 mm
Equipment Details

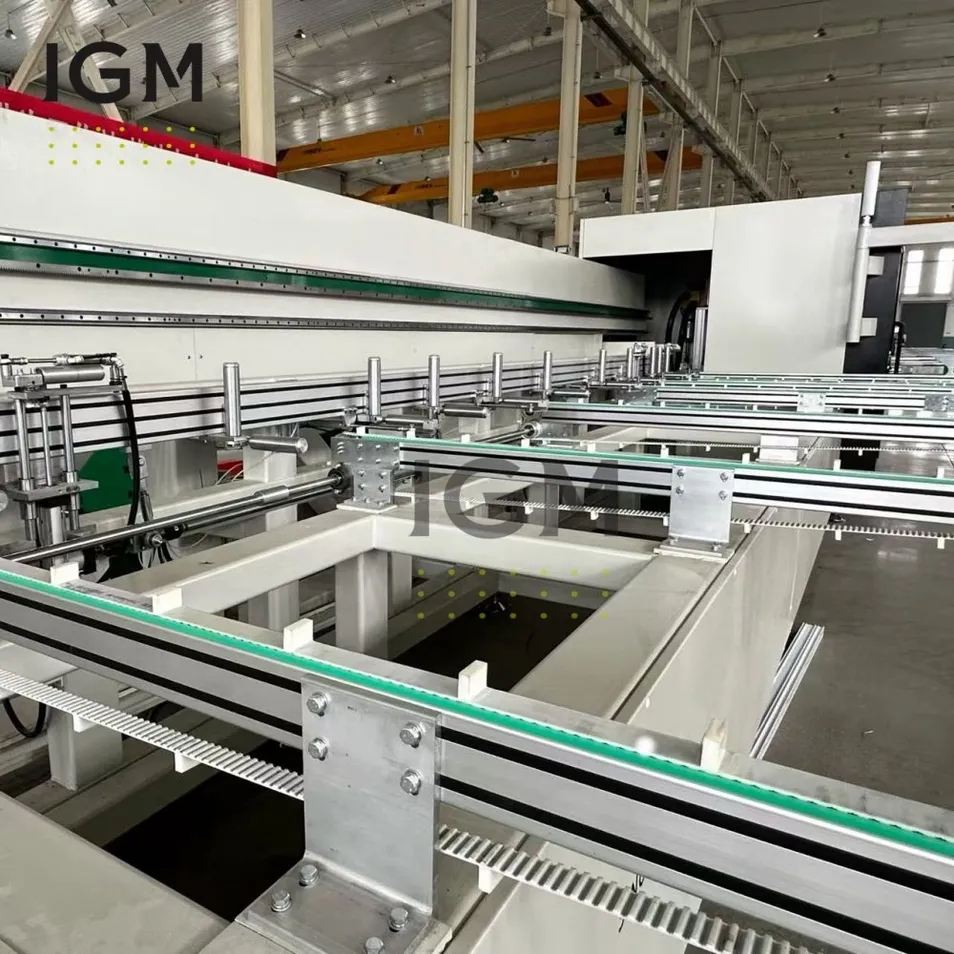

Loading Workbench

Circular Loading Workbench

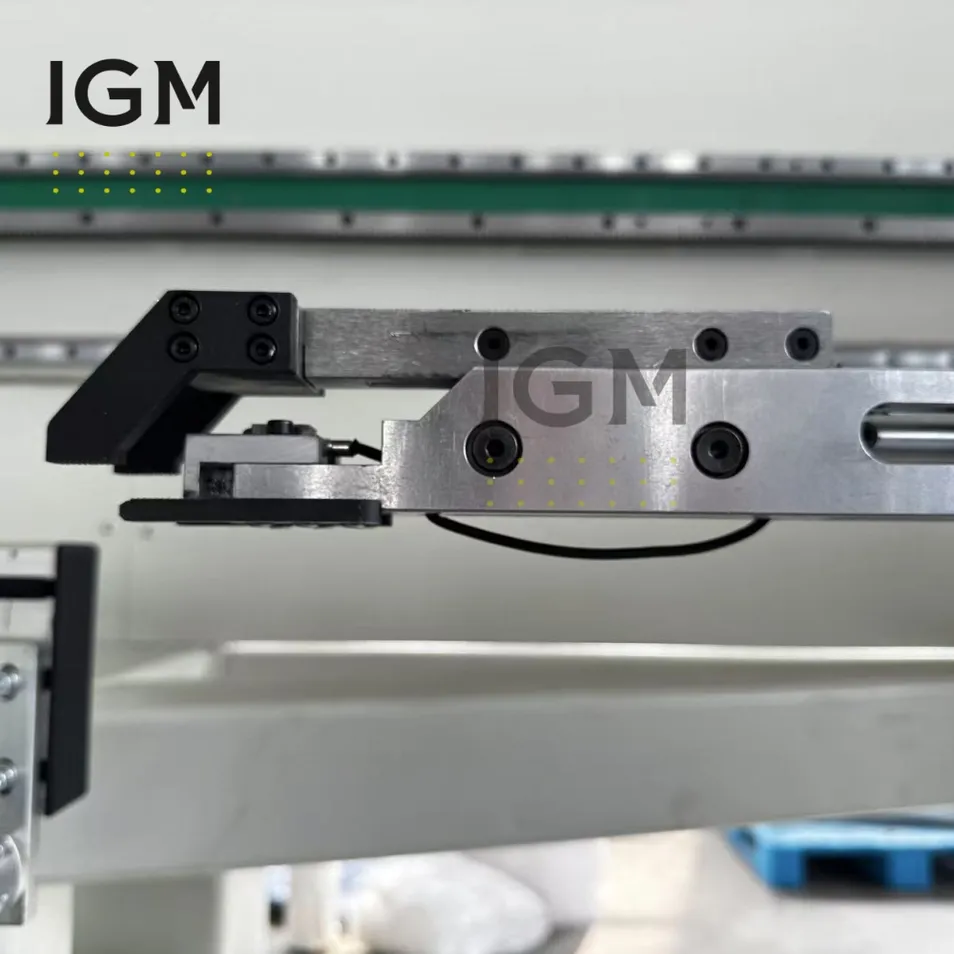

Feeding Robot

Feeding Robot

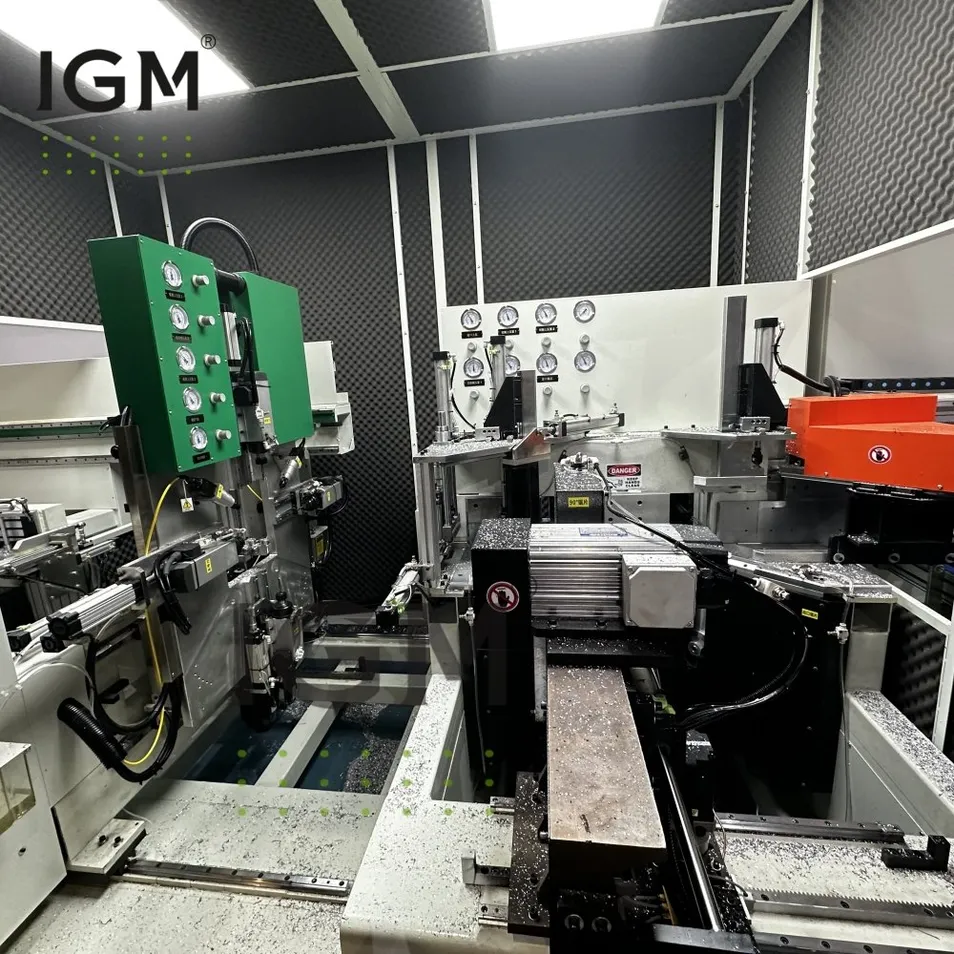

Processing Cabin

Composite Processing Cabin

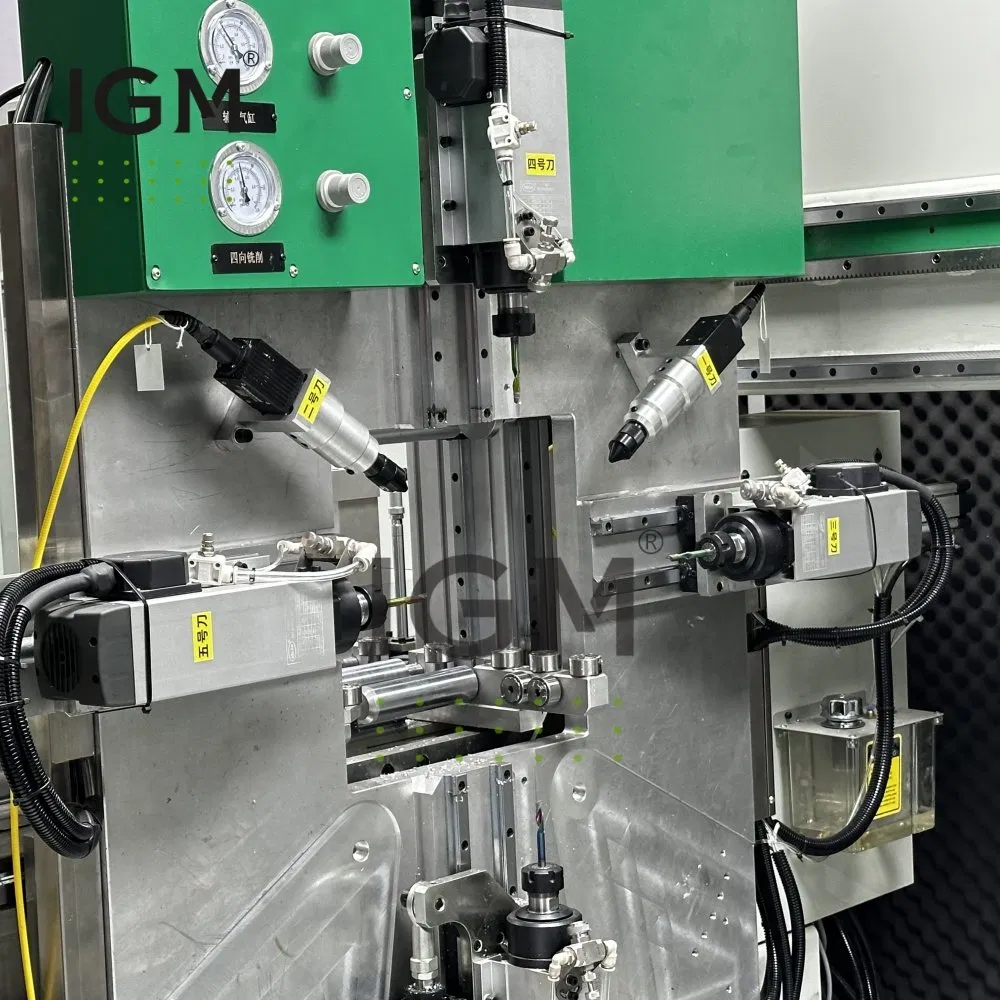

Milling Unit

Milling Unit (8 Spindles)

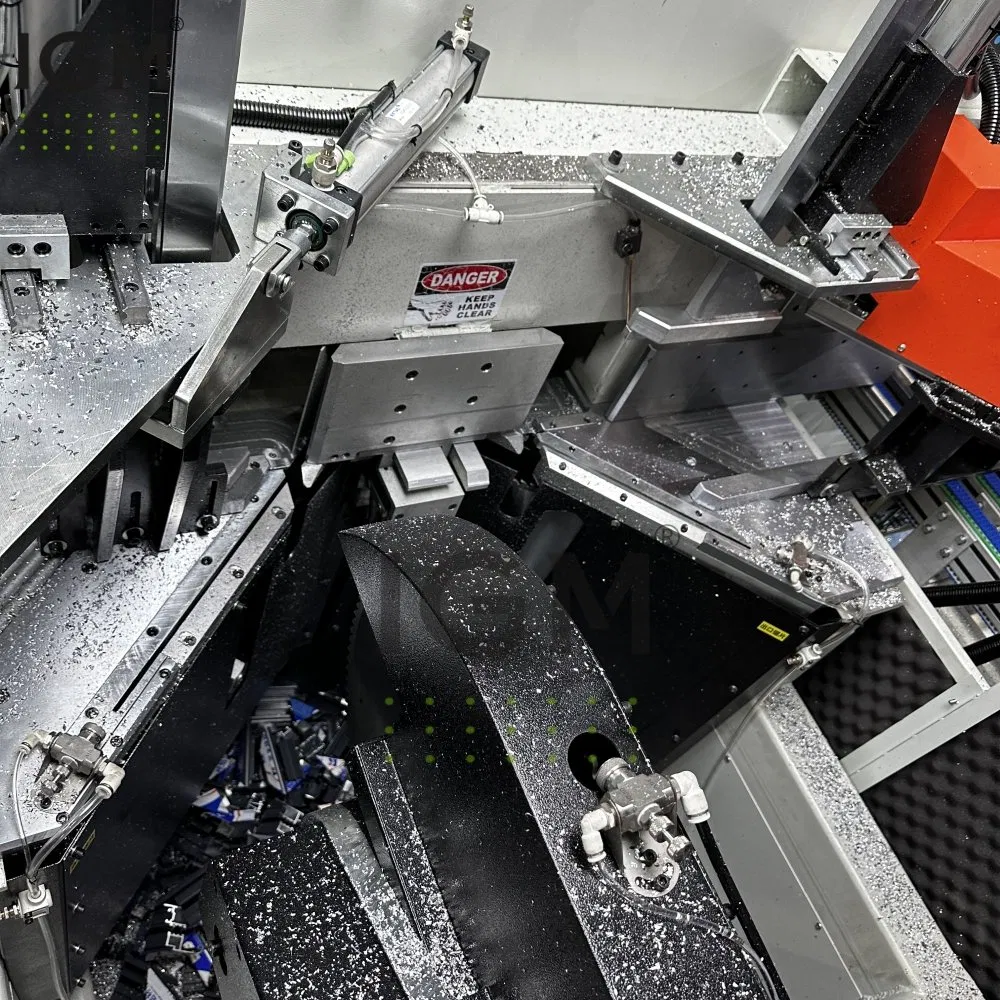

Sawing Unit

Precision Sawing Unit

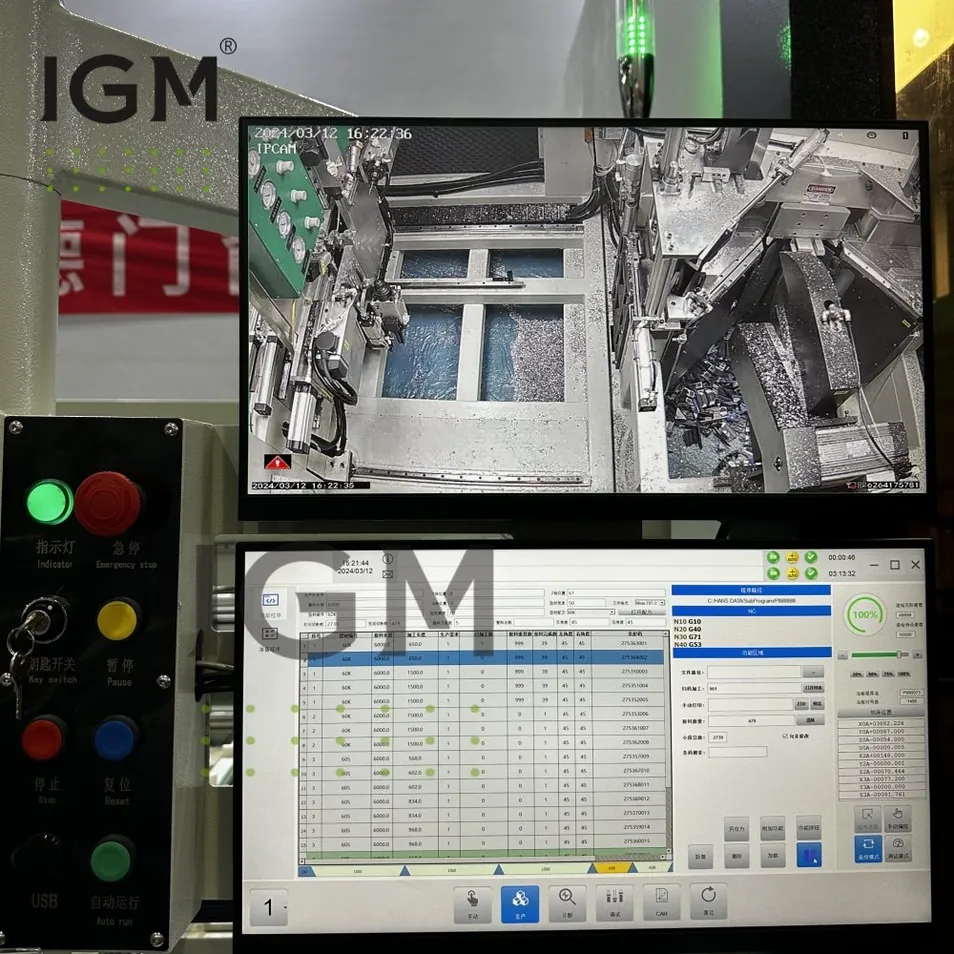

Control System

Advanced Control System

Service & Support
🛠️
Installation: Professional on-site installation and equipment commissioning support.
🎓
Training: Comprehensive operation and maintenance training for your staff.
⏱️
Warranty: 18-month warranty period with lifelong after-sales service.
📞
24/7 Support: Round-the-clock technical assistance and remote troubleshooting.
About Our Company

We are a leading enterprise specializing in the design, manufacturing, and distribution of high-quality aluminum and UPVC window door machinery. Our company provides innovative and customized solutions to meet the diverse needs of a global clientele.

Our advanced machinery has found extensive applications across North America, South America, Europe, and the Middle East, reflecting our commitment to quality and customer satisfaction through standardized production and rigorous quality inspections.

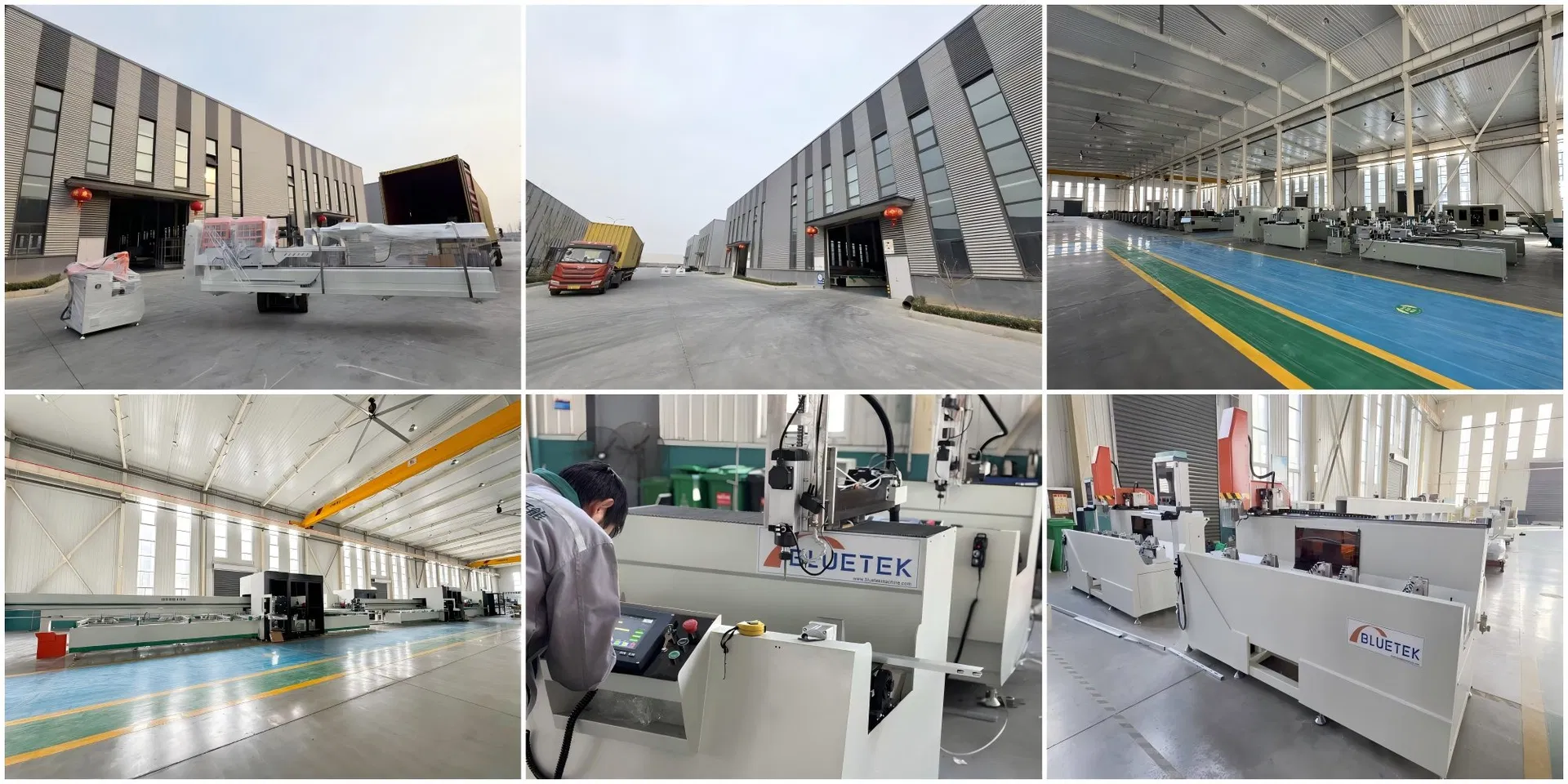

Workshop
Frequently Asked Questions
Q1: What types of profiles can the SZA620 process?
A: The machine is specifically designed for high-precision cutting and milling of aluminum profiles used in window and door manufacturing.
Q2: How many profiles can be loaded onto the machine at once?
A: The circular loading workbench is designed to hold up to 9 profiles simultaneously for continuous, cyclical processing.
Q3: Does the machine support automatic data import?
A: Yes, it supports various window and door ERP optimization softwares, allowing for one-click switching and optimization data import.
Q4: What is the production capacity of this machining center?
A: In a standard 8-hour shift, the machine can produce approximately 200 square meters of doors and windows.
Q5: What is the cutting precision for angles and lengths?
A: The SZA620 achieves a cutting accuracy of ±0.1mm, ensuring smooth surfaces and precise angles for every piece.
Q6: What certifications do your machines carry for international markets?
A: Our products have passed the EU CE certification and the US UL certification, exported to over 50 countries worldwide.
