After-sales Service: 24-Hour Online
Warranty: 2years
Condition: New
Send Inquiry

Product Description

Basic Specification
Model NO.
LGS--CNC-7000
Certification
CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Overall Power
15kw
Spindle Power
9kw
Air Pressure
0.5-0.8MPa
Spindle Speed
0-24000rpm
X-Axis Travel
7000mm
Y-Axis Travel
1400mm
Z-Axis Stroke
500mm
Production Capacity
500 Pieces/Year
HS Code
84571010
Aluminum profile four-axis CNC machining center LGS-CNC-7000

Performance Characteristics

  • Suitable for various holes and slots in aluminum alloy door and window curtain wall profiles, industrial aluminum, rail transit, and non-ferrous metals.
  • Equipped with Taiwan New Generation/Han's CNC system and high-performance Italian spindles (±90° milling).
  • Eight sets of fixtures with automatic adjustment function to prevent collisions.
  • Tool length compensation function for convenient application.
  • Professional CAD-CAM software for intuitive and easy operation.
  • Single clamping for multi-process processing (drilling and milling).
  • High-quality steel pipe welded bed with heat treatment for high rigidity and stability.
  • Uses HIWIN guide rails, SMC/Airtac pneumatic components, and APEX/SEJINIGB reducers.
  • Portable rotating 8-position tool magazine for rapid tool changes.
  • Dual positioning design allows continuous loading/unloading without machine stops.
  • Head and operator position detection for enhanced personnel safety.
Technical Parameters
No. Description Specification
1Working voltage380V 50HZ
2Working air pressure0.5-0.8Mpa
3Overall machine power15KW
4Spindle power9KW
5Spindle speed0-24000rpm
6X-axis travel7000mm (Speed: 60m/min)
7Y-axis travel1400mm (Speed: 30m/min)
8Z-axis travel500mm (Speed: 30m/min)
Product Gallery

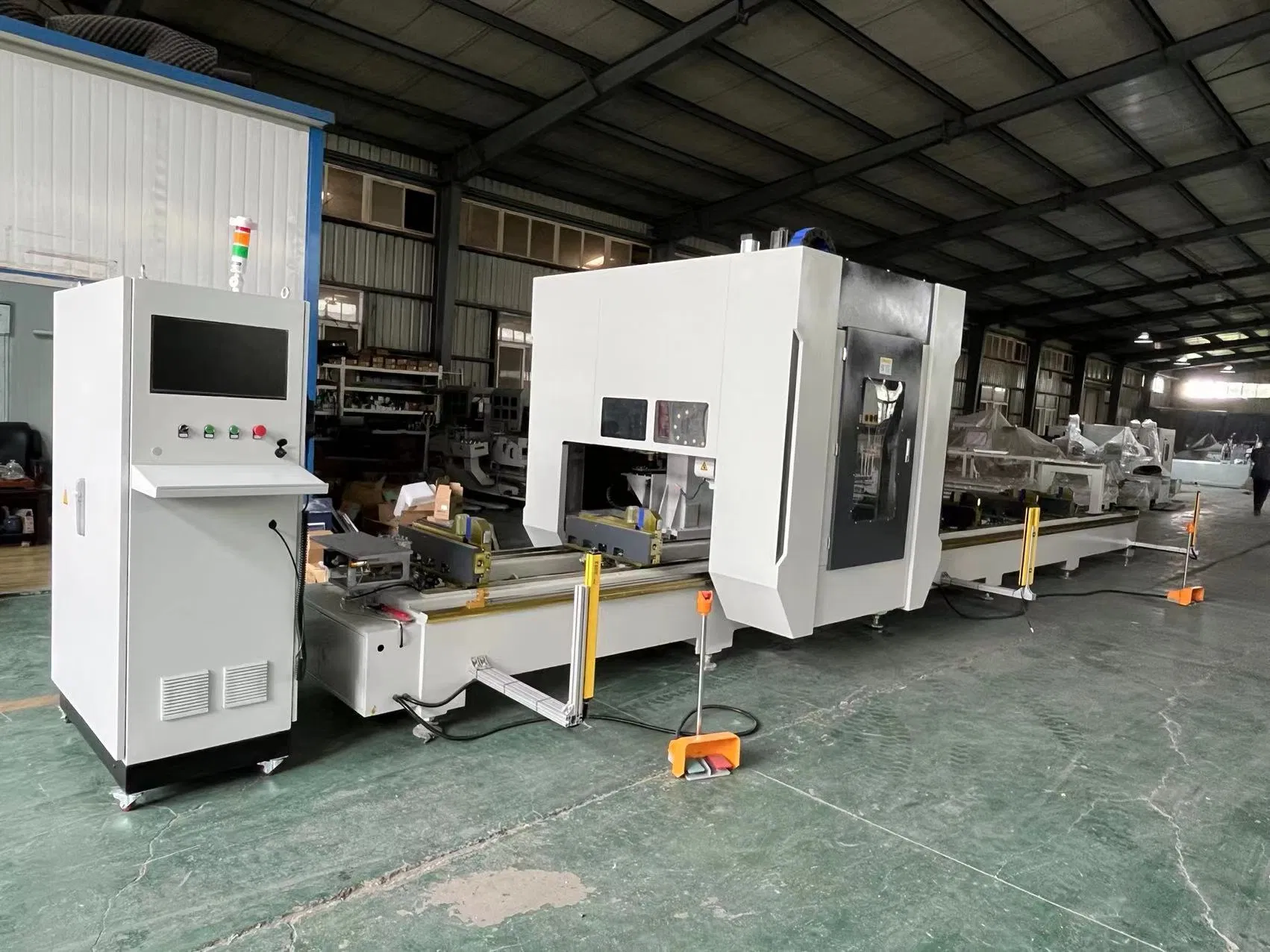

CNC Machining Center Detail 1

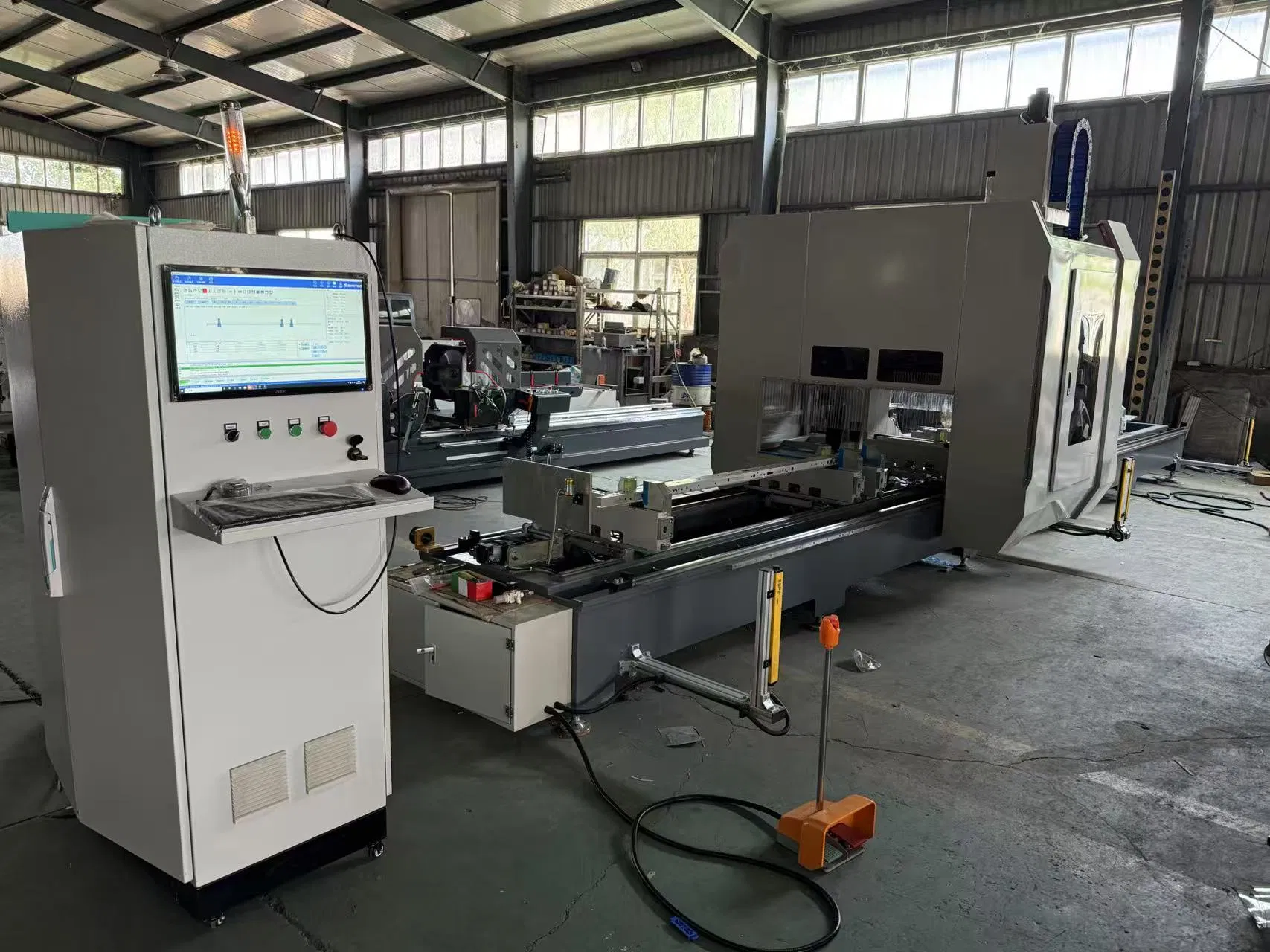

CNC Machining Center Detail 2

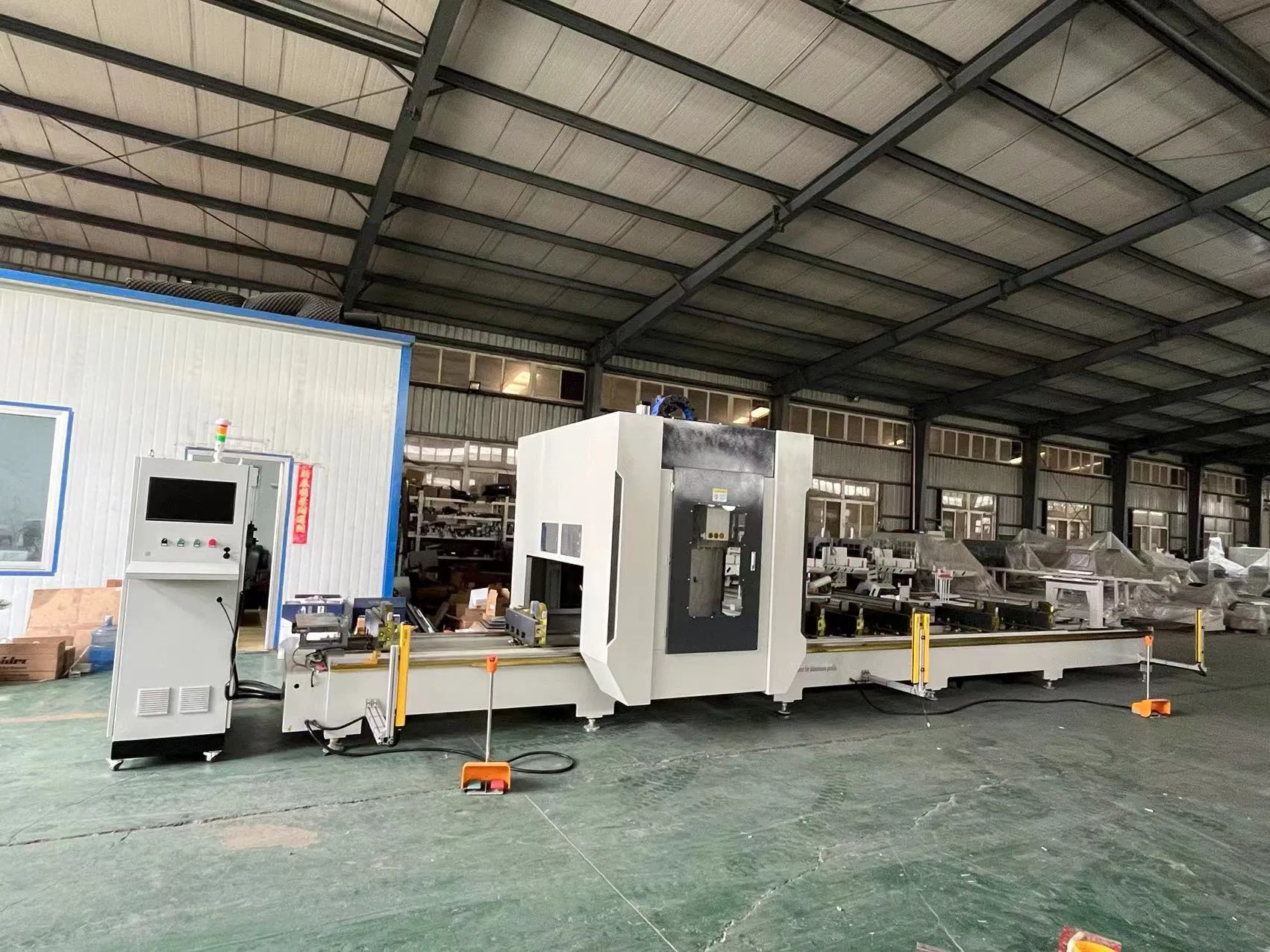

CNC Machining Center Detail 3

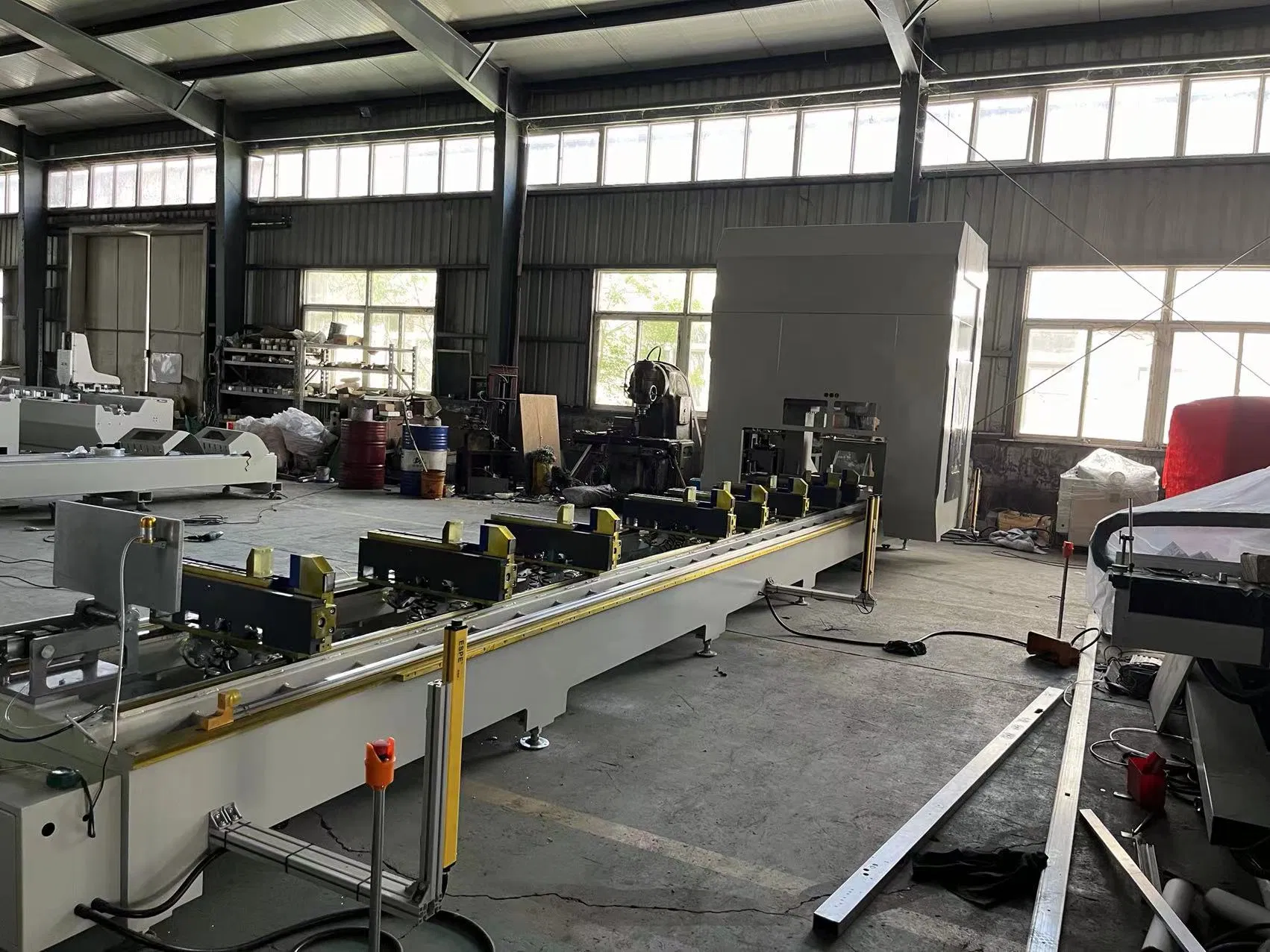

CNC Machining Center Detail 4

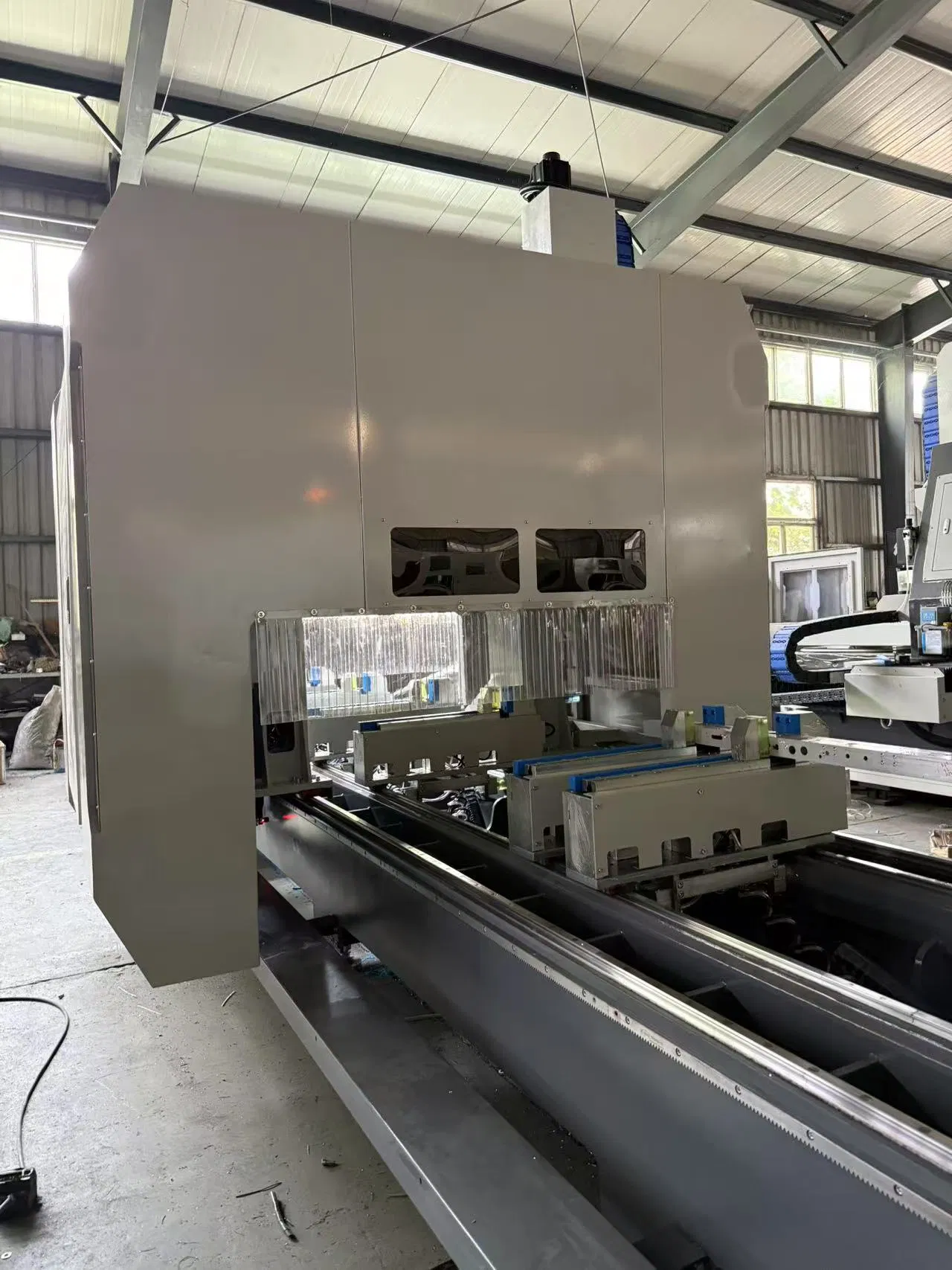

CNC Machining Center Dimensions
Operation Video
Factory & Production Process

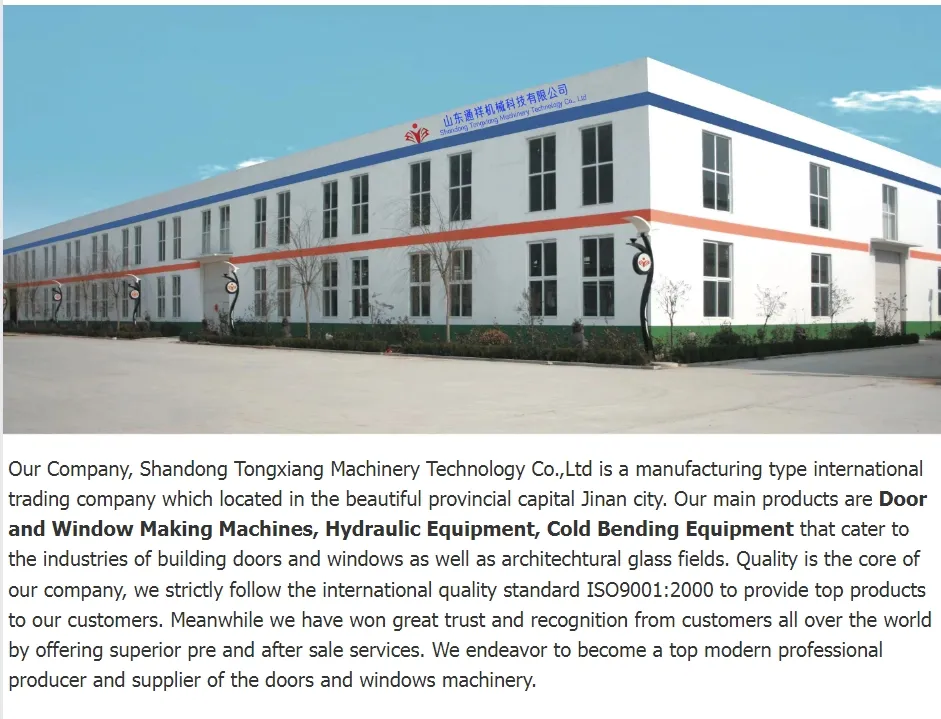

Company Profile
Warehouse

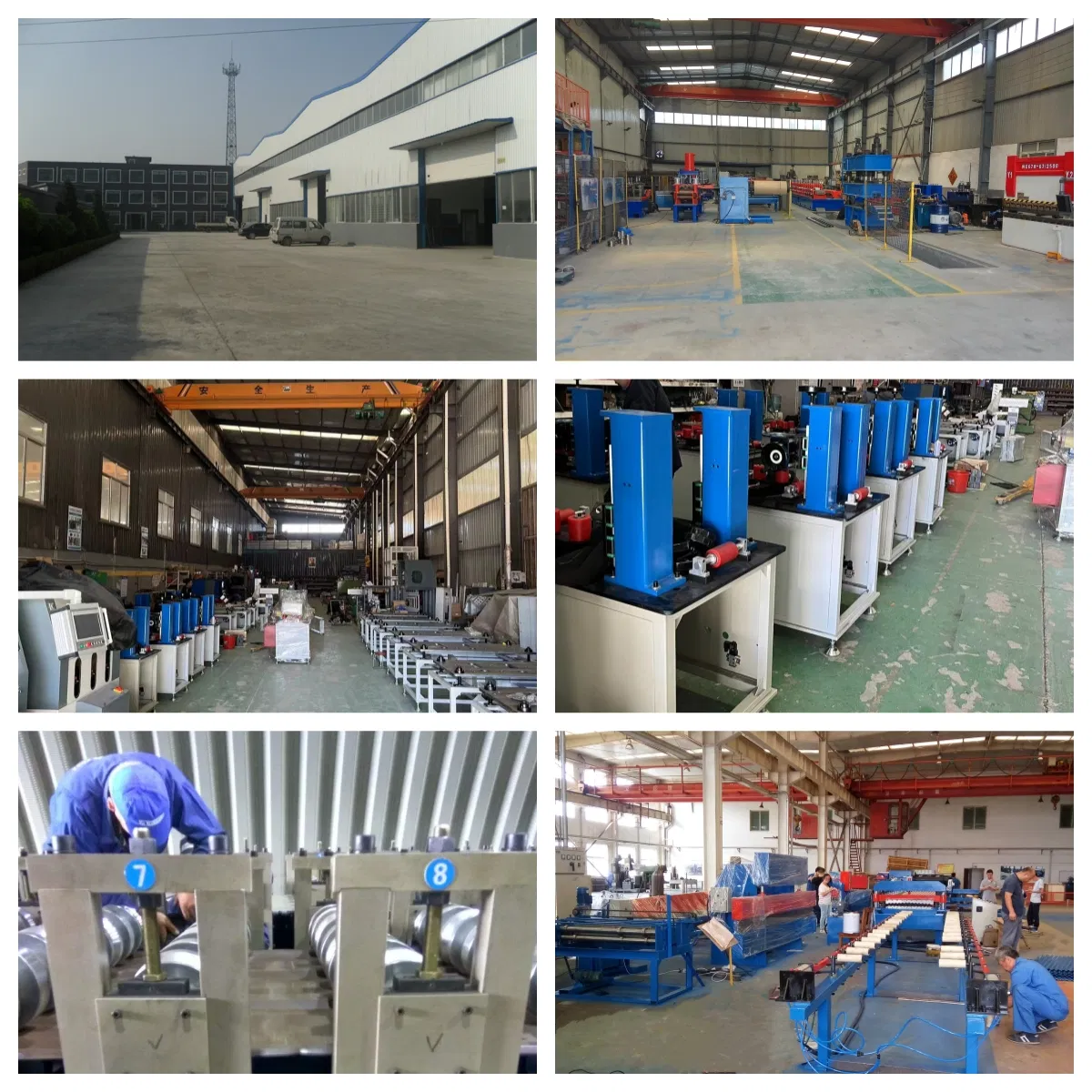

Production Process
Global Clients & Packaging
Client Exhibition 1
Client Exhibition 2
Packaging and Shipping
Frequently Asked Questions
What are the main products available?
We focus on a wide range of machinery including high-speed four-axis CNC machining centers, high-speed CNC drilling and milling centers, and various CNC cutting saws for aluminum profiles at multiple angles.
How is the product quality ensured?
Each machine undergoes a rigorous 100% quality inspection and comprehensive testing process before shipment to ensure optimal performance.
What is the minimum order quantity (MOQ)?
The MOQ is generally 1 set. Only specific low-cost accessory machines might require more than one set.
What kind of technical support do you provide?
We provide 24-hour online support, ready to offer technical guidance, quotations, and operational assistance whenever needed.
What materials can this CNC machining center process?
This machine is specifically designed for aluminum alloy profiles used in doors, windows, and curtain walls, as well as industrial aluminum and other non-ferrous metal materials.
Does the machine come with specialized software?
Yes, the equipment is equipped with professional CAD-CAM software that ensures simple, intuitive, and highly efficient operation for complex drilling and milling tasks.
