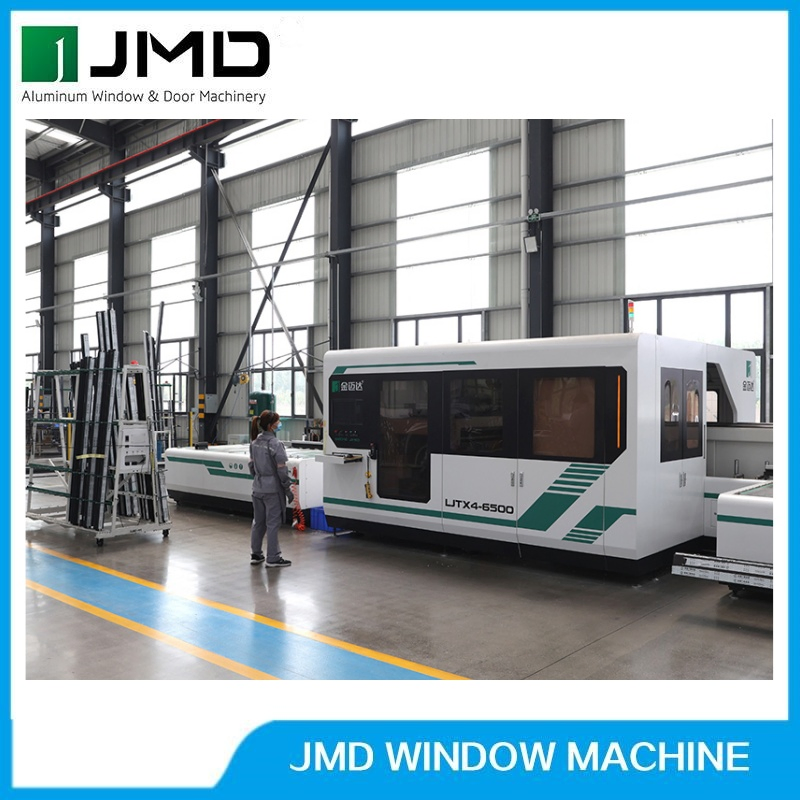

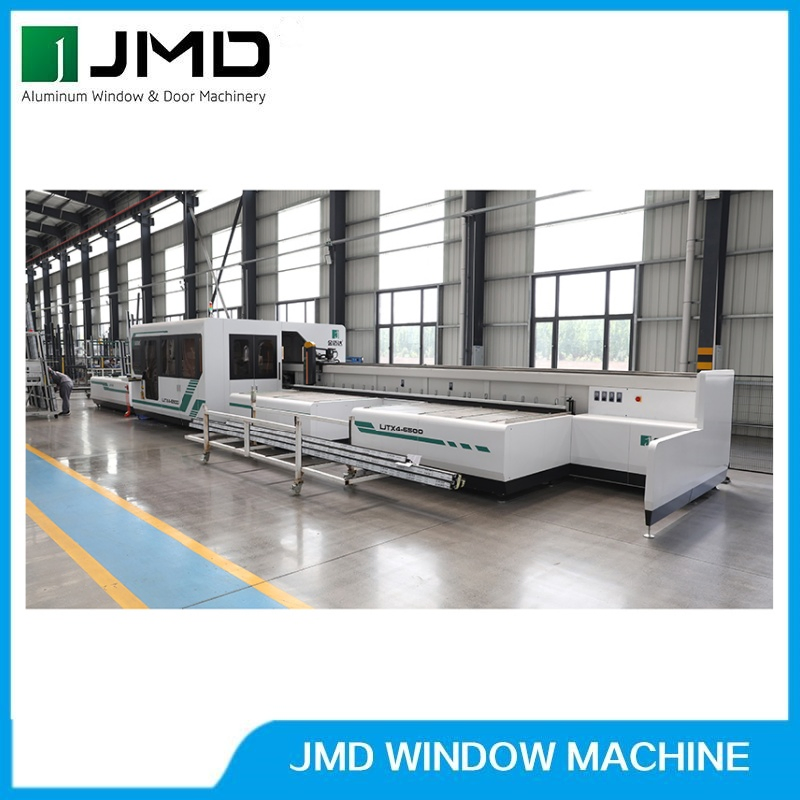

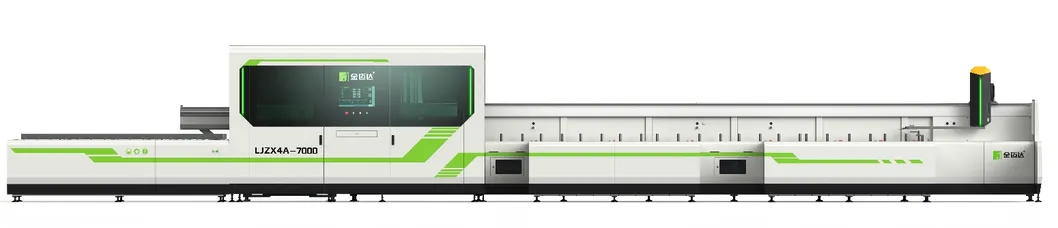

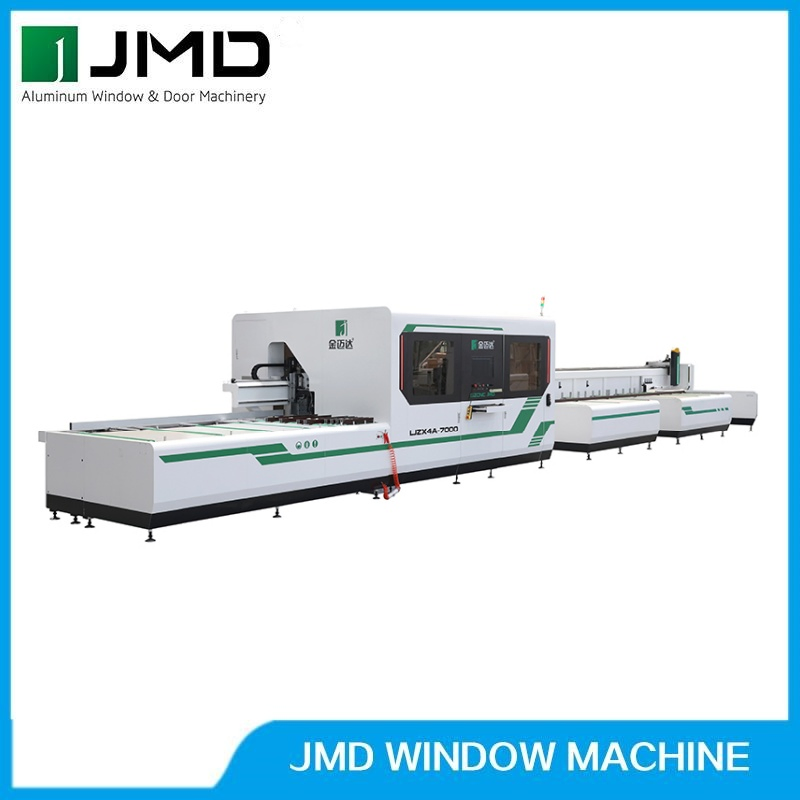

Arbitrary Angle Machining Center for Aluminum Window Door profiles

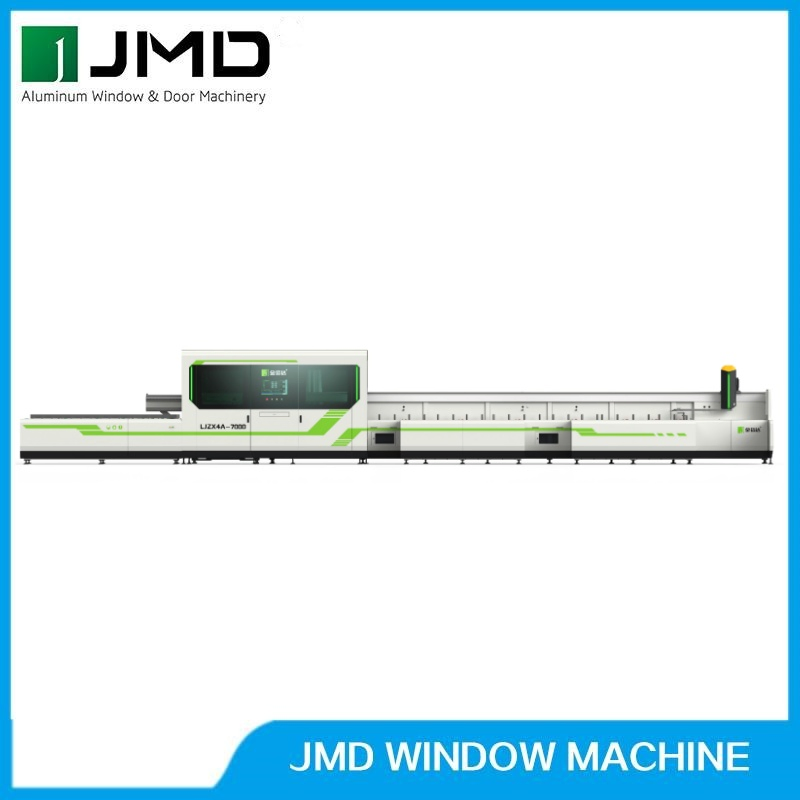

LJZX4A-7000
The machine supports the batch cutting of frame, sash, mullion or fly screen frame profiles; it can also support mixed cuts of multiple profiles. Cutting mode can be 45° cutting at both ends of profiles, 90° cutting at both ends of profiles or one end 45° cutting and the other end 90° cutting. To cut some industrial aluminum profiles, cutting angle can be arbitrary between ±45° at both ends.
It can process the glue hole, pin hole, drain hole, sharp angle, handle hole and lock hole, etc. Only load the aluminum profile to machine once, all processes can be completed.
| Cutting/milling width | 150mm |
| Cutting/milling height | 150mm |
| Cutting angle | any angle between ±45° |
| Processing length range | 300~4600mm (up to 6500mm) |
| Cutting length tolerance | ±0.1mm/1000mm |
| Cutting angle tolerance | ±0.1° |
| Raw material length required | 3000mm~6500mm |
| Feeding stroke of manipulator | 7300mm |
