Customization: Available
After-sales Service: Video Instruction or Engineer Come to You
Warranty: 18 Months
Send Inquiry

Product Description

Basic Specifications

ModelLJB2B-CNC-600*6000
ConditionNew
CertificationISO, CE, SGS/BV
Automatic GradeAutomatic
CNC or NotCNC
Voltage380V
Working Pressure0.6-0.8MPa
Saw Blade Motor2X3.0kw 2840r/Min
Cutting Angle22.5°-157.5°
Overall Dimension7800X1800X1600mm
Weight2200kgs

Aluminum CNC Double Head Cutting Machine

Equipped with 550mm/600mm Saw Blades for High-Precision Industrial Processing.

Mainly used for cutting industrial aluminum profiles, aluminum doors and windows, curtain wall materials, and also used for cutting PVC and wood profiles.

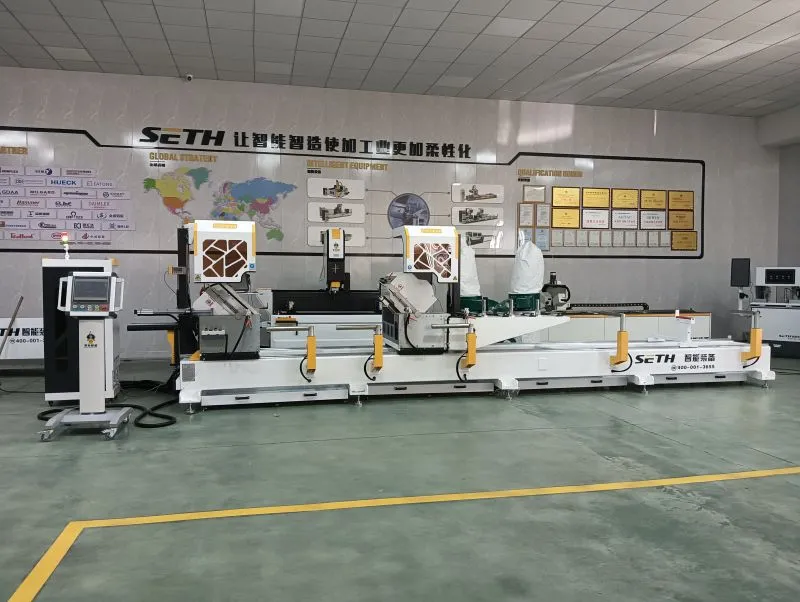

CNC Double Head Cutting Machine

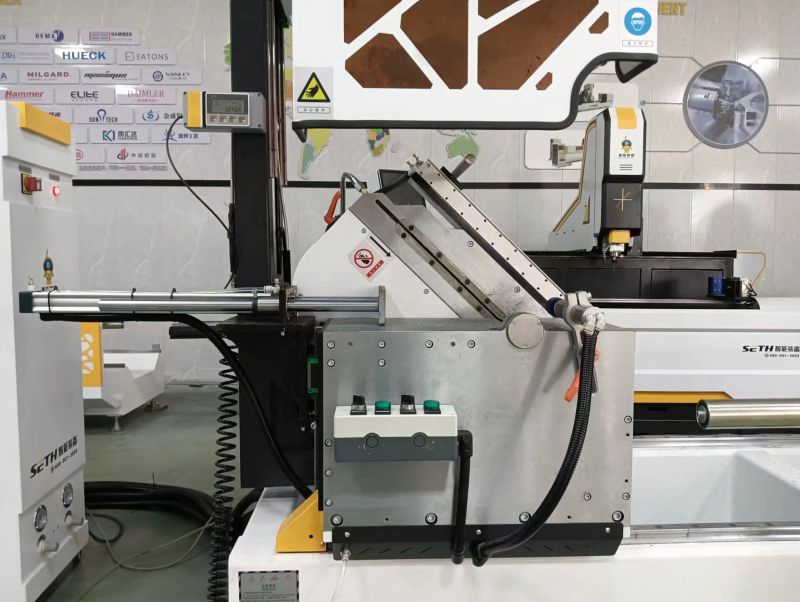

Aluminum Cutting Details

Core Advantages & Applications

Precision Cutting

  • Imported high precision blade makes the cutting surface smoother.
  • Cutting angle auto-adjustable via imported servo motor between 22.5° to 157.5°.
  • Repeat fixed length accuracy ≤ 0.1mm.

Intelligent Operation

  • Multiple processing dimensions can be input for continuous cutting.
  • Cutting length can be changed without returning to the reference point.
  • Hydraulic damping cylinder for smooth feeding.
Right Elevation
Right Elevation

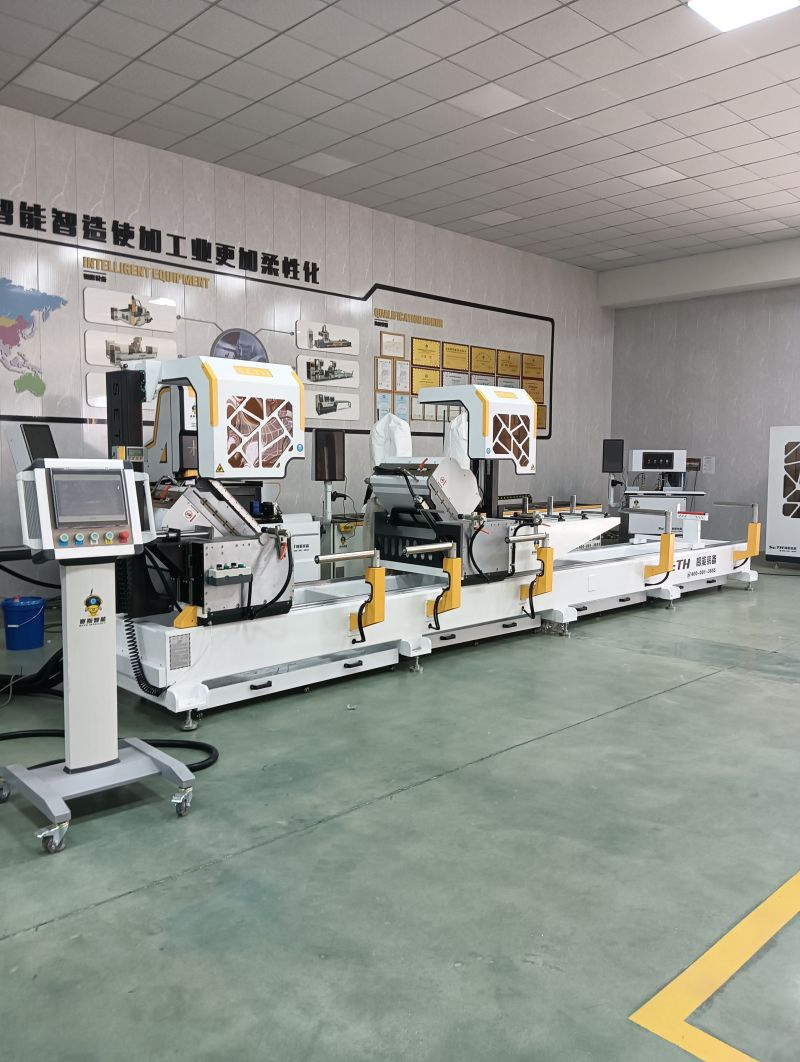

Left Elevation
Left Elevation
Front Elevation
Front Elevation

Technical Specifications

ParameterDetail
Power Supply380V 50Hz
Saw Head Motor2 × 3.00KW / 3000r/min
Air Consumption60L/min
Cutting LengthMax 6000mm / Min 360mm
Cutting WidthMax 200mm
Cutting HeightMax 390mm
Feeding Speed0-4m/min (Continuously variable)
Saw Blade Specø600 × ø30 × 4.4 × Z120
Angle Allowance± 3'
Surface RoughnessRa12.5μm

Machine Components

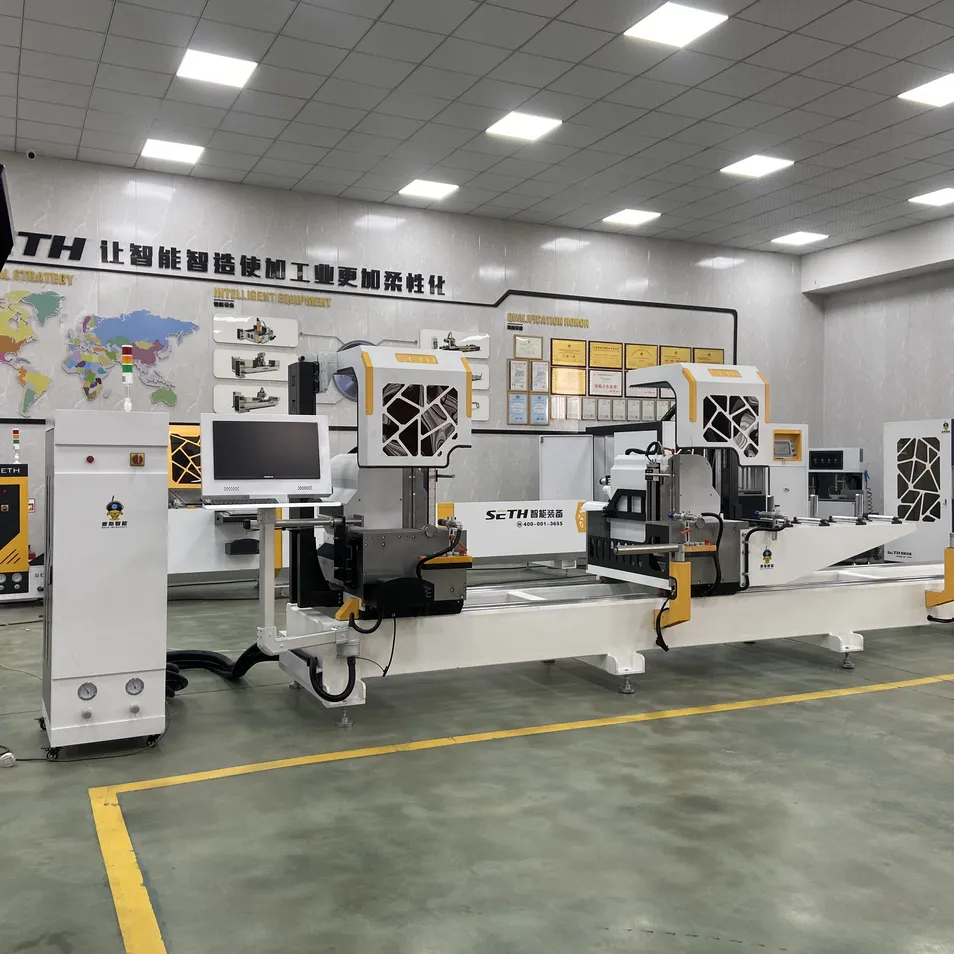

CNC Component 1

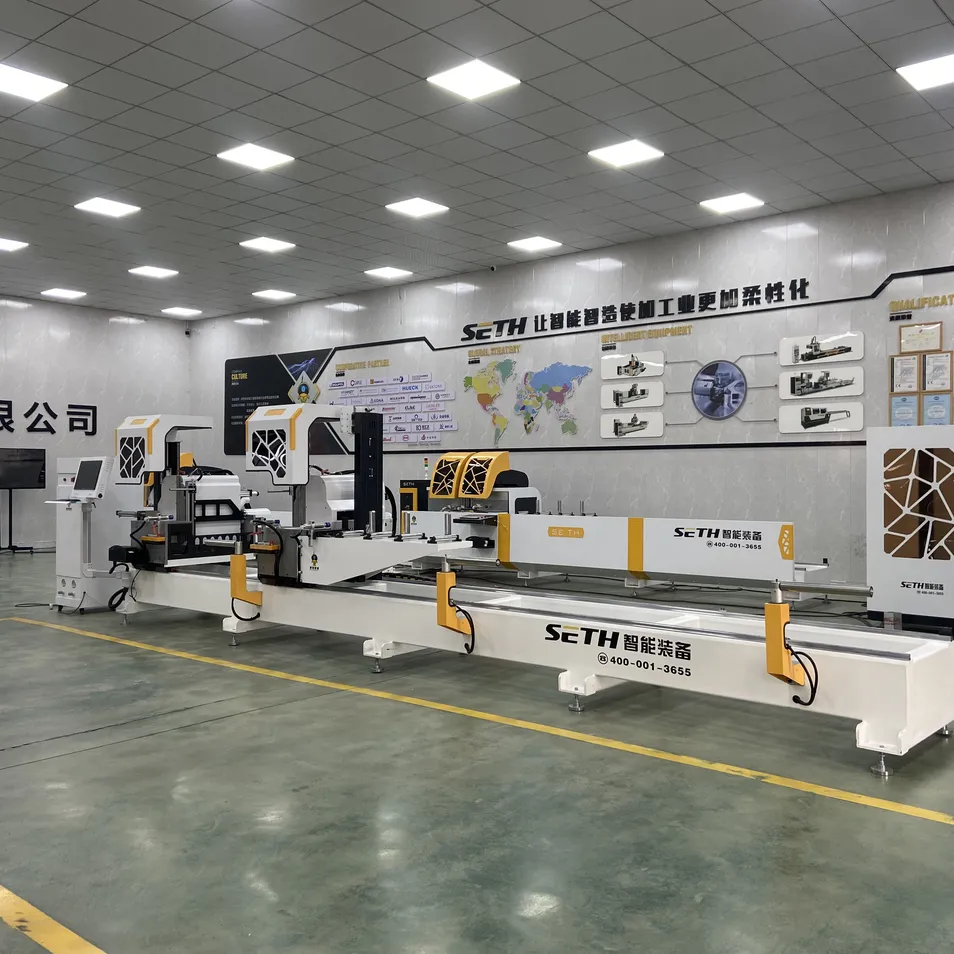

CNC Component 2

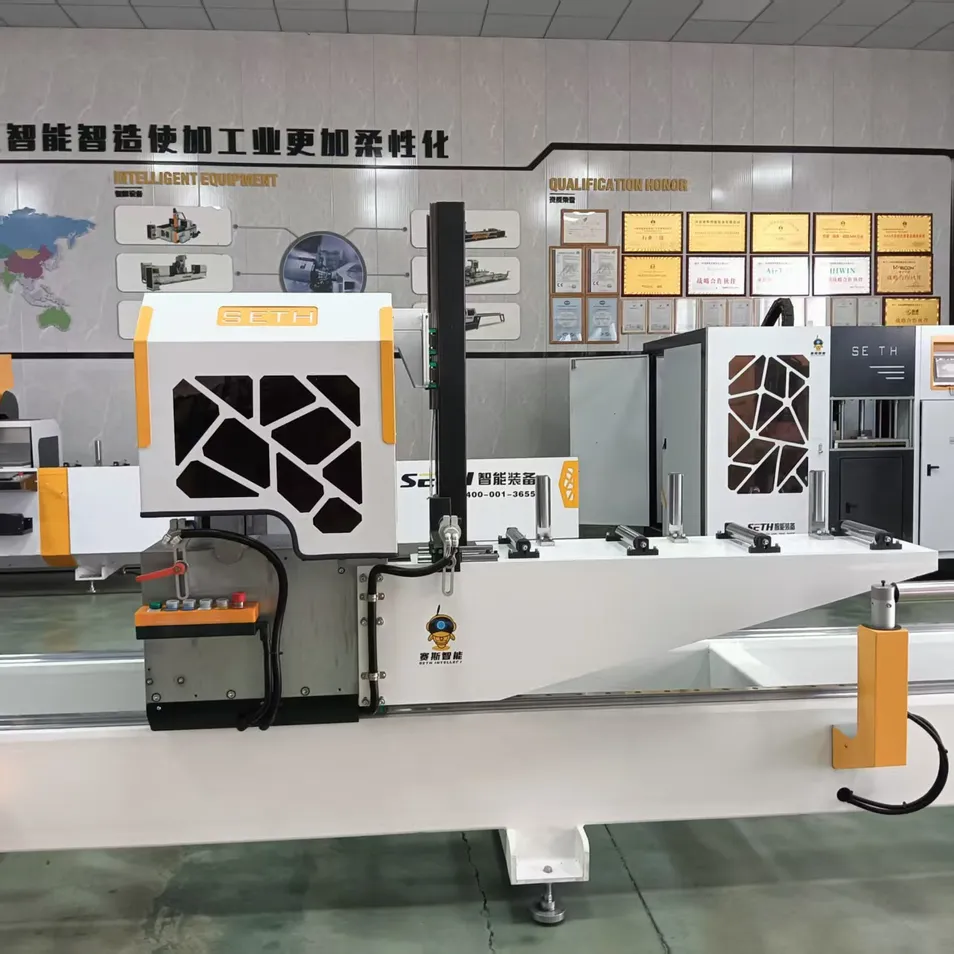

CNC Component 3

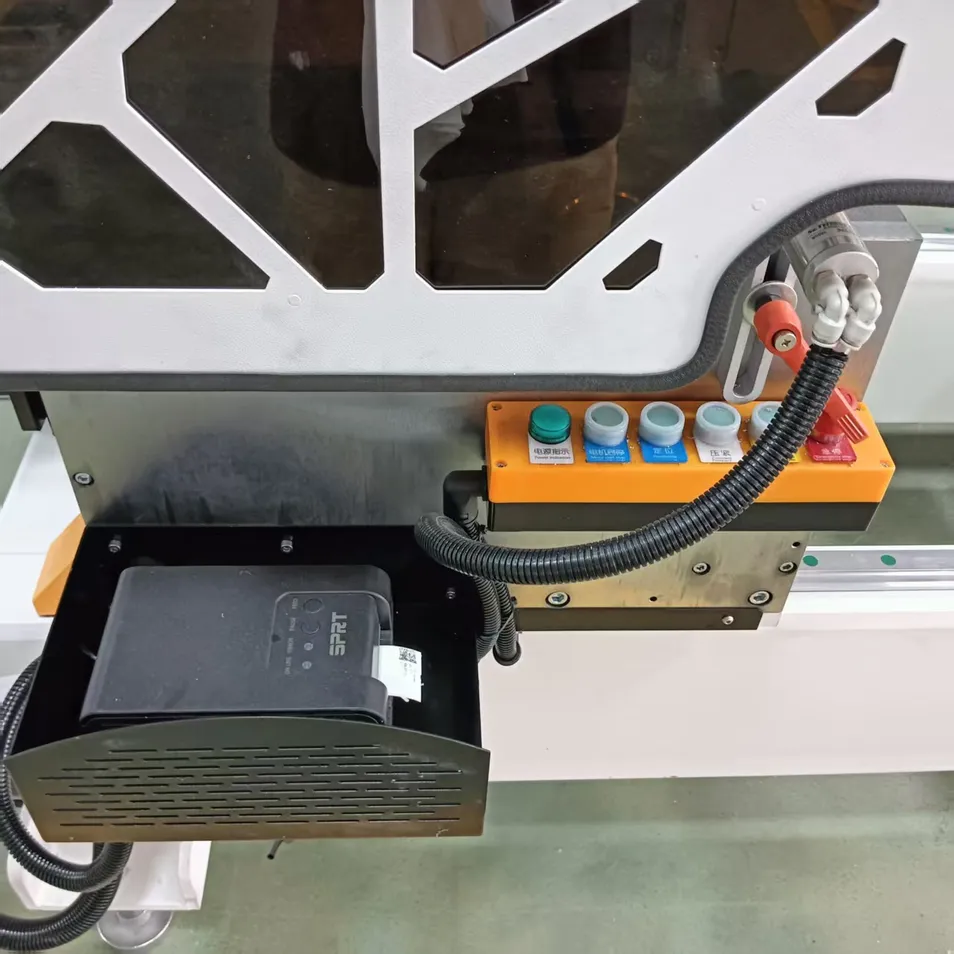

CNC Component 4

After-Sales & Support

Warranty

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 36 months.

Global Support

24/7 technical assistance and spare parts supply. On-site or remote training available.

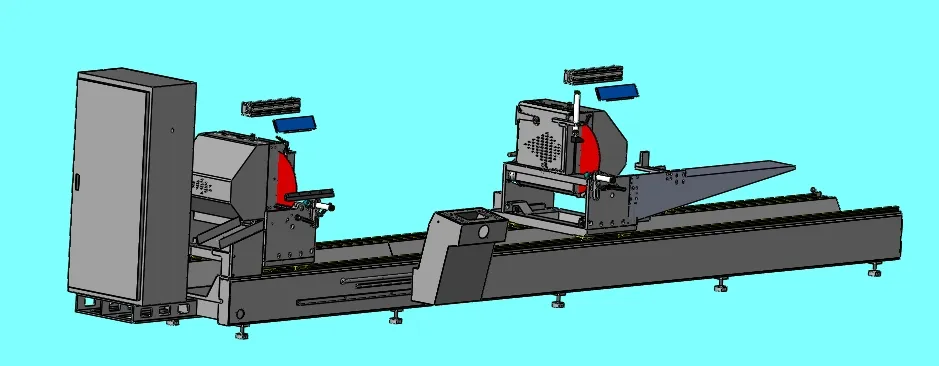

Dimensions Diagram

Why Partner With Us?

Over 20 years of expertise in aluminum processing equipment. Certified with ISO 9001, CE, and GOST, exporting to 50+ countries.

  • OEM/ODM capabilities with turnkey project solutions.
  • Strict quality control and R&D innovation.
  • Fast shipping & customs clearance support.

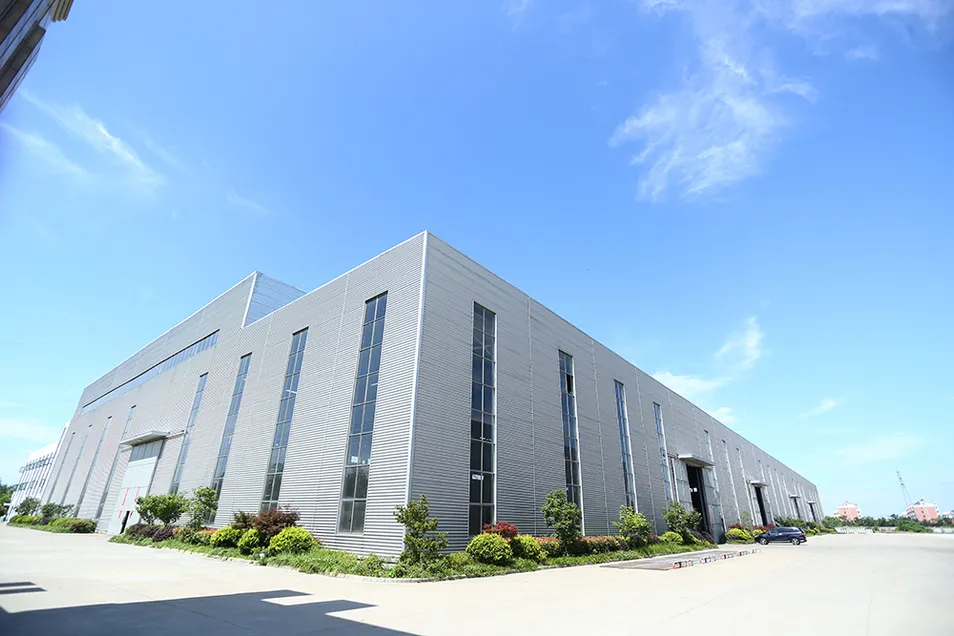

Factory Overview

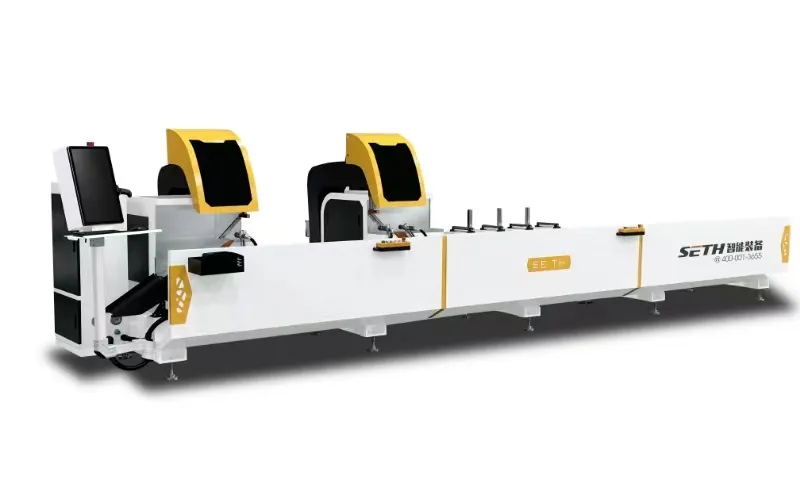

Product Range

Frequently Asked Questions

Q: What is the lead time for standard and customized orders? A: Standard models typically ship within 15–30 days. For units with customized configurations, the lead time is approximately 30–45 days.
Q: Does the machine support any-angle cutting? A: Yes, the CNC system allows for any angle adjustment between 22.5° and 157.5° through a high-precision servo motor.
Q: What kind of after-sales service do you provide overseas? A: We offer 24/7 technical assistance, spare parts supply, and have partnered service centers in key global regions for on-site support.
Q: What documents are provided for international shipping? A: We provide a complete export package, including the Commercial Invoice, Packing List, Bill of Lading, and necessary certifications like COC/CE.
Q: Is training included with the purchase? A: Yes, we provide comprehensive operation and maintenance training, which can be conducted on-site or via remote digital platforms.
Q: Can I request a customized machine size or blade configuration? A: Absolutely. Our engineering team can provide tailored designs and configurations to meet specific project and material requirements.
Finished Product 1
Finished Product 2
Finished Product 3
