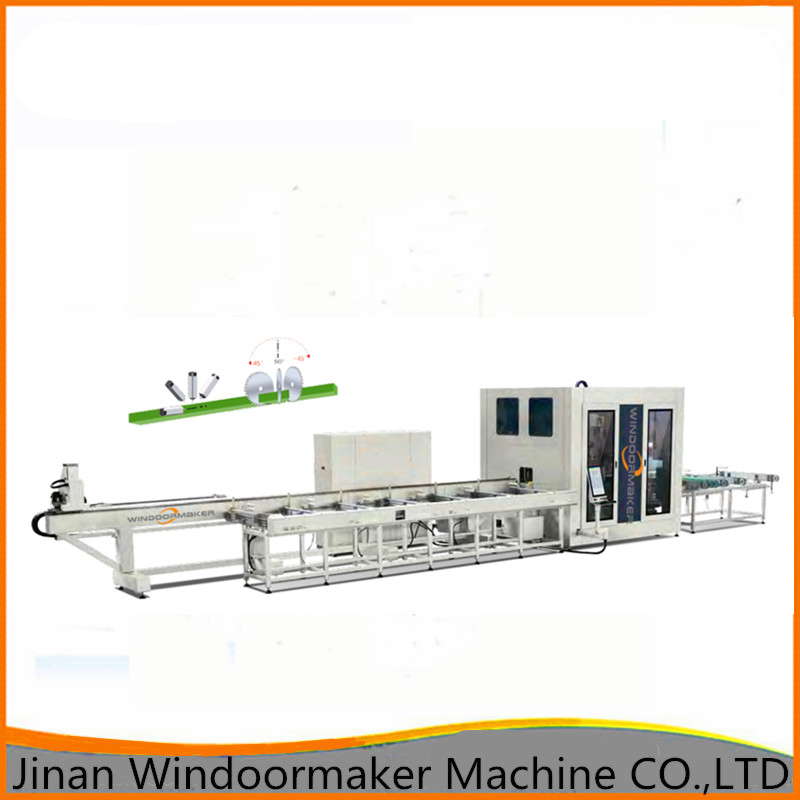

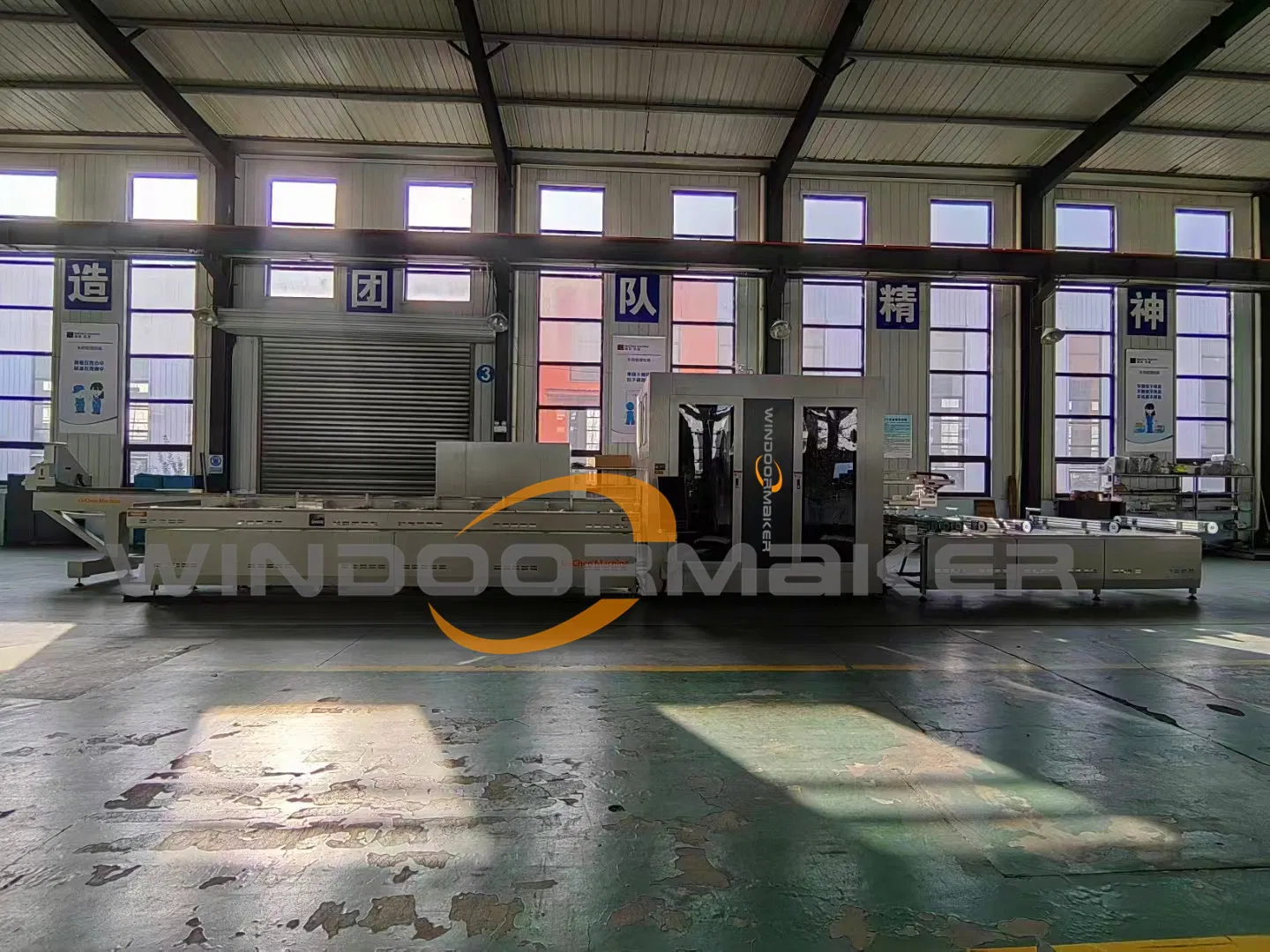

Aluminum Window Door Machine Aluminium CNC Machining and Cutting Center Machine with 12 Spindles
Aluminum Window Door Machine Aluminium CNC Machining and Cutting Center Machine with 12 Spindles
1 / 2
Aluminum Window Door Machine Aluminium CNC Machining and Cutting Center Machine with 12 Spindles
Aluminum Window Door Machine Aluminium CNC Machining and Cutting Center Machine with 12 Spindles

Aluminum Window Door Machine Aluminium CNC Machining and Cutting Center Machine with 12 Spindles

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

📊

Basic Information

Model NO.WMCM-CNC-6000 ConditionNew
CertificationISO, CE Automatic GradeAutomatic
CNC or NotCNC Voltage380V
FunctionMilling, Drilling, Cutting Spindle Power6kw x 6
Tools Magazine12 Tools Blade Diameter600mm
Specification16600x3500x3000mm
⚙️

Product Description & Specifications

  • Three axis CNC controlled machining center for cutting, marking, milling key holes, copy routing, and more on four sides of aluminum profiles.
  • 12 high-speed custom-made air-cooled spindles for milling at all angles from 22.5° to 135° with 0.1° precision.
  • 600 mm diameter saw blade with 0 to 180° rotation capability.
  • 3 axes and 360° rotatable gripper positioning for maximum flexibility.
  • Automatic profile length recognition and support for profiles from 2500 mm to 6000 mm.
  • Equipped with an automatic lubrication system and high-precision conveyor system.
  • ERP software access for seamless cutting list downloads.
  • Integrated dust collector sets to maintain a clean workspace.
Technical Parameters
Power supply380v 3p 50hz/60hz
Motor power55Kw
Spindle power6KWx6
Air pressure0.6~0.8MPa
Air consumption120L/min
Cutting angle0°-180°
Cutting length330-4500mm
Cutting width/height200mm / 200mm
Feeding speed0~120m/min
Weight9000Kg
📜

Certifications

Certification 1

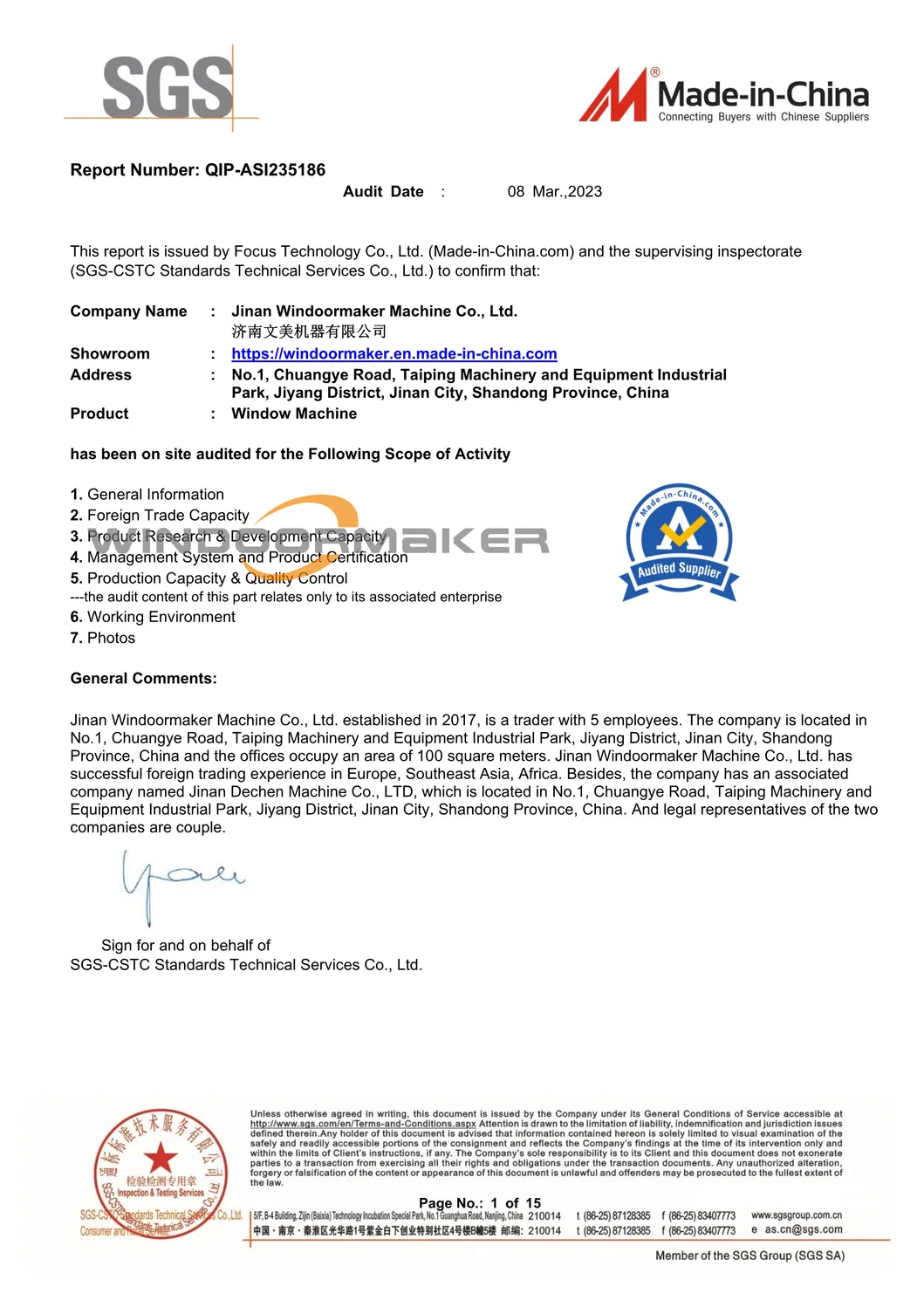

Certification 2
🏢

Professional Manufacturing

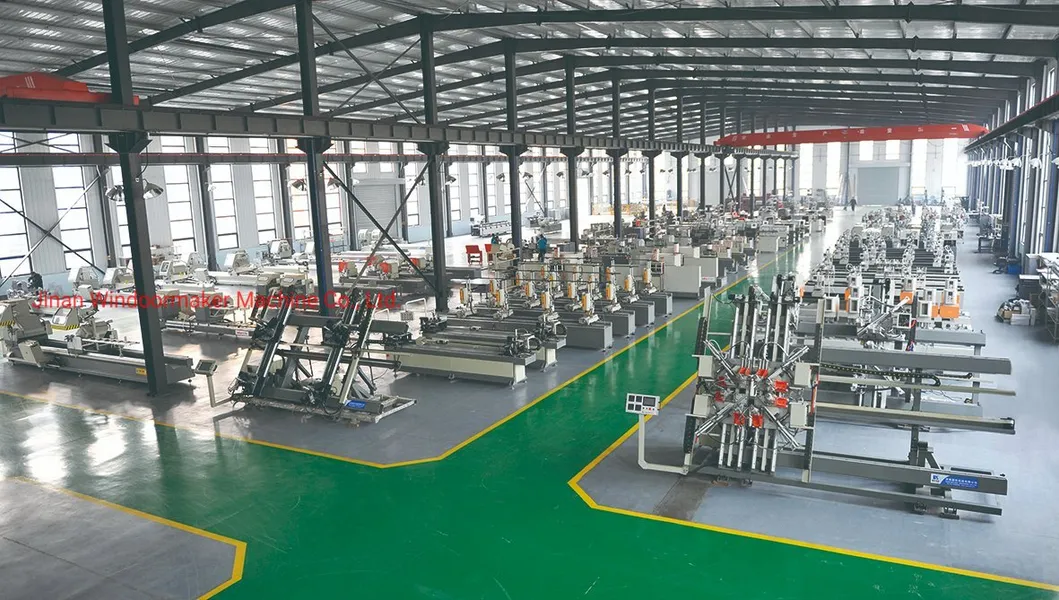

Factory View

We are an engineering company with over 10 years of experience specializing in the manufacture and supply of UPVC & aluminum window and door machines. Our factory covers an area of 15,000 m². Through years of development, we have focused on machine improvement, introducing new equipment and technological innovations to enhance production quality.

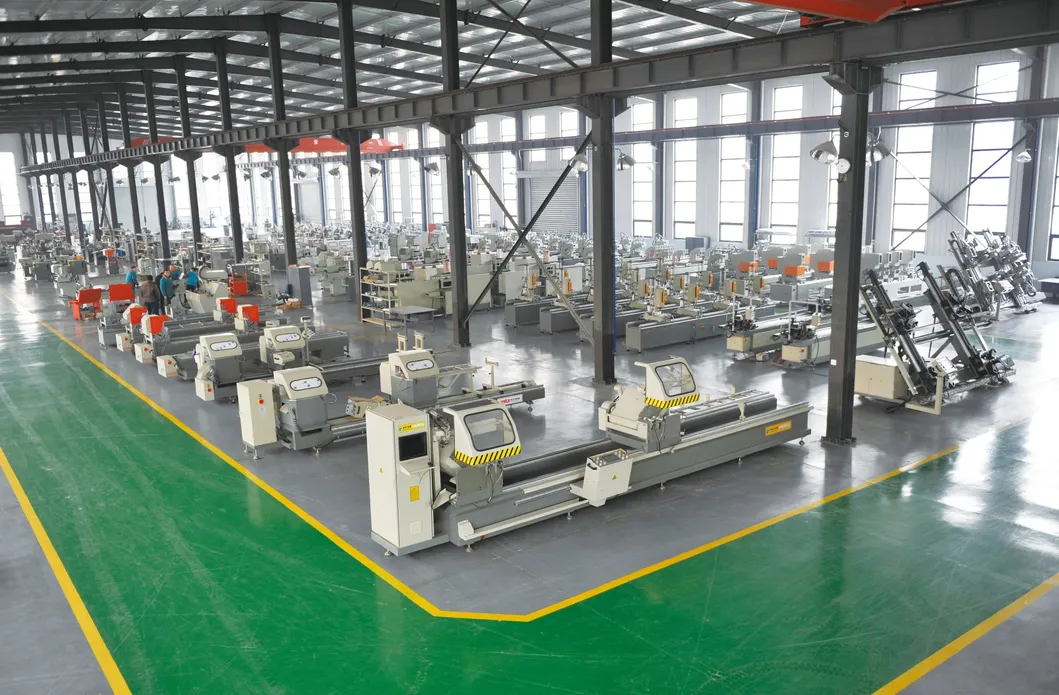

Production Line 1

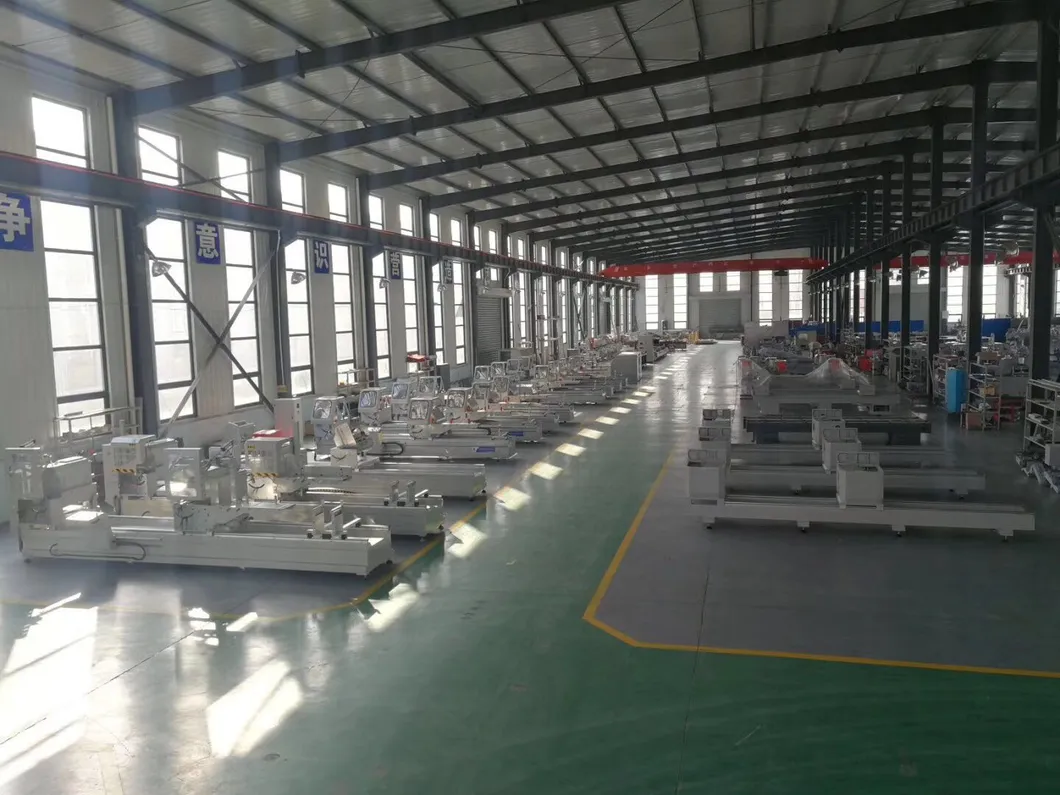

Production Line 2
🛠️

Machine at Customer Site

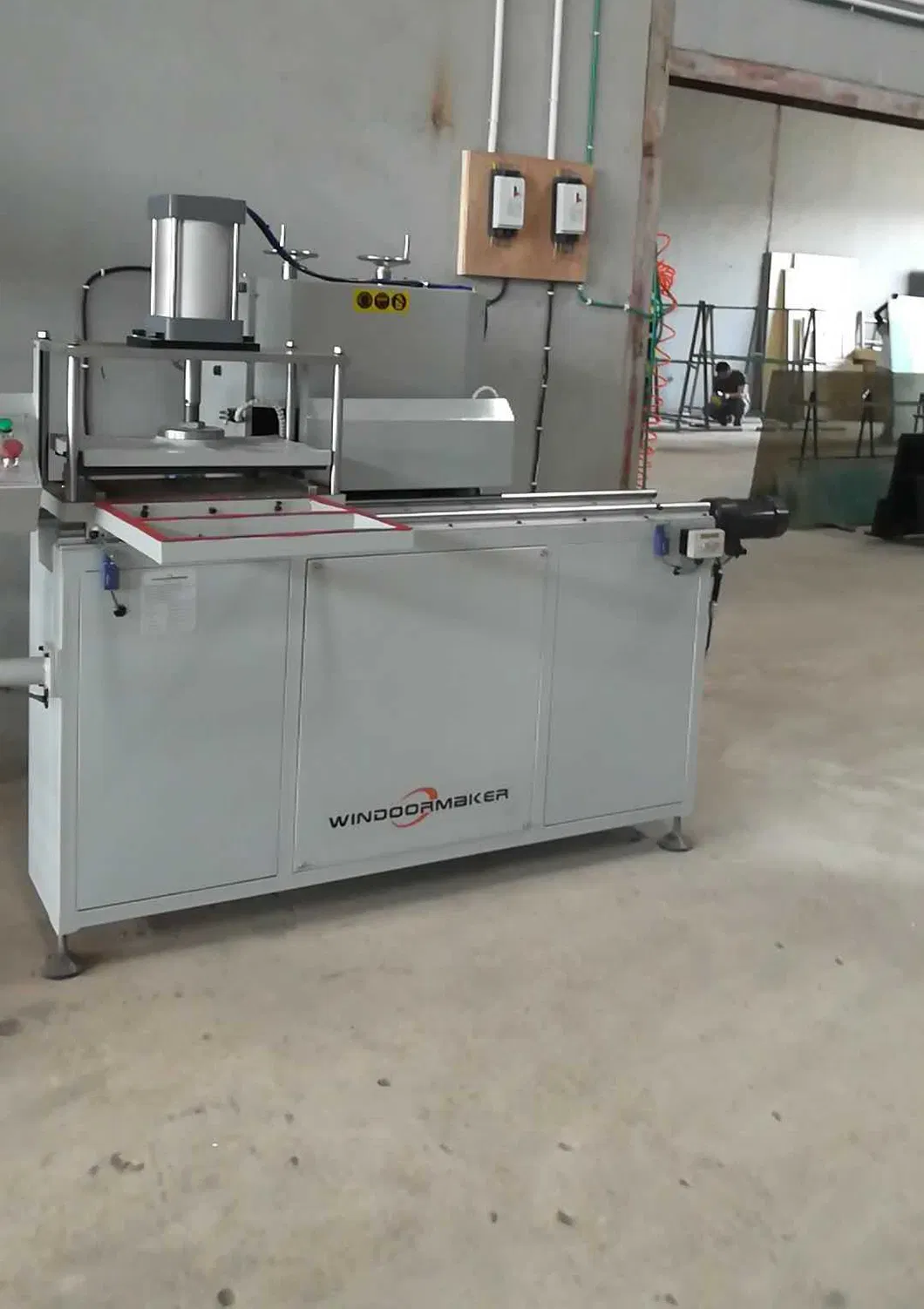

Customer Site 1

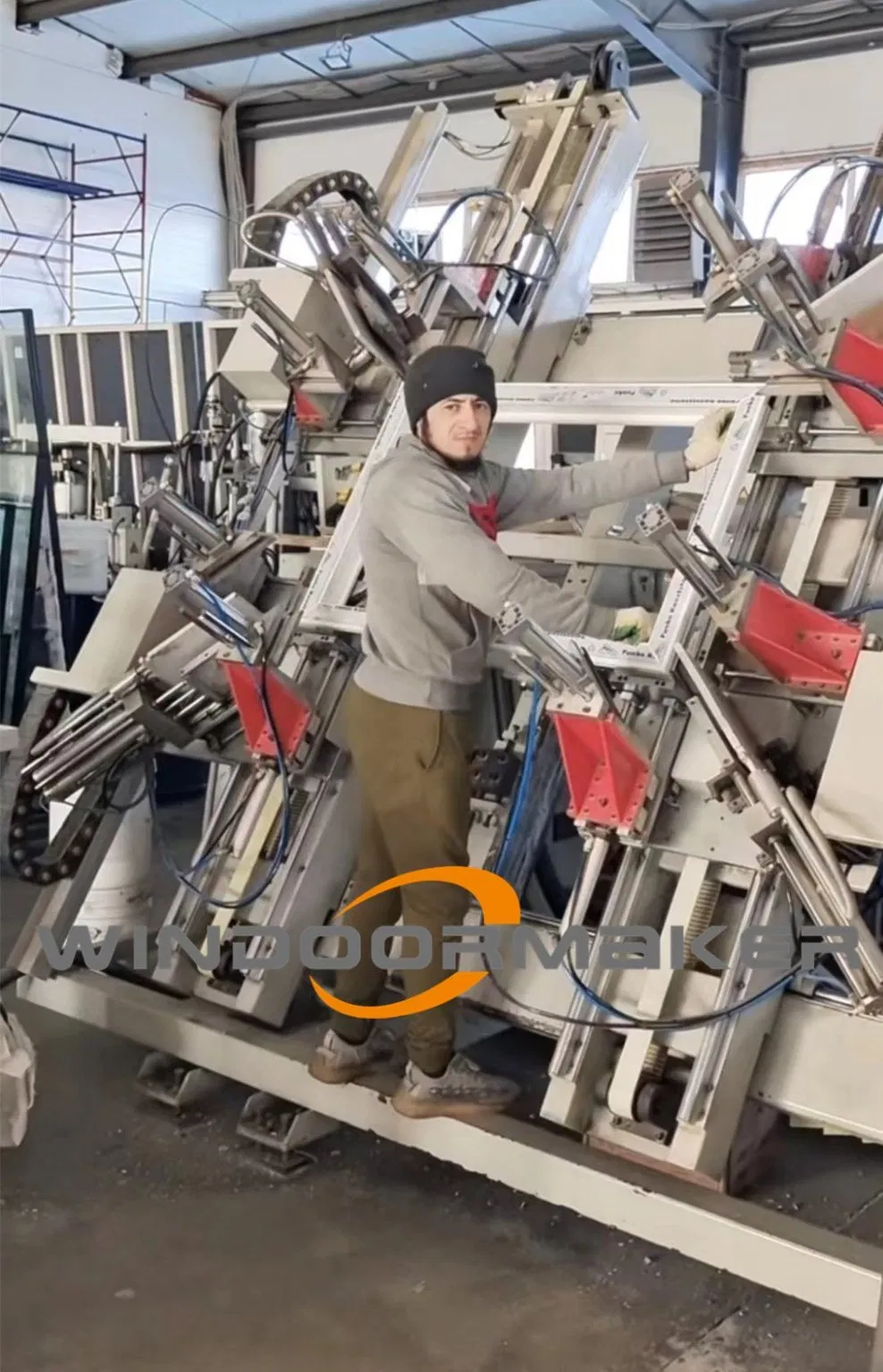

Customer Site 2

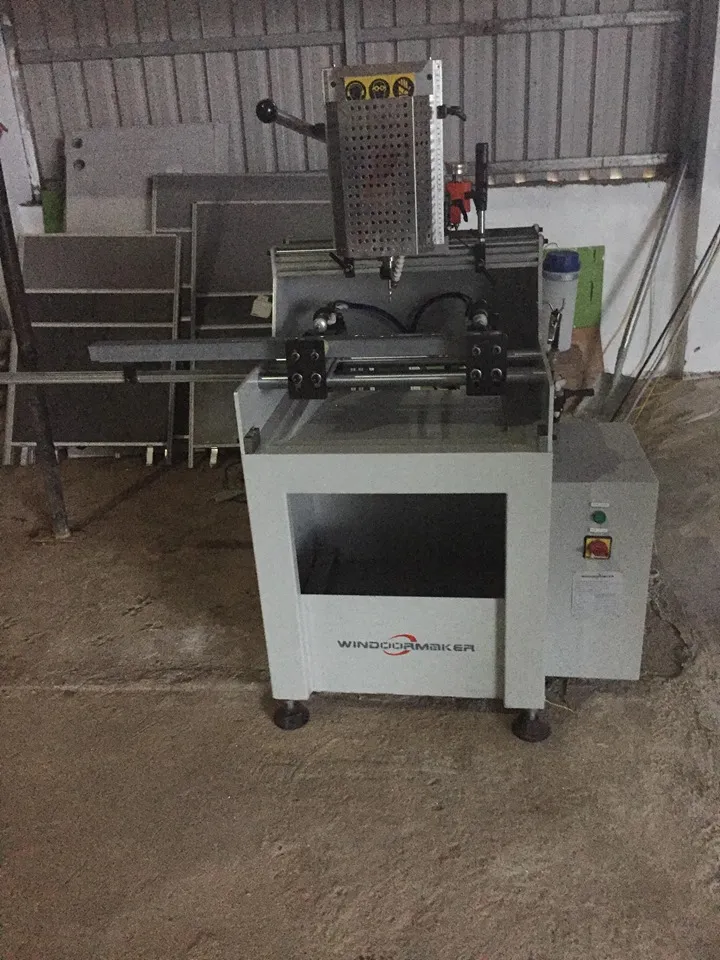

Customer Site 3
📦

Packaging & Shipping

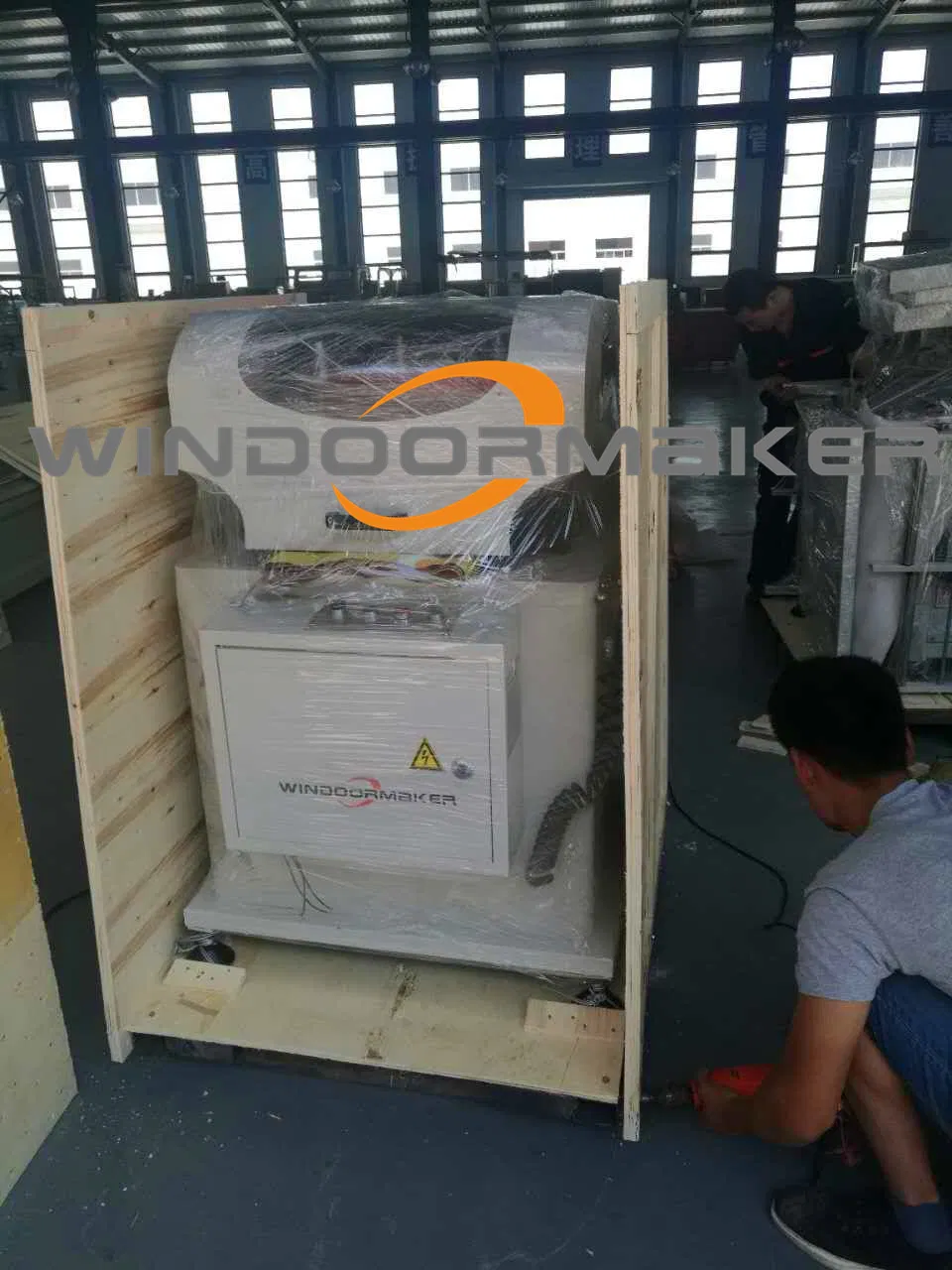

Packaging 1
Packaging 2

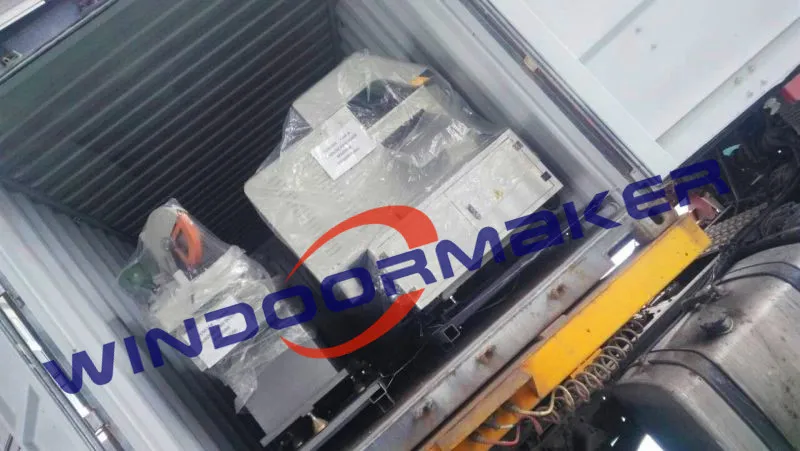

Packaging 3
❓

Frequently Asked Questions

Q1: What operations can this CNC machining center perform? A: It can perform cutting, marking, milling key holes, copy routing for water slots, hinge holes, and handle holes on four sides of aluminum profiles.
Q2: What is the precision of the spindles? A: The machine features 12 high-speed air-cooled spindles that can mill at angles from 22.5° to 135° with a precision of 0.1°.
Q3: Does the machine support different profile lengths? A: Yes, the feeding unit can load profiles in any size ranging from 2500 mm to 6000 mm with automatic length recognition.
Q4: How is the waste material handled? A: The machine is equipped with dust collector sets that efficiently move dust and debris into a dedicated collection box.
Q5: Can I integrate my existing ERP software? A: Yes, the system allows for ERP software access to download cutting lists directly for production.
Q6: What are the power requirements for this machine? A: The machine requires a 380V 3-phase power supply at 50Hz or 60Hz.
