Zhixing Machine
Zhixing Machine
| Model NO. | WMC2C-CNC-500X4200 | Condition | New |
|---|---|---|---|

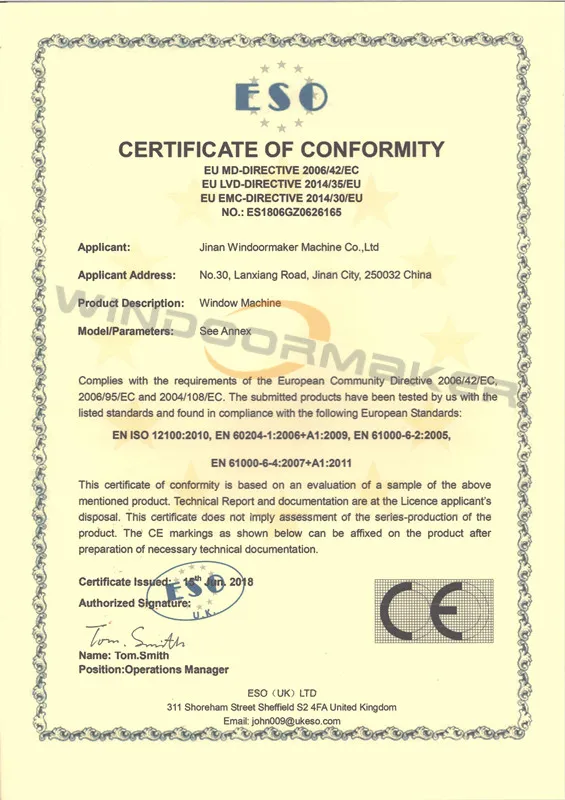

| Certification | ISO, CE | Automatic Grade | Automatic |
| CNC or Not | CNC | Voltage | 380V |

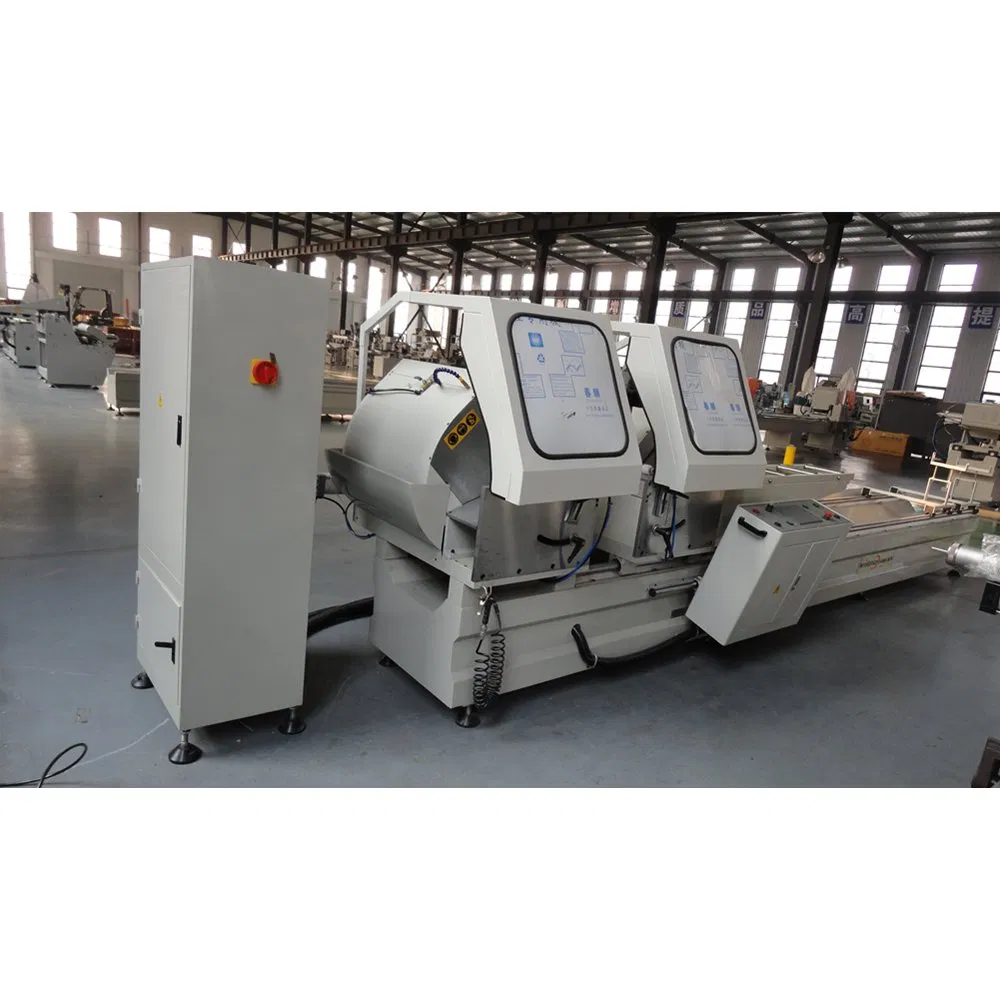

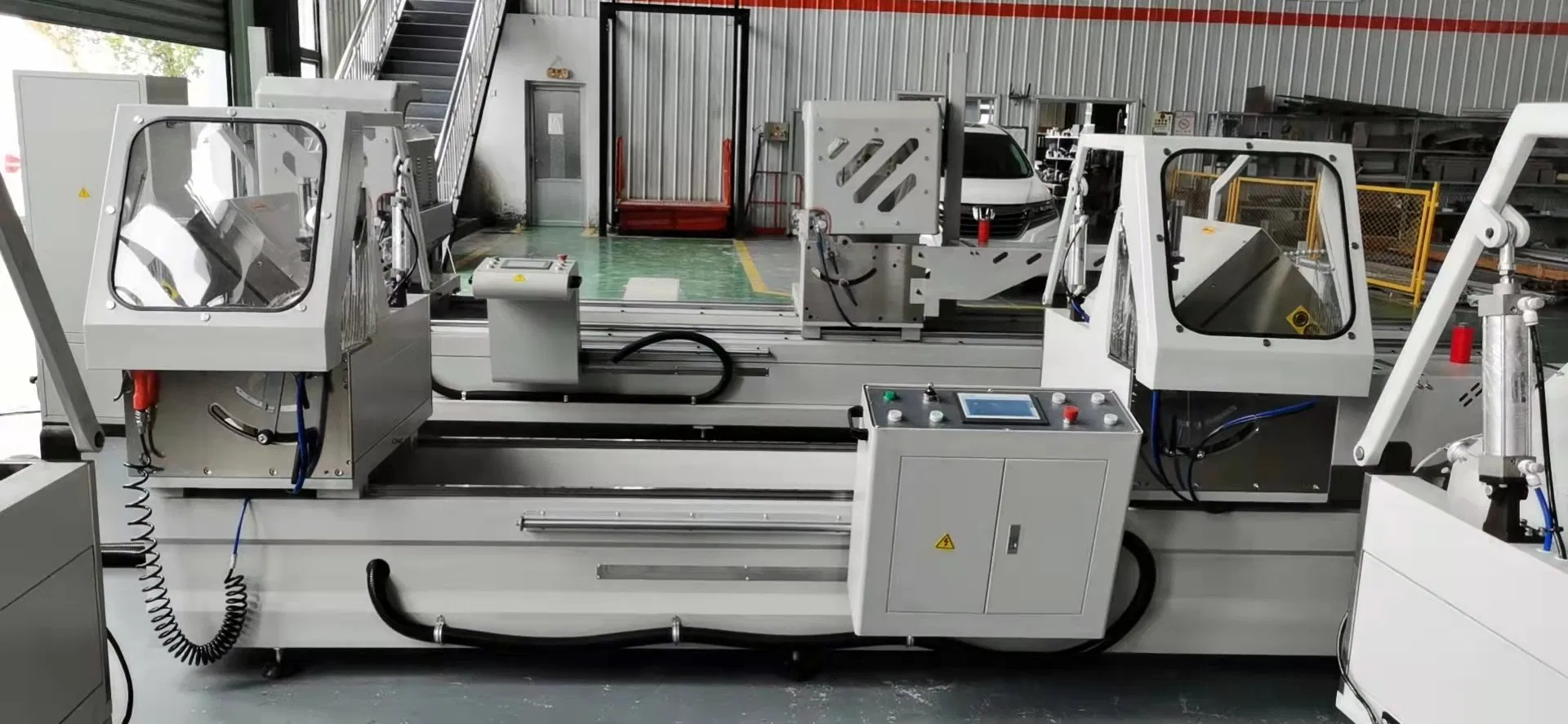

| Machine Name | Aluminum Double Head Precision Cutting Machine | ||
| Motor Power | 2.2X2kw | Cutting Length | Max. 4200mm, Min. 400mm |
| Cutting Angle | 45, 90 Degree | Cutting Width | Max 135mm |
| Transport Package | Wood Package | Origin | China |
| Motor power | 2*2.2KW+3KW | Motor rotary speed | 2800r/min |
| Operation air pressure | 0.5~0.8Mpa | Cutting length | 400~4200mm |
| Air consumption | 60L/min | Max. Cutting height | 300mm×90°; 200mm×45° |
| Cutting width | Max 135mm | Cutting angle | 90°, 45° |
| Feeding speed | Stepless timing 0~3m/min | Surface flatness | ≤0.10mm |
| Saw blade spec | φ500mm×4.4mm×φ30mm Z=120 | Dimension | 5260×1750×1990mm |
| Weight | 2000kg | Power supply | Made to order |

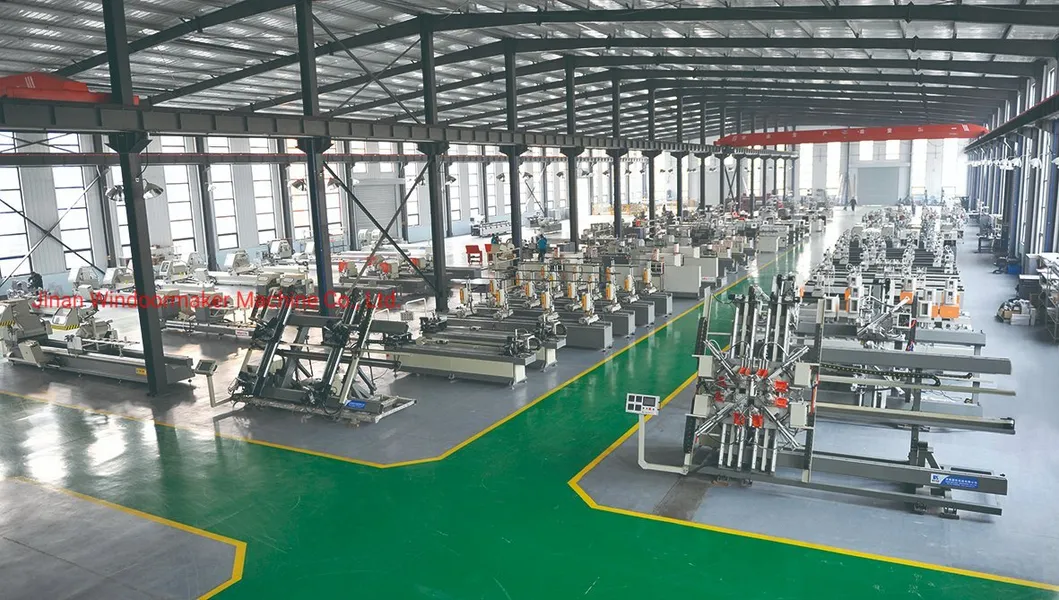

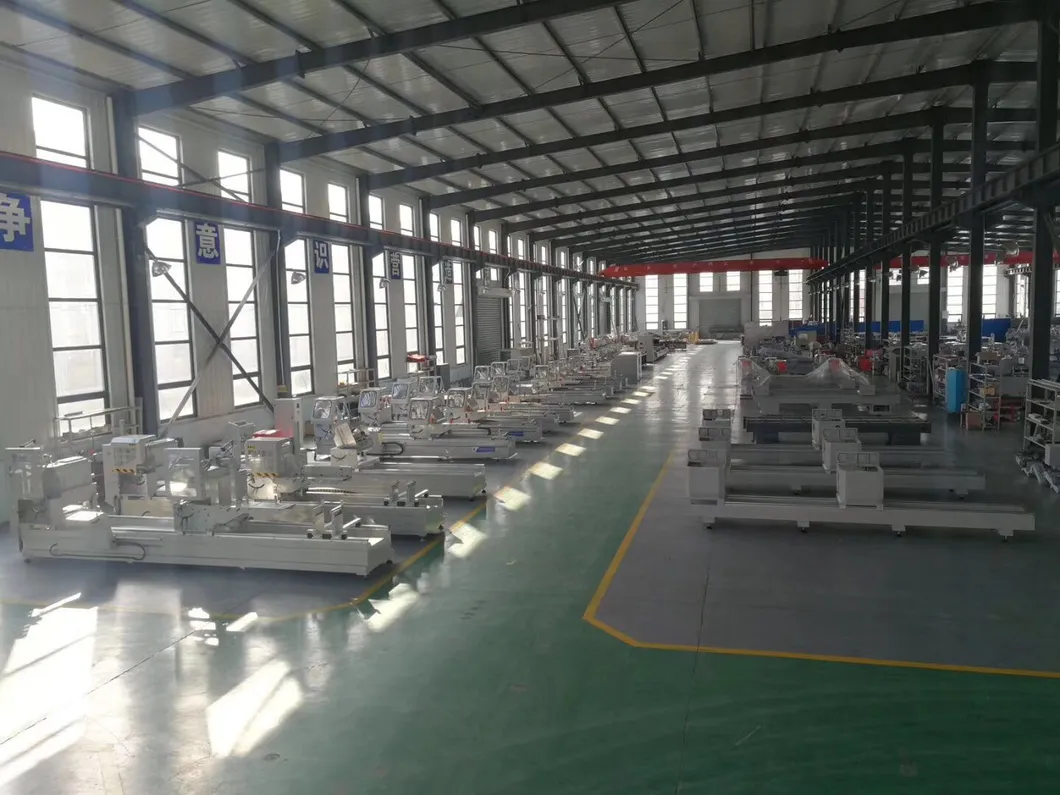

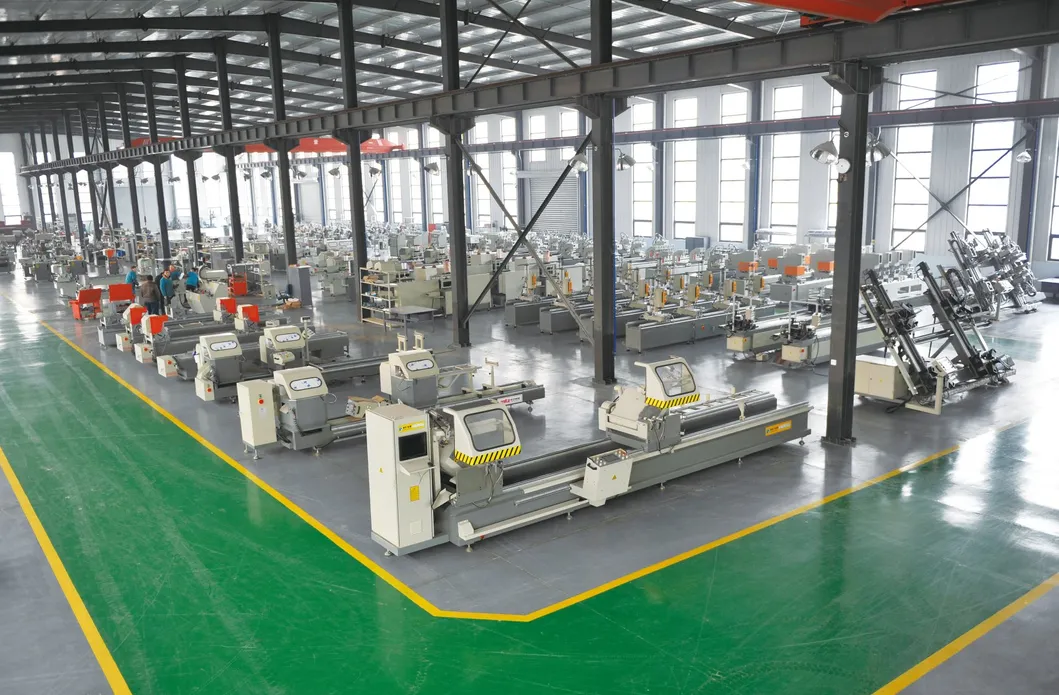

We are an engineering company with over 10 years of experience specializing in the manufacture and supply of UPVC & aluminum window and door machines. Our factory covers an area of 15,000 m². Throughout years of development, we have dedicated ourselves to machine improvement, introducing new equipment, and technological innovation for production.

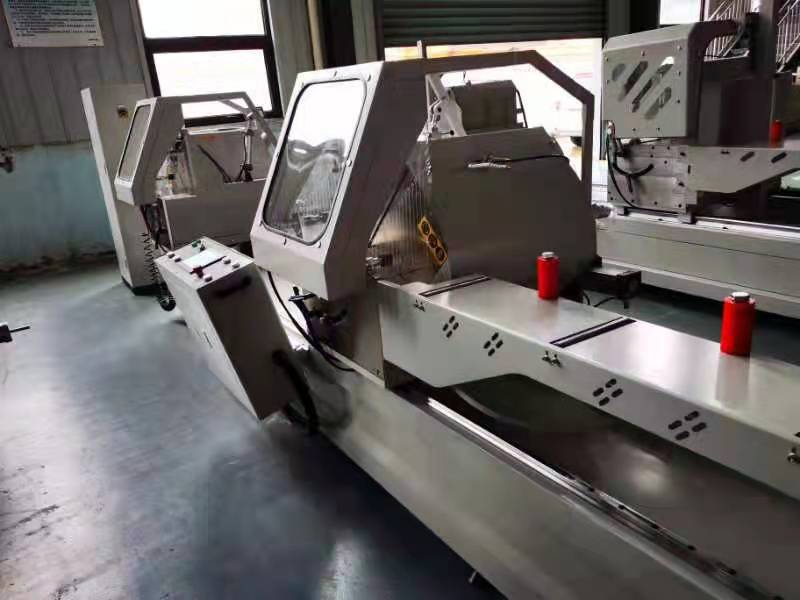

A: This machine is designed for high-precision cutting of Aluminum, PVC, and Curtain-wall profiles.
A: The machine supports automatic angle cutting at 45° and 90°.
A: The maximum cutting length is 4200mm and the maximum cutting width is 135mm.

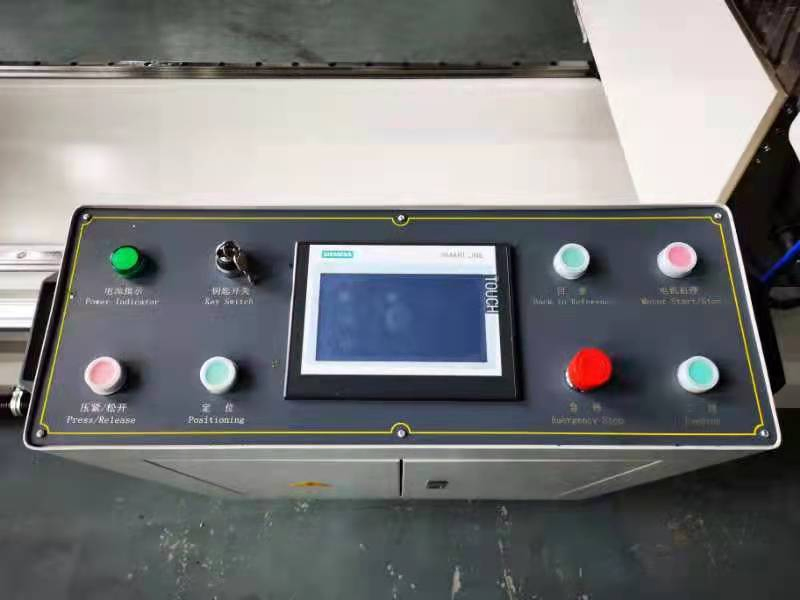

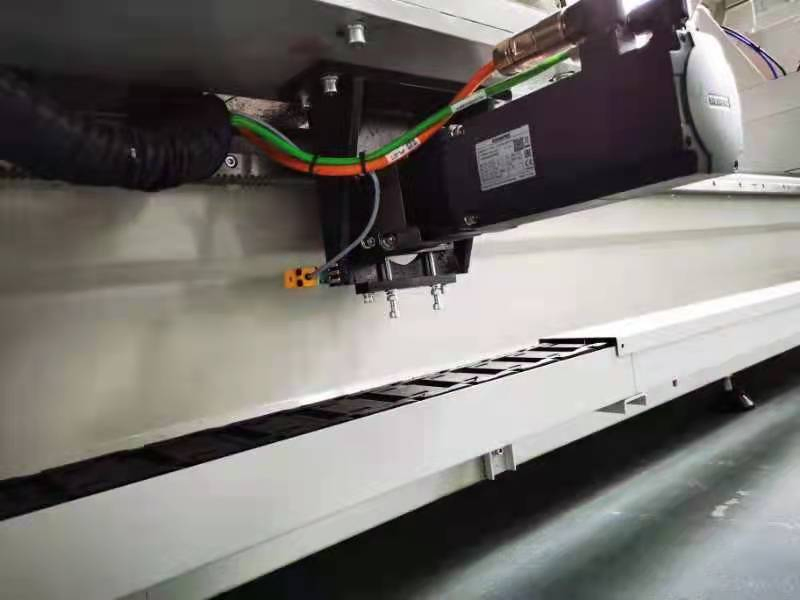

A: It features a Schneider CNC Control System for optimized cutting and fast, precise positioning.
A: The CNC system is capable of storing up to 10 sets of cutting data for repeated use.
A: The imported carbide blade ensures a high-quality, clean cutting finish and offers a much longer working life compared to standard blades.
