2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window
2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window
2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window
2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window
2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window
1 / 5
2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window
2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window
2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window
2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window
2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window

2500 3000 4000mm Aluminium Profile Milling Machining Center for Making Aluminum Window

Customization: Available
After-sales Service: Remote Guidance, Door-to-Door Service, Operation V
Warranty: 18 Months
Send Inquiry

Product Description

📋

Basic Information

Model NO. LSKX-CNC-2500 / 3000 / 4000 Condition New
Certification ISO, CE, BV Automatic Grade Automatic
CNC or Not CNC Voltage 380V (Customized)
Application Aluminum Window Door Making Function Milling for Aluminum Profiles
Spindle Power 9.0 Kw Rotary Speed 18000 R/Min
X Axis Range 2500mm / 3000mm / 4000mm Weight 2000 Kgs
⚙️

Product Description

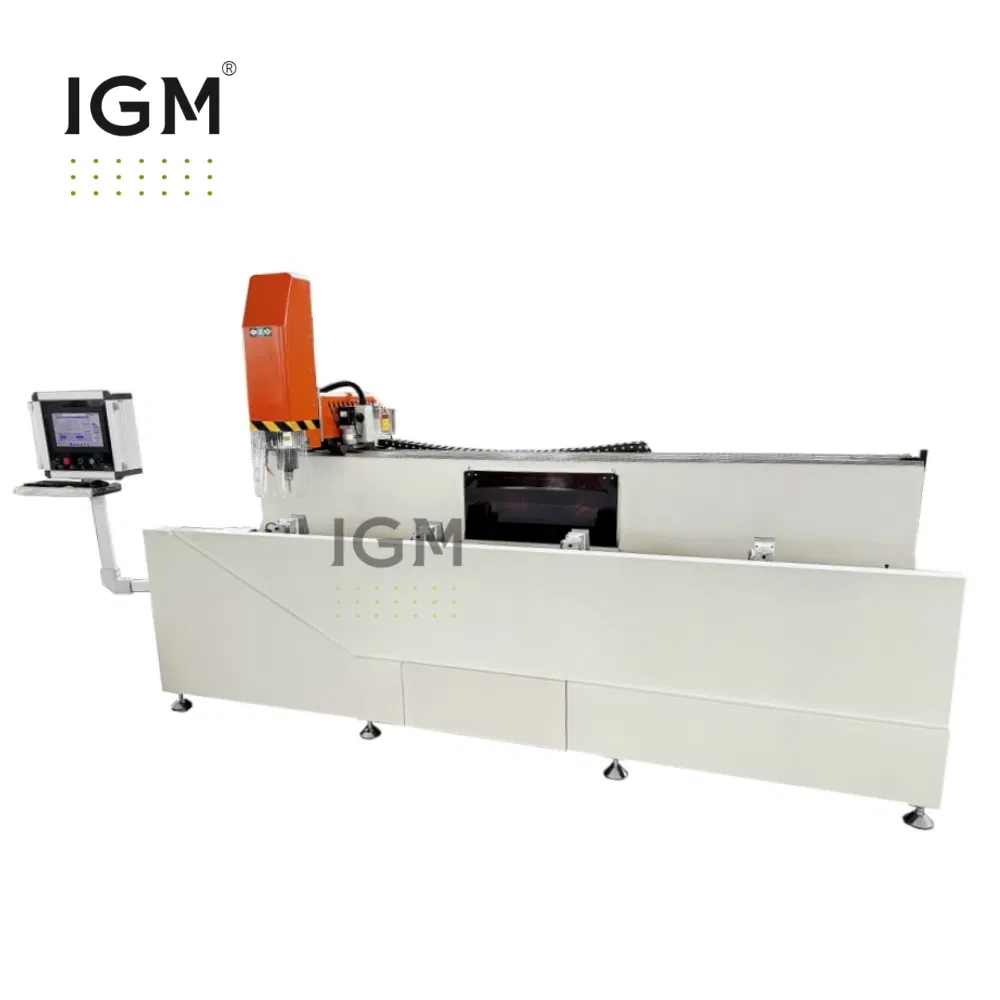

Aluminium Profile Milling Machining Center for Aluminum Window Production

Function: Milling various holes and slots of industrial aluminum and aluminum door and window profiles.

Aluminium Profile Milling Machining Center

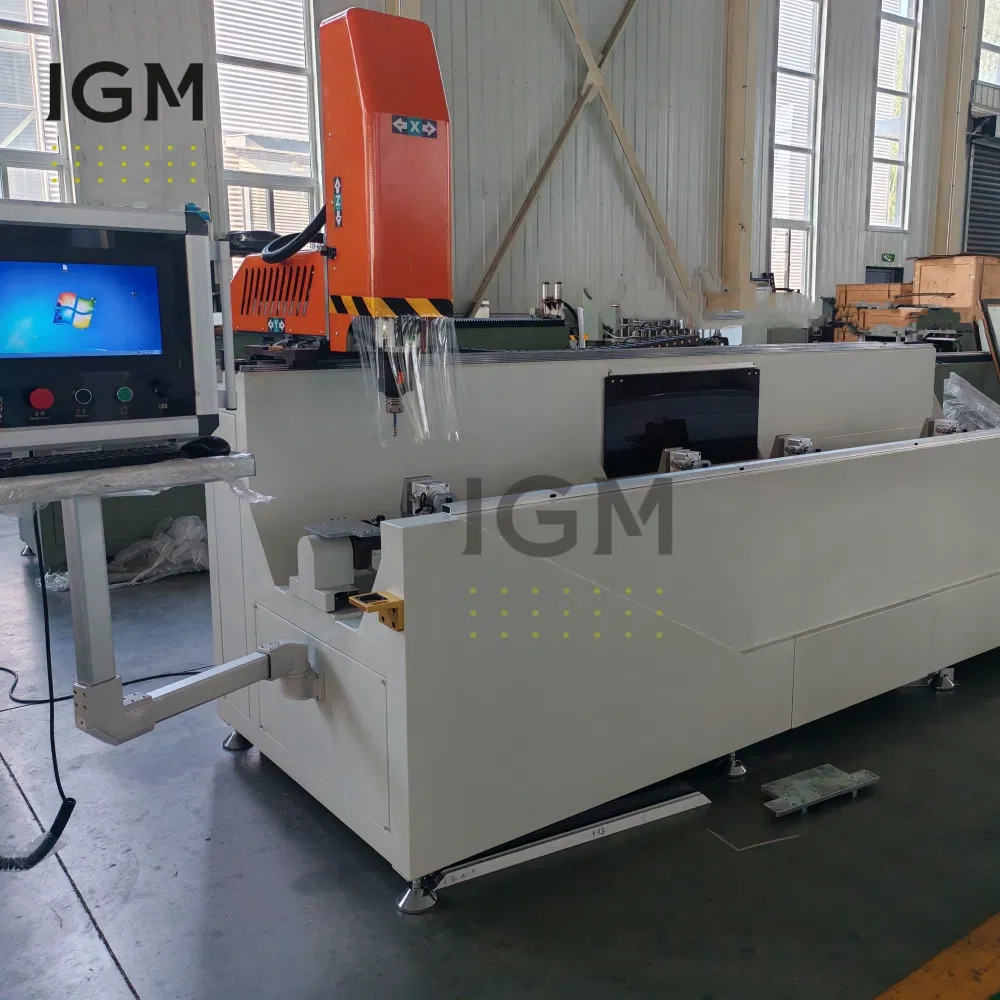

CNC Machining Center Detail
✔Used for aluminum window doors, industrial aluminum, and curtain walls.
✔Three-axis CNC with automatic turnover table (-90°, 0°, 90°).
✔Imported servo motors, rack drive, and precision slide rails.
✔Effective processing length up to 4 meters (customizable).
✔6-tool Automatic Tool Change (ATC) function.
✔SYNTEC or Han's control system with CAD drawing import.

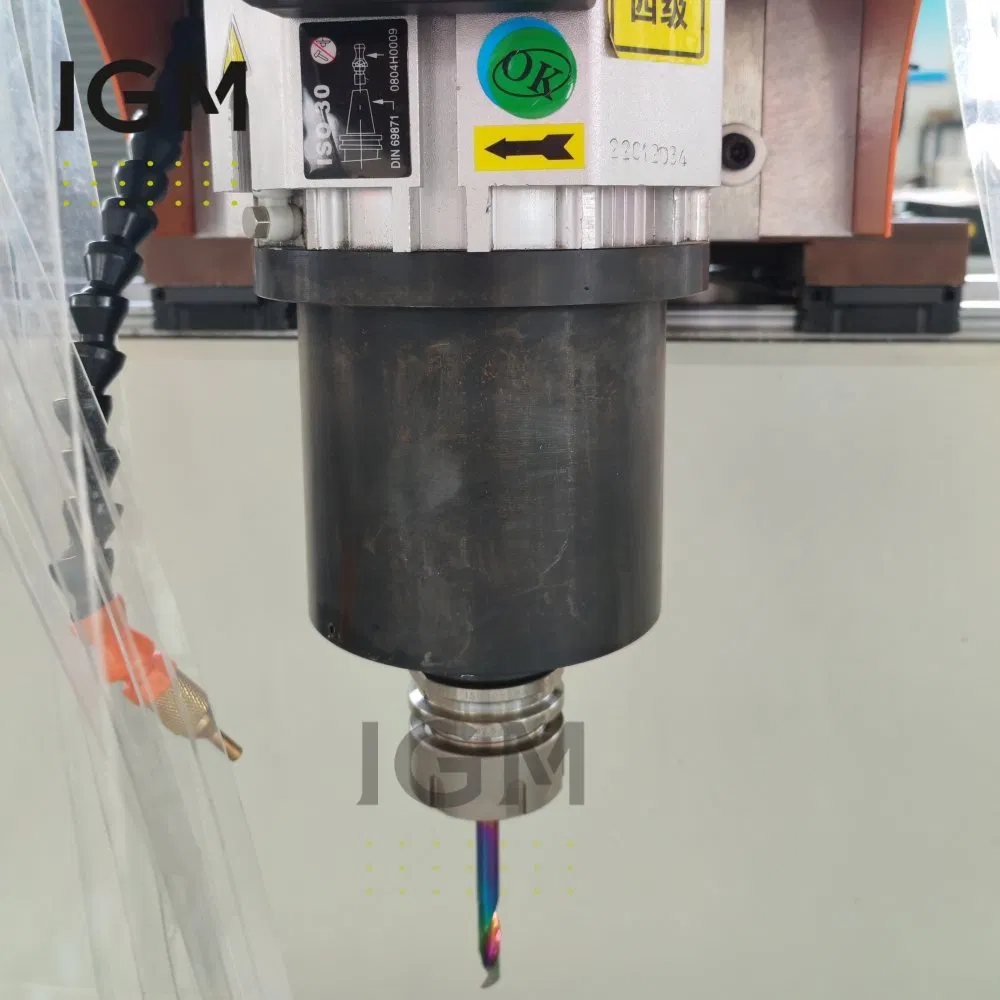

✔High-power high-speed spindle for stable milling.
✔High-strength steel body with aging treatment for durability.
📊

Technical Parameters

Parameter LSKX-CNC-2500 LSKX-CNC-3000 LSKX-CNC-4000
X Axis Process Range 2500 mm 3000 mm 4000 mm
Y/Z Axis Range 150 mm 150 mm 150 mm
Spindle Power 9.0 kw 9.0 kw 9.0 kw
Rotary Speed 18000 r/min 18000 r/min 18000 r/min
Positional Accuracy ≤0.05mm ≤0.05mm ≤0.05mm
Work Position -90°,0°,90° -90°,0°,90° -90°,0°,90°
Overall Size 3000*1600*2000mm 3500*1600*2000mm 4500*1600*2000mm
📸

Detailed Components

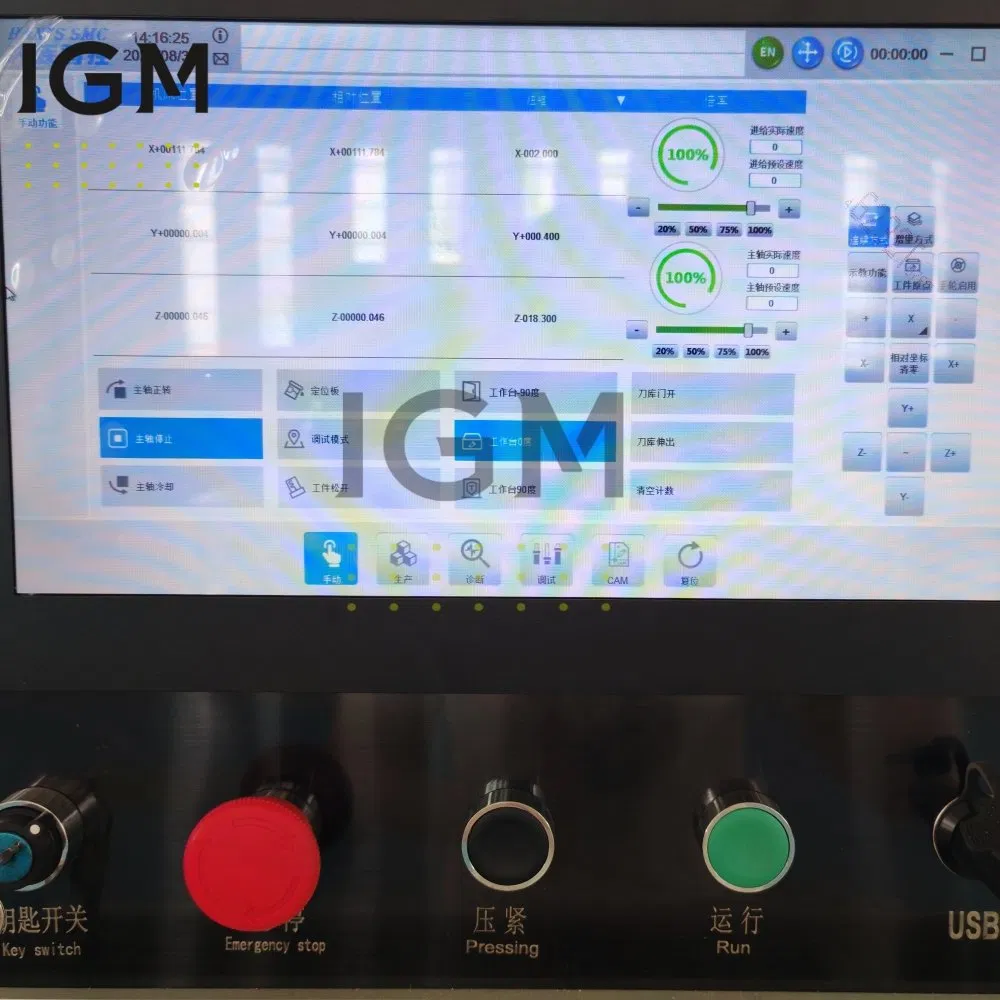

Control System

SYNTEC/Han's Control System

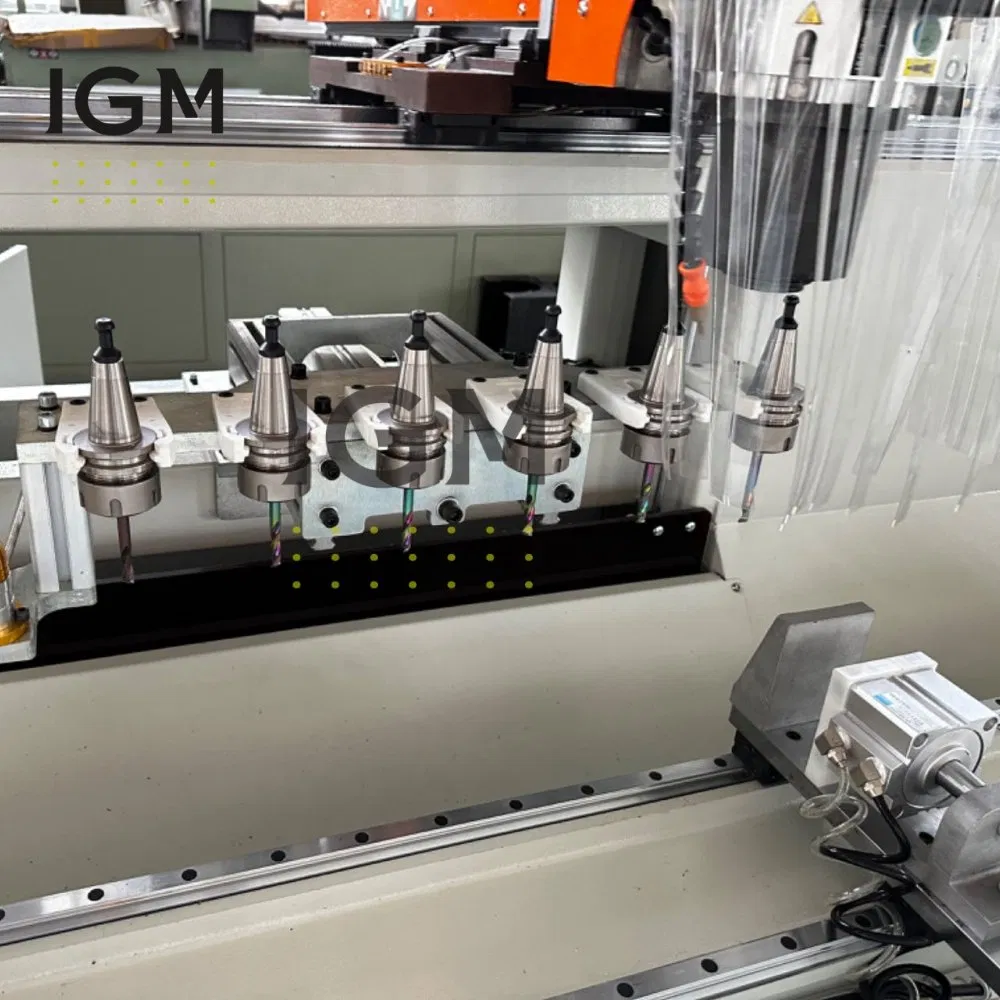

ATC Tools

6-Tool Automatic Changer

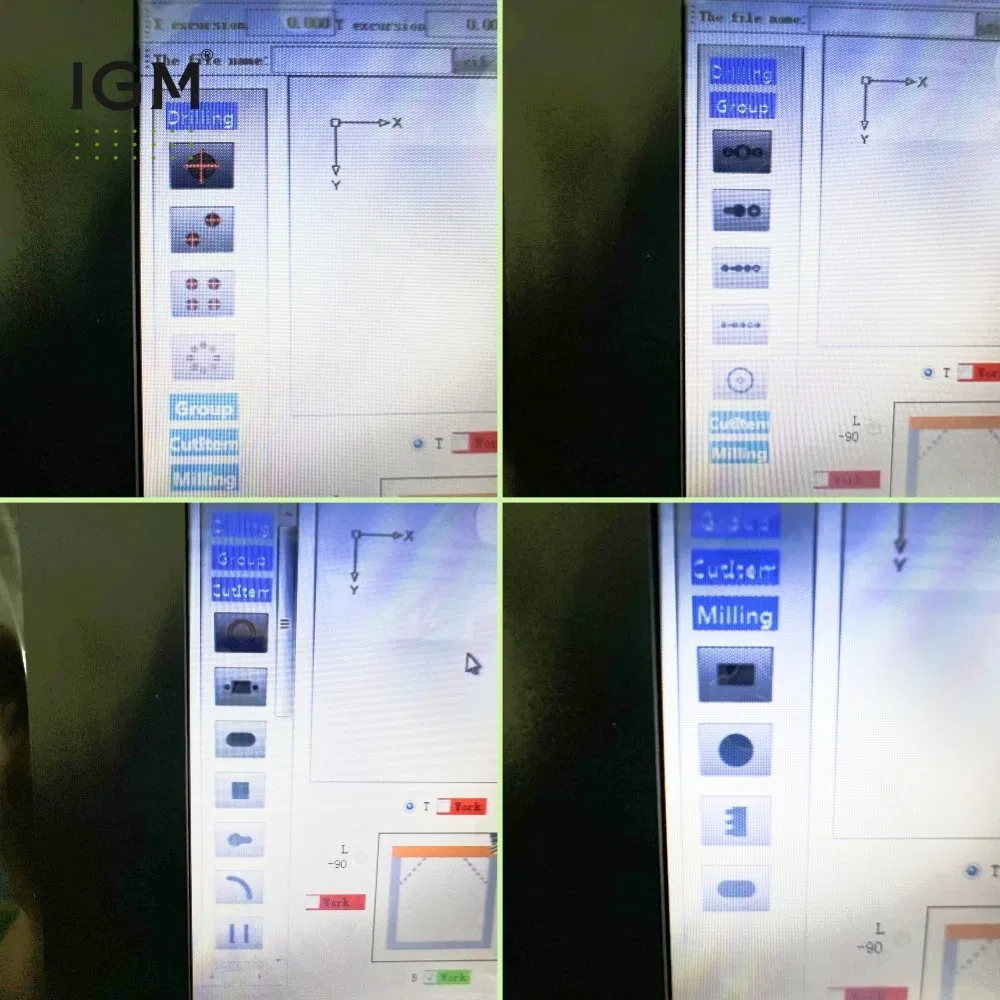

Milling Shapes

Various Milling Shapes

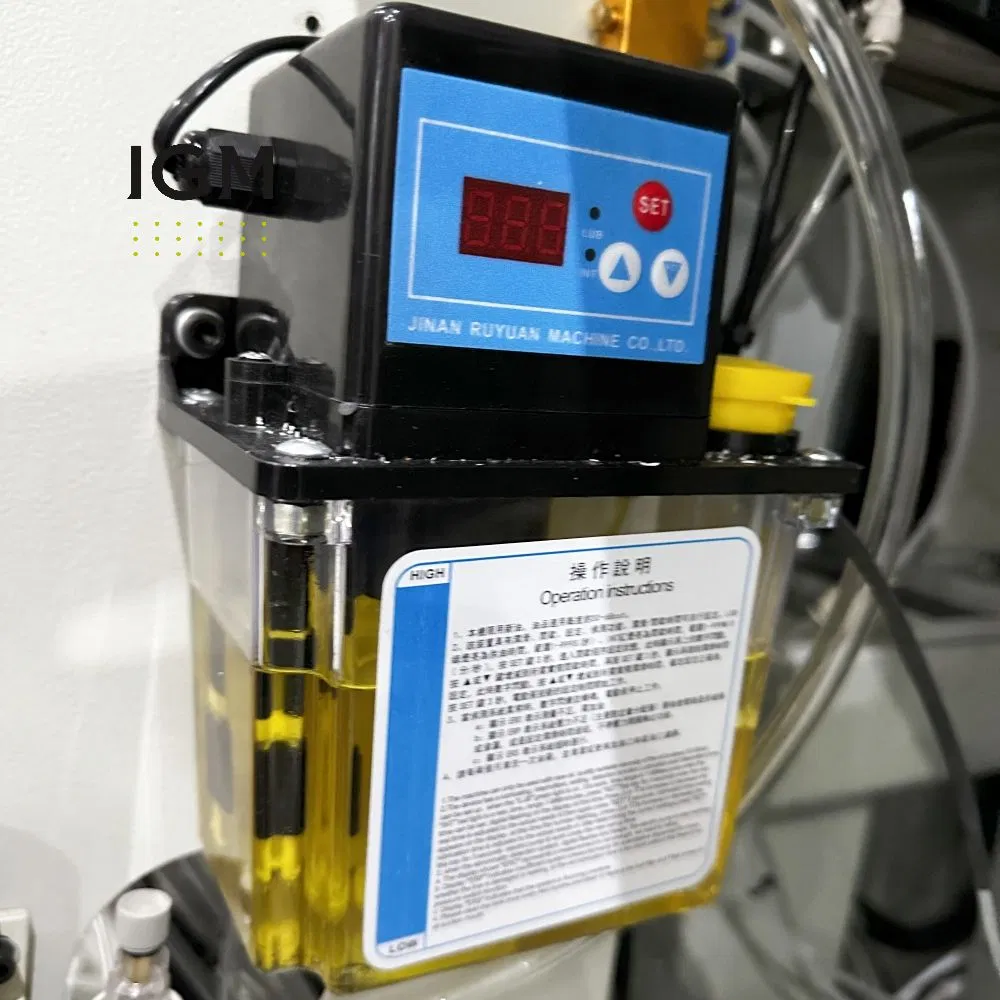

Lubricator

Automatic Lubricator

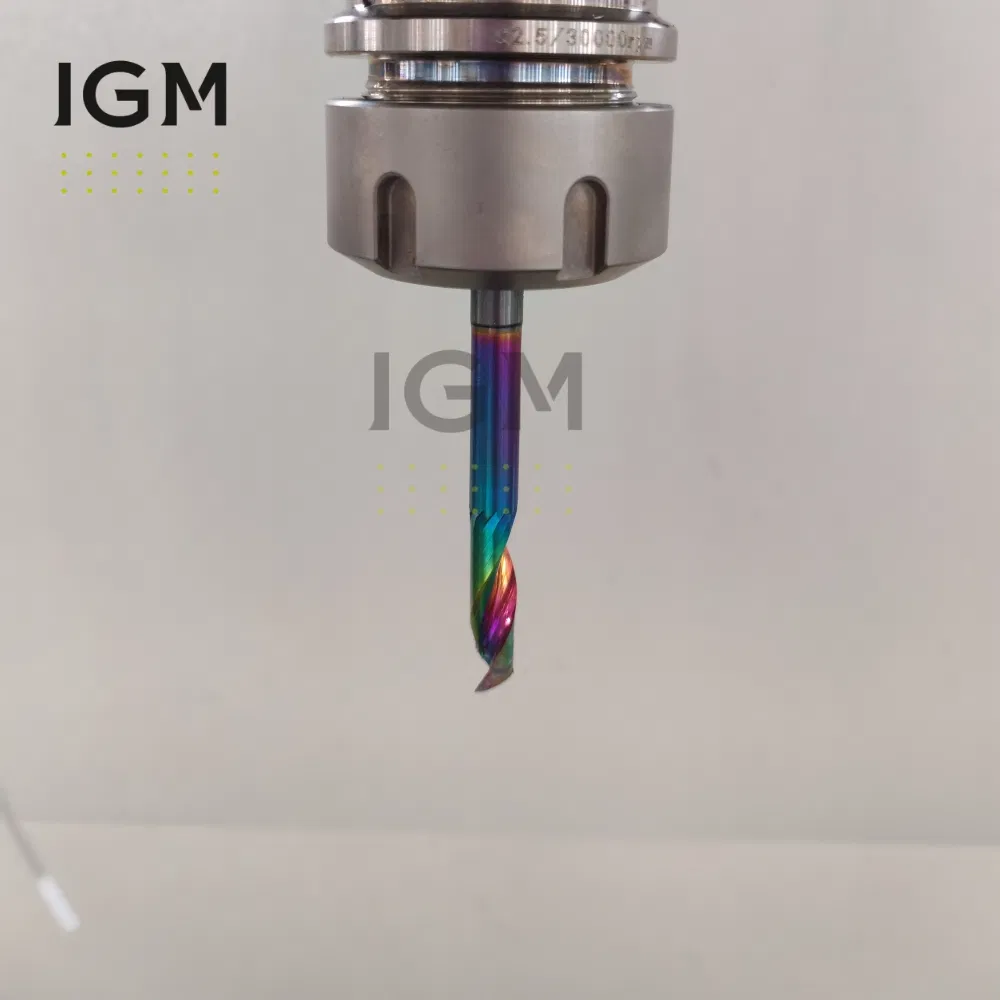

Milling Cutter

Spray Cooling System

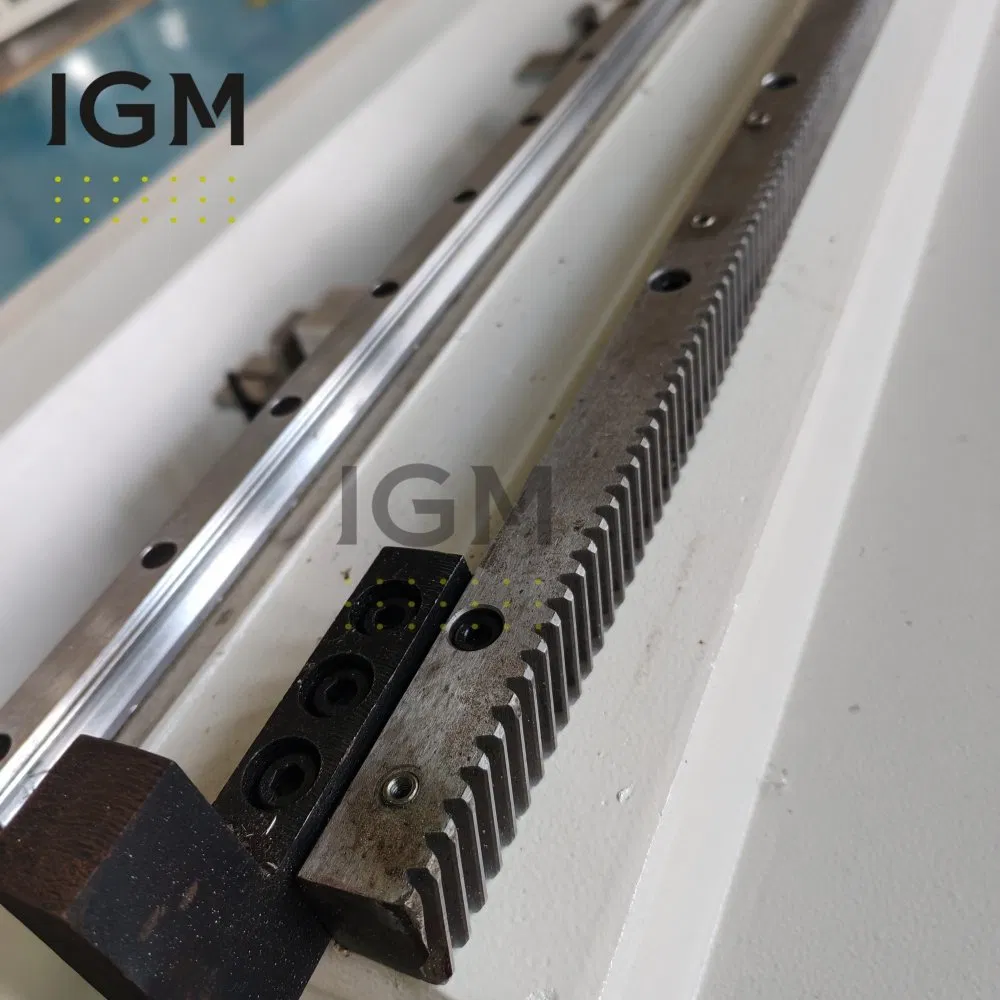

Rack Drive

Precision Rack Drive

✨

Processing Effects

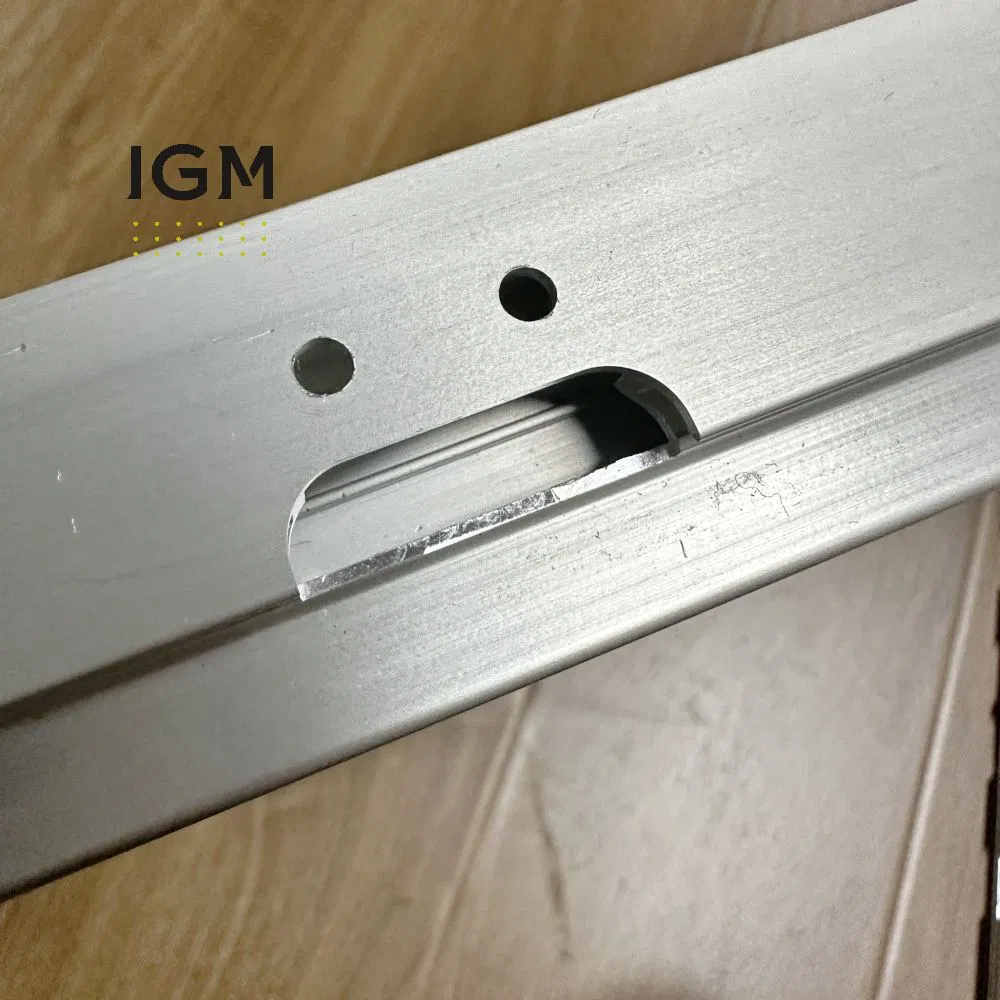

Effect 1

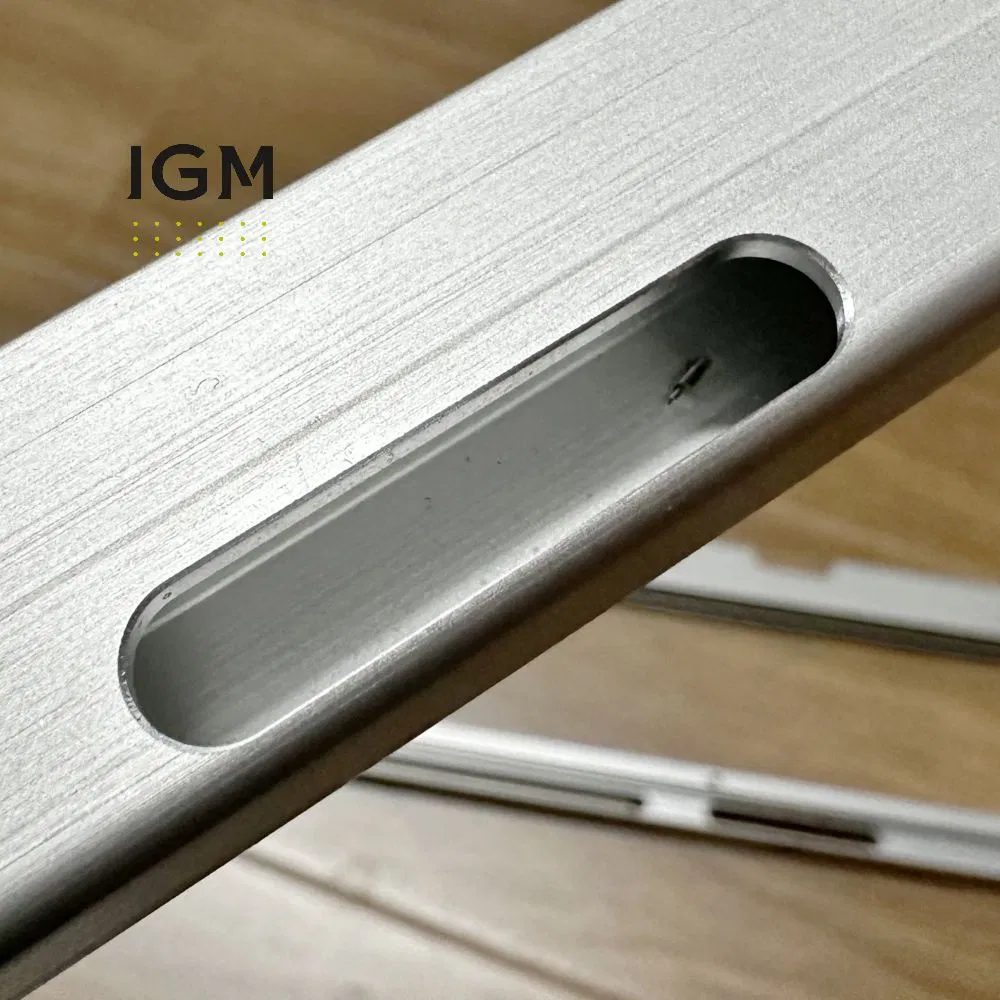

Effect 2

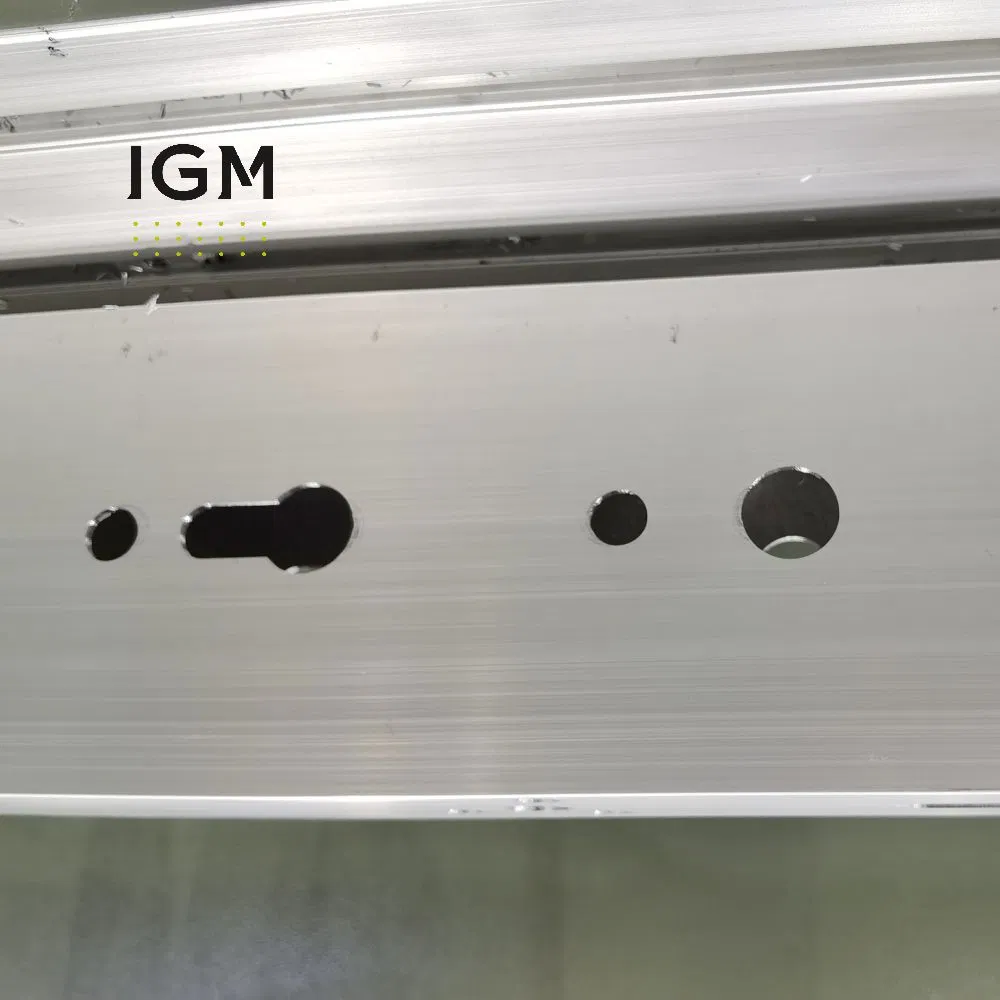

Effect 3
📦

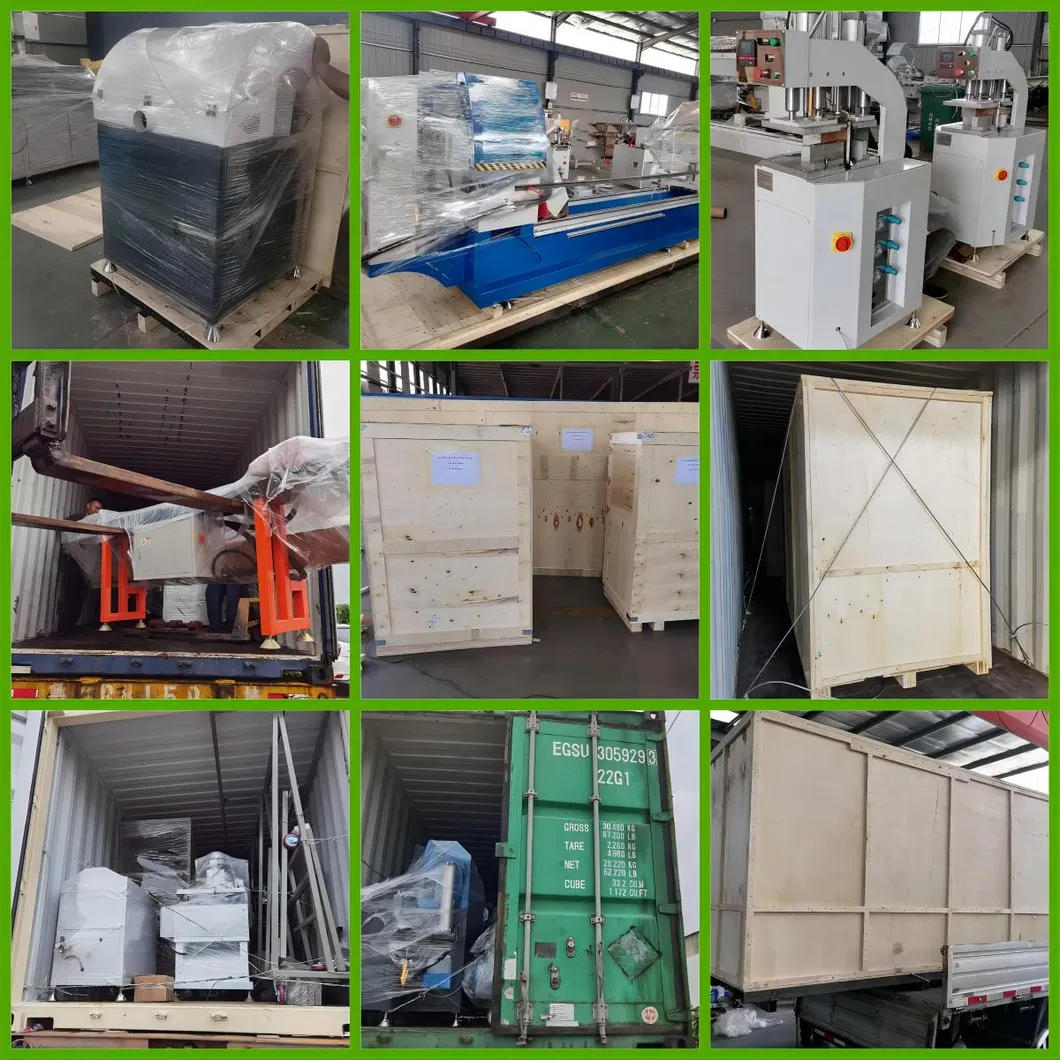

Packaging & Shipping

Packaging

LCL: Packed in fumigation-free plywood with thickened pallets and steel wire fixation.

FCL: Fixed in 20/40-foot containers with plastic film and special packaging tape for maximum safety and cost efficiency.

🏆

Our Advantages

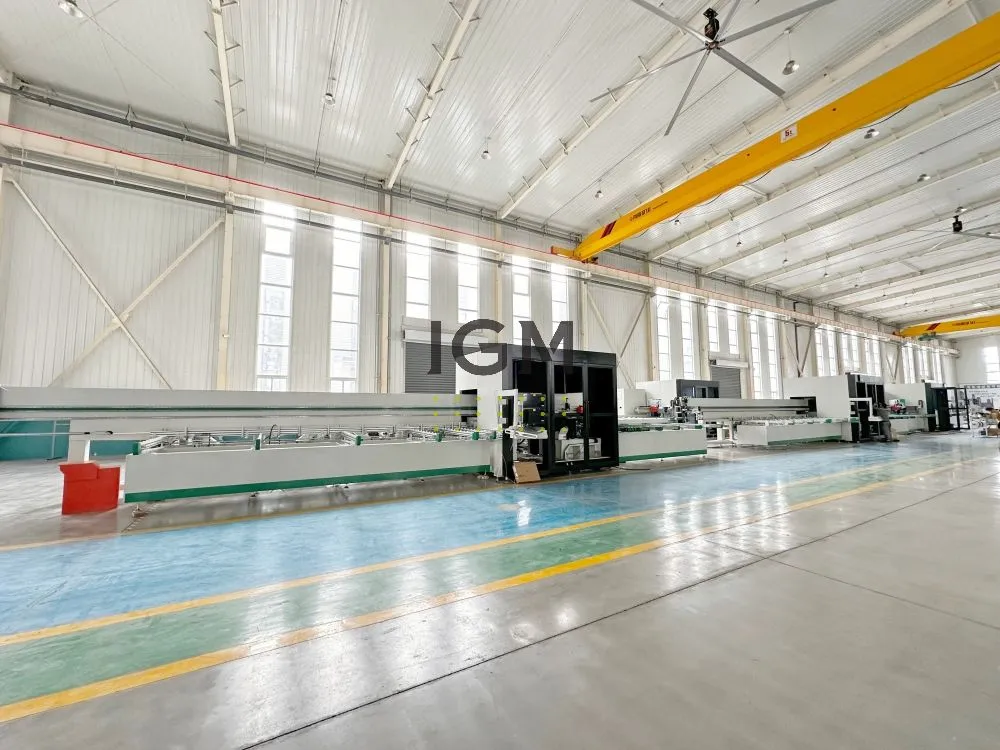

Advantages
Technical Innovation: Senior R&D team with 15-20 years of experience and numerous patents.
Quality Assurance: ISO and BV certified factory with low equipment failure rates.
Production Capacity: 15,000 sqm facility with integrated ERP management.
Customization: Tailored solutions based on specific customer needs and market changes.
🛠️

After Sales Service

Installation: Professional on-site installation and commissioning support.
Training: Comprehensive operation and maintenance training for your staff.
Maintenance: Regular inspections and preventive maintenance suggestions.
24/7 Support: Round-the-clock technical consulting and remote video assistance.
Warranty: 18-month warranty period with lifelong after-sales service.
Upgrades: Equipment transformation solutions to improve production efficiency.

Frequently Asked Questions

❓ What materials can this CNC machining center process?
It is specifically designed for milling various holes and slots in industrial aluminum, aluminum window/door profiles, and aluminum curtain walls.
❓ What are the available processing lengths for this machine?
We offer three standard models with X-axis ranges of 2500mm, 3000mm, and 4000mm. Custom lengths can also be provided upon request.
❓ Does the machine support automatic tool changes?
Yes, the machine is equipped with a 6-tool magazine and an automatic tool change (ATC) function, which significantly improves processing efficiency.
❓ Can the worktable rotate for multi-side processing?
Yes, it features an automatic turnover table that can realize processing at -90°, 0°, and 90° angles with simple operation.
❓ What control system does the machine use?
The machine adopts well-known systems like SYNTEC or Han's, which support CAD drawing imports and can be translated into any language.
❓ What is the warranty period for the equipment?
We provide an industry-leading 18-month warranty and lifelong after-sales technical support.
