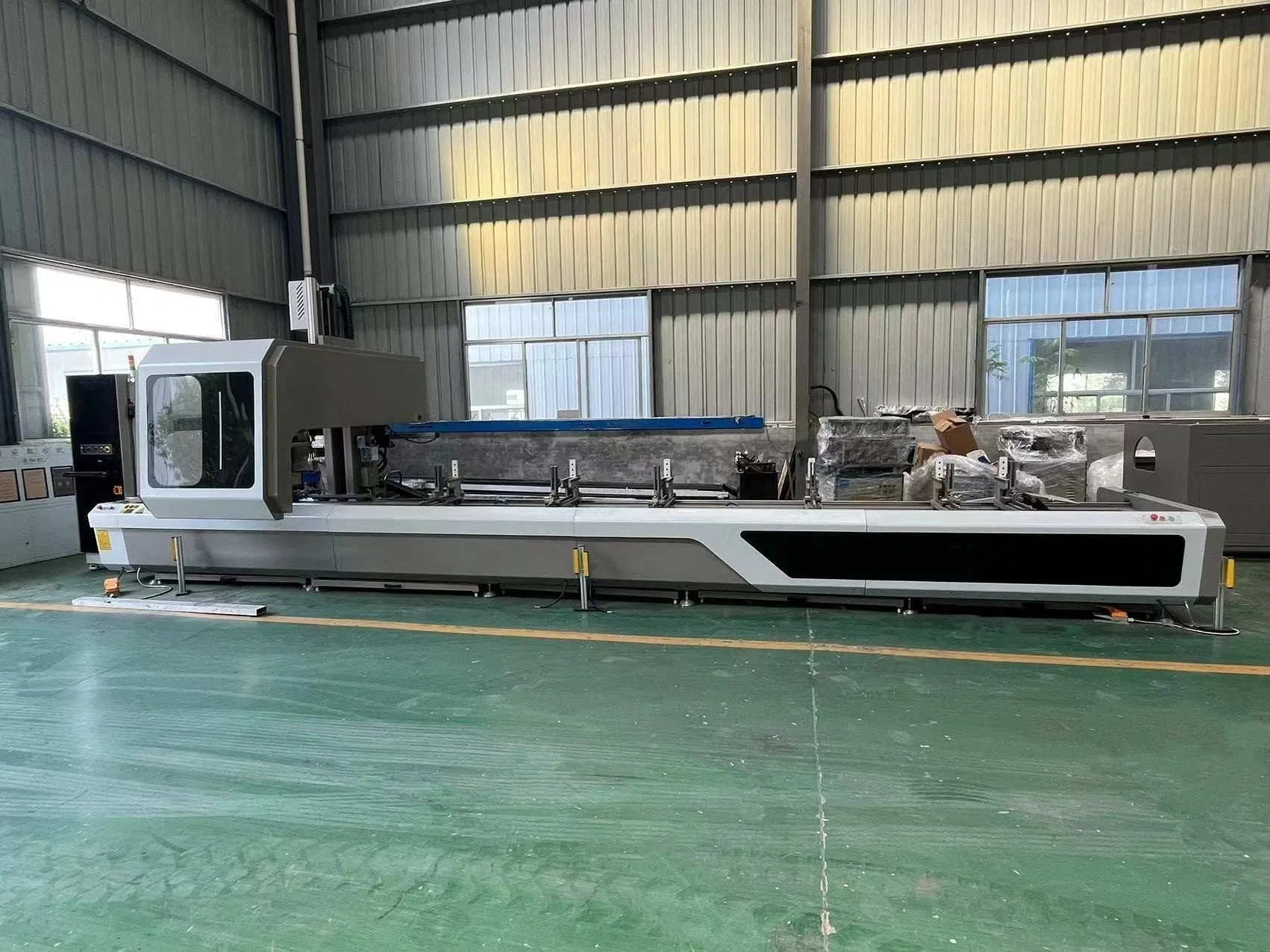

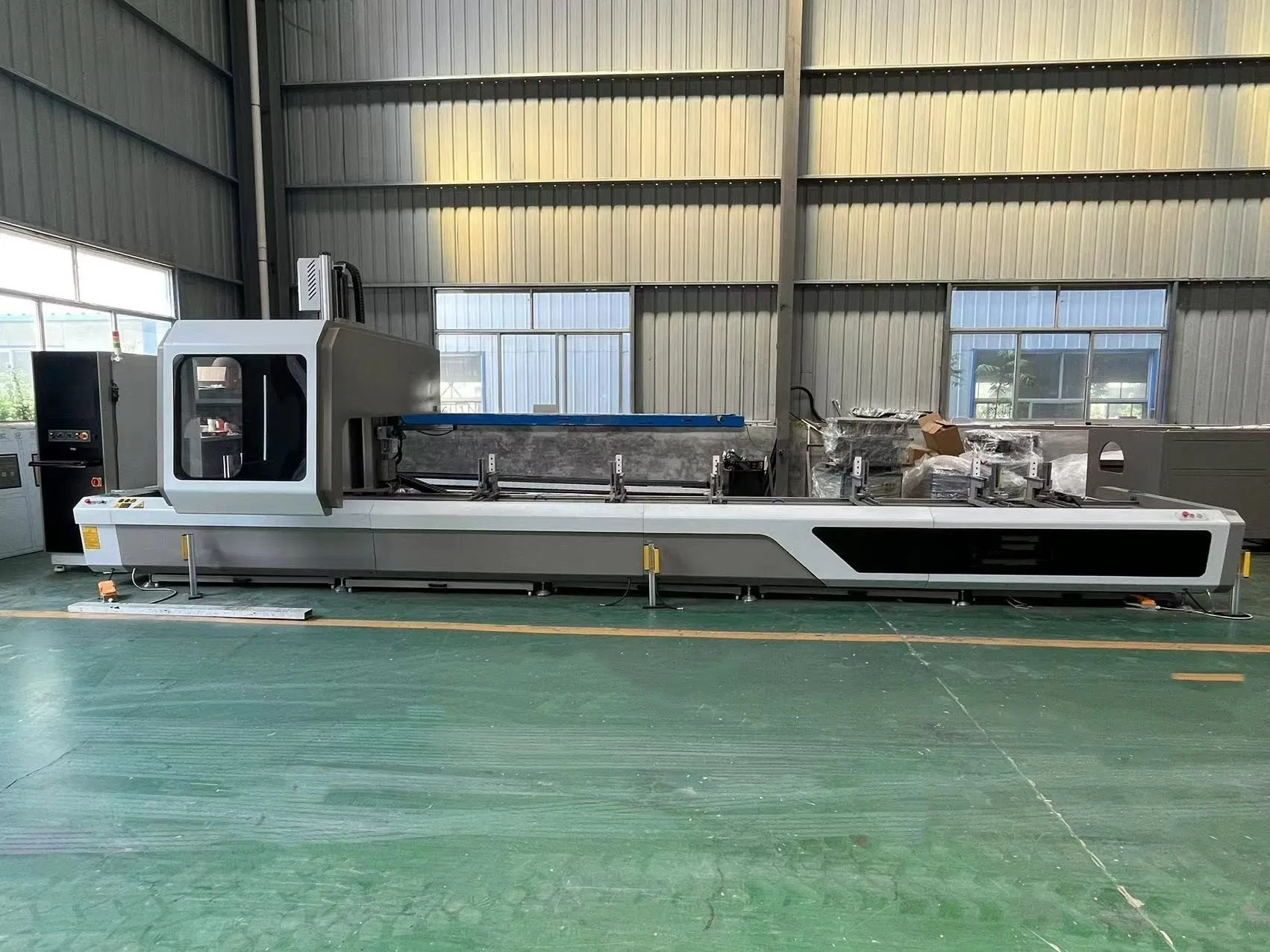

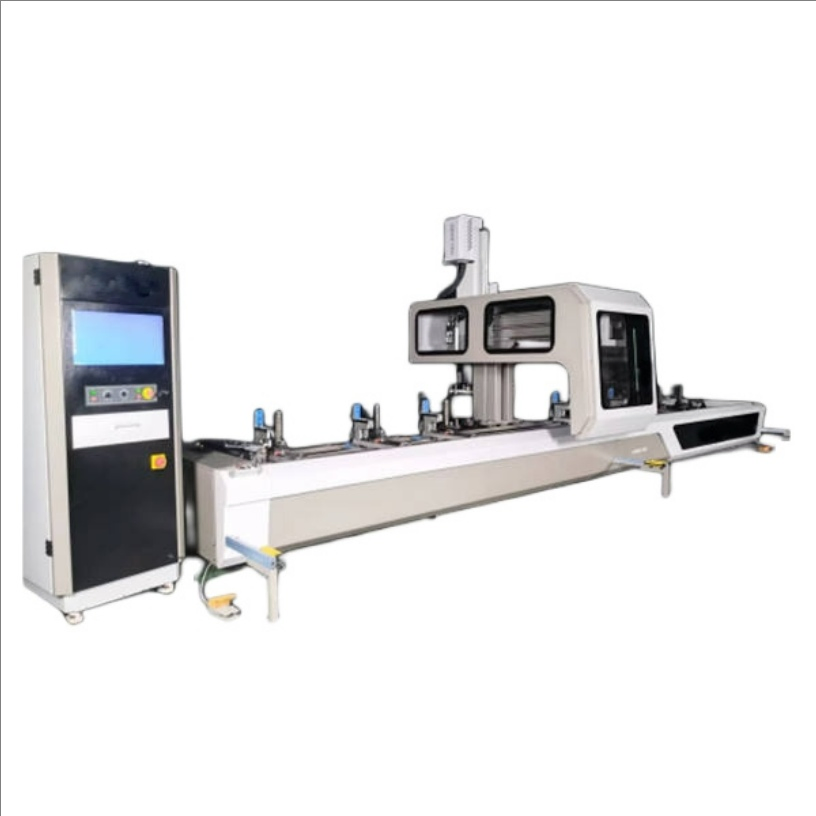

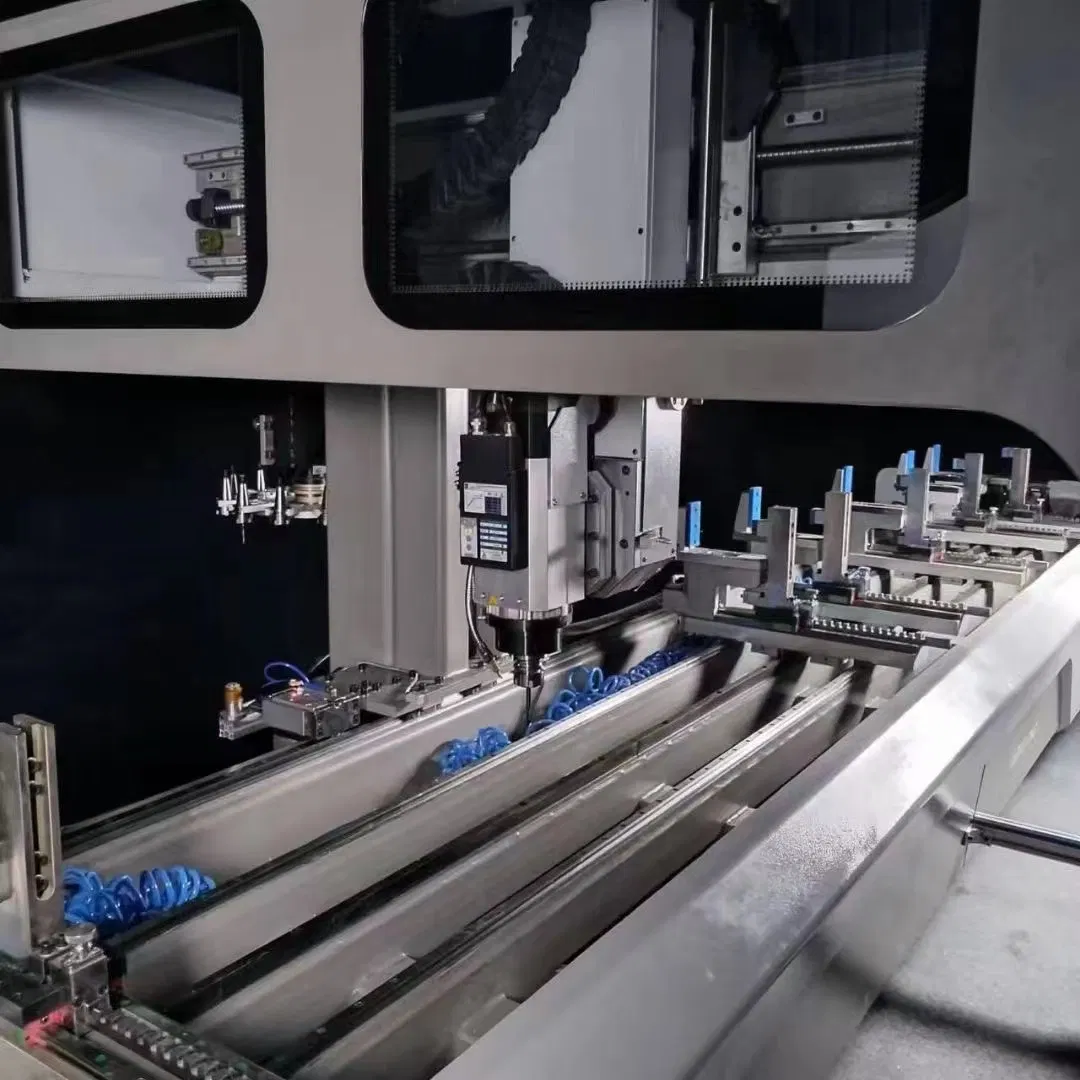

CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls
CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls
CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls
CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls
CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls
1 / 5
CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls
CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls
CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls
CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls
CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls

CNC 4 Axis CNC Router Industrial Aluminum Profile CNC Machining Center for Holes Making of Windows Doors Curtain Walls

After-sales Service: 24-Hour Online
Warranty: 2years
Condition: New
Send Inquiry

Product Description

Basic Information

Model NO.
LGS--CNC-7000
Certification
CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Overall Machine Power
15kw
Spindle Power
9kw
Working Air Pressure
0.5-0.8MPa
Working Voltage
380V 50Hz
Production Capacity
500 Pieces/Year
Specification
9800*2500*2800mm
HS Code
84571010

Packaging & Delivery

Package Size
1000.00cm * 300.00cm * 320.00cm
Package Gross Weight
1000.000kg
Transport Package
Ordinary Packaging/Wooden Box Packaging

Performance Characteristics

✓Suitable for processing various holes and slots in aluminum alloy profiles, industrial aluminum, rail transit, and non-ferrous metals.
✓Equipped with Taiwan New Generation or Han's CNC system and high-performance Italian spindles.
✓Capable of completing ±90° milling with extremely high working efficiency.
✓Eight sets of fixtures with automatic adjustment function to prevent collisions.
✓Tool length compensation function for convenient application.
✓Professional CAD-CAM software for simple and intuitive operation.
✓High-quality steel pipe welded bed with heat treatment for high rigidity and stability.
✓HIWIN guide rails and grinding racks for high precision equipment performance.
✓SMC or Airtac pneumatic components and high-precision APEX/SEJINIGB reducers.
✓Portable rotating 8-position tool magazine to shorten tool change time.
✓Dual positioning design for continuous loading and unloading.
✓Head and operator position detection to ensure personnel safety.

Technical Parameters

No. Description Parameter
1Working voltage380V 50HZ
2Working air pressure0.5-0.8Mpa
3Overall machine power15KW
4Spindle power9KW
5Spindle speed0-24000rpm
6X-axis travel7000mm
7X-axis max speed60m/min
8Y-axis travel1400mm
9Y-axis max speed30m/min
10Z-axis travel500mm
11Z-axis max speed30m/min

Product Display

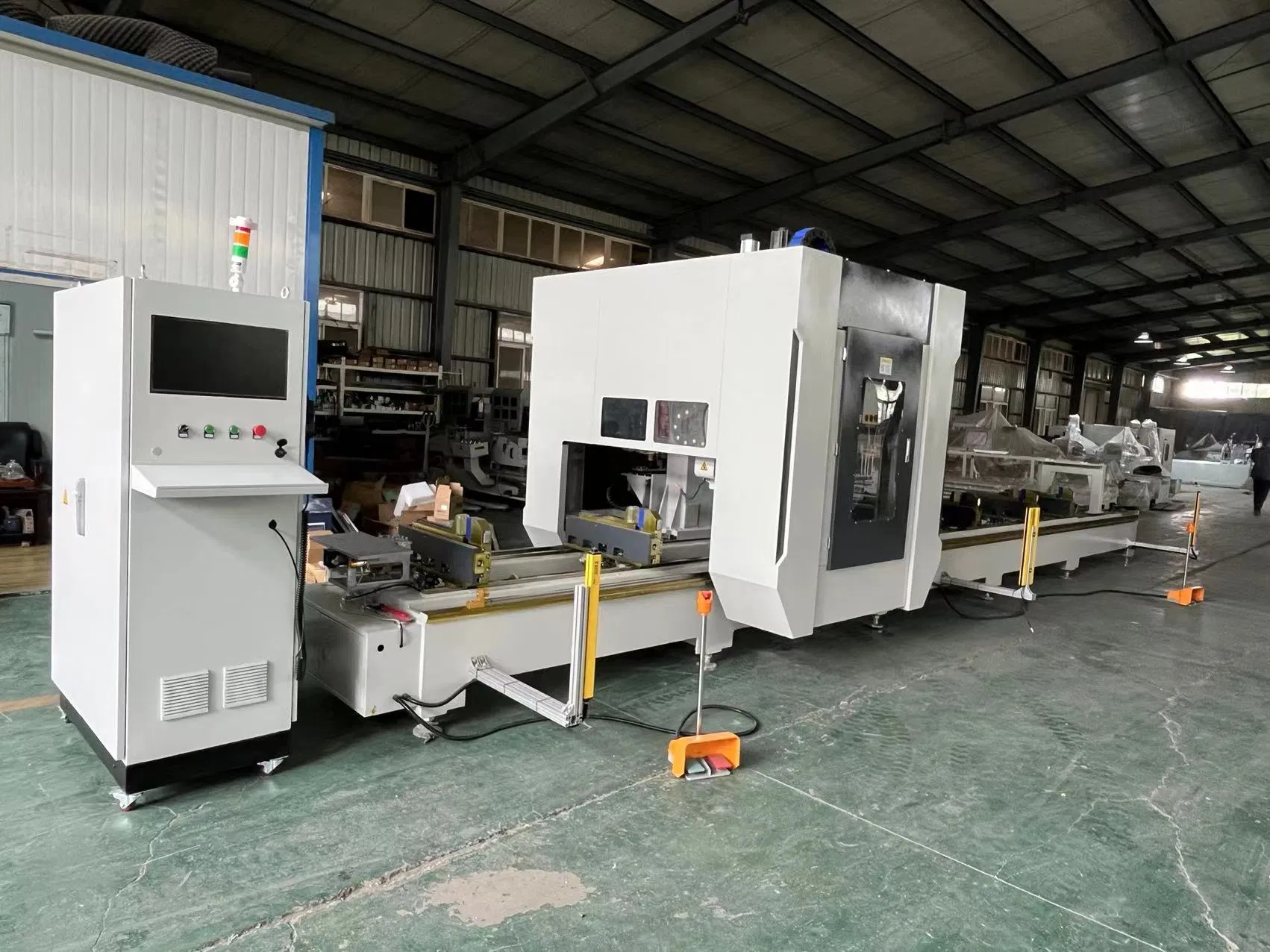

CNC Machining Center

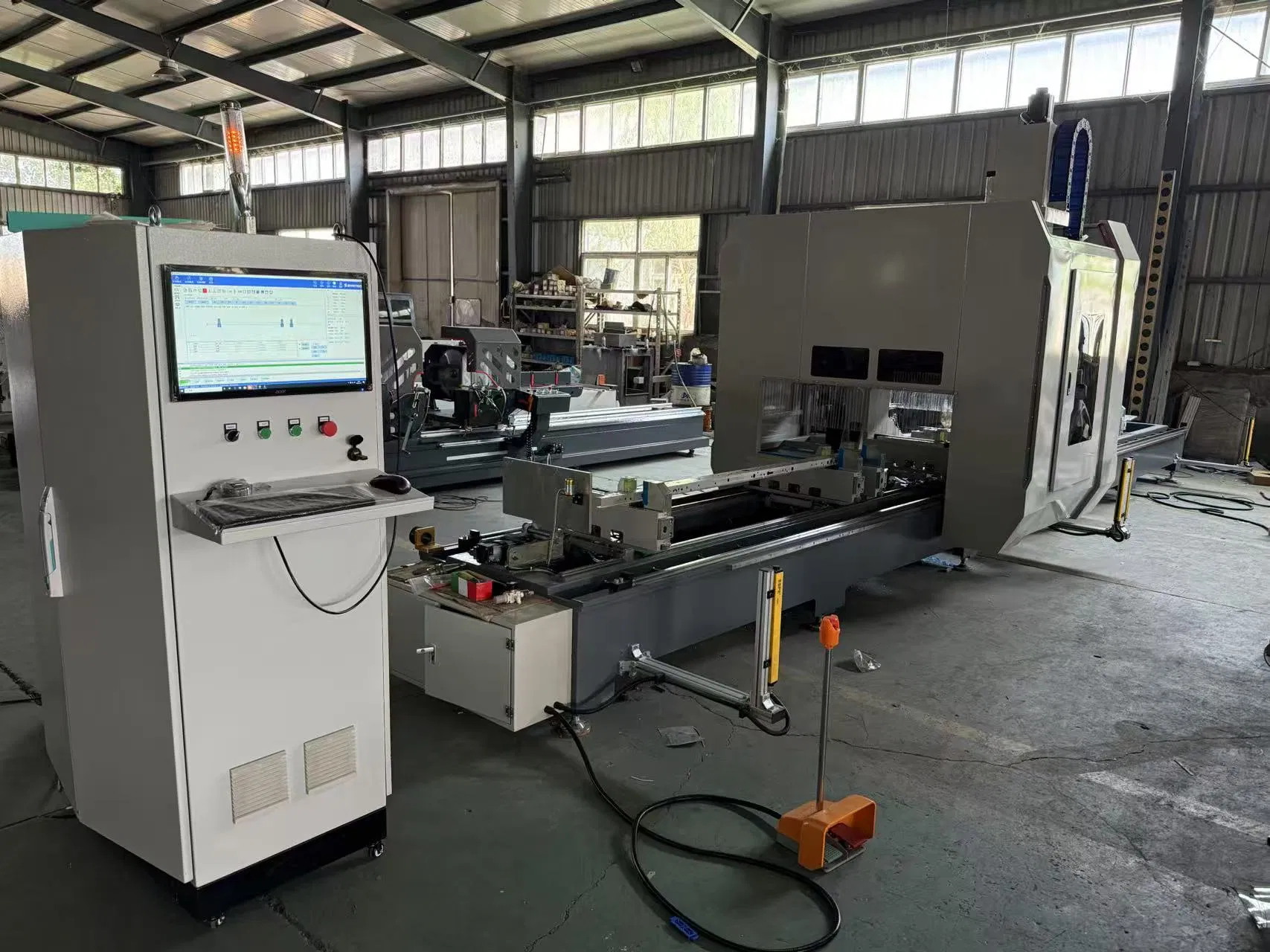

Aluminum Profile CNC

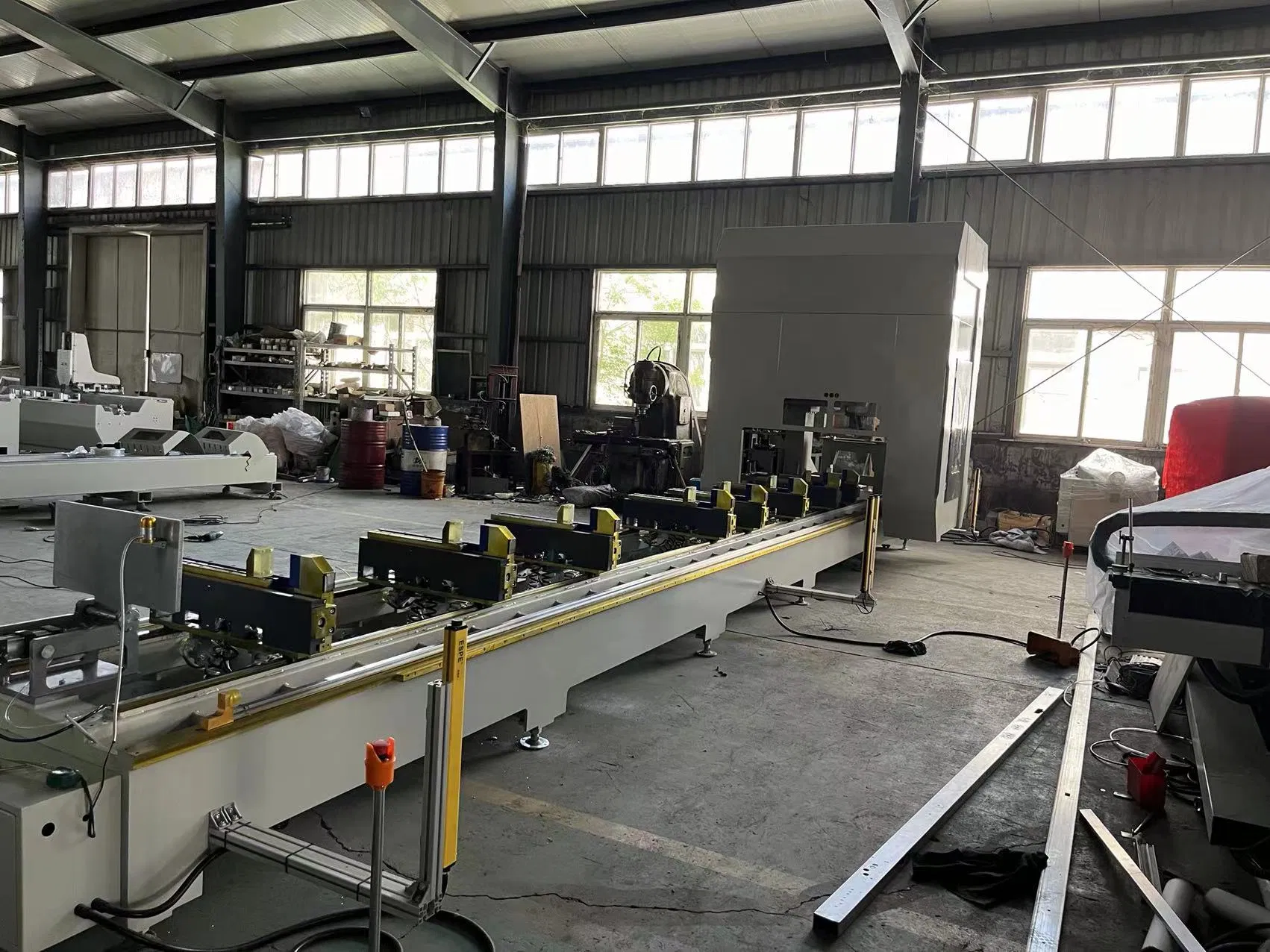

4 Axis CNC Router

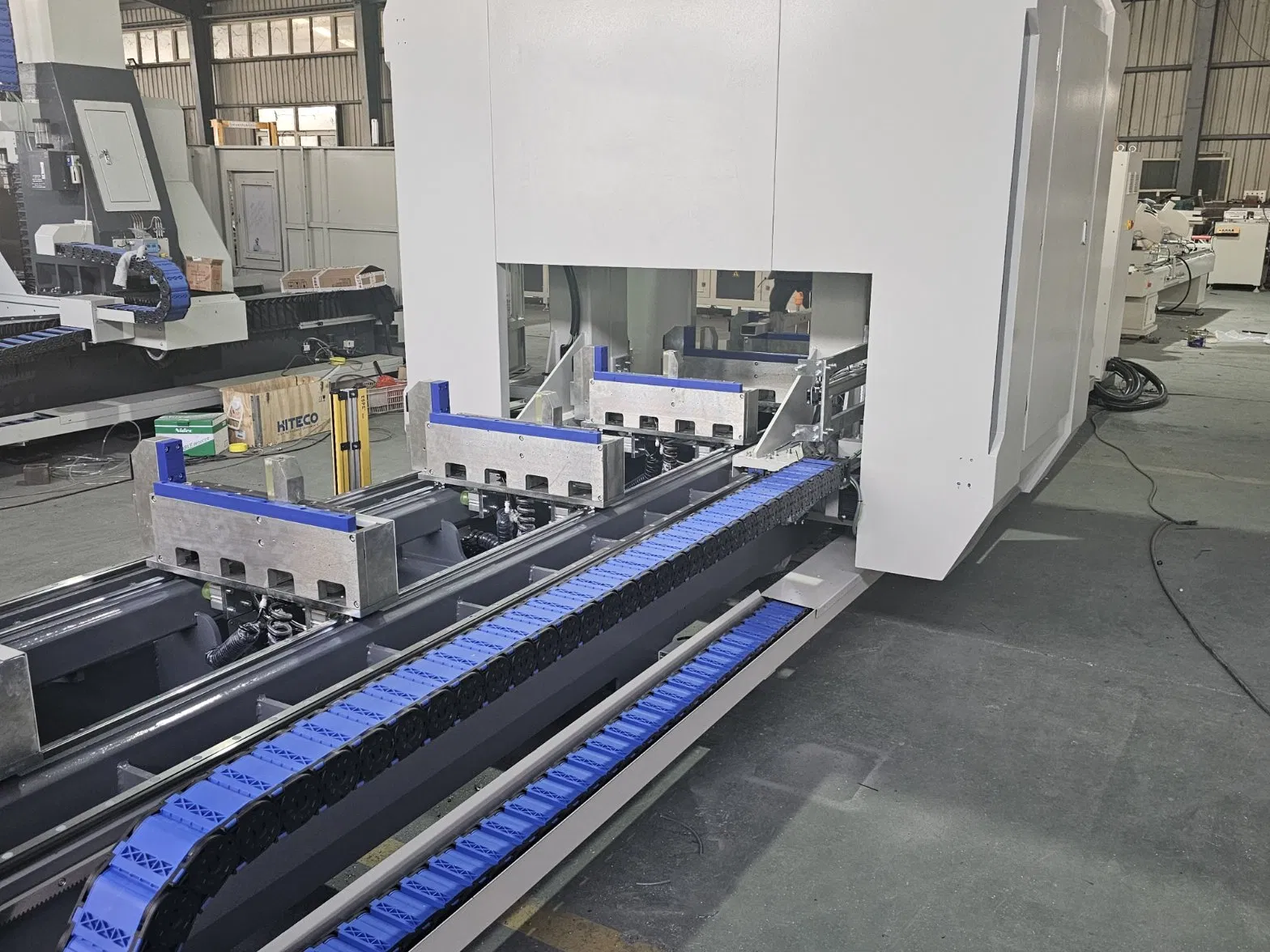

Industrial CNC Machine

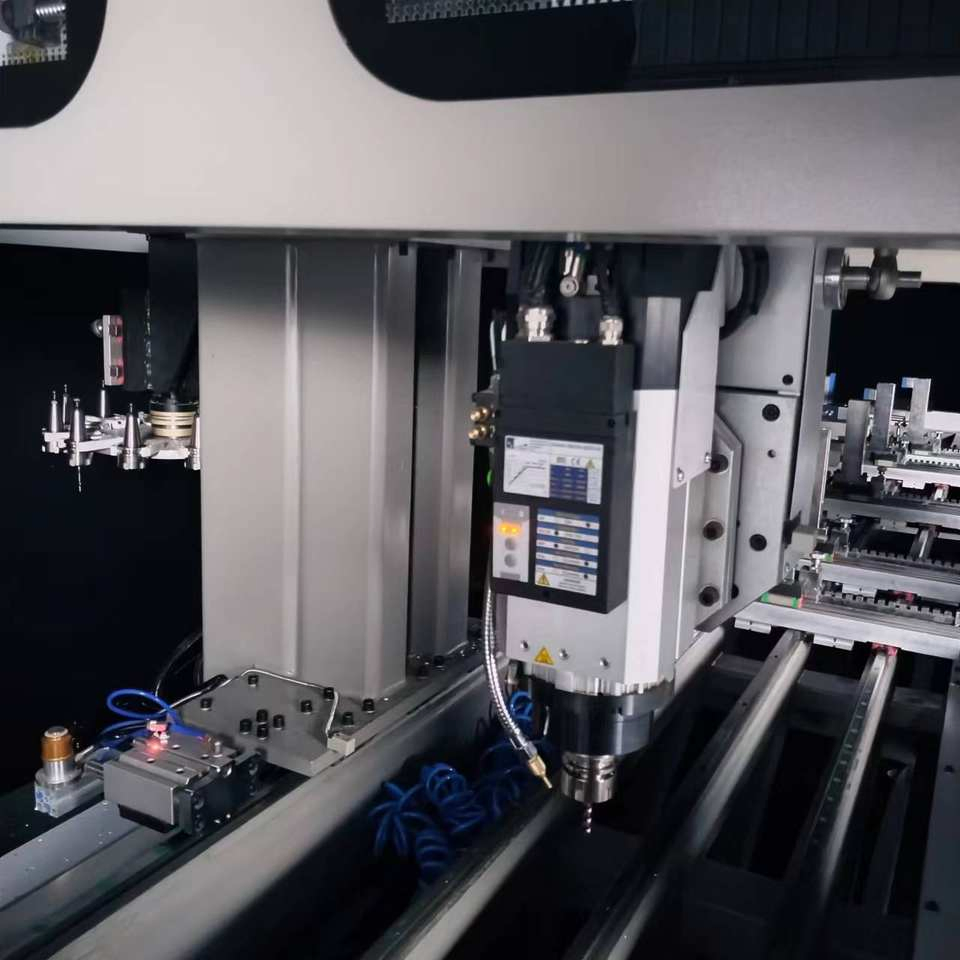

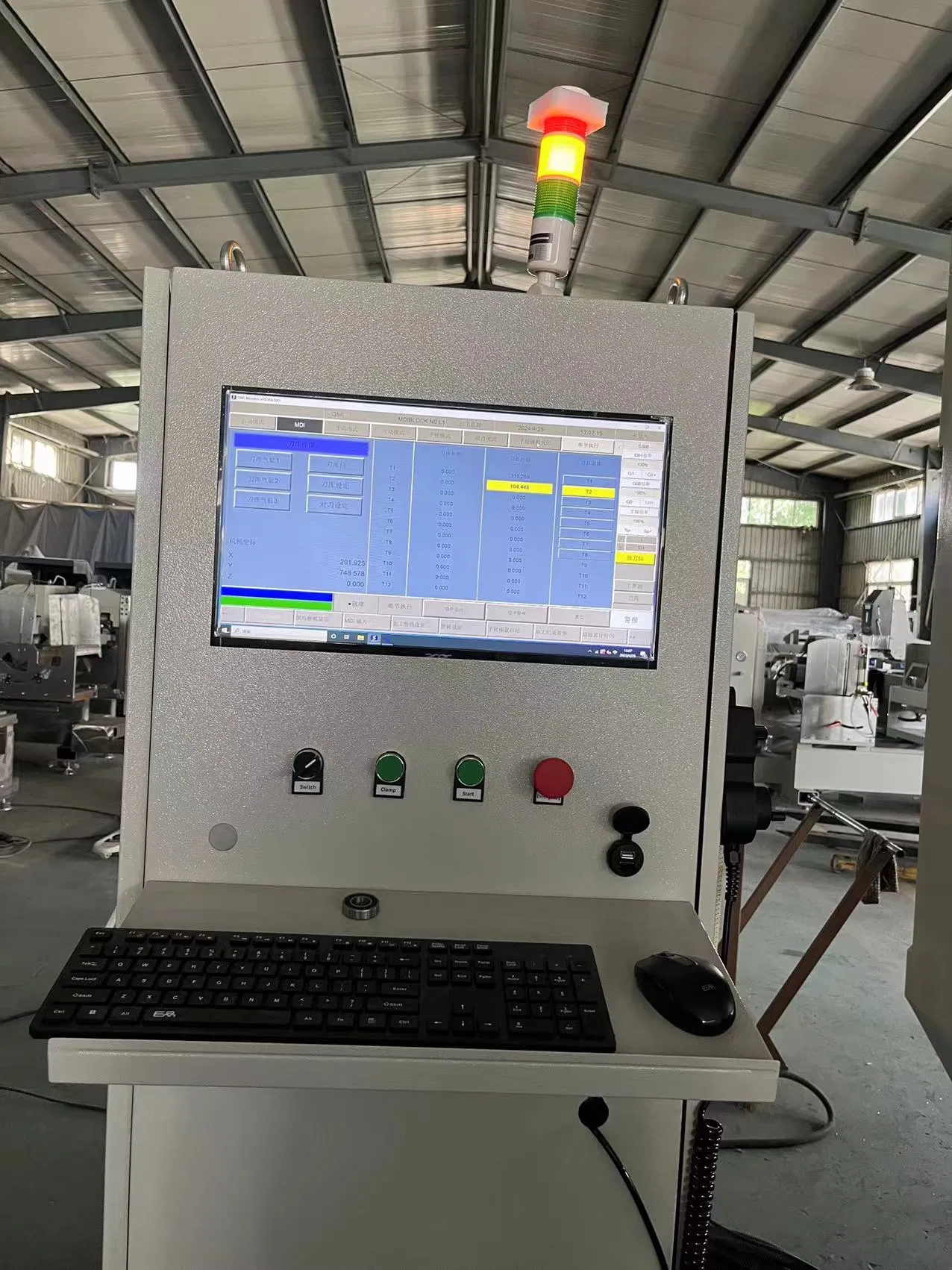

CNC Detail View

Workshop & Exhibition

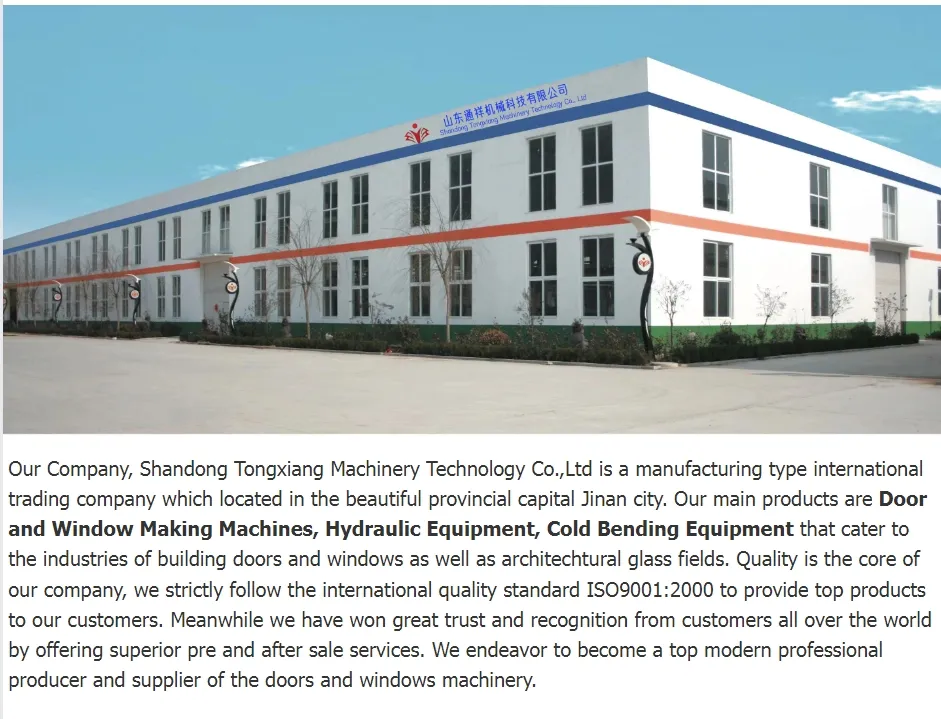

Workshop View

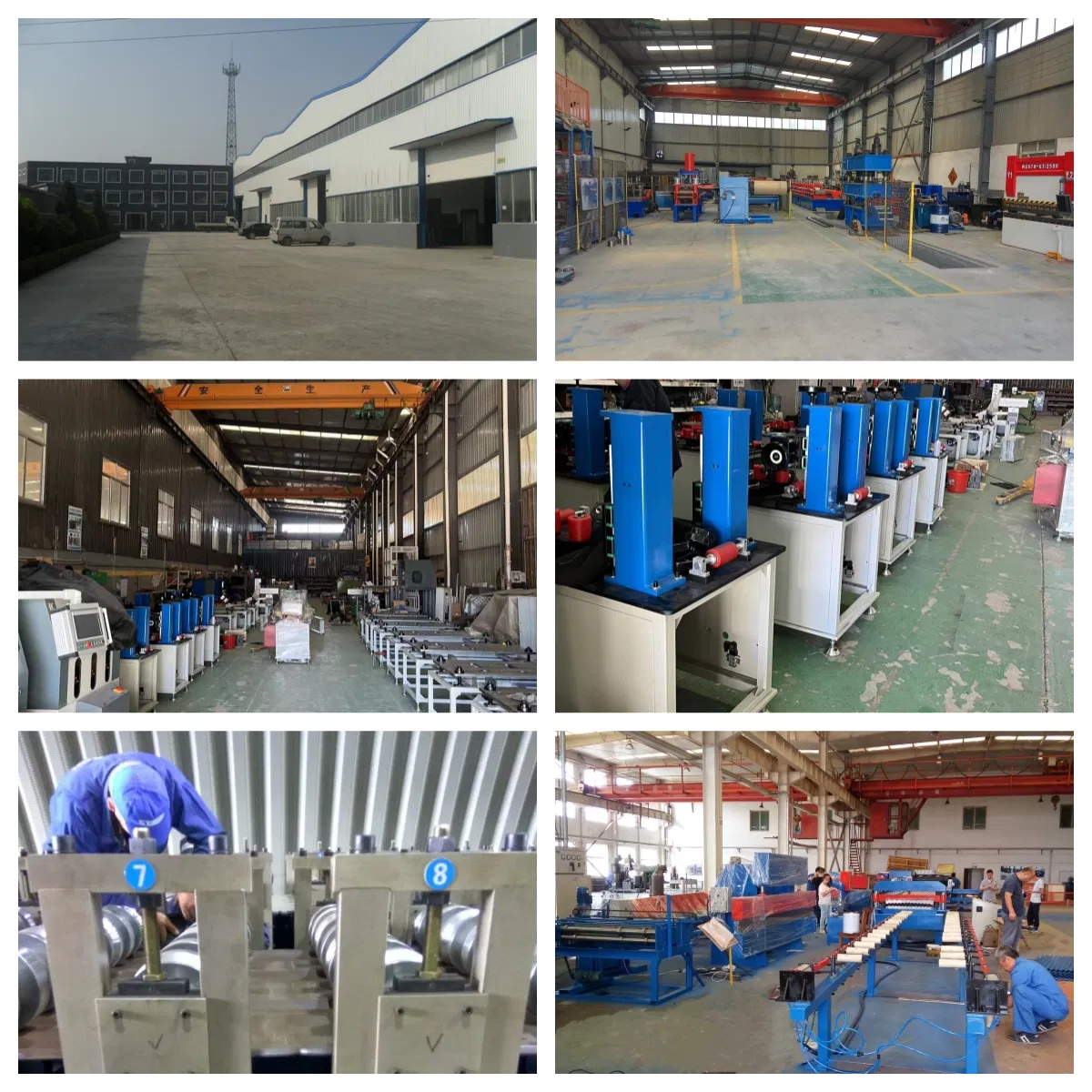

Production Line
Exhibition
Customer Visit
Other Machines

Frequently Asked Questions

Q1: What types of materials can this 4-axis CNC machining center process?
A: It is designed for processing aluminum alloy profiles, industrial aluminum materials, rail transit components, and various non-ferrous metal materials.
Q2: What is the benefit of the four-axis spindle design?
A: The spindle can complete ±90° milling, allowing for processing on multiple sides of the profile in a single clamping, which significantly improves efficiency and accuracy.
Q3: How does the machine ensure the safety of the operator?
A: The machine is equipped with head position detection and operator position detection systems to ensure personnel safety during high-speed operations.
Q4: Does the software require advanced programming knowledge?
A: No, the machine is equipped with professional CAD-CAM software that is designed to be simple, intuitive, and easy to operate for workshop personnel.
Q5: How many tools can the magazine hold?
A: It features a portable rotating 8-position tool magazine, which allows for rapid tool changes and continuous multi-process machining.
Q6: What is the dual positioning design used for?
A: The dual positioning design allows the machine to continue working on one side while the operator loads or unloads material on the other side, ensuring zero machine downtime.
