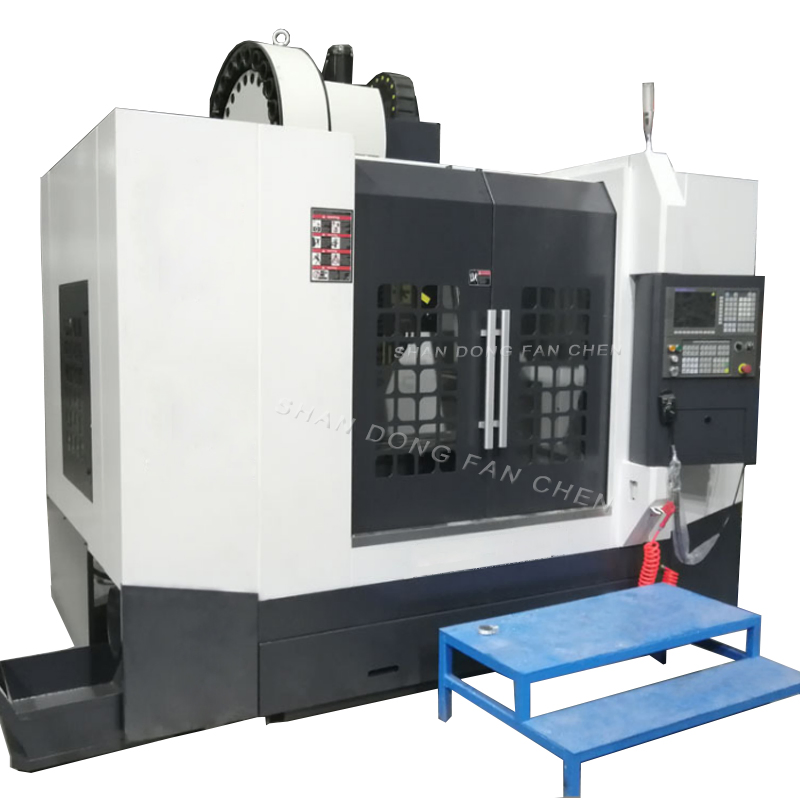

Vertical Vmc1160 CNC Machining Center for Milling, Drilling and Tapping Steel and Aluminum Profiles

Customization: Available
After-sales Service: on Line
Warranty: 2 Years

Product Description

📊

Basic Specifications

Model VMC1160
Application Metal Processing
X/Y/Z Axis Itinerary 1000mm / 600mm / 600mm
Processing Precision 0.01~0.02 (mm)
Workbench Area 1100 * 600 mm
Spindle Power / Taper 11kw / BT40-150 / BT50
Control Method Closed-Loop Control (CNC/MNC)

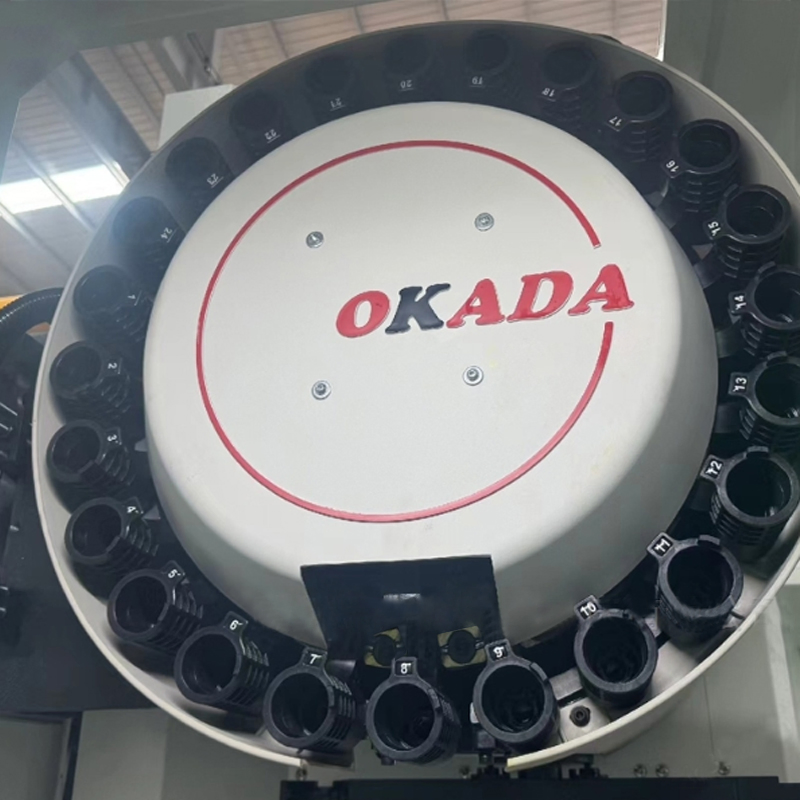

Tool Magazine Capacity 24 Tools
Machine Weight 6200 Kg
Certification GS, CE, ISO 9001
Vertical VMC1160 Front View
VMC1160 CNC Machining Structure
Detailed Component View
⚙️

Technical Parameters

Project Unit VMC1160 Value
Spindle Speedrpm8,000
Maximum load of workbenchkg800
T-type slot sizemm5-18-120
Rapid displacement (X/Y/Z)m/min24 / 24 / 24
Cut-in feed speedmm/min1 - 10,000
Tool Change Times2.5
Positioning Accuracymm±0.0075
Repeat Positioning Accuracymm±0.005
🛠️

Optional Configurations

Spindle Options Electric spindle 18000-24000 rpm with turning function
Rotating Platform 4th axis platform / Cradle turn / Cradle with turning function transfer table
Controller Systems FANUC / SIEMENS 840 / Mitsubishi / Syntec / KND / GSK

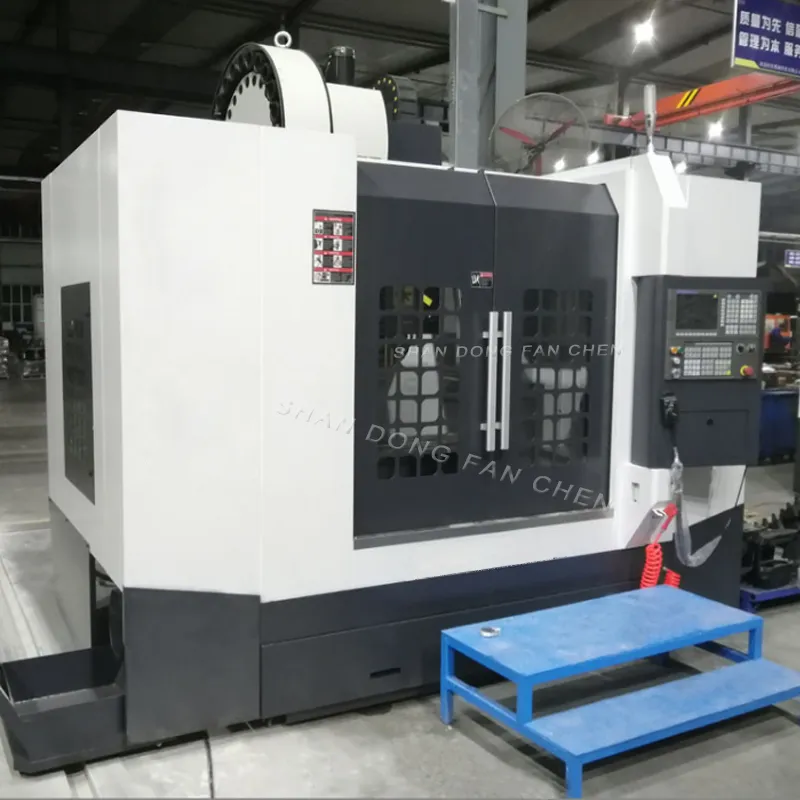

Feature 1

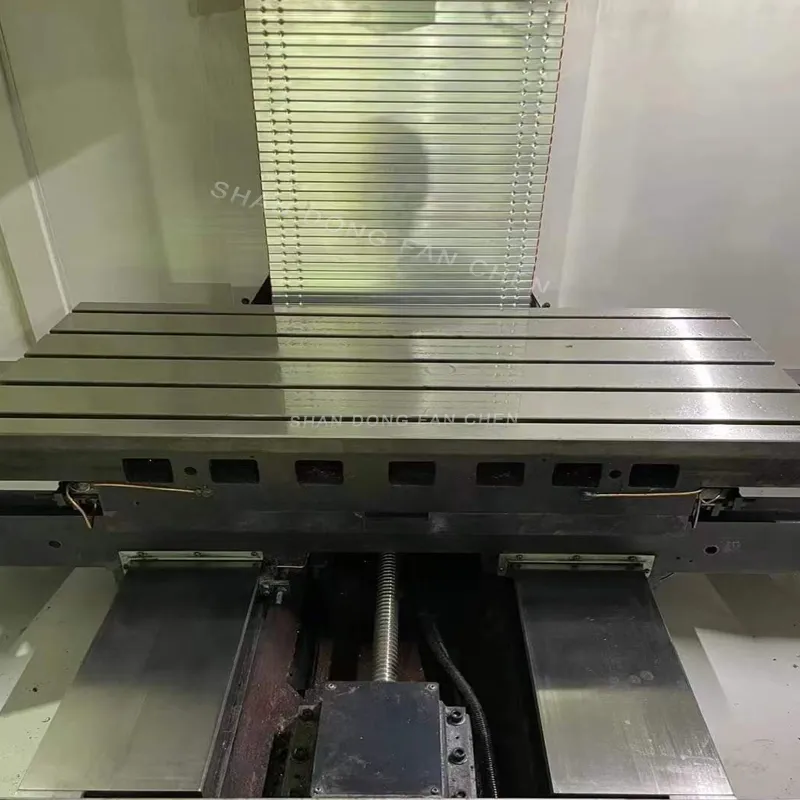

Feature 2

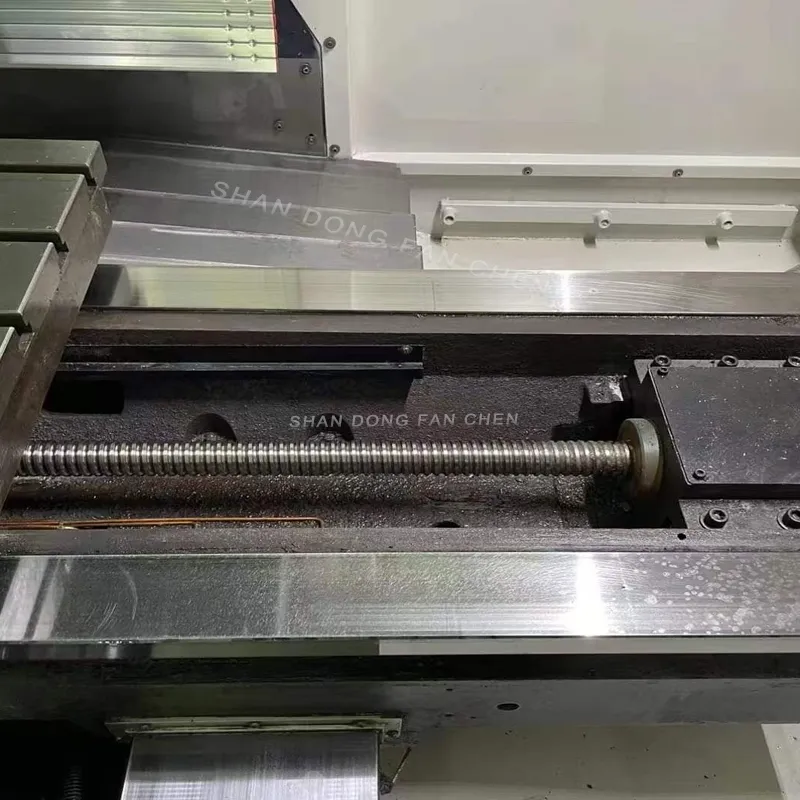

Feature 3

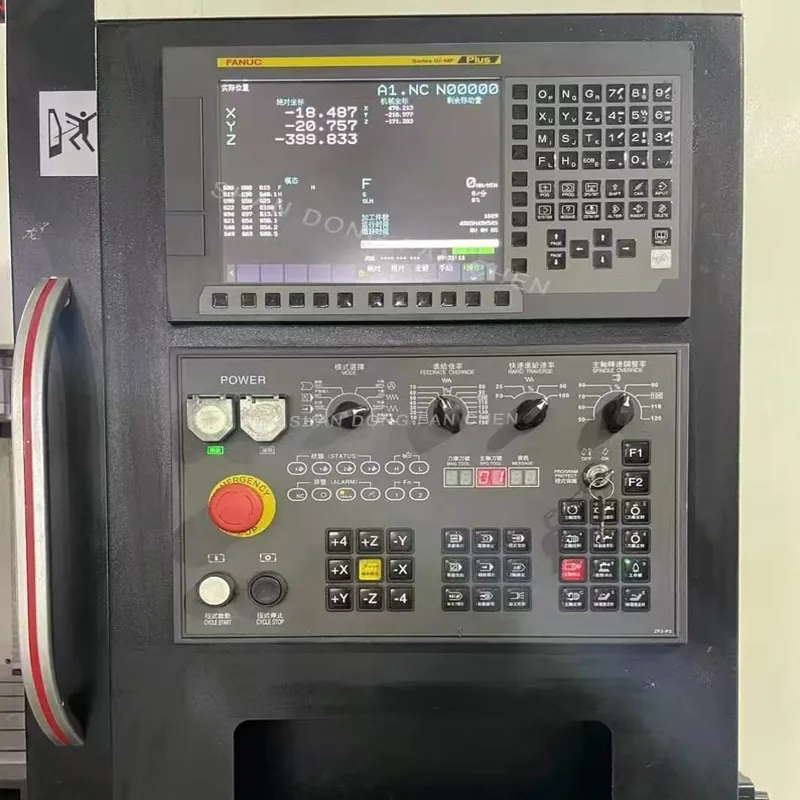

Feature 4
Feature 5

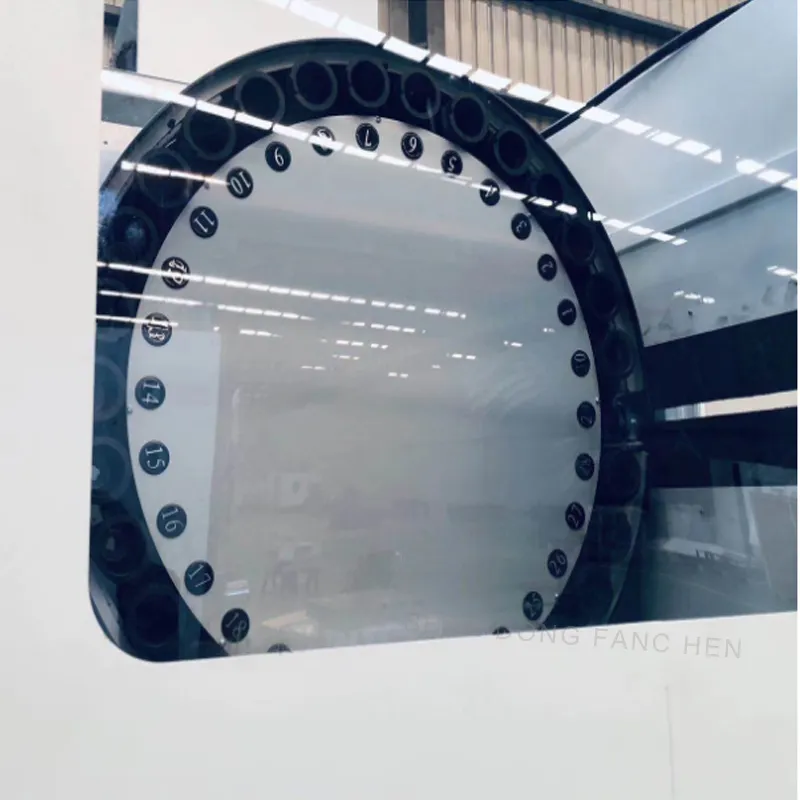

Feature 6

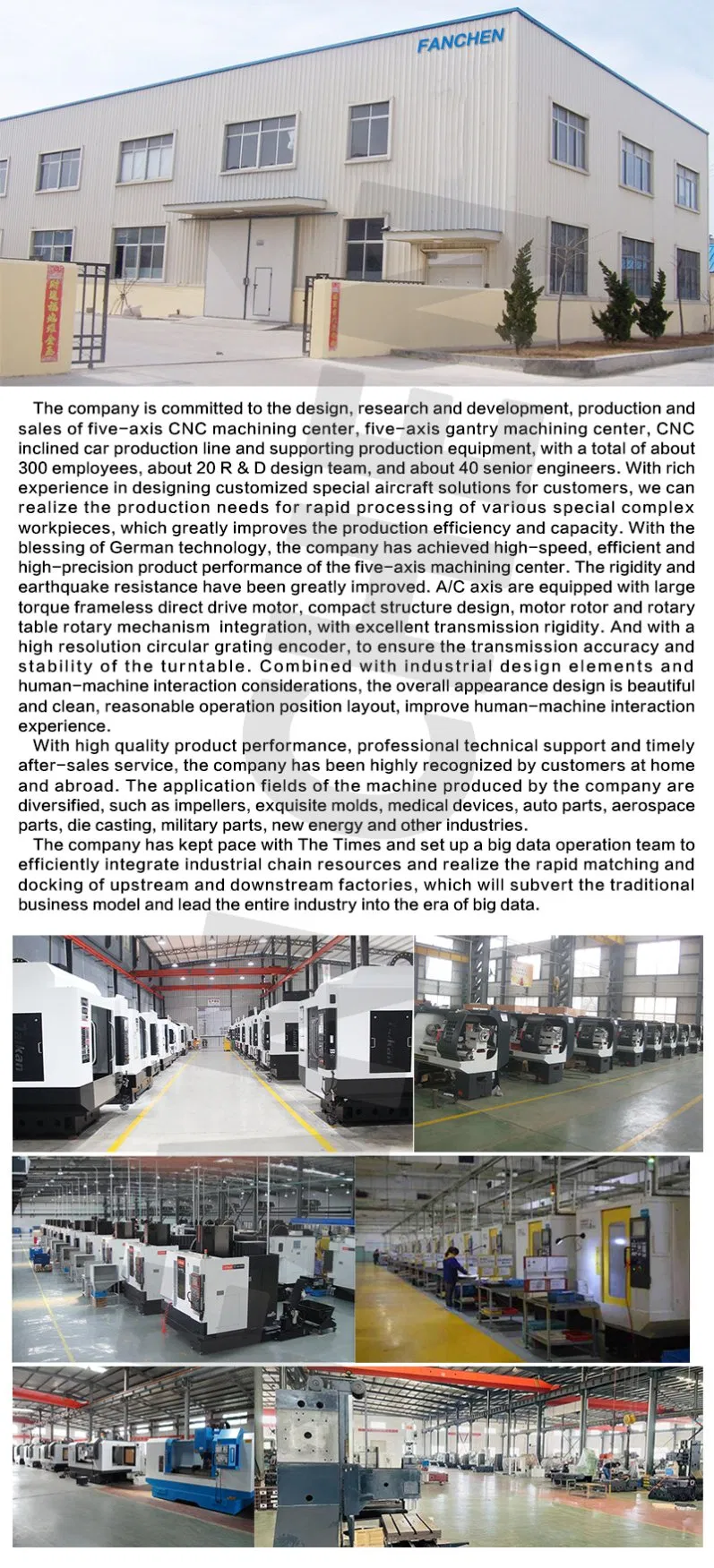

Detailed Drawing 1
Detailed Drawing 2

Frequently Asked Questions

1. How can I choose the most suitable machine? Please share your specific requirements or product drawings with us. We will analyze your production needs and recommend the most efficient model or help you select an exact machine from our catalog.
2. What are the primary types of machinery available? We specialize in a comprehensive range of industrial equipment, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, and Sawing Machines.
3. Can I visit your production facilities? Yes, visitors are warmly welcome to tour our production lines. Our facility is located in a major industrial hub in China, easily accessible for international clients.
4. What international trade terms do you support? We support standard global trade terms including FOB, CFR, and CIF to ensure a smooth logistics process for our customers.
5. What are the standard payment terms? Typically, we require a 30% initial payment at the time of order, with the remaining 70% balance due before shipment via T/T. Irrevocable LC at sight is also accepted.
6. What is the Minimum Order Quantity (MOQ)? The MOQ is 1 set for most of our machining centers and high-end CNC equipment.
