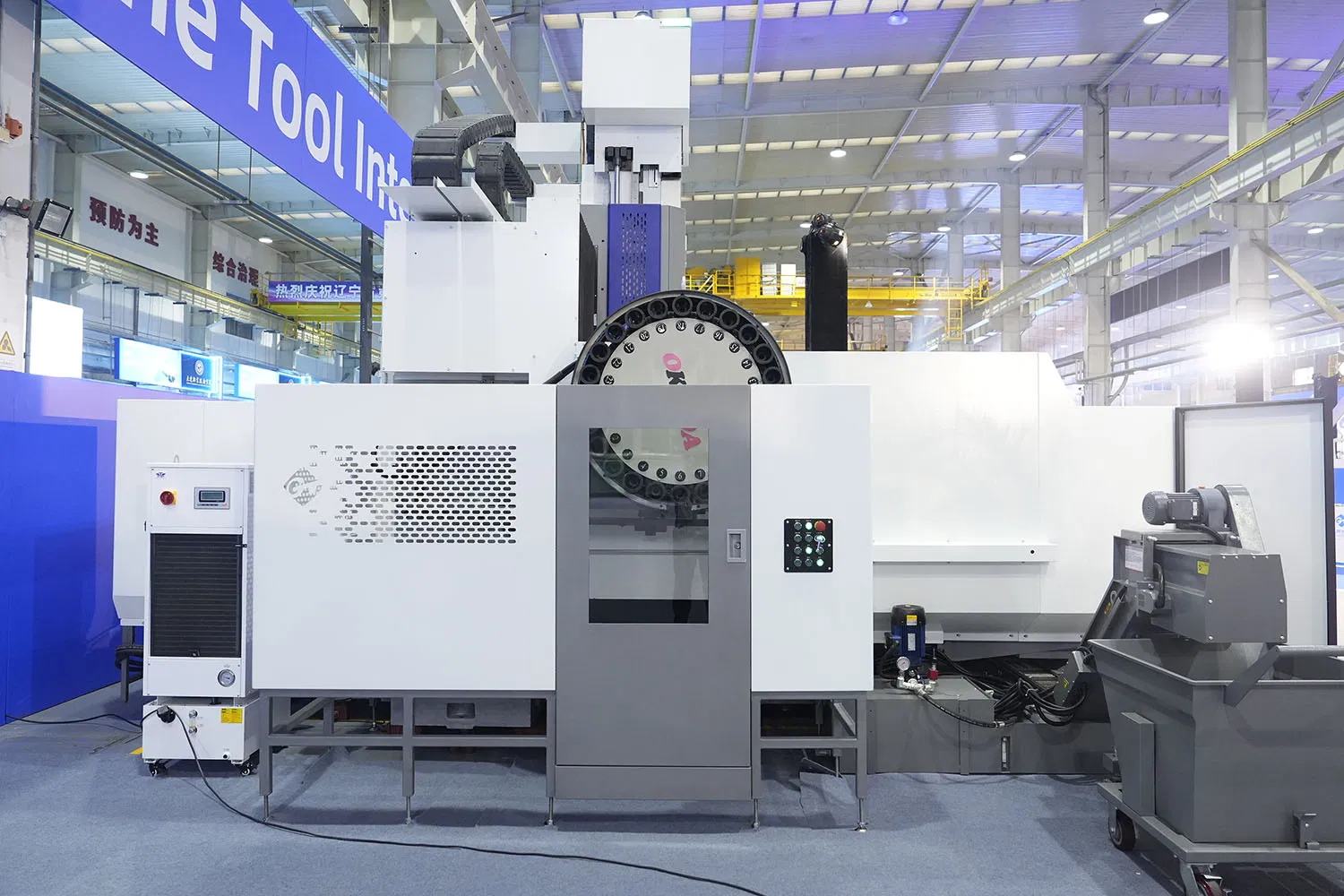

Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price
Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price
Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price
Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price
Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price
1 / 5
Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price
Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price
Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price
Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price
Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price

Smtcl Factory Gmc1220RV Aluminum Profile Gantry Four Axis CNC Machining Center Price

Customization: Available
After-sales Service: Local and Online After-Sales Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.:GMC1220RV
Application:Metal
Process Usage:Metal-Forming CNC Machine Tools
Movement Method:Point to Point Control
Numerical Control:CNC/MNC
Processing Precision:0.006~0.025(mm)
Certification:CE, ISO 9001
Worktable Size:1250×2000mm
Max. Load:5000kg
X/Y/Z Axis Travel:2000/1300/750mm

Packaging & Delivery

Package Size:6300.00cm * 4200.00cm * 5000.00cm
Gross Weight:18000.000kg

Product Description

Gantry Machining Center Overview
Gantry Machining Center GMC1220RV: This machine adopts the layout form of movable worktable, fixed beam, gantry frame structure, double column and bolt connection on both sides of the bed. The worktable moves longitudinally along the bed guide rail (X axis), the saddle moves laterally along the beam guide rail (Y axis), and the headstock moves up and down along the saddle (Z axis).

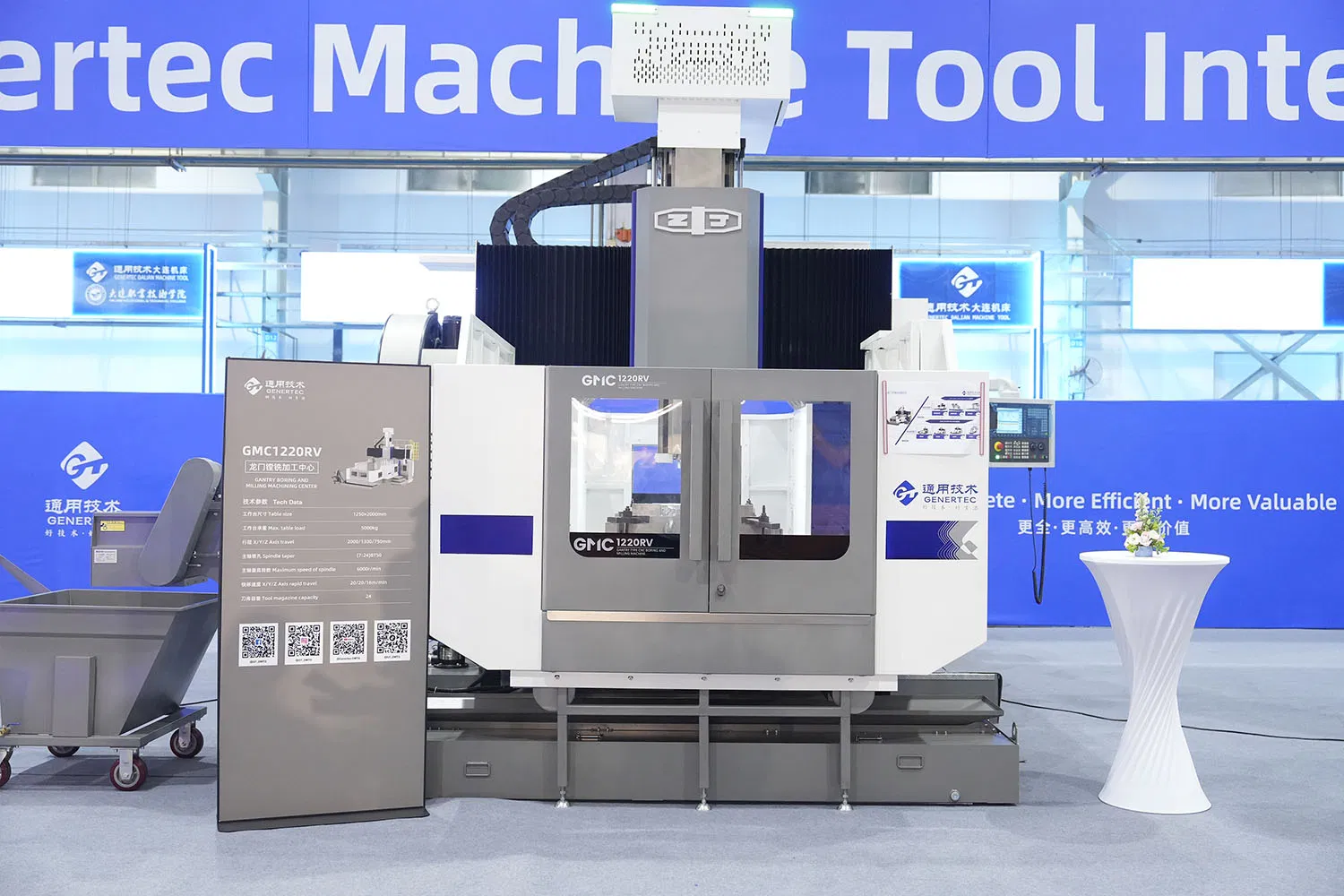

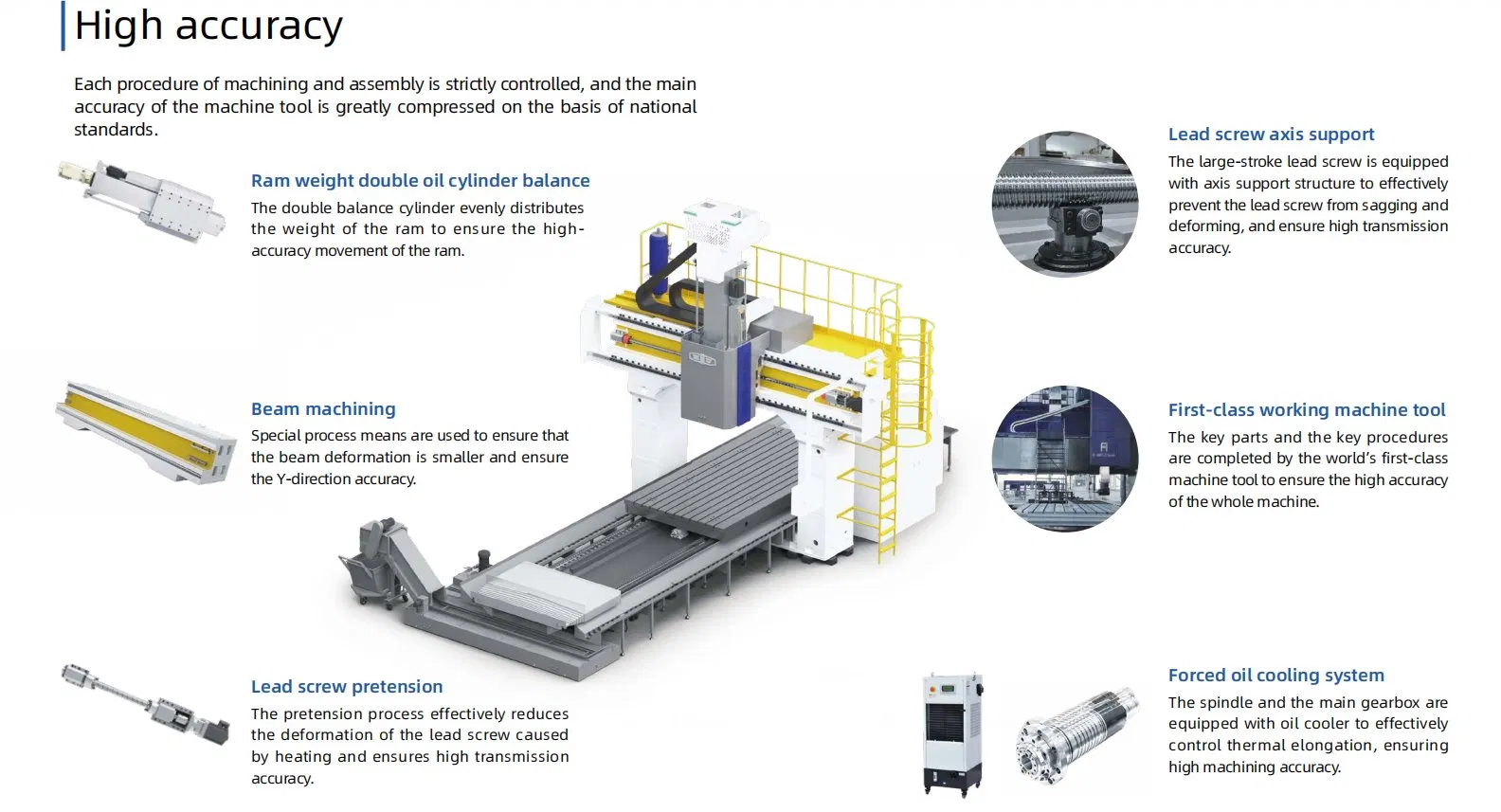

Machining Center Detail 1 Machining Center Detail 2

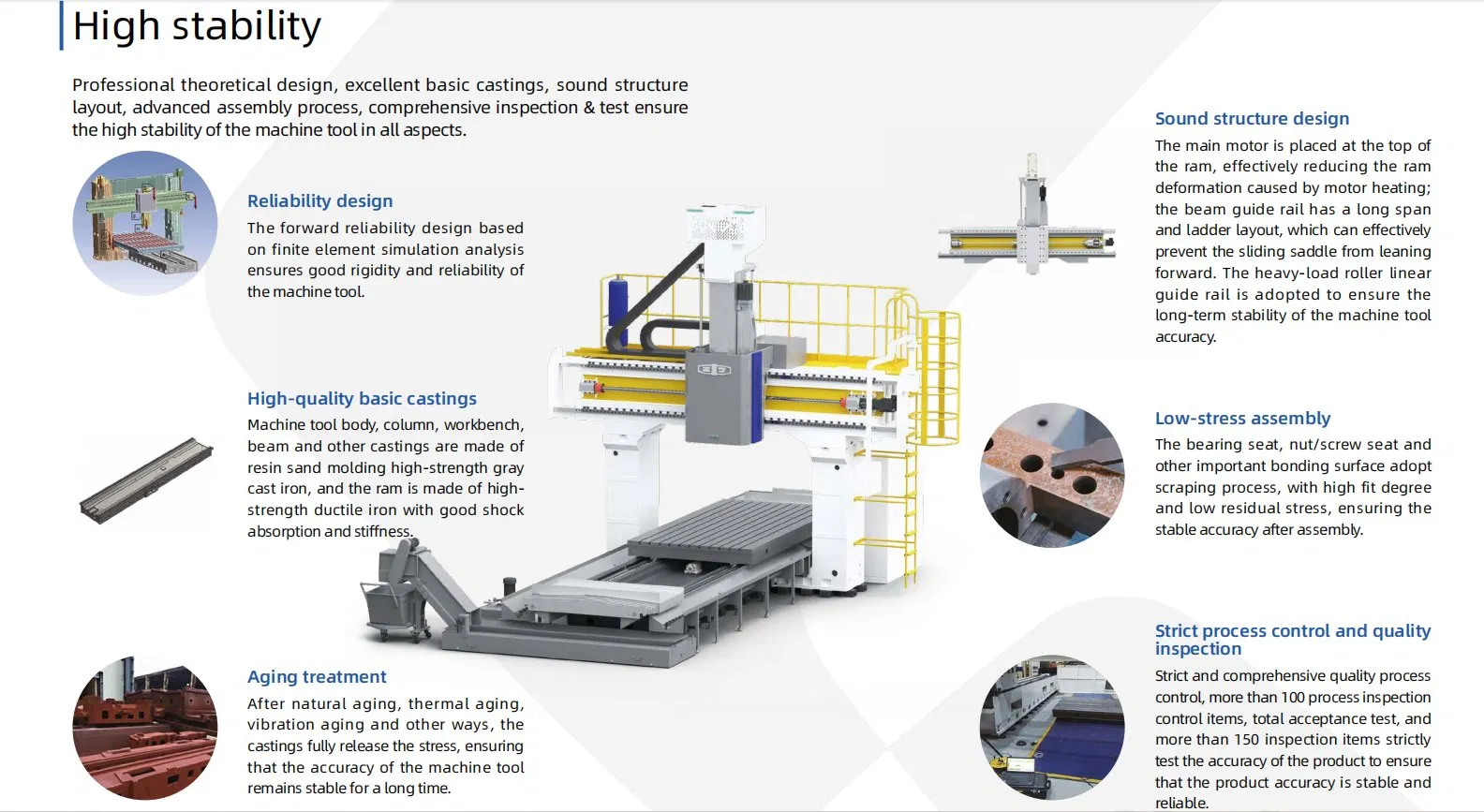

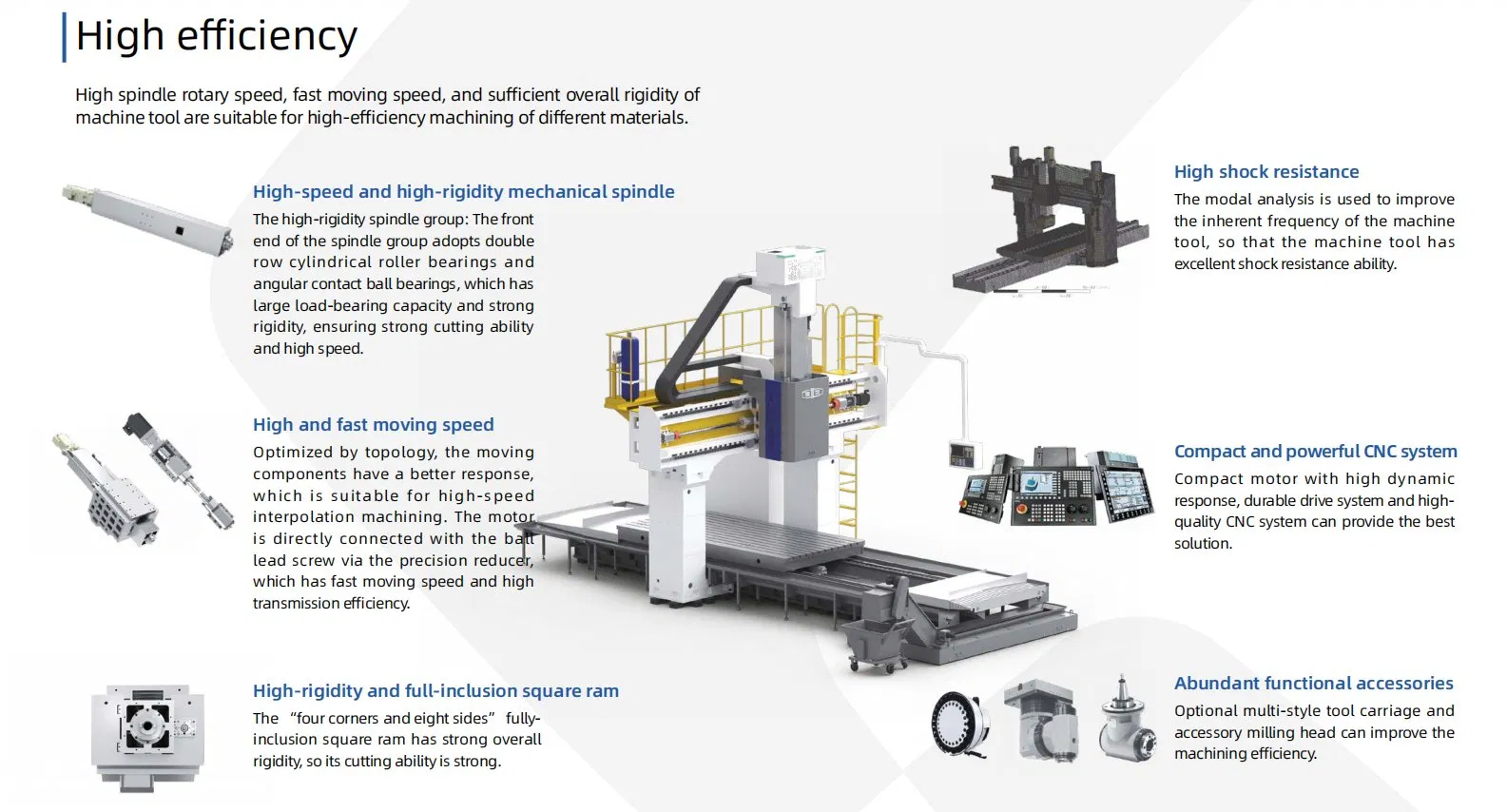

GMC1220RV Component 1 GMC1220RV Component 2

Technical Parameters

Specification Unit GMC1220RV Data
Table sizemm1250×2000
Distance between two columnsmm1500
Allowable maximum loadKg5000
Max travel (X/Y/Z)mm2000 / 1300 / 750
Spindle Speed ranger/min40~6000
Main motor powerkW12/14.4
Rapid traverse rate (X/Y/Z)m/min20 / 20 / 16
Tool magazine capacity-24
Machine weightkg18000
Overall dimensionsmm6300×4200×5000

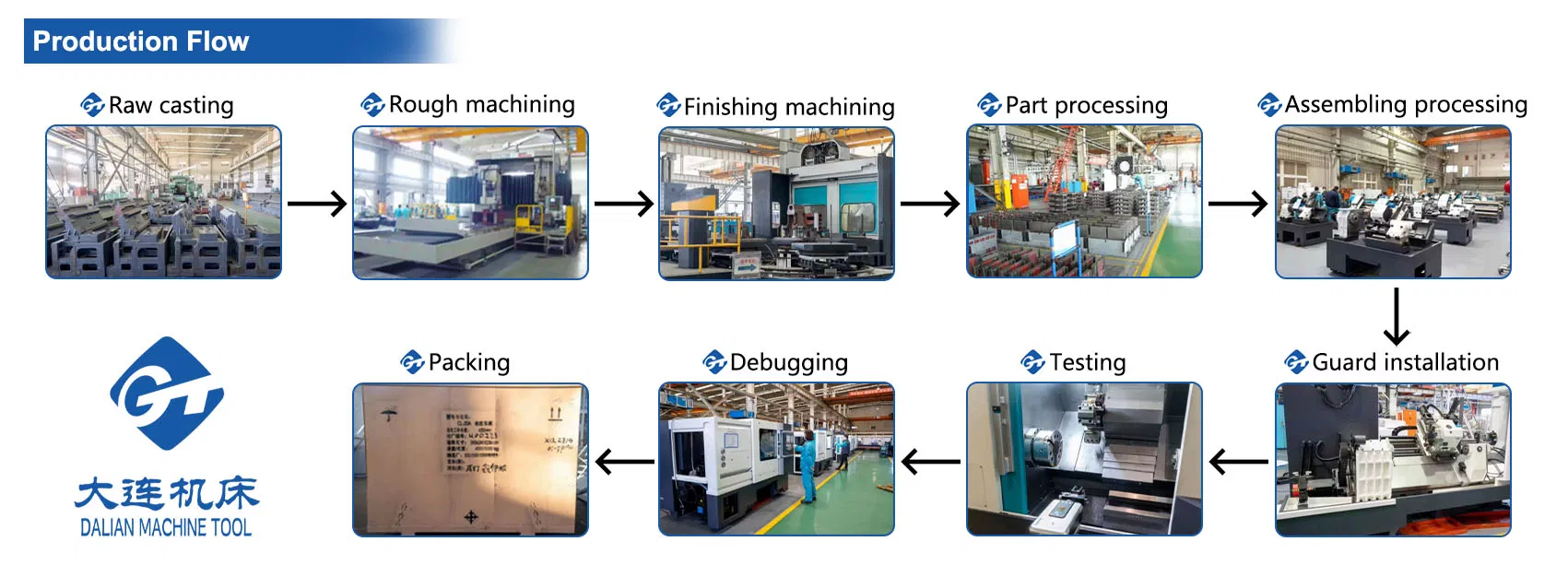

Process Display

Service & Quality Control

Support Service Technical Support

Production Environment

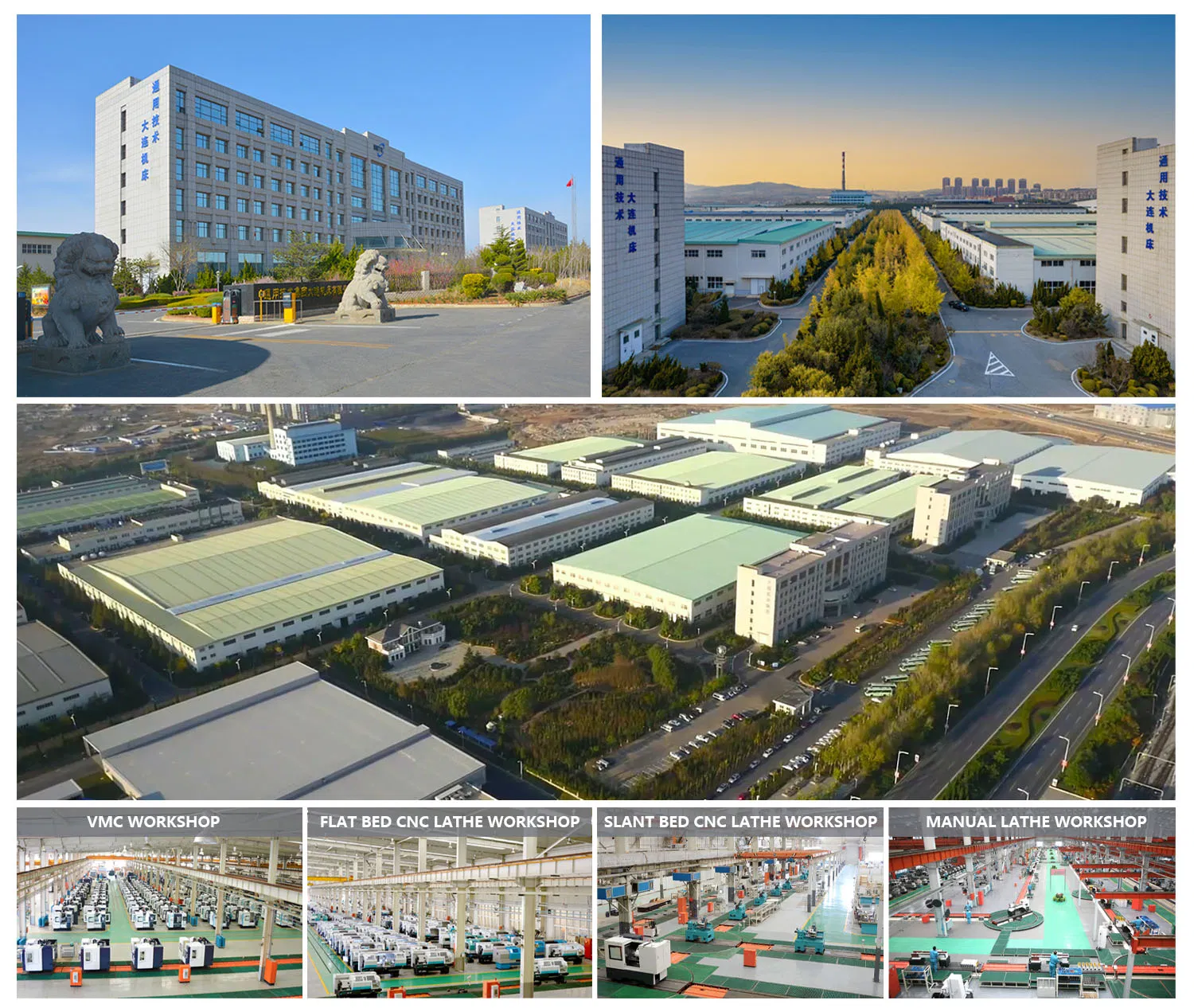

Facility 1 Facility 2 Facility 3

Exhibition & Certifications

Exhibition Certifications

Frequently Asked Questions

Q1: What materials is the GMC1220RV suitable for? A: This gantry machining center is primarily designed for high-precision metal processing, including various aluminum profiles and structural steel components.
Q2: What is the maximum worktable load capacity? A: The worktable can support a maximum load of up to 5000kg, making it suitable for heavy-duty workpiece machining.
Q3: How many tools does the automatic magazine hold? A: The machine is equipped with a tool magazine that has a 24-tool capacity, allowing for complex multi-operation processing with a tool-change time of approximately 6 seconds.
Q4: What are the precision levels for the X, Y, and Z axes? A: The processing precision ranges between 0.006mm and 0.025mm, depending on the axis and configuration, ensuring high-end manufacturing standards.
Q5: What type of cooling and spindle system is used? A: It features a BT50 taper spindle with a speed range of 40-6000 r/min and a powerful 12/14.4 kW motor designed for stable, high-torque output.
Q6: Is the machine compliant with international standards? A: Yes, the GMC1220RV is CE and ISO 9001 certified, ensuring it meets global safety and quality management requirements.
