| Model NO. | ZDJ-V28.5 | Control System | Automatic, CNC, PLC Control, Touch Screen Control |
| Glass Thickness Range | 3-60mm | Warranty | 2 Years |
| Type | Insulating Glass Machine | Structure | Vertical |
| After-Sales Service | Lifetime Warranty Support | Max. Sealing Size | 6000*2850mm |
| Sealing Speed | 5-35m/Min | Min. Processing Size | 350*200mm |

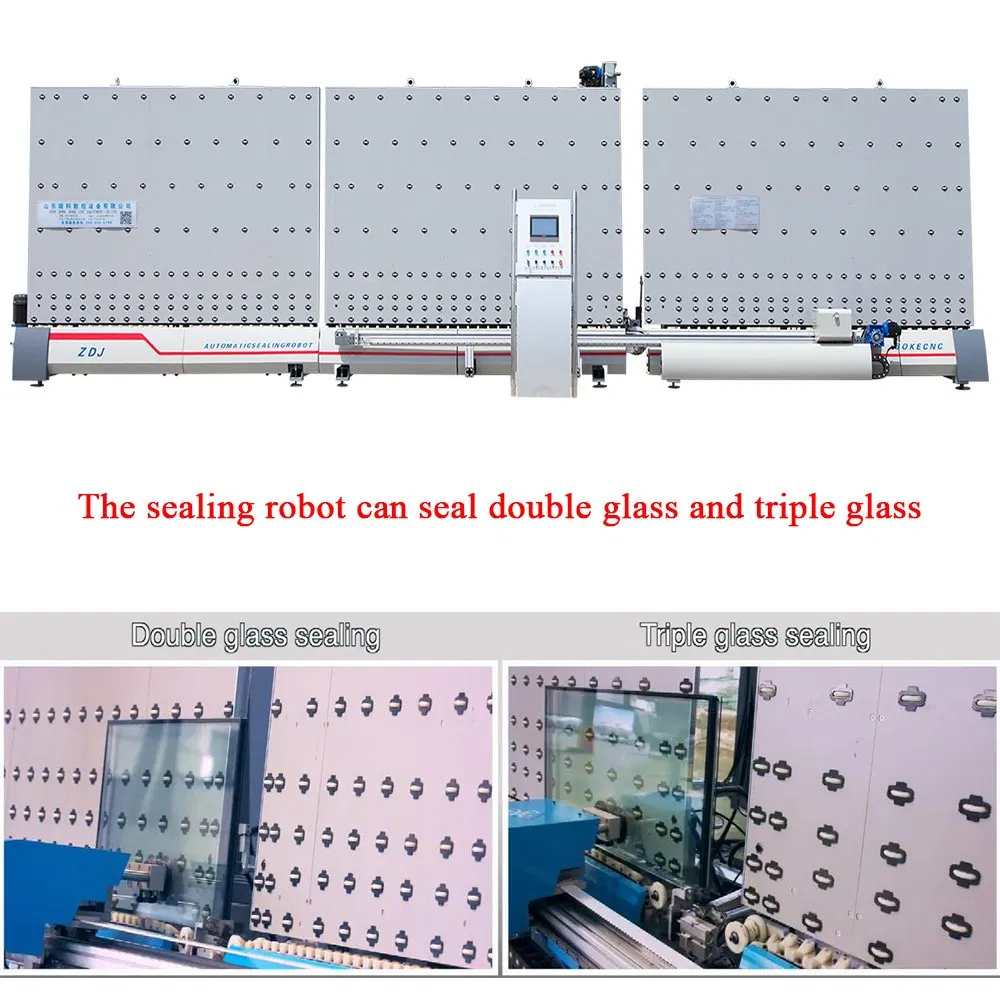

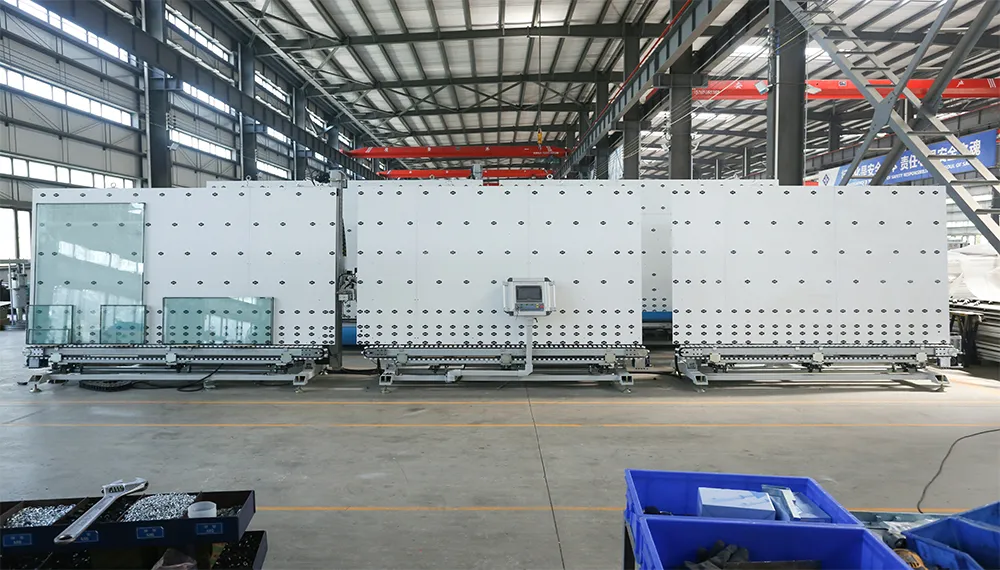

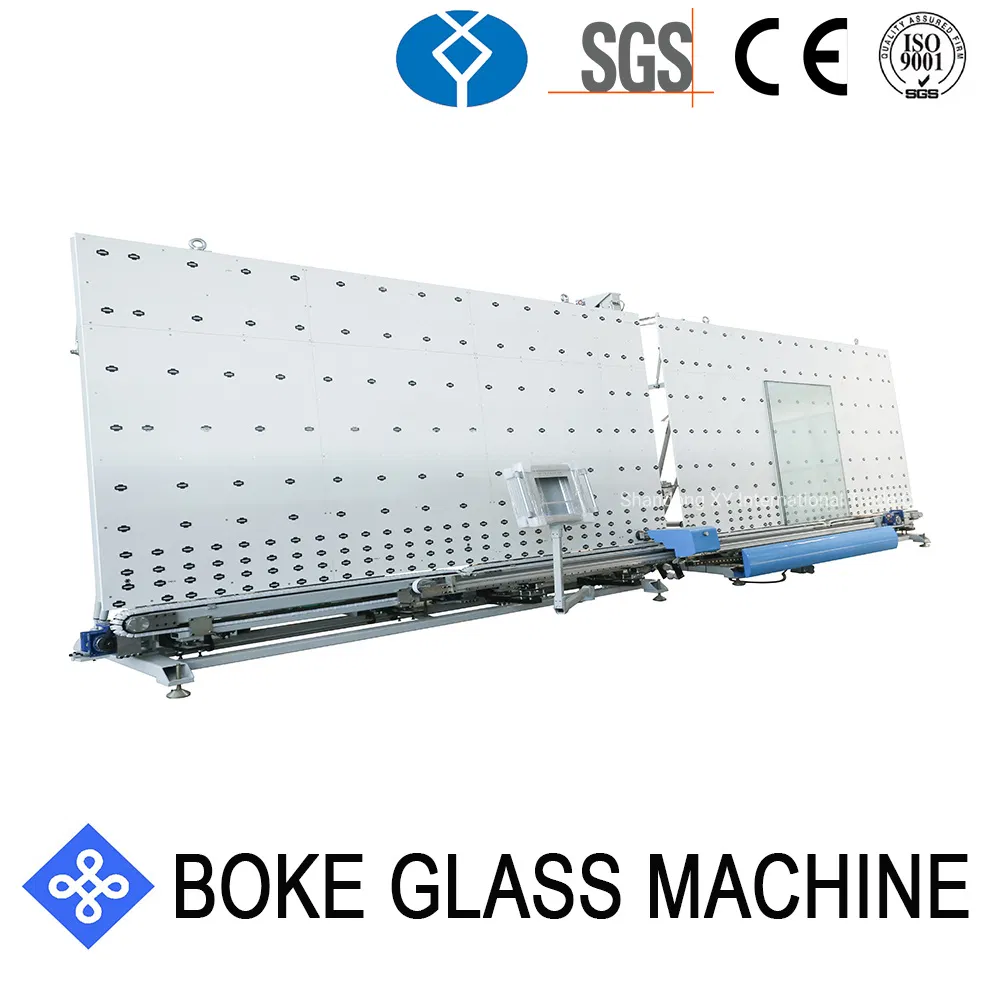

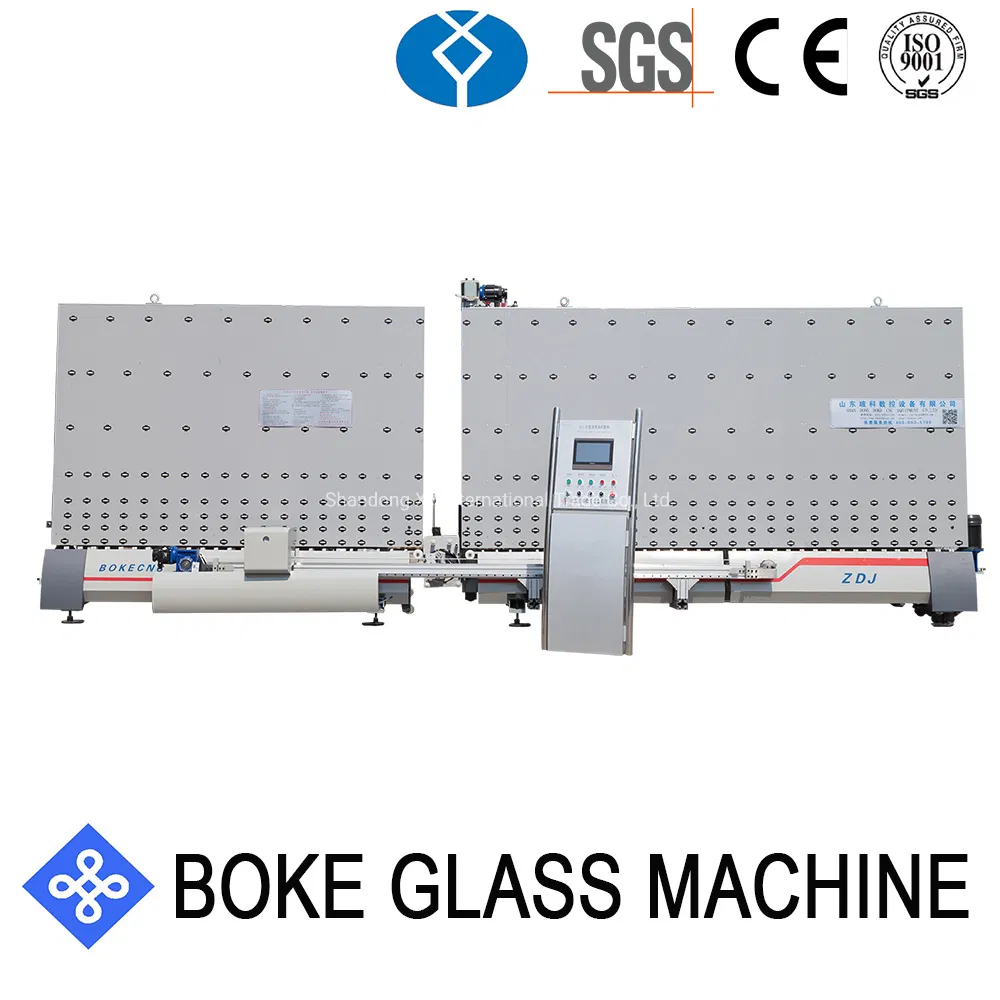

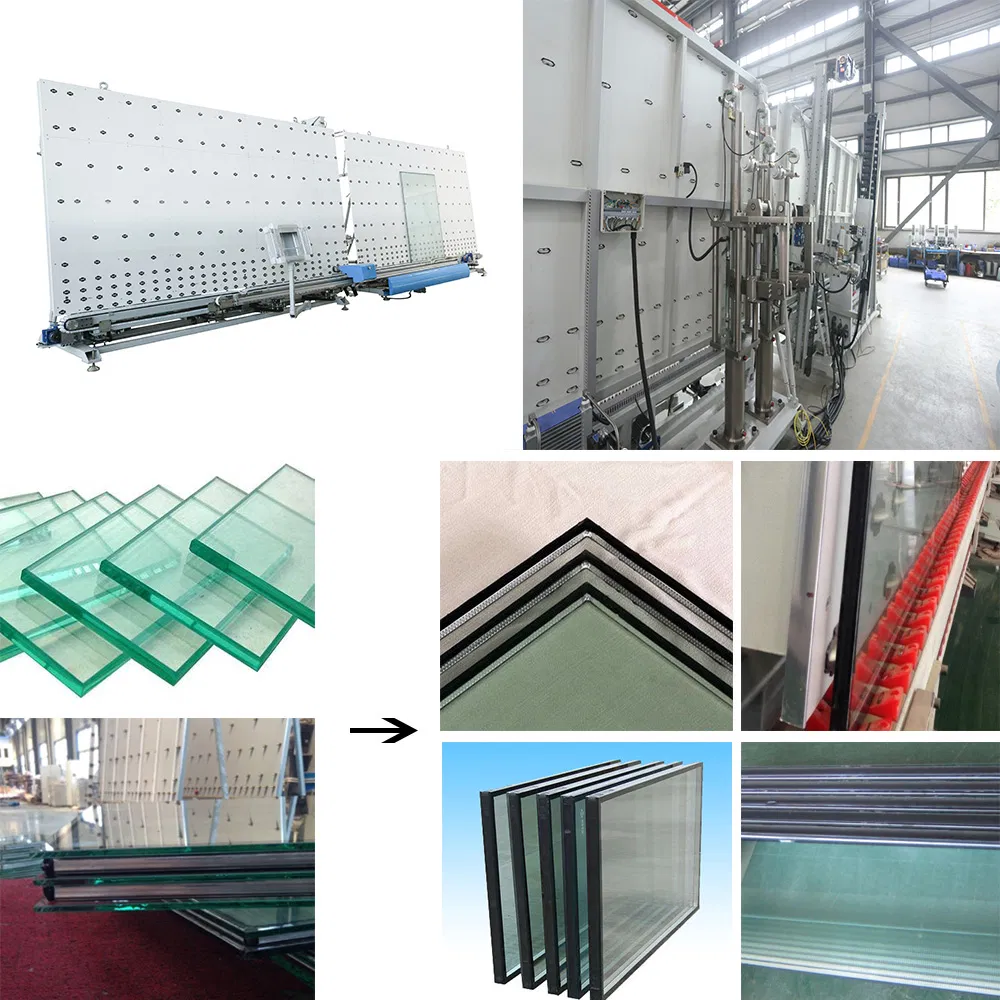

Introduction of Insulating Glass Unit Sealing Robot

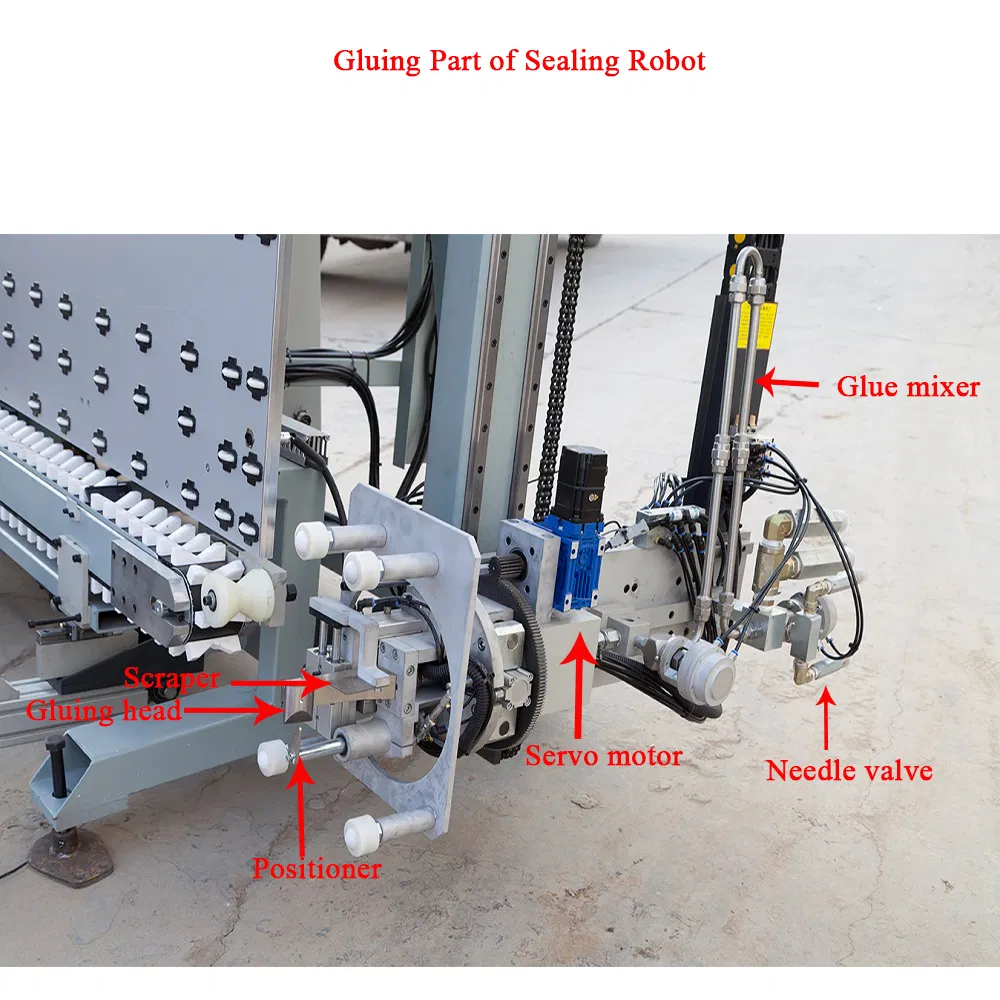

This sealing robot ZDJ-V28.5 is a high-precision glue applicator for the second sealing of insulating glass. It integrates seamlessly into the production flow following cleaning, drying, and frame placement, completing the final IG unit plate pressing and sealing process.
Main Features:
| Specification | Data |
|---|---|
| Sealing Speed | 5-35 m/min |
| Sealing Depth | <18 mm |

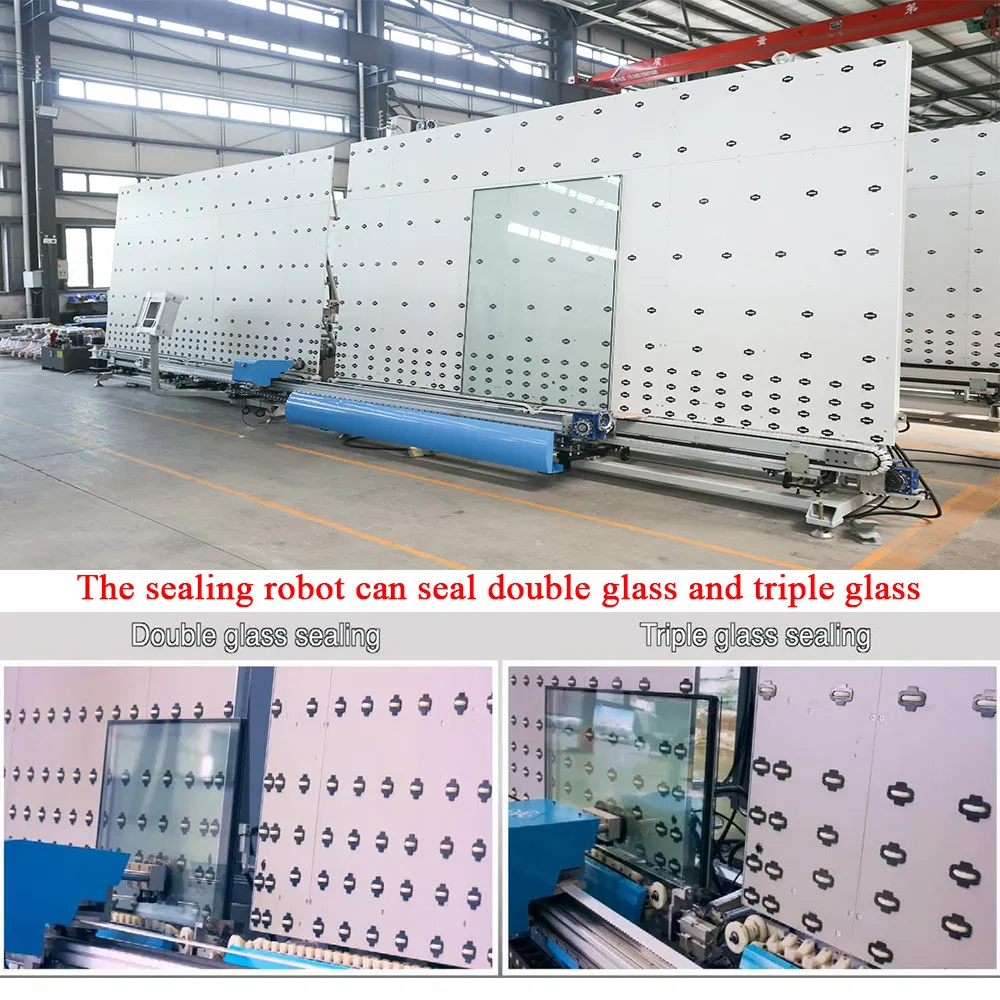

| Thickness of IG Unit | 12-50 mm |
| Max. IG Unit Size | 6000*2850 mm |
| Air Pressure | 0.6-0.8 MPa |
| Total Power | 10 Kw |
| Max Weight of IG Unit | 1000 Kg |
| Outline Dimension | 14000*3500*3550 mm |
Core Components & Brands:
| Component | Brand / Origin |
|---|---|

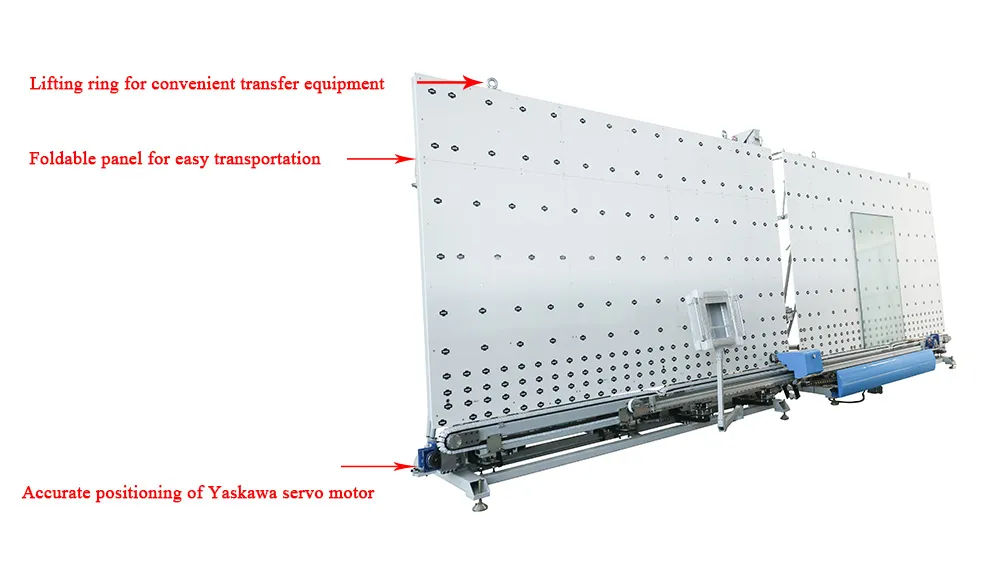

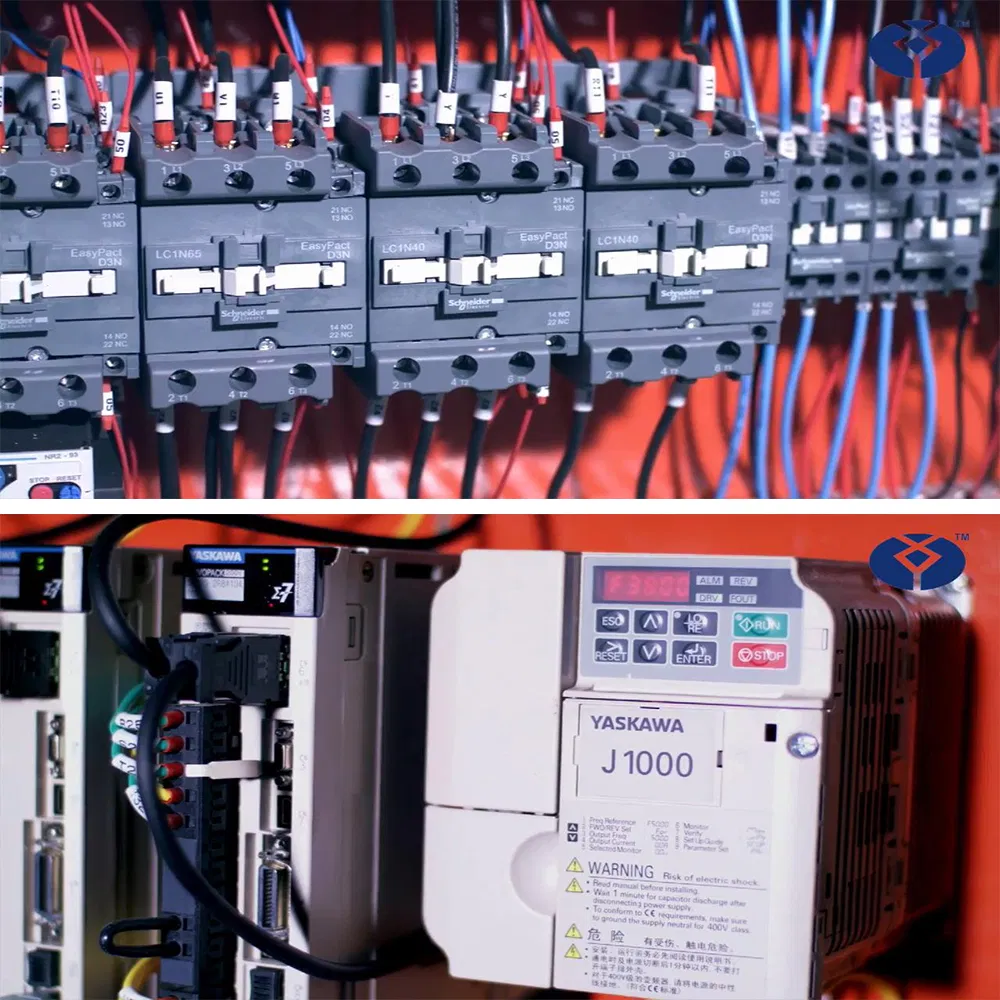

| Servo Motor & Actuator | Yaskawa (Japan) |
| Control System | Digital Servo Control |
| Stepping Motor | High-precision Series |
| Sensors | Imported Brands |

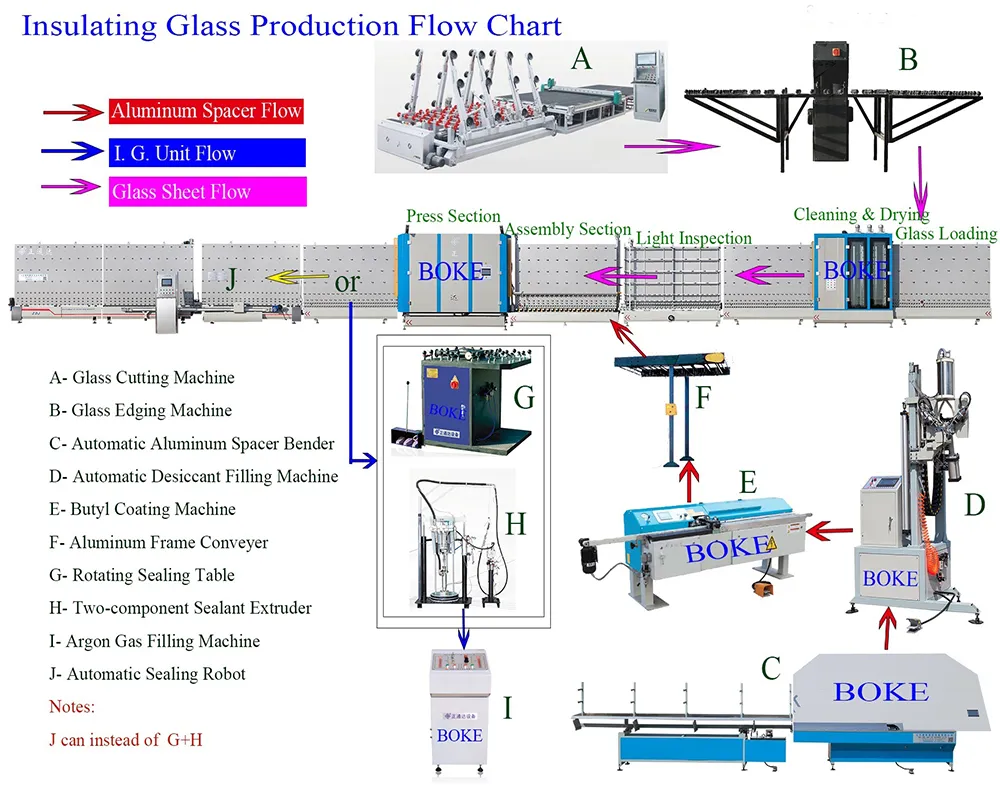

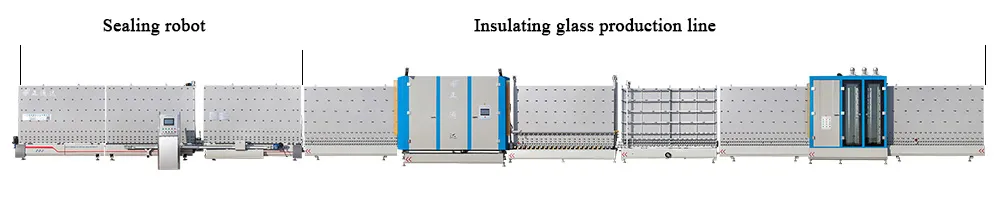

This equipment can work as a standalone unit or be integrated into a full IG unit production line for maximum efficiency. The complete processing suite typically includes:

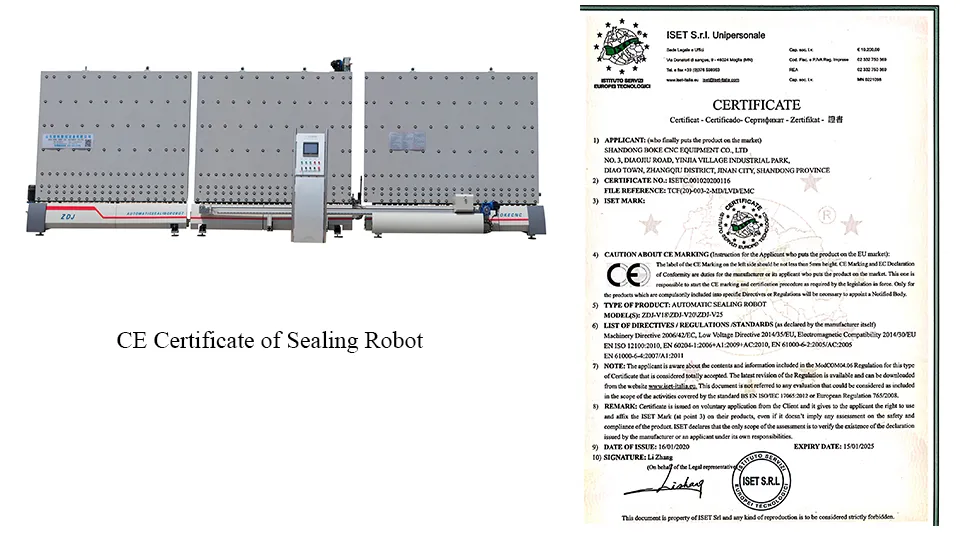

Our equipment is fully certified with ISO9001 and CE standards, ensuring high quality and safety for global markets.

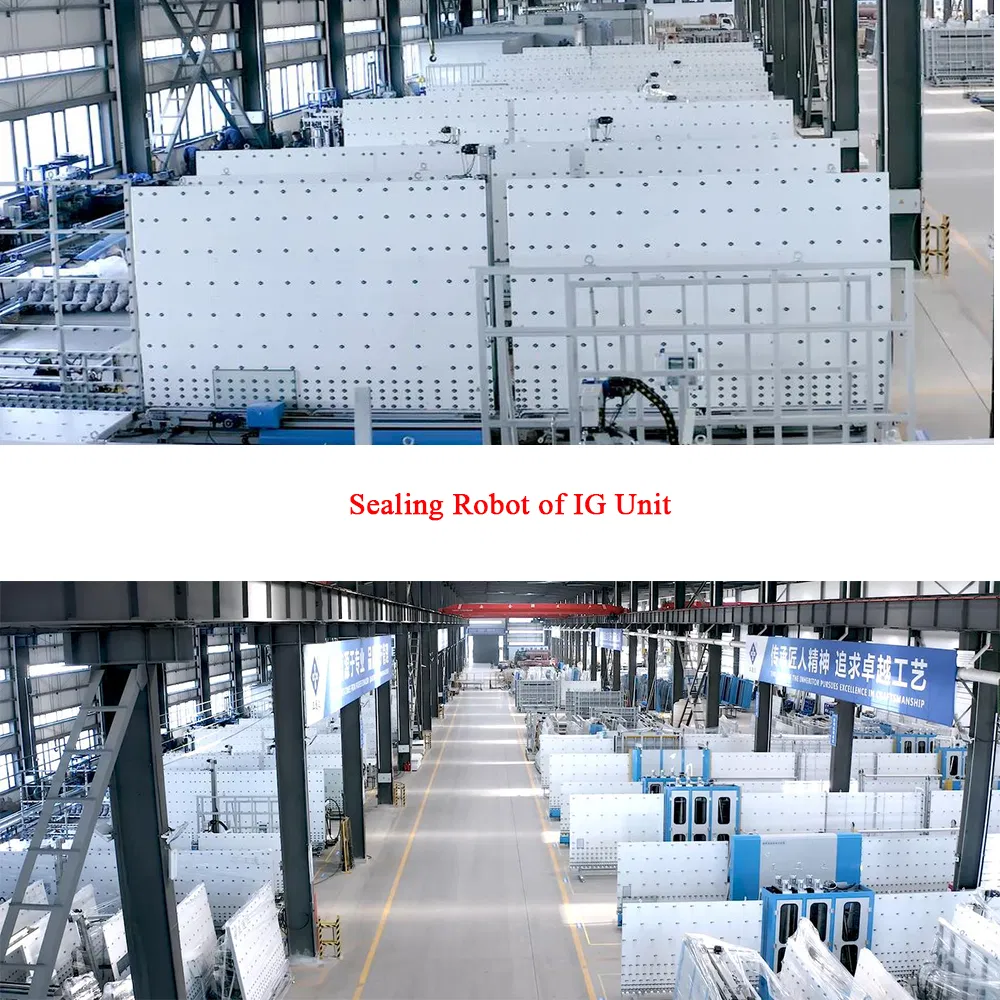

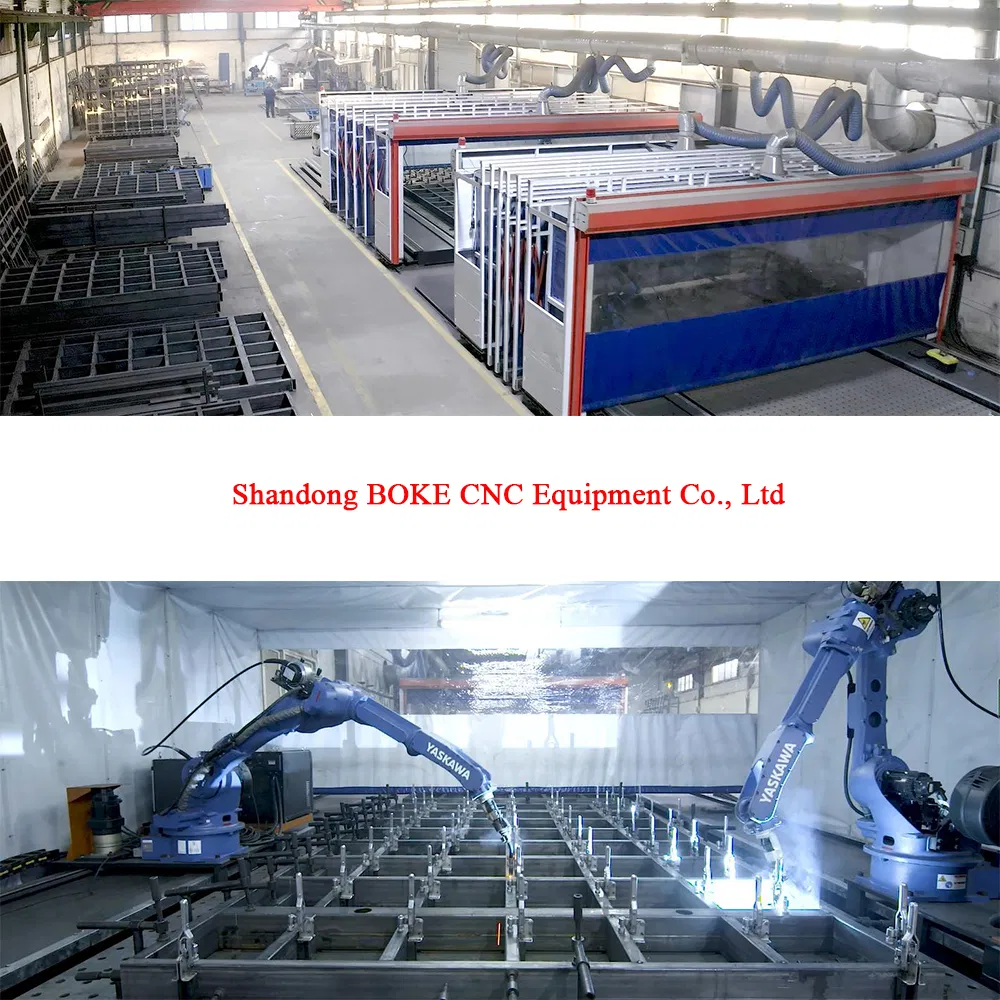

Specializing in high-grade insulating glass processing equipment, the facility spans 20,000 square meters of production and research space. We have obtained numerous national invention and utility model patents.
