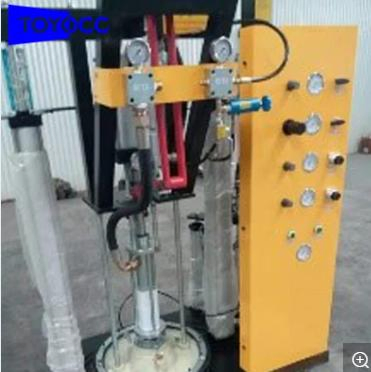

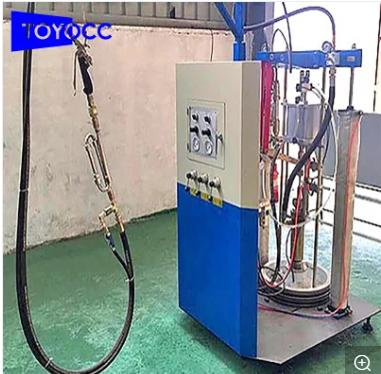

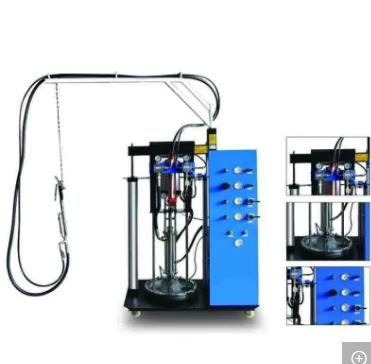

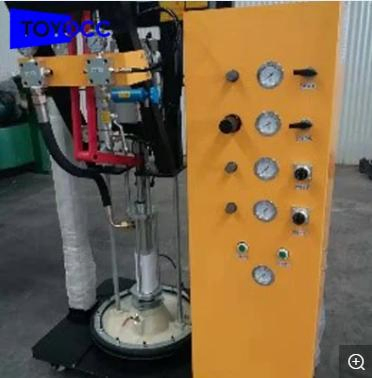

Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun
Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun
Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun
Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun
Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun
1 / 5
Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun
Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun
Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun
Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun
Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun

Insulated Glass Sealing Machine Sealant Extruder with Polysulfide Glue Gun

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

Technical Specifications

Customized
Available
Glass Thickness
3-19 mm
Max Air Consumption
0.8m³/Min
Squeeze Pressure
30MPa
Output
4~10L/Min
Air Pressure
0.6~1.0MPa
Overall Dimension
1750*950*1980mm
Total Weight
510kgs
Type
Insulating Glass Production
Structure
Vertical
Transport Package
Plywood Box
HS Code
8475299000
Two-Component Vacuum Control Sealant Extruder

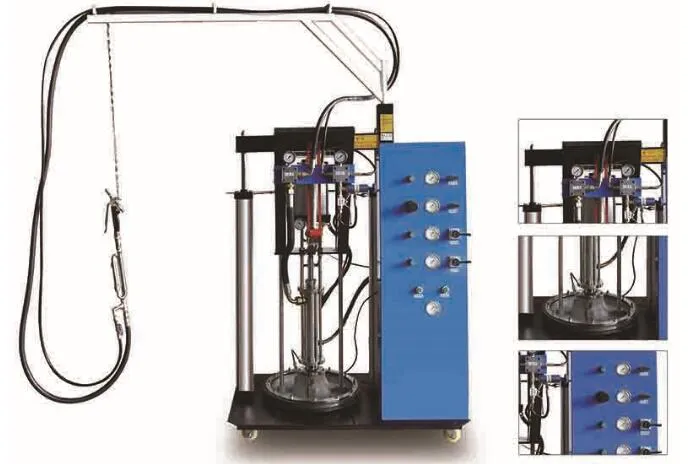

Sealant Extruder Machine

This pneumatic two-component sealant extruder is designed for insulating glass production lines, offering high quality with an efficient working load.

Key Features & Advantages

1
Suitable for mass production of insulating glass and curtain walls.
2
Pneumatic control for easy and reliable operation.
3
Main and auxiliary motors utilize advanced technology for stable power and large output.
4
Integrated pump structure (base material, curing agent, and proportioning) prevents sealant leakage.
5
Equipped with multichannel filtering to eliminate impurities within the pump body.
6
Universal rotating arm provides flexibility and portability during operation.

Detailed Specifications

Parameter Specification Parameter Specification
Max Air Consumption 0.8m³/min Squeeze Pressure 30Mpa
Output Capacity 4~10L/min Air Pressure 0.6~1.0Mpa
Overall Dimension 1750*950*1980mm Total Weight 510kgs

Product Gallery

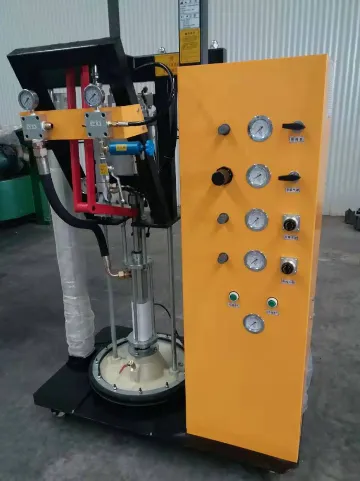

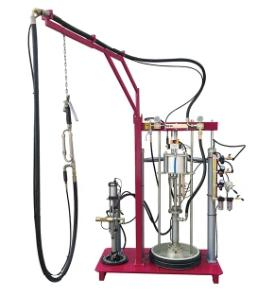

Machine Front View

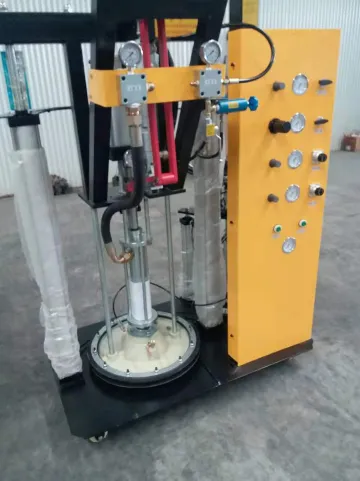

Machine Side View
Matching Turning Table & Packaging

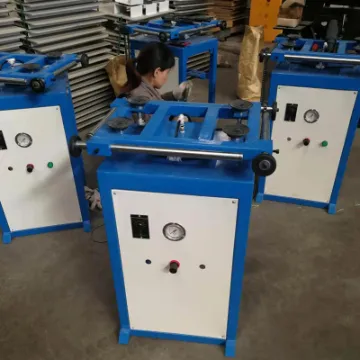

Matching Turning Table
Export Package

Professional Support

We provide comprehensive support for glass machinery and related consumables. Our professional team helps glass factories, insulating glass plants, and window manufacturers achieve cost-effective production through:

  • Long-term technical consulting services.
  • Professional equipment support and maintenance.
  • Low-cost, fast cooperation solutions.

Frequently Asked Questions (FAQ)

Q1: What materials is this sealant extruder suitable for?
A: It is specifically designed for the mass production of insulating glass and curtain walls using two-component sealants.
Q2: What is the maximum output capacity of the machine?
A: The machine provides a sealant output range of 4 to 10 Liters per minute.
Q3: Does the machine require a special power supply?
A: This model is pneumatically controlled and operates within an air pressure range of 0.6 to 1.0 MPa.
Q4: How does the machine prevent sealant leakage?
A: It features an integrated structure for the base material pump, curing agent pump, and proportioning pump to ensure a sealed system.
Q5: Is the mixing process uniform for different types of sealants?
A: Yes, it uses an international popular type unique gun with a stainless steel mixing spindle to ensure complete and uniform mixing.
Q6: What is the total weight and packaging for transport?
A: The total weight is 510kgs, and it is shipped in a secure plywood box package for international protection.
