Automastic Insulating Glass Sealing Machine Two Component Sealant Coating Machine CNC Insulating Glass Sealing Machine Ig Glass Insulated Glass Sealing Machine

1 / 5

Automastic Insulating Glass Sealing Machine Two Component Sealant Coating Machine CNC Insulating Glass Sealing Machine Ig Glass Insulated Glass Sealing Machine

Customization:	Available
Certification:	CE, ISO, FDA, PCI, PDA, SGS
Control System:	Industrial Computer

Send Inquiry

Product Description

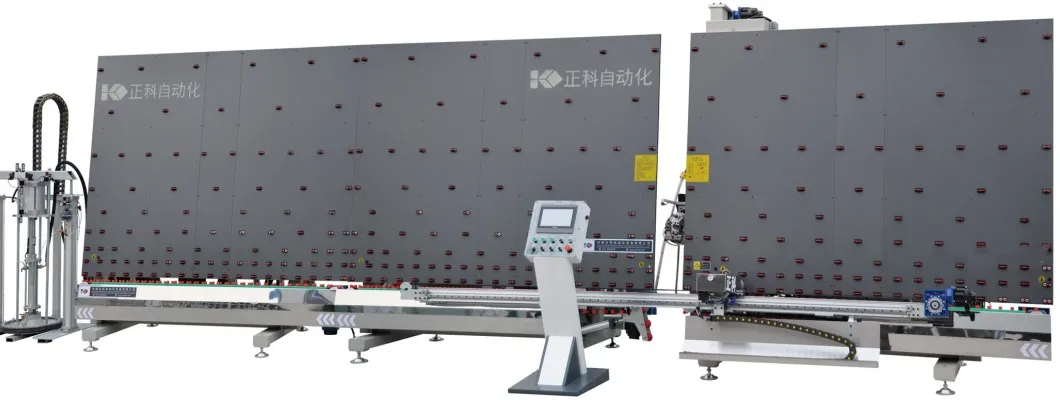

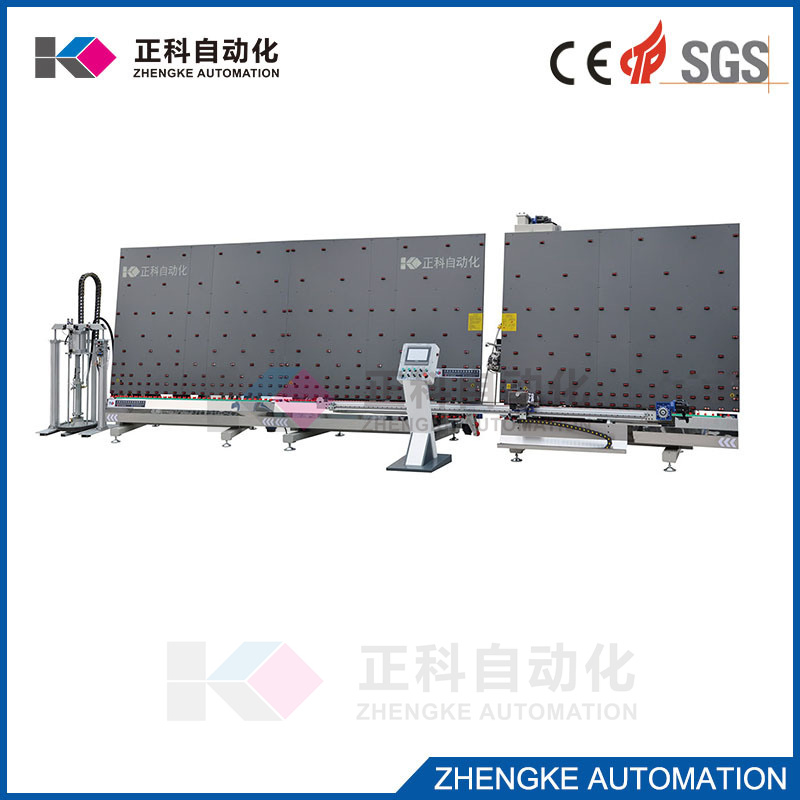

CNC Insulating Glass Sealant Coating Line

📊 Basic Specification

Model NO.	ZDJ2500B
Production Name	Auto Insulating Glass Processing Sealing Robot
Max. Glass Size	2500 * 3500mm
Min. Glass Size	280 * 400mm
Glass Thickness	3-12mm
Insulating Glass Thickness	≤60mm
Feeding Speeds	5-50m/Min
Power Supply	380V 50Hz 13kw
Air Pressure	0.6~0.8MPa
Overall Dimension	11500 × 4000 × 3400mm
Weight	3500 Kg

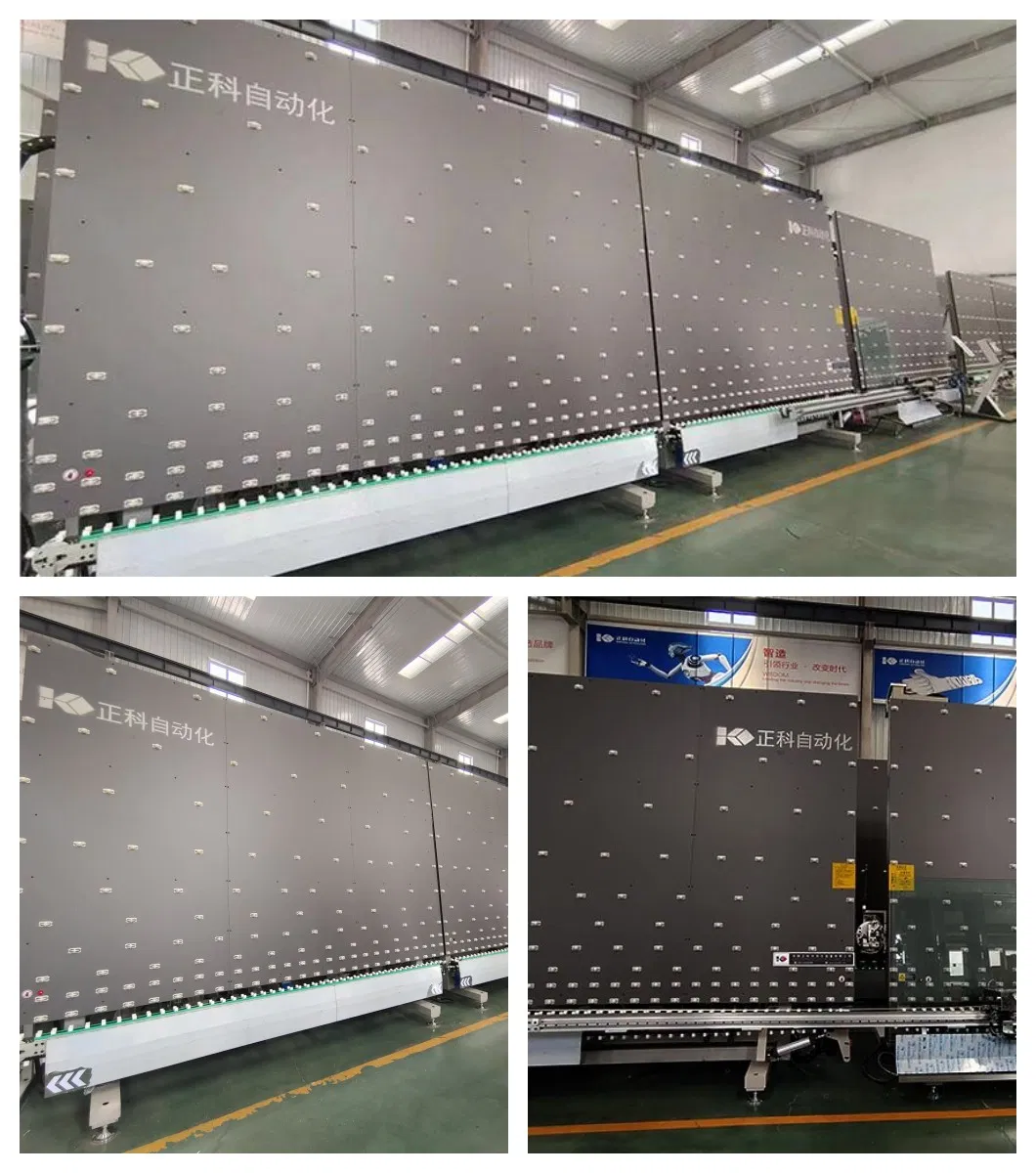

Structure Type	Vertical Glass Coating Machine

⚙️ Equipment Features

Realizes continuous adhesive application for various rectangular insulating glass sizes with high efficiency.
Equipped with two completely independent glue supply systems for arbitrary switching between sealants (optional).
Pre-storage capability in the third section to strengthen operational continuity and production output.
User-friendly Panelmaster human-computer interface for simple and convenient operation.

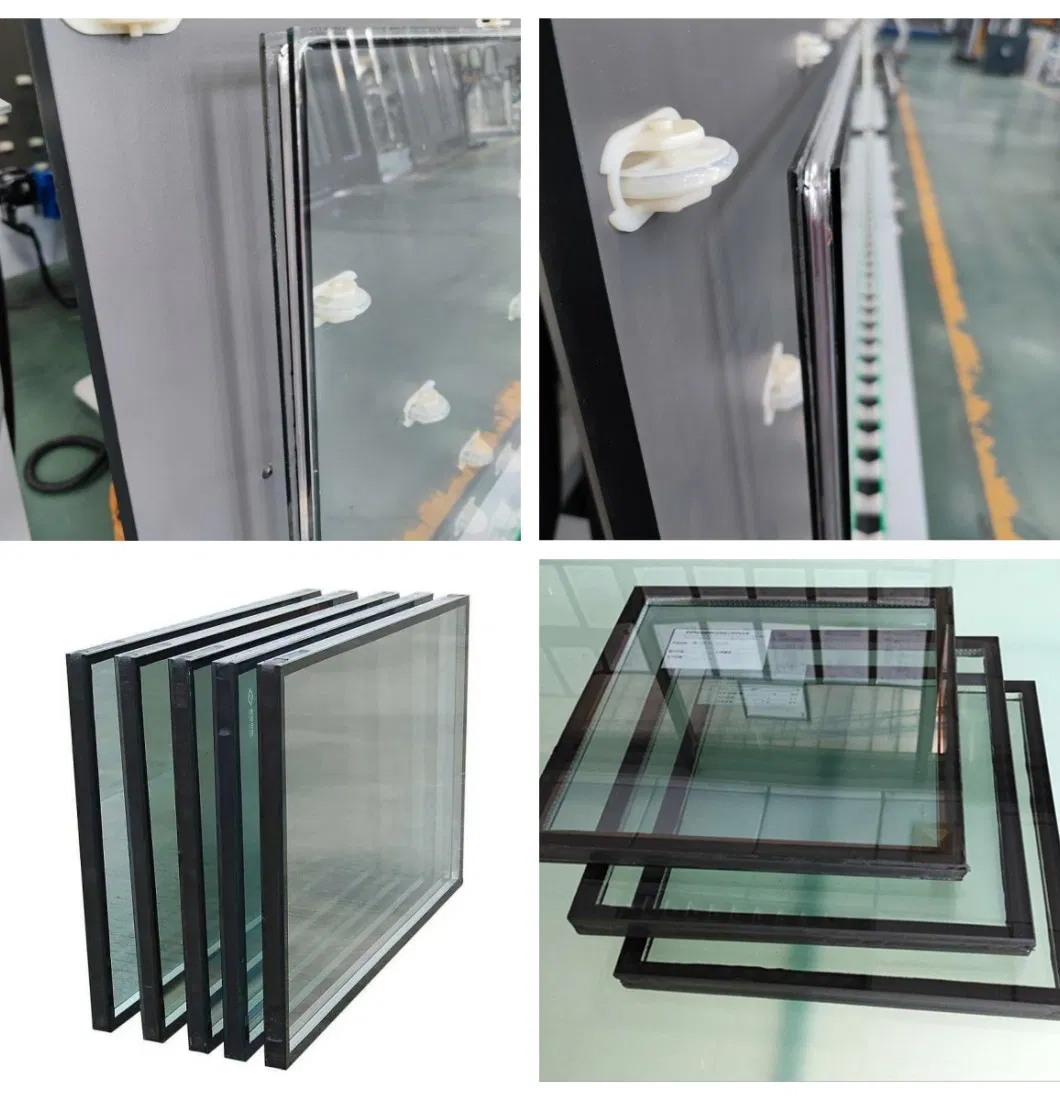

Full side coating without bubbles and full corners without the need for manual trimming.
Features World-renowned Yaskawa motion control and servo systems for stable performance.

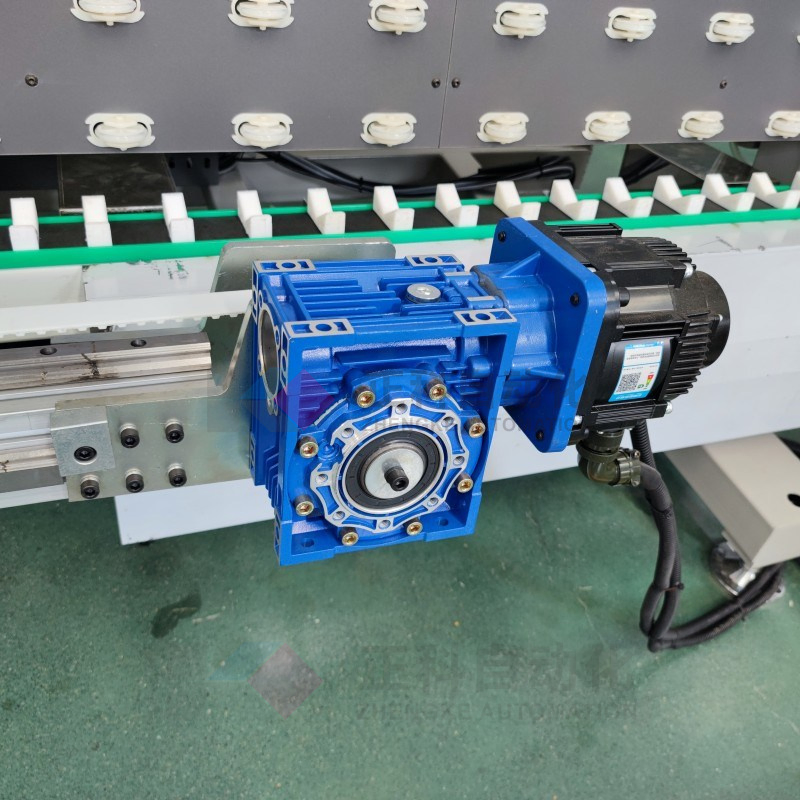

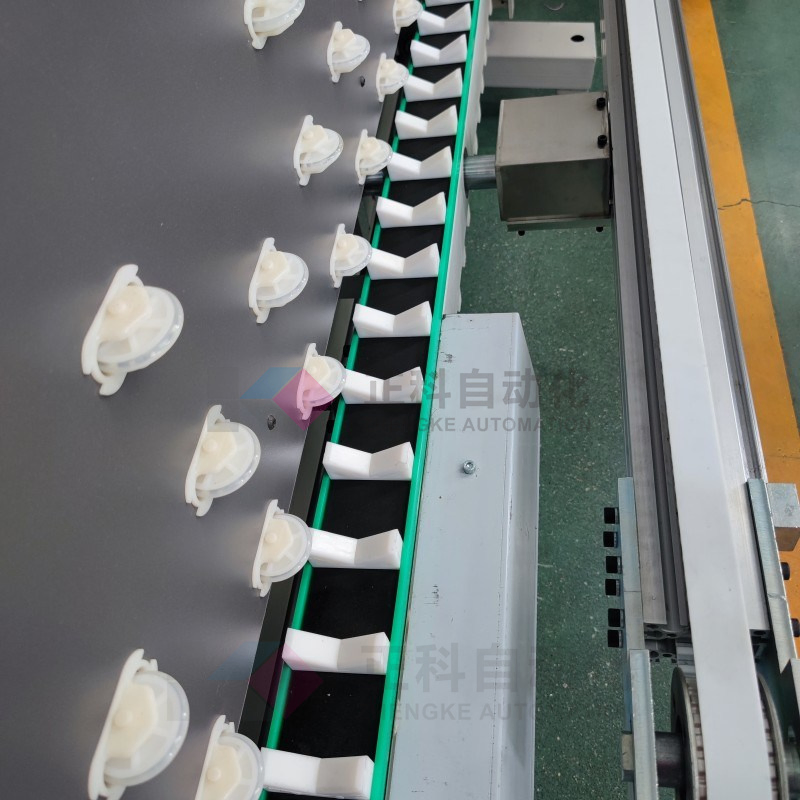

Accurate synchronous belt transmission system ensures pollution-free glass handling.
Unique automatic alarm device for monitoring glue quantity.
Coating pressure adjusted via Panasonic CNC output.
Supports special-shaped coating for various graphics such as arcs and high-speed iron glass (optional).

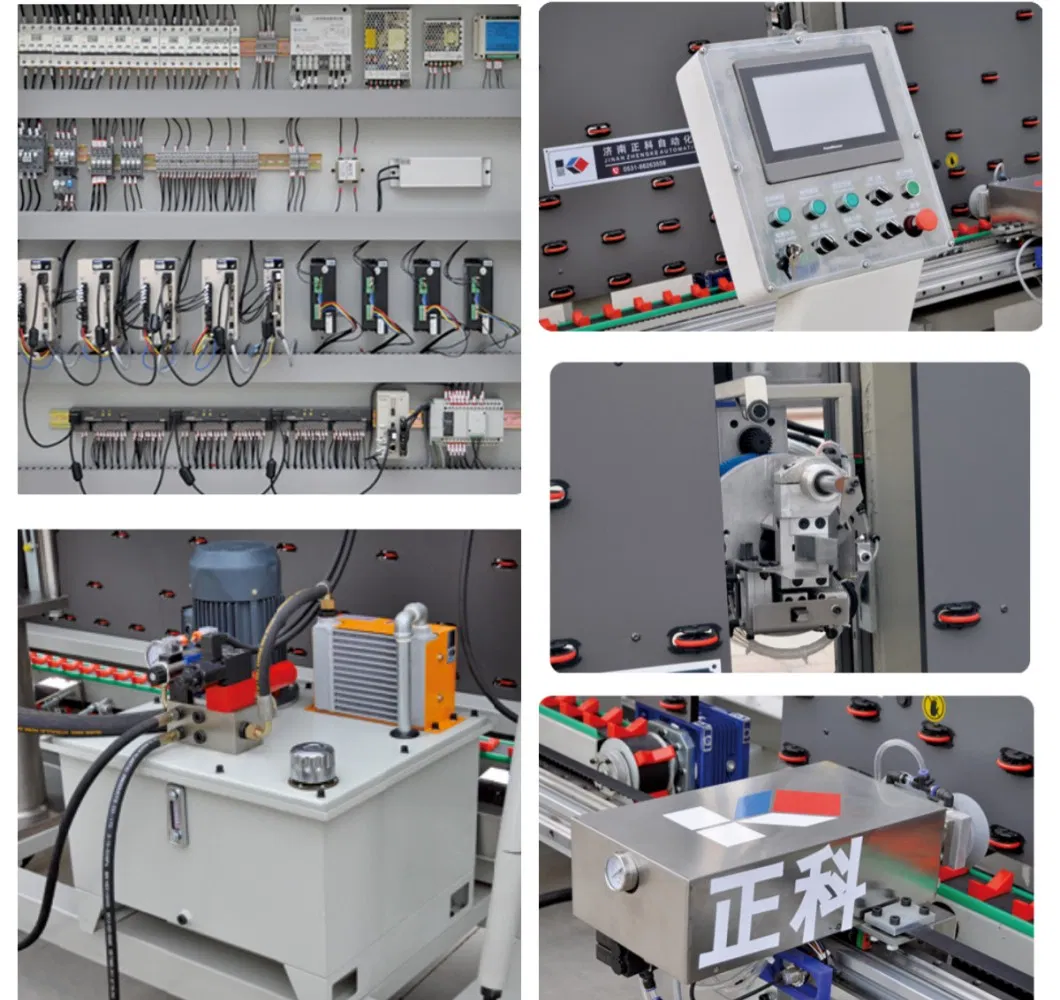

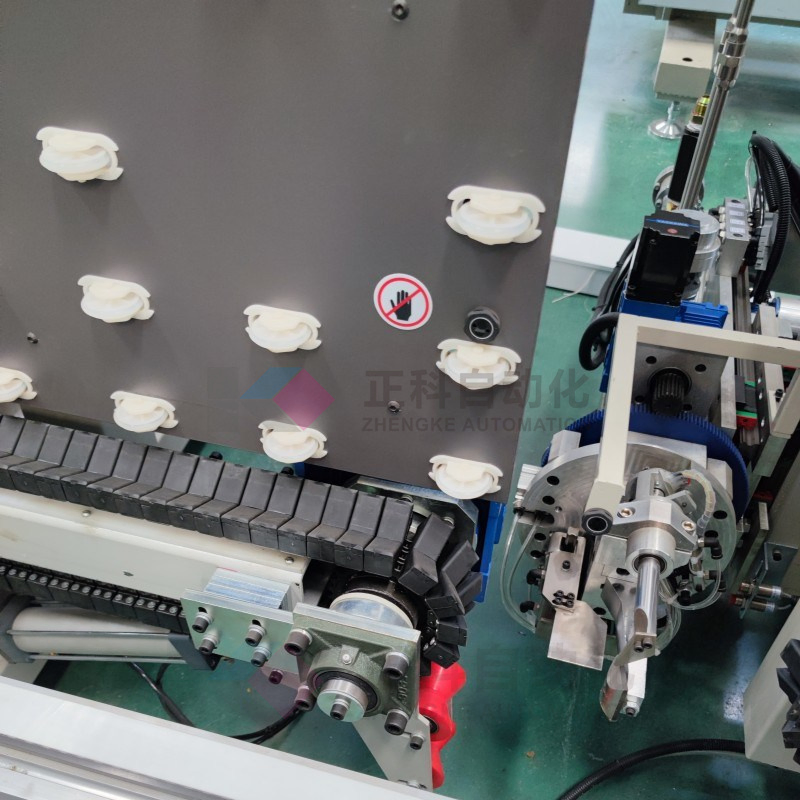

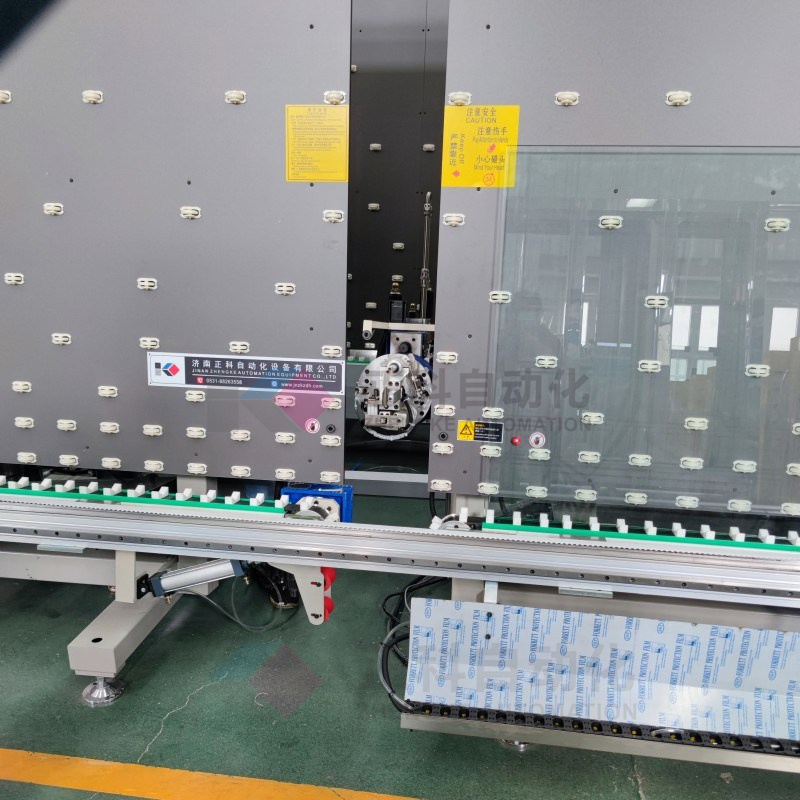

💎 Detailed Gallery

🏢 Professional Manufacturing

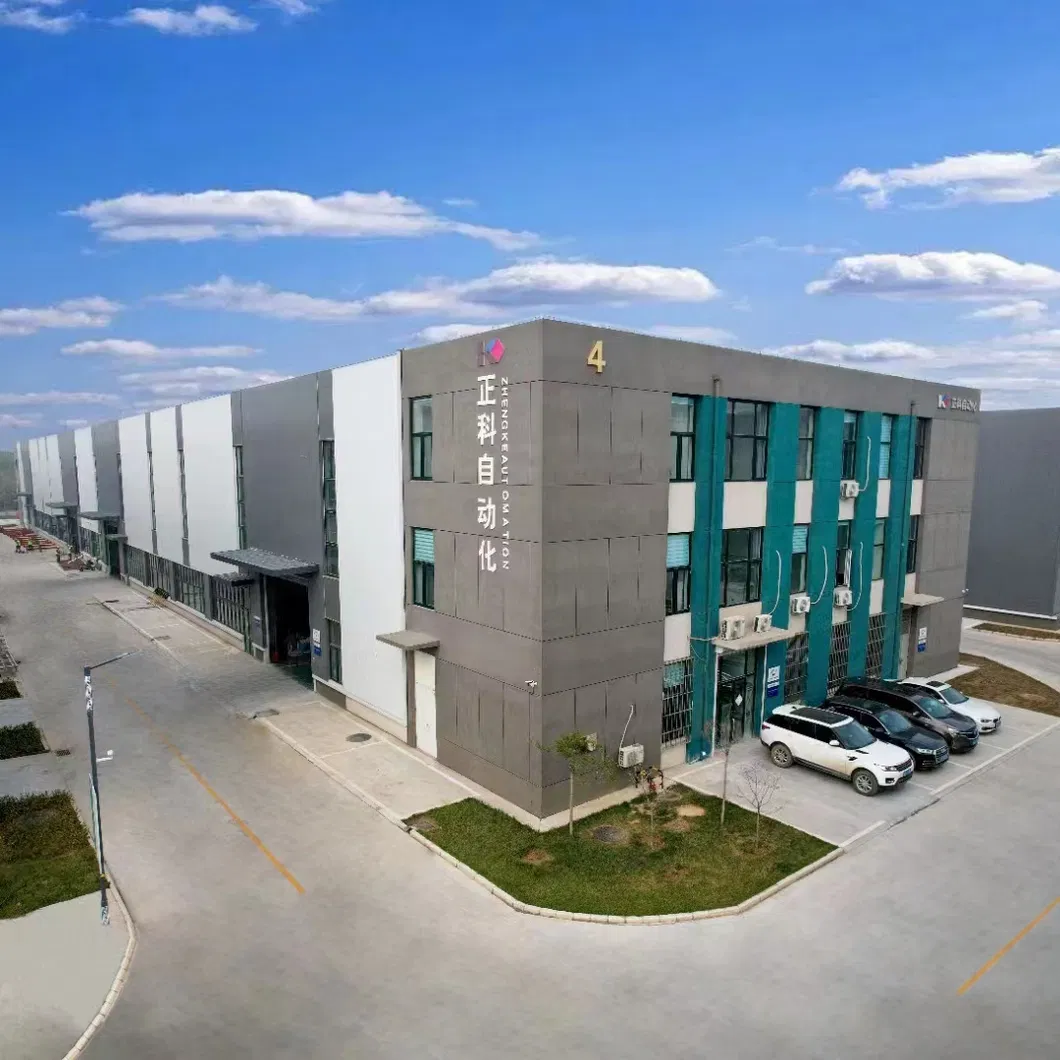

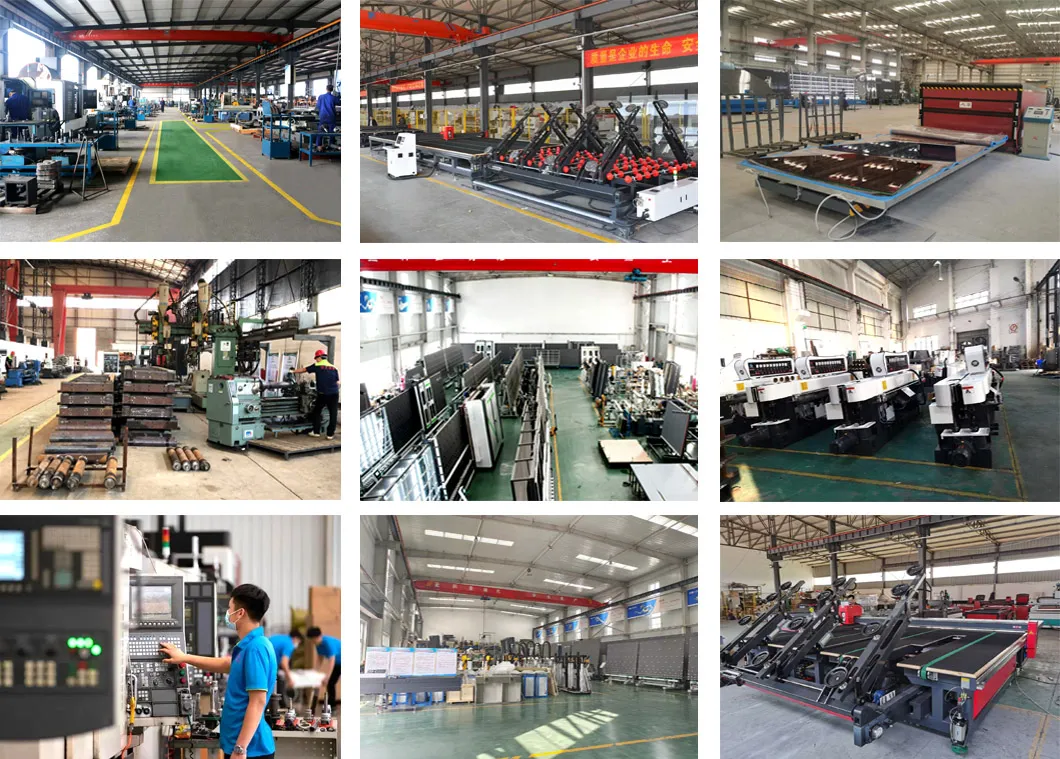

Founded in 2014, our automation facility covers an area of 5,000 square meters with a core technical team dedicated to independent design and R&D. We are a professional high-tech enterprise specializing in glass machinery.

Our focus includes glass cutting, edging, washing, tempering, and insulating glass machinery. With over 1,500 terminal customers, we have earned wide recognition for quality and stability. Our glue machines solve manual inefficiencies, providing high-speed, uniform mixing, and accurate ratios for silicone, polysulfide, and polyamine adhesives.

🚀 Why Choose Our Solutions

Professional glass production solutions and online service support.
OEM & ODM acceptable with customized designs.
Strict quality testing and control systems ensure superior machine quality.
Direct manufacturer pricing with no middleman profit.
Comprehensive after-sales service including debugging, technical guides, and training.

📦 Packaging & Logistics

Transport Package	Wooden Box, Steel Frame
Package Size	6000.00cm * 4500.00cm * 3700.00cm
Package Gross Weight	5000.000kg

Frequently Asked Questions

1. What is the maximum glass size the ZDJ2500B sealing robot can process? The machine can handle a maximum glass size of 2500mm x 3500mm, making it suitable for large-scale industrial glass processing.

2. Can this machine handle different types of sealants? Yes, it features two independent glue supply systems that can switch between different sealants like silicone structural adhesive, polysulfide, or polyamine glue.

3. Is the coating quality consistent for corners and edges? Absolutely. The system ensures full side coating without bubbles and full corners, eliminating the need for manual trimming or touch-ups.

4. What control systems are used in this sealing robot? The equipment utilizes world-renowned Yaskawa motion control and servo systems, along with Panasonic CNC for pressure adjustments, ensuring stability and precision.

5. Does the machine support special-shaped glass coating? Yes, there is an optional feature to support special-shaped glue coating, which can produce various graphics including arcs.

6. What kind of after-sales service is provided? We provide comprehensive after-sales support, including a lifetime warranty/service, case debugging, technical consulting, and staff operation training.
