Low-E coating detection uses Japanese Omron optical fiber sensors, applicable to different LOW-E glass. Data can be adjusted at any time according to the film depth of various manufacturers.

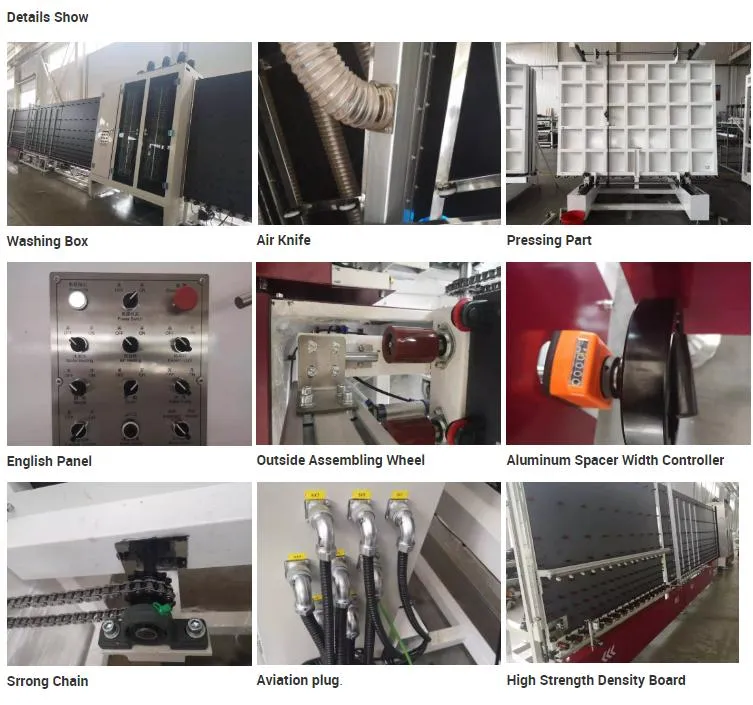

Constructed with industrial plate stainless steel shell. The brush bearing base is stainless steel using self-aligning bearings for long life and high precision.

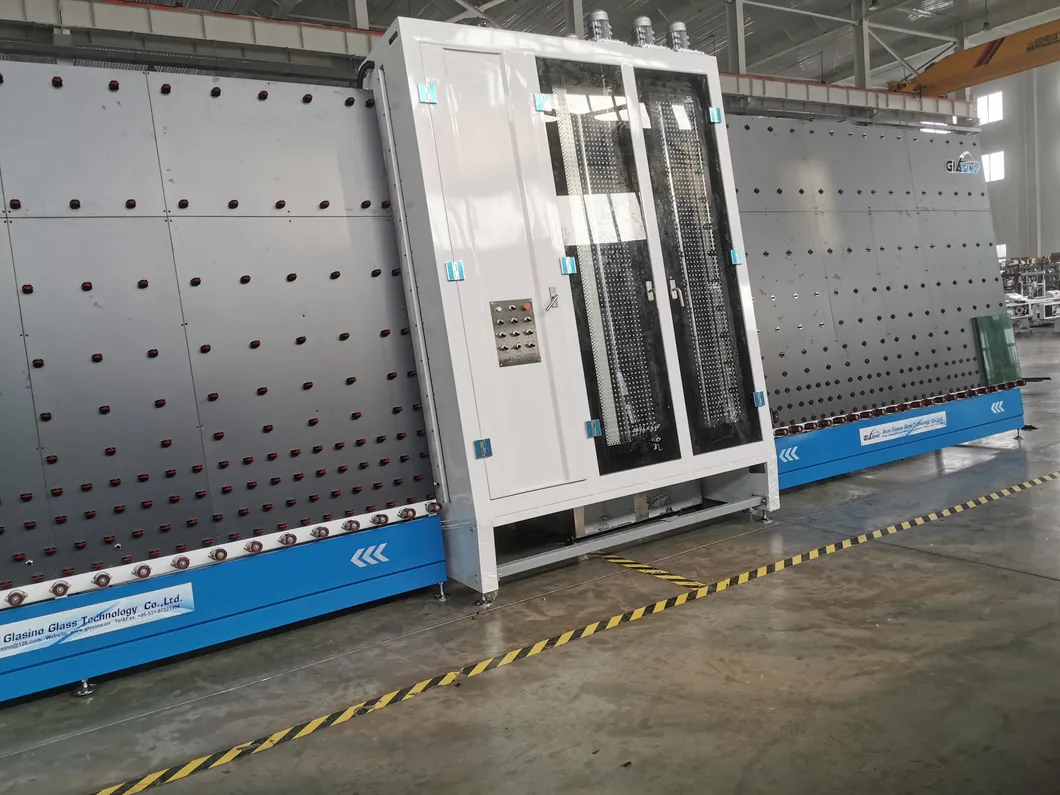

Features three pairs of six brushes powered by independent motors via coupling to prevent slippage. The cleaning chamber includes a stainless steel water baffle to prevent cross-contamination.
Equipped with German Bystronic technology air knives. The distance is adjustable based on glass thickness, supported by a high-power high-pressure sound-proof fan.
| Max. Glass Size | 2500*3500mm | Total Power | 40KW - 45KW |
| Min. Glass Size | 300*500mm | Working Speed | 2-45m/min |
| Single Glass Thickness | 3-16mm | Washing Speed | 2-15m/min |
| Insulating Glass Thickness | 12-80mm | Overall Dimension | ~24800*2500*3400mm |

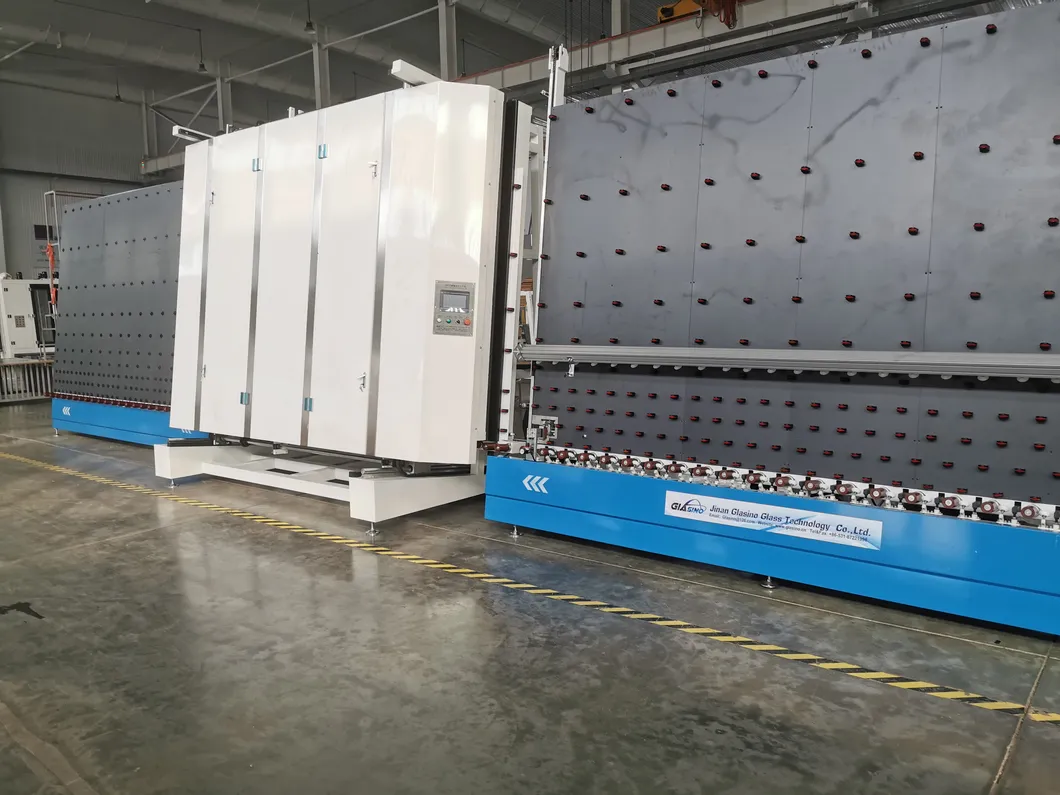

Servo motor controlled synchronous belt pressing with linear guide rails and ball screws. Includes automatic thickness measurement for precise pressing without manual input.
Utilizes German Siemens PLC and digital input systems for stable, user-friendly operation. The high automation level ensures easy handling and accurate fault diagnostics via touch screen.
