Insulated Glass Processing Machine Semi Automatic Glass Sealing Machine

1 / 5

Insulated Glass Processing Machine Semi Automatic Glass Sealing Machine

Customization:	Available
Certification:	CE
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.

ZKDJJ

Applications

Double Glass Making Machine

Gross Weight

510 Kgs

Electrical

380 V/50Hz or Customized

Glass Type

Insulated Glass

Glass Thickness

3-50mm

Structure

Horizontal

Condition

New

Service

1 Year After-sales

Dimensions

1080*935*1650mm

⚙️ Technical Parameters

No.	Name	Technical Data
1	Mixing Rate	6:1~14:1
2	Base Material Bucket	200L
3	Curing Agent Bucket	20L
4	Max Air Consumption	1.5-2 KG/min
5	Max Working Pressure	20 Mpa
6	Air Supply	0.4~0.6Mpa
7	Overall Dimensions	1080×935×1650mm
8	Gross Weight	510kg
9	Main Motor	45:1 (HASCO)
10	Donkey Motor	28:1 (HASCO)

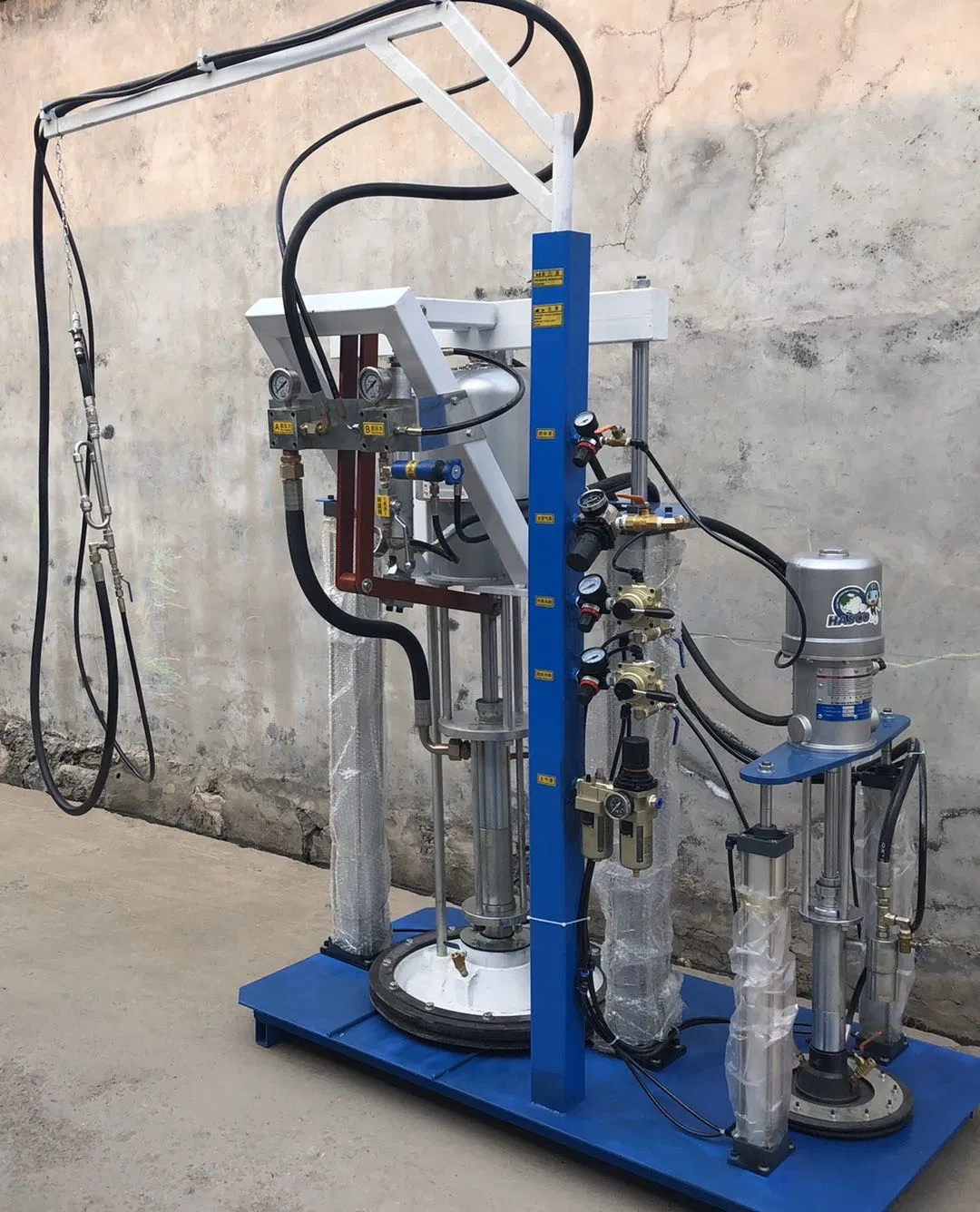

💡 Product Features

Insulated Glass Processing Machine - High Quality Sealing Solution

Suitable for insulating glass and curtain wall applications.
Economical and practical pneumatic and electric control system.
Main and auxiliary pumps feature famous brand air cylinders for maximum stability.
Integrated A/B sealant pump structure effectively prevents leakage.
Equipped with a special device to prevent A/B sealant pump from running idle.
High-pressure pump features a special one-way valve for smooth output and complete mixing.
Multi-filter system maintains purity and cleanliness of the sealant.
Stainless steel mixer and unique sealing gun guarantee superior mixing results.
One-way valve constructed from high wear-resistant material for extended lifetime.
Rotating arm with universal device provides flexible and portable operation.

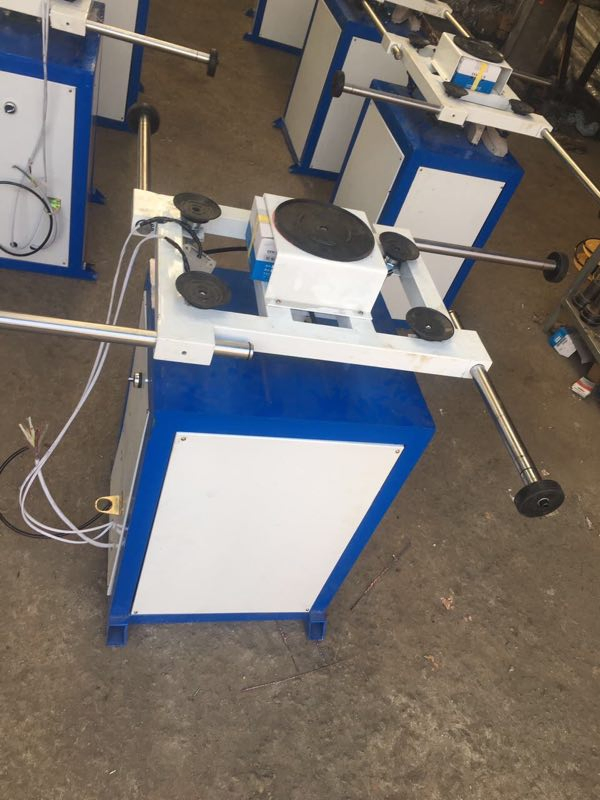

🔄 Automatic Coating Rotated Table

Specifically designed for the gluing process of insulating glass.
Highly efficient, easy, and simple to operate.
Support device is equipped with a vacuum chuck—no manual holding required.
Positive and reverse rotating structure for convenient handling.
Flexible design accommodates various specifications of insulating glass.

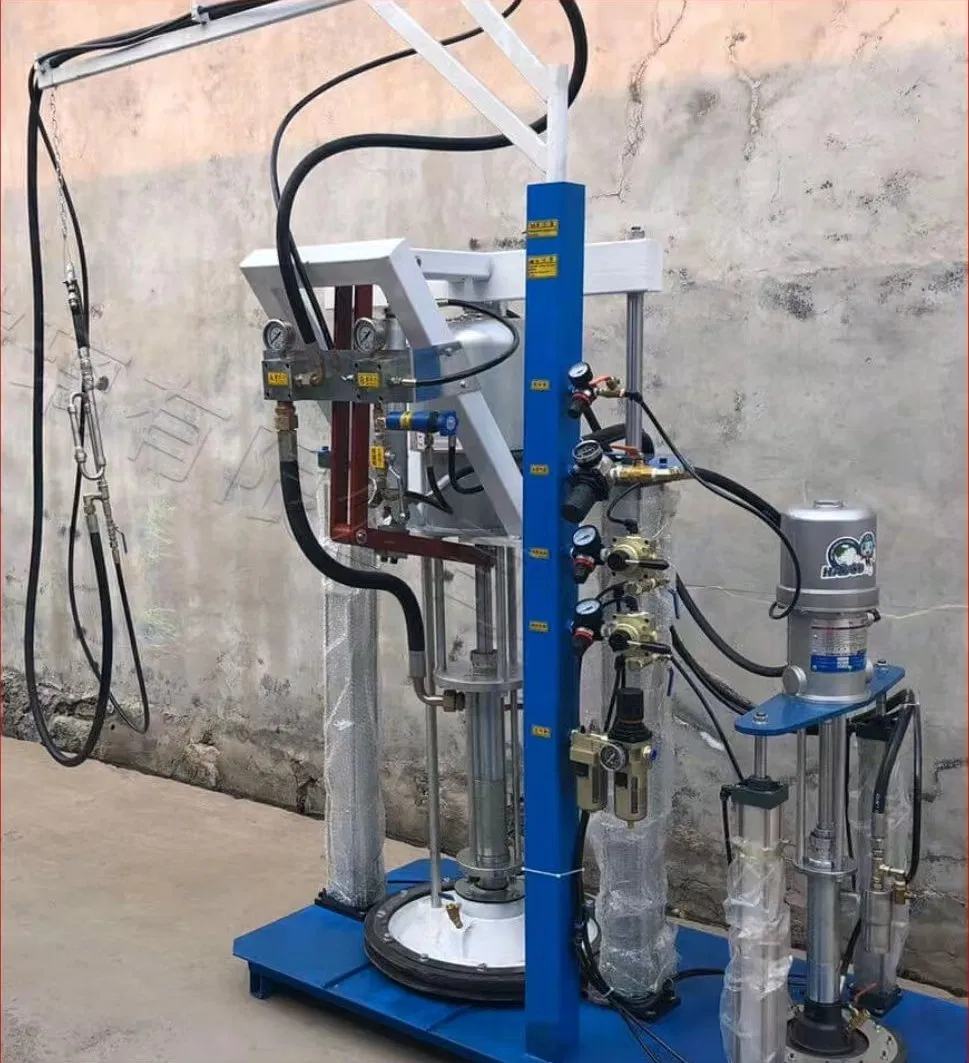

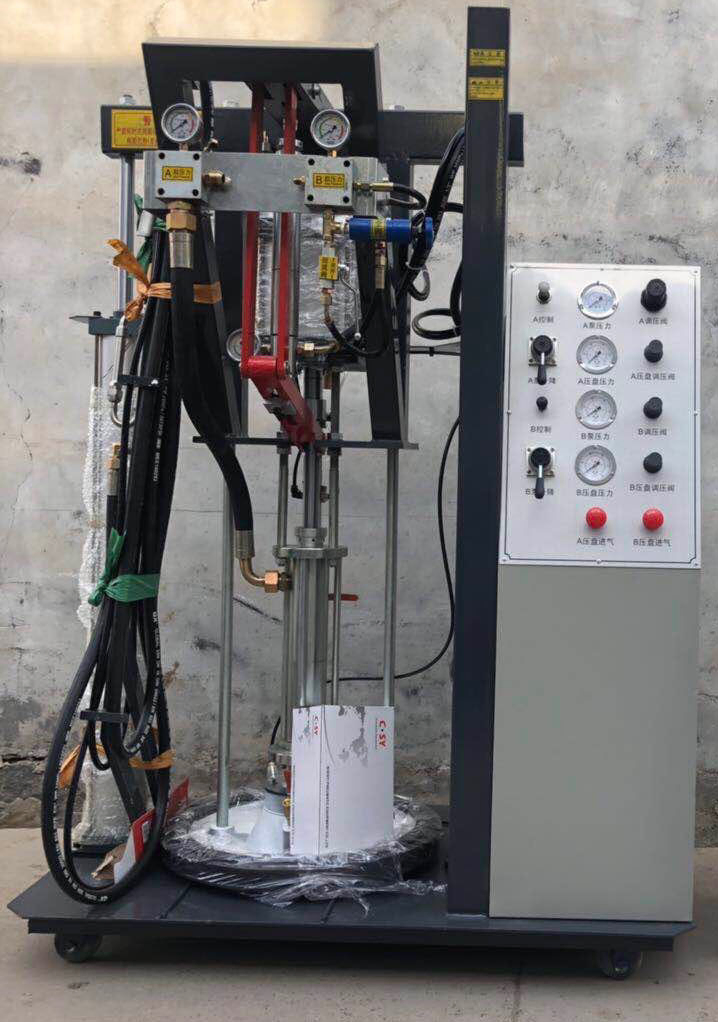

📸 Detailed Product Photos

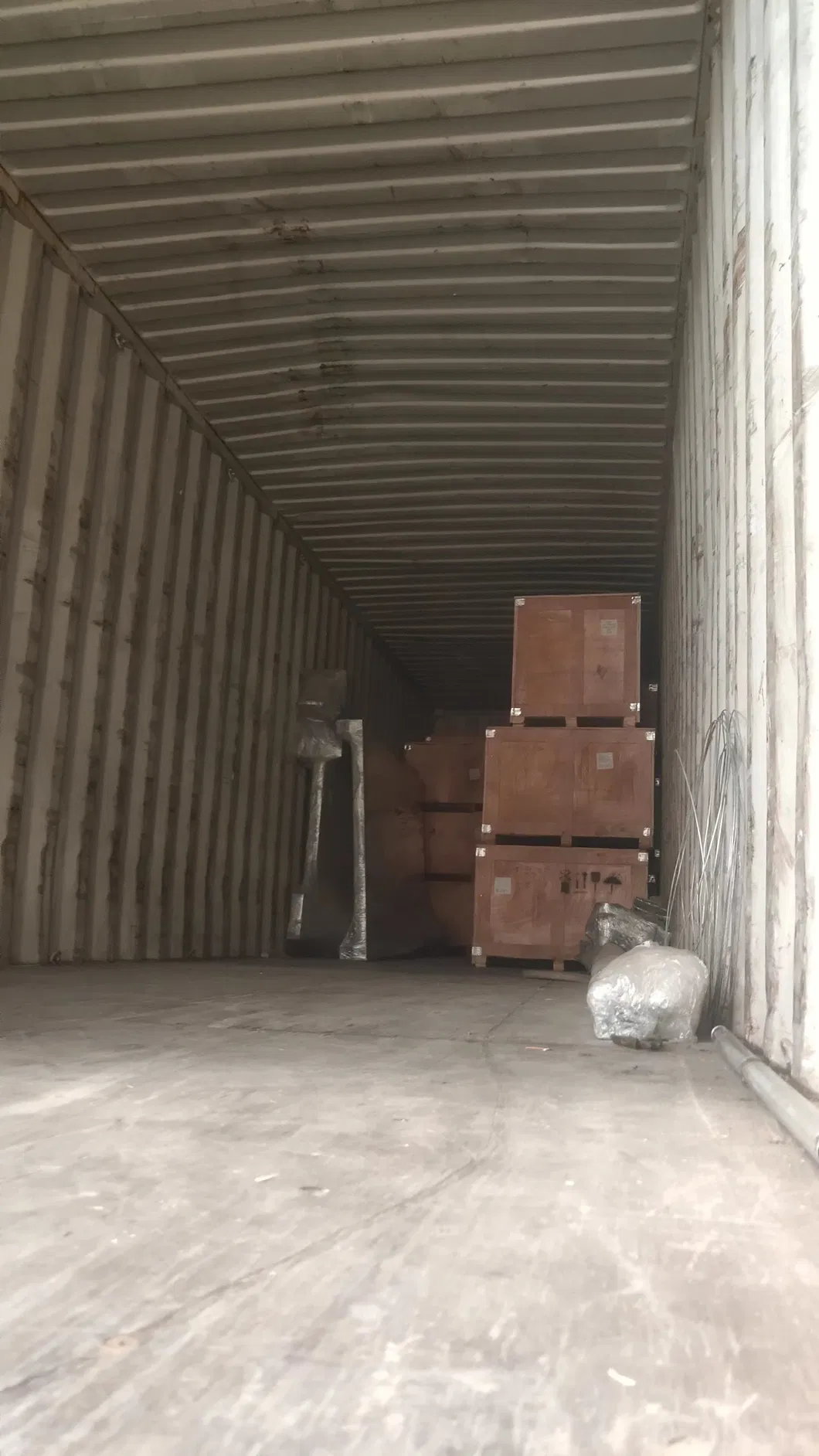

📦 Packaging & Shipping

👥 Professional Team

🔥 Hot Sale Products

❓ Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer with over 20 years of experience specializing in glass machines and glass tools.

What is your Minimum Order Quantity (MOQ)?

Our MOQ is 1 SET.

Can you produce equipment based on custom designs?

Yes, we have an experienced engineering team capable of producing machinery according to specific customer designs and requirements.

What are your main product lines?

Our main products include glass racks, vacuum glass lifters, glass laminating machines, loading/unloading equipment, and various glass tools.

What are the payment terms?

Our standard payment term is by T/T with a 50% deposit, and the remaining 50% balance paid before delivery.

How is the sealant quality ensured during mixing?

The machine uses a stainless steel mixer and unique sealing gun, along with a multi-filter system, to ensure smooth sealant output and complete, high-quality mixing.
