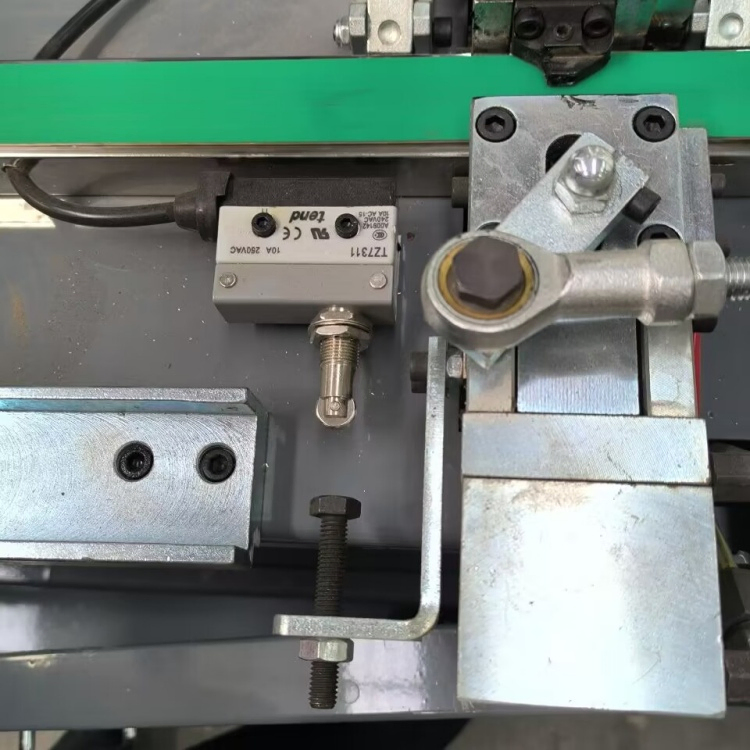

Insulated Glass Sealing Machinery Glass Butyl Extruder

Customization:	Available
After-sales Service:	All Using Life
Warranty:	12 Month

📋 Overview & Basic Info

Model NO.	JYJ-04	Condition	New
Product Name	Double Glazing Glass Butyl Extruder Machine	Certification	CE
Automatic Grade	Semi-Automatic	CNC or Not	not CNC
Air Pressure	0.6-0.8MPa	Squeeze Pressure	12~16MPa
Working Speed	18~28m/Min	Pistons Diameter	195mm
Adjustable Range	4~30mm	Power Supply	380V 50Hz
Power	3kw	Weight	400kg / 1200kg (System)
Machine Dimension	3000850500mm	Origin	China

⚙ Product Description & Features

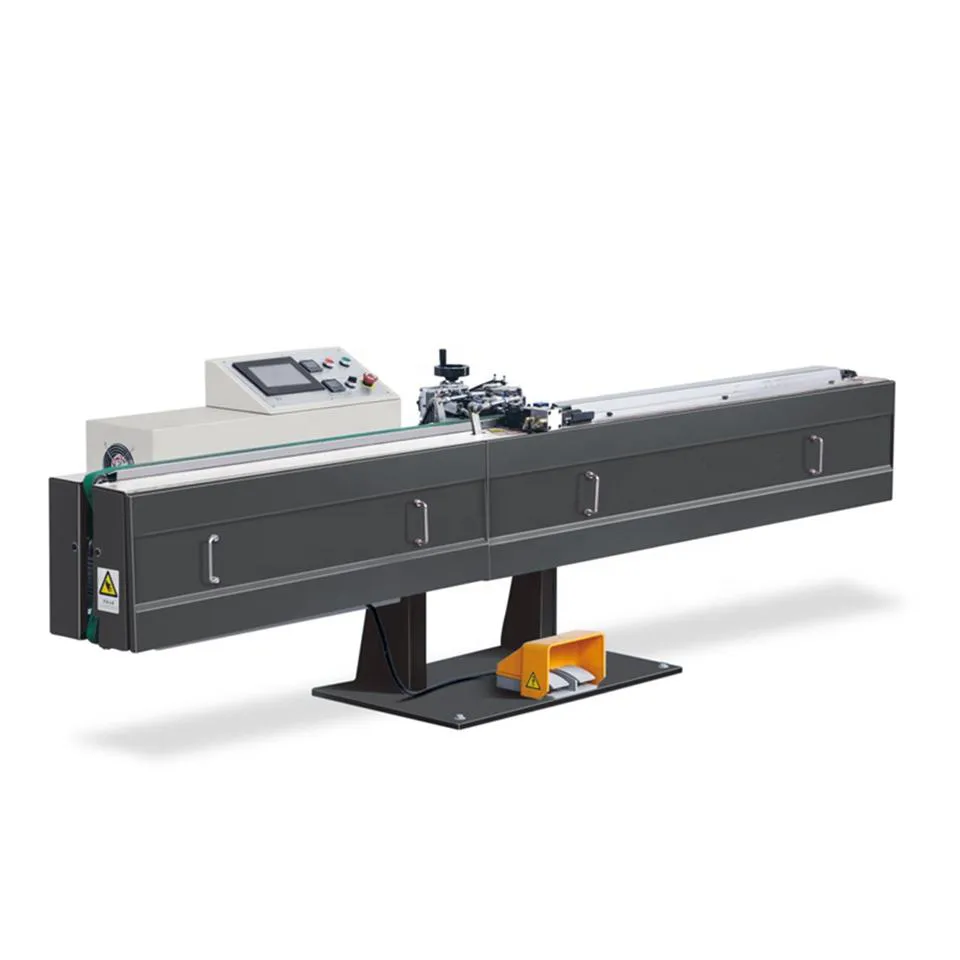

Butyl Sealant Extruder: This professional-grade machine is engineered for the primary sealing of insulating glass units, ensuring precision and high production efficiency.

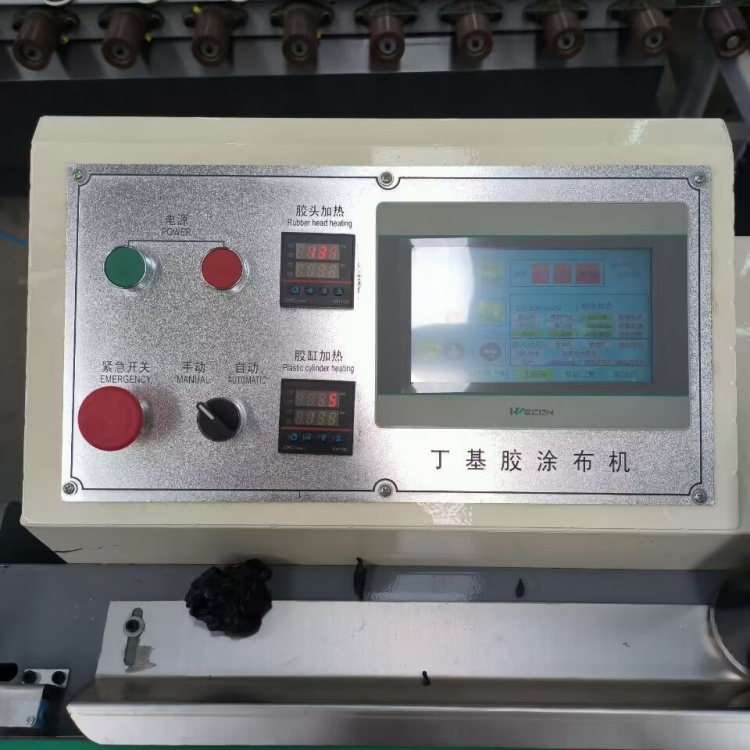

Advanced PLC control system with a high automation standard.
Frequency conversion control for convenient operation and high output.
Automatic control of glue extruding and stop cycles.
Heating and high-temperature inspection for both glue cylinder and head.
Steady and reliable performance for long-term production needs.
Automatic width adjustment of the glue head without manual pressure decrease settings.

💻 Technical Parameters

Parameter Item	Specification (JYJ-04)
Power supply	380V 50Hz
Power	3KW
Squeeze pressure	12~16MPa
Working Speed	18~28m/min
Pistons diameter	Ф195mm
Air pressure	0.6~0.8MPa
Adjustable range	4~30mm
Overall dimension	3000850500mm

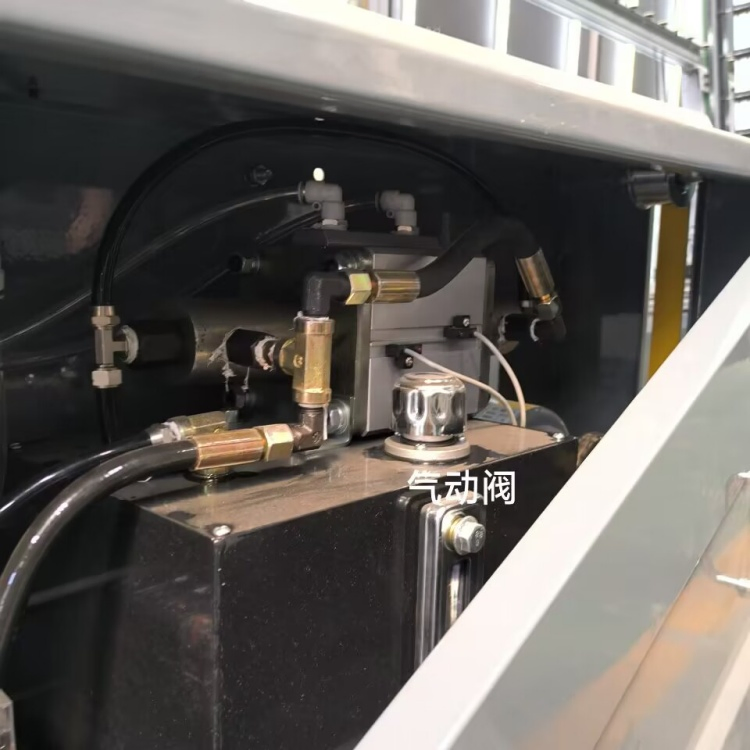

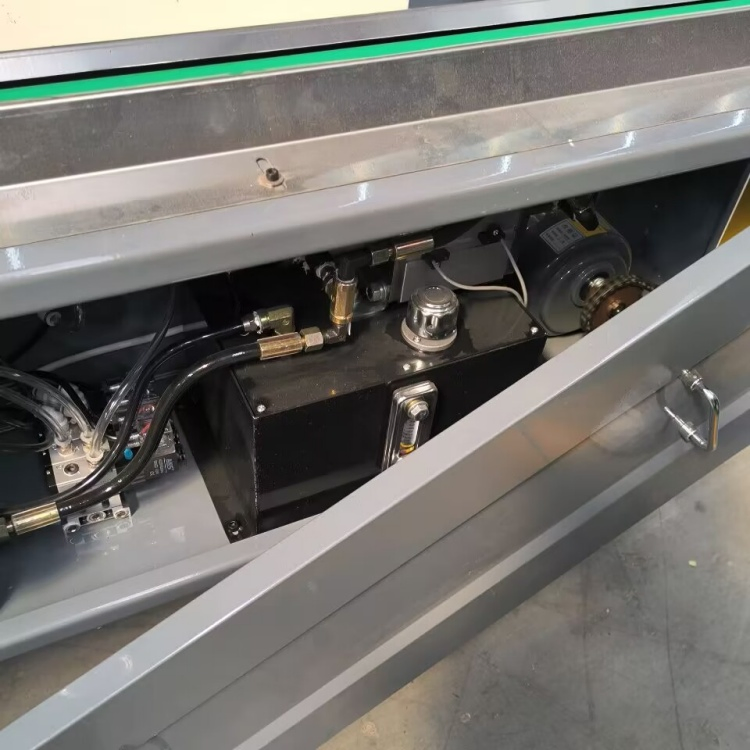

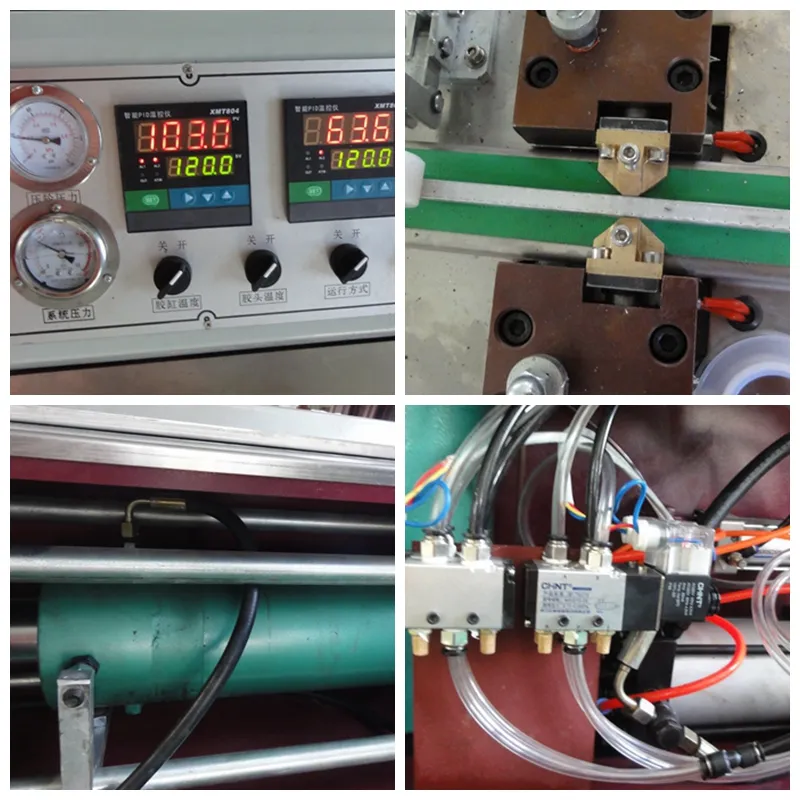

📷 Machine Detail Gallery

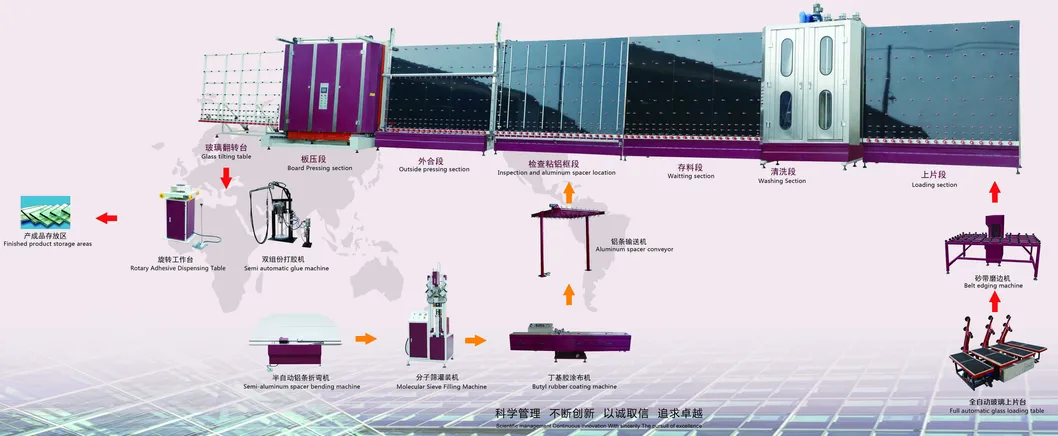

🏭 Insulating Glass Production Line

❓ Frequently Asked Questions

1. What is the typical lead time for shipment? Shipment is usually arranged within 15 days after receiving the deposit. For customized machine configurations, the lead time may extend to more than 25 days.

2. How are technical issues handled during the warranty period? If the machine encounters problems while under guarantee, we provide free replacement components. If necessary, we can also dispatch engineers to perform repairs.

3. Does the equipment come with operation training? Yes, professional engineers are available for on-site installation, adjustment, and comprehensive operation training for your staff.

4. What is the working speed of the JYJ-04 Butyl Extruder? The machine offers a high production efficiency with a working speed ranging from 18 to 28 meters per minute.

5. What glass spacer widths can the machine accommodate? The glue head features an adjustable range of 4mm to 30mm, which can be adjusted automatically based on your production requirements.

6. Is the glue extruding process automated? Yes, the machine features automatic control of glue extrudes and stop times, managed via a sophisticated PLC control system.
