Type
Insulating Glass Production Line
Production Capacity
500sets/Year

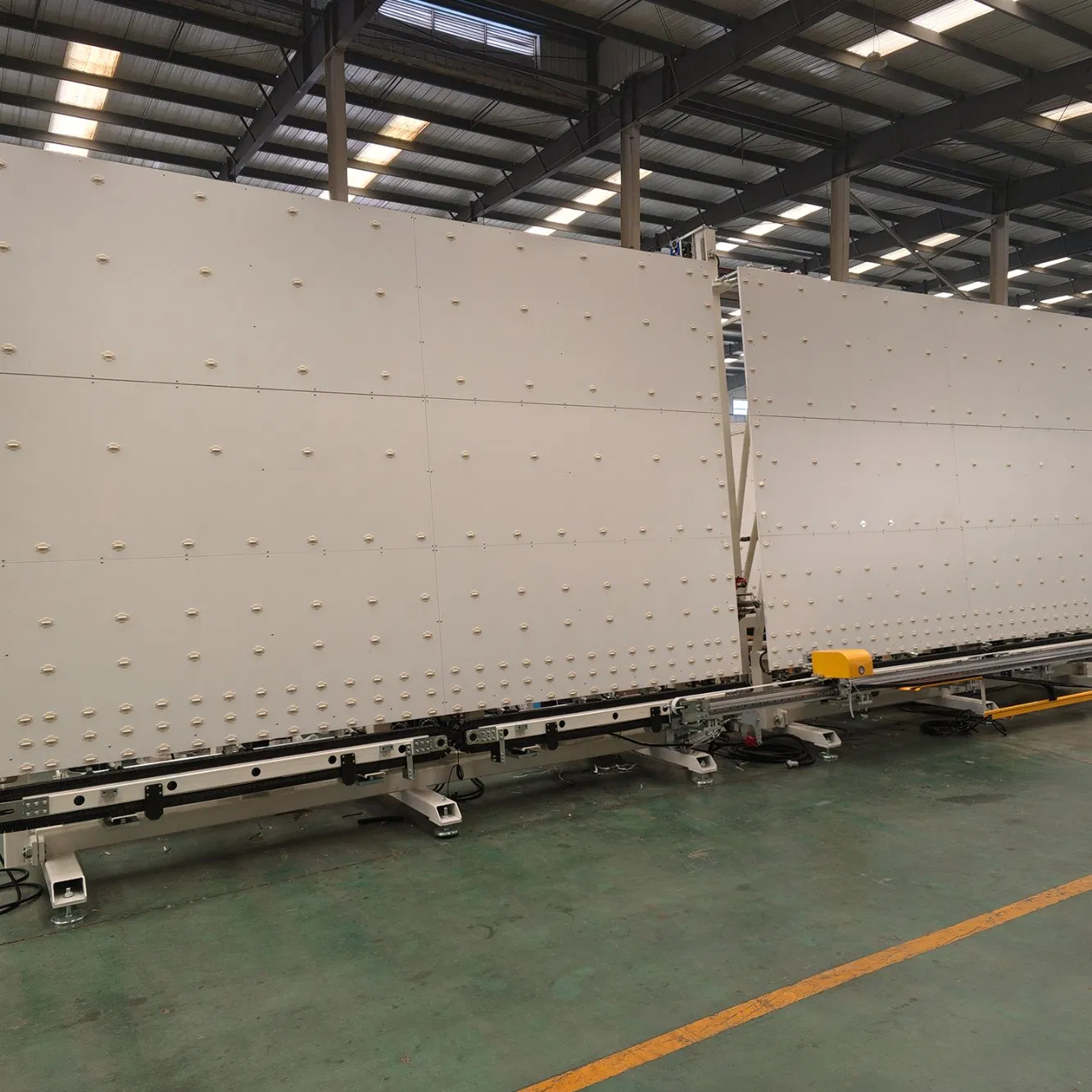

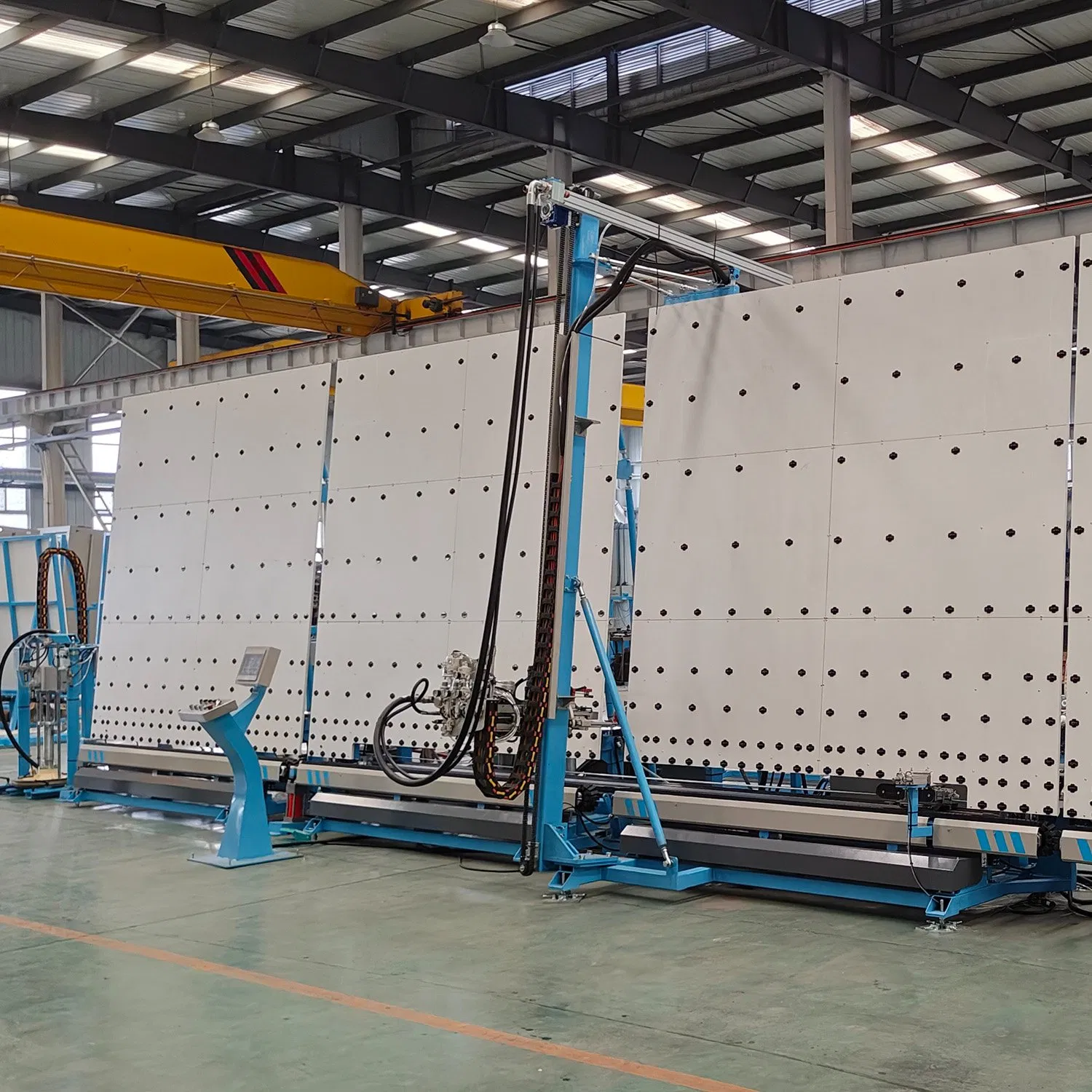

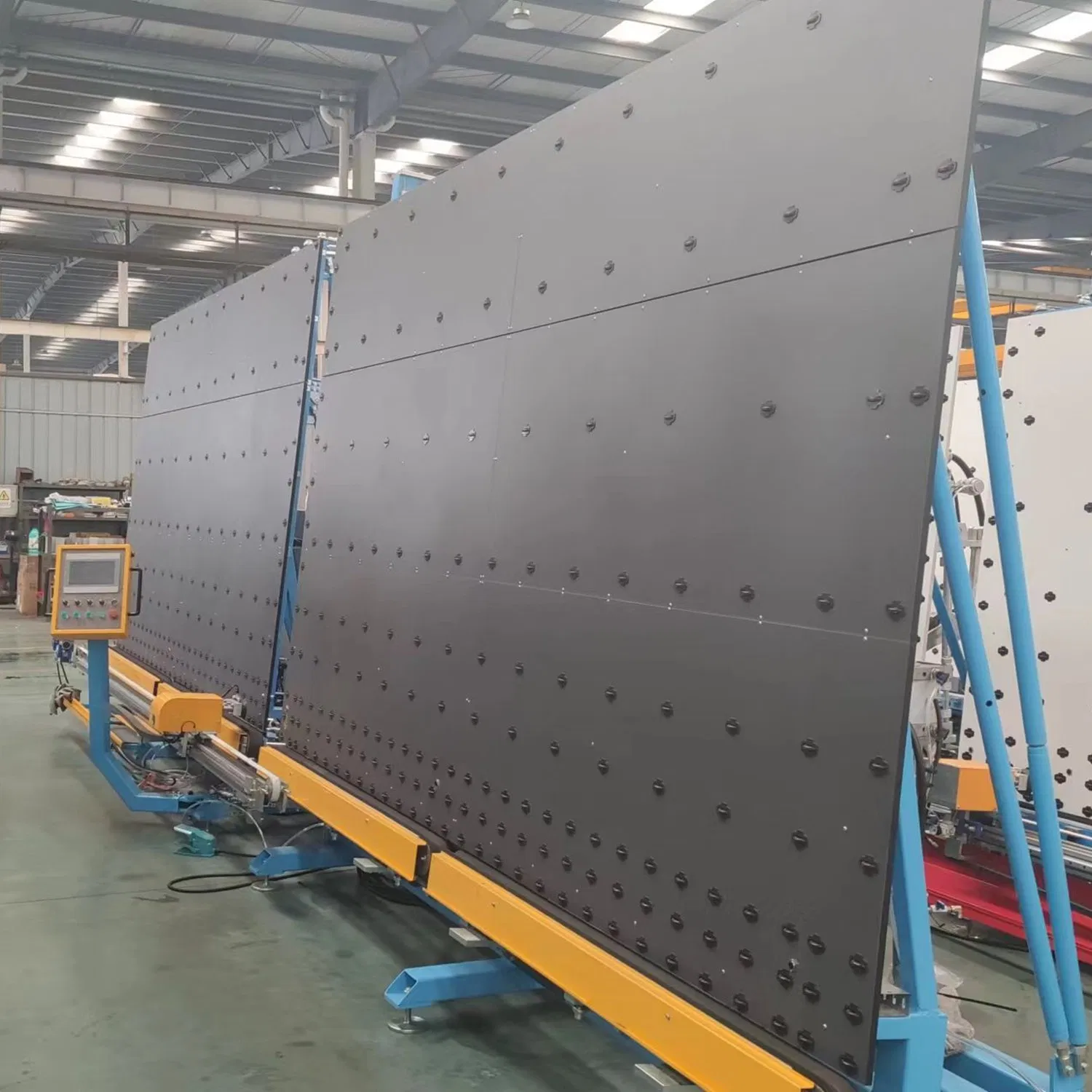

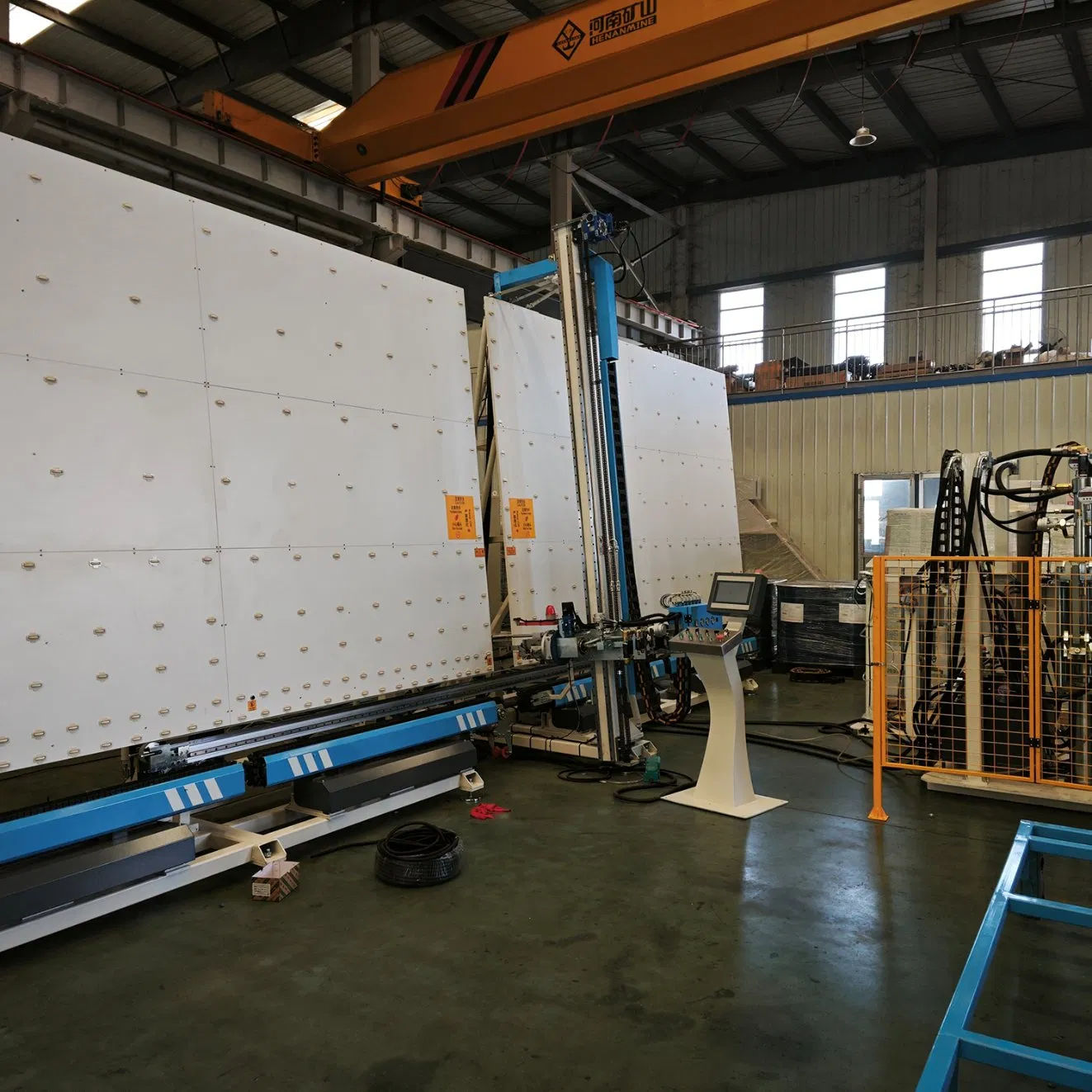

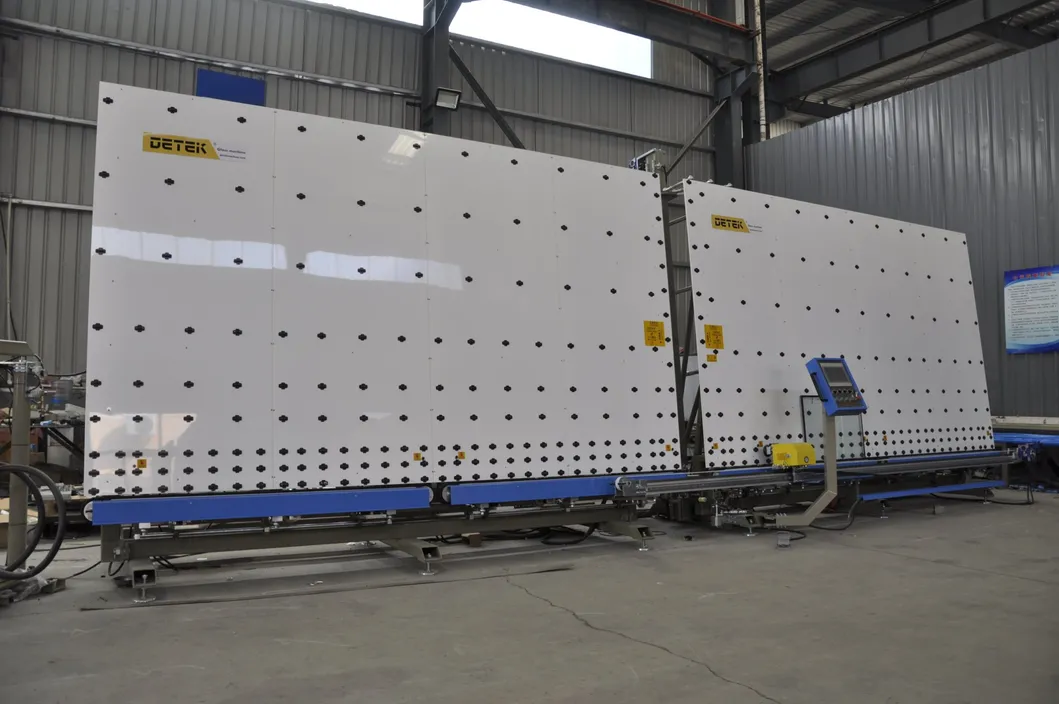

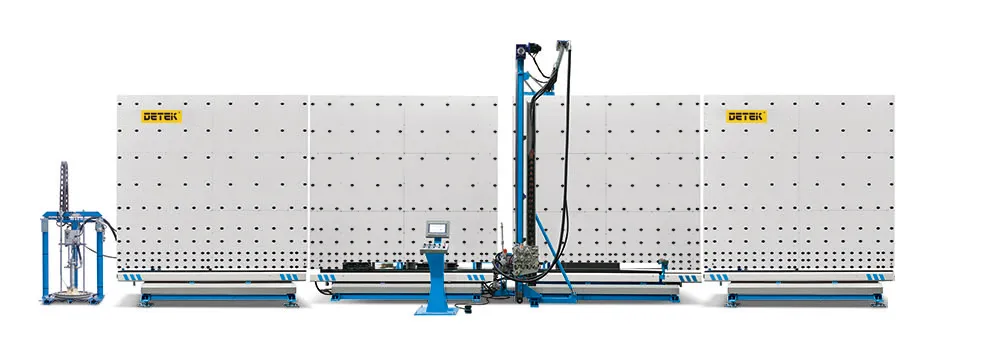

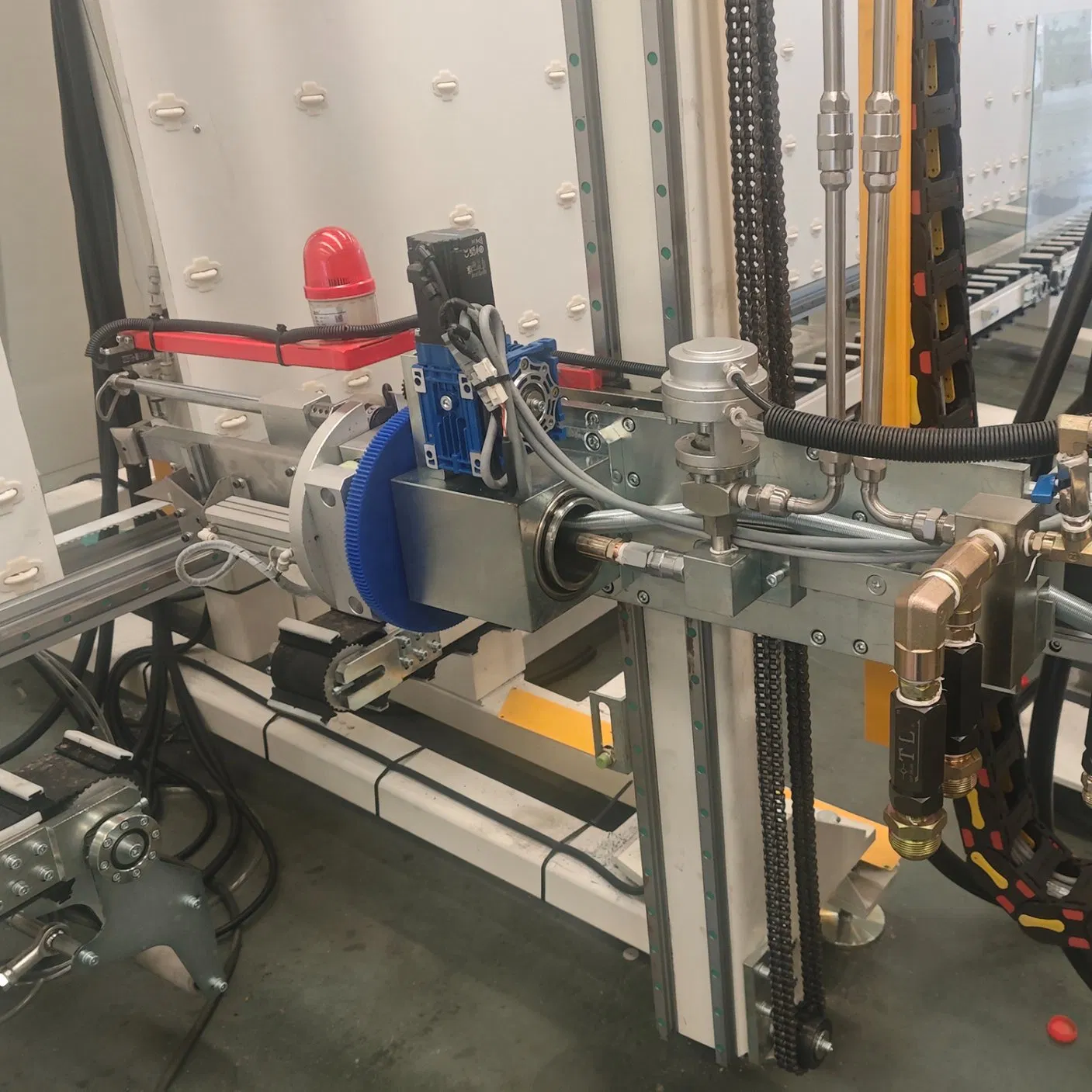

The secondary sealant sealing in Insulating Glass Units, ASR3360 is highly automatic silicone or polysulfide sealant sealing robot. Auto sealing robot guarantees the high quality of IGU for glass processing companies.

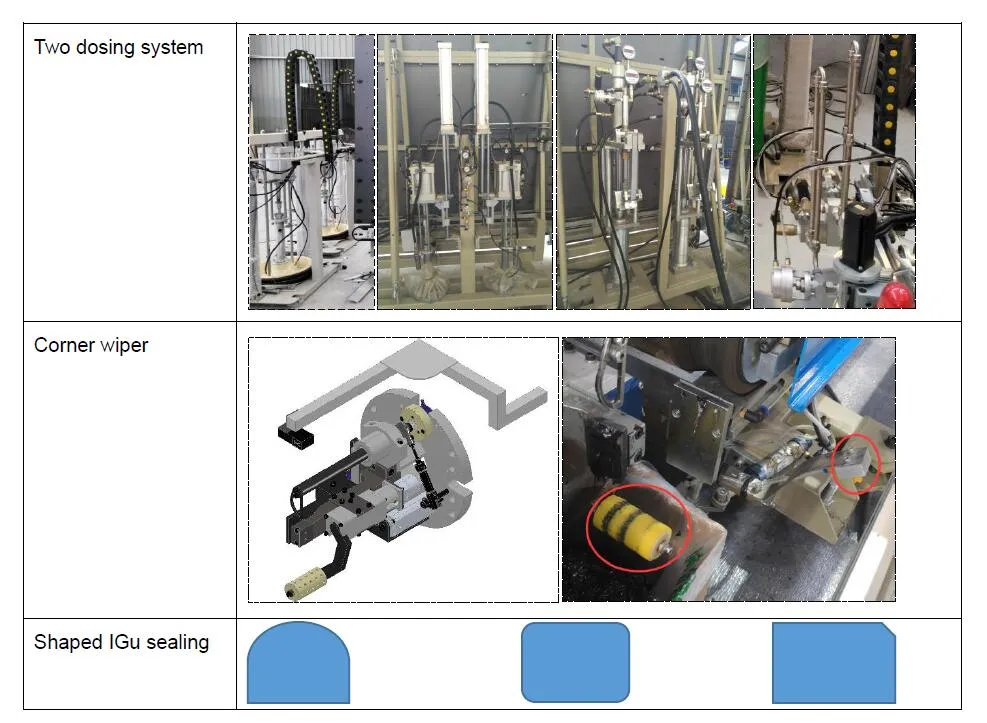

- Two separate dosing system, one key switch system (Option).
- Automatic corner wiper (option).
- Fully intelligent and friendly touching screen adopt Ethernet communication.
- High sealing performance and automation reduces labor cost.
- Best sealing quality without air bubbles and smooth surface.
- Equipped with anti-blocking device in the mixer for easy cleaning.
- Servo control system adopts Japan YASKAWA for stable performance.
- Special V type transmission belt to avoid sealant sticking.
- Suitable for triple IGU, stepped IGU and shaped IGU (Option).
- High-speed positioning function for accurate glass location.
| Parameter Item |
Specifications |
| Max. IGU size | 3300×6000mm |
| Min. IGU size | 300×300mm |
| IGU thickness | 12-56mm |
| Sealing depth | 3-18mm |
| Power supply | 3P 380V 50HZ 13KW |
| Air pressure | 0.6-0.8Mpa |
| Sealing speed | 5-40m/min |

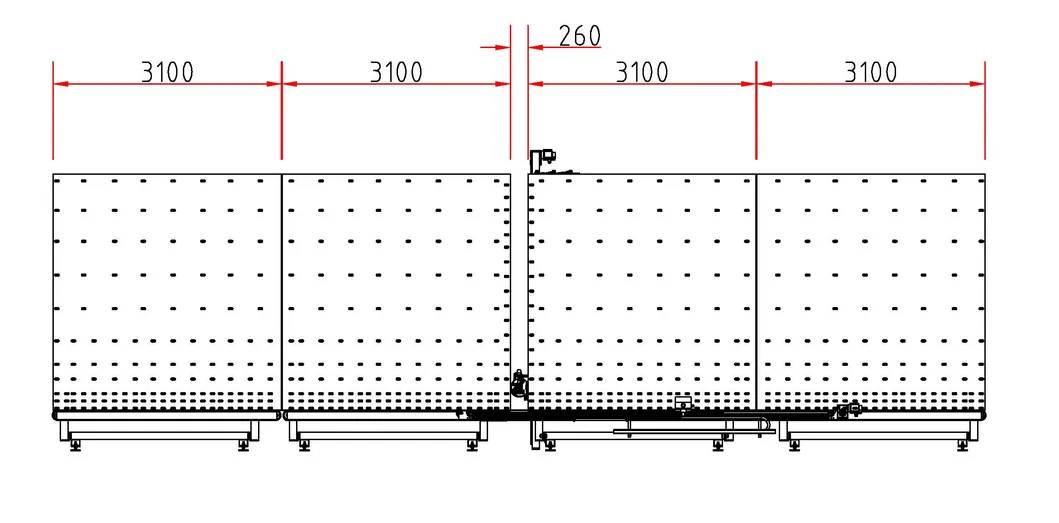

| Dimension | 13000×1600×4190mm |
| Component Name |
Brand |
Origin |
| PLC / Servo System | Yaskawa | Japan |
| Touching Screen | WEINVIEW | Taiwan |
| Inverter | TECO | Taiwan |
| Electrical Components | Schneider | France |
| Sensors | AUTONICS | S. Korea |
| Pneumatic Parts | Airtag / SMC | Taiwan / Japan |
Frequently Asked Questions
What is the standard lead time for the machinery?
The lead time is approximately 60 days for a whole production line and 30 days for a single machine.
How is the equipment packaged and shipped?
All machines are packed in seaworthy packaging designed for GP containers to ensure safe arrival and save on sea freight costs.
What kind of warranty and service is provided?
We offer a one-year guarantee (excluding wearing parts) and life-long service support. Engineering support is available upon request.
How does the installation process work?
Installation is included. Customers are responsible for the engineer's travel expenses, local transportation, and accommodation. Installation typically completes within 15 days.
What is the response time for after-sales support?
Spare parts can be dispatched within 72 hours. Our technical team is available to resolve questions via instruction or on-site service.
Does the machine support custom glass shapes?
Yes, there are options available to support shaped IGU, triple IGU, and stepped IGU processing.
