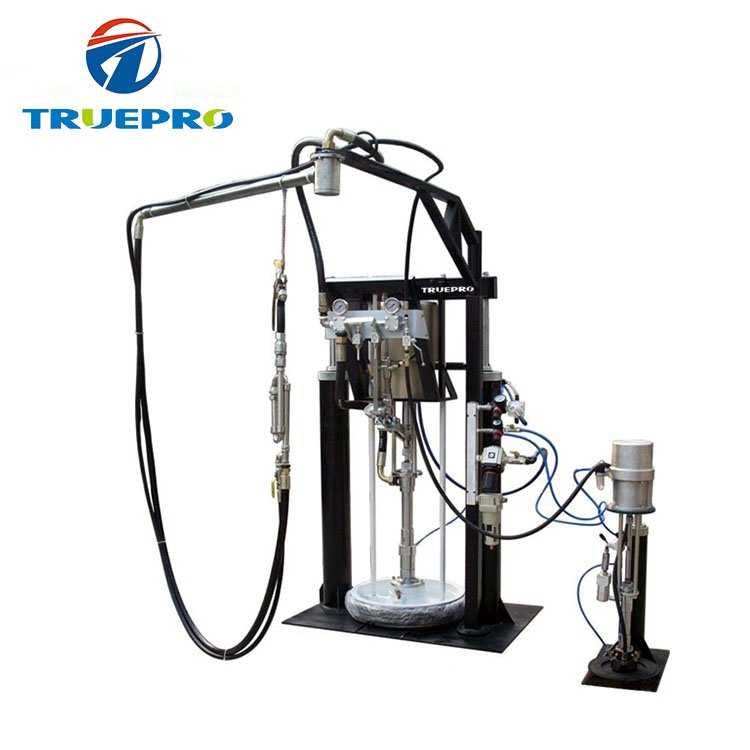

Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine
Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine
Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine
Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine
Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine
1 / 5
Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine
Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine
Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine
Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine
Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine

Insulated Glass Thermoplastic Extrusion with Dual-Head Sealing Machine

Customization: Available
After-sales Service: All Using Life
Warranty: 12 Month
Send Inquiry

Product Description

📋 Basic Information
Model NO.
JYT-03
Condition
New
Certification
CE
Automatic Grade
Semi-Automatic
Product Name
Double Glazing Glass Silicone Extruder Machine
Air Pressure
0.8MPa
Ratio Range
6:1 - 14:1
Working Pressure
30MPa
Machine Dimension
1100*950*198mm
Weight
650kg
Production Capacity
200 Sets/Year
Origin
China
⚙️ Product Description & Features

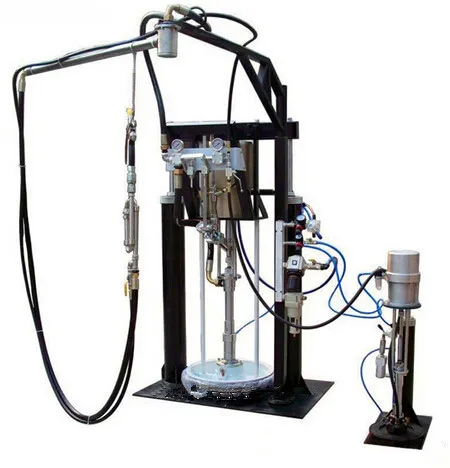

Double Glazing Glass Silicone Extruder Machine
  • The synchronizing linkage match structure can be adjusted conveniently.
  • The acicular one-way value ensures mixture not to reflow, avoiding rohrinnere solidification.
  • Totally-enclosed firming agent glue-way system, preventing firming agent from meeting air.
  • Sensitive high-pressure protective value makes the operation in safe condition.
  • Gas boost drive has the performance of stable pressure and evenly glue extruding.
  • Adopt international popular static reciprocating-type mixer to mix more evenly.
📊 Technical Parameters
Component Parameter Specification
Pump A Barrel diameter 570mm
Volume 200L
Pump B Barrel diameter 280/295mm
Volume 20L
Ratio range A glue: B glue 6:1 - 14:1
Output L/min 4-10
Pneumatic system Work pressure 0.6-1.0MPa
Quantity of gas 0.8m³/min
Outline dimension L×W×H 1100×950×1980mm
Total weight - 650kg
🔍 Machine Details

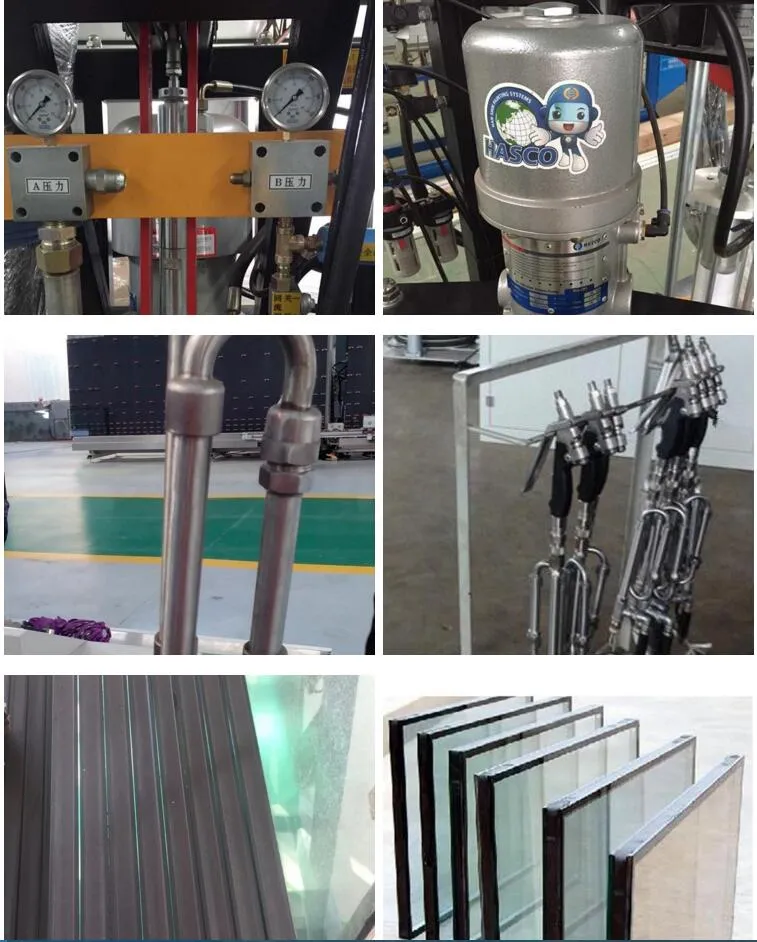

Machine Detail 1
Machine Detail 2
Machine Detail 3
Machine Detail 4
Machine Detail 5
Machine Detail 6
Machine Detail 7

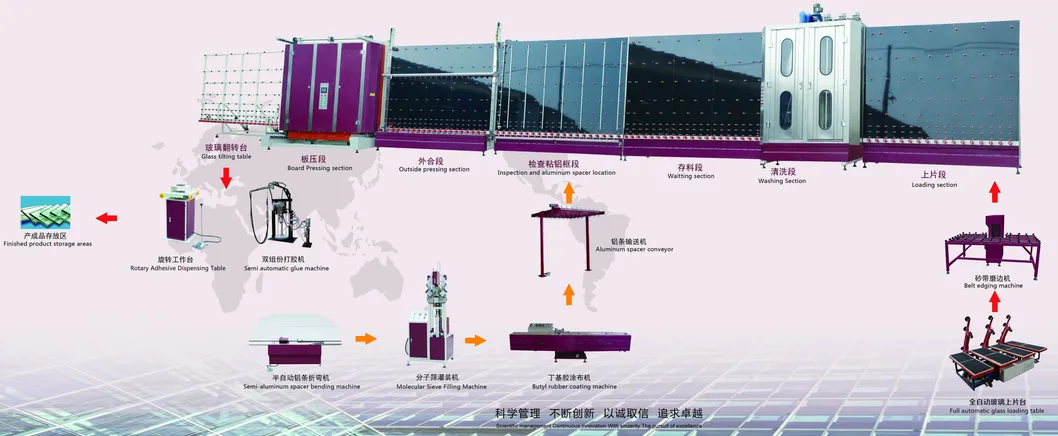

🏭 Insulating Glass Production Line
Production Line
❓ Frequently Asked Questions
When can shipment be arranged?
We usually arrange shipment within 15 days after receiving the deposit. For customized machines, the lead time is typically more than 25 days.
What support is provided if the machine encounters problems?
If the machine is within the guarantee period, we can send free components for replacement. Additionally, we can dispatch engineers to assist with repairs.
Do you provide equipment operation training?
Yes, we provide professional training. We can send engineers to your working site for installation, adjustment, and operation training. All our engineers hold valid passports for international travel.
What is the mixing ratio range for the silicone glue?
The machine supports an adjustable mixing ratio for A glue and B glue ranging from 6:1 to 14:1.
What are the safety features of the JYT-03 model?
The machine is equipped with a sensitive high-pressure protective valve and an acicular one-way valve to prevent mixture reflow and ensure safe operation.
What is the production capacity of this extruder?
The production capacity is approximately 200 sets per year, with an output rate of 4-10 L/min during operation.
