Zhixing Machine Zhixing Machine

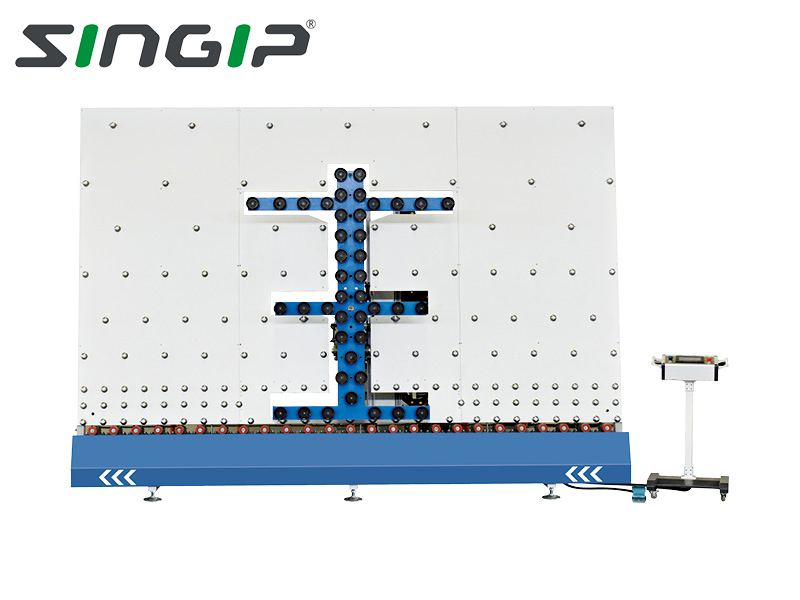

Insuate Glass Machine Insulatng Glass Automatic Sealing Robot Insulated Glass Equipment

Customization: Available
Certification: CE
Control System: PLC Control

Product Description

Basic Information

Model NO.customizedCustomizedCustomized
Glass Thickness60mmVoltage3p/380V/50Hz
Total Power46kwMax. Glass Size2500*4000mm
Min. Glass Size300*450mmAir Consumption1.5m³/Min
Max. Working Speed50m/MinOriginChina
Production Capacity200piece/YearHS Code84752990

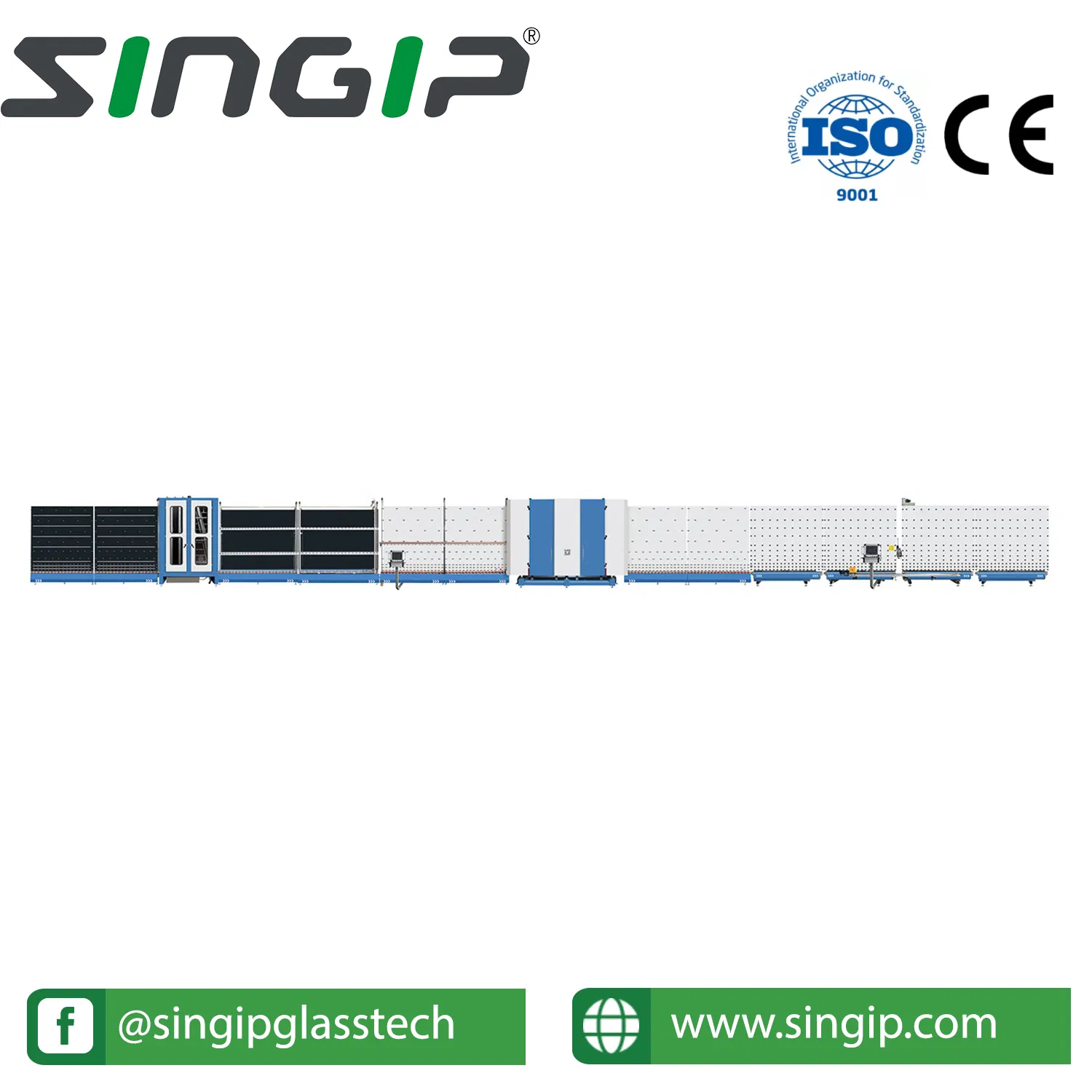

Insulating Glass Automatic Sealing Robot

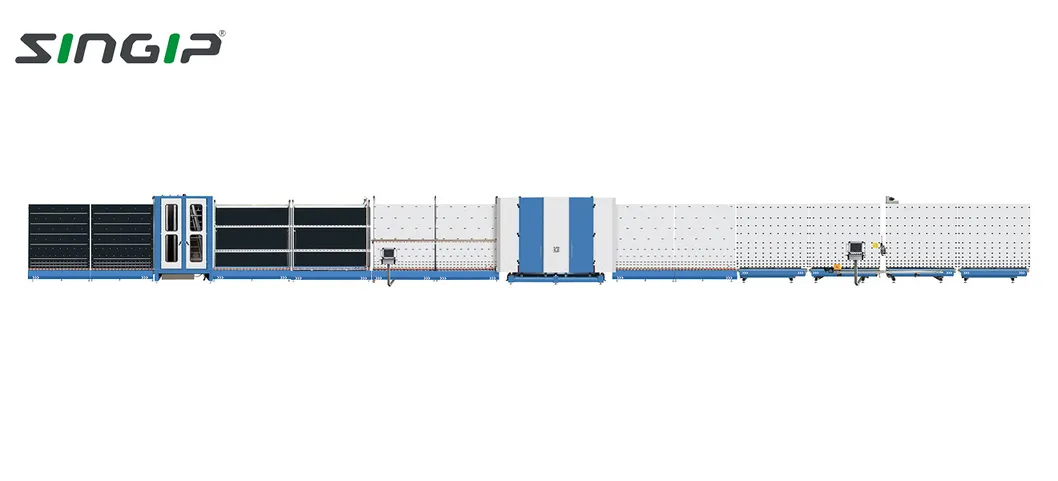

Insulating Glass Machine

Technical Parameters

Voltage3P/380V/50Hz
Total Power46KW
Max. Glass Size2500*4000mm
Max. IG Thickness60mm
Air Consumption1.5m³/min

Main Features

Wash and rinse areas use stainless steel and corrosion-resistant materials with CNC automation.
Capable of producing double and triple hollow glass, including long glass secondary plate pressure.
Equipped with circulating hot air drying section to improve speed and reduce noise.
Advanced intelligent cleaning system compatible with LOW-E and coated glass.

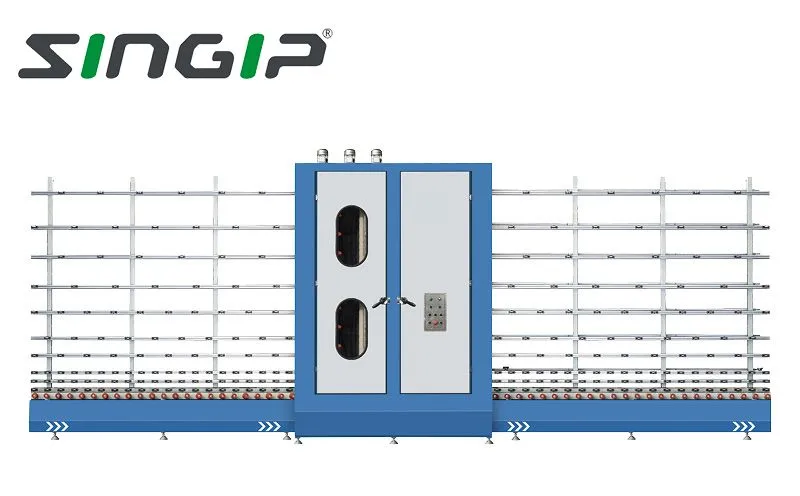

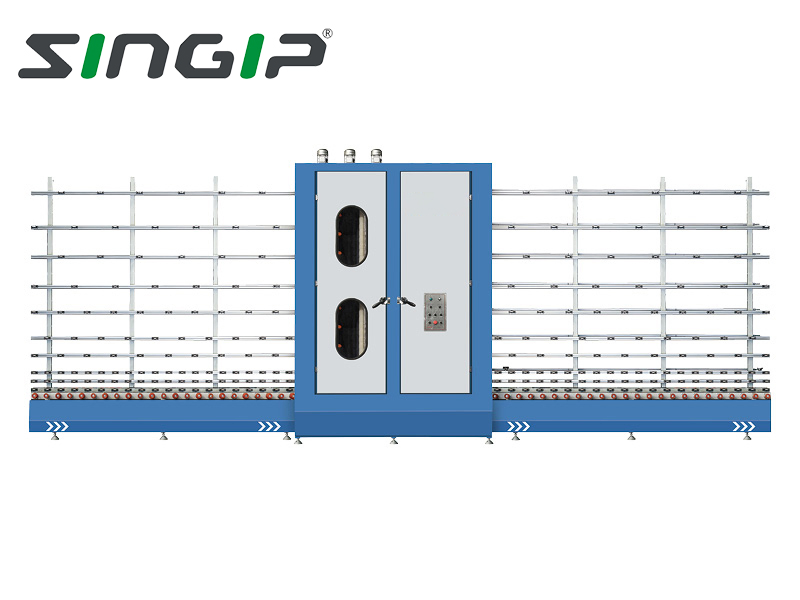

High-Efficiency Glass Washing Machine

Glass Washing Machine

Main Parameters

Washing Speed0-13m/min
Min. Glass Size300*450mm
Max. Glass Size2000*2500mm
Total Power17KW

Main Features

Durable stainless steel washing area for long-term industrial use.
Three independent brush operations with adjustable spacing for 3-12mm glass.
Zero wait time continuous cleaning with efficient hot air drying.
All-aluminum film inlet/outlet structure for superior waterproofing.

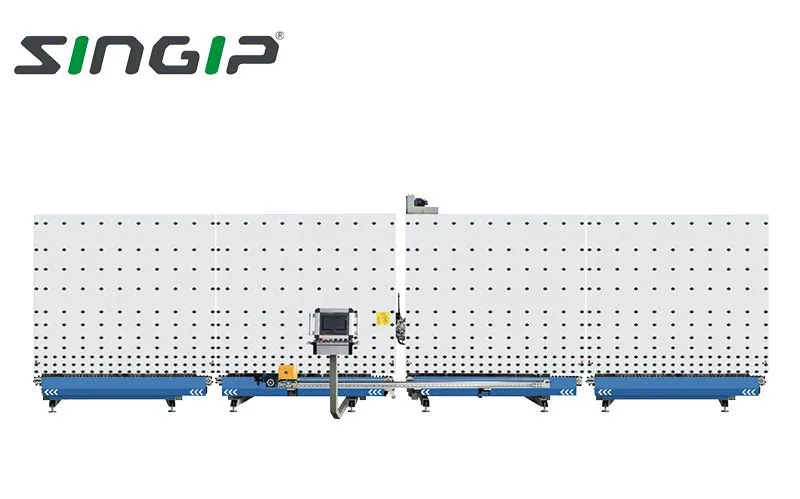

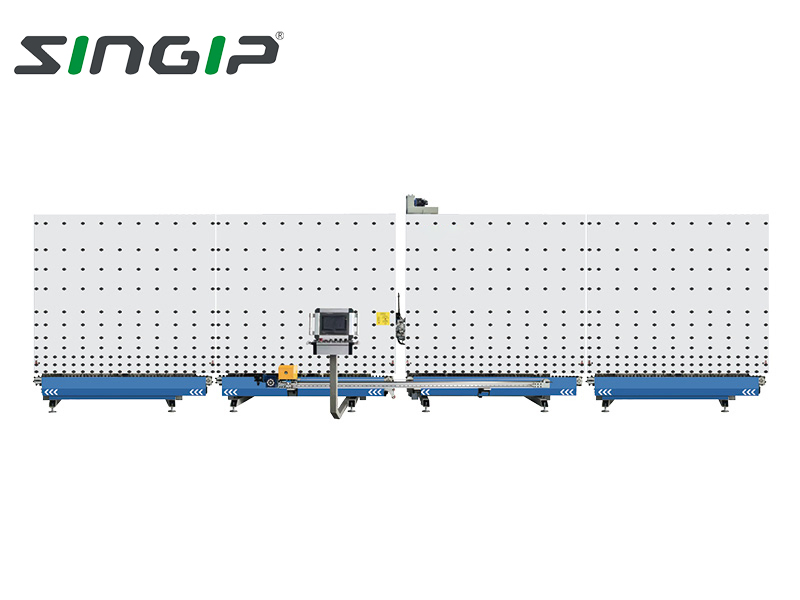

Automatic Sealing Robot Performance

Sealing Robot

Technical Data

Sealing Depth3-15mmSpacer Width6-27mm
Sealing Speed5-40m/minTransport Speed0-50m/min
Hydraulic Pressure<100kg/cm²Air Pressure0.6-0.8MPa

Main Features

Continuous automatic sealing for various rectangular insulating glass sizes.
Unique four-section design improves efficiency by 20% compared to standard models.
Simple button switch design for common functions, ideal for quick employee training.

Automatic Vacuum Glass Loading System

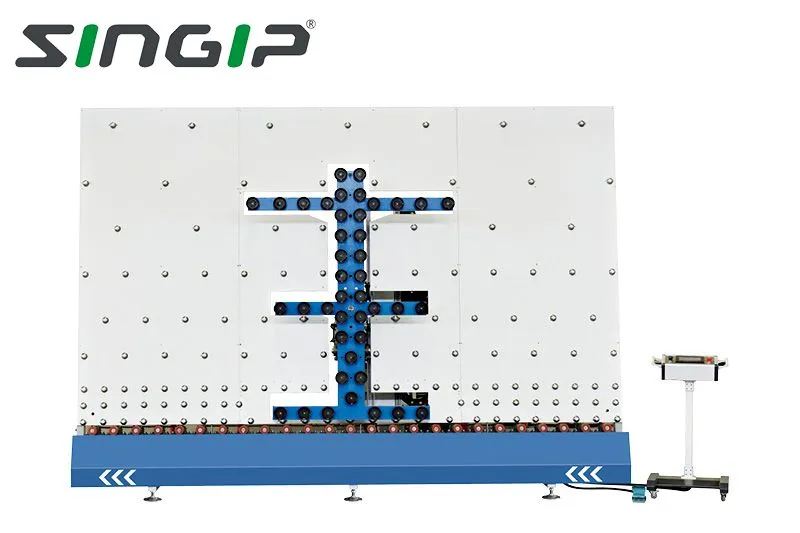

Vacuum Glass Loading

Technical Parameters

Max. Power6KW
Maximum Stroke1360mm
Gas Source0.5-0.8MPa
Max. Glass Size2500*4000mm

Main Features

Complete system including vacuum, walking, feeding, and lifting units.
Seamless connection with vertical edge grinding and hollow production lines.
Automatic acceleration transition stage reduces manual handling risks.
Improves production efficiency while ensuring workplace safety.

Company Profile & Workshop

A professional glass technology enterprise providing highest quality cold-processing machinery and technical support since 2012. We specialize in affordable solutions for edging, beveling, drilling, washing, and sandblasting.

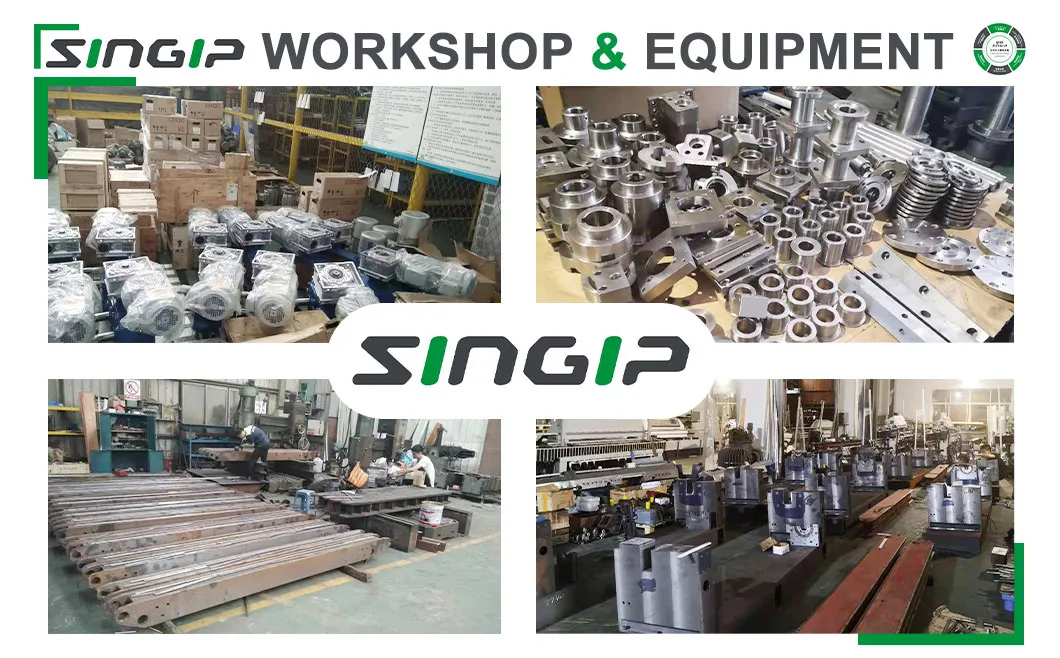

Workshop
Machinery
Production

Certifications

Our machinery carries CE marks, ensuring electromagnetic compatibility and strict adherence to international safety and quality standards.

Certifications

Global Exhibition & Customers

Exhibition
Customers

Packaging & Shipping

Packaging

Frequently Asked Questions

Q: Do you provide on-site installation and training? A: Yes, we offer global installation services and comprehensive operator training programs.
Q: How are your glass machines packaged for shipping? A: Machines are packed in containers suitable for long-distance ocean transport using shock-absorbing materials like pearl cotton and protective film. Wooden box packaging is available as an upgrade.
Q: How do you ensure the long-term stability of the machinery? A: We conduct rigorous endurance tests before factory departure and use high-quality, durable components throughout the manufacturing process.
Q: Can I place a custom order for specific machinery needs? A: Yes, most of our machinery can be custom configured to meet your specific production requirements.
Q: Where can I obtain spare parts? A: We maintain a full inventory of spare parts for all our machinery models to ensure minimal downtime for our customers.
Q: What is the standard warranty period? A: We provide a 12-month warranty period (excluding standard wear and tear parts).
