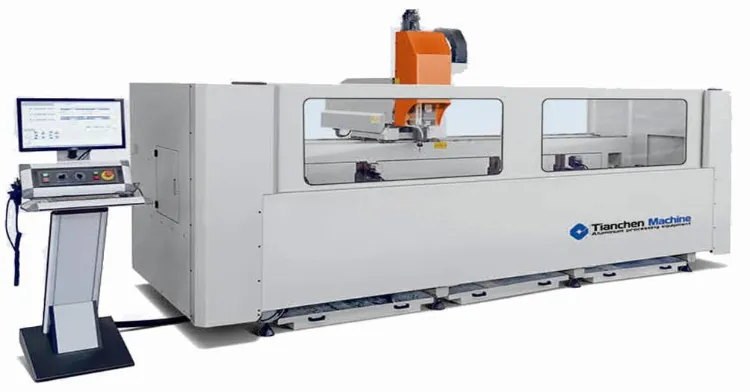

Aluminum Profile CNC Machining Center
GSXZ3+1-CNC-3200
Technical Specification
Model NO.
GSXZ3+1-CNC-3200
Voltage
Customized Voltage
Spindle Max Rev
24000r/Min
Processing Range
160*160*3200mm
Function
Milling & Drilling
Machine Features
- Applicable for CNC milling and drilling processing for multiple parts of aluminum window and door curtain wall, industrial aluminum profile, copper, and PVC profile.
- Adopt high precision guide rail pair, ball screw, gear rack and imported high quality servo system for stable positioning and processing accuracy.

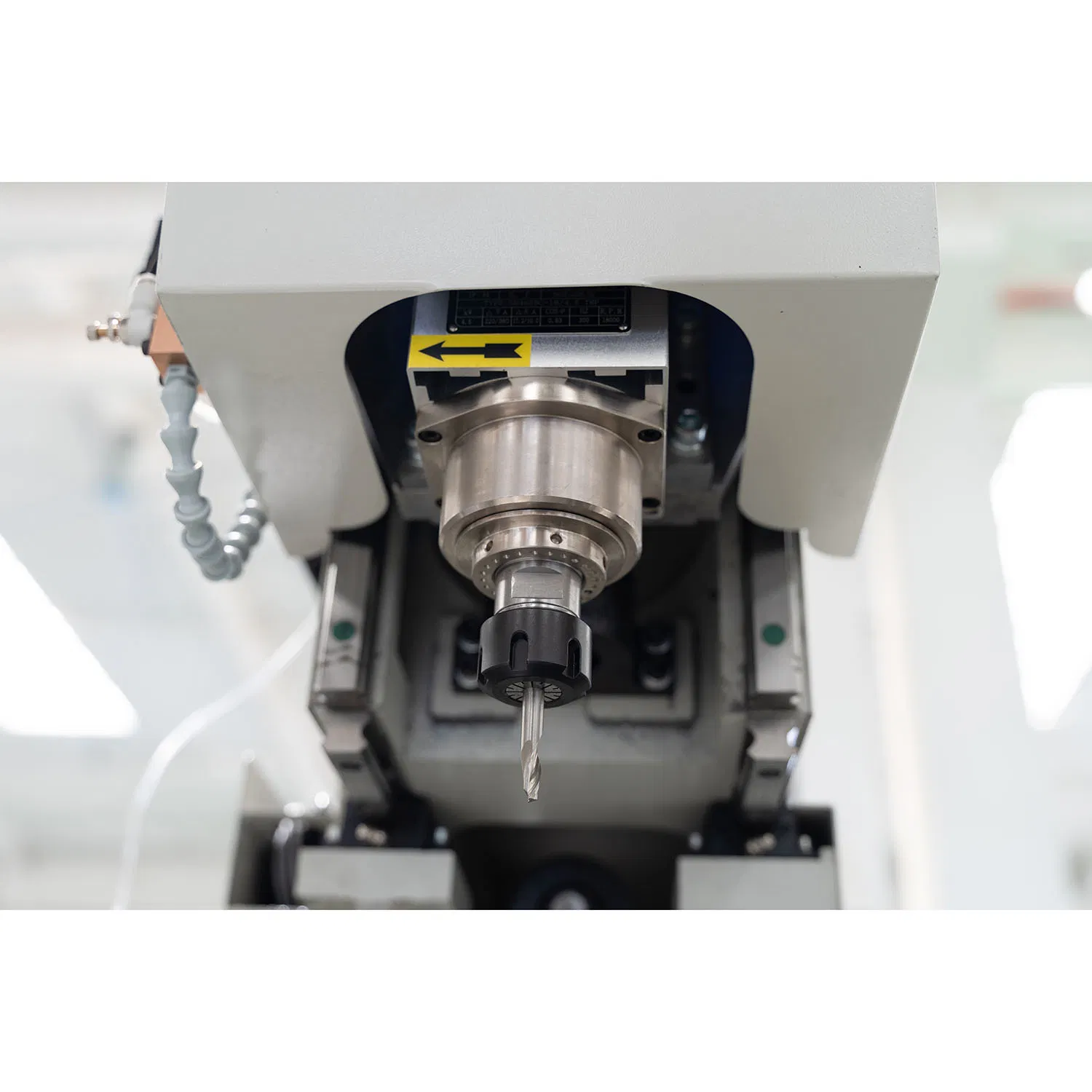

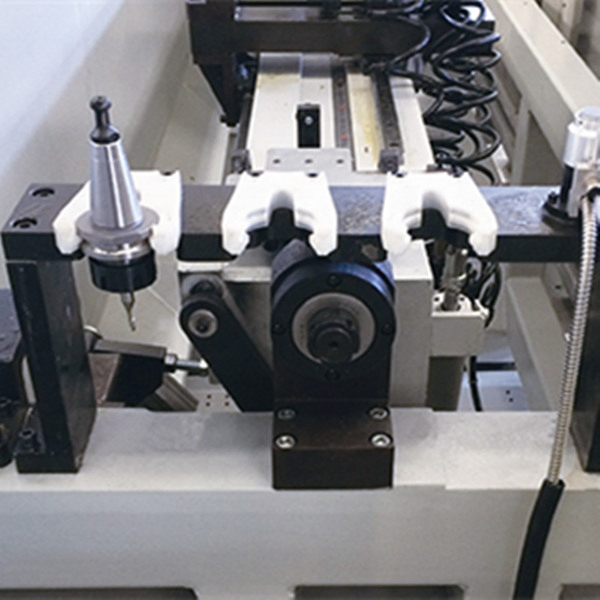

- Equipped with high speed electrical auto switching tool spindle for reliable performance.

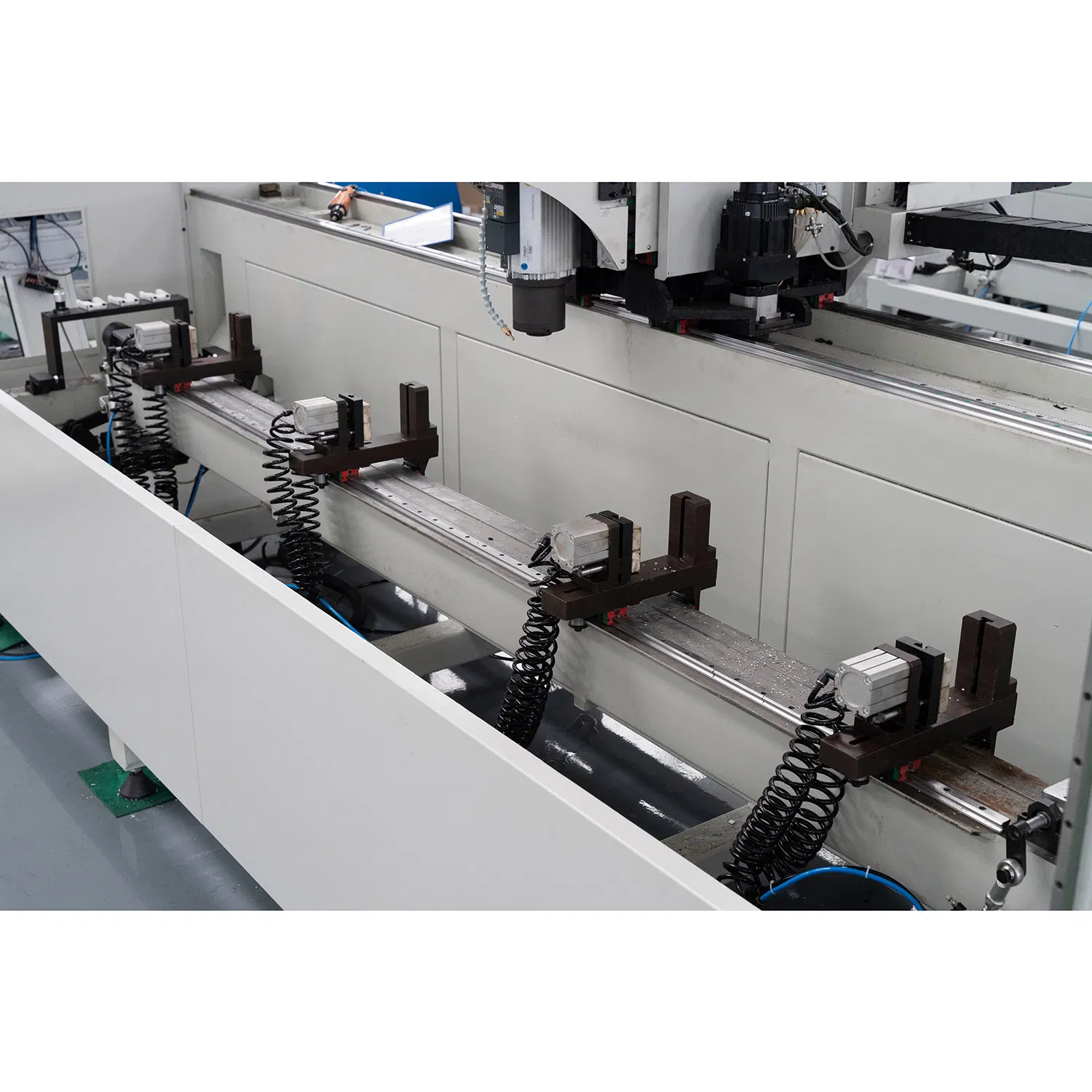

- Features positioning devices at both ends of the worktable to realize dual-area processing for short profiles, improving efficiency.
- Adopting semi-closed protective shield and bottom receiver for better safety and effective chippings collection.
- Intelligent CNC system with a brief, intuitive interface for convenient operation.
- The rotary work table rotates between -90°, 0°, and 90°, allowing milling and drilling on three surfaces with one-time clamping.
Technical Parameters
| Item |
Specification |
| X-axis range | 3500mm |
| Y-axis range | 450mm |
| Z-axis range | 350mm |
| X-axis moving speed | 0~60m/min |
| Y-axis moving speed | 0~30m/min |
| Z-axis moving speed | 0~30m/min |
| Spindle power | 7.5kw/9kw |
| Spindle max rev | 24000r/min |
| Spindle taper | ISO30 |
| Max processing range | 160*160*3200mm |
| Tool magazine capacity | 3 pcs |
| Area | 4500*2300mm |
| Weight | 2500kg |
Frequently Asked Questions
What materials can this CNC machining center process?
It is designed for high-precision milling and drilling of aluminum profiles, copper, and PVC profiles, specifically for windows, doors, and curtain walls.
Does the worktable rotate for multi-surface processing?
Yes, the rotary worktable can change between -90°, 0°, and 90°, allowing for processing on three different surfaces with a single clamping.
What is the maximum processing speed for the X-axis?
The X-axis moving speed ranges from 0 to 60 meters per minute, ensuring efficient production cycles.
How many tools can be stored in the tool magazine?
The machine is equipped with a tool magazine that has a capacity of 3 pieces with automatic switching capabilities.
Can it process two separate areas simultaneously?
Yes, there are positioning devices at both ends of the worktable, enabling dual-area processing for shorter profiles to maximize productivity.
What is the spindle power and rotation speed?
The spindle power is 7.5kw/9kw with a maximum revolution speed of up to 24,000 r/min.
