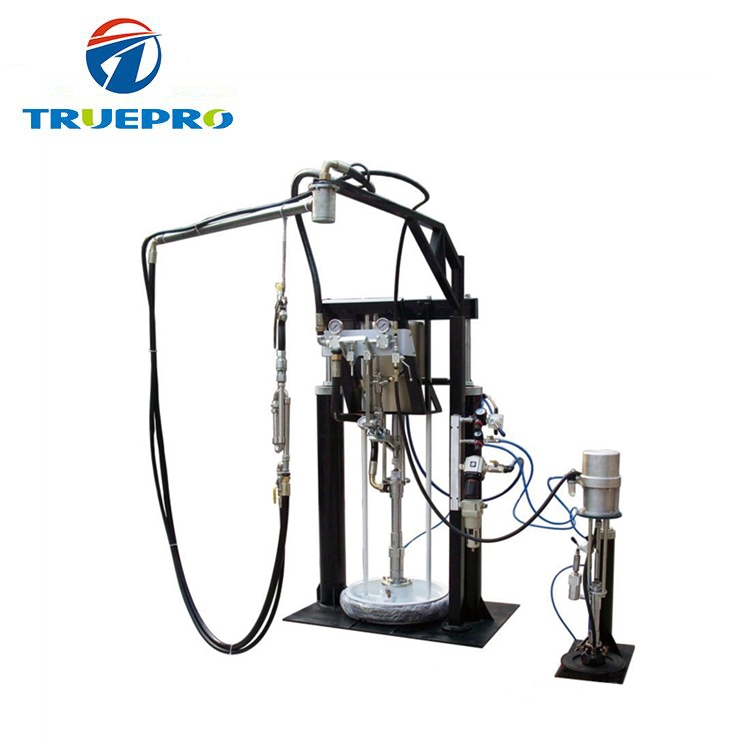

High-Performance Insulated Glass Automated Sealnat Two Component Sealing Machine

1 / 5

High-Performance Insulated Glass Automated Sealnat Two Component Sealing Machine

Customization:	Available
After-sales Service:	All Using Life
Warranty:	12 Month

Send Inquiry

Product Description

📋

Basic Information

Model NO.	JYT-03	Condition	New
Product Name	Double Glazing Glass Silicone Extruder Machine
Certification	CE	Automatic Grade	Semi-Automatic
Air Pressure	0.8MPa	Working Pressure	30MPa
Pump A Volume	200L	Pump B Volume	20L
Ratio Range	6:1 - 14:1	Weight	650kg
Dimension	11009501980mm	Production Capacity	200 Sets/Year

⚙️

Machine Features

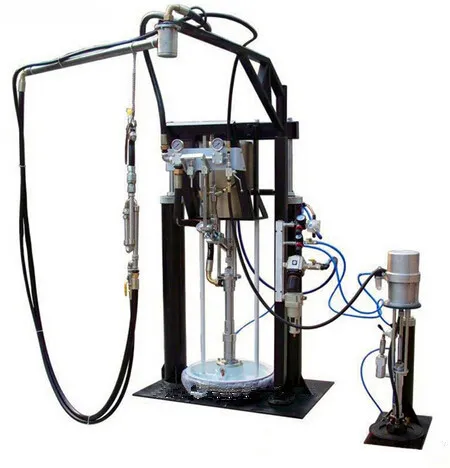

Double Glazing Glass Silicone Extruder Machine

The synchronizing linkage match structure can be adjusted conveniently.

The acicular one-way value ensures mixture not to reflow, avoiding rohrinnere solidification.

Totally-enclosed firming agent glue-way system, preventing firming agent from meeting air.

Sensitive high-pressure protective value makes the operation in safe condition.

Gas boost drive has the performance of stable pressure and evenly glue extruding.

Adopt international popular static reciprocating-type mixer to mix more evenly.

📊

Technical Parameters

Component	Parameter Item	Specification
Pump A	Barrel Diameter	570mm
Pump A	Volume	200L
Pump B	Barrel Diameter	280/295mm
Pump B	Volume	20L
Ratio Range	A glue : B glue	6:1 - 14:1
Output	Flow Rate	4-10 L/min
Pneumatic System	Work Pressure	0.6-1.0MPa
Pneumatic System	Quantity of Gas	0.8m³/min

📸

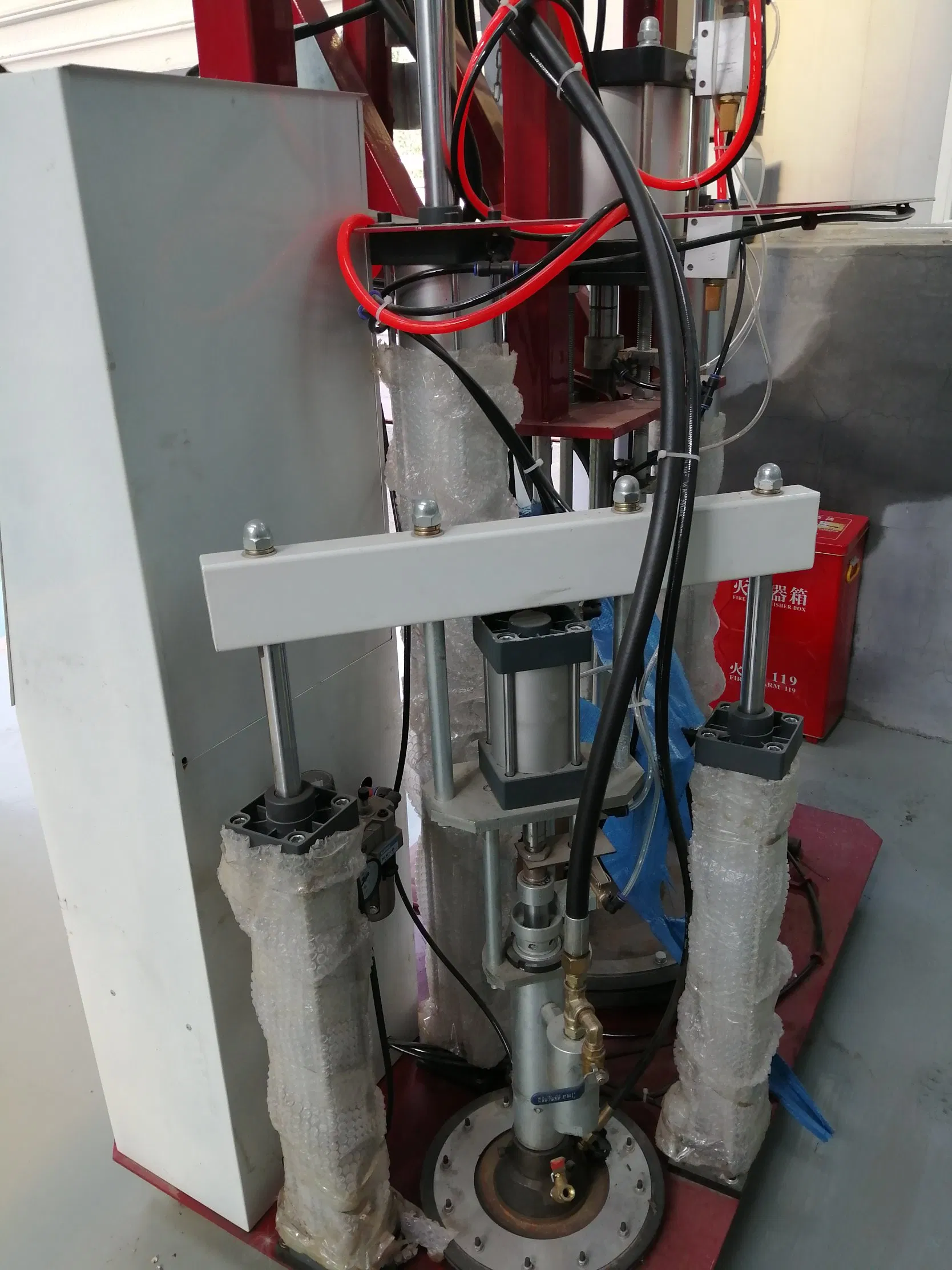

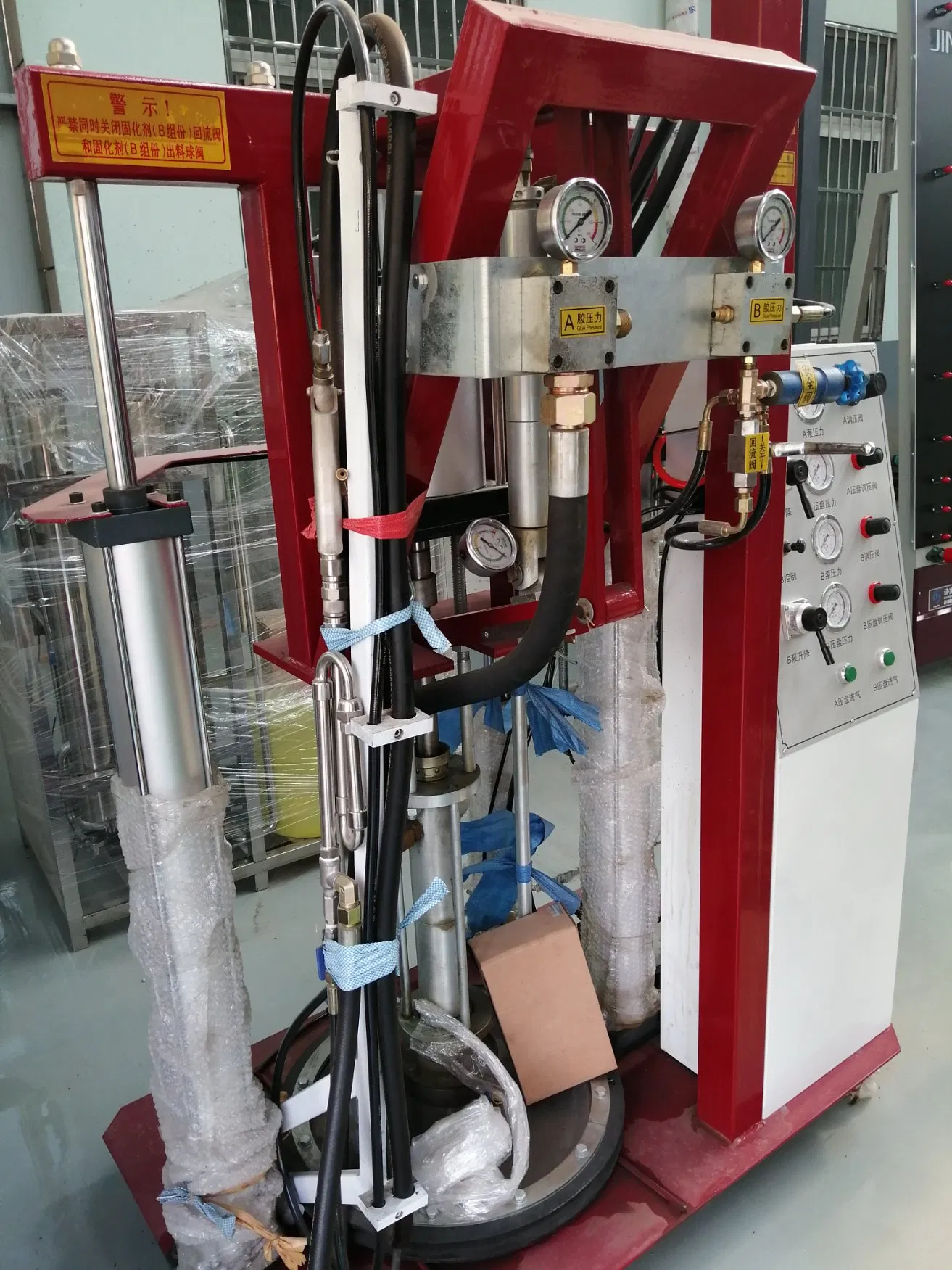

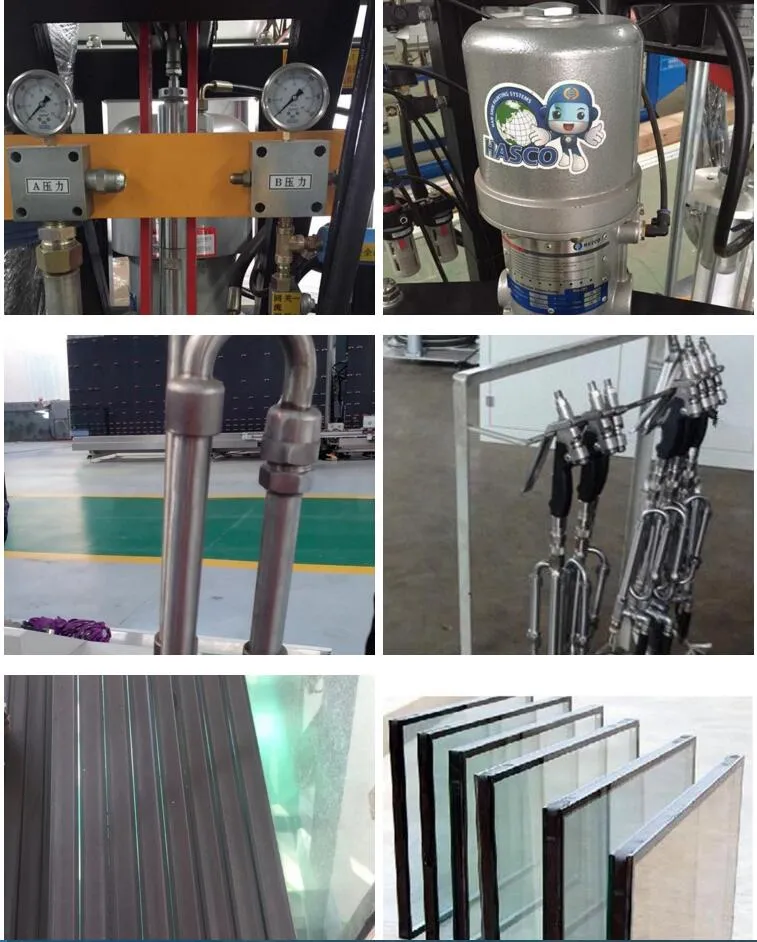

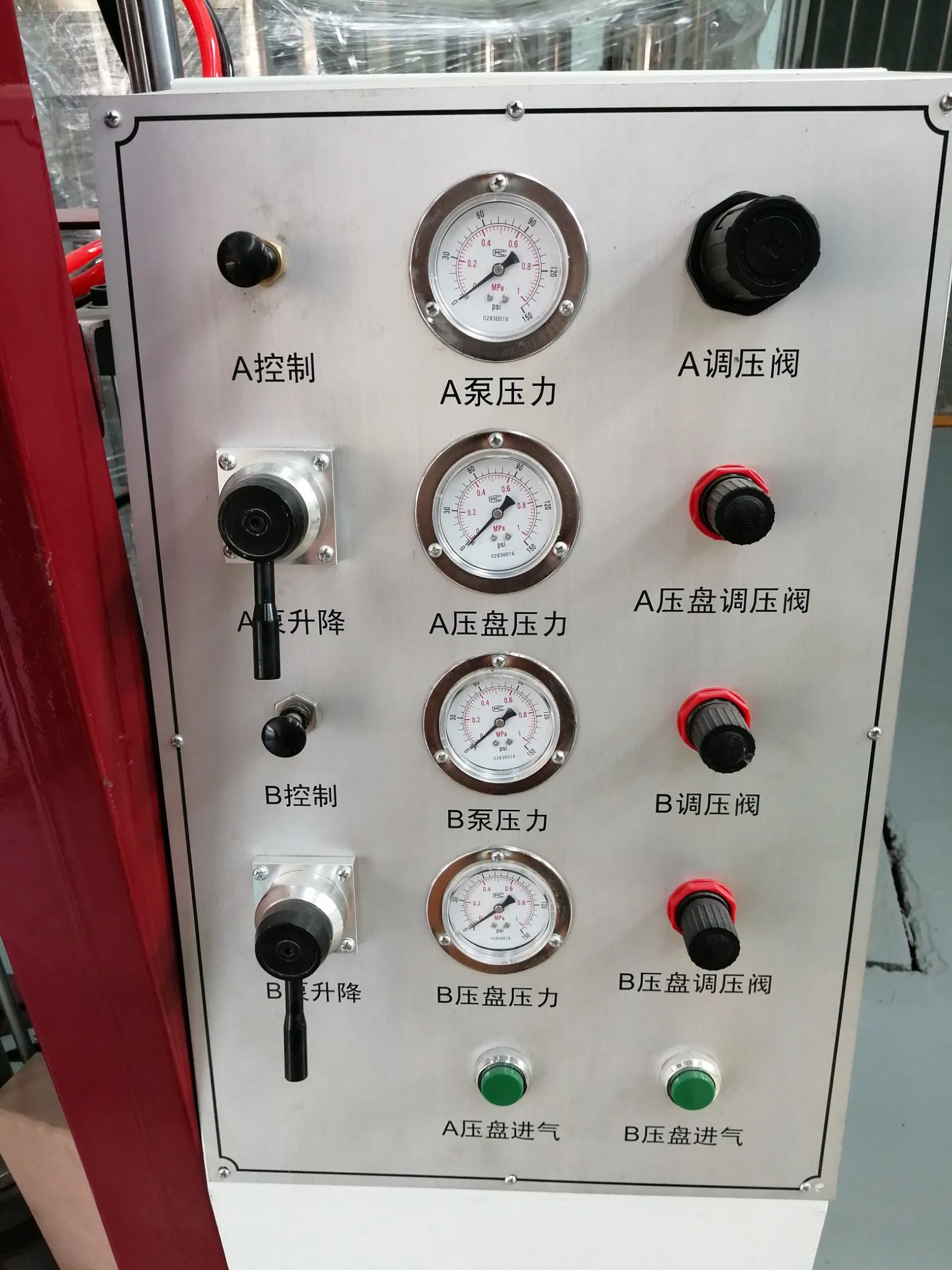

Machine Detail Gallery

🏭

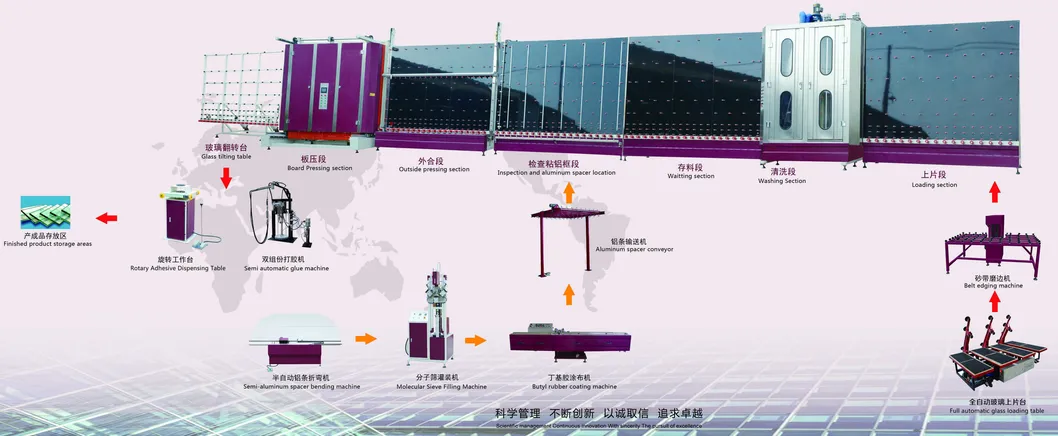

Insulating Glass Production Line

Frequently Asked Questions

1. What is the typical lead time for shipment?

Standard machines are usually shipped within 15 days after receiving the deposit. For customized equipment, the timeline is approximately 25 days or more.

2. How are machine malfunctions handled?

If the machine is within the guarantee period, free replacement components will be provided. Additionally, engineers can be dispatched to assist with repairs.

3. Is professional operator training provided?

Yes, professional engineers can be sent to your working site for equipment installation, adjustment, and comprehensive operation training.

4. What is the adjustable mixing ratio for this extruder?

The ratio range for A glue and B glue can be adjusted between 6:1 and 14:1 to suit different sealant requirements.

5. Does the machine comply with international safety standards?

Yes, this machine is CE certified and features a sensitive high-pressure protective valve to ensure safe operation.

6. What type of maintenance does the glue-way system require?

The system is totally enclosed to prevent the firming agent from contacting air, which minimizes solidification issues and reduces daily maintenance needs.
