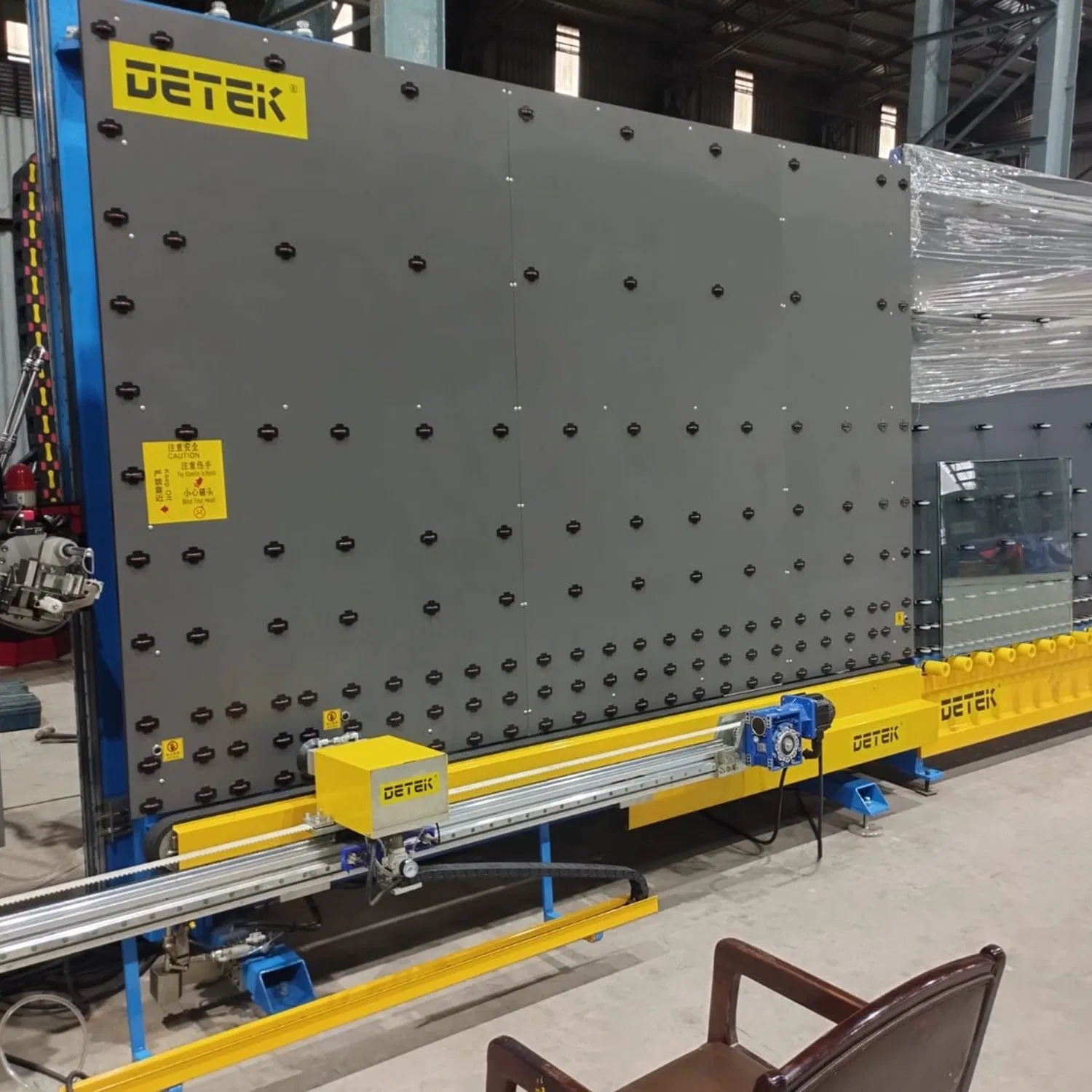

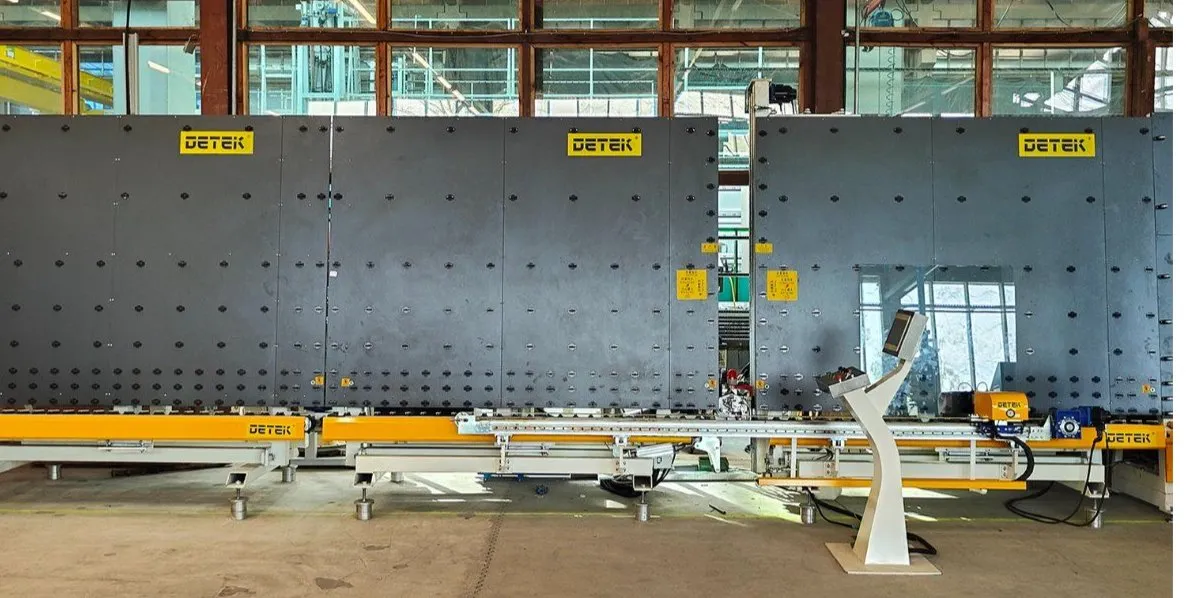

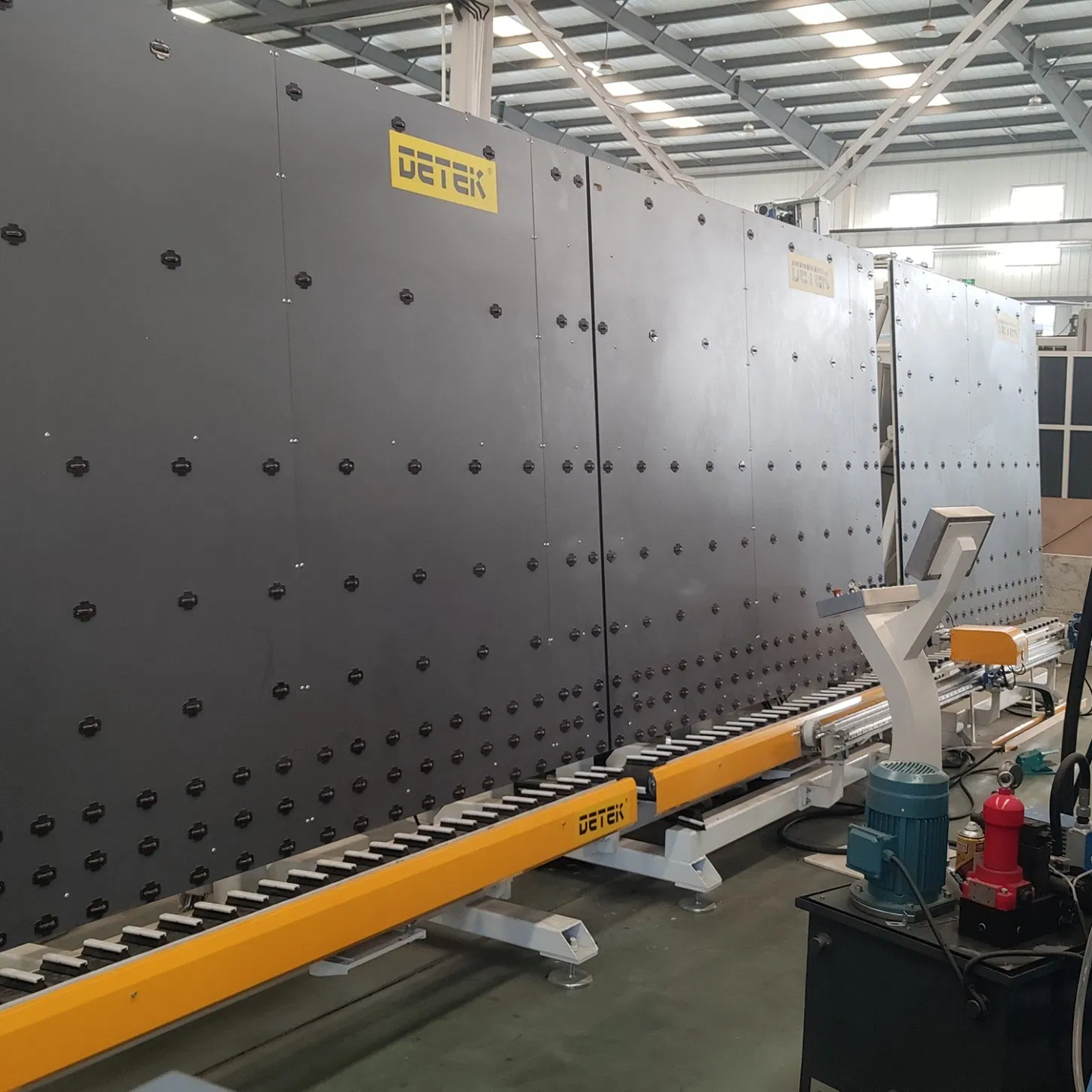

ASR2030 Automatic secondary sealant sealing robot
The ASR2030 is a fully automated secondary sealant application robot used in Insulating Glass Unit (IGU) production, designed to dispense silicone or polysulfide sealants. As a critical piece of equipment that directly influences the service life of insulating glass, it ensures consistent high-quality IGUs for glass processors.
| Parameter | Value |
|---|---|

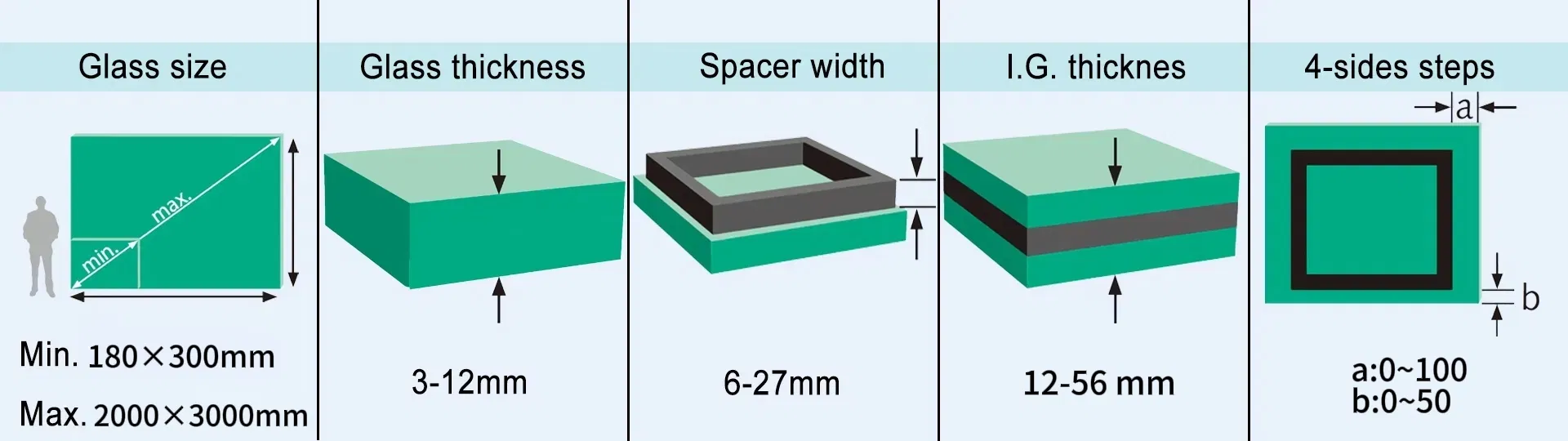

| Max. IGu size | 2000×3000mm |
| Min. IGu size | 300×300mm |
| IGu thickness | 12-56mm |
| Sealing depth | 3-18mm |
| Power supply | 3P 380V 50HZ 7KW |
| Air pressure | 0.6-0.8Mpa |
| Max. squeeze pressure | 32Mpa |
| Sealing speed | 5-40m/min |

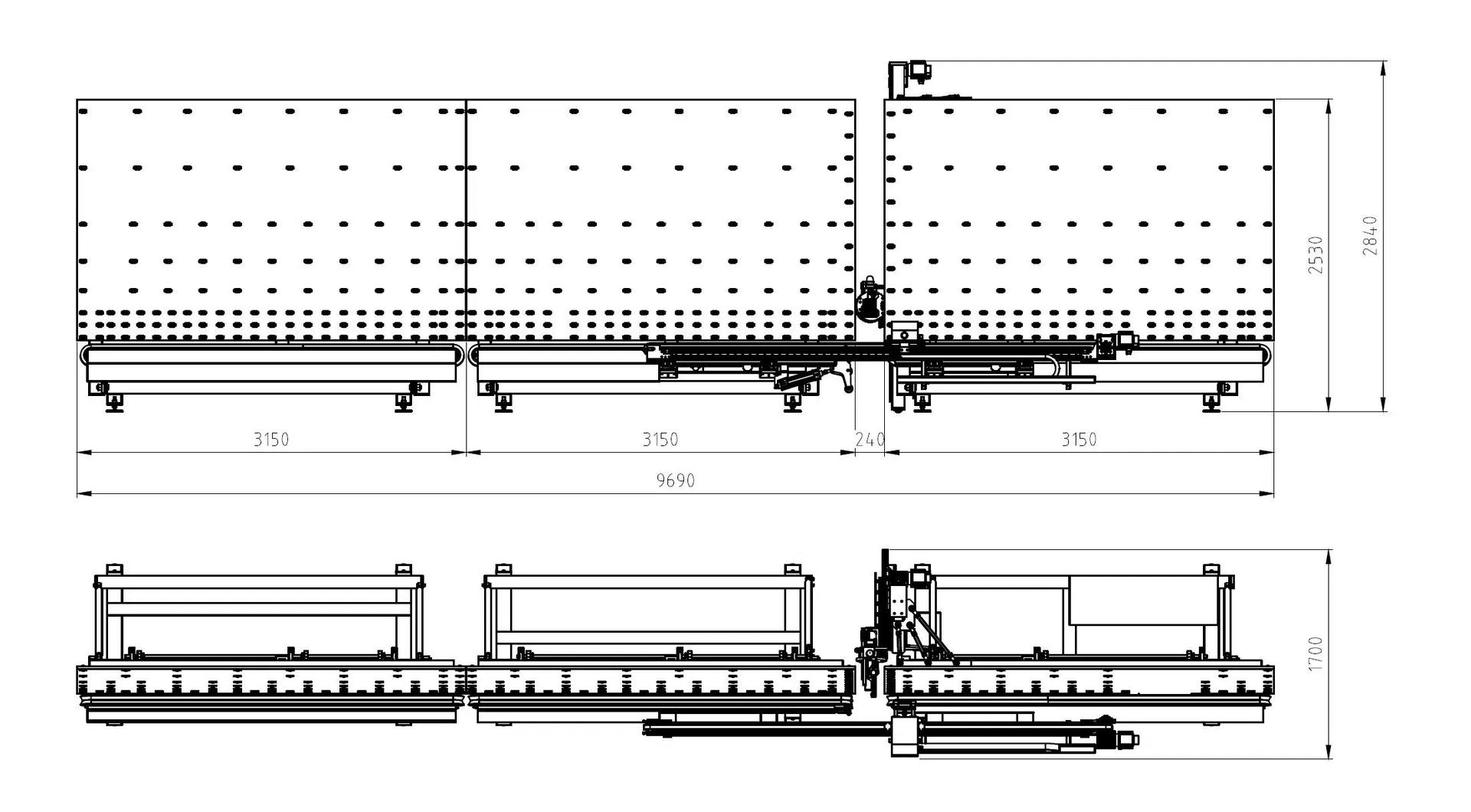

| Dimension | 9680×1400×2900mm |
| Name | Brand | Country |
|---|---|---|
| PLC / Servo driver / Servo motor | Yaskawa | Japan |
| Touching screen | WEINVIEW | Taiwan |
| Inveter | TECO | Taiwan |
| Breaker / Contactor / Relay | Schneider | French |
| Sensor / Proximity switch | AUTONICS | S. Korea |
| Solenoid / Air cylinder | Airtag | Taiwan |
| Proportional valve / Fine regulator | SMC | Japan |
