| Model NO. | SZA620 | Condition | New |
| Certification | ISO, CE, BV | Automatic Grade | Automatic |
| CNC or Not | CNC | Voltage | 380V |
| Weight | 8000 Kgs | Function | Sawing and Milling Aluminum Profiles |
| Application | Making Aluminum Window Door | Product Name | Aluminum Window Door Machining Center |
| Cutting Angle | 45/90/45 Degree | Saw Blade | 550 mm |
| Total Power | 46kw | Production Capacity | 20 Sets / Year |

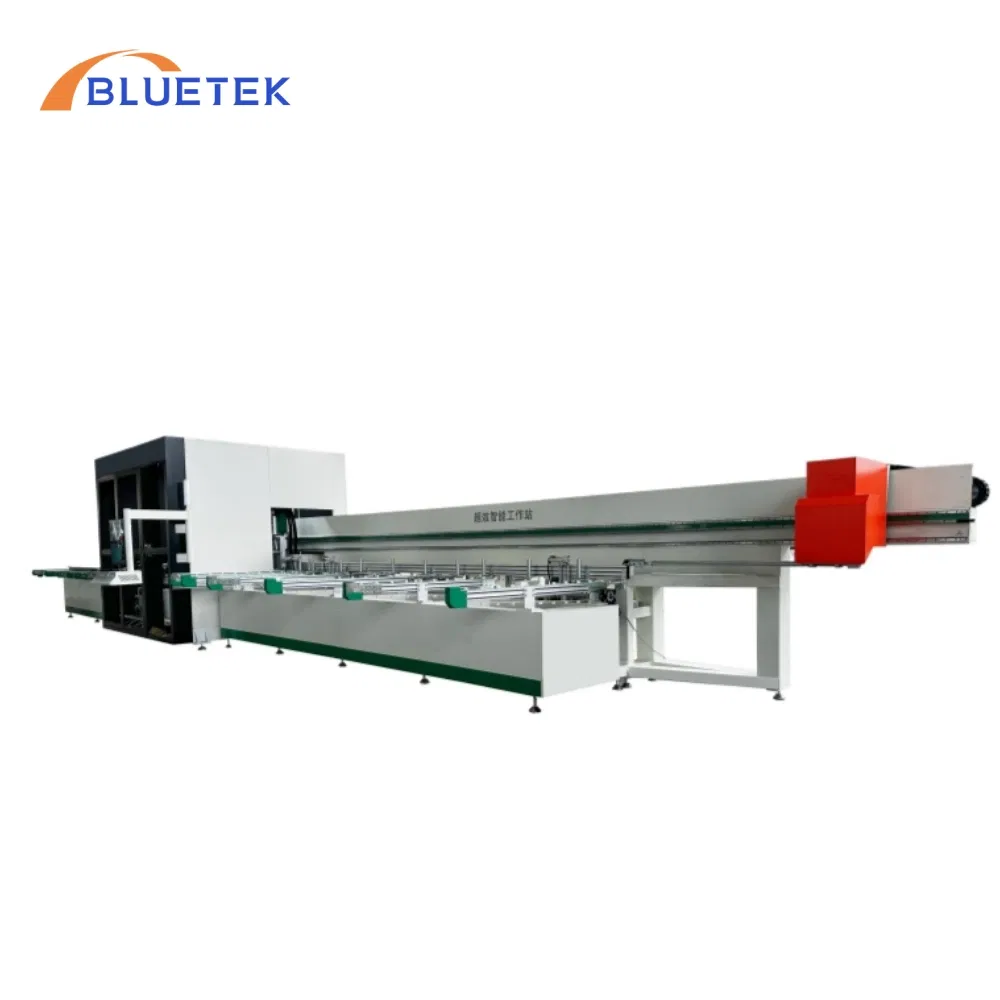

Model: SZA620

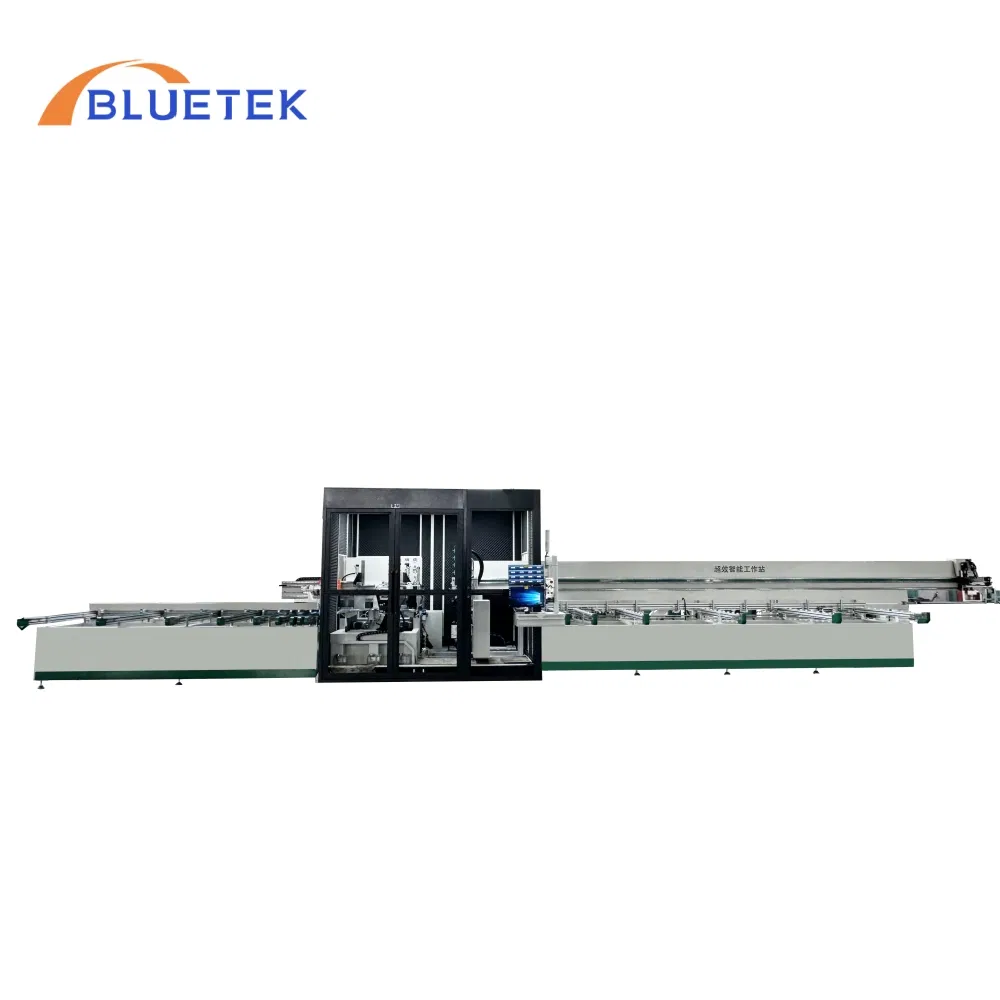

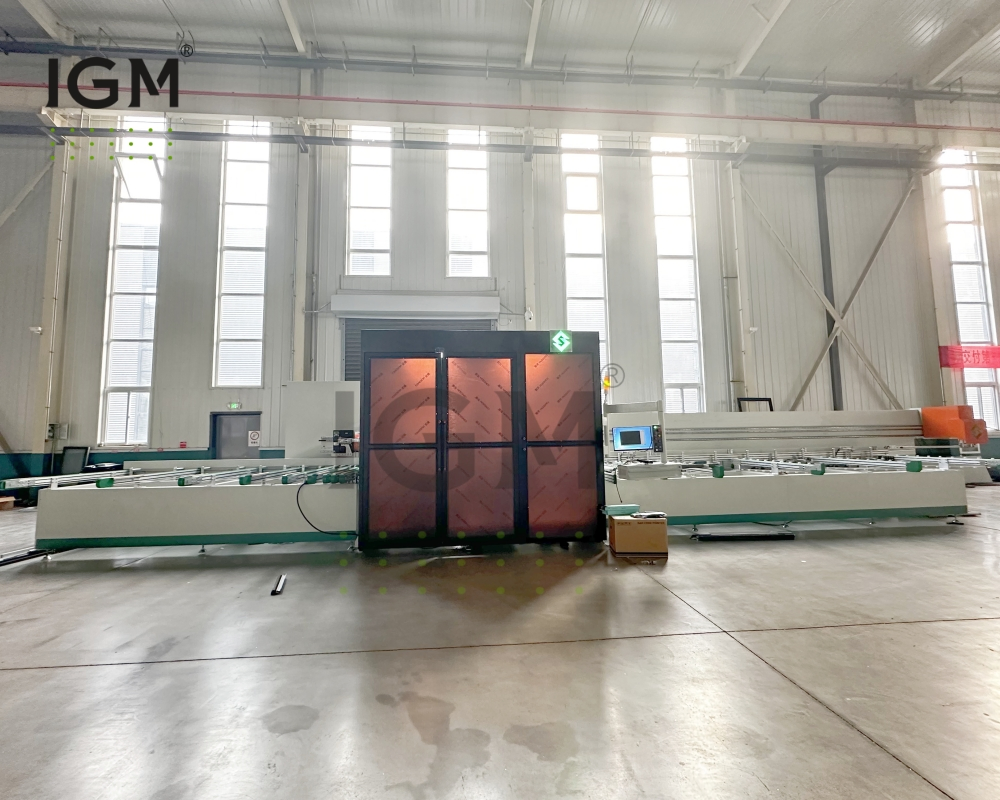

This CNC Aluminum Window Door Machining Center is designed for high-efficiency 45/90 degree angle cutting and milling of any holes for aluminum profiles.
| Parameter | Detail |
|---|---|
| Power Voltage | 380V 50Hz 3 Phase |
| Working Air Pressure | 0.6 ~0.8 Mpa |
| Air Consumption | 200 L / Min |
| Diameter of Saw Blades | Φ 550x4.4xΦ30mm 120T |
| Processing Range (H*W) | 150*180 mm |
| Max. Profile Length | 6500mm |
| Cutting Accuracy | ±0.1MM |
| Blade Cutting Speed | 20~25 M/min |
| Overall Dimensions | 17000*4000*3000 mm |
| Component | Brand / Source |
|---|---|
| Control System / Computer | HAN'S (China Top) |
| Servo Motor / Drive | INOVANCE (China Top) |
| Reduction Gear | Nidec (Japan) |
| Solenoid Valve | AirTAC (Taiwan China) |
| Electrical Components | Schneider (France) |
| Blades | Diamond Blade |

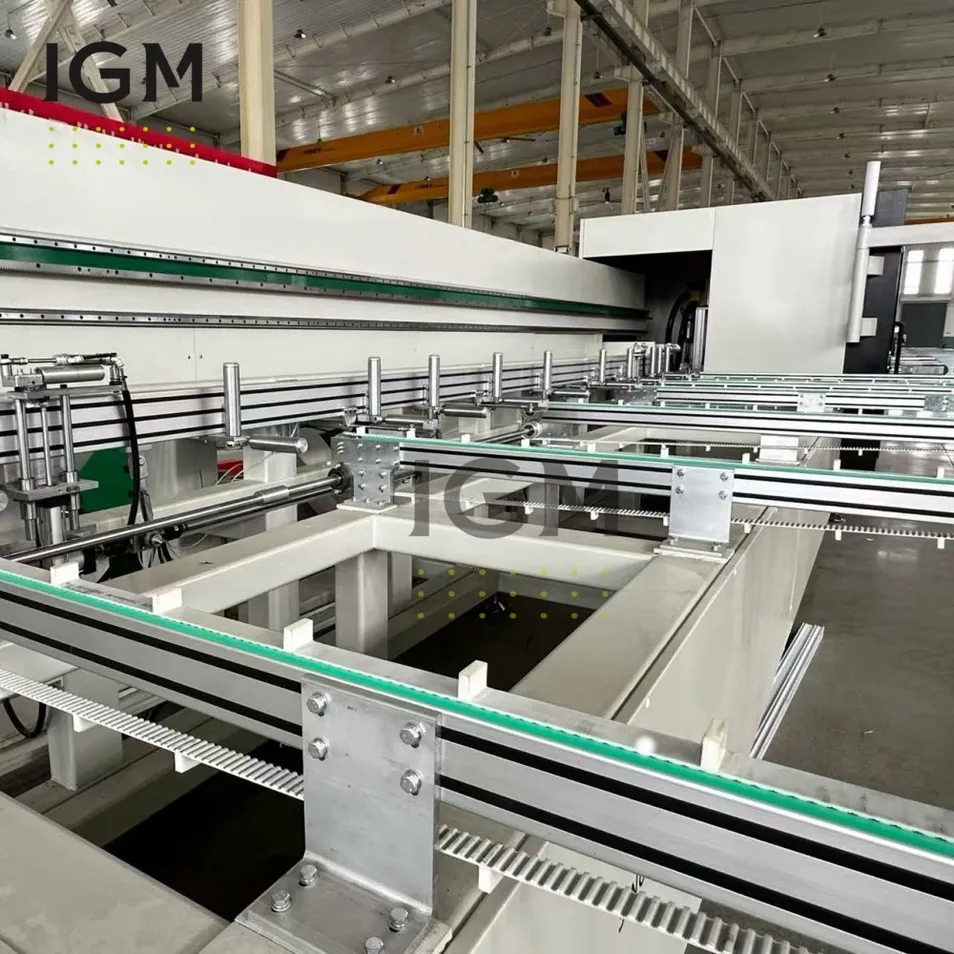

Loading Workbench: Cyclic placement for 9 profiles.

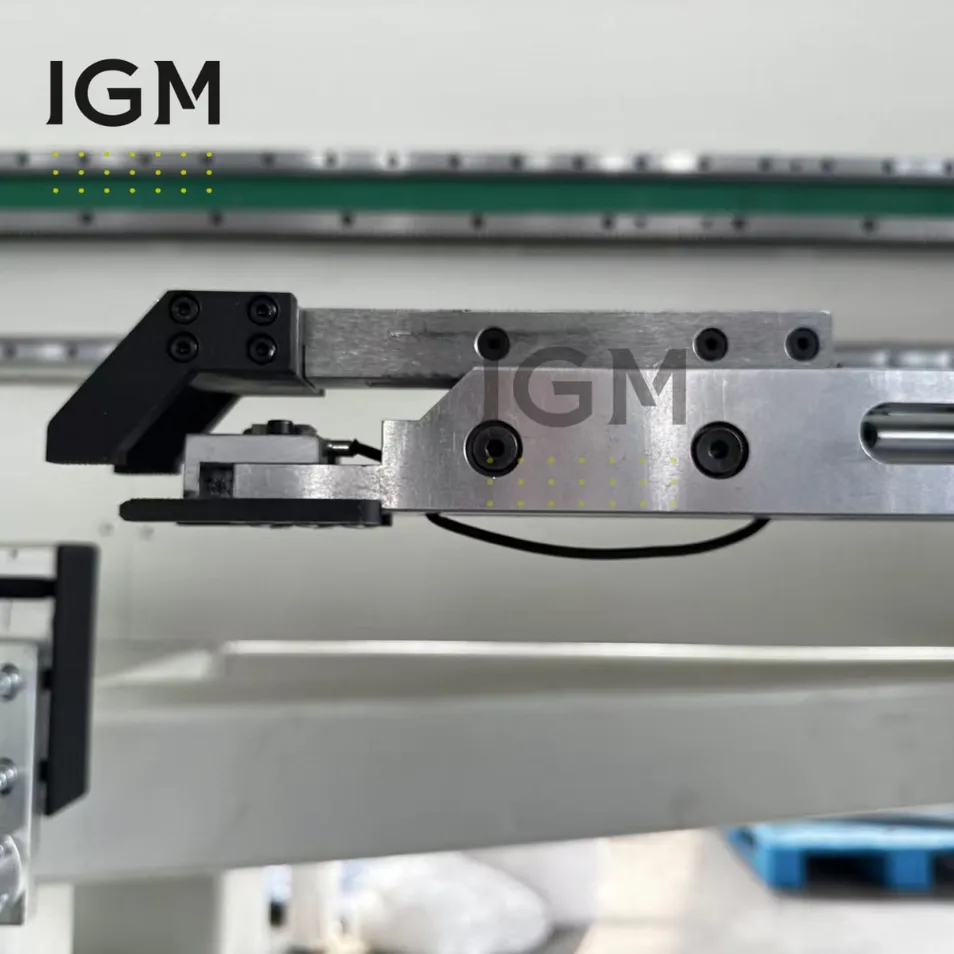

Feeding Robot: High-precision gear rack transmission.

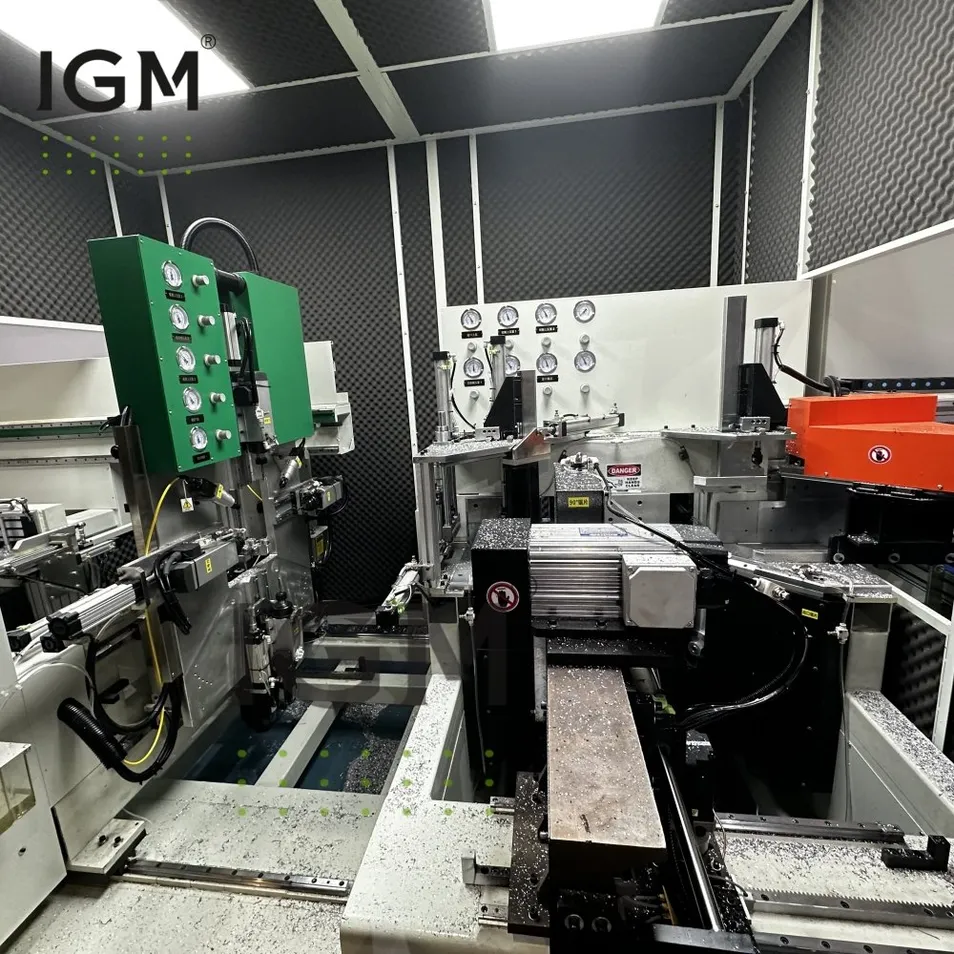

Processing Cabin: Simultaneous milling and cutting.

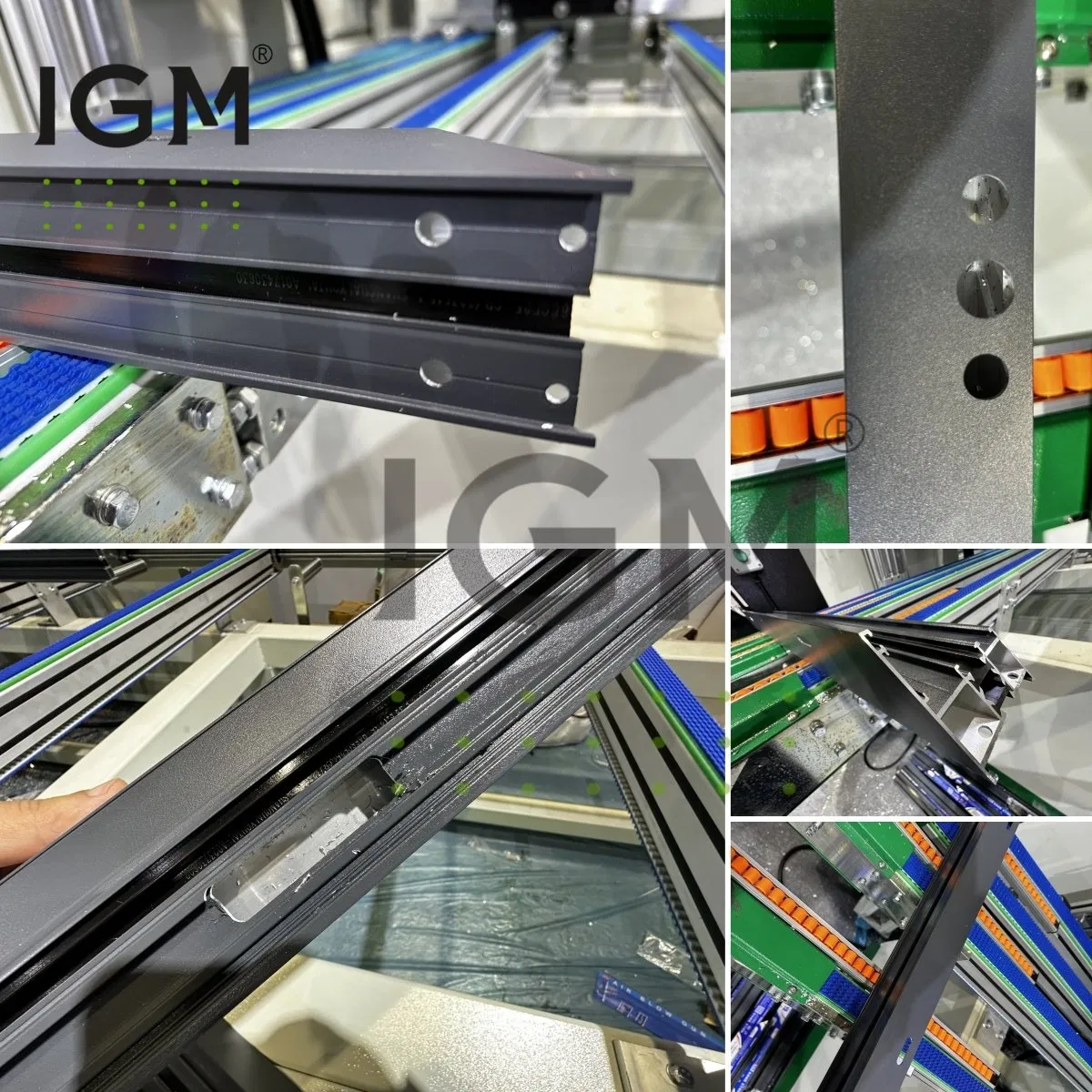

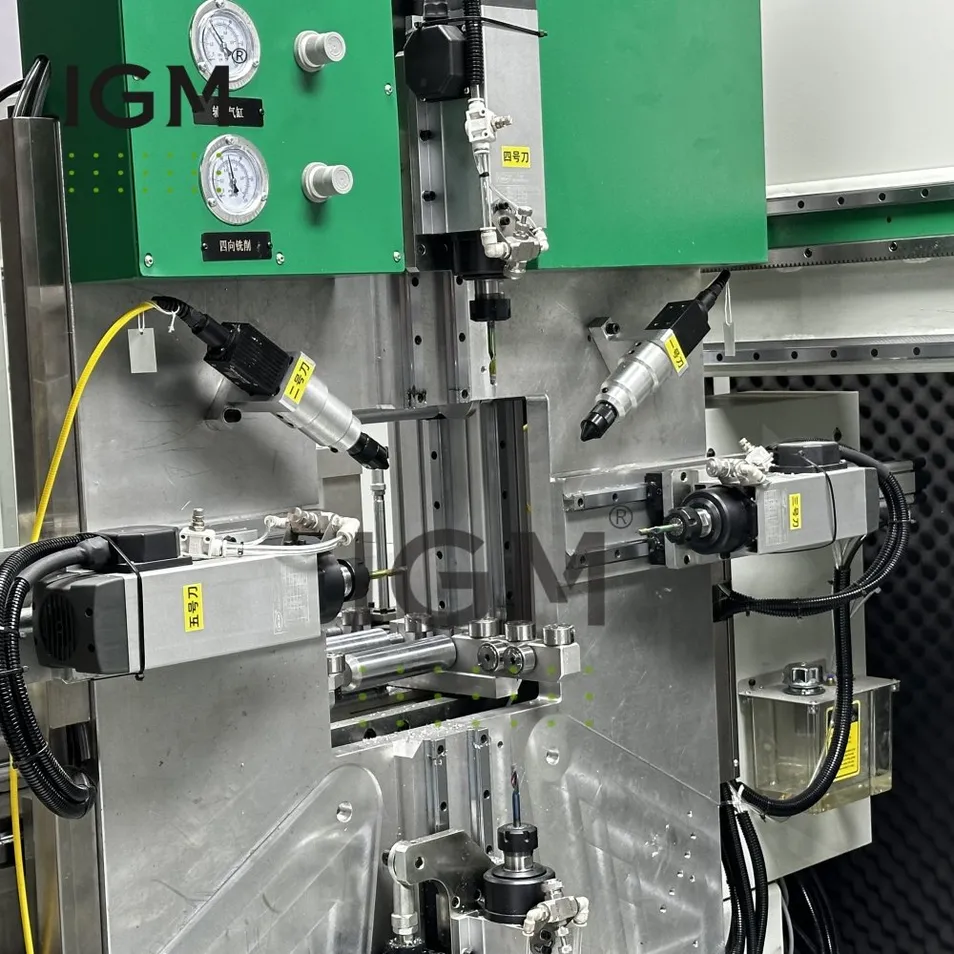

Milling Unit: 8 spindles for complex grooves.

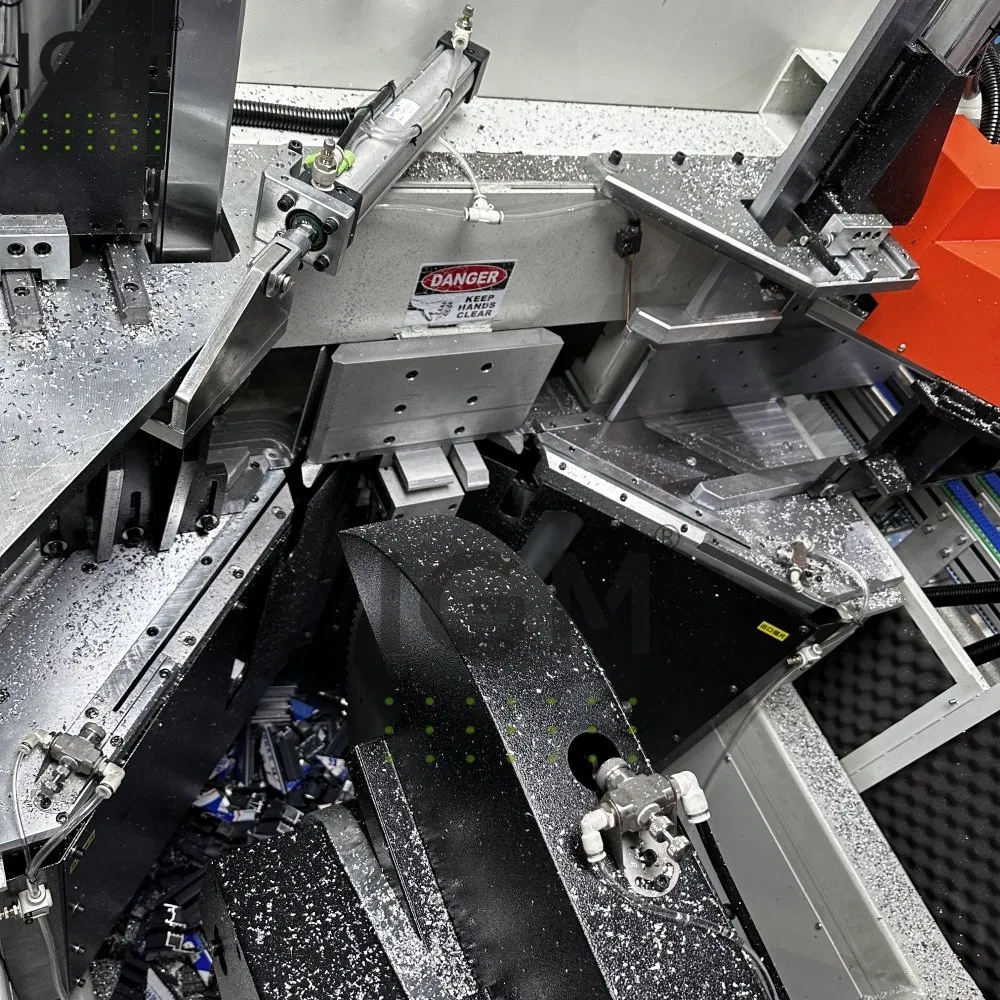

Sawing Unit: Precise 45/90 degree cutting.

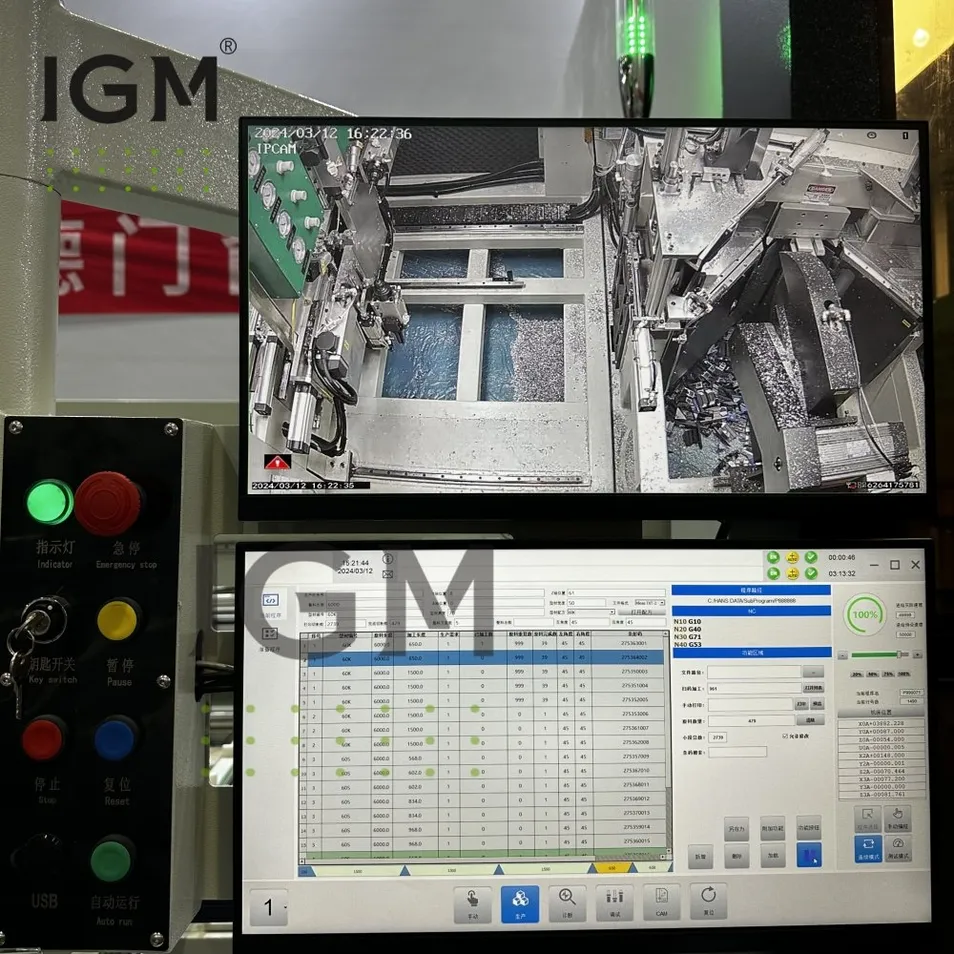

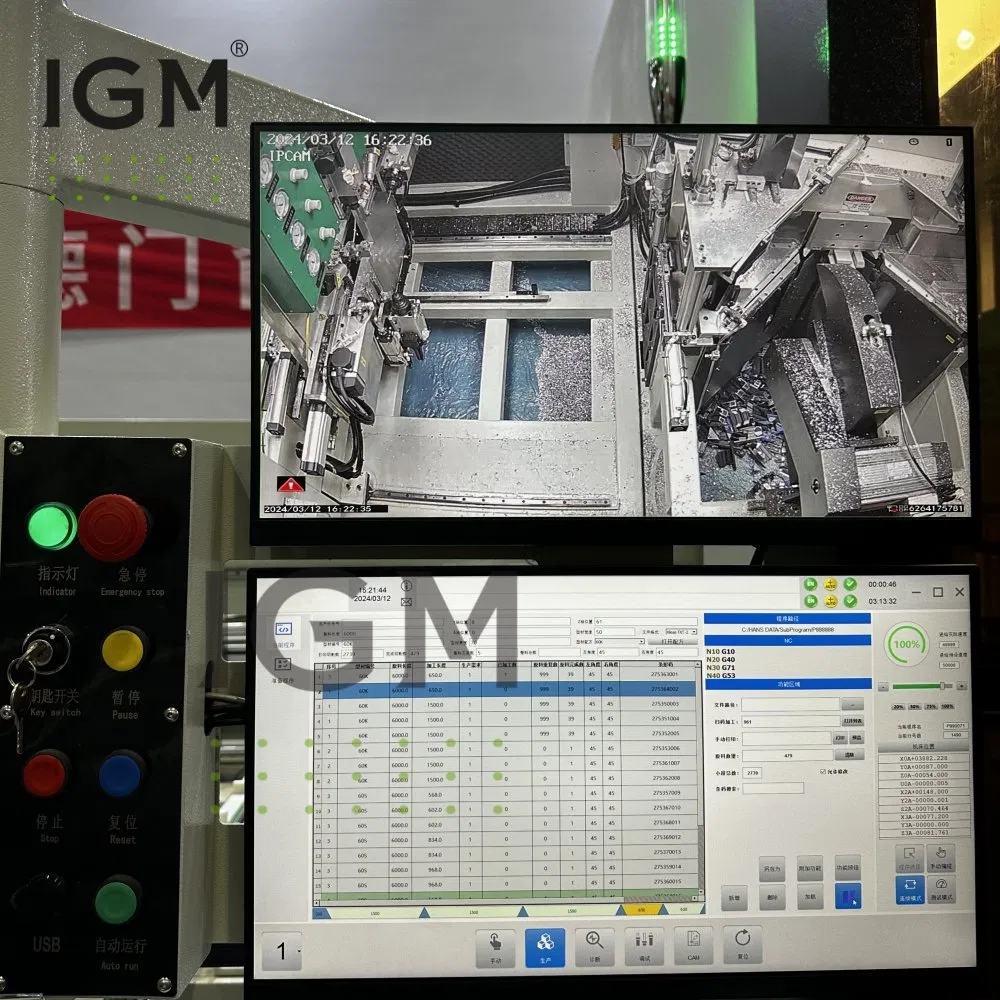

Control Center: Advanced Bus Servo control unit.

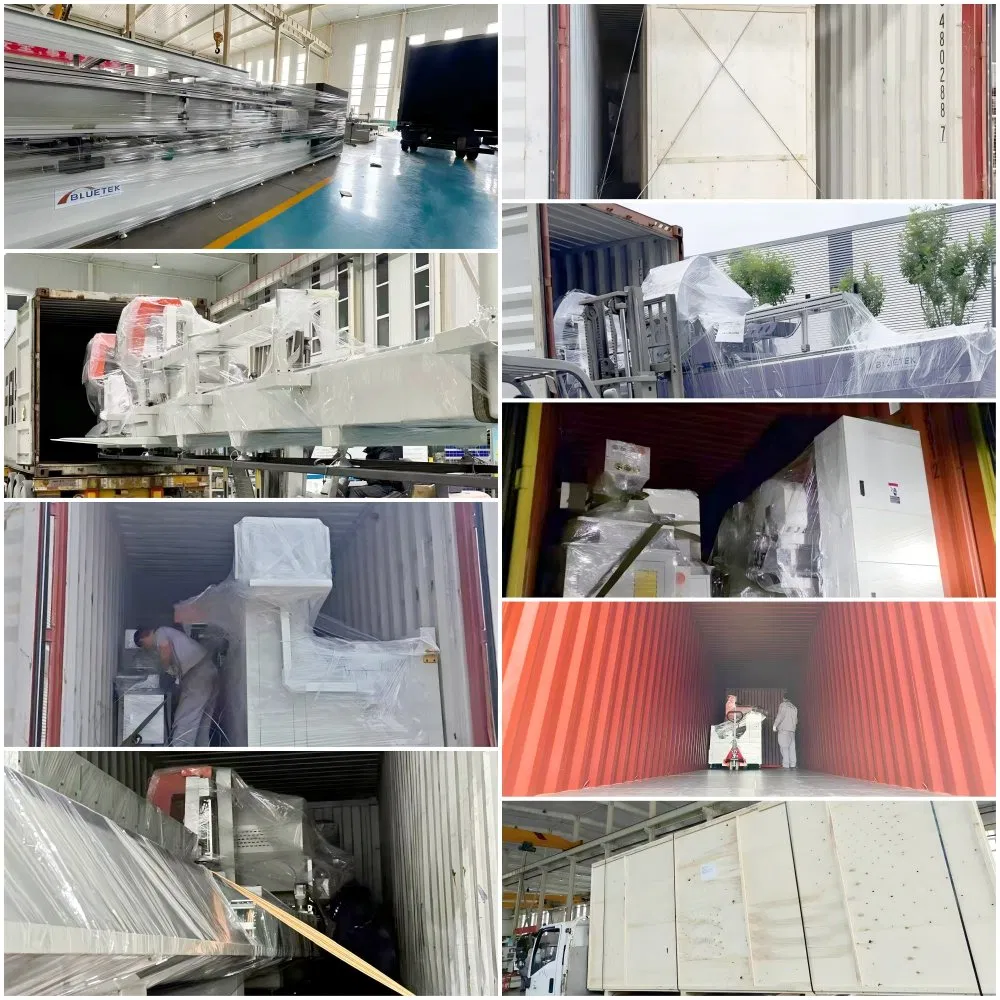

Machines are wrapped in plastic film and secured in 40-foot containers with steel wire. Fumigation-free wooden boxes are available upon request. High-size machines may require open-top cabinets.

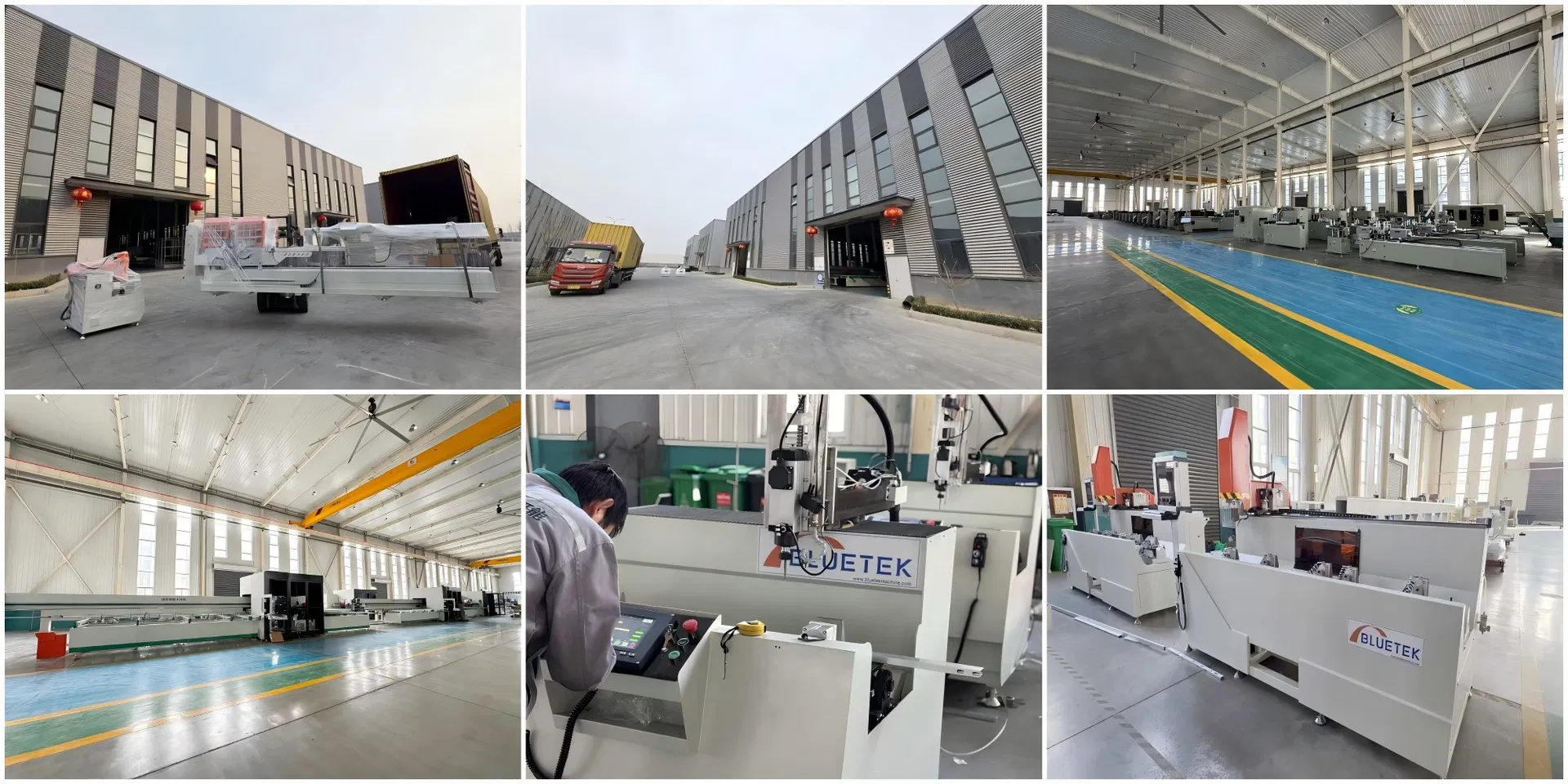

We are a leading enterprise specializing in the design, manufacturing, and distribution of high-quality aluminum window door machines, UPVC window door machines, and glass processing machines. Our products are engineered for precision and durability, serving global markets across North America, Europe, and the Middle East.
With standardized production processes and rigorous quality assurance, our machines deliver reliable performance and meet international standards.

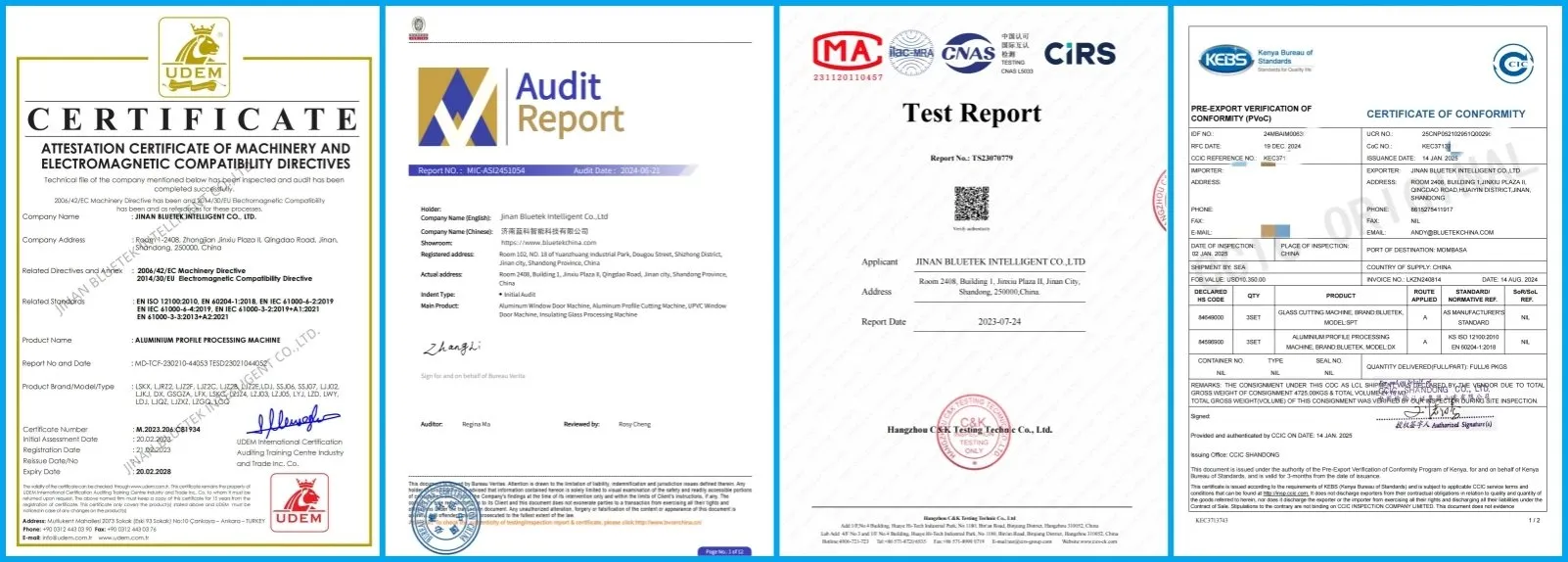

Our products have passed EU CE certification and US UL certification, ensuring compliance for export to over 50 countries including the USA, Canada, France, and Russia.
